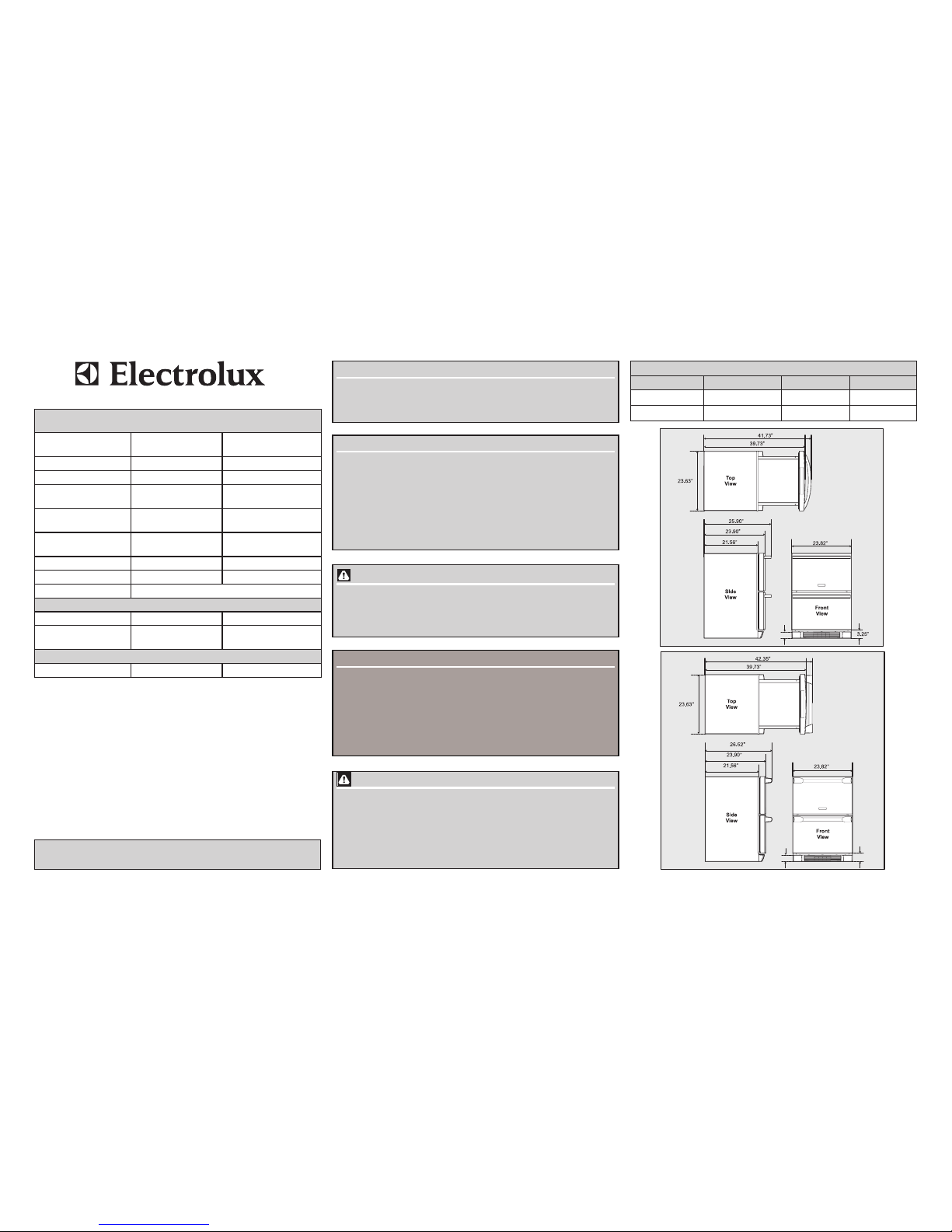

SERVICE DATA SHEET
242007200
REFRIGERATOR DRAWERS - R134a
IMPORTANT SAFETY NOTE
The information provided herein is designed to assist qualified repair
personnel only. Untrained persons should not attempt to make repairs
due to the possibility of electrical shock. Disconnect power cord before
servicing this appliance.
IMPORTANT
If any green grounding wires are removed during servicing, they must
be returned to their original position and properly secured.
CAUTION
All electrical parts and wiring must be shielded from torch flame.
DO NOT allow torch to touch insulation; it will char at 200°F
and flash ignite (burn) at 500°F. Excessive heat will distort the
plastic liner.
PERFORMANCE DATA NO LOAD & NO DOOR OPENINGS
AT MID-POINT CONTROL SETTING
Type A with Run/Start
Capacitor 65°F (18°C) Ambient 90°F (32°C) Ambient
Operating Time N/A 30 to 50%
Temperature 34º F to 45º F 34º F to 45º F
Low Side Pressure
(cut-in)
30 to 45 psig
208 to 310 kPa
30 to 45 psig
208 to 310 kPa
Low Side Pressure
(cut-out)
-2 to 4 psig
-14 to 28 kPa
-2 to 4 psig
-14 to 28 kPa
High Side Pressure
(last 1/3 cycle)
90 to 120 psig
621 to 827 kPa
130 to 175 psig
896 to 1207 kPa
Wattage (last 1/3 cycle) 85 to 125 85 to 125
Amps (running) .75 to 1.2 .75 to 1.2
Base Voltage 115 vac (127 vac max)
CONDENSER FAN MOTOR
Watts RPM Amps
3.1 1100 CW Opposite
Shaft 0.03 Running
EVAPORATOR FAN MOTOR
1.7 each 9000 .02 each
2.75”
ICONTM Unit Dimensions
Model Width Height Depth
Designer 2313/16 inch 34-35 inches 263/4inch
Professional 2313/16 inch 34-35 inches 263/4inch
NOTE
Your Electrolux refrigerator drawers has been designed for built-
in installation. Your refrigerator drawers do not require additional
air space for top, sides or rear. The front grille must NOT be
obstructed.
To ease unit installation and removal, it is recommended that the
cabinet rough opening dimensions be increased by at least ¼ inch
over the dimensions given for your unit.
IMPORTANT: PLEASE RETURN THIS SHEET TO IT’S
ORIGINAL LOCATION.
WARNING
Double drawer Refrigerator Drawers are designed to be built-
in only. They can not be used for free-standing.
All screws supplied with the Anti-Tip Kit are for mounting
the bracket directly to wall studs.These screws will not work
if used with sheetrock (dry wall) or anything other than wall
studs.
2.75” 3.25”
ICONTM
Designer
ICONTM
Professional

NC PB SWITCH
BOTTOMDRAWERSWITCH
