Electrolux EN93852JX User manual

EN93852JX
EN93852JW
EN FRIDGE FREEZER USER MANUAL

CONTENTS
1. SAFETY INFORMATION............................................................................................ 3
2. SAFETY INSTRUCTIONS.......................................................................................... 4
3. PRODUCT DESCRIPTION.........................................................................................6
4. OPERATION..............................................................................................................7
5. DAILY USE................................................................................................................ 8
6. HINTS AND TIPS.....................................................................................................10
7. CARE AND CLEANING........................................................................................... 11
8. TROUBLESHOOTING............................................................................................. 13
9. INSTALLATION....................................................................................................... 15
10. TECHNICAL INFORMATION..................................................................................19
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings
with it decades of professional experience and innovation. Ingenious and stylish, it has
been designed with you in mind. So whenever you use it, you can be safe in the
knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
2 www.electrolux.com

1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Do not let children play with the appliance.
•Cleaning and user maintenance shall not be made by
children without supervision.
•Keep all packaging away from children.
1.2 General Safety
•This appliance is intended to be used in household and
similar applications such as:
–Farm houses; staff kitchen areas in shops, offices
and other working environments
–By clients in hotels, motels, bed and breakfast and
other residential type environments
•Keep ventilation openings, in the appliance enclosure or
in the built-in structure, clear of obstruction.
•Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
•Do not damage the refrigerant circuit.
•Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the
type recommended by the manufacturer.
•Do not use water spray and steam to clean the
appliance.
ENGLISH 3

•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
•Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Make sure the air can circulate around
the appliance.
• Wait at least 4 hours before connecting
the appliance to the power supply. This
is to allow the oil to flow back in the
compressor.
• Do not install the appliance close to
radiators or cookers, oven or hobs.
• The rear of the appliance must stand
against the wall.
• Do not install the appliance where
there is direct sunlight.
• Do not install this appliance in areas
that are too humid or too colds, such
as the construction appendices,
garages or wine cellars.
• When you move the appliance, lift it by
the front edge to avoid scratching the
floor.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
electrical components (e.g. mains plug,
mains cable, compressor). Contact the
Service or an electrician to change the
electrical components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
2.3 Use
WARNING!
Risk of injury, burns, electrical
shock or fire.
• Do not change the specification of this
appliance.
• Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by
the manufacturer.
• Be careful not to cause damage to the
refrigerant circuit. It contains isobutane
(R600a), a natural gas with a high level
of environmental compatibility. This gas
is flammable.
www.electrolux.com4

• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the plastic
parts of the appliance.
• Do not put soft drinks in the freezer
compartment. This will create pressure
on the drink container.
• Do not store flammable gas and liquid
in the appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
• Do not remove or touch items from the
freezer compartment if your hands are
wet or damp.
• Do not freeze again food that has been
thawed.
• Obey the storage instructions on the
packaging of frozen food.
2.4 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• This appliance contains hydrocarbons
in the cooling unit. Only a qualified
person must do the maintenance and
the recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the appliance.
2.5 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the insulation
materials of this appliance are ozone-
friendly.
• The insulation foam contains flammable
gas. Contact your municipal authority
for information on how to discard the
appliance correctly.
• Do not cause damage to the part of
the cooling unit that is near the heat
exchanger.
ENGLISH 5

3. PRODUCT DESCRIPTION
3.1 Product overview
8541 73
10 9
62
1FreshZone drawer
2Cabinet shelves
3FreeStore function
4Bottle rack
5Control panel
6Door shelves
7Bottle shelf
8Freezer drawers
9Rating plate
www.electrolux.com6

4. OPERATION

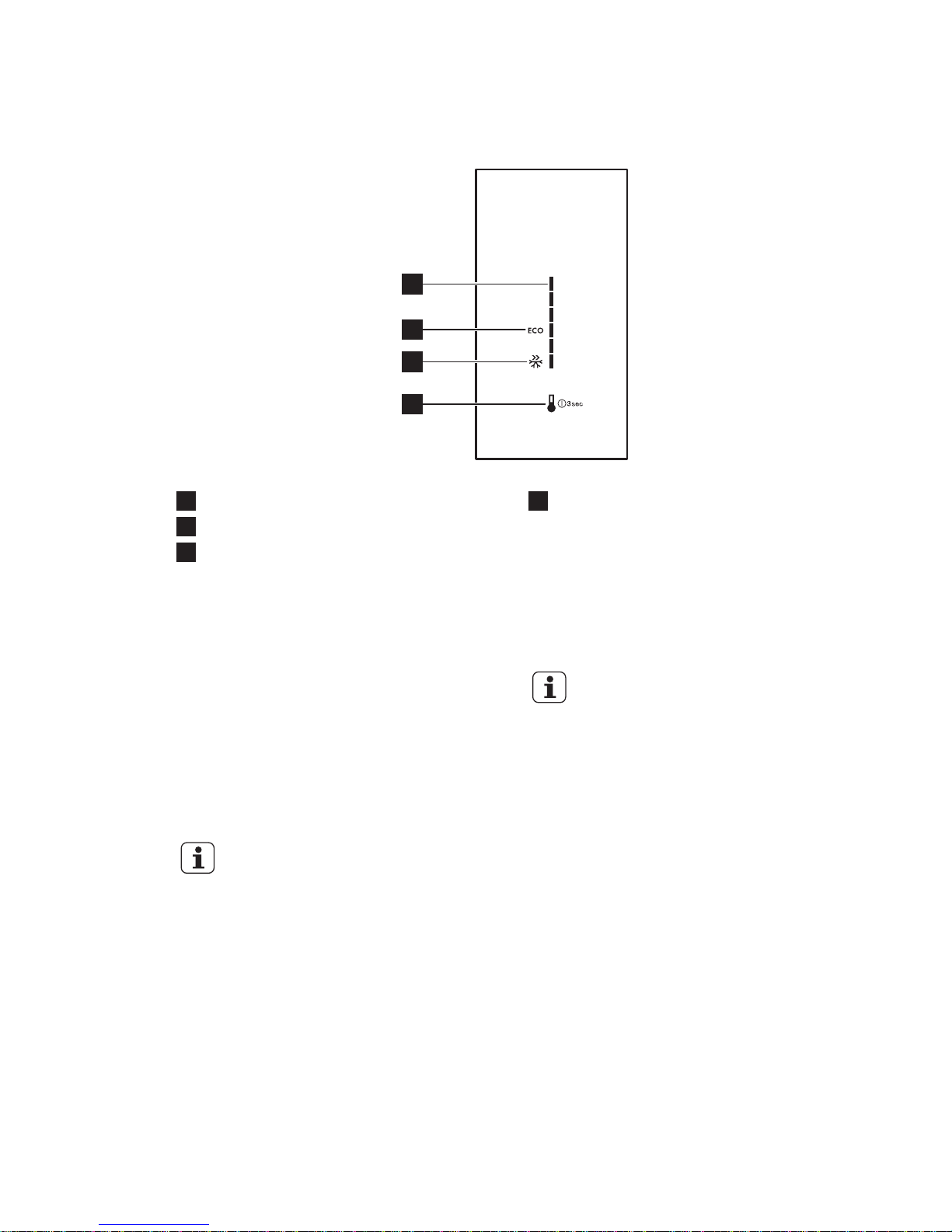

4.1 Control panel
5°
8°
2°
1
2
3
4
1Temperature scale
2EcoMode icon
3FastFreeze icon
4Temperature key and ON/OFF key
4.2 ON/OFF
Plug the appliance into electrical mains
socket.
1. To turn ON the appliance, touch the
ON/OFF key until all LEDs
corresponding to temperature scale
light up.
2. Turn OFF the appliance by pressing
the ON/OFF key for 3 seconds.
All LEDs will turn off.
After turning on the
appliance, the temperature
will be set on default settings
which correspond to
EcoMode.
4.3 Temperature regulation
To operate the appliance, touch the
temperature key until the LED
corresponding to the required temperature
lights up. Selection is progressive, varying
from 2 to 8°C.
Any time the key is touch the set
temperature is moved to 1 position .
Corresponding LED will light up.
Touch the temperature key until the
required temperature is selected. The set
will be fixed.
Coldest setting: +2°C.
Warmest setting: +8°C.
A setting corresponding to
EcoMode is the most
suitable.
However, the exact setting should be
chosen keeping in mind that the
temperature inside the appliance depends
on:
• room temperature
• how often the door is opened
• quantity of food stored
• appliance location.
4.4 EcoMode
To activate EcoMode press the
temperature key until LED, next to
EcoMode icon, lights up on the control
panel.
ENGLISH 7

This settings guarantee
minimum energy
consumption and proper
food preservation
characteristics.
4.5 FastFreeze function
If you need to insert a large amount of
warm food into fridge compartment (for
example after doing the grocery shopping)
or rapidly decrease the temperature in the
freezer compartment to freeze fresh food
quickly, we suggest activating FastFreeze
function for proper food storage.
FastFreeze function can be activated by
setting the temperature to 2°C.
You can deactivate FastFreeze function by
pressing the temperature key.
This function stops
automatically after 52 hours.
This function corresponds to
fridge and freezer
compartment.
4.6 Door open alarm
An alarm is activated if the door is left
open for a few minutes. The door open
alarm conditions are indicated by flashing
the LED indicator of the current set
temperature.
When normal conditions are restored
(door closed), the alarm will stop.
4.7 High temperature alarm
An increase in the temperature in the
freezer compartment (for example due to
an earlier power failure or door is open) is
indicated by flashing the LED indicator of
the current set temperature.
The alarm indicator continues
to flash until the normal
conditions are restored.
5. DAILY USE
5.1 Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen and
deep-frozen food for a long time.
To freeze fresh food activate the
FastFreeze function at least 24 hours
before placing the food to be frozen in the
freezer compartment.
Place the fresh food to be frozen in the
bottom compartment.
The maximum amount of food that can be
frozen in 24 hours is specified on the
rating plate, a label located on the inside
of the appliance.
The freezing process lasts 24 hours:
during this period do not add other food
to be frozen.
When the freezing process is completed,
return to the required temperature (see
"FastFreeze Function").
In this condition, the
refrigerator compartment
temperature might drop
below 0°C. If this occurs
reset the temperature
regulator to a warmer setting.
5.2 Storage of frozen food
When first starting-up or after a period out
of use, before putting the products in the
compartment let the appliance run at least
2 hours with the FastFreeze function
turned on.
If large quantities of food are to be stored,
remove all drawers from appliance and
place food on glass shelf to obtain the
best performance.
www.electrolux.com8

In the event of accidental
defrosting, for example due
to a power failure, if the
power has been off for longer
that the value shown in the
technical data chart under
"Rising time", the defrosted
food must be consumed
quickly or cooked
immediately and then re-
frozen (after cooling).
5.3 Thawing
Deep-frozen or frozen food, prior to being
used, can be thawed in the refrigerator
compartment or at room temperature,
depending on the time available for this
operation.
Small pieces may even be cooked still
frozen, directly from the freezer: in this
case, cooking will take longer.
5.4 FREESTORE function
The FREESTORE function let food cool
quickly and a more uniform temperature in
the compartment.
Switch on the FREESTORE
function when the ambient
temperature exceeds 25°C.
Press the switch (A) to switch on the
FREESTORE.
The green light (B) comes on.
A
B
5.5 Movable shelves
The walls of the refrigerator are equipped
with a series of shelves support so that
the shelves can be positioned as desired.
Some shelves must be lifted up by the
rear edge to enable them to be removed.
Do not move the glass shelf
above the vegetable drawer
to ensure correct air
circulation.
5.6 Bottle rack
Place the bottles (with the opening facing
front) in the pre-positioned shelf.
Place only closed bottles.
ENGLISH 9

5.7 FreshZone drawer
The drawer is suitable for storing fresh
food like fish, meat, seafood, because the
temperature is lower here than in the rest
of the fridge.
5.8 Removal of freezing baskets
from the freezer
The freezing baskets have a limit stop to
prevent their accidental removal or falling
out. At the time of its removal from the
freezer, pull the basket towards yourself
and, upon reaching the end point, remove
the basket by tilting its front upwards.
2
1
At the time of putting it back, slightly lift
the front of the basket to insert it into the
freezer. Once you are over the end points,
push the baskets back in their position.
6. HINTS AND TIPS
6.1 Normal operating sounds
The following sounds are normal during
operation:
• A faint gurgling and bubbling sound
from coils sound when refrigerant is
pumped.
• A whirring and pulsating sound from
the compressor when refrigerant is
pumped.
• A sudden cracking noise from inside
appliance caused by thermic dilatation
(a natural and not dangerous physical
phenomenon).
• A faint click noise from the temperature
regulator when the compressor
switches on or off.
6.2 Hints for energy saving
• Do not open the door frequently or
leave it open longer than absolutely
necessary.
6.3 Hints for fresh food
refrigeration
To obtain the best performance:
• do not store warm food or evaporating
liquids in the refrigerator
• do cover or wrap the food, particularly
if it has a strong flavour
• position food so that air can circulate
freely around it
6.4 Hints for refrigeration
Useful hints:
• Meat (all types) : wrap in polythene
bags and place on the glass shelf
above the vegetable drawer.
• For safety, store in this way only one or
two days at the most.
• Cooked foods, cold dishes, etc..: these
should be covered and may be placed
on any shelf.
• Fruit and vegetables: these should be
thoroughly cleaned and placed in the
special drawer(s) provided.
• Butter and cheese: these should be
placed in special airtight containers or
wrapped in aluminium foil or polythene
bags to exclude as much air as
possible.
• Bottles: these need a cap and should
be stored on the door bottle shelf, or (if
equipped) on the bottle rack.
• Bananas, potatoes, onions and garlic,
if not packed, must not be kept in the
refrigerator.
www.electrolux.com10

6.5 Hints for freezing
To help you make the most of the freezing
process, here are some important hints:
• the maximum quantity of food which
can be frozen in 24 hrs. is shown on
the rating plate;
• the freezing process takes 24 hours.
No further food to be frozen should be
added during this period;
• freeze only top quality, fresh and
thoroughly cleaned, foodstuffs;
• prepare food in small portions to
enable it to be rapidly and completely
frozen and to make it possible
subsequently to thaw only the quantity
required;
• wrap up the food in aluminium foil or
polythene and make sure that the
packages are airtight;
• do not allow fresh, unfrozen food to
touch food which is already frozen,
thus avoiding a rise in temperature of
the latter;
• lean foods store better and longer than
fatty ones; salt reduces the storage life
of food;
• water ices, if consumed immediately
after removal from the freezer
compartment, can possibly cause the
skin to be freeze burnt;
• it is advisable to show the freezing in
date on each individual pack to enable
you to keep tab of the storage time.
6.6 Hints for storage of frozen
food
To obtain the best performance from this
appliance, you should:
• make sure that the commercially frozen
foodstuffs were adequately stored by
the retailer;
• be sure that frozen foodstuffs are
transferred from the foodstore to the
freezer in the shortest possible time;
• not open the door frequently or leave it
open longer than absolutely necessary;
• once defrosted, food deteriorates
rapidly and cannot be refrozen;
• do not exceed the storage period
indicated by the food manufacturer.
7. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
7.1 General warnings
CAUTION!
Unplug the appliance before
carrying out any maintenance
operation.
This appliance contains
hydrocarbons in its cooling
unit; maintenance and
recharging must therefore
only be carried out by
authorized technicians.
The accessories and parts of
the appliance are not suitable
for washing in a dishwasher.
7.2 Initial power on
CAUTION!
Before inserting the power
plug in to the outlet and
switching on the cabinet for
the first time, leave the
appliance standing upright for
at least 4 hours. This will
assure a sufficient amount of
time for the oil to return to the
compressor. Otherwise the
compressor or electronic
components may sustain
damage.
7.3 Cleaning the interior
Before using the appliance for the first
time, the interior and all internal
accessories should be washed with
lukewarm water and some neutral soap to
remove the typical smell of a brand-new
product, then dried thoroughly.
ENGLISH 11

CAUTION!
Do not use detergents or
abrasive powders, as these
will damage the finish.
7.4 Periodic cleaning
CAUTION!
Do not pull, move or damage
any pipes and/or cables
inside the cabinet.
CAUTION!
Take care of not to damage
the cooling system.
CAUTION!
When moving the cabinet, lift
it by the front edge to avoid
scratching the floor.
The equipment has to be cleaned
regularly:
1. Clean the inside and accessories with
lukewarm water and some neutral
soap.
2. Regularly check the door seals and
wipe clean to ensure they are clean
and free from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser and
the compressor at the back of the
appliance with a brush.
This operation will improve the
performance of the appliance and
save electricity consumption.
The lowest shelf, dividing the cooler
compartment from the compartment can
be removed only for cleaning. To remove
pull out the shelf straight.
To make sure fully
functionality of the FreshZone
compartment the lowest shelf
and cover plates must be put
back in their original position
after cleaning.
The cover plates above the drawers in the
compartment can be taken out for
cleaning.
7.5 Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
1. Disconnect the appliance from
electricity supply.
2. Remove all food.
3. Clean the appliance and all
accessories.
4. Leave the door/doors open to prevent
unpleasant smells.
WARNING!
If the cabinet will be kept on,
ask somebody to check it
once in a while to prevent the
food inside from spoiling in
case of a power failure.
7.6 Defrosting of the refrigerator
Frost is automatically eliminated from the
evaporator of the refrigerator
compartment every time the motor
compressor stops, during normal use. The
defrost water drains out through a trough
into a special container at the back of the
appliance, over the motor compressor,
where it evaporates.
It is important to periodically clean the
defrost water drain hole in the middle of
the refrigerator compartment channel to
prevent the water overflowing and
dripping onto the food inside.
7.7 Defrosting the freezer
The freezer compartment is frost free. This
means that there is no build up of frost
when it is in operation, neither on the
internal walls nor on the foods.
The absence of frost is due to the
continuous circulation of cold air inside the
www.electrolux.com12

compartment, driven by an automatically
controlled fan.
8. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
8.1 What to do if...
Problem Possible cause Solution
The appliance does not op-
erate.
The appliance is switched
off.
Switch on the appliance.
The mains plug is not
connected to the mains
socket correctly.
Connect the mains plug to
the mains socket correctly.
There is no voltage in the
mains socket.
Connect a different electrical
appliance to the mains sock-
et. Contact a qualified electri-
cian.
The appliance is noisy. The appliance is not sup-
ported properly.
Check if the appliance stands
stable.
Audible or visual alarm is
on.
The cabinet has been re-
cently switched on or the
temperature is still too
high.
Refer to "Door Open Alarm"or
"High Temperature Alarm".
The temperature in the
appliance is too high.
Refer to "Door Open Alarm"or
"High Temperature Alarm".
The door is left open. Close the door.
The temperature in the
appliance is too high.
Contact a qualified electrician
or contact the nearest Au-
thorised Service Centre.
The lamp does not work. The lamp is in stand-by. Close and open the door.
The lamp does not work. The lamp is defective. Contact the nearest Author-
ised Service Centre.
The compressor operates
continually.
Temperature is set incor-
rectly.
Refer to "Operation" chapter.
Many food products were
put in at the same time.
Wait some hours and then
check the temperature again.
The room temperature is
too high.
Refer to climate class chart
on the rating plate.
ENGLISH 13

Problem Possible cause Solution
Food products placed in
the appliance were too
warm.
Allow food products to cool
to room temperature before
storing.
The door is not closed
correctly.
Refer to "Closing the door".
The FastFreeze function is
switched on.
Refer to "FastFreeze func-
tion".
The compressor does not
start immediately after
pressing the FastFreeze, or
after changing the tempera-
ture.
This is normal, no error
has occurred.
The compressor starts after a
period of time.
Water flows inside the re-
frigerator.

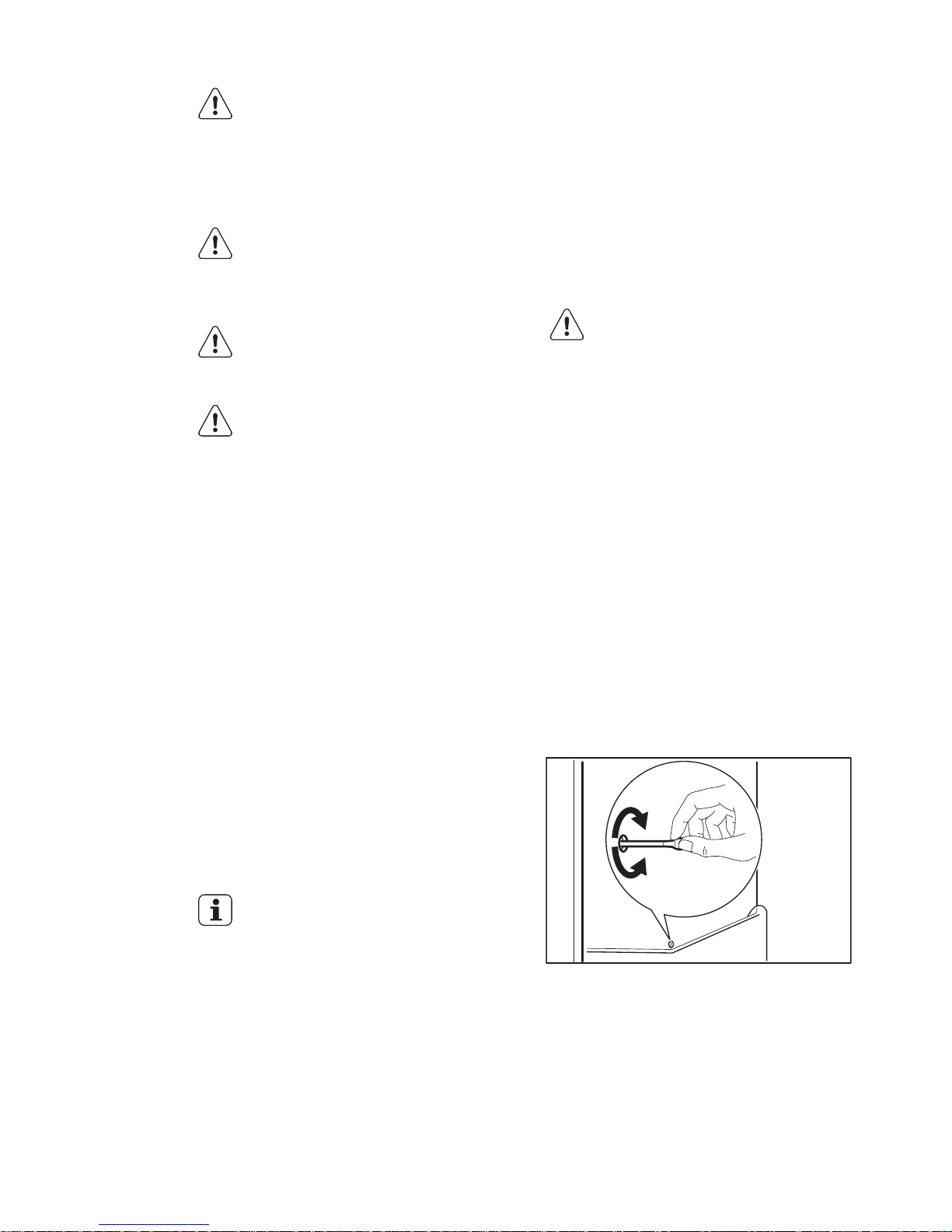

The water outlet is clog-
ged.
Clean the water outlet.
Food products prevent
that water flows into the
water collector.
Make sure that food products
do not touch the rear plate.
Water flows on the floor. The melting water outlet is
not connected to the
evaporative tray above the
compressor.
Attach the melting water out-
let to the evaporative tray.
Temperature cannot be set. The FastFreeze or Shop-
pingMode function is
switched on.
Switch off FastFreeze or
ShoppingMode manually, or
wait until the function resets
automatically to set the tem-
perature. Refer to "FastFreeze
or ShoppingMode function".
Door is misaligned or inter-
feres with ventilation grill.
The appliance is not level-
led.
Refer to "Levelling".
The temperature in the ap-
pliance is too low/too high.
The temperature regulator
is not set correctly.
Set a higher/lower tempera-
ture.
The door is not closed
correctly.
Refer to "Closing the door".
The food products' tem-
perature is too high.
Let the food products tem-
perature decrease to room
temperature before storage.
Many food products are
stored at the same time.
Store less food products at
the same time.
The door has been
opened often.
Open the door only if neces-
sary.
The FastFreeze function is
switched on.
Refer to "FastFreeze func-
tion".
www.electrolux.com14

Problem Possible cause Solution
There is no cold air circu-
lation in the appliance.
Make sure that there is cold
air circulation in the appli-
ance.
If the advice does not lead to
the desired result, contact the
nearest Authorised Service
Centre.
8.2 Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to
"Installation".
3. If necessary, replace the defective
door gaskets. Contact the Authorised
Service Centre.
8.3 Replacing the lamp
The appliance is equipped with a longlife
LED interior light.
Only service is allowed to replace the
lighting device. Contact your Authorised
Service Centre.
9. INSTALLATION
WARNING!
Refer to Safety chapters.
9.1 Positioning
This appliance can be installed in a dry,
well ventilated indoor where the ambient
temperature corresponds to the climate
class indicated on the rating plate of the
appliance:
Climate
class
Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C
Some functional problems
might occur for some types
of models when operating
outside of that range. The
correct operation can only be
guaranteed within the
specified temperature range.
If you have any doubts
regarding where to install the
appliance, please turn to the
vendor, to our customer
service or to the nearest
Service Centre

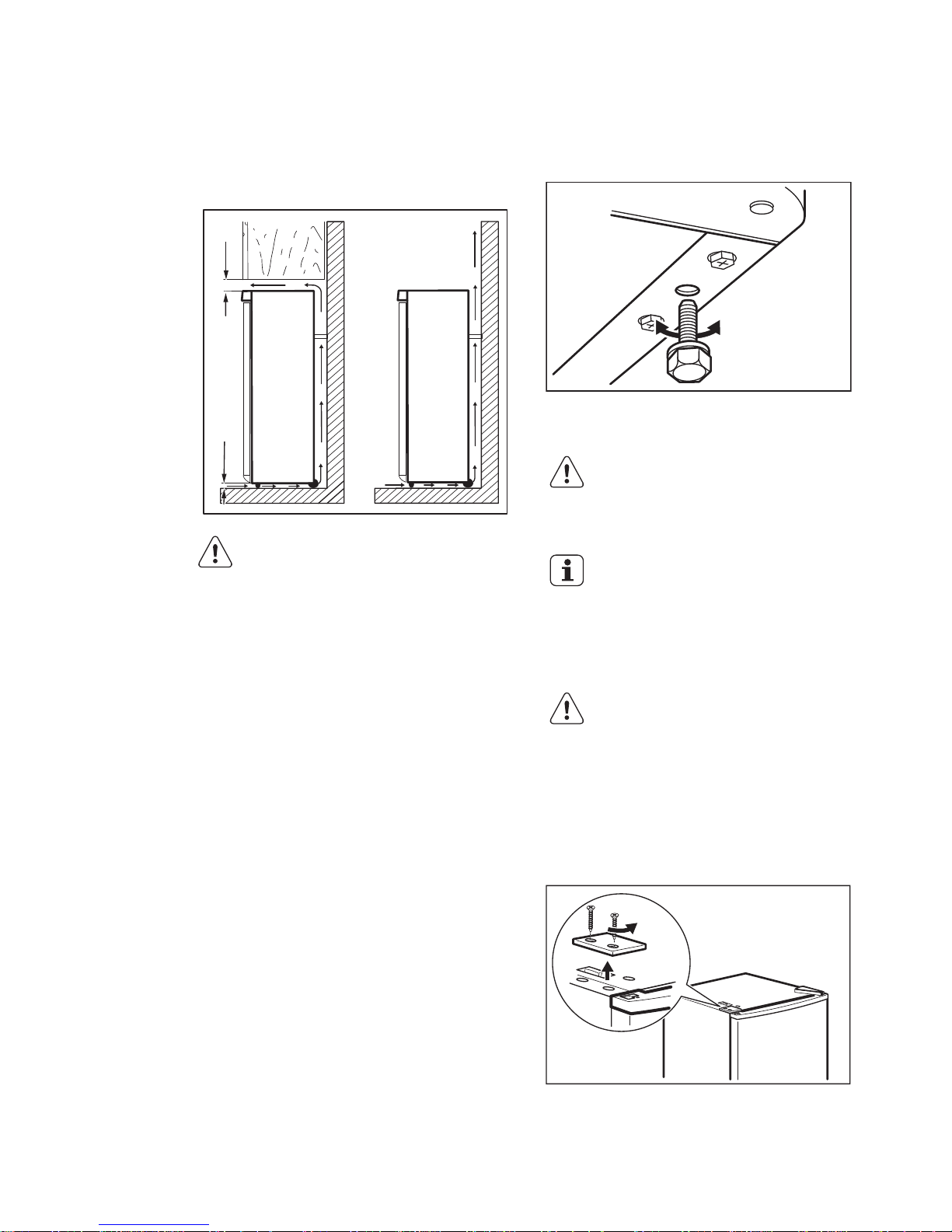

9.2 Location
It must be possible to
disconnect the appliance
from the mains power supply;
the plug must therefore be
easily accessible after
installation.
The appliance should be installed well
away from sources of heat such as
radiators, boilers, direct sunlight etc.
Ensure that air can circulate freely around
the back of the cabinet. To ensure best
performance, if the appliance is positioned
below an overhanging wall unit, the
minimum distance between the top of the
ENGLISH 15

cabinet and the wall unit must be at least
100 mm . Ideally, however, the appliance
should not be positioned below
overhanging wall units. Accurate levelling
is ensured by one or more adjustable feet
at the base of the cabinet.
AB
100 mm min
20 mm
CAUTION!
In order to guarantee proper
functioning in ambient
temperature above 38°C, it is
advised to have a 30mm
separation between the sides
of the appliance and
surrounding furniture.
9.3 Electrical connection
• Before plugging in, ensure that the
voltage and frequency shown on the
rating plate correspond to your
domestic power supply.
• The appliance must be earthed. The
power supply cable plug is provided
with a contact for this purpose. If the
domestic power supply socket is not
earthed, connect the appliance to a
separate earth in compliance with
current regulations, consulting a
qualified electrician.
• The manufacturer declines all
responsibility if the above safety
precautions are not observed.
• This appliance complies with the E.E.C.
Directives.
9.4 Levelling
When placing the appliance ensure that it
stands level. This can be achieved by two
adjustable feet at the bottom in front.
9.5 Door reversing
WARNING!
Before carrying out any
operations, remove the plug
from the power socket.
Before carrying out any
operation, please be sure that
the appliance is empty. If not,
please move all goods into
right temperature for proper
food storage reason.
CAUTION!
To carry out the following
operations, we suggest that
this be made with another
person that will keep a firm
hold on the doors of the
appliance during the
operations.

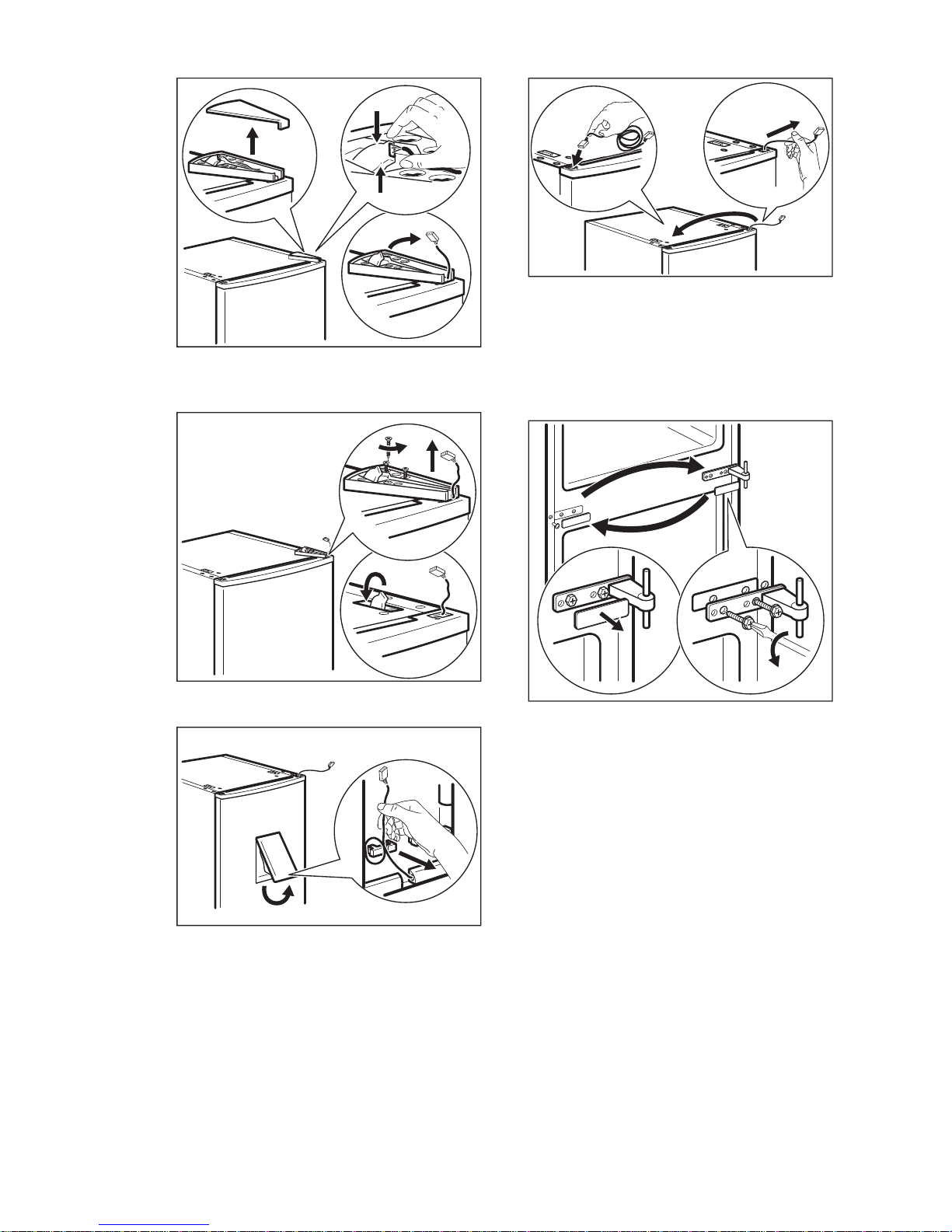

1. Remove the top masking plate.
2. Remove the top hinge cover and
unplug the cable.
www.electrolux.com16

3. Securing the door, unscrew the top
hinge. Push the cable outlet into the
cavity.
4. Remove the control panel and
disconnect it. Loosen the cable.
5. Pull the cable out from the top and
insert it on the opposite side of the
door.
6. Carefully remove the top door from
the appliance.
7. Remove the middle hinge covers and
the plug.
8. Remove the middle hinge from the
appliance, then carefully remove the
bottom door.
1
2
9. Remove the bottom hinge cover and
plugs, then unscrew the bottom hinge
bracket.
10. Remove the pivot hinge from the
bottom hinge bracket and replace it
on the opposite side.
ENGLISH 17

2
3
1
11. Install the bottom hinge bracket on the
opposite side of the appliance.
Remember to attach the
bottom hinge cover and
plugs.
12. Install the bottom door on the bottom
hinge, and secure it by attaching the
middle hinge to the appliance.
Remember to attach the
middle hinge covers and
plug.
2
1
13. Carefully position the top door on the
middle hinge, then continue to fit the
door onto the top hinge.
14. Install the top hinge, connect the cable
and mount the cover.
15. Connect and assemble the control
panel. Install the top masking plate.
16. Attach the door handles and plugs on
the opposite side.
A
A
C
C
B
B
CAUTION!
Reposition, level the
appliance, wait for at least
four hours and then connect
it to the power socket.
www.electrolux.com18

Do a final check to make sure
that:
• All screws are tightened.
• The magnetic seal
adheres to the cabinet.
• The door opens and
closes correctly.
If the ambient temperature is
cold (i.e. in Winter), the
gasket may not fit perfectly to
the cabinet. In that case, wait
for the natural fitting of the
gasket.
In case you do not want to
carry out the above
mentioned operations,
contact the nearest
Authorised Service Centre.
The Authorised Service
specialist will carry out the
reversibility of the doors at
your cost.
10. TECHNICAL INFORMATION
10.1 Technical data
Height mm 2010
Width mm 595
Depth mm 642
Rising time Hours 18
Voltage Volts 230 - 240
Frequency Hz 50
The technical information are situated in
the rating plate, on the external or internal
side of the appliance and in the energy
label.
11. ENVIRONMENT CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it. Help protect the environment
and human health and to recycle waste of
electrical and electronic appliances. Do
not dispose appliances marked with the
symbol with the household waste.
Return the product to your local recycling
facility or contact your municipal office.
*
ENGLISH 19

www.electrolux.com/shop
280153966-A-292014
