Electrolux ENB 43693 X User manual

User manual
Kullanma Kýlavuzu
ENB43693X
Fridge-Freezer
Soðutucu-Dondurucu

electrolux 3
Welcome to the world of Electrolux
You’ve chosen a first class product from Electrolux, which hopefully will provide
you with lots of pleasure in the future. Electrolux ambition is to offer a wide variety
of quality products that would make your life even more comfortable. You can look
at some examples on the cover in this manual. But now it’s time to study this
manual and start using and enjoying the benefits from your new machine. We
promise that it’ll make your life a little easier. Good luck!

4electrolux
The following symbols are used in this manual:
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
General information and tips
Environmental information
The symbol on the product or on its packaging indicates that this product
may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more
detailed information about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you purchased
the product.

electrolux 5
CONTENTS
Safety IImformation 6
Use 99
Cleaning the interior 9
Control panel 9
Display 10
First switch on 10
Switching off 11
Functions Menu 11
Clock Function 11
Select 12
Temperature selection 12
Use of the fridge compartment 12
Temperature regulation 12
Ambient Temperature Function 13
Child lock Function 13
Shopping Function 13
Eco mode Function 13
Holiday Function 14
Use of the freezer compartment 14
Action freeze function 15
Drinks chill function 15
Excessive temperature alarm 16

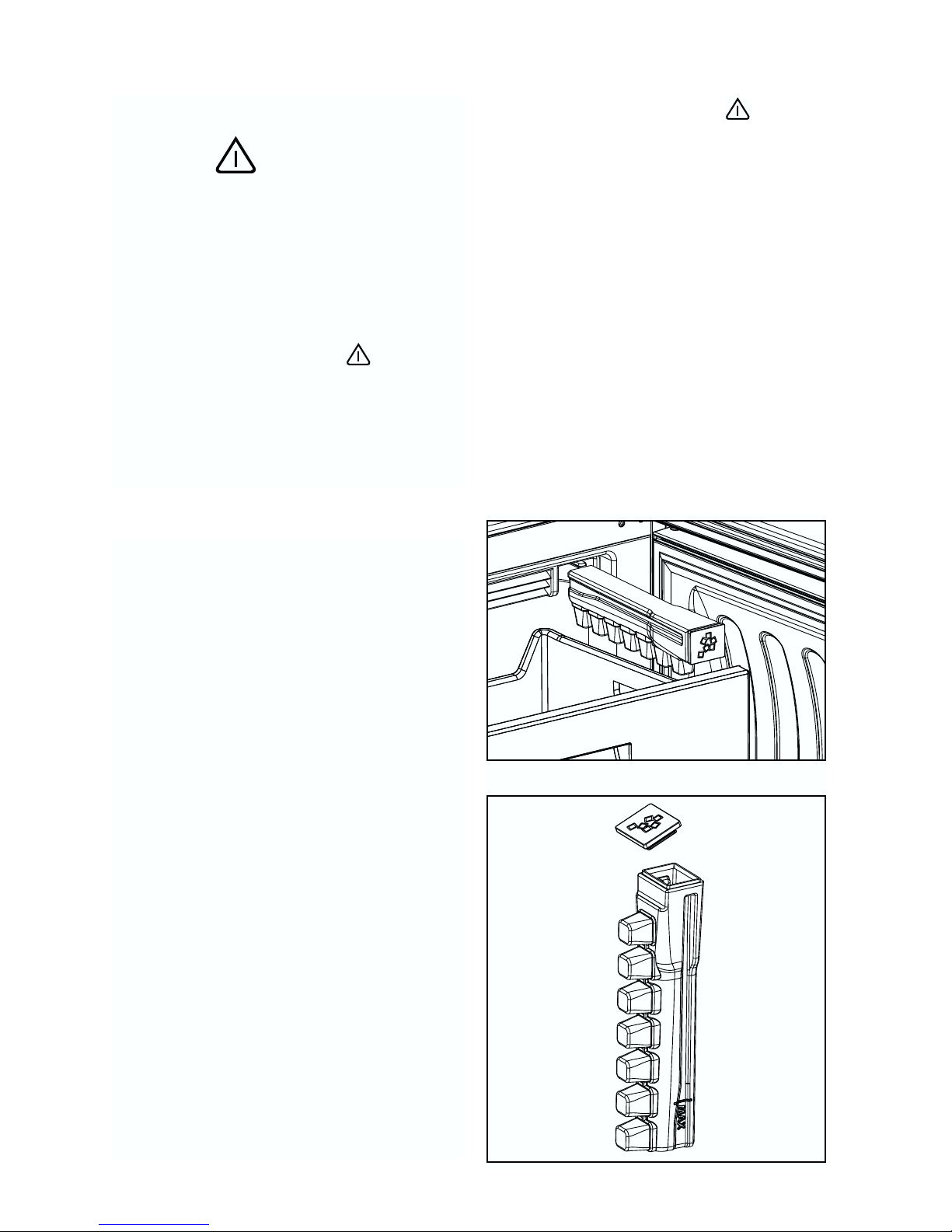

Ice-cube production 16

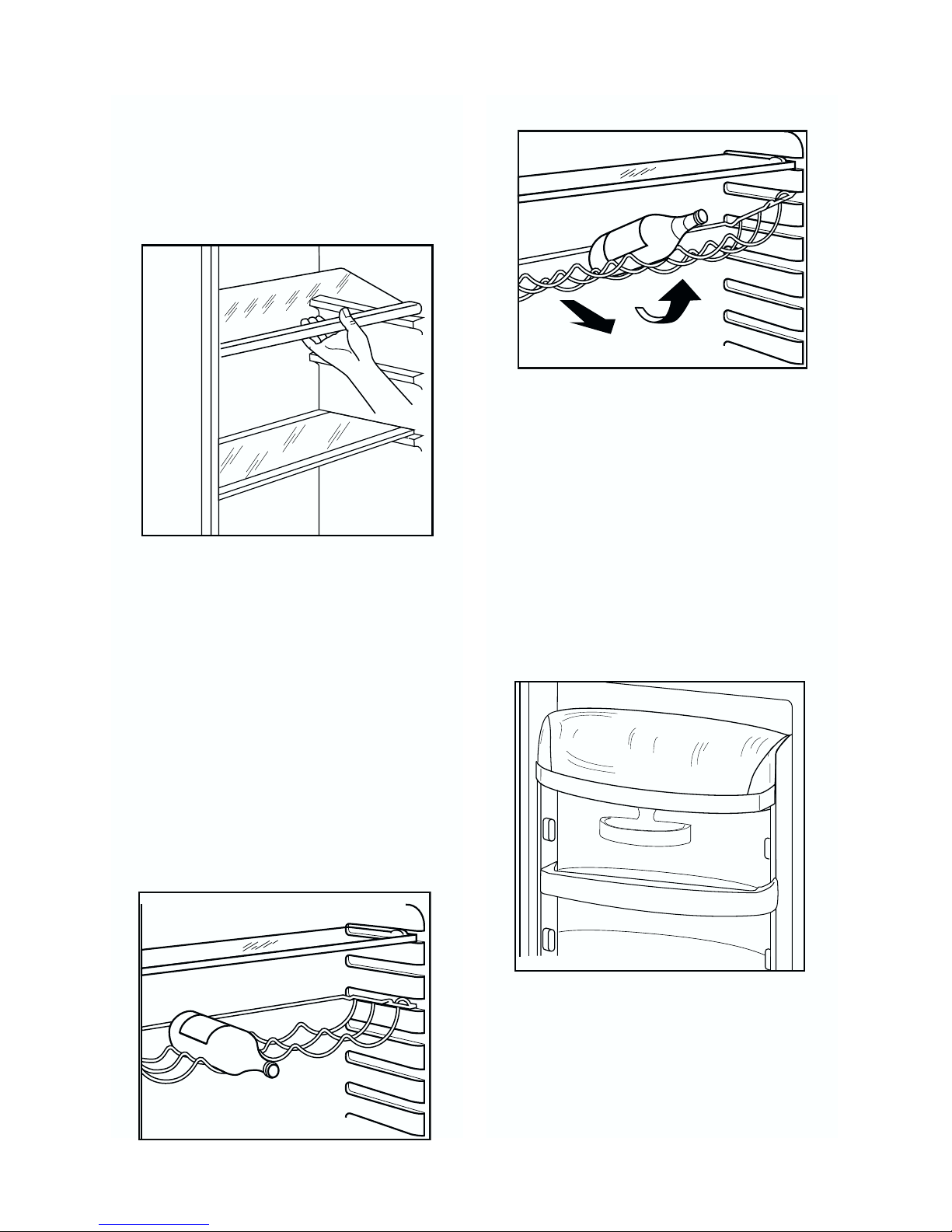

Movable shelves 17
Bottle rack 17
Positioning the door shelves 17
Humidity Control 18
Drawer 18
Hints 19
Hints for refrigeration 19
Hints for freezing 19
Hints for storage of frozen food 20
Air recycling 20
Interior light 20
Inserimento del filtro 21
Sostituzione del filtro 21
Maintenance 222
Periodic cleaning 22
Defrosting 22
Technical information 23
Customer sservice aand sspare pparts 223
Installation 24
Location 24
Rear spacers 24
Shelf holders 25
Door reversibility 25
Electrical connection 25
European GGuarantee 26
www.electrolux.com 27

6electrolux
SAFETY INFORMATION
It is most important that this
instruction book should be retained
with the appliance for future reference.
Should the appliance be sold or
transferred to another owner, or
should you move house and leave the
appliance, always ensure that the
book is supplied with the appliance in
order that the new owner can be
acquainted with the functioning of the
appliance and the relevant warnings.
If this appliance featuring magnetic
door seals is to replace an older
appliance having a spring lock (latch)
on the door or lid, be sure to make
that spring lock unusable before you
discard the old appliance. This will
prevent it from becoming a death-trap
for a child.
These warnings are provided in the
interest of safety. You must read them
carefully before installing or using the
appliance.
General Safety
• This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision
or instruction concerning use of the
appliance by a person responsible
for their safety.
Children should be supervised to
ensure that they do not play with
the appliance.
• It is dangerous to alter the
specifications or modify this
product in any way.
• Before any cleaning or maintenance
work is carried out, be sure to
switch off and unplug the appliance.
• This appliance is heavy. Care
should be taken when moving it
• Ice lollies can cause frost burns if
consumed straight from the
appliance.
• Take uutmost ccare wwhen hhandling yyour
appliance ssoaasnnot ttoccause aany
damages ttotthe ccooling uunit wwith
consequent ppossible ffluid lleakages.
• The aappliance mmust nnot bbellocated
close ttorradiators oorggas ccookers.
• Avoid pprolonged eexposure ooftthe
appliance ttoddirect ssunlight.
• There mmust bbeaadequate vventilation
round tthe bback ooftthe aappliance
and aany ddamage ttotthe rrefrigerant
circuit mmust bbeaavoided.
• For ffreezers oonly ((except bbuilt-iin
models): aaniideal llocation iistthe
cellar oorbbasement.
• Do nnot uuse oother eelectrical
appliances ((such aasiice ccream
makers) iinside oofrrefrigerating
appliances.
Service/Repair
• Any electrical work required to
install this appliance should be
carried out by a qualified electrician
or competent person
• This product should be serviced by an
authorized Service Centre, and only
genuine spare parts should be used.
• Under no circumstances should
you attempt to repair the appliance
yourself. Repairs carried out by
inexperienced persons may cause
injury or more serious

electrolux 7
malfunctioning. Refer to your local
Service Centre, and always insist
on genuine spare parts.
• This appliance contains
hydrocarbons in its cooling unit;
maintenance and recharging must
therefore only be carried out by
authorized technicians.
Use
• The domestic refrigerators and
freezers are designed to be used
specifically for the storage of edible
foodstuffs only.
• Best performance is obtained with
ambient temperature between +16°C
and +43°C (class T); +16°C and
+38°C (class ST); +16°C and +32°C
(class N); +10°C and +32°C (class
SN). The class of your appliance is
shown on its rating plate.
Warning: when the ambient
temperature is not included within
the range indicated for the class of
this appliance, the following
instructions must be observed:
when the ambient temperature
drops below the minimum level, the
storage temperature in the freezer
compartment cannot be
guaranteed; therefore it is advisable
to use the food stored as soon as
possible.
• Frozen food must not be re-frozen
once it has been thawed out.
• Manufacturers’ storage
recommendations should be strictly
adhered to. Refer to relevant
instructions.
• The inner lining of the appliance
consists of channels through which
the refrigerant passes. If these
should be punctured this would
damage the appliance beyond
repair and cause food loss. DO
NOT USE SHARP INSTRUMENTS
to scrape off frost or ice. Frost may
be removed by using the scraper
provided. Under no circumstances
should solid ice be forced off the
liner. Solid ice should be allowed to
thaw when defrosting the appliance.
• Do not place carbonated or fizzy
drinks in the freezer as it creates
pressure on the container, which
may cause it to explode, resulting
in damage to the appliance.
Installation
• During normal operation, the
condenser and compressor at the
back of the appliance heat up
considerably. For safety reasons,
minimum ventilation must be as
shown in the instructions.
Attention: kkeep vventilation oopenings
clear oofoobstruction.
• Care must be taken to ensure that
the appliance does not stand on
the electrical supply cable.
Important: if the supply cord is
damaged, it must be replaced by a
special cord or assembly availa-ble
from the manufacturer or its service
agent.
• If the appliance is transported
horizontally, it is possible that the
oil contained in the compressor
flows in the refrigerant circuit. It is
advisable to wait at least two hours
before connecting the appliance to
allow the oil to flow back in the
compressor.

8electrolux
• There are working parts in this
product which heat up. Always
ensure that there is adequate
ventilation as a failure to do this will
result in component failure and
possible food loss. See installation
instructions.
• Parts which heat up should not be
exposed. Wherever possible the
back of the product should be
against a wall.
Environment
Protection
This aappliance ddoes nnot ccontain
gasses wwhich ccould ddamage tthe
ozone llayer, iineeither iits rrefrigerant
circuit ooriinsulation mmaterials. TThe
appliance sshall nnot bbeddiscarded
together wwith tthe uurban rrefuse aand
rubbish. AAvoid ddamaging tthe ccooling
unit, eespecially aattthe rrear nnear tthe
heat eexchanger. IInformation oonyyour
local ddisposal ssites mmay bbeoobtained
from mmunicipal aauthorities. TThe
materials uused oontthis aappliance
marked bbytthe ssymbol aare
recyclable.

electrolux 9
USE
Cleaning the interior
Before using the appliance for the first
time, wash the interior and all internal
accessories with luke-warm water and
some neutral soap so as to remove
the typical smell of a brand-new
product, then dry thoroughly.
Do nnot uuse ddetergents oor
abrasive ppowders, aastthese wwill
damage tthe ffinish.
Control panel
A - Multifunction-button
B - Function button
C - Regulation button
D - Mode button
E - OK button
F - Display
Multifunction- Button (A)
1) Push the button A to visualize the
time.
2) Push again and the ambient
temperature will be visualized.
3) Repushing again the Standard Mode
conditions will appear.

10 electrolux

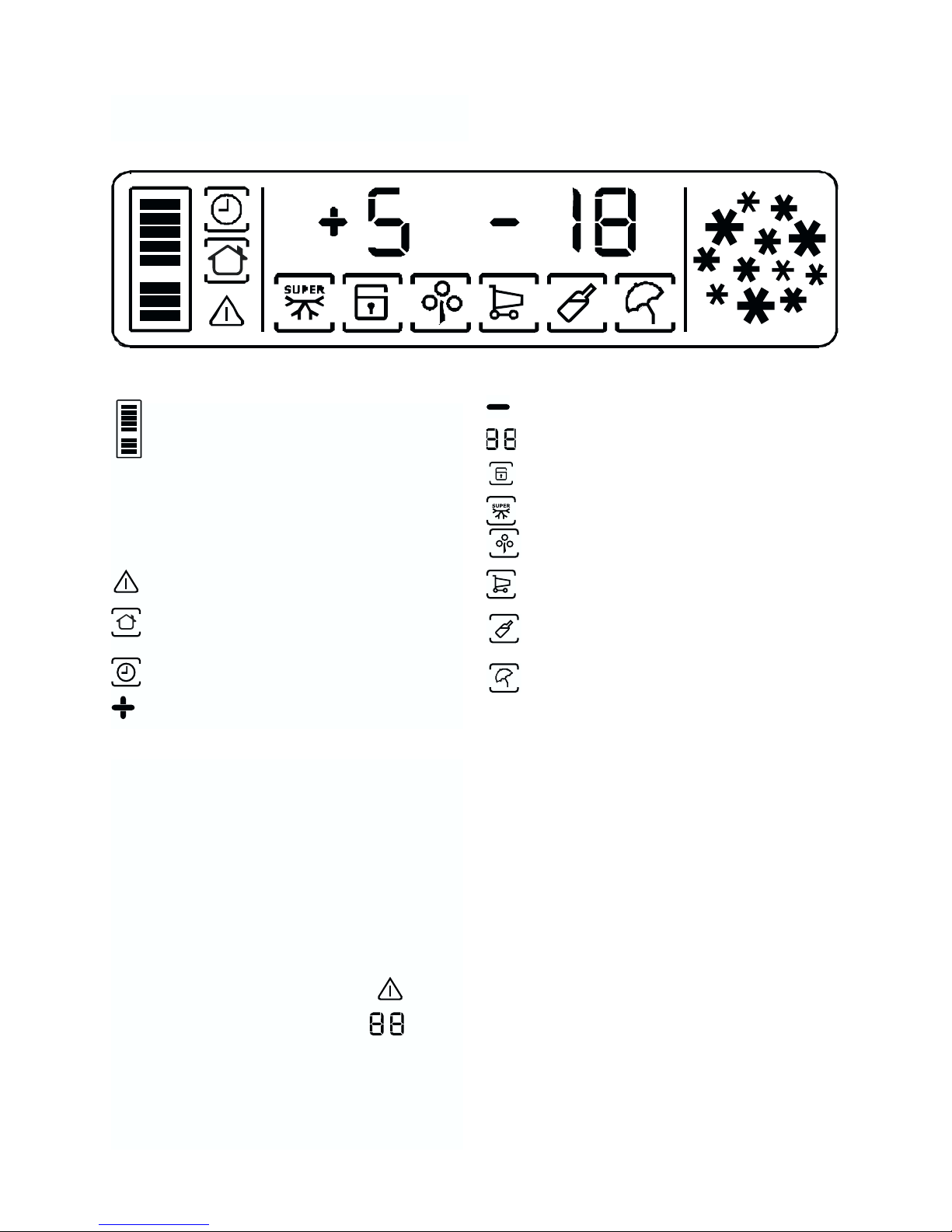

Display
First switch on
Insert the plug into the plug socket,
the appliance is turned on, it is in
alarm condition, the temperature
flashes and you will hear a buzzer.
Press key (E) and the buzzer will go off
(see also the section "excessive
temperature alarm") the icon still
flashes and on the indicator will
appear the warmest temperature
reached.
For a correct storage of the food
select the Eco Mode function that
guarantee the following temperatures
are set:
+5°C in the fridge
-18°C in the freezer
• Wait until the inside compartment
temperature reach -18°C, before
introducing the goods in the freezer
compartment.
• To select a different temperature
see "Temperature regulation".
fridge compartment
freezer compartment
if it flashes the operations
corresponds to the relative
compartment
Excessive temperature alarm
Ambient temperature
Clock function
Positive Temperature indicator
Negative Temperature indicator
Temperature indicator
Child Lock function
Action Freeze function
Eco Mode function
Shopping function
Drinks Chill function
Holiday function

electrolux 11
Clock Function
The Clock function is activated by
pressing key B (several times if
necessary) until the corresponding
symbol flashes .
You must confirm the choice by
pressing key E within few seconds.
You will hear the buzzer and the icon
remains lighted.
Activating the button +/- (C/C) the
time is selected.
Proceed as follows:
select the hour, confirm it by activating
button E , then select the minutes.
Confirm the selection activating button
E.
Note: YYou mmust rreset tthe ttime iifmmains
go ooff.
Functions Menu
By activating the key B the functions
menu is operating and the following
functions are indicated:
• Select on fridge compartment
• Select on freezer compartment
Clock Function
Ambient Temperature
Each function must be confirmed by
pressing button E.
By activating the key D the functions
menu is operating. Each function must
be confirmed by pressing button E. If
there is no confirmation after some
seconds the display will go out from the
menu and return in normal condition.
The following functions are indicated:
Child lock function
Shopping function
Eco mode function
Drinks Chill function
Action Freeze function
Holiday Function
Switching off
To switch off the appliance remove the
mains plug.

12 electrolux
Select
Temperature selection
The temperature may be regulated by
pressing the key (B) to select the
compartment and than the button C/C
to set the desired temperature.
The current temperature setting flashes
on the indicator. To confirm the choice
of the temperature press the key (E).
You will hear the buzzer and the
indicator displays the newly selected
temperature for a few seconds, then
shows again the inside compartment
temperature.
The newly selected-temperature must
be reached after 24 hours.
After a long period out of use it is not
necessary to set again the temperature
because it remains stored.
Attention!
During the stability period by the first
starting the temperature displayed can
not correspond to the setting
temperature. During this time it is
possible that the temperature
displayed is different than the setting
temperature.
Use of the fridge
compartment
Temperature regulation
The temperature of this compartment
may be regulated between +2°C and
+8°C.
During normal functioning the indicator
shows the temperature inside the
fridge.
Attention!
Difference between the temperature
displayed and temperature setting is
normal. Especially when:
• a new setting has recently been
selected
• the door has been left open for a
long time
• warm food has been placed in the
compartment.
Important
If the door remains ajar for a long
while, the internal lighting will turn off
automatically; after this, the lighting
function will be reset automatically by
closing the door and by falling the
temperature of the lamp.

electrolux 13
Shopping Function
If you need to insert a large amount of
warm food, for example after doing the
grocery shopping, we suggest activating
the Shopping function to chill the
products more rapidly and to avoid
warming the other food which is already
in the refrigerator.
The shopping function is activated by
pressing key D (several times if
necessary) until the correspondings
symbol flashes .
You must confirm the choise by pressing
key E within few seconds. You will hear
the buzzer and the icon remains lighted.
The shopping function ends automatically
after approximately 6 hours.
It is possible to de-activate the function
at any time by pressing key D until the
corresponding symbol will flash and then
key E.
Eco mode Function
The Eco mode function is activated
by pressing key D (several times if
necessary) until the corresponding
symbol flashes .
You must confirm the choice by
pressing key E within few seconds. You
will hear the buzzer and the symbol
remains lighted.
In this condition the chosen
temperatures are automatically set (+
5°C e - 18°C), in the best conditions
for storing food.
It is possible to de-activate the
function at any time by changing the
selected temperature in one of the
compartment.
Ambient Temperature
Function
The ambient temperature function is
activated by pressing key B (several
times if necessary) until the
corresponding symbol flashes .
In this condition the selected
temperature is the ambient
temperature.
You must confirm the choice by
pressing key E within few seconds. You
will hear the buzzer and the symbol
remains lighted.
Child lock Function
The Child Lock function is activated by
pressing key D (several times if
necessary) until the corresponding
symbol flashes.
You must confirm the choice by
pressing key E within few seconds.
You will hear the buzzer and the
symbol remains lighted.
In this condition any possible operation
through the keys does not cause any
change as long as this function is
activated.
It is possible to de-activate the function
at any time by pressing key D until the
corresponding symbol will flash and
then key E.

14 electrolux
Use of the freezer
compartment
The ffreezer iispprovided wwith tthe
symbol wwhich mmeans tthat
it iisssuitable ffor ffreezing ffresh ffood
and ffor llong tterm sstorage oofffrozen
and ddeep-ffrozen ffood.
The temperature may be regulated
between -15°C and -24°C.
We suggest setting the internal
temperature of approximately -18°C,
which guarantees proper freezing and
conservation of the frozen foods.
Attention!
During the stability period by the first
starting the temperature displayed can
not correspond to the setting
temperature. During this time it is
possible that the temperature
displayed is different than the setting
temperature.
Attention!
Difference between the temperature
displayed and temperature setting is
normal. Especially when:
• a new setting has recently been
selected
• the door has been left open for a
long time
• warm food has been placed in the
compartment
Difference until 5°C inside the
compartment are quite normal.
During normal functioning the indicator
shows the warmest temperature inside
the compartment.
Holiday Function
The holiday function allows you to
keep the refrigerator empty during a
long holiday period ( e. g. the summer
holidays) without the formation of a
bad smell.
The Holiday function is activated by
pressing key D (several times if
necessary) until the corresponding
symbol flashes .
You must confirm the choice by
pressing key E within few seconds. You
will hear the buzzer and the symbol
remains lighted.
t is possible to de-activate the function
at any time by pressing key D until the
corresponding symbol will flash and
then key E.
Attention!
The fridge compartment must be
empty and the door closed with
holiday function on .

electrolux 15
Action Freeze function
The freezer compartment is suitable for
long term storage of commercially
frozen and deep-frezen food, and for
freezing fresh food.
The maximum quantity of foods to
freeze in 24 hours is shown on the
serial number plate.
To freeze fresh foods, you need to
activate the Action Freeze function.
Press key D (several times if
necessary) until the corresponding
symbol flashes .
You must confirm the choice by
pressing key E within few seconds.
You will hear the buzzer and on the
display will appear some animation
with lines.
After a pre-cooling period of 24 hours,
place the foods in the freezer.
Place the food to be frozen in the
compartment, as this is the coldest
point.
The freezing process takes 24 hours.
During this period do not put other
foods in the freezer.
This function stops automatically after
52 hours.
It is possible to de-activate the function
at any time by pressing key D until the
corresponding symbol will flash and
then key E.
Drinks Chill function
The Drinks Chill function is to be used
as a safety warning when placing
buttles in the freezer compartment. It
is activated by pressing key D (several
times if necessary) until the
corresponding symbol flashes .
You must confirm the choice by
pressing key E within few seconds.You
will hear the buzzer and the symbol
remains lighted.
In this condition it operates a timer
with a default value of 30 min and it
could change from 1 to 90 min, by
pressing key C you select the minutes
needed.
At the end of the selected time there
are the following indications:
• on the indicator the symbol :
remains lighted
• sounding of an acoustic alarm until
key E is pressed.
At this point bear in mind to remove
the drinks contained in the freezer
compartment.
It is possible to de-activate the
function at any time by pressing key D
until the corresponding symbol will
flash and then key E.

16 electrolux
Ice-cube production
This appliance is equipped with one or
more trays for the production of ice-
cubes.
These are insert on the sides of the
upper freezer drawer.
Pull out the upper freezer drawer.
Extract the ice-tray.
Pull out the tap.
Fill with water to the limit indicated.
“MAX”.
Refit the tap and insert the tray in the
appropriate place.
To remove the ice cubes rotate the tray
with the ice needles towards the top and
hit on a rigid surface.
To semplify the release of the ice needles
it is recommended to keep the closed
tray under if possible luke warm water for
a few seconds.
Do not use metallic instruments to
remove the trays from the freezer.
Excessive temperature
alarm
An increase in the temperature in a
compartment (for example due to an
power failure)
is indicated by:
• flashing temperature;
• flashing of the symbol ;
• sounding of buzzer.
When normal conditions are restored:
• the acoustic signal shuts off;
• flashing of the symbol ;
• the temperature value continues to
flash;
When you press key "E" to de-activate
the alarm, the highest temperature
reached in the compartment appears
on indicator for some seconds. Then it
returns on the normal operation
showing the temperature of the
selected compartment.
During the alarm phase, the buzzer
can be switched off by pressing key E.

electrolux 17
Movable shelves
The walls of the refrigerator are
equipped with a series of runners so
that the shelves can be positioned as
desired.
Bottle rack
Place bottles in the rack with the
bottleneck to the front.
Important: Only store unopened
bottles horizontally.
The bottle rack can be tilted for storing
opened bottles.
To do this pull the bottle rack forward
until it can be tilted upwards, then
slide the front support into the next
level up.
Positioning the door
shelves
To permit storage of food packages of
various sizes, the door shelves can be
placed at different heights.
To make these adjustments proceed
as follows: Gradually pull the shelf in
the direction of the arrows until it
comes free, then reposition as
required.
D338

18 electrolux
PR271
Humidity Control
The drawer incorporates a device with
slits (adjustable by means of a sliding
lever),which makes it possible to regulate
the temperature in the vegetable
drawer(s).
The opening in the ventilation slots can be
adjusted with the slider. Right slider:
Ventilation slots opened.
With the ventilation slots open, more air
circulation results in a lower air moisture
content in the fruit and vegetable
compartments. Left slider: Ventilation slots
closed. When the ventilation slots are
closed, the natural moisture content of the
food in the fruit and vegetable
compartments is preserved for longer.
Drawer
The drawer is suitable for storing fruit
and vegetables. There is a separator
inside the drawer that can be placed in
different positions to allow for the
subdivision best suited to personal
needs.
There is a grille (if forseen) on the
bottom of the drawer to separate the
fruit and vegetables from any humidity
that may form on the bottom surface.
All parts inside the drawer can be
removed for cleaning purposes.

electrolux 19
Hints for freezing
To help you make the most of the
freezing process, here are some
important hints:
• Place the food to be frozen on the
upper drawer as this is the coldest
place.
• the maximum quantity of food
which can be frozen in 24 hrs. is
shown on the rating plate;
• the freezing process takes 24
hours. No further food to be frozen
should be added during this period;
• only freeze top quality, fresh and
thoroughly cleaned, foodstuffs;
• prepare food in small portions to
enable it to be rapidly and
completely frozen and to make it
possible subsequently to thaw only
the quantity required;
• wrap up the food in aluminium foil
or polythene and make sure that
the packages are airtight;
• do not allow fresh, unfrozen food to
touch food which is already frozen,
thus avoiding a rise in temperature
of the latter;
• lean foods store better and longer
than fatty ones; salt reduces the
storage life of food;
• water ices, if consumed
immediately after removal from the
freezer compartment, can possibly
cause the skin to be freeze burnt;
• it is advisable to show the freezing-
in date on each individual pack to
enable you to keep tab of the
storage time;
• do nnot pput ccarbonated lliquids ((fizzy
drinks, eetc.) iintthe ffreezer
compartment aastthey mmay bburst.
HINTS
Hints for refrigeration
Useful hints:
Meat ((all ttypes): wrap in polythene
bags and place on the glass shelf
above the vegetable drawer.
For ssafety, sstore iintthis wway oonly oone
or ttwo ddays aattthe mmost.
Cooked ffoods, ccold ddishes, eetc..:
these should be covered and may be
placed on any shelf.
Fruit aand vvegetables: these should be
thoroughly cleaned and placed in the
special drawer(s) provided.
Butter aand ccheese: these should be
placed in special airtight containers or
wrapped in aluminium foil or polythene
bags to exclude as much air as
possible.
Milk bbottles: these should have a cap
and should be stored in the bottle rack
on the door.
Bananas, ppotatoes, oonions aand ggarlic,
if nnot ppacked, mmust nnot bbekkept iintthe
refrigerator.

20 electrolux
Interior light
If it becomes necessary to replace the
lamp, pressing as shown in the figure.
Attention
Replace the lamp with one of the same
power (the maximum power is shown
on the light diffuser).
Hints for storage of
frozen food
To obtain the best performance from
this appliance, you should:
• make sure that the commercially
frozen foodstuffs were adequately
stored by the retailer;
• be sure that frozen foodstuffs are
transferred from the foodstore to
the freezer in the shortest possible
time;
• not open the door frequently or
leave it open longer than absolutely
necessary.
• Once defrosted, food deteriorates
rapidly and cannot be refrozen.
• Do not exceed the storage period
indicated by the food manufacturer.
Air recycling
The refrigerator compartment is
equipped with a special
D.A.C.(Dynamic Air Cooling) fan which
can be turned on with the switch B
( see fig.).
The green light, when on, means that
the fan is working.
It is suggested that the device be
used when the ambient temperature
exceeds 25°C .
This device allows for rapid cooling of
foods and a more uniform temperature
in the compartment.
