Electrolux ERB 36301X User manual

ERB 36301X
kühl - gefrierkombination
refrigerator- freezer combination
gebrauchsanleitung
instruction book GB
DE

We were thinking of you
when we made this product

electrolux 31
GB
WWeellccoommeettootthheewwoorrllddooffEElleeccttrroolluuxx
Thank you for choosing a first class product from Electrolux, which hopefully will
provide you with lots of pleasure in the future. The Electrolux ambition is to offer a
wide variety of quality products that make your life more comfortable. You find some
examples on the cover in this manual. Please take a few minutes to study this
manual so that you can take advantage of the benefits of your new machine. We
promise that it will provide a superior User Experience delivering Ease-of-Mind.
Good luck!

32 electrolux GB
Before installing and using the appliance read this user's instruction book
carefully. It contains safety precautions, hints, information and ideas. If the
refrigerator is used in compliance with the instructions written, it will operate
properly and provide you with greatest satisfaction.
The symbols below help you to find things more easily:
Safety precautions
Warnings and information at this symbol serve safety for you and your appliance.
Hints, useful information
Environmental information
Symbol for ideas
At this symbol ideas can be found according to food and its storing.
The symbol on the product or on its packaging indicates that this
product may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.
For more detailed information about recycling of this product, please
contact your local city office, your household waste disposal service or
the shop where you purchased the product.

electrolux 33
GB
Contents
Important safety information....................................................................35
General safety precautions.....................................................................35
Precautions for child safety ....................................................................36
Safety precautions for installation ............................................................36
Safety precautions for isobutane .............................................................36
Instructions for the User ..........................................................................37
General information...............................................................................37
Putting it into use ..................................................................................37
Controlling the temperature, setting .........................................................37
How to use the refrigerator.....................................................................38
Drawer ...........................................................................................38
Storing in the refrigerator...................................................................38
Storage time and temperature of foods................................................38
Freezing .........................................................................................39
Storing in the freezer ........................................................................39
Some useful information and advice ....................................................40
Hints and ideas ................................................................................41
How to save energy ..........................................................................41
The appliance and environment ..........................................................41
Maintenance ........................................................................................41
Defrosting .......................................................................................41
Regular cleaning..............................................................................43
When the refrigerator is not in use ......................................................43
Trouble shooting...................................................................................43
How to change the bulb ....................................................................43
If something does not work................................................................43
Instructions for the Installer .....................................................................46
Technical data......................................................................................46
Installing the appliance ..........................................................................46
Transportation, unpacking .................................................................46
Cleaning.........................................................................................46
Placement ......................................................................................46
Electrical connection ........................................................................50
Storage time chart (1) .............................................................................51
Storage time chart (2).............................................................................52
Warranty and service...............................................................................52
Guarantee conditions ............................................................................52
Service and spare parts ....................................................................52
Guarantee/Customer Service .................................................................53
European Guarantee ..............................................................................56

34 electrolux GB

electrolux 35
GB
Important safety information
General safety precautions
Keep these instructions and they
should remain at the appliance when
moving away or changing owner.
This appliance is designed for storing
food, domestic use according to these
instructions only.
Specialised companies that are
qualified to do so by the
manufacturer must carry out
service and repairs including
repairing and changing the power
cord. Accessory parts supplied by
them should be used only for
repairing. Otherwise the appliance
can be damaged or can cause other
damage or injury.
The appliance is out of circuit only in
that case if the plug is removed from
the socket. Before cleaning and
maintenance always unplug it (do not
get it by the cable). If the socket is
difficult to reach, switch off the
appliance by cutting off the current.
Power cord must not be lengthened.
Make sure that the power plug is
not squashed or damaged by the
back of the fridge/freezer.
- A damaged power plug may overheat
and cause a fire.
Do not place heavy articles or the
fridge/freezer itself on the power
cord.
- There is a risk of a short circuit and
fire.
Do not remove the power cord by
pulling on its lead, particularly
when the fridge/freezer is being
pulled out of its niche.
- Damage to the cord may cause a
short-circuit, fire and/or electric
shock.
- If the power cord is damaged, it must
be replaced by a certified service
agent or qualified service personnel.
If the power plug socket is loose,
do not insert the power plug.
- There is a risk of electric shock or
fire.
Without the lamp cover of interior
lighting you must not operate the
appliance.
When cleaning, defrosting, taking out
frozen food or ice tray do not use
sharp, pointed or hard devices, as
they can cause damage to the
appliance.
Be careful not to allow liquids to the
temperature control and lighting box.
Ice and ice-cream can cause hurt if
they are eaten immediately after
removal from the frozen food
compartment.
After dissolving frozen food must not
be refrozen, it must be used up as
soon as possible.
Store pre-packed frozen food in
accordance with the frozen food
manufacturer's instructions.
You must not make defrosting faster
with any electric heating appliance or
chemicals.
Do not put hot pot to the plastic parts.
Do not store flammable gas and liquid
in the appliance, because they may
explode.
Do not store carbonated drinks,
bottled drinks and bottled fruits in the
frozen food compartment.
Check and clean the outlet of melting
water coming during defrosting
regularly - a label inside the appliance
warns you for this. If it is clogged the
melting water gathered can cause
earlier failure.

36 electrolux GB
Precautions for child
safety
Do not allow children to play with the
packaging of the appliance. Plastic foil
can cause suffocation.
Adults must handle the appliance. Do
not allow children to play with it or its
controlling parts.
If you are discarding the appliance pull
the plug out of the socket, cut the
connection cable (as close to the
appliance as you can) and remove the
door to prevent playing children to
suffer electric shock or to close
themselves into it.
Safety precautions for
installation
Put the appliance to the wall to avoid
touching or catching warm parts
(compressor, condenser) to prevent
possible burn.
When moving the appliance take care
of the plug not to be in the socket.
When placing the appliance take care
not to stand it on the power cord.
Adequate air circulation should be
around the appliance, lacking this
leads to overheating. To achieve
sufficient ventilation follow the
instructions relevant to installation.
See chapter "Placement".
For the safety of life and
property keep the precautions
of these user's instructions as the
manufacturer is not responsible for
damages caused by omission.
Safety precautions for
isobutane
Warning
The refrigerant of the appliance is
isobutane (R600a) that is inflammable
and explosive to a greater extent.
Keep ventilation openings, in the
appliance enclosure or in the built-in
structure, clear of obstruction.
Do not use mechanical devices or
other means to accelerate the
defrosting process, other than those
recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances
inside the food storage compartments
of the appliance, unless they are of
the type recommended by the
manufacturer.

electrolux 37
GB
General information
The official designation of the appliance
is "refrigeratorfreezercombination with
one motor compressor and freezer
placed in the lower part". The appliance
has - besides the general services- a
freezer with its own door and is
completely separated from the other unit.
According to this the appliance is suitable
for storing frozen and deep-frozen food,
freezing products in quantity given in
the user's instructions at home and
making ice. The appliance can meet the
requirements of standardsbetween
different temperature limits according to
theclimate class.
The letter symbol for climate class can be
found on the data label.
Putting it into use
Place the accessories into the appliance
then plug to the mains socket.

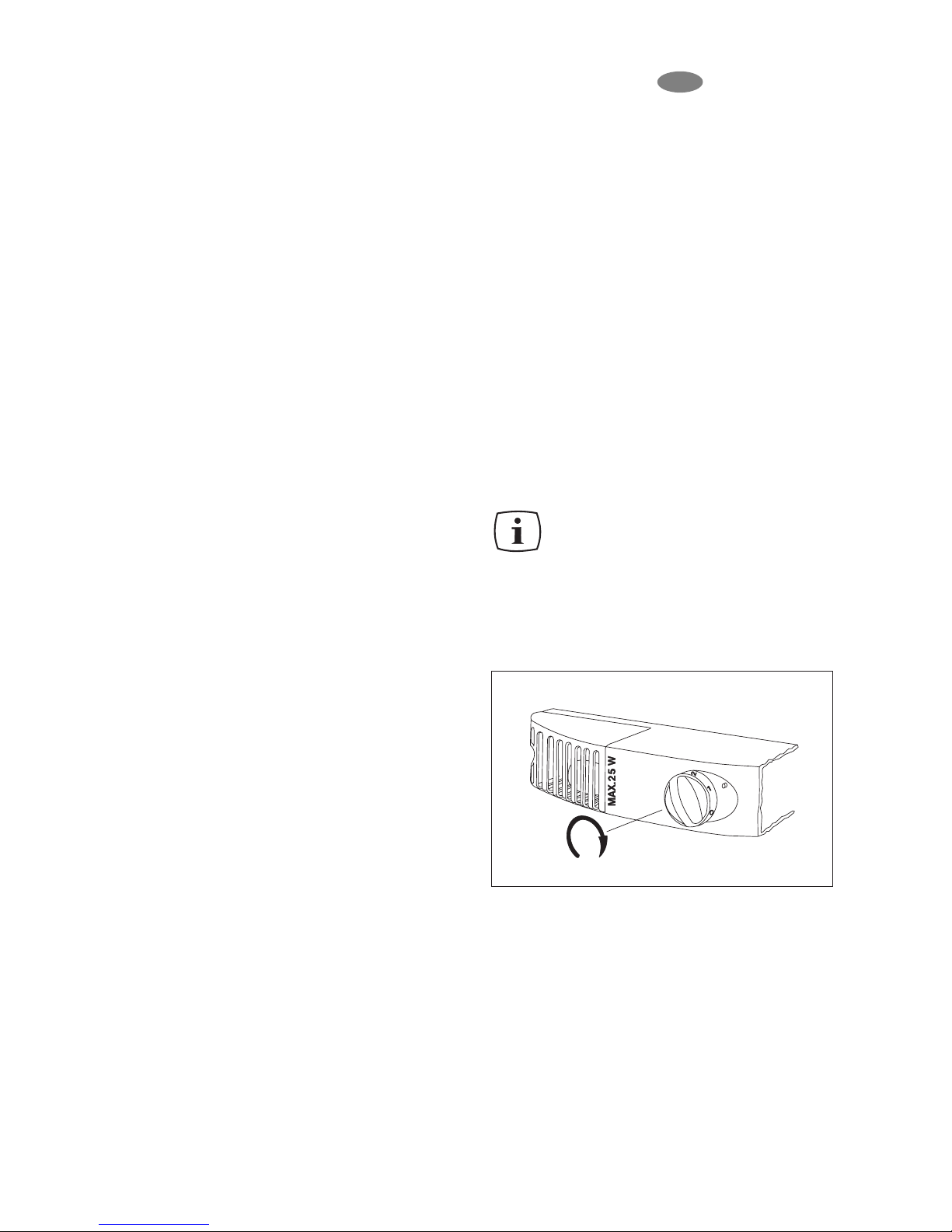

The thermostat knob is on the light box in
the refrigerator. You can switch the
appliance on and set the temperature
with it by turning the knob clockwise.
The next paragraph will give instructions
for setting.
Controlling the temperature,
setting
The thermostat interrupts the operation
of the appliance automatically for more or
less time depending on the setting then
restarts it assuring the required
temperature.
Instructions for the User
The closer it is set to maximum position
the more intensive the refrigerating will
be. When the thermostat knob is set to a
medium position (between minimum and
maximum), in the freezing compartment -
18 °C, in the fresh food compartment +5
°C can be reached. Setting it to a
medium position is adequate for
everyday use.
The temperature coming about in the
refrigerator is effected by not only the
position of the thermostat but the
ambient temperature, frequency of door
openings and the quantity of food put into
it newly, etc.
In the maximum position - in
case of increased demand
e.g. during heatwaves - the
compressor may operate continually.
This does not cause damages to the
appliance.

38 electrolux GB

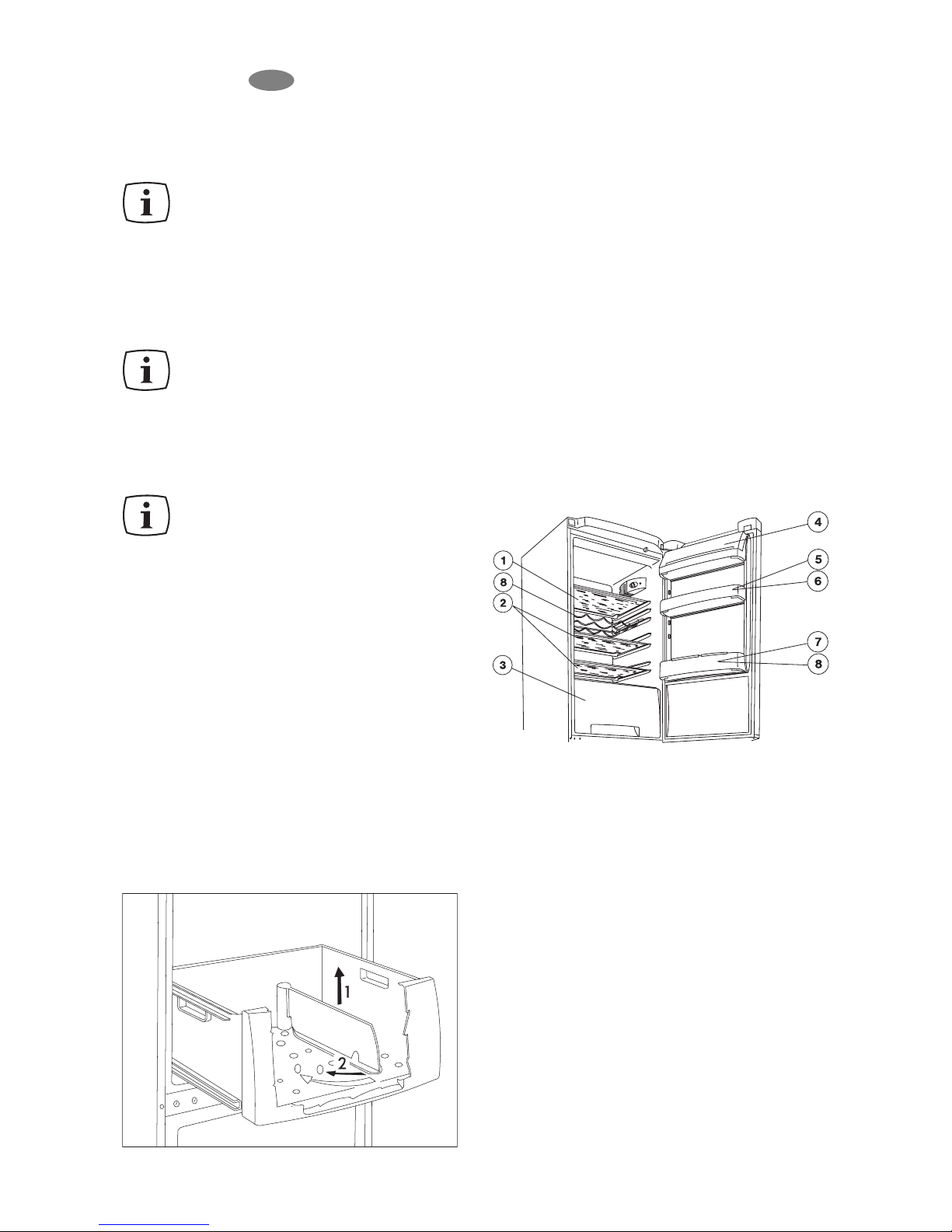

Drawer
The drawer is suitable for storing fruit and
vegetables. There is a separator inside
the drawer that can be placed in different
positions to allow for the subdivision best
suited to personal needs.
Storing in the refrigerator
When placing the different kinds of food
take into consideration the sketch below
in figure:
1. Confectionery, ready-cooked foods,
foods in dishes, fresh meat, cold
cuts, drinks
2. Milk, dairy products, foods in dishes
3. Fruits, vegetables, salads
4. Cheese, butter
5. Eggs
6. Yoghurt, sour cream
7. Small bottles, soft drinks
8. Big bottles, drinks
Storage time and temperature of
foods
The storage time chart at the end of the
instruction book gives information about
storage time.
The storage time can not be determined
exactly in advance, as it depends on the
freshness and handling of the cooled
food. That is why the storage time made
known is only informative.
If you do not want to use up deep-frozen
foods bought immediately they can be
stored for about 1 day (until dissolving) in
the refrigerator.
How to use the refrigerator
For adequate cooling
developing interior air
circulation is necessary. For this reason
you are asked not to cover the air
circulation gaps behind the shelves (e.g.
with tray etc.).
Do not put hot food into the
refrigerator. Allow it to reach
room temperature naturally. In this way
the unnnecessary frost building up can
be avoided.
Foods can take over odours
from each other. So it is
essential to put foods in closed dishes or
wrap them in cellophane, aluminium foil,
grease-proof paper or cling film before
placing them into the refrigerator. This
way foods will keep their moisture e.g.
vegetables will not dry out after some
days.

electrolux 39
GB
Storing in the freezer
It is practical to replace frozen products
into the basket(s) after freezing has
finished. Doing this you could make room
in the freezing compartment for another
freezing. Intermediate freezing does not
deteriorate foods already stored.
In large quantities of food are to be
stored, remove the baskets except the
lowermost one from appliance and place
food on the cooling surface.
Do not forget to keep to the
storage time given on the
packaging of frozen products if you buy
them frozen. To store home-frozen
products see the storing instructions
placed in the door of the freezer.
Symbols signify the various foods,
numbers mean maximum storing time
given in months.
It is safe to store quick-frozen,
frozen foods only if they have not
dissolved even for a short time until
placing them into the freezer. If the deep-
frozen food has already dissolved,
refreezing is not recommended, it has to
be used up as soon as possible
Freezing
The appliance can be used to freeze
fresh food of quantity specified on the
data label. Freezing different products
should always be done after proper
preparing as follows.
Set the thermostat knob to a medium
position.
Put the previously frozen food - or some
of it - to the basket or baskets. Put the
fresh food into the freezing
compartment, leaving enough space for
airflow. If there is some previously frozen
food left in the freezing compartment,
put this food into the back of the
compartment avoiding the contact
between the fresh food and the already
frozen food.
Run the appliance this way for 24 hours.
After 24 hours set the thermostat knob
according to your choice or leave it in a
medium position, which is in general
appropriate for everyday cooling needs.
Setting the thermostat knob to a
higher (e.g. maximum) position
is not recommended. Although doing so
would make the freezing time shorter, on
the other hand the temperature of the
fridge compartment may go permanently
below 0 °C, what yields freezing the food
and drinks stored there.
Never freeze food in bigger
quantity than given in the
'Technical data' at the same time,
otherwise freezing will not be
thorough and after dissolving various
deterioration may take place (losing
taste and aroma, lysing, etc.).
Do not make ice during freezing
preferably, because making ice
reduces freezing capacity.

40 electrolux GB
this part changing during its work,
and parallel with this its dimensions
are slightly changing, too. These
changes might cause a cracking
noise, which is a natural, harmless
phenomenon.
Should you want to check the
temperature of food stored in the
refrigerator, set the thermostat knob
into a medium position, place a glass
of water centrally in the cabinet, and
put a proper thermometer with an
accuracy of +/- 1°C into it. If after 6
hours you measure a value between
+3°C and +8°C, the refrigerator
works properly. The measuring shall
be performed under steady-stated
conditions (without changing the
load).
If the freezer temperature is measured
using a thermometer, put it between
the products since this will reflect the
real temperature in the frozen
products.
Some useful information and
advice
The variable shelves are worth paying
attention to, which increases the
usability of the fresh food
compartment considerably.
Rearranging the shelves is also
possible when the door is open at an
angle of 90°.
After opening and closing the door of
freezer vacuum will rise inside the
appliance because of the low
temperature. So wait 2-3 minutes after
closing the door - if you want to open
it again - while inner pressure
equalises.
Take care of opening the freezer at a
position of thermostatic control so that
the inside temperature can never be
warmer than -18°C.
It is practical to make sure of faultless
operation of the appliance daily so as
to notice possible failure in time and
prevent deterioration of frozen foods.
Normal operating sounds:
A thermostat controls the
compressor and you will hear a faint
click when thermostat cuts in and
out.
You may hear faint gurgling or
bubbling sound when the
refrigerant is pumped through the
coils at the rear, to the cooling
plate/evaporator.
When the compressor is on, the
refrigerant is being pumped round
and you will hear a whirring sound
or pulsating noise from the
compressor.
The fridge evaporator (this part cool
down the fridge section) is foamed
into the cabinet. The temperature of

electrolux 41
GB
The appliance and
environment
This appliance does not contain gasses
which could damage the ozone layer, in
either its refrigerant circuit or insulation
materials. The appliance shall not be
discarded together with the urban refuse
and rubbish. Avoid damaging the cooling
unit, especially at the rear near the heat
exchanger. Information on your local
disposal sites may be obtained from your
municipal authorities.
The materials used on this appliance
marked with the sympol are
recyclable.
Maintenance
Defrosting
Bleeding part of the moisture of cooling
chambers in form of frost and ice goes
with the operation of the appliance.
Thick frost and ice has an insulating
effect, so it reduces cooling efficiency as
the temperature increases in the cooling
chambers, they need more energy.
At this type of appliance defrosting the
cooling surface of the refrigerator is
automatic without any external
intervention.The thermostatic control
interrupts the operation of compressor at
regular intervals for more or less time -
during this cooling is interrupted - the
temperature of the cooling surface goes
above 0 °C due to interior heating load of
the compartment, so defrosting occurs.
When the surface temperature of the
cooling surface has reached +3 - +4 °C
the thermostatic control restarts
operation of the system.
Melting water flows through defrost water
outlet leaded through the back into the
evaporator tray maintained on the top of
Hints and ideas
In this chapter practical hints and ideas
are given about how to use the appliance
to reach maximum energy saving and
there is environmental information about
the appliance as well.
How to save energy
Avoid putting the appliance in a sunny
place and near anything that gives off
heat.
Be sure that the condenser and the
compressor are well ventilated. Do not
cover the sections where ventilation
is.
Wrap products in tightly closing dishes
or cling film to avoid building up
unnecessary frost.
Do not leave the door open longer
than necessary and avoid
unnecessary openings.
Put warm foods into the appliance only
when they are at room temperature.
Keep the condenser clean.

42 electrolux GB
The freezer can not be equipped with
automatic defrosting set since the deep-
frozen and frozen foods do not endure
melting temperature.
When small frost and ice occurs scrape
off and remove frost and ice coating with
the supplied plastic scraper.
When ice coating is so thick that it cannot
be removed with the plastic scraper, the
cooling gill have to be defrosted.
Frequency of defrosting depends on
usage (generally 2-3 times a year).
Take the frozen foods out of the
appliance, and put them into a basket
lined with paper or cloth. Store them in a
possibly cool place or replace them into
another refrigerator.
Pull out the mains plug from the mains
socket, so both parts of the appliance
are out of operation.
Open the doors of both parts of the
appliance and clean the refrigerator
according to 'Regular cleaning'. Maintain
and clean the freezer as following:
Sweep off the melting water with a cloth
or sponge in direction of sides of the
cooling plates. The melting water swept
down gathers in the outlet channel
practically formed in the bottom of the
appliance and can be removed
according to figure.
Put an adequately high bowl or dish
under the outlet.
The bowl in figure is not a piece of
accessories to the appliance!
Wipe the surfaces after defrosting and
leading the water out.
Put the mains plug into the mains socket
and put foods taken out back to their
places. It is recommended to operate the
appliance at the highest position of the
thermostatic control for some hours so
that it can reach the sufficient storing
temperature as soon as possible.
compressor and evaporates due to its
warmth.
Check and clean the outlet of
melting water coming during
defrosting regularly - a label inside
the appliance warns you for this. If it is
clogged the melting water gathered
can cause earlier failure as it can go
to the insulating of the appliance.
Clean the melting water outlet with the
supplied pipe scraper that can be seen in
the figure. The pipe scraper has to be
stored in the outlet.
The most typical case of clogging up in
the melting water outlet when you put
food wrapped in some paper into the
appliance and this paper contacts back
plate of the refrigerator and freezes to it.
If you remove the food right at this
moment the paper will tear and it can
cause clogging up in the outlet by getting
into it. So you are asked to be careful -
because of the above - when placing
foods wrapped in paper into the
appliance.
In case of increased demand e.g.
during heatwaves, the refrigerator
temporarily happens to operate
constantly - during this the automatic
defrosting does not work.
Remaining small ice and frost stains on
back plate of the refrigerator after
defrosting period is not abnormal.

electrolux 43
GB
If something does not work
During operation of the appliance some
smaller but annoying trouble can often
occur, which does not require calling a
technician out. In the following chart
information is given about them to avoid
unnecessary charges on service.
We draw your attention that operation of
appliance goes with certain sounds
(compressor- and circulating sound). This
is not trouble, but means normal
operation.
We draw it to your attention again
that the appliance operates
discontinuously, so the stopping
of compressor does not mean being no-
current. That is why you must not touch
the electrical parts of the appliance
before breaking the circuit.
Trouble shooting
How to change the bulb
Should the light fail to work you can
change it as below: Break the circuit of
the appliance. Press the rear hook (1)
and at the same time slide the cover
in the direction indicated by the arrow (2).
So the bulb can be replaced. (Bulb type:
T 25 230-240 V, 25 W, E 14
thread) After changing the bulb replace
the cover, snap it in place and apply
voltage to the appliance.
Regular cleaning
It is recommended to wash the inside of
the refrigerator in 3-4 weeks time using
lukewarm water then wipe it (it is practical
to clean the inside of the freezer and
defrost it at a time).
Household cleaner or soap must not be
used.
After breaking the circuit wash the
appliance with lukewarm water then wipe
it. Clean the door gasket with clean
water. After cleaning apply voltage to the
appliance.
It is recommended to remove the dust
and dirt collected on the back of the
refrigerator and the condenser and to
clean the evaporative tray on top of the
compressor once or twice a year.
When the refrigerator
is not in use
In case the appliance will not be used for
a long time follow these steps:
Break the circuit of the appliance.
Remove foods from the refrigerator.
Clean it as written before.
Leave the door open to avoid a build up
of air inside.

44 electrolux GB
Problem
It is too warm in the
refrigerator.
It is too warm in the
freezer.
There are too much
frost and ice.
The compressor
operates continually.
Possible cause
Thermostatic control can be
set wrongly.
If products are not cold
enough or placed wrongly.
The door does not close
tightly or it is not shut
properly.
Thermostatic control can be
set wrongly.
The door does not close
tightly or it is not shut
properly.
Products in big quantity to be
frozen were put in.
Products to be frozen are
placed too closely to each
other.
Products are not wrapped
properly.
Doors are not shut properly or
do not close tightly.
The thermostatic control can
be set wrongly.
The thermostatic control is set
wrongly.
Doors are not shut properly or
do not close tightly.
Products in big quantity to be
frozen were put in.
Too warm food was put in.
The appliance is in too warm
place.
Plug is not connected to the
mains socket properly.
Solution
Set the thermostat knob to
higher position.
Place the products to the
appropriate place.
Check if the door closes well
and the gasket is unhurt and
clean.
Set the thermostat knob to
higher position.
Check if the door closes well
and the gasket is unhurt and
clean.
Wait some hours and then
check the temperature again.
Place the products in a way
so that cold air could
circulate among them.
Wrap the products better.
Check if the doors close well
and the gaskets are unhurt
and clean.
Set the thermostat knob to a
position that gives higher
temperature.
Check if the doors close well
and the gaskets are unhurt
and clean.
Wait some hours and then
check the temperature again.
Put food at max. room
temperature.
Try to reduce the
temperature in the room
where the appliance stands.
Connect the mains plug
properly.

electrolux 45
GB
Inasmuch as the advice does not lead to result, call the nearest brand-mark service.
The appliance does
not work at all.
Neither cooling, nor
lighting works.
The appliance is
noisy.
The fuse burnt out.
The thermostatic control is
not on.
There is no voltage in the
mains socket. (Try to connect
another appliance into it.)
The appliance is not
supported properly.
Change the fuse.
Start the appliance
according to instructions in
chapter 'Putting it into use'.
Call an electrician.
Check if the appliance stands
stable (all the four feet should
be on the floor).

46 electrolux GB
Instructions for the Installer
Technical data
Installing the appliance
Transportation, unpacking
It is recommended to deliver the
appliance in original packaging, in
vertical position considering the
protective warning on packaging.
After each transportation the appliance
must not be switched on for approx. 2
hours.
Unpack the appliance and check if there
are damages on it. Report possible
damages immediately to the place you
bought it. In that case retain packaging.
Cleaning
Remove every adhesive tape, which
ensure the parts not to move in the
appliance.
Model
Gross capacity (l)
Net capacity (l)
Width (mm)
Height (mm)
Depth (mm)
Energy consumption (kWh/24h)
(kWh/year)
Energy class, according to EU standards
Freezing capacity (kg/24h)
Rising time (h)
Rated current (A)
Noise Lc (dB)
Weight (kg)
Number of compressors
ERB 36301X
Freezer: 110
Refrigerator: 226
Freezer: 92
Refrigerator: 223
595
1750
632
0,93
339
A
4
20
0,9
38
66
1
Placement
The ambient temperature has an effect
on the energy consumption and proper
operation of the appliance. When
placing, take into consideration that it is
practical to operate the appliance
between ambient temperature limits
according to the climate class that is
given in the chart below and can be
found in the data label.
Wash the inside of the appliance using
lukewarm water and mild detergent. Use
soft cloth.
After cleaning wipe out the inside of the
appliance.

electrolux 47
GB
If the ambient temperature goes below
the lower data the temperature of the
cooling compartment can go beyond the
prescribed temperature.
If the ambient temperature goes beyond
the upper data this means longer
operating time of the compressor,
breakdown in the automatic defrosting
increasing temperature in the cooling
compartment or increasing energy
consumption.
Mount the spacers supplied in the
plastic bag of the accessories. Hold
the spacer as shown on the Fig.,
knock it home, then turn it by 90 (Into
the oval holes of back side of the
appliance.)
Slacken the screws and insert the spacer
under the screw head, the re-tighten the
screws.
When placing the appliance ensure that it
stands level. This can be achieved by two
adjustable feet at the bottom in front.
Do not stand the appliance on a sunny
place or close to a radiator or cooker.
If it is unavoidable because of furnishing
and the appliance has to be stood near a
cooker take these minimum distances
into consideration:
In case of gas or electric cooker 3 cm
must be left, when it is less put a 0,5-
1 cm non-flam insulation between the
two appliances.
In case of oil or coal-fired stove the
distance must be 30 cms since they
give off more heat.
The refrigerator is designed to operate
when it is totally pushed to the wall.
When placing the refrigerator
keep minimal distances
recommended in figure.
A : placing it under a wall-cupboard
B : placing it freely
Class of climate Ambient temperature
SN +10 ... +32 °C
N +16 ... +32 °C
ST +18 ... +38 °C

48 electrolux GB
Fig.2
Unscrew the 2 screws (c), remove the
door mount at the top right-hand side
(d), and unscrew the screw on the
other side (c), remove the panel (b)
and place in an empty plastic bag.
Lift the fridge door up slightly and
remove.
Unscrew the screw (m), remove the
door stopper (h) and attach reversed
on the other side (Fig. 2).
Fig.3
Remove double door mount (a, b, c)
from the body of the appliance in
steps. Please make sure the plastic
Door reversal
Should the location demand it, the
opening direction of the door can be
changed.
The appliances are delivered with the
door opening to the right.
Carry out the steps as per the pictures
and the instructions.
We recommend that you have another
person to help you who can safely
hold the doors of the appliance
secure.
Disconnect the appliance from the
electrical supply.
Fig. 1
Open the door of the fridge, dismantle
the top cover (j) by removing the 2
screws (a), then close the door
(Fig. 2).
Move the panel (g) from one side of
the top cover (2) to the other (Fig. 2).
