Electrolux ERF3867SOW User manual

ERF3867SOW
ERF3867SOX
EN REFRIGERATOR USER MANUAL

CONTENTS
1. SAFETY INFORMATION...................................................................................... 2
2. SAFETY INSTRUCTIONS.....................................................................................4
3. OPERATION........................................................................................................ 6
4. DAILY USE.......................................................................................................... 9
5. HINTS AND TIPS............................................................................................... 10
6. CARE AND CLEANING......................................................................................11
7. TROUBLESHOOTING........................................................................................13
8. INSTALLATION..................................................................................................16
9. NOISES............................................................................................................. 20
10. TECHNICAL INFORMATION............................................................................ 21
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can be
safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
www.electrolux.com2

injuries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Do not let children play with the appliance.
•Cleaning and user maintenance shall not be made by
children without supervision.
•Keep all packaging away from children.
1.2 General Safety
•This appliance is intended to be used in household and
similar applications such as:
–Farm houses; staff kitchen areas in shops, offices
and other working environments
–By clients in hotels, motels, bed and breakfast and
other residential type environments
•Keep ventilation openings, in the appliance enclosure or
in the built-in structure, clear of obstruction.
•Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
•Do not damage the refrigerant circuit.
•Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the
type recommended by the manufacturer.
•Do not use water spray and steam to clean the
appliance.
•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
ENGLISH 3

•Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
•If the appliance is equipped with an Ice maker or a
water dispenser, fill them with potable water only.
•If the appliance requires a water connection, connect it
to potable water supply only.
•The inlet water pressure (minimum and maximum) must
be between 1 bar (0,1 MPa) and 10 bar (1 MPa)
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Make sure the air can circulate around
the appliance.
• Wait at least 4 hours before connecting
the appliance to the power supply. This
is to allow the oil to flow back in the
compressor.
• Do not install the appliance close to
radiators or cookers, oven or hobs.
• The rear of the appliance must stand
against the wall.
• Do not install the appliance where
there is direct sunlight.
• Do not install this appliance in areas
that are too humid or too colds, such
as the construction appendices,
garages or wine cellars.
• When you move the appliance, lift it by
the front edge to avoid scratching the
floor.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
electrical components (e.g. mains plug,
mains cable, compressor). Contact the
Service or an electrician to change the
electrical components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
www.electrolux.com4

2.3 Use
WARNING!
Risk of injury, burns, electrical
shock or fire.
• Do not change the specification of this
appliance.
• Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by
the manufacturer.
• Be careful not to cause damage to the
refrigerant circuit. It contains isobutane
(R600a), a natural gas with a high level
of environmental compatibility. This gas
is flammable.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the plastic
parts of the appliance.
• Do not store flammable gas and liquid
in the appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
2.4 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• This appliance contains hydrocarbons
in the cooling unit. Only a qualified
person must do the maintenance and
the recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the appliance.
2.5 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the insulation
materials of this appliance are ozone-
friendly.
• The insulation foam contains flammable
gas. Contact your municipal authority
for information on how to discard the
appliance correctly.
• Do not cause damage to the part of
the cooling unit that is near the heat
exchanger.
ENGLISH 5

3. OPERATION
3.1 Control panel
1 2
3
4
5
6
10
11
9
7
8
1Temperature button
2Display
3ON/OFF button
4ShoppingMode button
5Light/Filter reset button
6High sparkling water
7Low sparkling water
8Dispenser lever
9Still cold water
10 ChildLock button
11 Mode button
It is possible to change predefined sound
of buttons to a loudly one by pressing
together Mode button and Temperature
colder button for some seconds. Change
is reversible.
3.2 Display
A B C
D
E
FG
H
I
J
A) ExtraHumidity function
B) Temperature indicator
C) Water choice indicator
D) Water circuit cleaning
E) Alarm indicator
F) Water filter indicator
G) ChildLock function
H) ShoppingMode
I) EcoMode
J) Holiday function
3.3 Switching on
1. Connect the mains plug to the power
socket.
2. If the display is off, press ON/OFF.
If DEMO appears on the display, the
appliance is in demonstration mode.
Refer to "What to do if...".
www.electrolux.com6

The temperature indicators show the set
default temperature.
To select a different set
temperature refer to
"Temperature regulation".
CAUTION!
If the door remains open for
some minutes, the light will
turn off automatically. The
light is reset by closing and
opening the door itself.
3.4 Switching off
Press ON/OFF for 3 seconds.
The display switches off.
To disconnect the appliance
from the power disconnect
the mains plug from the
power socket.
3.5 Temperature regulation
The set temperature of the fridge may be
adjusted by pressing the temperature
button.
Default temperature:
• +4°C for the fridge
The temperature indicator shows the set
temperature.
The set temperature will be
reached within 24 hours.
After a power failure the set
temperature remains stored.
3.6 ChildLock function
To lock any possible operation through
the buttons select the ChildLock function.
Water dispensing and the light is not
locked in this mode.
1. To switch on the function press
ChildLock for 3 seconds.
The ChildLock indicator is shown.
2. To switch off the function press
ChildLock for 3 seconds.
The ChildLock indicator goes off.
3.7 ShoppingMode
If you need to insert a large amount of
warm food, for example after doing the
grocery shopping, activate the
ShoppingMode to chill products more
rapidly and to avoid warming other food
that is already in the refrigerator.
Press the ShoppingMode or Mode button.
The ShoppingMode indicator appears.
The ShoppingMode shuts off
automatically after approximately 6 hours.
To switch off the function before its
automatic end, repeat the procedure until
the ShoppingMode indicator turns off.
The function switches off by
selecting a different fridge set
temperature.
3.8 ExtraHumidity function
If you need to increase the humidity in the
refrigerator, we suggest activating the
ExtraHumidity function.
1. To switch on the function press Mode
until the corresponding icon appears.
The ExtraHumidity indicator goes on.
2. To switch off the function press Mode
in order to select an other function or
press Mode until you can see none of
the special icons.
The ExtraHumidity indicator goes off.
3.9 Holiday function
This function allows you to keep the
refrigerator closed and empty during a
long holiday period without the formation
of a bad smell.
The fridge compartment must
be empty with Holiday
function on.
1. To switch on the function press Mode
until the corresponding icon appears.
The Holiday indicator goes on.
The fridge temperature indicator shows
the set temperature.
2. To switch off the function press Mode
in order to select an other function or
press Mode until you can see none of
the special icons.
The Holiday indicator goes off.
ENGLISH 7

The function switches off by
selecting a different fridge set
temperature.
3.10 EcoMode
For optimal food storage select the
EcoMode.
1. To switch on the function press Mode
until the corresponding icon appears.
After a few seconds the EcoMode
indicator goes on.
The temperature indicator shows the set
temperature:
• for the fridge: +4°C.
2. To switch off the function press Mode
in order to select an other function or
press the Mode until you can see
none of the special icons.
After a few seconds the EcoMode
indicator goes off.
The function switches off by
selecting a different set
temperature.
3.11 Door open alarm
An acoustic alarm will sound if the door is
left open for a few minutes. The door open
alarm conditions are indicated by:
• a flashing Alarm indicator;
• an acoustic buzzer.
When normal conditions are restored
(door closed), the alarm will stop. The
buzzer can also be switched off by
pressing any button.
3.12 Selecting and dispensing
water
Before dispensing water, select either still
cold water, low sparkling water or high
sparkling water.
The actual choice is indicated by the
indicator.
1. Water is dispensed by pressing a
glass or other container towards the
flap.
2. Draw back the glass or container to
stop the water flow and the indicator
goes off after a few seconds.
Any water that drips or is spilled is
collected in the drip tray below the
water dispenser. The drip tray can be
detached and emptied when
necessary.
3.13 Lighting
The water dispenser lighting illuminates
automatically when water is dispensed.
3.14 For continuous lighting
Make sure that the ice dispenser is
unlocked.
Press the Light button and the lighting
goes on.
Brightness is now about 20% until the
dispenser is used.
3.15 Switch off the lighting
Press the light button and the lighting
goes out.
3.16 Water filter indicator
1. When the water filter indicator lights
up the water filter has about 20%
remaining lifetime.
In this situation, it is recommended
that you buy a replacement filter.
2. When the water filter indicator starts
flashing, the water filter lifetime is
consumed . Replace the water filter
without delay, refer to "Installation of
the water filter".
3. When the water filter is replaced.
a. Press the filter reset button for 3
seconds to reset the water filter
indicator.
3.17 Water circuit cleaning
1. If you need to clean the water system
press Mode until the corresponding
icon appears.
After a few seconds the still cold water
indicator goes on.
Water select locked into still cold water.
2. Dispensing water in total 2 minutes.
The water system is cleaned.
The water circuit cleaning and the still cold
water indicator goes off.
3. To switch off the function before its
automatic end press Mode until the
corresponding icon appears.
www.electrolux.com8

After a few seconds the water circuit
cleaning and the still cold water indicator
goes off.
4. DAILY USE
WARNING!
Refer to Safety chapters.
4.1 Taste Guard filter

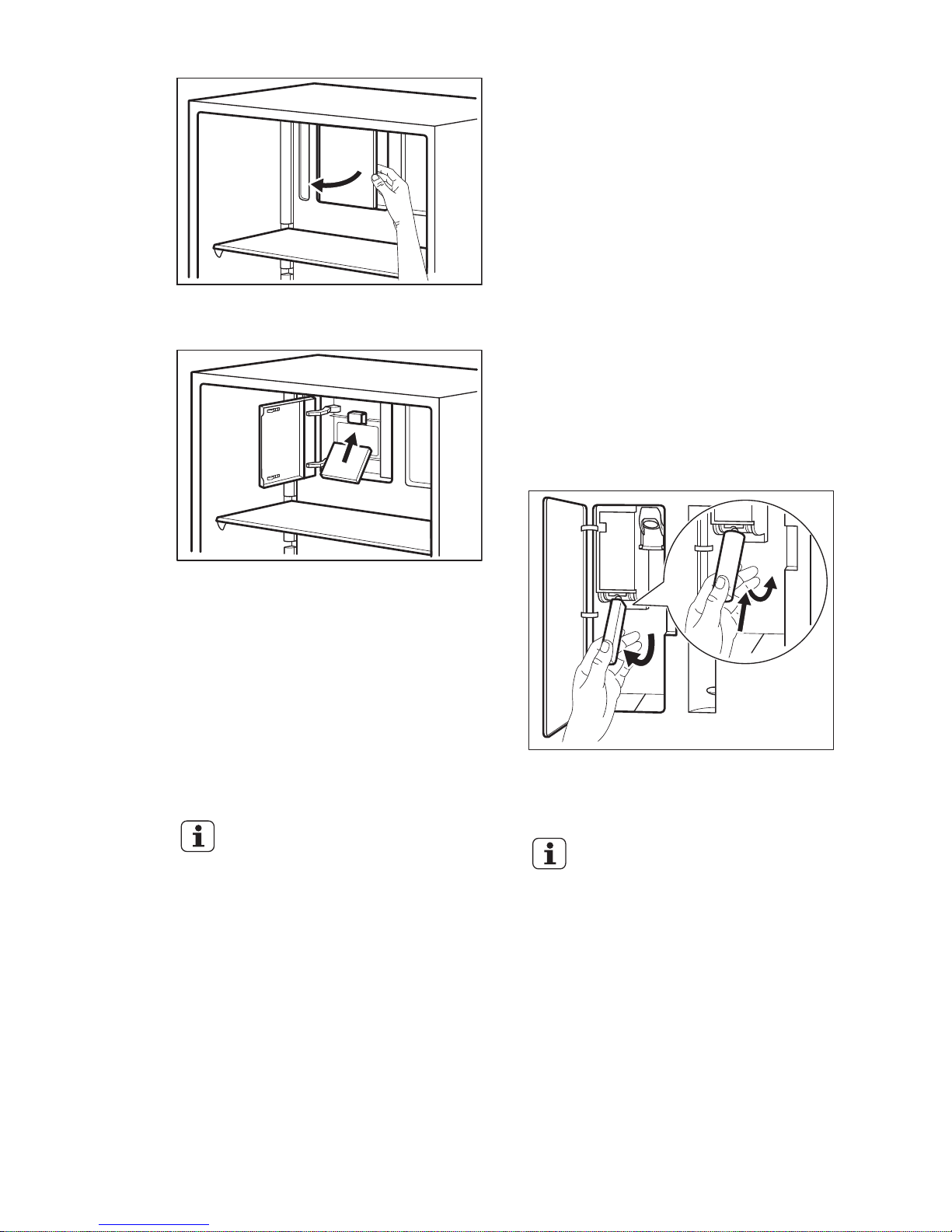

Your appliance is equipped with a carbon
filter behind the air lever flap.
The filter purifies the air from unwanted
odours in the fridge compartment
preserving food quality.
On delivery the filter is in a plastic bag.
Refer to "Installation of the Taste Guard
filter" for instructions.
Make sure that the air lever
flap is closed to obtain proper
function.
4.2 Vegetable Drawer
The drawer is suitable for storing fruit and
vegetables.
Some models have a separator inside the
drawer that can be placed in different
positions to allow for the subdivision best
suited to personal needs.
All parts inside the drawer can be
removed for cleaning purposes.
4.3 Movable shelves
The walls of the refrigerator are equipped
with a series of shelves support so that
the shelves can be positioned as desired.
Some shelves must be lifted up by the
rear edge to enable them to be removed.
The shelf (A) above the water
module is recommended to
be placed as shown for good
air circulation.
Do not move the glass shelf
above the vegetable drawer
to ensure correct air
circulation.
A
4.4 Positioning the door shelves
To permit storage of food packages of
various sizes, the door shelves can be
placed at different heights.
To make these adjustments proceed as
follows:
1. Gradually pull in the direction of the
arrows until it comes free.
2. Reposition the shelf as required.
Do not move the big lower
door shelf to ensure correct
air circulation.
4.5 Bottle rack
1. Place the bottles (with the opening
facing front) in the pre-positioned
shelf.
ENGLISH 9

If the shelf is positioned
horizontally, place only
closed bottles.

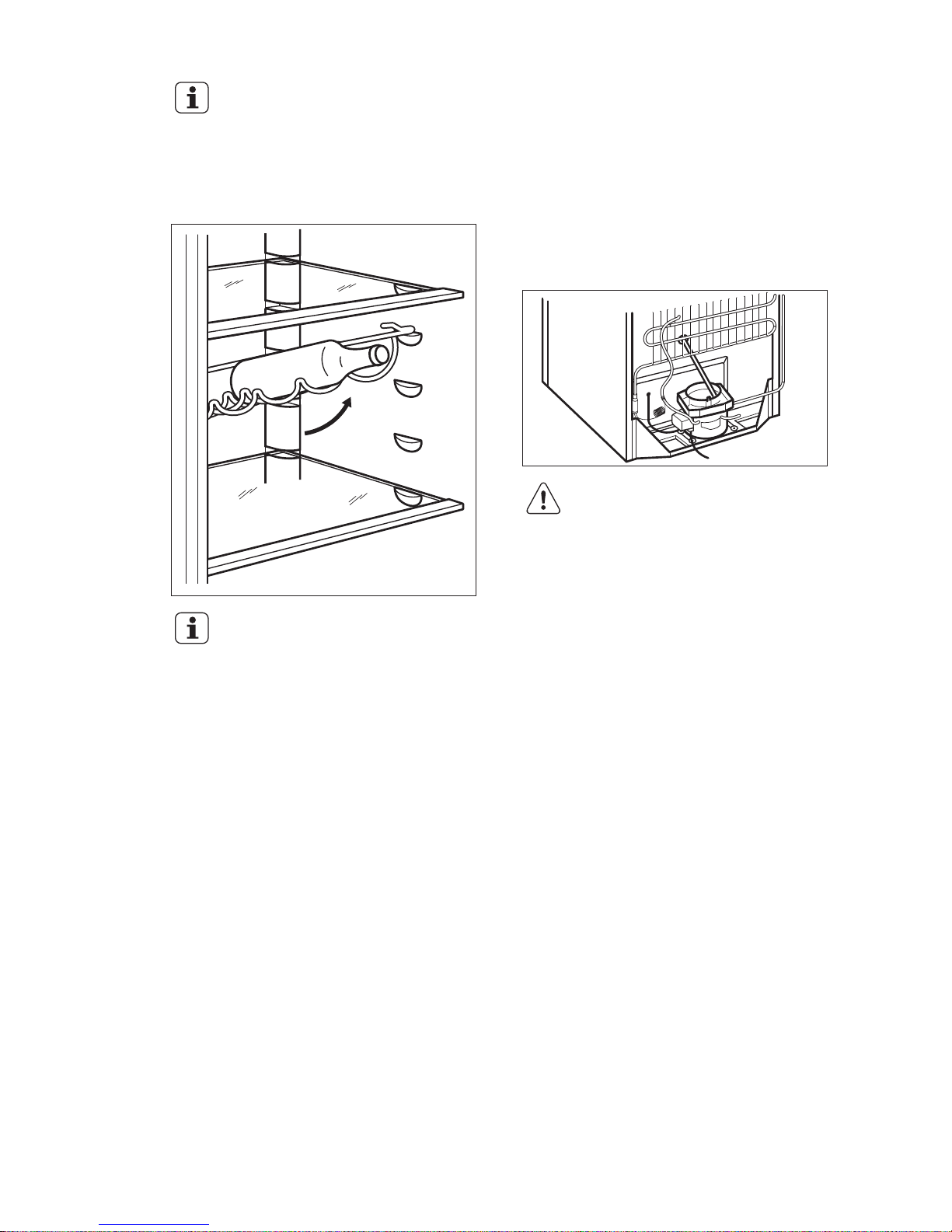

2. To store previously opened bottles,
pull the shelf up so it can rotate
upwards and be placed on the next
higher level.
A few positions can't be used
due to interference with the
temperature sensor.
4.6 Cleaning the interior
1. Before using the appliance for the first
time, wash the interior and all internal
accessories with lukewarm water and
neutral soap so as to remove the
typical smell of a brand-new product,
then dry thoroughly.
2. Check that the drain hose at the rear
of the cabinet discharges into the drip
tray.
CAUTION!
Do not use detergents or
abrasive powders, as these
will damage the finish.
5. HINTS AND TIPS
5.1 Normal operating sounds
The following sounds are normal during
operation:
• A faint gurgling and bubbling sound
from coils sound when refrigerant is
pumped.
• A whirring and pulsating sound from
the compressor when refrigerant is
pumped.
• A sudden cracking noise from inside
appliance caused by thermic dilatation
(a natural and not dangerous physical
phenomenon).
• A faint click noise from the temperature
regulator when the compressor
switches on or off.
5.2 Hints for energy saving
• Do not open the door frequently or
leave it open longer than absolutely
necessary.
• Place the shelf above the water module
as described in the "Daily use" chapter.
5.3 Hints for fresh food
refrigeration
To obtain the best performance:
• do not store warm food or evaporating
liquids in the refrigerator
• do cover or wrap the food, particularly
if it has a strong flavour
• position food so that air can circulate
freely around it
5.4 Hints for refrigeration
Useful hints:
www.electrolux.com10

• Meat (all types) : wrap in polythene
bags and place on the glass shelf
above the vegetable drawer.
• For safety, store in this way only one or
two days at the most.
• Cooked foods, cold dishes, etc..: these
should be covered and may be placed
on any shelf.
• Fruit and vegetables: these should be
thoroughly cleaned and placed in the
special drawer(s) provided.
• Butter and cheese: these should be
placed in special airtight containers or
wrapped in aluminium foil or polythene
bags to exclude as much air as
possible.
• Bottles: these need a cap and should
be stored on the door bottle shelf, or (if
equipped) on the bottle rack.
• Bananas, potatoes, onions and garlic,
if not packed, must not be kept in the
refrigerator.
5.5 Hints for temperature inside
the fridge
• A suitable temperature inside the fridge
is approx. +4° C. If the temperature
regulator is set to a cold temperature,
the ambient temperature is high or if
the fridge is fully loaded the
compressor will run for a longer time. If
too cold, change to a higher
temperature setting.
CAUTION!
Do not place food against
or close to the
temperature sensor (A).
This can result in too cold
temperatures.
A
• If you want to check the temperature of
food stored in the refrigerator, place a
glass of water centrally in the cabinet,
and put a proper thermometer with an
accuracy of +/– 1 °C into it. After 6
hours the temperature can be
monitored. The measuring shall be
performed under steady-stated
conditions (without changing the load).
6. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
6.1 General warnings
CAUTION!
Unplug the appliance before
carrying out any maintenance
operation.
This appliance contains
hydrocarbons in its cooling
unit; maintenance and
recharging must therefore
only be carried out by
authorized technicians.
The accessories and parts of
the appliance are not suitable
for washing in a dishwasher.
6.2 Periodic cleaning
CAUTION!
Do not pull, move or damage
any pipes and/or cables
inside the cabinet.
CAUTION!
Take care of not to damage
the cooling system.
CAUTION!
When moving the cabinet, lift
it by the front edge to avoid
scratching the floor.
ENGLISH 11

The equipment has to be cleaned
regularly:
1. Clean the inside and accessories with
lukewarm water and some neutral
soap.
2. Regularly check the door seals and
wipe clean to ensure they are clean
and free from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser and
the compressor at the back of the
appliance with a brush.
This operation will improve the
performance of the appliance and
save electricity consumption.
6.3 Cleaning the water dispenser
Lime deposits on the dispenser surface
can removed using vinegar or diluted
acetic acid as cleaning agent.
The dispenser drip tray can be cleaned
with a lukewarm water and some neutral
soap.
1. When necessary, clean the surfaces of
the dispenser, using only a soft cloth
and warm water.
2. Wipe clean with a damp cloth.
6.4 Cleaning the ventilation grille
Make sure the door is open.
The ventilation grille can be removed for
washing.
1. Loosen the edge of the grille by pulling
it according to the figure.
2. Pull the grille straight out to completely
remove it.
3. Vacuum clean under the cabinet.
6.5 Defrosting of the refrigerator
Frost is automatically eliminated from the
evaporator of the refrigerator
compartment every time the motor
compressor stops, during normal use. The
defrost water drains out through a trough
into a special container at the back of the
appliance, over the motor compressor,
where it evaporates.
6.6 Periods of non-operation
When the water system is not use for a
long period, turn off the water connection
to the refrigerator.
When the appliance is not in use for long
periods, take the following precautions:
1. Disconnect the appliance from
electricity supply.
2. Remove all food.
3. Clean the appliance and all
accessories.
4. Leave the door/doors open to prevent
unpleasant smells.
Before using the appliance again, rinse the
system thoroughly by dispensing at least
three liters (5 pints) of water.
WARNING!
If the cabinet will be kept on,
ask somebody to check it
once in a while to prevent the
food inside from spoiling in
case of a power failure.
6.7 Replacing the water filter
Refer to "Installation of the water filter".
The water connection does
not need to be switched off
when changing the filter.
Replacement filters can be ordered from
Authorised Service Centre.
1. Remove the filter. A small amount of
water will run out.
2. Dry off and fit the new filter.
6.8 Replacing the gas cylinder
Remove the gas cylinder, refer to
"Installation of the gas cylinder".
The replacement gas cylinder is obtained
through your local dealer.
www.electrolux.com12

6.9 Replacing the Taste Guard
filter
To get the best performance the Taste
Guard filter should be replaced once every
year.
New active filters can be purchased from
your local dealer.
Refer to "Installation of the Taste Guard
filter" for instructions.
7. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
7.1 What to do if...
Problem Possible cause Solution
The appliance does not op-
erate.
The appliance is switched
off.
Switch on the appliance.
The mains plug is not
connected to the mains
socket correctly.
Connect the mains plug to
the mains socket correctly.
There is no voltage in the
mains socket.
Connect a different electrical
appliance to the mains sock-
et. Contact a qualified electri-
cian.
The appliance is noisy. The appliance is not sup-
ported properly.
Check if the appliance stands
stable.
Sound level is too high
during dispensing of wa-
ter.
The transport supporting tie
of the water system pressure
pump has not been removed.
Refer to “Removing the trans-
port support”.
Audible or visual alarm is
on.
The door is not closed
correctly.
Refer to "Door open alarm".
A rectangular symbol is
shown instead of numbers
on the Temperature Dis-
play.
Temperature sensor prob-
lem.
Contact the nearest Author-
ised Service Centre (the cool-
ing system will continue to
keep food products cold, but
temperature adjustment will
not be possible).
The lamp does not work. The lamp is in stand-by. Close and open the door.
The lamp does not work. The lamp is defective. Contact the nearest Author-
ised Service Centre.
The compressor operates
continually.
Temperature is set incor-
rectly.
Refer to "Operation" chapter.
ENGLISH 13

Problem Possible cause Solution
Many food products were
put in at the same time.
Wait some hours and then
check the temperature again.
The room temperature is
too high.
Refer to climate class chart
on the rating plate.
Food products placed in
the appliance were too
warm.
Allow food products to cool
to room temperature before
storing.
The door is not closed
correctly.
Refer to "Closing the door".
The ShoppingMode func-
tion is switched on.
Refer to "ShoppingMode
function".
The compressor does not
start immediately after
pressing the Shopping-
Mode, or after changing the
temperature.
This is normal, no error
has occurred.
The compressor starts after a
period of time.
Water flows inside the re-
frigerator.
The water outlet is clog-
ged.
Clean the water outlet.
Food products prevent
that water flows into the
water collector.
Make sure that food products
do not touch the rear plate.
Water flows on the floor. The melting water outlet is
not connected to the
evaporative tray above the
compressor.
Attach the melting water out-
let to the evaporative tray.
Temperature cannot be set. The ShoppingMode func-
tion is switched on.
Switch off ShoppingMode
manually, or wait until the
function resets automatically
to set the temperature. Refer
to " ShoppingMode function".
DEMO appears on the dis-
play.
The appliance is in dem-
onstration mode.
Keep the Mode pressed for
approximately 10 seconds
until a long sound is heard
and display shuts off for a
short time.
Door is misaligned or inter-
feres with ventilation grill.
The appliance is not level-
led.
Refer to "Levelling".
There is not enough carbon
dioxide in the water.
The carbon dioxide is run-
ning out.
Refer to "Installation of the
gas cylinder".
The incoming water pres-
sure is too low.
Drain off a large amount of
carbonated water (about 1 li-
tre).
www.electrolux.com14

Problem Possible cause Solution
There is too much carbon
dioxide in the water.
Dilute with ordinary water.
(See "The functions of the
water dispenser" in "Control
Panel"" chapter).
Dilute with ordinary water. Refer to "Selecting and dis-
pensing water".
No carbon dioxide. The gas cylinder is empty. Refer to "Replacing gas cylin-
der".
No or very low water flow. The gas cylinder is empty. Refer to "Replacing gas cylin-
der".
Sediment in the water. Remove and clean the strain-
er in the inlet hose connec-
tion.
Water supply obstructed. Check water supply.
Only gas comes out when
dispensing carbonated wa-
ter.
Sediment in the water. Remove and clean the strain-
er in the inlet hose connec-
tion.
Dispensing is interrupted af-
ter a short time.
The maximum time of two
minutes is exceeded.
Start new dispensing.
The "Water circuit cleaning"
and "Still cold water" indica-
tors are shown.
No water has been dis-
pensed in 10 days.
Dispense water in total 2 mi-
nutes and the icons goes off.
The buzzer sounds. The
"Alarm" icon and "Extra Hu-
midity" icons are flashing.
Failed water supplies. "Press any button to reset the
alarm. Select still cold water
and push the water dispens-
ing lever and release. The wa-
ter pump start and filling the
water system. After a few mi-
nutes the icons goes off.
Dispensing water more
than 2 minutes.
Release the water dispensing
lever and press any button to
reset the alarm. Start new
dispensing.
The water filter indicator
flashes.
The filter has been totally
consumed.
Refer to "Replacing the water
filter".
The water filter indicator
lights constantly.
20% of filter capacity re-
mains.
Buy a new filter.
The temperature in the ap-
pliance is too low/too high.
The temperature regulator
is not set correctly.
Set a higher/lower tempera-
ture.
The door is not closed
correctly.
Refer to "Closing the door".
ENGLISH 15

Problem Possible cause Solution
Food products placed in
the appliance were too
warm.
Allow food products to cool
to room temperature before
storing.
Many food products were
put in at the same time.
Wait some hours and then
check the temperature again.
The door has been
opened often.
Open the door only if neces-
sary.
The ShoppingMode func-
tion is switched on.
Refer to "ShoppingMode
function".
There is no cold air circu-
lation in the appliance.
Make sure that there is cold
air circulation in the appli-
ance.
If the advice does not lead to
the desired result, call the
nearest Authorised Service
Centre.
7.2 Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to
"Installation".
3. If necessary, replace the defective
door gaskets. Contact the Authorised
Service Centre.
7.3 Replacing the lamp
The appliance is equipped with a longlife
LED interior light.
Only service is allowed to replace the
lighting device. Contact your Authorised
Service Centre.
8. INSTALLATION
WARNING!
Refer to Safety chapters.
8.1 Positioning
This appliance can be installed in a dry,
well ventilated indoor where the ambient
temperature corresponds to the climate
class indicated on the rating plate of the
appliance:
Climate
class
Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
Climate
class
Ambient temperature
T +16°C to + 43°C
Some functional problems
might occur for some types
of models when operating
outside of that range. The
correct operation can only be
guaranteed within the
specified temperature range.
If you have any doubts
regarding where to install the
appliance, please turn to the
vendor, to our customer
service or to the nearest
Service Centre
www.electrolux.com16

8.2 Location
To ensure best performance, if the
appliance is positioned below an
overhanging wall unit, the minimum
distance between the top of the cabinet
and the wall unit must be at least 40 mm.
Ideally, however, the appliance should not
be positioned below overhanging wall
units.
The ventilation space can be:
• directly above the appliance
• behind and above the top cupboard.
In this case, the space behind the top
cupboard must be at least 50 mm
deep.
50 mm
8.3 Electrical connection
• Before plugging in, ensure that the
voltage and frequency shown on the
rating plate correspond to your
domestic power supply.
• The appliance must be earthed. The
power supply cable plug is provided
with a contact for this purpose. If the
domestic power supply socket is not
earthed, connect the appliance to a
separate earth in compliance with
current regulations, consulting a
qualified electrician.
• The manufacturer declines all
responsibility if the above safety
precautions are not observed.
• This appliance complies with the E.E.C.
Directives.
8.4 Rear spacers
Install the two spacers and the locking
pins provided within the accessory bag as
shown in the figure.
8.5 Levelling
When placing the appliance ensure that it
stands level. If necessary adjust the feet
using the adjustment spanner supplied.
Door alignment is dependent on proper
levelling.

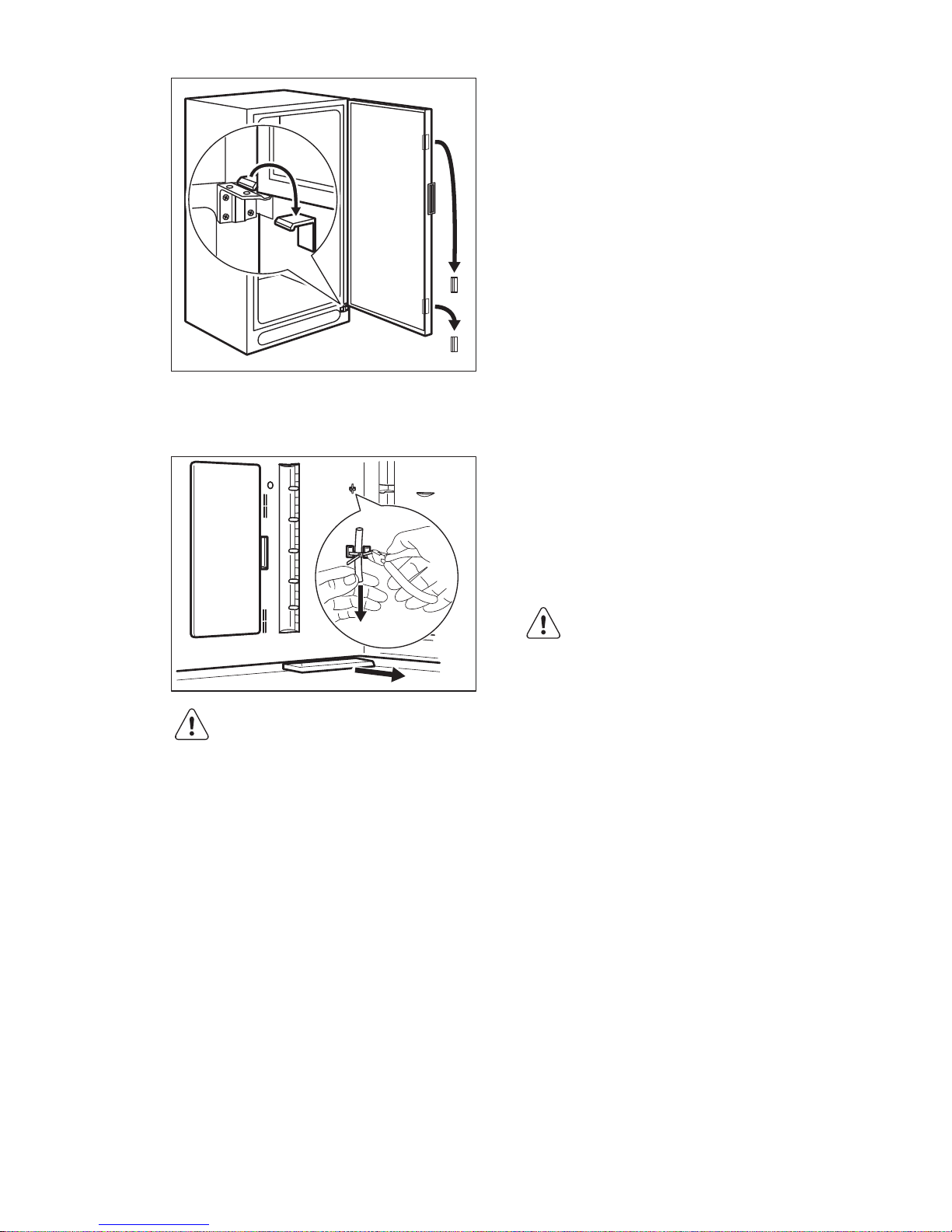

8.6 Removing the transport
support
Your appliance is equipped with transport
support to secure the door during
transportation.
1. Open the door.
2. Remove the transport support (2) from
the door sides.
3. Remove the transport support (3) from
the lower hinge (some models).
ENGLISH 17

2
3
4. Remove the transport support (4) from
underneath the water unit.
5. Cut the pump securing tie (5) and
remove it.
4
5
CAUTION!
Some models are fitted with a
silencing pad under the
cabinet. Do not remove this
pad.
8.7 Connecting the water hose.
Water supply should be provided with a
tap and 3/4" male connector within 1,5 m
from the appliance.
This work is to be carried out by a skilled
plumber.
There are different type-approved taps
and tap assemblies on the market.
The water hose must not be cracked,
squeezed or put in tight bends.
The safety valve provided in a package
inside the appliance should be used to
prevent overflow. Before the safety valve is
placed on the tap, turn the pointer
clockwise to number 10 with the enclosed
plastic key. Install the safety valve on the
tap and let at least 10 litres of water flow
through the device. Before connecting the
appliance turn the pointer to number 1 on
the safety valve. If the safety valve has
shut off, detach it and press the red
plunger which is located inside the lower
housing of the device itself.
Before the appliance is placed its final
location, ensure that the water connection
has been correctly carried out, that there
is no leakage at the connection to the
water tap.
Tighten the screw enough by hand.
Make sure that the gasket is properly
positioned in the connector.
We recommend that the appliance is
placed on a "run-off" mat intended for
refrigerators and freezers, which makes it
easier to detect possible leakage
8.8 Installation of the Taste
Guard filter
CAUTION!
The filter should be handled
carefully so fragments do not
loosen from the surface.
Make sure that the air lever
flap is closed to obtain proper
function.
The Taste Guard filter is an active carbon
filter which absorbs bad odors maintain
the best flavour and aroma for all
foodstuffs without risk of odor cross
contamination.
On delivery the carbon filter is in a plastic
bag to preserve performance.
1. Open the air lever flap.
2. Take the filter out of the plastic bag.
www.electrolux.com18

3. Insert the filter in the slot found in the
back of the air lever flap.
4. Close the air lever flap.
8.9 Starting the water system for
the first time.
Ensure proper connection to the water
supply, refer to "Connecting the water
hose".
1. Open the tap on the water
connection.
2. Start the refrigerator.
The water system main valve opens and
the pump starts to fill the system.
Water from final inspection
testing may be resident in the
appliance. Dispense and
discard at least 2 litres of
plain water and 1 litre of
carbonated water prior to
use.
8.10 Installation of the water
filter.
1. Unpack the filter.
2. Remove the accessories in front of the
water module and open the service
hatch.
3. Place a cloth or a piece of kitchen
towel in the space beneath the water
filter.
4. Pull the bypass cartridge outwards,
grasping the lower part, until the water
bypass cartridge is automatically
ejected.
5. Remove the protective wrapping of
the new water filter and insert the new
filter firmly into the filter connection.
6. Push the water filter back to its original
position.
7. Remove cloth or towel and make sure
that spilled water is wiped off.
8. Close the hatch and remount the
interior.
9. Keep the bypass cartridge for future
use.
10. Select Still cold water and dispense
about 2 litres of water. There may be
some air to start with.
1
2
8.11 Installation of the gas
cylinder.
If the gas cylinder is already
installed, remove the
transport support and turn
the lever upwards. Refer to
point 3.
1. Remove the gas cylinder wrapping
and screw on the adapter to the gas
cylinder. Tighten by hand only.
ENGLISH 19

2. Position the gas cylinder with the
adapter attached underneath the valve
and ensure that the hooks of the lever
system supports the protruding parts
of the adapter.
1
2
3. Turn the lever upwards in one
continuous movement.
3
4
8.12 Door reversibility
In case you want to change the opening
direction of the door, contact the nearest
Authorised Service Centre. The Authorised
Service specialist will carry out the
reversibility of the doors at your cost.
9. NOISES
There are some sounds during normal running (compressor, refrigerant circulation).
BRRR!
HISSS!
CLICK!
BLUBB!
CRACK!
SSSRRR!
OK
www.electrolux.com20
