Electrolux ERG2305AOW User manual

ERG2305AOW
.................................................. ...............................................
EN REFRIGERATOR USER MANUAL

CONTENTS
SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
HELPFUL HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
WHAT TO DO IF… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
NOISES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
ENVIRONMENT CONCERNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it
decades of professional experience and innovation. Ingenious and stylish, it has been designed with
you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results
every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
2www.electrolux.com

SAFETY INFORMATION
In the interest of your safety and to ensure
the correct use, before installing and first
using the appliance, read this user manual
carefully, including its hints and warnings.
To avoid unnecessary mistakes and acci-
dents, it is important to ensure that all peo-
ple using the appliance are thoroughly fa-
miliar with its operation and safety features.
Save these instructions and make sure that
they remain with the appliance if it is moved
or sold, so that everyone using it through
its life will be properly informed on appli-
ance use and safety.
For the safety of life and property keep the
precautions of these user's instructions as
the manufacturer is not responsible for
damages caused by omission.
CHILDREN AND VULNERABLE
PEOPLE SAFETY
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning use of the ap-
pliance by a person responsible for their
safety.
Children should be supervised to ensure
that they do not play with the appliance.
• Keep all packaging well away from chil-
dren. There is risk of suffocation.
• If you are discarding the appliance pull
the plug out of the socket, cut the con-
nection cable (as close to the appliance
as you can) and remove the door to pre-
vent playing children to suffer electric
shock or to close themselves into it.
• If this appliance featuring magnetic door
seals is to replace an older appliance
having a spring lock (latch) on the door
or lid, be sure to make that spring lock
unusable before you discard the old ap-
pliance. This will prevent it from becom-
ing a death trap for a child.
GENERAL SAFETY
WARNING!
Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear
of obstruction.
• The appliance is intended for keeping
foodstuff and/or beverages in a normal
household as explained in this instruction
booklet.
• Do not use a mechanical device or any
artificial means to speed up the thawing
process.
• Do not use other electrical appliances
(such as ice cream makers) inside of re-
frigerating appliances, unless they are
approved for this purpose by the manu-
facturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is con-
tained within the refrigerant circuit of the
appliance, a natural gas with a high level
of environmental compatibility, which is
nevertheless flammable.
During transportation and installation of
the appliance, be certain that none of the
components of the refrigerant circuit be-
come damaged.
If the refrigerant circuit should become
damaged:
– avoid open flames and sources of igni-
tion
– thoroughly ventilate the room in which
the appliance is situated
• It is dangerous to alter the specifications
or modify this product in any way. Any
damage to the cord may cause a short-
circuit, fire and/or electric shock.
WARNING!
Any electrical component (power
cord, plug, compressor) must be
replaced by a certified service
agent or qualified service personnel
to avoid hazard.
1.
Power cord must not be lengthened.
2.
Make sure that the power plug is not
squashed or damaged by the back
of the appliance. A squashed or
damaged power plug may overheat
and cause a fire.
3.
Make sure that you can come to the
mains plug of the appliance.
4.
Do not pull the mains cable.
ENGLISH 3

5.
If the power plug socket is loose, do
not insert the power plug. There is a
risk of electric shock or fire.
6.
You must not operate the appliance
without the lamp cover (if foreseen)
of interior lighting.
• This appliance is heavy. Care should be
taken when moving it.
• Do not remove nor touch items from the
freezer compartment if your hands are
damp/wet, as this could cause skin
abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appli-
ance to direct sunlight.
• Bulb lamps (if foreseen) used in this ap-
pliance are special purpose lamps selec-
ted for household appliances use only.
They are not suitable for household room
illumination.
DAILY USE
• Do not put hot pot on the plastic parts in
the appliance.
• Do not store flammable gas and liquid in
the appliance, because they may ex-
plode.
• Do not place food products directly
against the air outlet on the rear wall. (If
the appliance is Frost Free)
• Frozen food must not be re-frozen once
it has been thawed out.
• Store pre-packed frozen food in accord-
ance with the frozen food manufacturer's
instructions.
• Appliance's manufacturers storage rec-
ommendations should be strictly ad-
hered to. Refer to relevant instructions.
• Do not place carbonated or fizzy drinks
in the freezer compartment as it creates
pressure on the container, which may
cause it to explode, resulting in damage
to the appliance.
• Ice lollies can cause frost burns if con-
sumed straight from the appliance.
CARE AND CLEANING
• Before maintenance, switch off the appli-
ance and disconnect the mains plug
from the mains socket.
• Do not clean the appliance with metal
objects.
• Do not use sharp objects to remove frost
from the appliance. Use a plastic scra-
per.
• Regularly examine the drain in the refrig-
erator for defrosted water. If necessary,
clean the drain. If the drain is blocked,
water will collect in the bottom of the ap-
pliance.
INSTALLATION
For electrical connection carefully
follow the instructions given in spe-
cific paragraphs.
• Unpack the appliance and check if there
are damages on it. Do not connect the
appliance if it is damaged. Report possi-
ble damages immediately to the place
you bought it. In that case retain pack-
ing.
• It is advisable to wait at least four hours
before connecting the appliance to allow
the oil to flow back in the compressor.
• Adequate air circulation should be
around the appliance, lacking this leads
to overheating. To achieve sufficient ven-
tilation follow the instructions relevant to
installation.
• Wherever possible the back of the prod-
uct should be against a wall to avoid
touching or catching warm parts (com-
pressor, condenser) to prevent possible
burn.
• The appliance must not be located close
to radiators or cookers.
• Make sure that the mains plug is acces-
sible after the installation of the appli-
ance.
• Connect to potable water supply only (If
a water connection is foreseen).
SERVICE
• Any electrical work required to do the
servicing of the appliance should be car-
ried out by a qualified electrician or com-
petent person.
• This product must be serviced by an au-
thorized Service Centre, and only genu-
ine spare parts must be used.
4www.electrolux.com

ENVIRONMENT PROTECTION
This appliance does not contain
gasses which could damage the
ozone layer, in either its refrigerant
circuit or insulation materials. The
appliance shall not be discarded
together with the urban refuse and
rubbish. The insulation foam con-
tains flammable gases: the appli-
ance shall be disposed according
to the applicable regulations to ob-
tain from your local authorities.
Avoid damaging the cooling unit,
especially at the rear near the heat
exchanger. The materials used on
this appliance marked by the sym-
bol are recyclable.
ENGLISH 5

CONTROL PANEL
1 2 3 4 5
1
ON/OFF button
2
Mode button
3
Display
4
Temperature colder button
5
Temperature warmer button
It is possible to change predefined sound
of buttons to a loudly one by pressing to-
gether Mode button and Temperature
colder button for some seconds. Change is
reversible.
DISPLAY
A B C D E
A)
Temperature indicator
B)
Holiday function
C)
Eco Mode function
D)
Shopping function
E)
Door open alarm indicator
After selection of the Mode or the
Temperature button the animations
starts.
After selection of the temperature
the animation flashes for a few mi-
nutes.
SWITCHING ON
To switch on the appliance do these steps:
1.
Connect the mains plug to the power
socket.
2.
Press the ON/OFF button if the display
is off.
3.
If DEMO appears on the display, the
appliance is in demonstration mode.
Refer to "What to do if..." paragraph.
4.
The temperature indicators show the
set default temperature.
To select a different set temperature refer
to "Temperature regulation".
SWITCHING OFF
To switch off the appliance do these steps:
1.
Press the ON/OFF button for 3 sec-
onds.
2.
The display switches off.
3.
To disconnect the appliance from the
power disconnect the mains plug from
the power socket.
TEMPERATURE REGULATION
The set temperature of the fridge may be
adjusted by pressing the temperature but-
ton.
Set default temperature: +5°C for the
fridge.
The temperature indicator shows the set
temperature.
The set temperature will be reached within
24 hours.
After a power failure the set tem-
perature remains stored.
6www.electrolux.com

HOLIDAYMODE
This function allows you to keep the refrig-
erator closed and empty during a long holi-
day period without the formation of a bad
smell.
The fridge compartment must be
empty with holiday function on.
To switch on the function:
1.
Press the Mode button until the corre-
sponding icon appears.
The Holiday indicator flashes for few
seconds.
The fridge temperature indicator shows
the set temperature.
To switch off the function:
1.
Press the Mode button until the Holi-
day indicator flashes.
2.
The Holiday indicator goes off.
The function switches off by select-
ing a different fridge set tempera-
ture.
ECOMODE
For optimal food storage select the Eco-
Mode.
To switch on the function:
1.
Press the Mode button until the corre-
sponding icon appears.
The EcoMode indicator flashes for few
seconds.
The temperature indicator shows the
set temperature:
– for the fridge: +4°C
2.
The EcoMode indicator is shown.
To switch off the function:
1.
Press the Mode button until the Eco-
Mode indicator flashes.
2.
The EcoMode indicator goes off.
The function switches off by select-
ing a different set temperature.
SHOPPINGMODE
If you need to insert a large amount of
warm food, for example after doing the
grocery shopping, we suggest activating
the ShoppingMode to chill the products
more rapidly and to avoid warming the oth-
er food which is already in the refrigerator.
To switch on the function:
1.
Press the Mode button until the corre-
sponding icon appears.
The ShoppingMode indicator flashes
for few seconds.
The ShoppingMode shuts off automatically
after approximately 6 hours.
To switch off the function before its auto-
matic end:
1.
Press the Mode button until the Shop-
pingMode indicator flashes.
2.
The ShoppingMode indicator goes off.
The function switches off by select-
ing a different fridge set tempera-
ture.
DOOR OPEN ALARM
An acoustic alarm will sound if the door is
left open for a few minutes. The door open
alarm conditions are indicated by:
• flashing Alarm indicator
• acoustic buzzer
When normal conditions are restored (door
closed), the alarm will stop.
During the alarm, the buzzer can be
switched off by pressing any button.
ENGLISH 7

DAILY USE
CLEANING THE INTERIOR
Before using the appliance for the first time,
wash the interior and all internal accesso-
ries with lukewarm water and some neutral
soap so as to remove the typical smell of a
brand-new product, then dry thoroughly.
Do not use detergents or abrasive
powders, as these will damage the
finish.
If DEMO appears on the Display, the appli-
ance is in demonstration mode: refer to
“WHAT TO DO IF...” paragraph.
MOVABLE SHELVES
The walls of the refrigerator are equipped
with a series of runners so that the shelves
can be positioned as desired.
For better use of space, the front half-
shelves can lie over the rear ones.
POSITIONING THE DOOR SHELVES
12
To permit storage of food packages of vari-
ous sizes, the door shelves can be placed
at different heights.
To make these adjustments proceed as fol-
low: gradually pull the shelf in the direction
of the arrows until it comes free, then repo-
sition as required.
8www.electrolux.com

HUMIDITY CONTROL

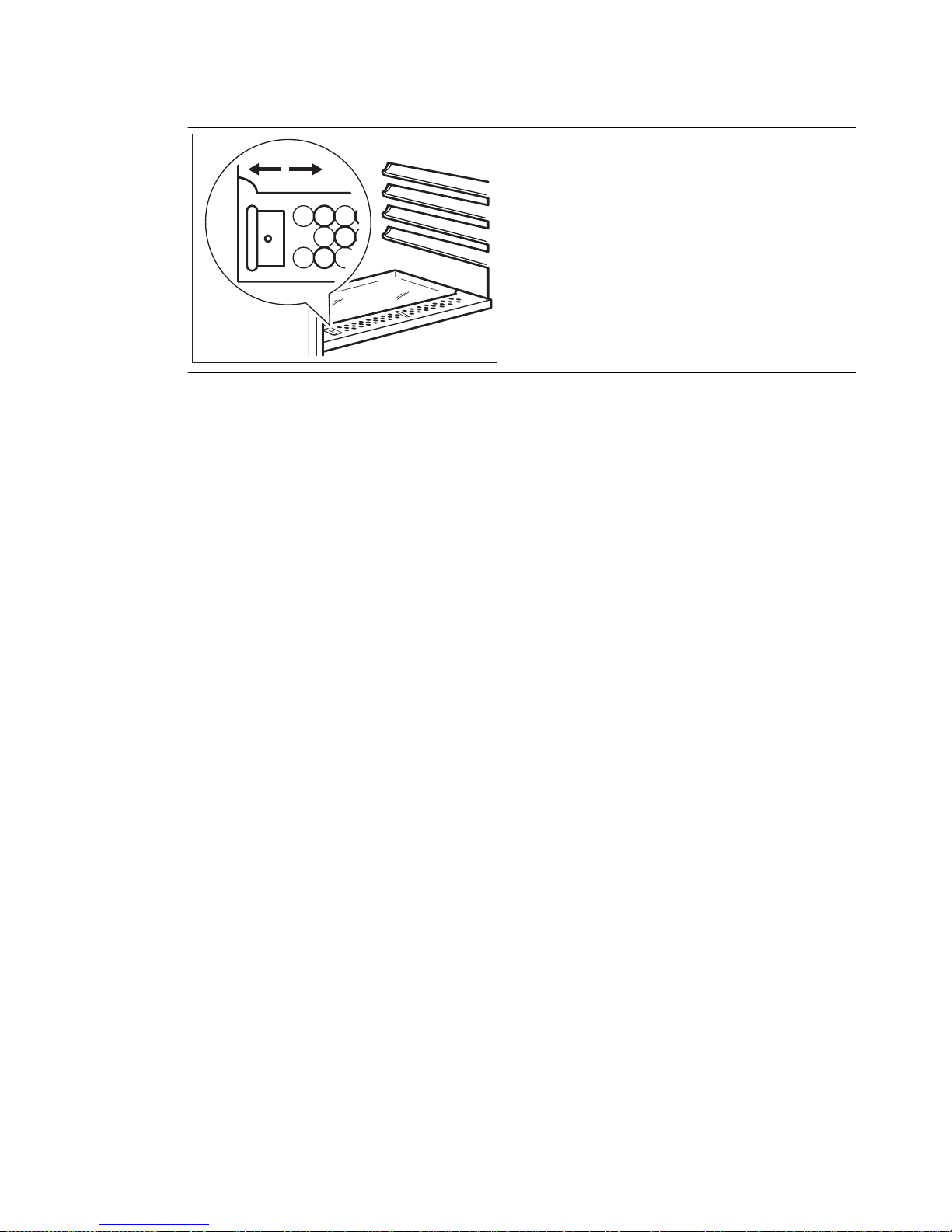

The glass shelf incorporates a device with
slits (adjustable by means of a sliding lever),
which makes it possible to regulate the
temperature in the vegetable drawer(s).
When the ventilation slots are closed:
the natural moisture content of the food in
the fruit and vegetable compartments is
preserved for longer.
When the ventilation slots are opened:
more air circulation results in a lower air
moisture content in the fruit and vegetable
compartments.
ENGLISH 9

HELPFUL HINTS AND TIPS
HINTS FOR ENERGY SAVING
• Do not open the door frequently or leave
it open longer than absolutely necessary.
• If the ambient temperature is high and
the Temperature Regulator is set to low
temperature and the appliance is fully
loaded, the compressor may run contin-
uously, causing frost or ice on the evap-
orator. If this happens, set the Tempera-
ture Regulator toward warmer settings to
allow automatic defrosting and so a sav-
ing in electricity consumption.
HINTS FOR FRESH FOOD
REFRIGERATION
To obtain the best performance:
• do not store warm food or evaporating
liquids in the refrigerator
• do cover or wrap the food, particularly if
it has a strong flavour
• position food so that air can circulate
freely around it
HINTS FOR REFRIGERATION
Useful hints:
Meat (all types) : wrap in polythene bags
and place on the glass shelf above the veg-
etable drawer.
For safety, store in this way only one or two
days at the most.
Cooked foods, cold dishes, etc..: these
should be covered and may be placed on
any shelf.
Fruit and vegetables: these should be thor-
oughly cleaned and placed in the special
drawer(s) provided.
Butter and cheese: these should be placed
in special airtight containers or wrapped in
aluminium foil or polythene bags to exclude
as much air as possible.
Milk bottles: these should have a cap and
should be stored in the bottle rack on the
door.
Bananas, potatoes, onions and garlic, if not
packed, must not be kept in the refrigera-
tor.
10 www.electrolux.com

CARE AND CLEANING
CAUTION!
Unplug the appliance before carry-
ing out any maintenance operation.
This appliance contains hydrocar-
bons in its cooling unit; mainte-
nance and recharging must there-
fore only be carried out by author-
ized technicians.
PERIODIC CLEANING
The equipment has to be cleaned regularly:
• clean the inside and accessories with
lukewarm water and some neutral soap.
• regularly check the door seals and wipe
clean to ensure they are clean and free
from debris.
• rinse and dry thoroughly.
Do not pull, move or damage any
pipes and/or cables inside the cab-
inet.
Never use detergents, abrasive
powders, highly perfumed cleaning
products or wax polishes to clean
the interior as this will damage the
surface and leave a strong odour.
Clean the condenser (black grill) and the
compressor at the back of the appliance
with a brush. This operation will improve
the performance of the appliance and save
electricity consumption.
Take care of not to damage the
cooling system.
Many proprietary kitchen surface cleaners
contain chemicals that can attack/damage
the plastics used in this appliance. For this
reason it is recommended that the outer
casing of this appliance is only cleaned with
warm water with a little washing-up liquid
added.
After cleaning, reconnect the equipment to
the mains supply.
PERIODS OF NON-OPERATION
When the appliance is not in use for long
periods, take the following precautions:
•disconnect the appliance from elec-
tricity supply
• remove all food
• defrost (if foreseen) and clean the appli-
ance and all accessories
• leave the door/doors ajar to prevent un-
pleasant smells.
If the cabinet will be kept on, ask some-
body to check it once in a while to prevent
the food inside from spoiling in case of a
power failure.
DEFROSTING OF THE REFRIGERATOR
Frost is automatically eliminated from the
evaporator of the refrigerator compartment
every time the motor compressor stops,
during normal use. The defrost water drains
out through a trough into a special contain-
er at the back of the appliance, over the
motor compressor, where it evaporates.
Periodically clean the defrost water drain
hole in the middle of the refrigerator com-
partment channel to prevent the water
overflowing and dripping onto the food in-
side. Use the special cleaner provided,
which you will find already inserted into the
drain hole.
ENGLISH 11

WHAT TO DO IF…
WARNING!
Before troubleshooting, disconnect
the mains plug from the mains
socket.
Only a qualified electrician or com-
petent person must do the trouble-
shooting that is not in this manual.
Problem Possible cause Solution
The appliance is
noisy
The appliance is not sup-
ported properly
Check if the appliance
stands stable (all the four
feet should be on the floor)
The appliance does
not operate. The
lamp does not oper-
ate.
The appliance is switched
off.
Switch on the appliance.
The mains plug is not con-
nected to the mains socket
correctly.
Connect the mains plug to
the mains socket correctly.
The appliance has no pow-
er. There is no voltage in
the mains socket.
Connect a different electrical
appliance to the mains sock-
et.
Contact a qualified electri-
cian.
The lamp does not
work.
The lamp is in stand-by. Close and open the door.
The lamp is defective. Refer to "Replacing the
lamp".
The compressor op-
erates continually.
The temperature is not set
correctly.
Set a higher temperature.
The door is not closed cor-
rectly.
Refer to "Closing the door".
The door has been opened
too frequently.
Do not keep the door open
longer than necessary.
The product temperature is
too high.
Let the product temperature
decrease to room tempera-
ture before storage.
The room temperature is
too high.
Decrease the room temper-
ature.
The compressor
does not start imme-
diately after pressing
the ShoppingMode
switch, or after
changing the tem-
perature.
This is normal, no error has
occurred.
The compressor starts after
a period of time.
12 www.electrolux.com

Problem Possible cause Solution
Water flows on the
rear plate of the re-
frigerator.
During the automatic de-
frosting process, frost de-
frosts on the rear plate.
This is correct.
Water flows into the
refrigerator.
The water outlet is clogged. Clean the water outlet.
Products prevent that wa-
ter flows into the water col-
lector.
Make sure that products do
not touch the rear plate.
Temperature cannot
be set .
Shopping function switch-
ed on.
Switch off Shopping man-
ually, or wait to set the tem-
perature until the function
has reset automatically. Re-
fer to ShoppingMode .
The temperature in
the appliance is too
low/high.
Many products are stored
at the same time.
Store less products at the
same time.
The temperature in
the refrigerator is too
high.
There is no cold air circula-
tion in the appliance.
Make sure that there is cold
air circulation in the appli-
ance.
Upper or lower
square is shown in
the temperature dis-
play.
An error has occurred in
measuring the tempera-
ture.
Call your service representa-
tive (the cooling system will
continue to keep food prod-
ucts cold, but temperature
adjustment will not be possi-
ble).
DEMO appears on
the Display.
The appliance is in demon-
stration mode (DEMO).
Keep pressed approximately
10 sec. the Mode button
since a long sound of buzzer
is heard and the Display
shut off for a short while: ap-
pliance start works regular-
ly.
REPLACING THE LAMP
The appliance is equipped with a longlife
LED interior light.
Only service is allowed to replace the light-
ing device. Contact your Service Center .
CLOSING THE DOOR
1.
Clean the door gaskets.
2.
If necessary, adjust the door. Refer to
"Installation".
3.
If necessary, replace the defective door
gaskets. Contact the Service Center.
ENGLISH 13

INSTALLATION
POSITIONING
WARNING!
If you are discarding an old appli-
ance that has a lock or catch on
the door, you must ensure that it is
made unusable to prevent young
children being trapped inside.
The appliance shall have the plug
accessible after installation.
Install this appliance at a location where the
ambient temperature corresponds to the
climate class indicated on the rating plate
of the appliance:
Cli-
mate
class
Ambient temperature
SN +10°C to + 32°C
N+16°C to + 32°C
ST +16°C to + 38°C
T+16°C to + 43°C
ELECTRICAL CONNECTION
CAUTION!
Any electrical work required to in-
stall this appliance should be car-
ried out by a qualified electrician or
competent person.
WARNING!
This appliance must be earthed.
The manufacturer declines any lia-
bility should these safety measures
not be observed.
AB
C
D
E

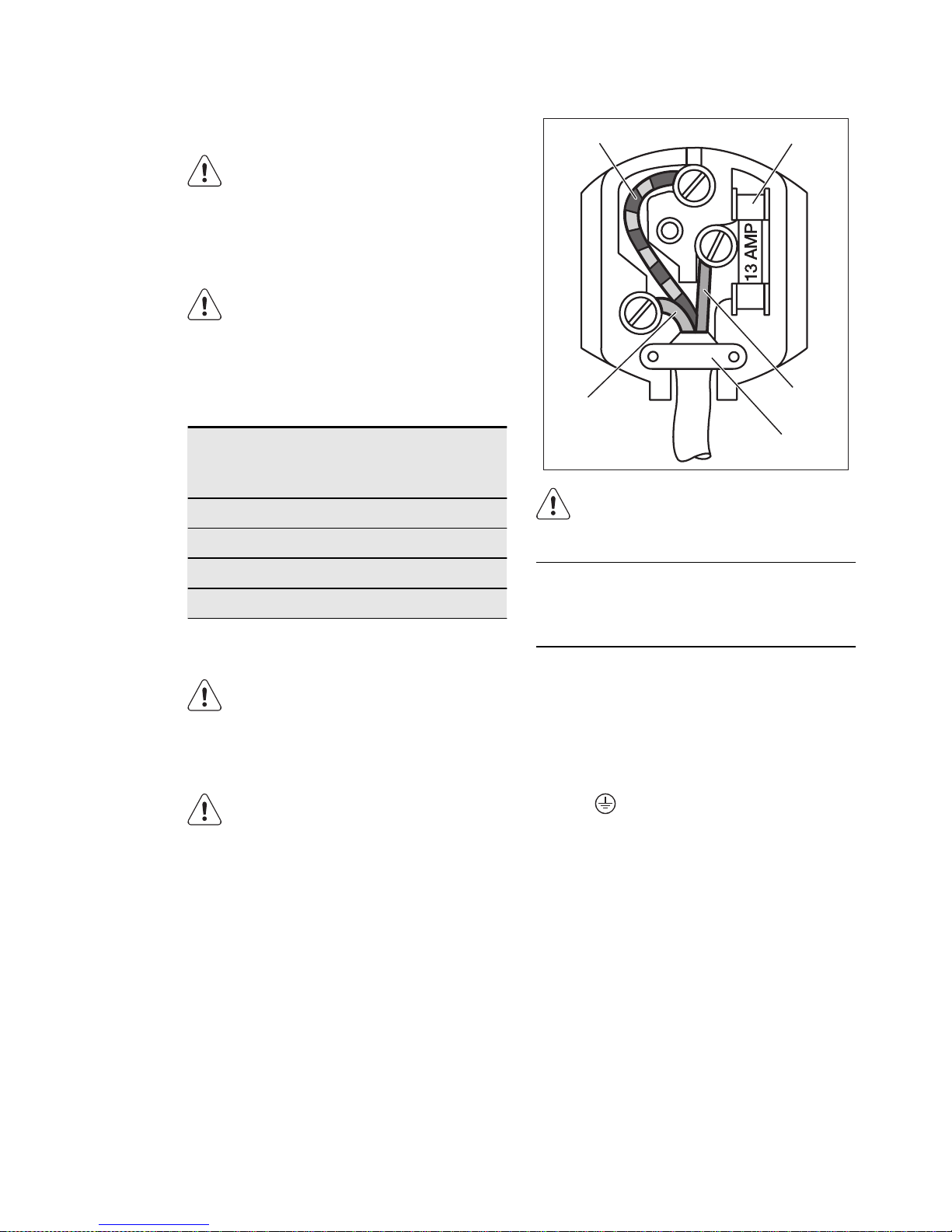

The wires in the mains lead are col-
oured in accordance with the fol-
lowing code:
A Green and Yellow: Earth
CBrown: Live
EBlue: Neutral
As the colours of the wires in the mains
lead of this appliance may not correspond
with the coloured markings identifying the
terminals in your plug, proceed as follows:
1.
Connect the wire coloured green and
yellow to the terminal marked either
with the letter “E“ or by the earth sym-
bol or coloured green and yellow.
2.
Connect the wire coloured blue to the
terminal either marked with the letter
“N“ or coloured black.
3.
Connect the wire coloured brown to
the terminal either marked with the
“L“ or coloured red.
4.
Check that no cut, or stray strands of
wire is present and the cord clamp D is
secure over the outer sheath.
5.
Make sure the electricity supply voltage
is the same as that indicated on the
appliance rating plate.
6.
Switch on the appliance.
The appliance is supplied with a 13 amp
plug fitted B. In the event of having to
change the fuse in the plug supplied, a 13
amp ASTA approved (BS 1362) fuse must
be used.
14 www.electrolux.com

WARNING!
A cut off plug inserted into a 13
amp socket is a serious safety
(shock) hazard. Ensure that it is
disposed of safely.
VENTILATION REQUIREMENTS
5 cm min.
200 cm2
min.
200 cm2
The airflow behind the appliance must be
sufficient.
ENGLISH 15

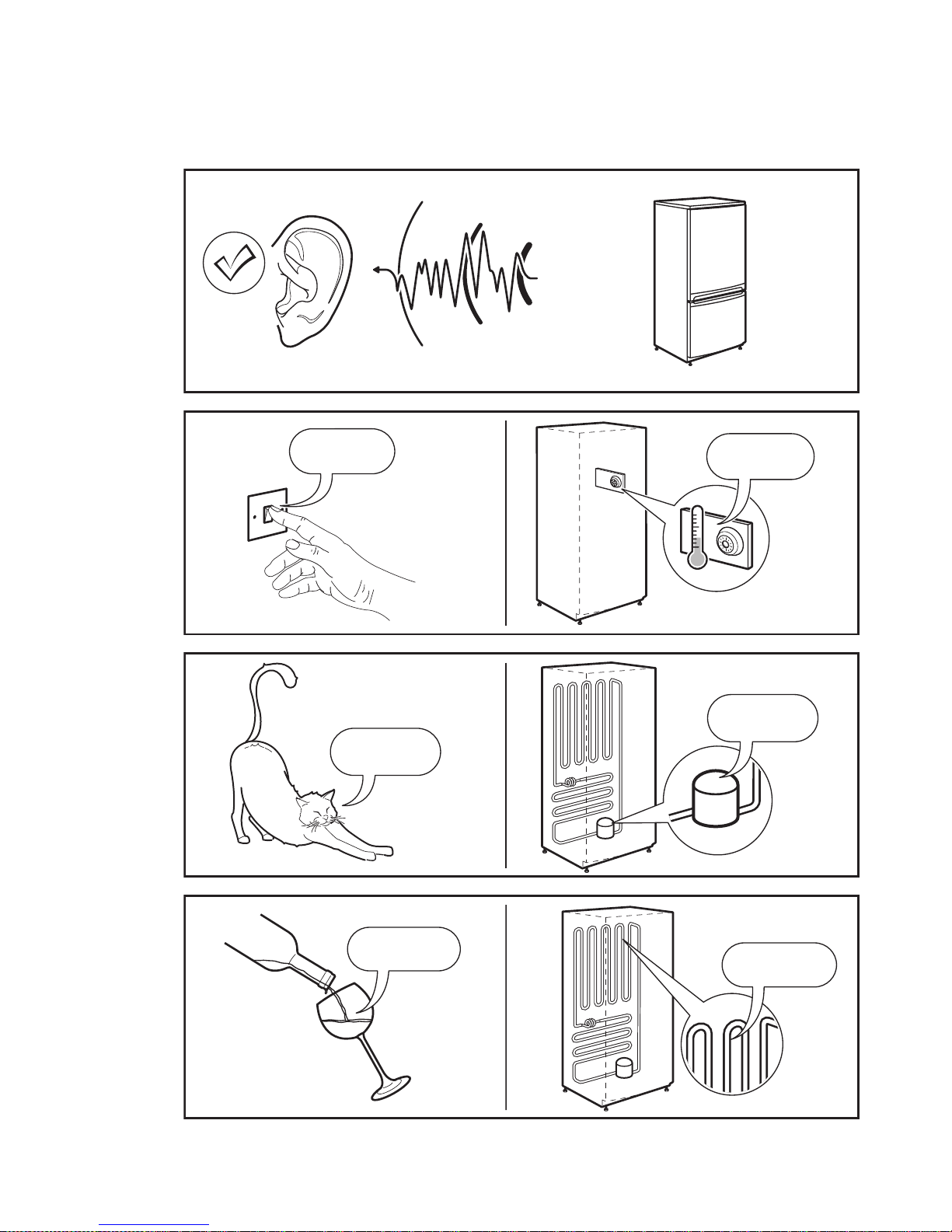

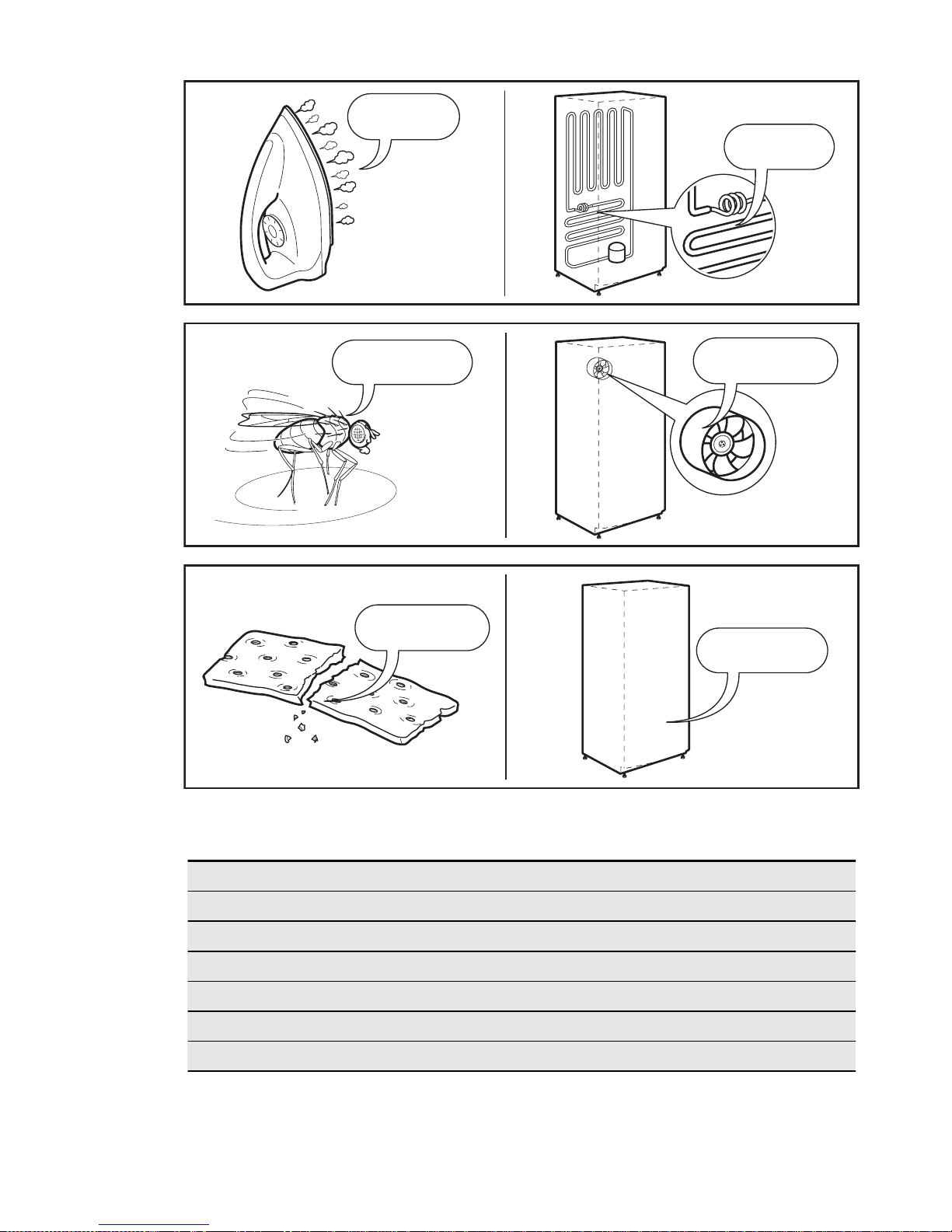

NOISES
There are some sounds during normal run-
ning (compressor, refrigerant circulation).
BRRR!
HISSS!
CLICK!
BLUBB!
CRACK!
SSSRRR!
OK
CLICK!
CLICK!
BRRR!
BRRR!
BLUBB! BLUBB!
16 www.electrolux.com

HISSS!
HISSS!
SSSRRR! SSSRRR!
CRACK!
CRACK!
TECHNICAL DATA
Dimension of the recess
Height 1225 mm
Width 560 mm
Depth 550 mm
Voltage 230-240 V
Frequency 50 Hz
The technical information are situated in the
rating plate on the internal left side of the
appliance and in the energy label.
ENGLISH 17

ENVIRONMENT CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it.
Help protect the environment and human
health and to recycle waste of electrical
and electronic appliances. Do not dispose
appliances marked with the symbol with
the household waste. Return the product
to your local recycling facility or contact
your municipal office.
18 www.electrolux.com

ENGLISH 19

www.electrolux.com/shop 222353292-A-062012
