Service Manual
A 956001636 00 Electrolux ESE5300PD-VN VNE,IDH
SAFETY WARNING
Always turn off and unplug the machine before detaching any parts.
When servicing machines, do not remove
ANY detachable parts while the machine is powered.
The reason is internal faults may cause shorts to components
that are normally at low voltage presenting a shock hazard.
A 956001637 00 Electrolux ESE5300PD-MY MYH,SGE
A 956001638 00 Electrolux ESE5300PD-TH THE

-2-
SPECIFICATIONS
1.Product informations
Items ESE5300P-VN ESE5300PD-MY ESE5300PD-TH
Rated Voltage/Frequency 220-240V/50Hz 220-240V/50Hz 220-240V/50Hz
Rated current 0.75A 0.75A 0.95A
Rated input power 110W 110W 110W
Defrost power 306W 258W 306W
Climate class T T T
Insulation blowing gas Cyclopentane Cyclopentane Cyclopentane
Lamp LED LED LED
Net
Vol.(Liters)
(ISO 8561)
Refrigerator
320.0 320.0 320.0
Freezer
162.0 162.0 162.0
Total
482.0 482.0 482.0
Dimensions
(Included
packaging)
Width (mm)
980.0 980.0 980.0
Depth (mm)
750.0 750.0 750.0
Height (mm)
1845.0 1845.0 1845.0
Dimensions
(Product
)
Width (mm)
922.0 922.0 922.0
Depth (mm)
676.0 676.0 676.0
Height (mm)
1751.0 1751.0 1751.0
Product weight (KG) (Gross.)
106.0 106.0 106.0
Product weight (KG) (Net.)
94.0 94.0 94.0
Refrigerant
Type R600a R600a R600a
Refrigerant Charge
75g 75g 75g

-3-
SPECIFICATIONS
2.Electrical components
Part Type/Model Technical data
Plug for MYH&SGE Model: 168;Type:
HEC-168 AC250V,13A
Plug for IDH&VNE XYP-02/TC04-10 AC250V,16A
Plug for THE DT Ш-3P-11 AC250V,16A
Door Switch HC-056K Or P29 AC 250V,0.75A ,5E4,T55 Or
AC250V,2.5A ,50E3,T85
Compressor LJ118CY AC220-240V,50Hz,R600a
Defrosting heater
(MYH&SGE) TCRGQ-02 AC 240V,280W
Defrosting heater
(IDH,THE&VNE) RQFS AC 220V,280W
Evaporator Fan motor ZWF-02-2 Or
DLA5985XQEA DC12V , Class 105(A)
Condenser fan motor ZWF-02-2 DC12V ,Class 105(A)

-4-
SPECIFICATIONS

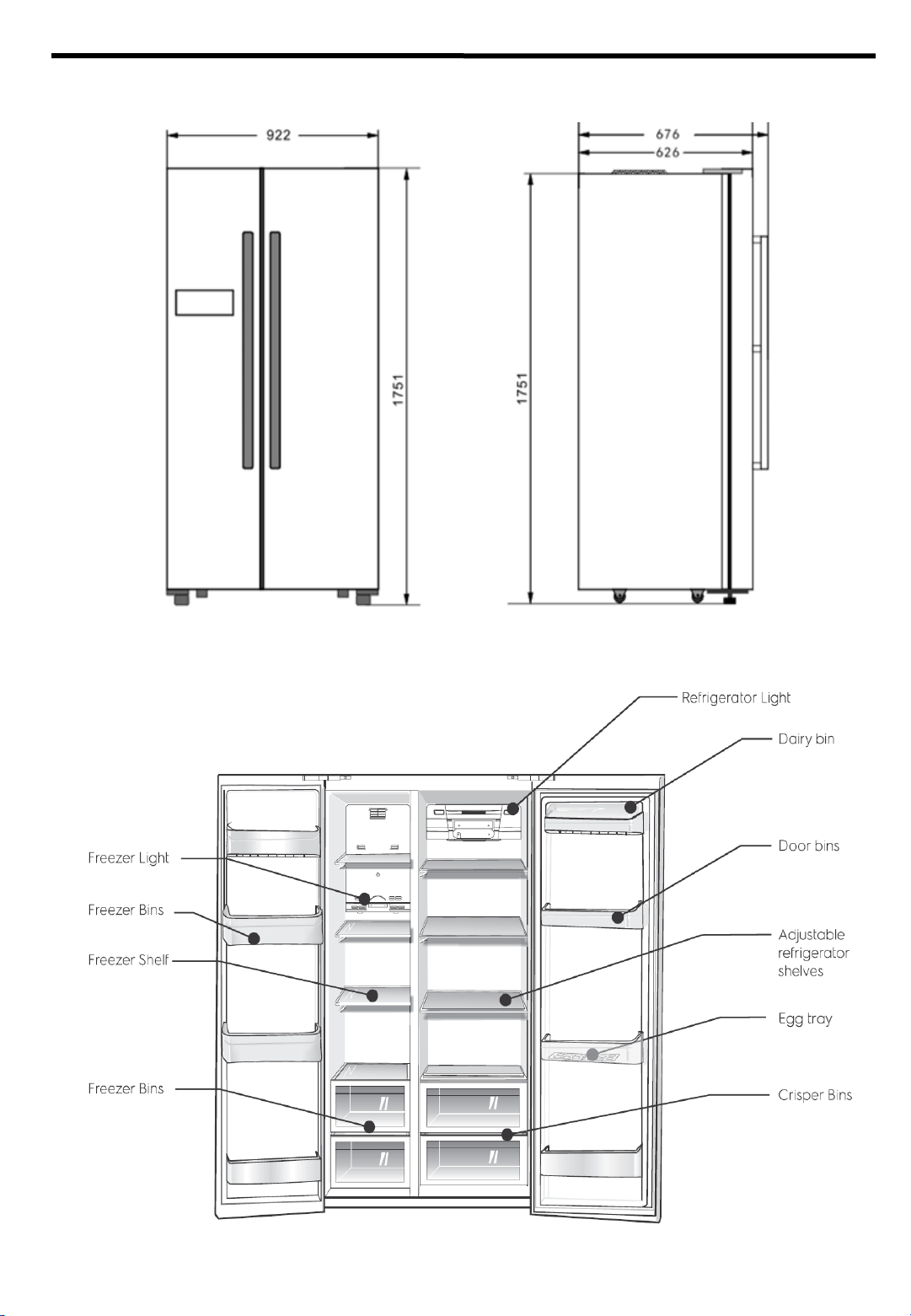

3.Product Dimensions (mm)
4.Interior parts

-5-
SPECIFICATIONS
5.Air flow diagram
Return Air
Return Air
6.Cooling cycle

-6-
SPECIFICATIONS

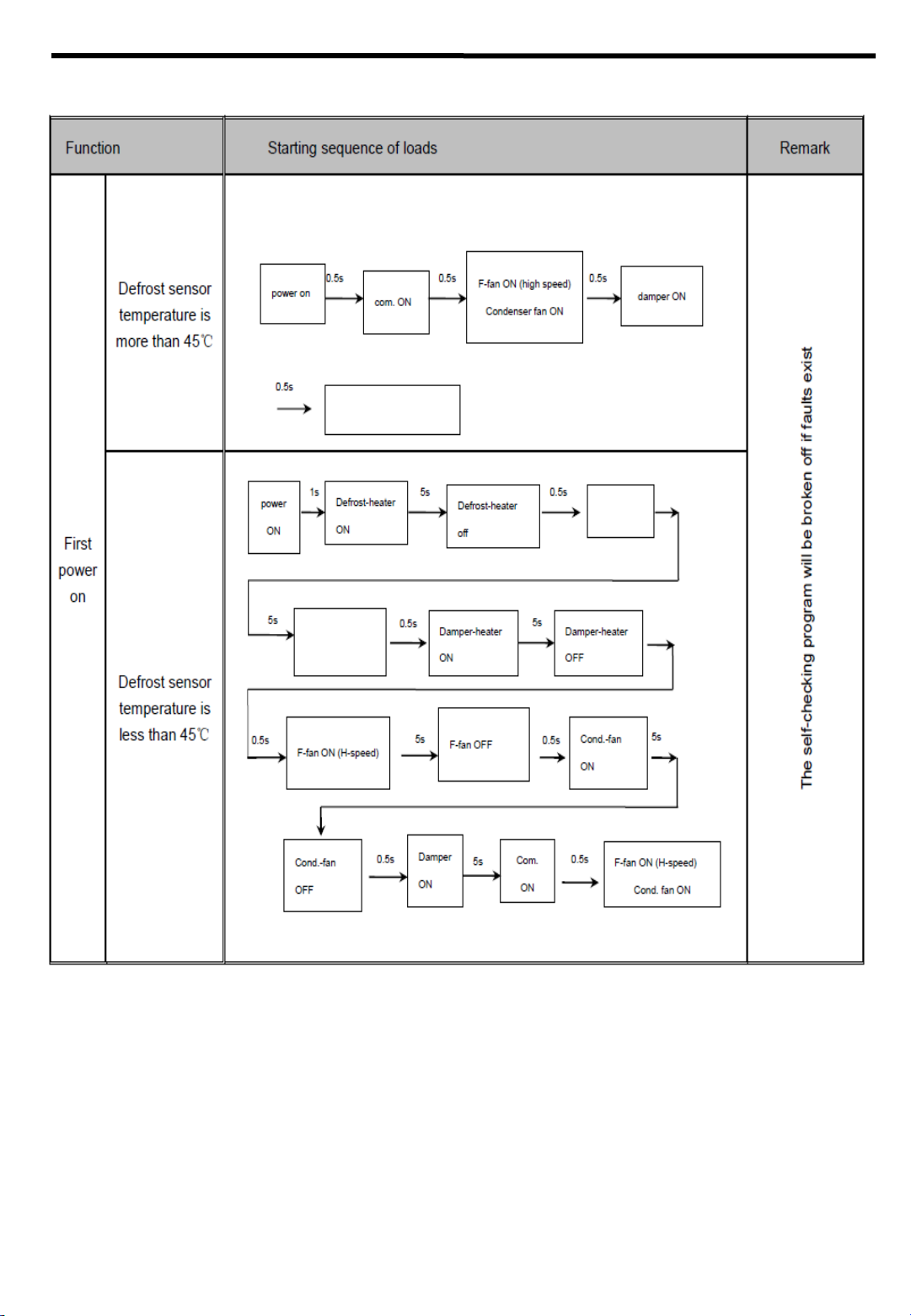

7.Starting sequence
Remark: Blank box diagram for checking signal of Door in Door function according to
this model not included this mode.

-7-
SPECIFICATIONS

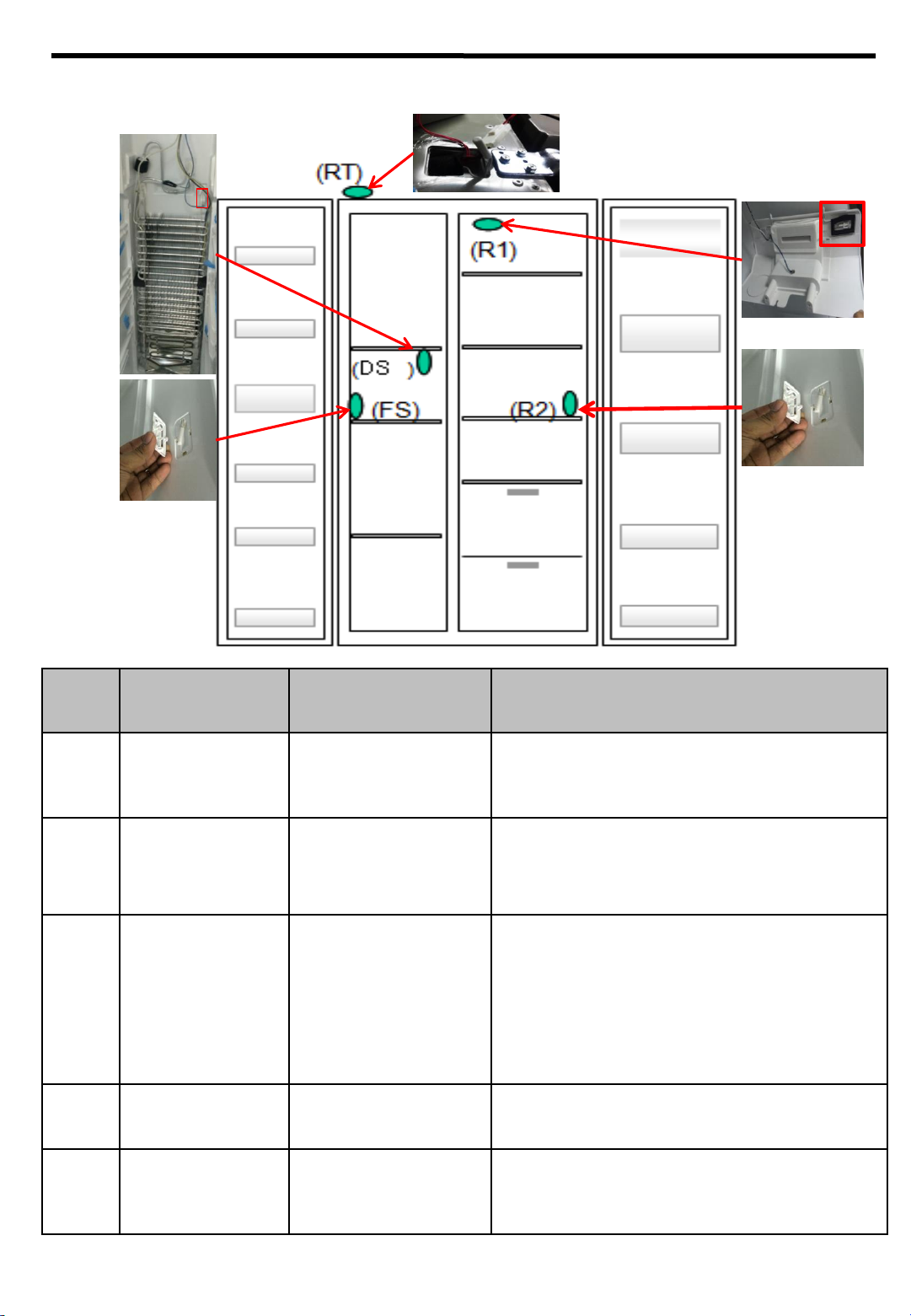

8.Sensor distribute location
No Name Location
Temp. scope of sensors (C°)
Wire break Normal Open
circuit
1 (FS) F-sensor
Left
-
middle side of
F-compartment
Less than
-
50
-50~80
More than
100
2
(R1)
R-sensor
1
Left side of air-
input rim in R
compartment
Less than
-
50
-50~80
More than
100
3
(R2) R
-sensor
2
Right-
middle side
of R compartment
Less than
-
50
-50~80
More than
100
4(DS) Defrost
sensor
Upper
-
right corner
of evaporator
Less than
-
50
-50~80
More than
100
5(RT) Ambient
sensor
Front-top of
cabinet
Less than
-
50
-50~80
More than
100

-8-
SPECIFICATIONS
9.Functions of sensor
No Name Location Functions
1 (FS) F-sensor
Left
-
middle side of
F-compartment
To control temperature of freezer by
compressor
run/stop according to
setting temperature on UI
2
(R1)
R-sensor
1
Left side of air-
input rim in R
compartment
To control temperature of fridge by
damper
open/close according to
setting temperature on UI
3
(R2) R
-sensor
2
Right-
middle side
of R compartment
To control fridge boost activate and
exit automatically base on temperature
changing of fridge compartment. even
if fridge boost is activated by manual
on UI, to exit the function is controlled
by the sensor's
temperature
4(DS) Defrost
sensor
Upper
-
right corner
of evaporator
To control defrost end base on
definitional
temperature of the sensor
5(RT) Ambient
sensor
Front-top of
cabinet
To revise the offset of setting
temperature on UI
automatically base
on different ambient temperature

-9-
PRODUCT INSTALLATION
1.Product installation
1. Allow a minimum of 10mm clearance on both sides.
2. Allow 30mm clearance at the back of the refrigerator.
3. Allow 10mm clearance above the hinge covers.
4. Allow a 349 or 427mm clearance on the hinge side of the
doors, if you place the refrigerator next to the wall. This will make cleaning
easier.
5. Make sure that cupboards or fixtures do not stick out
further than the refrigerator cabinet.
Note: Refrigerator doors on all models are designed to sit
proud of cabinetry (not flush).
2.How to installation?
1. Roll the refrigerator into its final position.
2. The top of the refrigerator should be tilted back by approximately 20mm.
This will allow the doors to self-close providing a consistent door seal and
stability when the doors are open.
3. When you have the appliance in its final position, it needs to be stabilized.
Wind the stability foot down to the floor until it just makes contact with the
floor. Whenever you need to move the appliance, be sure to wind the foot
back up so that the appliance can roll
freely and be sure to reset it when reinstalling. ( The wrench opening size
30mm )

-10 -
4. Check the alignment of the refrigerator to the surrounding cupboards. The top
of the refrigerator should be level from side to side (see diagram below). If you
need to adjust the level, use the adjustable rollers as discussed in Step 3.
5. If the refrigerator now rocks from one corner to the opposite rear corner, this
means that the floor is uneven; you will need to put some packing under one of
the rear rollers. You could use thin pieces of solid material, such as thin board,
vinyl floor tiles or laminate. Place the packing so that it will sit under one of the
rear rollers when the refrigerator is rolled into position.
6. You may now need to fi ne-tune the installation by
repeating Steps 3, 4 and 5.
7. Whenever you need to move the refrigerator, be sure to
wind the foot back up so that the refrigerator can roll freely.
8. Clean your refrigerator thoroughly following the instructions on
page 9 and wipe off any dust that has accumulated during shipping.
9. Plug the refrigerator into the power point. Don’t use a double adaptor. If you
need to roll the refrigerator out to get at the power point, remember to raise the
stability foot before you do so.
10. We recommend that you let your refrigerator run for two to three hours before
you put any food in it. This will allow you to check that it is operating properly.
PRODUCT INSTALLATION

-11 -
FUNCTION

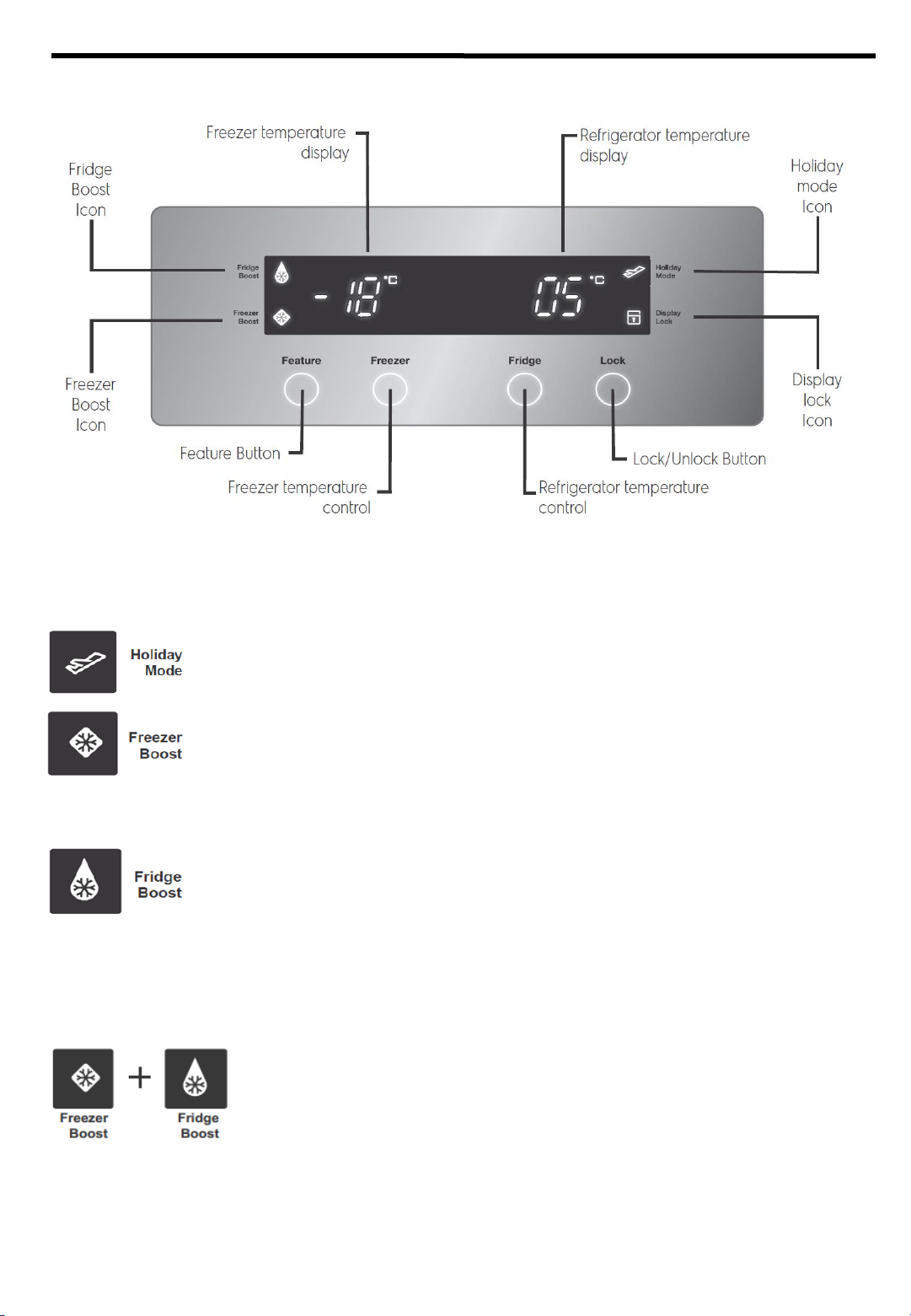

1.Control Panel
※To select each mode press of the “Feature Button”
※The display will turn off after 20 seconds of inactivity, to wake up the display before
changing settings touch any button.
- Holiday mode - the refrigerator room will operate at 6°c while the
freezer room will operate at -15°c.
- Freezer boost mode - the compressor will operate continuously until
the freezer room reaches it’s minimum temperature. The default time
for the freeze boost mode is 180 minutes, after this time the freezer room will return
to the previously temperature setting.
-Fridge boost mode when Fridge Boost mode is selected, the fridge
temperature display turns to 0℃. The refrigerator room will be fast
cooled down to 0℃. When the refrigerator temperature has been down to 0℃or as
soon as the running duration of this "Fridge Boost" mode is up to 150 minutes, the
system will automatically exit the Fridge Boost mode and meanwhile the display
returns to the temperature setting.
-Freezer Boost and Fridge Boost mode - In this mode, both the
Freezer Boost and Fridge Boost are activated with the freezer
running at the freezer boost mode and meanwhile the
refrigerator running at 0°c. Each boost mode will exit respectively under the
conditions same as what to do in single boost mode.

-12 -
3.Display lock
- Display Lock Press the lock button this will enable the lock mode, the lock
icon will be visible. While the refrigerator is in this mode the other buttons
on the control panel will not function, when the buttons are touched a
chime will sound and the lock icon will flash. To exit lock mode press and hold the lock
button for 3 seconds until the icon is no longer displayed.
4.Door Alarm
Open door alarm - when the refrigerator or freezer door is left open for more than 1
minute the alarm will sound to alert that the door is open when closing the door will
disable the alarm. The alarm will continue every 30 seconds until the door is closed.
Default
Temperature
setting
Press 1
time
Press
2
time
Press
3
time
Press
4
time
Press
5
time
Press
6
time
Press
7
time
Press
8
time
Freezer
Room -18 -19 -20 -21 -22 -23 -15 -16 -17
Fridge
Room 5 4 3 2 1 0 6 - -
2.Temperature Setting
The setting temperature changing can be carried out by pressing buttons “Freezer”
Or “Fridge” the corresponding relation between pressing times and setting
temperature is as below. ※a) Setting of temperatures value will be kept after 10s.
FUNCTION
Fridge compartment Shut down –Active this mode when no longer to use
fridge compartment. Activate the mode by press “Fridge” button and
hold 3 second display will change to “- -” in fridge compartment.
To restart fridge compartment by re procedure press and hold “Fridge’
button 3 second
display will change to last setting.

-13 -
DIAGNOSTICS MODE
1.Fault checking program

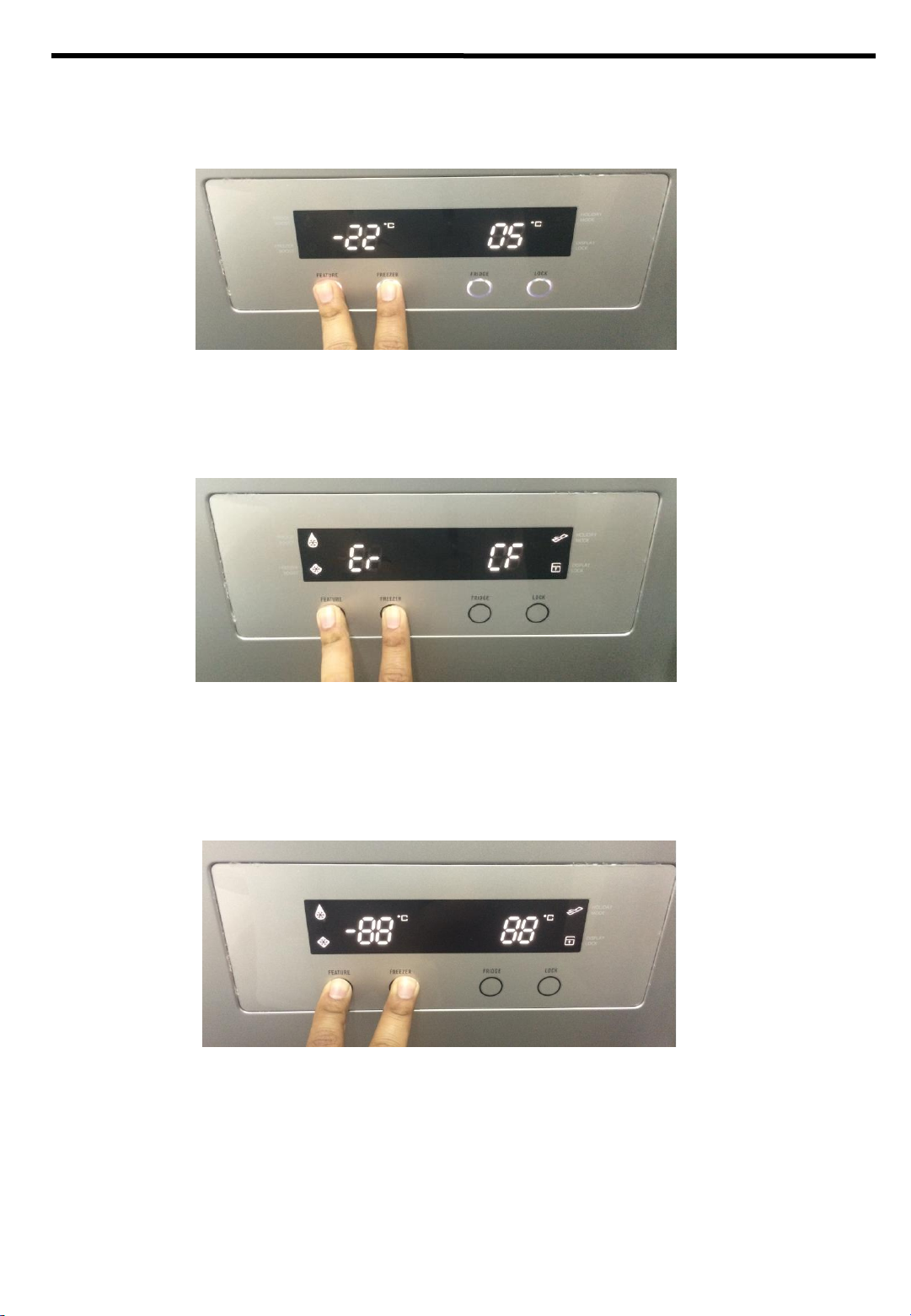

The Fault checking program run automatically during appliance operation.
To check the Fault code can be checked by press buttons “Feature + Freezer” at the
same time see as above figure.
Appliance recorded the Fault code when press the buttons to check the fault code the
display will appear the Fault code showing as above figure. The Fault code no recode
for longer just to appear during problem happen. The Fault code will remove after
problem resolved. If no fault code will show as below figure.

-14 -
DIAGNOSTICS MODE
2.Fault code definition & Trouble shooting
NO.
Item
Fault code displayed
Fault code definition
Trouble shooting
Freezer Temp
Setting
displayed
Fridge Temp
Setting
displayed
1 Normal - Normal displayed
2 F-sensor
abnormal
Er FS
F
-sensor break or
short
circuit.
Check
wire of sensors
3
RT
-sensor
abnormal
Er rH
RT
-sensor break or
short
circuit.
Check
wire of sensors
4
R1
-sensor
abnormal
Er rS
R1
-sensor break or
short
circuit.
Check
wire of sensors
5
R2
-
sensor abnormal
Er r2
R2
-sensor break or
short
circuit.
Check
wire of sensors
6Defrosting sensor
abnormal Er dS
Defrost sensor break
or short
circuit.
Check
wire of sensors
7
Defrosting abnormal
Er dH
Temperature
rising
of
Defrosting-
sensor
is less than 5
℃
for 80
min from defrost
starting.
1.Check
T-fuse breaking
2.Check
heater breaking
3.Check drain tube block,
4.Check
connection
between
terminals and
cabinet or cabinet and PCB
5
. Change PCB
8Condenser fan
abnormal Er CF
Condenser fan block
or
break.
1.Check
fan block
2.Check
fan motor
3.Check
terminal
connection between fan
motor and cabinet
4.Change
PCB
9Communication
abnormal Er CO
Communication
between PCB and
DOM.
1.Check
connection
terminals in DOM and
POM.
2.Change
DOM or POM.
10
Evap Fan motor
abnormal Er FF
Evap fan motor
abnormal
1.Check
evap fan motor.

-15 -
DISASEMBLY/ASSEMBLY PART
1.Assembly Assy Evap
Lokring: Al+Cu
Cu+Cu
Cu+Cu
Cu+Cu
Lokring: Steel+Steel
Lokring: Steel+Steel
Steel+Cu
Cu+Cu
Lokring Joint
Defrost Sensor
Thermal Bimetal
Heater thermal fuse
Defrost heater
Assy Evap
Lokring joint
2.Compressor compartments
Drain hose connect
Condenser fan motor
Condenser coil

-16 -

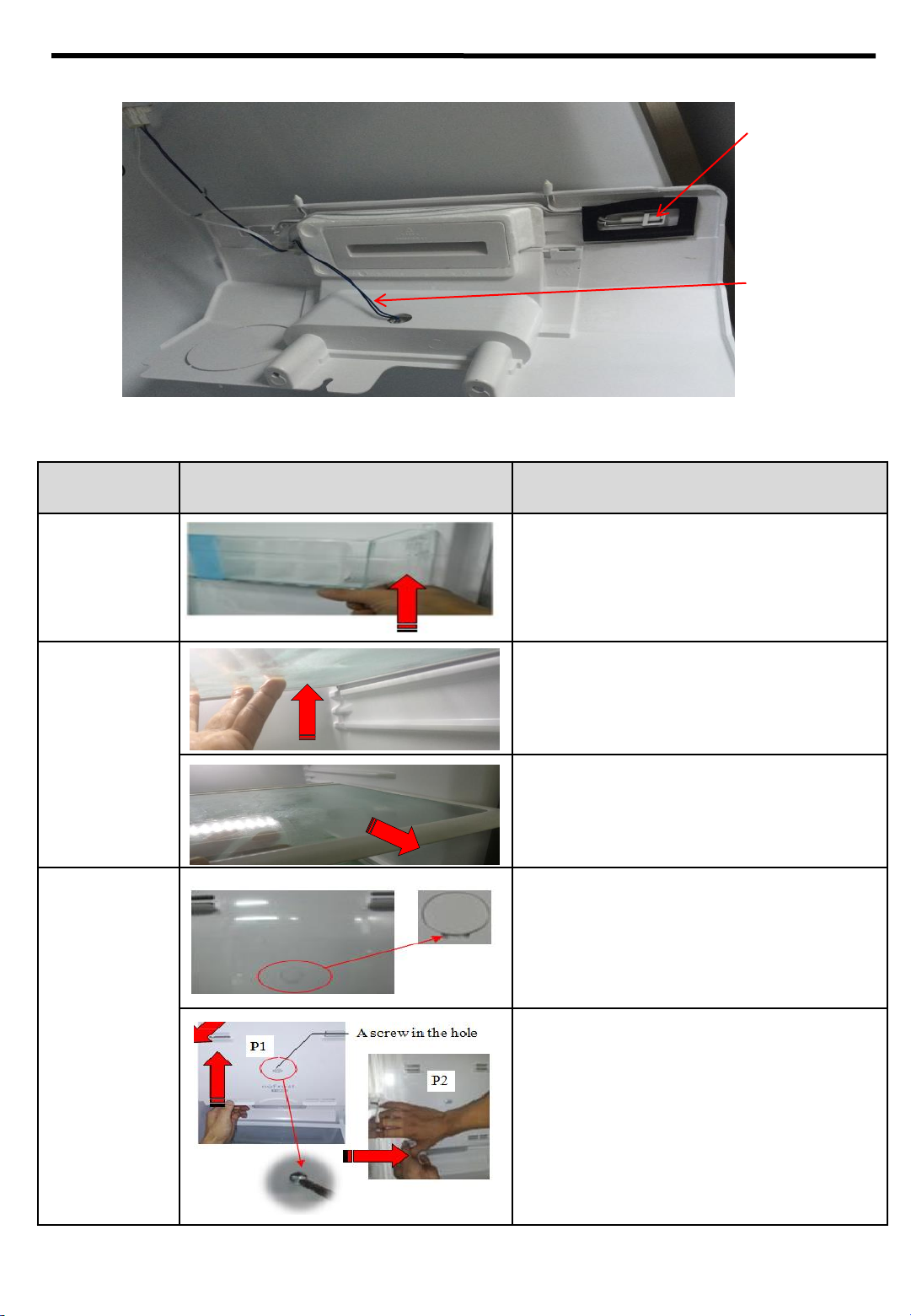

3.Cover Refrigerator Damper assy
R1-Sensor
LED wiring
4.Disassembly/Assembly parts
Parts name Pictures Disassemble/assemble method
Door
shelves
To disassemble the door shelves, knock
them upward at both side of bottom lightly
by
hands; To assemble them, press them
downward on bulges of door
inner liner.
Glass shelves
Step
1:
Push up the shelves from liner hook.
Step 2: Pull forward the
shelves.
Upper cover of
air channel in
freezer
Step 1:To remove the cover by the aid of
straight screwdriver.
Step 2: To take the screw out in the hole by
cross screwdriver.
Step 3: To lift the cover upward a little by
left hand (like as P1), at the same time, to
pull the cover rightward by right hand so
that the cover loose from the cabinet (like
as P2).
DISASEMBLY/ASSEMBLY PART

-17 -
Parts name Pictures Disassemble/assemble method
Upper cover of
air channel in
freezer
Step 4: To pull the cover outward, the cover
will be opened.
Step 5: To unlash the LED wire from fan
bracket of freezer, pull out the terminal of
the LED wire form cabinet. The cover will be
taken out completely.
Lower cover of
air channel in
freezer
Step 1: To pull the cover upward about
10mm at first until the hooks of cover are at
transverse outlet of inner liner, and then, To
pull the cover outward for removing it.
Note: the structure of inner liner. To pull
the cover inward at first and then
downward when assemble it.
LED of Freezer
Step 1: To press the both side of LED cover
at the same time , the hook of cover will
separated from the upper cover of air
channel.
Step 2: To remove 2 pieces of fixed screw by
cross screwdriver, and take out the LED
completely.
Air channel
complete of
cooler
Step 1: To remove the cover of LED (like as
arrow orientation in picture.
DISASEMBLY/ASSEMBLY PART
4.Disassembly/Assembly parts

-18 -
Parts name Pictures Disassemble/assemble method
Air channel
complete of
cooler
Step 2: To remove 2 pieces of screw (like as
picture).
Step 3: To remove the component outward
from cabinet.
Step 4: To remove the component down
ward from cabinet.
Step 5: To remove the wire terminals of R1
sensor ,LED and damper form cabinet; To
take out the cover and the component of
damper.
Step 6: To press the clip outward to remove
the LED brand like as picture.
Fan complete of
freezer
Step 1: To remove the spring outward by a
pliers; and then, pull the leaf of fan
outward.
Step 2: To remove 2 pieces of screw by cross
screwdriver; and then ,To take out the cover
of fan motor.
DISASEMBLY/ASSEMBLY PART
4.Disassembly/Assembly parts

-19 -
Parts name Pictures Disassemble/assemble method
Fan complete of
freezer
Step 3: To take out the fan motor from
bracket of fan.

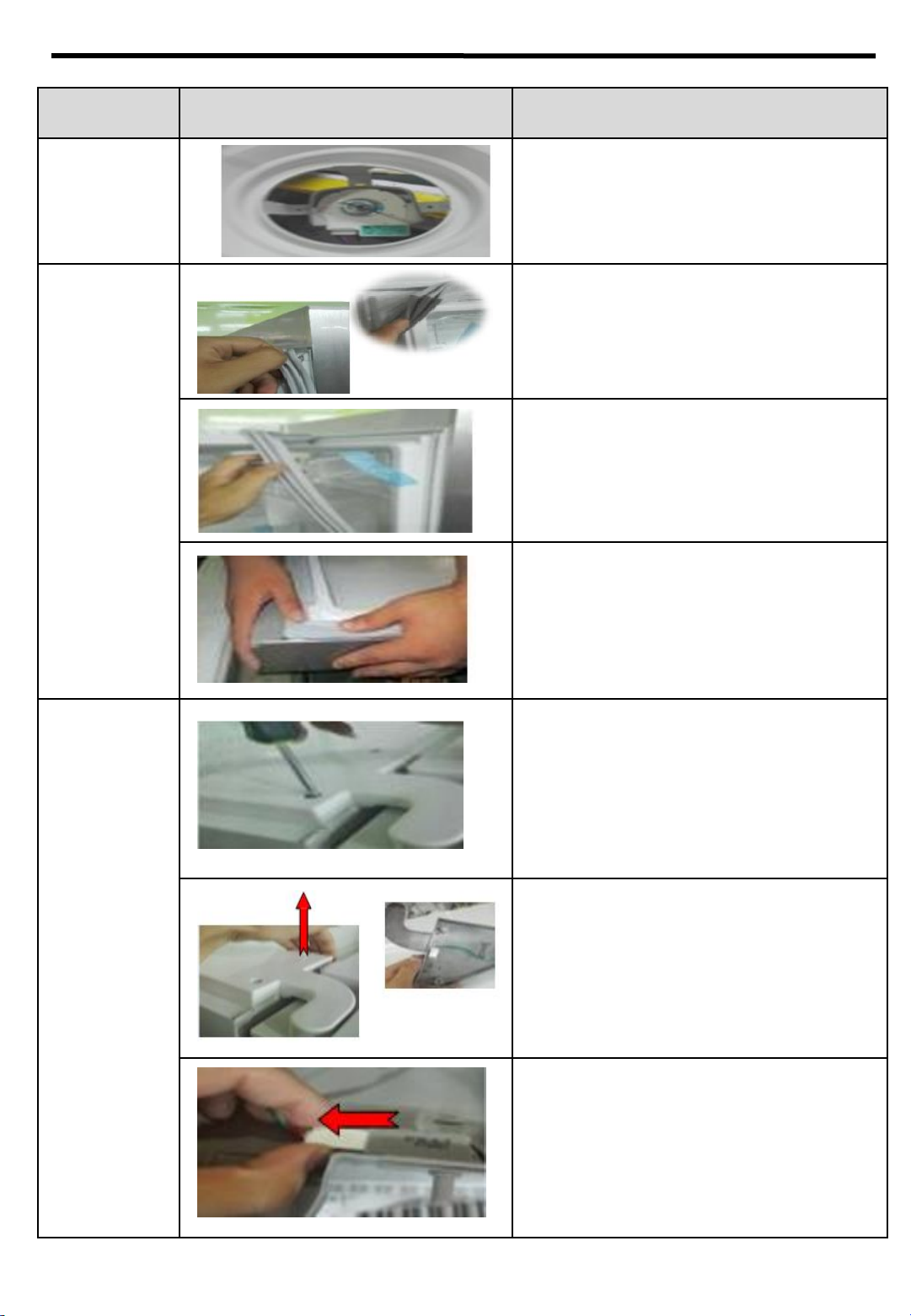

Door
Gasket
Step 1: To remove the gasket from 4 corners
of door inner liner at first by hand.
Step 2: And then, to remove the gasket from
the 4 sides of door inner liner by hand
directly.
Step 3: To press the gasket into the 4
corners of door at first when it is assembled,
and then, to press the gasket into the 4
sides of groove of door inner liner by hand.
Doors
disassemble
Step 1: To remove 2 pieces of fixed screw on
cover of top hinge.
Step 2: To dig the cover upward from the
arrow side.
Step 3: To pull the terminal of switch
outward for disconnection of switch.
Note: if you want to disassemble doors
only, the step 3,4 and 5 needn't to do; they
are for disassemble the switch of door.
DISASEMBLY/ASSEMBLY PART
4.Disassembly/Assembly parts

-20 -
Parts name Pictures Disassemble/assemble method
Doors
disassemble
Step 4: To press the clip of switch
downward for disconnection fastening of
switch.
Step 5: To push the switch outward for
removing out the switch.
Step 6: To remove 3 pieces of screw by Hex-
socket; and then, To pull the hinge upward
for taking out it.
Step 7: To disconnect the terminal of DOM
wire.
and then, To lift the door upward from
bottom hinge, like this, the door can be
removed out.
PCB Main Board
Step 1: To remove the screws of PCB cover
by
cross screwdriver that placed on top.
Step 2: To wear ESD gloves for removing the
PCB.
Step 3: To pull out all of terminals on the
PCB
Step 4: To break the clicks of PCB base
outward by hand step by step for removing
the PCB.
DISASEMBLY/ASSEMBLY PART
4.Disassembly/Assembly parts
