1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
www.electrolux.com2

responsible for any injuries or damage that are the result
of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Children aged from 3 to 8 years are allowed to load
and unload the appliance provided that they have
been properly instructed.
•This appliance may be used by persons with very
extensive and complex disabilities provided that they
have been properly instructed.
•Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
•Children should be supervised to ensure that they do
not play with the appliance.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
•Keep all packaging away from children and dispose of
it appropriately.
1.2 General Safety
•This appliance is for storing food and baverages only.
•This appliance is designed for single household
domestic use in an indoor environment.
•This appliance may be used in, offices, hotel guest
rooms, bed & breakfast guest rooms, farm guest
houses and other similar accommodation where such
use does not exceed (average) domestic usage levels.
•To avoid contamination of food respect the following
instructions:
ENGLISH 3

–do not open the door for long periods;
–clean regularly surfaces that can come in contact
with food and accessible drainage systems;
–store raw meat and fish in suitable containers in the
refrigerator, so that it is not in contact with or drip
onto other food.
•WARNING: Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear of
obstruction.
•WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
•WARNING: Do not damage the refrigerant circuit.
•WARNING: Do not use electrical appliances inside the
food storage compartments of the appliance, unless
they are of the type recommended by the
manufacturer.
•Do not use water spray and steam to clean the
appliance.
•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
•When the appliance is empty for long period, switch it
off, defrost, clean, dry and leave the door open to
prevent mould from developing within the appliance.
•Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not use the appliance before
installing it in the built-in structure due
to safety manner.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
www.electrolux.com4

• Make sure the air can circulate
around the appliance.
• At first installation or after reversing
the door wait at least 4 hours before
connecting the appliance to the power
supply. This is to allow the oil to flow
back in the compressor.
• Before carrying out any operations on
the appliance (e.g. reversing the
door), remove the plug from the
power socket.
• Do not install the appliance close to
radiators or cookers, ovens, or hobs,
unless otherwise specified in the
installation instructions.
• Do not expose the appliance to the
rain.
• Do not install the appliance where
there is direct sunlight.
• Do not install this appliance in areas
that are too humid or too cold.
• When you move the appliance, lift it
by the front edge to avoid scratching
the floor.
• The appliance contains a bag of
desiccant. This is not a toy. This is not
food. Please dispose of it
immediately.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
WARNING!
When positioning the
appliance, ensure the supply
cord is not trapped or
damaged.
WARNING!
Do not use multi-plug
adapters and extension
cables.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Make sure not to cause damage to
the electrical components (e.g. mains
plug, mains cable, compressor).
Contact the Authorised Service
Centre or an electrician to change the
electrical components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
2.3 Use
WARNING!
Risk of injury, burns, electric
shock or fire.
The appliance contains flammable
gas, isobutane (R600a), a natural gas
with a high level of environmental
compatibility. Be careful not to cause
damage to the refrigerant circuit
containing isobutane.
• Do not change the specification of this
appliance.
• Any use of the built-in product as free-
standing is strictly prohibited.
• Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by
the manufacturer.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the
plastic parts of the appliance.
• Do not put soft drinks in the freezer
compartment. This will create
pressure on the drink container.
• Do not store flammable gas and liquid
in the appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
• Do not remove or touch items from
the freezer compartment if your hands
are wet or damp.
ENGLISH 5

• Do not freeze again food that has
been thawed.
• Follow the storage instructions on the
packaging of frozen food.
• Wrap the food in any food contact
material before putting it in the freezer
compartment.
2.4 Internal lighting
WARNING!
Risk of electric shock.
• This product contains one or more
light sources of energy efficiency
class G.
• Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended
to withstand extreme physical
conditions in household appliances,
such as temperature, vibration,
humidity, or are intended to signal
information about the operational
status of the appliance. They are not
intended to be used in other
applications and are not suitable for
household room illumination.
2.5 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• This appliance contains hydrocarbons
in the cooling unit. Only a qualified
person must do the maintenance and
the recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the
appliance.
2.6 Service
• To repair the appliance contact the
Authorised Service Centre. Use
original spare parts only.
• Please note that self-repair or non-
professional repair can have safety
consequences and might void the
guarantee.
• The following spare parts will be
available for 7 years after the model
has been discontinued: thermostats,
temperature sensors, printed circuit
boards, light sources, door handles,
door hinges, trays and baskets.
Please note that some of these spare
parts are only available to
professional repairers, and that not all
spare parts are relevant for all
models.
• Door gaskets will be available for 10
years after the model has been
discontinued.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the
insulation materials of this appliance
are ozone-friendly.
• The insulation foam contains
flammable gas. Contact your
municipal authority for information on
how to discard the appliance
correctly.
• Do not cause damage to the part of
the cooling unit that is near the heat
exchanger.
3. INSTALLATION
WARNING!
Refer to Safety chapters.
WARNING!
Refer to installation
instruction document to
install your appliance.
www.electrolux.com6

WARNING!
Fix the appliance in
accordance with installation
instruction document to
avoid a risk of instability of
the appliance.

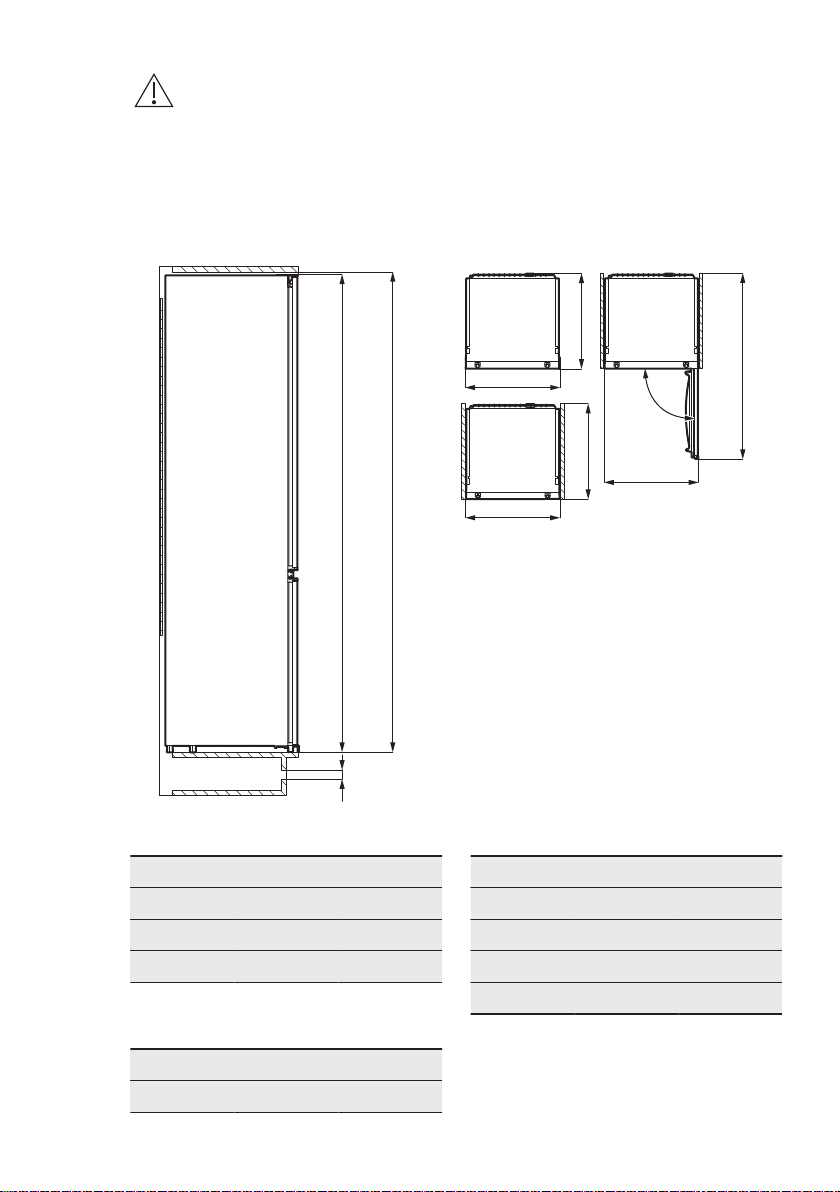

3.1 Dimensions
B
A
H1
W1
D1
W2
D2
W3
D3
90°
Overall dimensions ¹
H1 mm 1884
W1 mm 546
D1 mm 549
¹ the height, width and depth of the
appliance without the handle
Space required in use ²
H2 (A+B) mm 1936
Space required in use ²
W2 mm 546
D2 mm 551
A mm 1894
B mm 36
² the height, width and depth of the
appliance including the handle, plus the
space necessary for free circulation of
the cooling air
ENGLISH 7

Overall space required in use ³
H3 (A+B) mm 1936
W3 mm 546
D3 mm 1068
³ the height, width and depth of the
appliance including the handle, plus the
space necessary for free circulation of
the cooling air, plus the space necessary
to allow door opening to the minimum
angle permitting removal of all internal
equipment
3.2 Location
To ensure appliance's best functionality,
you should not install the appliance in a
place with direct sunlight. Do not install
the appliance close to radiators or
cookers, ovens, or hobs, unless
otherwise specified in the installation
instructions.
Make sure that air can circulate freely
around the back of the cabinet.
This appliance should be installed in a
dry, well ventilated indoor position.
This appliance is intended to be used at
ambient temperature ranging from 10°C
to 43°C.
The correct operation of the
appliance can only be
guaranteed within the
specified temperature range.
If you have any doubts
regarding where to install the
appliance, please turn to the
vendor, to our customer
service or to the nearest
Authorised Service Centre.
It must be possible to
disconnect the appliance
from the mains power
supply. The plug must
therefore be easily
accessible after installation.
3.3 Electrical connection
• Before plugging in, ensure that the
voltage and frequency shown on the
rating plate correspond to your
domestic power supply.
• The appliance must be earthed. The
power supply cable plug is provided
with a contact for this purpose. If the
domestic power supply socket is not
earthed, connect the appliance to a
separate earth in compliance with
current regulations, consulting a
qualified electrician.
• The manufacturer declines all
responsibility if the above safety
precautions are not observed.

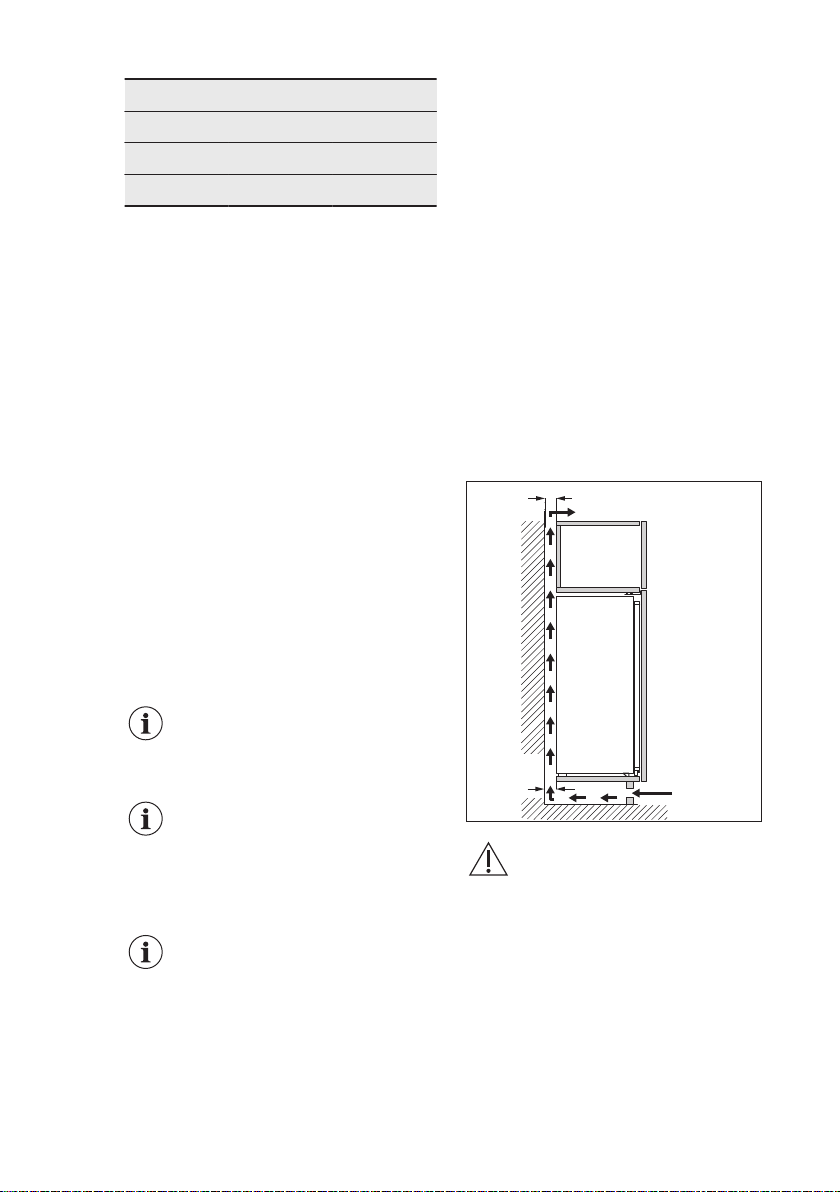

3.4 Ventilation requirements
The airflow behind the appliance must be
sufficient.
min. 200 cm2
min.
200 cm2
min.
38 mm
min.
38 mm
CAUTION!
Refer to the installation
instructions for the
installation.
3.5 Door reversibility
Please refer to the separate document
with instructions on installation and door
reversal.
www.electrolux.com8

CAUTION!
At every stage of reversing
the door protect the floor
from scratching with a
durable material.

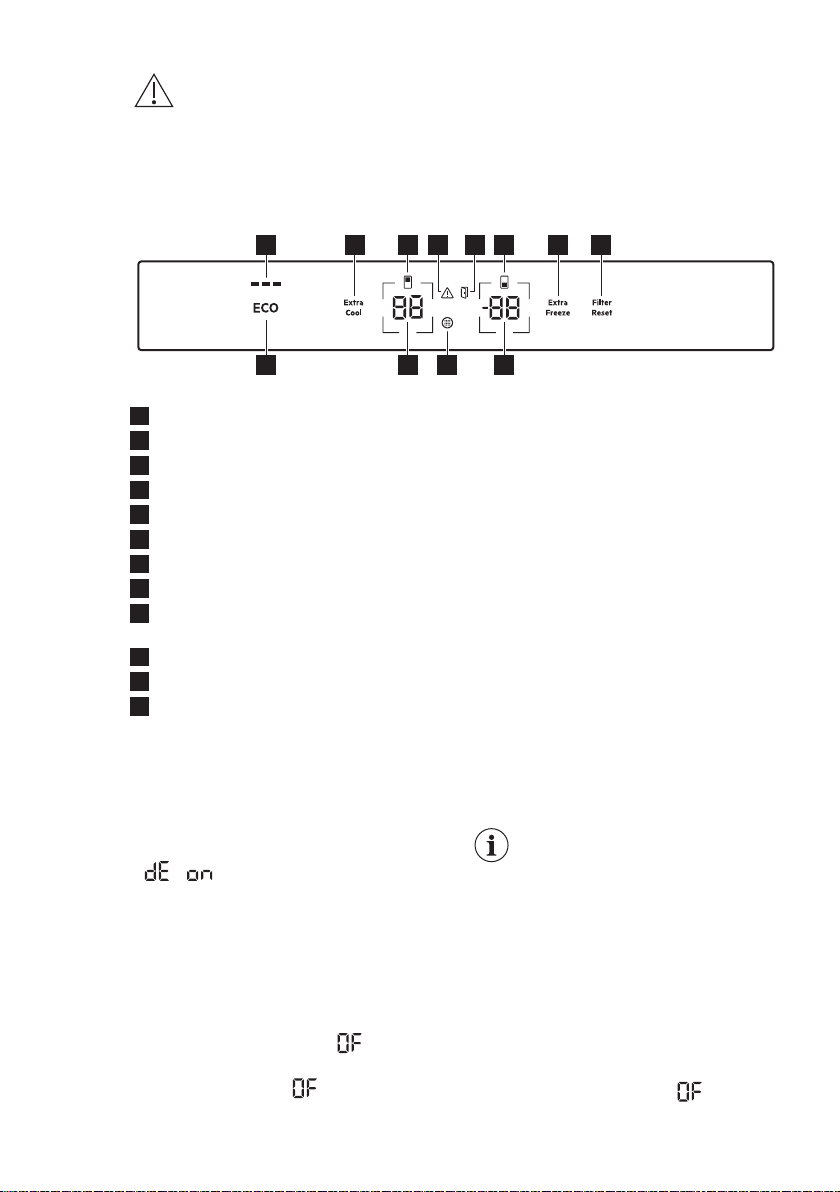

4. CONTROL PANEL
1 3 6
91112 10
4 52 7 8
1ECOMETER indicator
2Extra Cool button / indicator
3Fridge compartment indicator
4Alarm indicator
5Door open alarm indicator
6Freezer compartment indicator
7Extra Freeze button / indicator
8Filter Reset alarm button / indicator
9Freezer temperature button /
indicator
10 Air filter change indicator
11 Fridge temperature button / indicator
12 ECO button
4.1 Switching on
Connect the mains plug to the power
socket.
To select a different set temperature,
refer to "Temperature regulation".
If appears on the display, refer
to "Troubleshooting".
4.2 Switching off
1. Press and hold the fridge
temperature button and freezer
temperature button simultaneously
for 5 seconds
The display shows blinking .
2. Once the appliance is switched off,
the display reads .
3. Disconnect the mains plug from the
power socket.
4.3 Temperature regulation
The temperature range may vary
between -15°C and -24°C for freezer and
between 2°C and 8°C for fridge.
Press the temperature buttons to set the
temperature of the appliance.
The recommended set temperature is:
• +4°C for the fridge
• -18°C for the freezer
You may set the recommended
temperature manually with temperature
buttons or by switching on the ECO
function. Refer to "ECO function" for
more information
The temperature indicators show the set
temperature.
The set temperature will be
reached within 24 hours.
After a power failure, the
appliance goes back to the
set temperature.
4.4 Switching off the fridge
It is possible to switch off only the fridge
compartment leaving the freezer
compartment on.
1. Press and hold the fridge
temperature button for 5 seconds.
The display shows blinking .
ENGLISH 9

2. Once the fridge compartment is
switched off, the display reads .
4.5 Switching on the fridge
To switch on the fridge:
1. Press and hold the fridge
temperature button for 5 seconds.
The display shows blinking .
2. The fridge compartment is switched
on and the previous set temperature
is restored.
To adjust the temperature,
refer to "Temperature
regulation".
4.6 Switching off the freezer
It is possible to switch off only the freezer
compartment leaving the fridge
compartment on.
1. Press and hold the freezer
temperature button for 5 seconds.
The display shows blinking .
2. Once the freezer compartment is
switched off, the display reads .
4.7 Switching on the freezer
To switch on the freezer compartment:
1. Press and hold the freezer
temperature button for 5 seconds.
The display shows blinking .
2. The freezer compartment is switched
on and the previous set temperature
is restored.
To adjust the temperature,
refer to "Temperature
regulation".
4.8 MultiSwitch
With the MultiSwitch function, you can
convert the freezer compartment into a
fridge and thus effectively expand the
appliance's fridge capacity.
Before activating the
MultiSwitch function remove
the frozen food from the
freezer compartment to
avoid accidental defrosting.
To convert the freezer compartment into
a fridge:
1. Tap the freezer temperature button
repeatedly until the display shows
.
starts blinking.
2. Press within the next 7 seconds.
If you do not press the button within
this time, the freezer compartment
will not convert into a fridge.
3. The freezer temperature indicator
shows the temperature of the
MultiSwitch compartment (4°C).
The MultiSwitch
compartment reaches the
set temperature after 24 h.
Wait until the MultiSwitch
compartment has reached
the set temperature before
using it.
When the MultiSwitch function is on:
• the High temperature alarm is
disabled
• it is not possible to activate the Extra
Freeze function.
The MultiSwitch function deactivates
when you switch off the appliance.
The MultiSwitch function resumes
operation once the power is restored
after a power failure.
The MultiSwitch function deactivates
when you switch off the converted
compartment.
Before deactivating the
MultiSwitch function, remove
the food from the
MultiSwitch compartment to
avoid freezing the fresh
food.
To convert the MultiSwitch compartment
back into a freezer:
1. Press the freezer temperature button.
starts blinking.
2. Press within the next 7 seconds.
If you do not press the button within
this time, the MultiSwitch
compartment will not convert back
into a freezer.
www.electrolux.com10

3. The freezer temperature indicator
shows the temperature of the freezer
compartment.
The MultiSwitch
compartment reaches the
set temperature after 24 h.
Wait until the MultiSwitch
compartment has reached
the set temperature before
using it.
The High temperature alarm starts
working again one hour after deactivating
the MultiSwitch function.
4.9 ECO function
The ECO function sets the optimal
temperature to ensure food preservation
while minimizing energy consumption.
1. To activate the function press the
ECO button.
The fridge temperature is set to +4°C
and the freezer temperature to -18°C.
2. To deactivate the function, press the
ECO button again or select a
different set temperature (refer to
"Temperature regulation").
After deactivating the ECO function, the
fridge temperature is set to +2°C and the
freezer temperature to -20°C.
Activation of the ECO
deactivates Extra Cool and
Extra Freeze functions.
The ECOMETER indicator
shows the appliance's
current energy consumption.
Three fully lit bars indicate
the most energy-efficient
setup.
4.10 Extra Cool function
With the Extra Cool function, you may
rapidly cool large amounts of warm food,
for example after doing grocery
shopping, without warming food already
stored in the fridge compartment.
To activate the function, press the Extra
Cool button.
The Extra Cool indicator lights up. When
the Extra Cool function is on, the fan may
work automatically.
This function stops automatically after
approximately 6 hours. Once the function
is off, the Extra Cool indicator goes out.
Press the Extra Cool button to deactivate
the Extra Cool function before it
automatically ends.
To set a different fridge
temperature, switch off the
Extra Cool function and refer
to "Temperature regulation".
4.11 Extra Freeze function
Extra Freeze function is used to pre-
freeze and fast freeze in sequence in the
freezer compartment. This function
accelerates the freezing of fresh food
and, at the same time, protects
foodstuffs already stored from
undesirable warming.
To freeze fresh food,
activate the Extra Freeze
function at least 24 hours
before placing the food to
complete pre-freezing.
To activate this function, press the Extra
Freeze button.
The Extra Freeze indicator lights up. The
Extra Freeze function stops automatically
after a maximum of 52 hours.
Press the Extra Freeze button to
deactivate the Extra Freeze function
before it automatically ends.
4.12 High temperature alarm
When the temperature in the freezer
compartment increases (for example due
to an earlier power failure), the alarm
indicator flashes, the freezer temperature
indicator shows H° and blinks and the
sound is on.
To deactivate the alarm, press any
button.
The alarm indicator and sound go off.
The freezer temperature indicator shows
H° for 5 seconds before indicating the
freezer temperature again.
ENGLISH 11

The alarm restarts one hour
after deactivation until the
normal conditions are
restored.
If you do not press any
button, the sound switches
off automatically after
around one hour to avoid
disturbing.
4.13 Door open alarm
If the fridge door is left open for
approximately 5 minutes or if the freezer
door is left open for approximately 80
seconds, the sound is on and the door
open alarm indicator turns on. The
internal fridge light may also start
flashing.
The alarm stops after closing the door.
Press any button to switch off the sound
and flashing of the internal fridge light.
If you do not press any
button, the sound switches
off automatically after
around one hour to avoid
disturbing.
4.14 Air filter change indicator
When the air filter has expired and
requires replacement, the Air filter
change indicator and the Filter Reset
alarm indicator turn on.
Refer to "Installing and replacing the
CleanAir+ filter" section in "Care and
cleaning" chapter for the replacement
instructions.
After the filter replacement, press the
Filter Reset alarm button to turn off the
alarm.
4.15 Setting mode
The Setting mode allows you to:
• Enable or disable the ECOMETER
indicator
• Enable or disable the button sounds
• Change the temperature units from °C
to °F
• Enable or disable the Rest mode
• Enable or disable the Sabbath mode
• Reset the appliance to factory settings
Activating the Setting mode
To activate the Setting mode:
1. Press and hold the ECO button for
approximately 3 seconds. When the
Setting mode is being activated, the
display shows a blinking .
2. Once the Setting mode is switched
on, the display shows .
To deactivate the Setting mode, press
and hold the ECO button for
approximately 3 seconds.
The Setting mode deactivates
automatically if you do not interact with
the control panel for 60 seconds.
Navigating the Setting mode
1. Activate the Setting mode (refer to
"Activating the Setting mode").
The display shows .
2. Tap the fridge temperature button (on
the left) to change the parameter.
Tap the freezer temperature button
(on the right) to change the
parameter value.
Display Default parame‐
ters
ECOMETER indi‐
cator
Button sounds
Temperature units
Sabbath mode
Rest mode
Factory settings
ECOMETER indicator
In order to switch the ECOMETER on or
off:
1. Activate the Setting mode (refer to
"Activating the Setting mode").
The display shows .
2. Tap repeatedly. The indicator will
show respectively for the enabled
or for the disabled ECOMETER
indicator.
www.electrolux.com12

3. Press and hold the ECO button for
approximately 3 seconds to exit the
Setting mode.
Button sounds
You can enable or disable the button
sounds in the Setting mode. To enable or
disable the sounds:
1. Activate the Setting mode (refer to
"Activating the Setting mode").
The display shows .
2. Tap repeatedly until you see .
Tap to switch the sounds either
on or off. The indicator will change to
for the enabled or for the
disabled sounds.
3. Press and hold the ECO button for
approximately 3 seconds to exit the
Setting mode.
Temperature units
Using the Setting mode, you can change
the temperature unit displayed on the
control panel from Celsius to Fahrenheit.
To change the temperature unit:
1. Activate the Setting mode (refer to
"Activating the Setting mode").
The display shows .
2. Tap repeatedly until you see
and . Tap the indicator showing
the unit to select between for
Celsius and for Fahrenheit.
3. Press and hold the ECO button for
approximately 3 seconds to exit the
Setting mode.
Rest mode
The Rest mode ensures food
preservation while minimizing energy
consumption during periods when the
appliance is not used for a long time.
To switch on the Rest mode:
1. Activate the Setting mode (refer to
"Activating the Setting mode").
The display shows .
2. Tap repeatedly until you see
and . Tap to switch the Rest
mode either on or off. The indicator
changes to for the enabled or
for the disabled Rest mode.
3. Press and hold the ECO button for
approximately 3 seconds to exit the
Setting mode.
The Rest mode activates after 3 days
without interaction with the appliance.
The Rest mode deactivates automatically
after any interaction with the appliance.
The Rest mode remains active once the
power is restored after a power failure.
Sabbath mode
Sabbath mode disables some of the
appliance's features in accordance with
the weekly Sabbath and other religious
holidays.
In this mode:
• all buttons are locked apart from the
button combination necessary to
deactivate the mode
• sound is muted, except for the audible
High temperature alarm
• the display shows no alarm indicators,
except for the High temperature alarm
To switch on the Sabbath mode:
1. Activate the Setting mode (refer to
"Activating the Setting mode").
The display shows .
2. Tap repeatedly until you see
and . Tap to switch the
Sabbath mode either on or off. The
indicator changes to for the
enabled or for the disabled
Sabbath mode.
3. Press and hold the ECO button for
approximately 3 seconds to exit the
Setting mode.
After switching on the Sabbath mode, the
display shows ECO indicator and .
Accessing any other setting is blocked.
Press and hold the ECO button for
approximately 3 seconds to switch off the
Sabbath mode.
Factory settings
This function restores each setting to the
factory default settings. To restore the
factory default settings:
ENGLISH 13

1. Activate the Setting mode (refer to
"Activating the Setting mode").
The display shows .
2. Tap repeatedly until you see
and . Tap repeatedly until you
see .
turns into blinking and then
into solid , which indicates that
factory settings are restored.
3. Press and hold the ECO button for
approximately 3 seconds to exit the
Setting mode.
5. DAILY USE

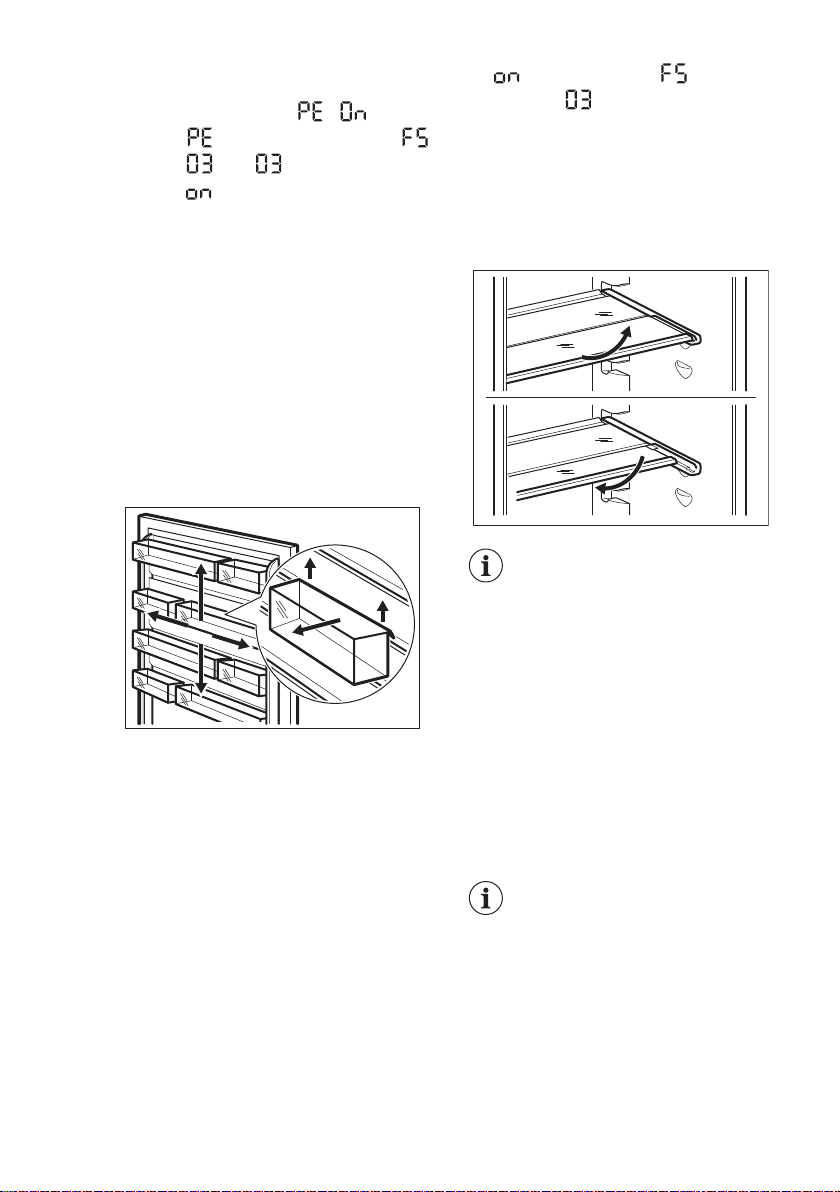

5.1 Positioning door shelves
The door of this appliance is equipped
with runners that enable shelves/bins to
be arranged according to individual
preferences.
To reposition the door shelves/bins:
1. Gradually lift the shelf/bin in the
direction of the arrows until it comes
free.
2. Place the shelf/bin in desired position
and gently insert it into the runner.
1
1
2
5.2 Movable shelves
The walls of the refrigerator are equipped
with a series of runners so that the
shelves can be positioned as desired.
This appliance is also equipped with a
shelf consisting of two parts. The front
half of the shelf can be placed under the
second half to make better use of space.
To fold the shelf:
1. Take out the front half gently.
2. Slide it into the lower rail and under
the second half.
1
2
Do not move the glass shelf
above the vegetable drawer
to ensure correct air
circulation.
5.3 GreenZone drawer
There is a pull-out drawer in the bottom
part of the refrigerator compartment.
The glass shelf of the GreenZone is fitted
with a device that regulates its sealing
and provides for optimal humidity inside
the drawer.
5.4 Removing GreenZone
drawer
It is recommended to empty
the drawer before removing
it from the refrigerator.
To remove the drawer:
www.electrolux.com14

1. Pull out the drawer from the
refrigerator.
2. Lift up the front of the drawer.
3. Pull the drawer out while lifting it up.
To remove the glass cover of the
GreenZone drawer:
1. Unlock lateral gripping from both
sides simultaneously.
2
x2
1
2. Pull the glass shelf support towards
yourself.
5.5 Removing ExtraChill
There is a drawer above the GreenZone
drawer.
To remove the drawer:
1. Pull out the drawer from the
refrigerator.
ENGLISH 15

2. Lift up the front of the drawer.
3. Lift and turn the drawer to pull it out
of the appliance.
To remove the glass cover of the
ExtraZone drawer:
1. Unlock lateral gripping from both
sides simultaneously.
2
x2
1
2. Pull the glass shelf support towards
yourself.
2
1
www.electrolux.com16

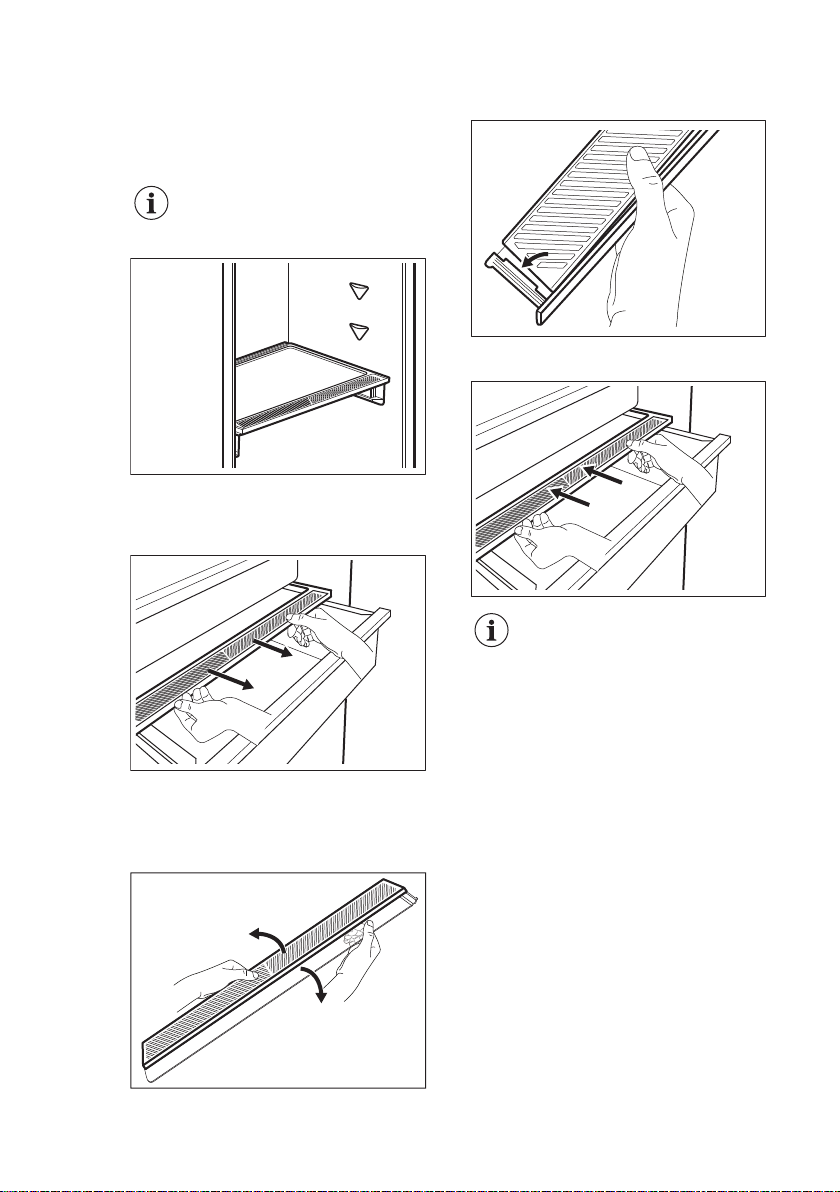

5.6 Humidity control
The glass shelf of the GreenZone drawer
features a device that regulates its
sealing and provides for optimal humidity
inside the drawer.
Do not place any food
products on the humidity
control device.
To remove the humidity control device:
1. Open the drawer below the glass
shelf and pull out the cover.
2. If you need to replace the device's
white membrane, grab the device in
the middle and separate the
membrane from the cover by pulling
the cover.
3. Assemble a new membrane into the
cover by pressing the edge of the
membrane into the cover.
4. Reassemble the humidity control
back on the drawer.
Depending on the quantity
and condition of fruit and
vegetables stored in the
GreenZone drawer,
condensation may occur.
In such a case, remove the
condensation using a soft
cloth.

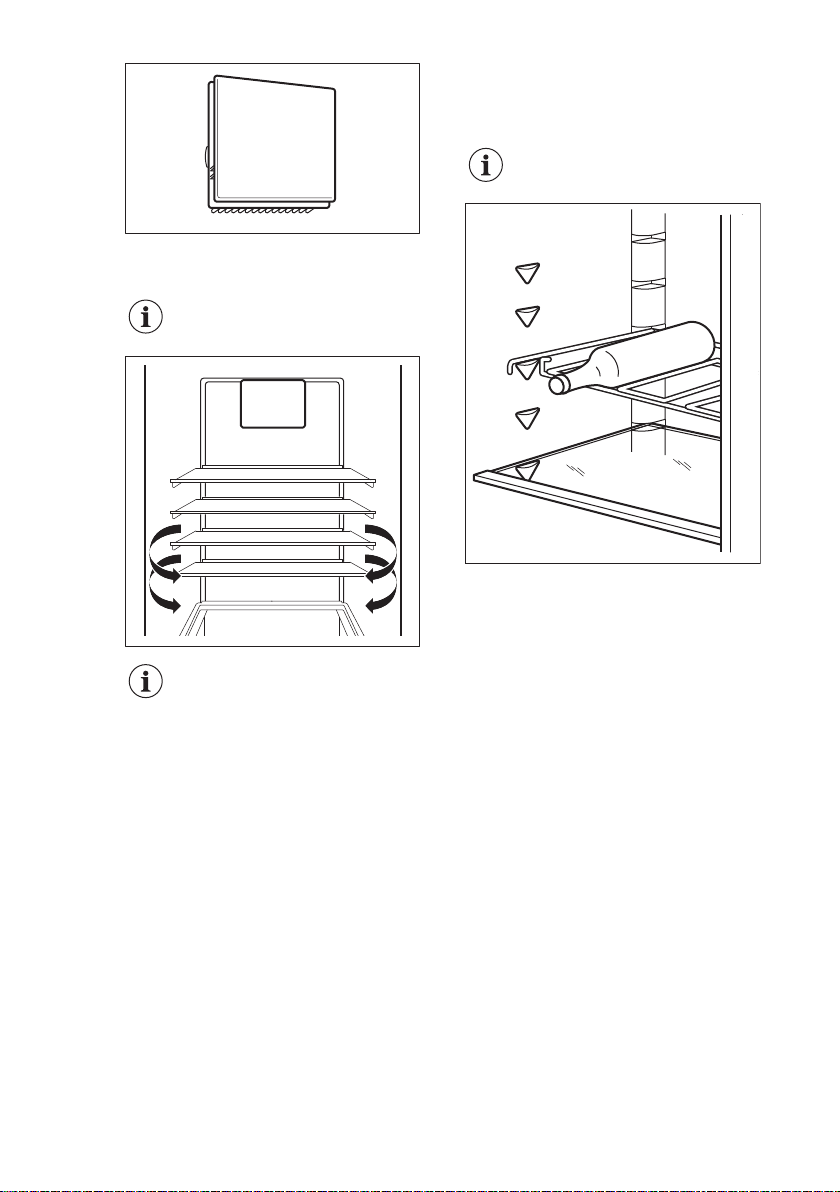

5.7 MULTIFLOW
The refrigerator compartment is
equipped with the MULTIFLOW device
that allows for rapid and more effective
cooling of food and maintaining a more
uniform temperature in each part of the
refrigerator compartment.
This device activates automatically when
needed.
ENGLISH 17

MULTIFLOW operates only when the
door is closed.
Do not block the air vents to
allow better cooling.
Do not remove the
MULTIFLOW panel.
Do not use water spray or
steam to clean the
appliance. For cleaning
instructions, refer to the
"Care and cleaning" chapter.
5.8 CleanAir+ filter
In the appliance, there is a CleanAir+
carbon filter.
The filter purifies the air from unwanted
odours in the fridge compartment,
improving the storage quality.
On delivery, the filter and its plastic
housing are in a plastic bag with the
other accessories (refer to "Installing and
replacing the CleanAir+ filter" section in
"Care and cleaning" chapter for the
installation).
5.9 Bottle rack
Place the bottles (with the opening facing
front) in the pre-positioned shelf.
Place only closed bottles on
the shelf.
5.10 Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen
and deep-frozen food for a long time.
To freeze fresh food activate the Extra
Freeze function at least 24 hours before
placing the food to be frozen in the
freezer compartment.
Store the fresh food evenly distributed in
the first compartment or drawer from the
top.
The maximum amount of food that can
be frozen without adding other fresh food
during 24 hours is specified on the rating
plate (a label located inside the
appliance).
When the freezing process is complete,
the appliance automatically returns to the
previous temperature setting (see "Extra
Freeze function").
For more information refer to "Hints for
freezing".
www.electrolux.com18

5.11 Storage of frozen food
When activating an appliance for the first
time or after a period out of use, before
putting the products in the compartment
let the appliance run at least 3 hours with
the Extra Freeze function switched on.
The freezer drawers ensure that it is
quick and easy to find the food package
you want.
If large quantities of food are to be
stored, remove all drawers and place the
food on shelves.
Keep the food no closer than 15 mm
from the door.
CAUTION!
In the event of accidental
defrosting, for example due
to a power failure, if the
power has been off for
longer than the value shown
on rating plate under "rising
time", the defrosted food
must be consumed quickly
or cooked immediately then
cooled and then re-frozen.
Refer to "High temperature
alarm".
5.12 Thawing
Deep-frozen or frozen food, prior to
being consumed, can be thawed in the
refrigerator or inside a plastic bag under
cold water.
This operation depends on the time
available and on the type of food. Small
pieces may even be cooked still frozen.
5.13 Ice-cube production
This appliance is equipped with one or
more trays for the production of ice-
cubes.
Do not use metallic
instruments to remove the
trays from the freezer.
1. Fill these trays with water.
2. Put the ice trays in the freezer
compartment.
6. HINTS AND TIPS
6.1 Hints for energy saving
• Freezer: The internal configuration of
the appliance is the one that ensures
the most efficient use of energy.
• Fridge: Most efficient use of energy is
ensured in the configuration with the
drawers in the bottom part of the
appliance and shelves evenly
distributed. Position of the door bins
does not affect energy consumption.
• Do not open the door frequently or
leave it open longer than necessary.
• Freezer: The colder the temperature
setting, the higher the energy
consumption.
• Fridge: Do not set too high
temperature to save energy unless it
is required by the characteristics of
the food.
• If the ambient temperature is high and
the temperature control is set to low
temperature and the appliance is fully
loaded, the compressor may run
continuously, causing frost or ice
formation on the evaporator. In this
case, set the temperature control
toward higher temperature to allow
automatic defrosting and to save
energy this way.
• Ensure a good ventilation. Do not
cover the ventilation grilles or holes.
• Make sure that food products inside
the appliance allow air circulation
through dedicated holes in the rear
interior of the appliance.
6.2 Hints for freezing
• Activate Extra Freeze function at least
24 hours before placing the food
inside the freezer compartment.
• Before freezing wrap and seal fresh
food in: aluminium foil, plastic film or
bags, airtight containers with lid.
ENGLISH 19

• For more efficient freezing and
thawing divide food into small
portions.
• It is recommended to put labels and
dates on all your frozen food. This will
help to identify foods and to know
when they should be used before their
deterioration.
• The food should be fresh when being
frozen to preserve good quality.
Especially fruits and vegetables
should be frozen after the harvest to
preserve all of their nutrients.
• Do not freeze bottles or cans with
liquids, in particular drinks containing
carbon dioxide - they may explode
during freezing.
• Do not put hot food in the freezer
compartment. Cool it down at room
temperature before placing it inside
the compartment.
• To avoid increase in temperature of
already frozen food, do not place
fresh unfrozen food directly next to it.
Place food at room temperature in the
part of the freezer compartment
where there is no frozen food.
• Do not eat ice cubes, water ices or ice
lollies immediately after taking them
out of the freezer. Risk of frostbites.
• Do not re-freeze defrosted food. If the
food has defrosted, cook it, cool it
down and then freeze it.
6.3 Hints for storage of frozen
food
• Freezer compartment is the one
marked with .
• Good temperature setting that
ensures preservation of frozen food
products is a temperature less than or
equal to -18°C.
Higher temperature setting inside the
appliance may lead to shorter shelf
life.
• The whole freezer compartment is
suitable for storage of frozen food
products.
• Leave enough space around the food
to allow air to circulate freely.
• For adequate storage refer to food
packaging label to see the shelf life of
food.
• It is important to wrap the food in such
a way that prevents water, humidity or
condensation from getting inside.
6.4 Shopping tips
After grocery shopping:
• Ensure that the packaging is not
damaged - the food could be
deteriorated. If the package is swollen
or wet, it might have not been stored
in the optimal conditions and
defrosting may have already started.
• To limit the defrosting process buy
frozen goods at the end of your
grocery shopping and transport them
in a thermal and insulated cool bag.
• Place the frozen foods immediately in
the freezer after coming back from the
shop.
• If food has defrosted even partially, do
not re-freeze it. Consume it as soon
as possible.
• Respect the expiry date and the
storage information on the package.
6.5 Shelf life for freezer compartment
Type of food Shelf life (months)
Bread 3
Fruits (except citrus) 6 - 12
Vegetables 8 - 10
Leftovers without meat 1 - 2
Dairy food:
www.electrolux.com20
