Electrolux EWW 1697 DWD User manual

EWW 1697 DWD
EN Washer Dryer User Manual 2
DE Wasch-Trockner Benutzerinformation 35

CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................5
3. PRODUCT DESCRIPTION................................................................................ 7
4. CONTROL PANEL............................................................................................. 7
5. PROGRAMMES ................................................................................................ 9
6. CONSUMPTION VALUES................................................................................13
7. OPTIONS..........................................................................................................14
8. SETTINGS........................................................................................................17
9. BEFORE FIRST USE....................................................................................... 17
10. DAILY USE..................................................................................................... 17
11. DAILY USE - DRYING ONLY......................................................................... 21
12. DAILY USE - WASHING & DRYING.............................................................. 22
13. HINTS AND TIPS........................................................................................... 24
14. CARE AND CLEANING..................................................................................26
15. TROUBLESHOOTING....................................................................................30
16. EMERGENCY DOOR OPENING................................................................... 33
17. TECHNICAL DATA.........................................................................................33
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2

1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the
result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
•This appliance can be used by children aged 8 years
and above and by persons with reduced capabilities
provided that they have been given instruction and/or
supervision regarding the safe use of the appliance
and understand the potential hazards involved.
•Do not let children play with the appliance.
•Children aged 3 years and under must be kept away
from this appliance when it is in operation at all times.
•Keep all packaging away from children and dispose of
it appropriately.
•Keep detergents away from children.
•Keep children and pets away from the appliance door
when it is open.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•Do not change the specification of this appliance.
•The appliance shall be installed as a freestanding
product or below the kitchen worktop if space margins
permit.
•Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite
ENGLISH 3

side, that would prevent the appliance door from being
fully opened.
•Connect the mains plug to the mains socket only at
the end of the installation process. Make sure that the
mains plug is accessible after installation..
•The ventilation opening in the base (if applicable) must
not be covered by a carpet, mat, or any floor covering.
•Ensure good air ventilation in the located room to
avoid the back flow of gases into the room from
appliances burning gas or other fuels, including open
fires.
•Exhaust air must not be discharged into a flue which is
used for exhausting fumes from any appliances
burning gas or other fuels.
•The operating water pressure at the water entry point
from the outlet connection must be between 0.5 bar
(0.05 MPa) and 8 bar (0.8 MPa).
•Do not exceed the maximum load of 9 kg (refer to the
"Programme chart" chapter).
•The appliance must be connected to the water mains
using the new supplied hose sets, or other new hose
sets supplied by the Authorised Service Centre.
•Old hose sets must not be reused.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•Wipe away lint or packaging debris that has
accumulated around the appliance.
•Items that have been soiled with substances such as
vegetable or mineral oil, acetone, alcohol, petrol,
kerosene, spot removers, turpentine, waxes and wax
removers should be washed separately with an extra
amount of detergent before being dried in the washer
dryer.
•Do not use the appliance if items have been soiled
with industrial chemicals.
www.electrolux.com4

•Do not dry unwashed items in the wash dryer.
•Items such as foam rubber (latex foam), shower caps,
waterproof textiles, and rubber backed articles and
clothes, or pillows fitted with foam rubber pads should
not be dried in the washer dryer.
•Fabric softeners, or similar products, should only be
used as specified by the product manufacturer’s
instructions.
•Remove all objects from items that could be a source
of fire ignition such as lighters or matches.
•Never stop the washer dryer before the end of the
drying cycle unless all items are quickly removed and
separated so that residual heat can dissipate.
•The final part of the washer dryer cycle takes place
without heat (cool down cycle) to ensure that items
reach a temperature that will not cause damage to
them.
•Do not use high pressure water sprays and/or steam
to clean the appliance.
•Clean the appliance with a moist cloth. Use only
neutral, detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Follow the installation instruction
supplied with the appliance.
• Do not install or use the appliance
where the temperature can be less
than 0°C or where it is exposed to the
weather.
• Always keep the appliance vertical
when being moved.
• Make sure that there is air circulation
between the appliance and the floor.
• Remove all the packaging and the
transit bolts.
• The floor area where the appliance is
to be installed must be flat, stable,
heat resistant and clean.
• Keep the transit bolts in a safe place.
If the appliance is to be moved in
future they must be reattached to lock
the drum to prevent internal damage.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use a damaged
appliance.
• Do not install the appliance where the
appliance door cannot be fully
opened.
ENGLISH 5

• Adjust the feet to have the necessary
space between the appliance and the
flooring.
• When the appliance is in its
permanent position, check that it is
fully level with the aid of a spirit level.
If it is not, adjust the feet accordingly.
2.2 Electrical Connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• This appliance complies with the
E.E.C. Directives.
2.3 Water Connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and
clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
2.4 Use
WARNING!
Risk of injury, electrical
shock, fire, burns or damage
to the appliance.
• This appliance is for household use
only.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the glass door while a
programme is in operation. The glass
can get hot.
• Do not dry damaged (torn, frayed)
items that contain padding or fillings.
• If laundry has been washed with a
stain remover, carry out an additional
rinse cycle before starting a drying
cycle.
• Make sure that all metal objects are
removed from the laundry.
• Only dry fabrics that are suitable to
dry in the washer dryer. Follow the
cleaning instruction on the item label.
• Plastic items are not heat resistant.
– If a detergent ball is used, remove
it before starting a drying
programme.
– Do not use a detergent ball if
setting a non-stop programme.
WARNING!
Risk of injury or damage to
the appliance.
• Do not sit or stand on the open door.
• Do not dry dripping wet clothes in the
appliance.
2.5 Disposal
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).
www.electrolux.com6

3. PRODUCT DESCRIPTION

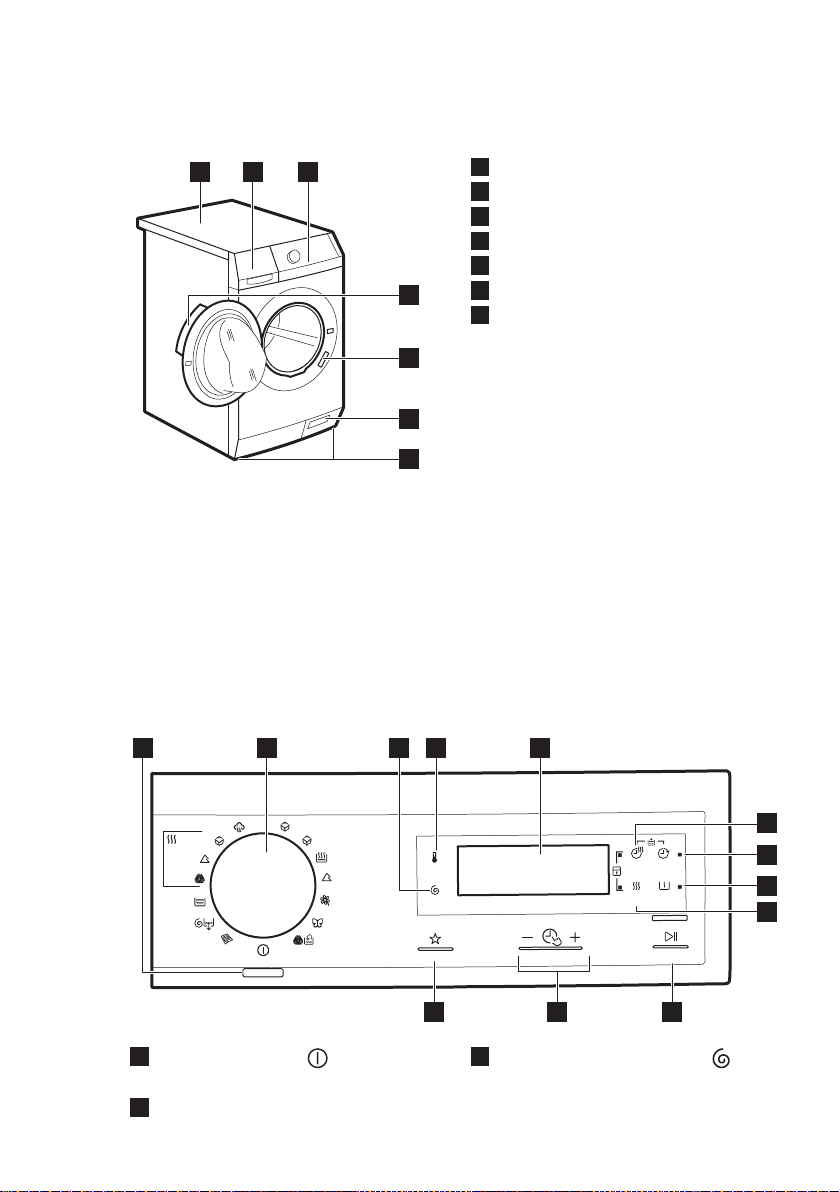

3.1 Appliance overview
1
2
3
5
6
7
4
1Worktop
2Detergent dispenser
3Control panel
4Door handle
5Rating plate
6Drain pump filter
7Feet for levelling the appliance
3.2 Fixing plate kit
(4055171146)
Available from your authorised dealer.
If you install the appliance on a plinth,
secure the appliance in the fixing plates.
Read carefully the instructions supplied
with the accessory.
4. CONTROL PANEL
4.1 Control panel description
TimeManager
MyFavourite Start/Pauze
Départ/Pause
Katoen
Coton
Katoen
Coton Katoen Eco
Coton Eco
Wash&Dry 60Min.
Synthetica
Synthétiques
Synthetica
Synth.
Fijne Was
Délicats
Zijde
Soie
Wol/Handwas
Laine/Lavage à la main
Aan/Uit Marche/Arrêt
Wol
Laine
Stoom
Vapeur
Spoelen
Rinçage
Dekbed
Couette
Centr./
Pompen
Essorage/
Vidange
Temperatuur
Température
Centrifugeren
Essorage
Droogtijd
Minuterie
Droogtegraad
Niveau
Séchage
Voorwas
Prelavage
Startuitstel
Départ différé
53 4
1012 11
8
7
9
6
1 2
1On Off push button (Aan/Uit
Marche/Arrêt)
2Programme knob
3Spin reduction touch button
(Centrifugeren - Essorage)
ENGLISH 7

4Temperature touch button
(Temperatuur - Température)
5Display
6Drying time touch button
(Droogtijd - Minuterie)
7Delay start touch button
(Startuitstel - Départ différé)
8Prewash touch button (Voorwas -
Prélavage)
9Drying levels touch button
(Droogtegraad - Niveau Séchage)
10 Start/Pause touch button (Start/
Pauze - Départ/Pause)
11 Time Manager touch buttons
(TimeManager)
12 Favourite programme touch button
(MyFavourites)

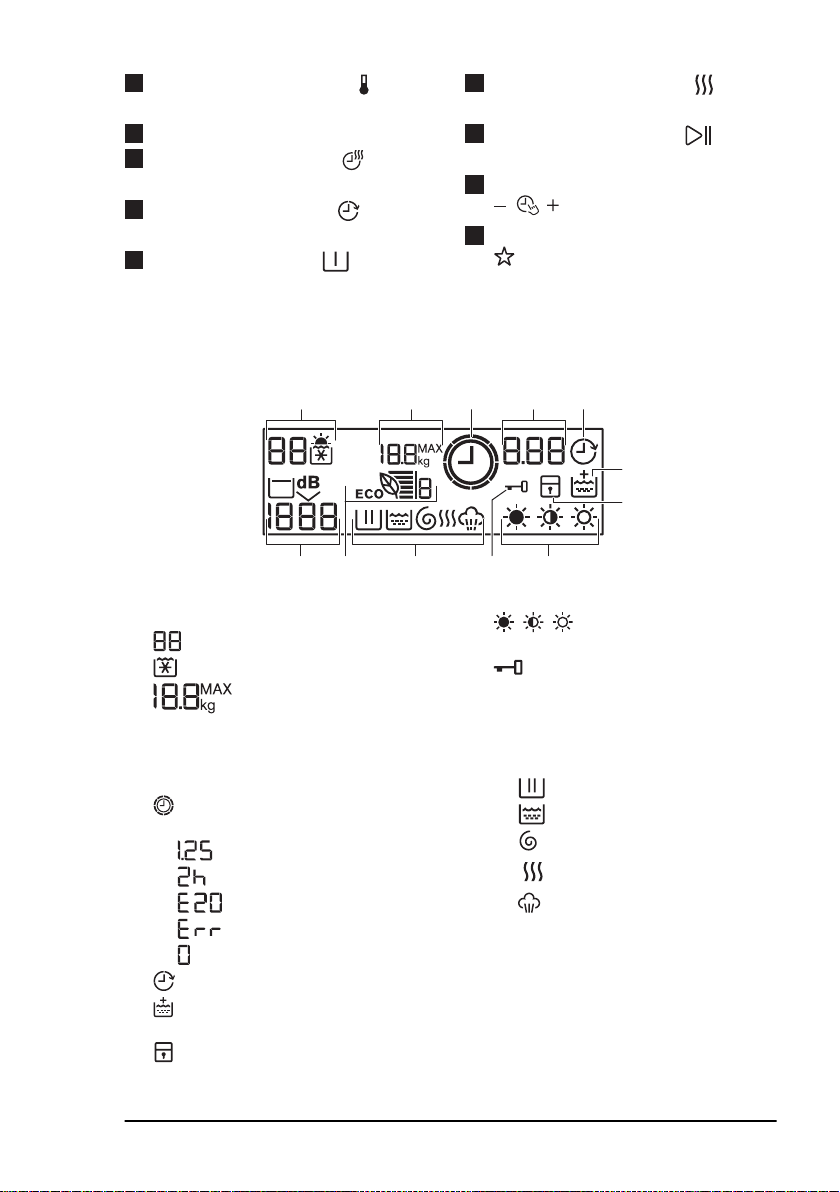

Display
A B D
HL J IK
C E
F
G
A. The Temperature area:
: Temperature indicator
: Cold water indicator
B. : Maximum laundry load1)
This indicator comes on when the
programme is set and the door is
open. When you close the door, it
goes off.
C. : Time Manager indicator
D. The time area:
• : The programme duration
• : The delay start
• : The alarm codes
•: The message of error
• : Programme is completed.
E. : The delay start indicator
F. : The permanent extra rinse
indicator
G. : The indicator of the child lock
H. , , : The indicators of dryness
level
I. : The door locked indicator
• You cannot open the appliance
door when the symbol is on.
• You can open the door only when
the symbol goes off.
J. Washing and drying indicators:
• : The washing phase
• : The rinses phase
• : The spin phase
•: The drying phase
• : The steam phase
1) visible only when the door is open.
www.electrolux.com8

When a programme is
set, all the indicators of
the phases related to the
programme come on.
When the programme
starts, only the indicator
of the phase in operation
flashes.
When a phase is
complete the indicator of
the phase remains on.
When the programme is
completed, the symbol of
the last phase is on.
K. : The Eco Info indicator
L. The spin area:
• : The spin speed indicator
• : The no spin indicator
•: The Rinse Hold indicator
• : The Extra Silent indicator
5. PROGRAMMES
5.1 Programme Chart
Programme
Temperature range
Maximum
load
Maximum
spin speed
Programme description
(Type of load and soil level)
Washing programmes
Katoen/Coton
90°C - Cold
9 kg
1600 rpm
White cotton and coloured cotton.
Normal soil and light soil.
Katoen Eco/Coton Eco1)
60°C - 40°C
9 kg
1600 rpm
White cotton and fast-coloured cotton.
Normal soil. The energy consumption de‐
creases and the time of the washing pro‐
gramme is extended.
Wash&Dry 60Min.
40°C - 30°C
1 kg
1200 rpm
Complete programme composed of
washing phase and of drying phase for a
small load size of mixed fabrics (cottons
and synthetics items).
Synthetica/Synthétiques
60°C - Cold
4 kg
1200 rpm
Synthetic items or mixed fabric items.
Normal soil.
Fijne was/Délicats
40°C - Cold
4 kg
1200 rpm
Delicate fabrics such as acrylics, vis‐
cose, polyester items. Normal soil.
Zijde/Soie
30°C
1 kg
800 rpm
Special programme for silk and mixed
synthetic items.
ENGLISH 9

Programme
Temperature range
Maximum
load
Maximum
spin speed
Programme description
(Type of load and soil level)
Wol/Handwas - Laine/
Lavage à la main
40°C - Cold
2 kg
1200 rpm
Machine washable wool, hand washa‐
ble wool and delicate fabrics with
«hand washing» care symbol.2)
Dekbed/Couette
60°C - 30°C
3 kg
800 rpm
Special programme for one synthetic
blanket, duvet, bedspread and so on.
Centr./Pompen - Essor‐
age/Vidange3)
9 kg
1600 rpm
To spin the laundry and to drain the wa‐
ter in the drum. All fabrics, except
woollens and delicate fabrics.
Spoelen/Rinçage
Cold
9 kg
1600 rpm
To rinse and spin the laundry. All fab‐
rics, except woollens and very delicate
fabrics. Reduce the spin speed accord‐
ingly to the type of laundry.
Drying programmes
Wol Drogen/Séchage
Laine
1 kg Drying programme for woollens.
Synthetica Drogen/Séch‐
age Synthétiques
3 kg Drying programme for synthetic items.
Katoen Drogen/Séchage
Coton
6 kg Drying programme for cotton items.
Steam programmes
www.electrolux.com10

Programme
Temperature range
Maximum
load
Maximum
spin speed
Programme description
(Type of load and soil level)
Stoom - Vapeur
1.5 kg Steam programme for dewrinkling or re‐
freshing cotton and synthetic items.
Press the TimeManager buttons to select
one of the available cycles:
• Anti-crease (default programme
duration )
• Refresh (short programme dura‐
tion )
1) Cottons energy saving programme. This programme at a 60ºC with a load of 9 kg is the
reference programme for data entered in the energy label, in compliance with EEC 92/75
standards. Set this programme to have a good washing results and decrease the energy
consumption. The time of the washing programme is extended.
2) During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the
drum doesn't rotate or doesn't rotate properly, but this is normal for this programme.
3) Set the spin speed. Make sure it is suitable for the type of fabric being washed. If you set
the No Spin option then only the drain phase is available.
Programme options compatibility
Programme
Katoen/Coton ■ ■ ■ ■ ■ ■ ■
Katoen Eco/Coton Eco ■ ■ ■ ■ ■ ■
Wash&Dry 60Min. ■ ■
Synthetica/Synthétiques ■ ■ ■ ■ ■ ■ ■
Fijne was/Délicats ■ ■ ■ ■ ■ ■ ■
Zijde/Soie ■ ■ ■
Wol/Handwas - Laine/Lavage à la main ■ ■ ■ ■ ■
Dekbed/Couette ■ ■
Centr./Pompen - Essorage/Vidange1) ■ ■ ■
Spoelen/Rinçage ■ ■ ■ ■ ■
1) Set the spin speed. Make sure it is suitable for the type of fabric being washed. If you set
the No Spin option then only the drain phase is available.
ENGLISH 11

5.2 Automatic drying
Dryness Level Type of fabric Load
Extra Dry
For towelling materials
Cottons and Linen
(bathrobes, bath towels,
etc)
up to 6 kg
Cupboard Dry1)
For items to be stored
Cottons and Linen
(bathrobes, bath towels,
etc)
up to 6 kg
Synthetics and mixed
fabrics
(jumpers, blouses, under‐
wear, household linen)
up to 3 kg
Silk items (blouses, shirts,
clothing..)
up to 1 kg
Wool items (woollen jump‐
ers)
up to 1 kg
Iron Dry
Suitable for ironing
Cottons and Linen
(sheets, tablecloths, shirts,
etc)
up to 6 kg
1) Hints for test institute The test performance, in accordance with EN 50229, must be
carried out with a FIRST drying load of the maximum declared drying capacity (load compo‐
sition according to EN61121) by setting the AUTOMATIC CUPBOARD DRY programme for
Cotton. The SECOND drying load with the residual load must be tested by setting the AU‐
TOMATIC CUPBOARD DRY programme for Cotton.
5.3 Timed drying
Dryness Level Type of fabric Load
(kg)
Spin
speed
(rpm)
Suggested
duration
(mins)
Extra Dry
For towelling materi‐
als
Cottons and Linen
(bathrobes, bath towels,
etc)
6 1600 220 - 240
4 1600 140 - 160
2 1600 100 - 110
Cupboard Dry
For items to be stor‐
ed
Cottons and Linen
(bathrobes, bath towels,
etc)
6 1600 210 - 230
4 1600 130 - 150
2 1600 90 - 100
www.electrolux.com12

Dryness Level Type of fabric Load
(kg)
Spin
speed
(rpm)
Suggested
duration
(mins)
Cupboard Dry
For items to be stor‐
ed
Synthetics and mixed
fabrics
(jumpers, blouses, under‐
wear, household linen)
3 1200 100 - 110
1 1200 40 - 50
Wool
(woollen jumpers)
1 1200 110 - 130
Silk
(blouses, shirts, clothes
etc)
1 1000 80
Iron Dry
Suitable for ironing
Cottons and Linen
(sheets, tablecloths, shirts,
etc)
6 1600 150 - 170
4 1600 85 - 105
2 1600 55 - 65
5.4 Woolmark Apparel Care -
Blue
• The wool wash cycle of this machine
has been approved by The Woolmark
Company for the washing of wool
garments labelled as «hand wash»
provided that the garments are
washed according to the instructions
issued by the manufacturer of this
washing machine. Follow the garment
care label for drying and other laundry
instructions. M1144
• The wool drying cycle of this machine
has been approved by The Woolmark
Company for the drying of wool
garments labelled as «hand wash»
provided that the garments are dried
according to the instructions issued by
the manufacturer of this machine.
Follow the garment care label for
other laundry instructions. M1224
In UK, Eire, Hong Kong and India the
Woolmark symbol is a certification
trademark.
6. CONSUMPTION VALUES
The data in this table are approximate. Different variables can affect the
data: the quantity and type of laundry, the water and ambient tempera‐
ture.
ENGLISH 13

At the start of the programme, the display shows the programme dura‐
tion for the maximum load capacity.
During the washing phase the programme duration is automatically cal‐
culated and can be greatly reduced if the laundry load is lower than the
maximum load capacity (e.g. Cotton 60°C, maximum load capacity 9 kg,
the programme duration exceeds 2 hours; actual load 1 kg, the pro‐
gramme duration will be less than 1 hour).
When the appliance is calculating the real programme duration a dot
flashes in the display.
Programmes Load
(kg)
Energy
con‐
sumption
(kWh)
Water con‐
sumption
(litre)
Approximate pro‐
gramme duration
(minutes)
Cottons 60°C 9 1.6 69 168
Katoen Eco/Coton Eco
Cotton Energy Saving Pro‐
gramme 60°C1) 9 1.05 56 244
Cottons 40°C 9 1.0 69 164
Synthetics 40°C 4 0.6 48 105
Delicates 40°C 4 0.7 58 86
Wool/Handwash 30°C 2 0.35 57 61
1) «Cotton Energy Saving programme » at 60°C with a load of 9 kg is the reference pro‐
gramme for the data entered in the energy label, in compliance with EEC 92/75 standards.
7. OPTIONS
7.1 Centrifugeren - Essorage
With this option you can decrease the
default spin speed.
The display shows the indicator of the
set speed.
Additional spin options:
No Spin
• Set this option to remove all spin
phases.
• Set it for very delicate fabrics.
• The rinse phase uses more water for
some washing programmes.
• The display shows the indicator
.
Rinse Hold
• Set this option to prevent the laundry
creases.
• The washing programme stops with
the water in the drum. The drum turns
regularly to prevent the laundry
creases.
• The door stays locked. You must
drain the water to unlock the door.
• The display shows the indicator .
To drain the water refer to
‘At the end of the
programme’.
Extra Silent
• Set this option to remove all spin
phases and to perform a silent
washing.
www.electrolux.com14

• The rinse phase uses more water for
some washing programmes.
• The washing programme stops with
the water in the drum. The drum turns
regularly to prevent the laundry
creases.
• The door stays locked. You must
drain the water to unlock the door.
• The display shows the indicator .
To drain the water refer to
‘At the end of the
programme’.
7.2 Temperatuur - Température
Set this option to change the default
temperature.
Indicator = cold water.
The display shows the set temperature.
7.3 Droogtijd - Minuterie
With this option you can set the time for
the fabrics you have to dry. The display
shows the set value.
Each time you press this touchpad the
time value increases by 5 minutes.
You cannot set all time
values for different types of
fabrics.
7.4 Startuitstel - Départ différé
With this option you can delay the start of
a programme from 30 minutes to 20
hours.
The display shows the related indicator.
7.5 Voorwas - Prélavage
With this option you can add a prewash
phase to a washing programme.
Use this option for heavy soil.
When you set this option the programme
duration increases.
The related indicator comes on.
7.6 Droogtegraad - Niveau
Séchage
With this option you can set an automatic
level of dryness for the laundry. The
display shows the symbol of the set
level.
• Extra dry level for cotton items
• Cupboard dry level for cotton,
synthetic, silk and wool items
• Iron dry level for cotton items

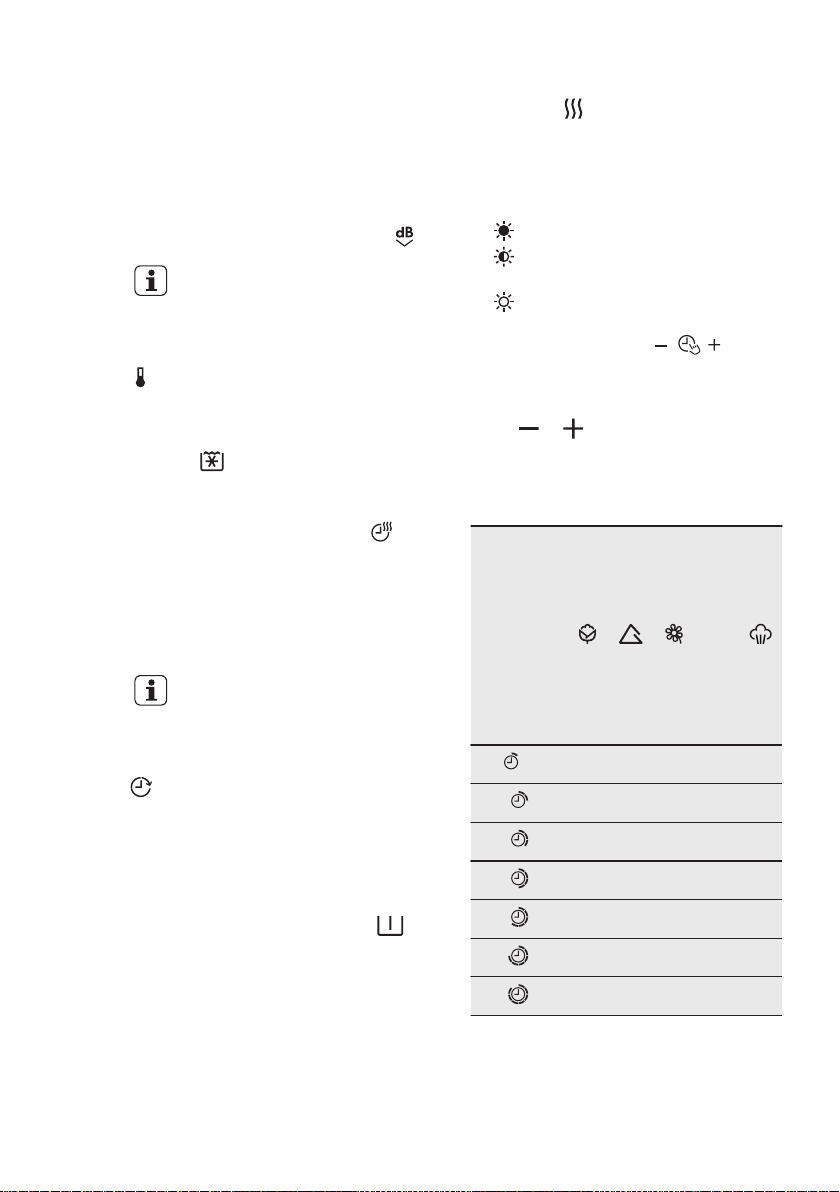

7.7 Time Manager
When you set a washing programme, the
display shows the default duration.
Press or to decrease or increase
the programme duration.
The Time Manager is available only with
the programmes in the table.
Indicator
Katoen Eco/Coton Eco
1) ■ ■
■■■
■ ■
■■■■■ 2)
■ ■
■3) ■3) ■
■ ■
ENGLISH 15

Indicator
Katoen Eco/Coton Eco
4) ■ ■ ■3) ■3) ■5)
1) Shortest: to fresh the laundry.
2) Short duration: programme suitable for
laundry refreshing.
3) Programme default duration.
4) Longest: Increasing the programme du‐
ration gradually decreases the energy con‐
sumption. The optimized heating phase
saves energy and the longer duration main‐
tains the same washing results (specially
for normal soil).
5) Default duration: programme suitable for
laundry anticreasing.
Eco Info
The Eco Info stripes (available only in
cotton and synthetics programmes) show
the efficiency of the washing programme
in terms of energy saving:
• 6 stripes: the most efficient setting to
optimize the washing programme
performance.
• 1 stripe: the less efficient setting.
The number of Eco Info stripes changes
if you modify the duration of the washing
programme (refer to Time Manager), the
washing temperature and the laundry
weight. To optimize the washing
programme performance, the stripe
number must increase:
• If you increase the programme
duration, the Eco Info stripes
increases. The increasing the
washing programme duration allows a
constant performance that reduces
the energy consumption.
• If you decrease the washing
temperature, the Eco Info stripes
increases.
Some advices to have the most
efficient setting:
• Set the Time Manager indicators
or .
• Set the possible lower washing
temperature.
• Do not set the Prewash option.
7.8 MyFavourites
With this option you can memorise your
favourite programme and options.
It is not possible to memorise the delay
start option with MyFavourite.
How to memorise a programme
1. Press the button to activate the
appliance.
2. Set the programme and the options
that you want to memorise.
3. Press MyFavourite until the display
shows the text “MEM”.
How to set the memorised programme
1. Press the button to activate the
appliance.
2. Press shortly MyFavourite.
The delay start is not
memorised.
7.9 Extra Spoelen - Rinçage
Plus
With this option you can add some rinses
to a washing programme.
Use this option for persons allergic to
detergents and in areas where the water
is soft.
The related indicator on the display
comes on.1)
1) See in "Settings" how to activate this function.
www.electrolux.com16

8. SETTINGS
8.1 Child Lock
With this option you can prevent that the
children play with the control panel.
• To activate/deactivate this option,
press and at the same time
until the indicator comes on/goes
off.
You can activate this option:
• After you press : the options and
the programme knob are locked.
• Before you press : the appliance
cannot start.
8.2 Permanent Extra Rinse
With this option you can permanently
have an extra rinse when you set a new
programme.
• To activate/deactivate this option
press and at the same time
until the indicator comes on/goes
off.
8.3 Acoustic signals
The acoustic signals operate when:
• The programme is completed.
• The appliance has a malfunction.
To deactivate/activate the acoustic
signals, press and at the same
time for 6 seconds.
If you deactivate the
acoustic signals, they
continue operate when the
appliance has a malfunction.
9. BEFORE FIRST USE
1. Put a small quantity of detergent in
the compartment for washing phase.
2. Set and start a programme for cotton
at the highest temperature without
laundry.
This removes all possible dirt from the
drum and the tub.
10. DAILY USE
WARNING!
Refer to Safety chapters.
10.1 Loading the laundry
1. Open the appliance door
2. Put the laundry in the drum, one item
at a time.
3. Shake the items before you put them
in the appliance.
Make sure not to put too much laundry in
the drum.
4. Close the door firmly.
CAUTION!
Make sure that no laundry
stays between the seal and
the door. There is a risk of
water leakage or damage to
the laundry.
ENGLISH 17

10.2 Using detergent and
additives
1. Measure out the detergent and the
fabric conditioner.
2. Put the detergent and the fabric
conditioner into the compartments.
3. Carefully close the detergent drawer

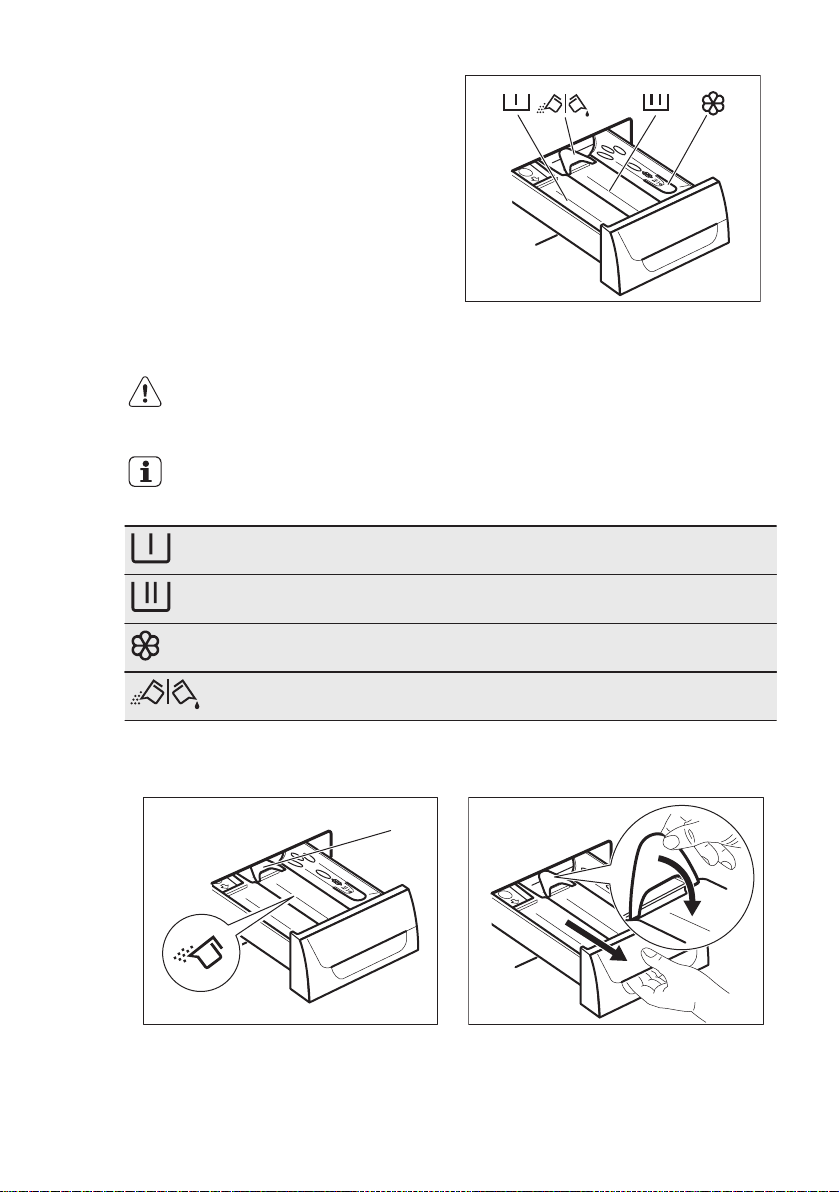

10.3 Detergent compartments
CAUTION!
Use only specified detergents for washing machine.
Always obey the instructions that you find on the packaging of the
detergent products.
Detergent compartment for prewash phase.
Detergent compartment for washing phase.
Compartment for liquid additives (fabric conditioner, starch).
Flap for powder or liquid detergent.
10.4 Liquid or powder detergent
1.
A
2.
www.electrolux.com18

3.
B
4.
• Position A for powder detergent (factory setting).
• Position B for liquid detergent.
When you use the liquid detergent:
• Do not use gelatinous or thick liquid detergents.
• Do not put more liquid then the maximum level.
• Do not set the prewash phase.
• Do not set the delay start.
10.5 Activating the appliance
Press the button to activate or
deactivate the appliance. A tune sounds
when the appliance is activated.
10.6 Setting a programme
1. Turn the programme knob and set
the programme:
• The related programme indicator
comes on.
• The indicator of the flashes.
• The display shows the level of the
Time Manager, the programme
duration and the indicators of the
programme phases.
2. If necessary, change the
temperature, the spin speed, the
cycle duration or add available
options. When you activate an
option, the indicator of the set option
comes on.
If you set something
incorrect, the display shows
the message .
10.7 Starting a programme
without the delay start
Press .
• The indicator of stops to flash
and stays on.
• The indicator starts to flash
on the display.
• The programme starts, the door
locks, the display shows the
indicator .
If the indicator
flashes, the door is
locking. If the display
shows an alarm
message after the
indicator has
flashed for a few
seconds, it indicates
that the door is not
properly locked (for
more details see
Troubleshooting
chapter).
• The drain pump can operate for a
short time when the appliance fills
water.
ENGLISH 19

After approximately 15
minutes from the start of the
programme:
• The appliance adjusts
automatically the
programme duration
agree with the laundry
load.
• The display shows the
new value.
10.8 Starting a programme with
the delay start
1. Press again and again until the
display shows the delay you want to
set.
The related indicator comes on the
display.
2. Press :
• The appliance starts the
countdown.
• The door locks, the display shows
the indicator .
If the indicator flashes, the
door is locking. If the display
shows an alarm message after
the indicator has flashed for a
few seconds, it indicates that the
door is not properly locked (for
more details see Troubleshooting
chapter).
• When the countdown is
completed, the programme starts
automatically.
You can cancel or change
the set of the delay start
before you press the . To
cancel the delay start:
• Press to set the
appliance to pause.
• Press until the
display shows '.
• Press again to
start the programme
immediately.
10.9 Interrupting a programme
and changing the options
You can change only some options
before they operate.
1. Press .
The indicator flashes.
2. Change the options.
3. Press again.
The programme continues.
10.10 Cancelling a running
programme
1. Press the button for some
seconds to cancel the programme
and to deactivate the appliance.
2. Press the same button again to
activate the appliance. Now, you can
set a new washing programme.
Before starting the new
programme the appliance
could drain the water. In this
case, make sure that the
detergent is still in the
detergent compartment, if
not fill the detergent again.
10.11 Opening the door
CAUTION!
If the temperature and level
of the water in the drum are
too high and the drum still
rotates, you cannot open the
door.
While a programme or the delay start
operates, the appliance door is locked
and the display shows the indicator .
Open the appliance door when the
programme or the delay start
operates:
1. Press to pause the appliance.
2. Wait until the door lock indicator
goes off.
3. Open the door.
4. Close the door and press again .
The programme or delay start continues
to operate.
www.electrolux.com20
