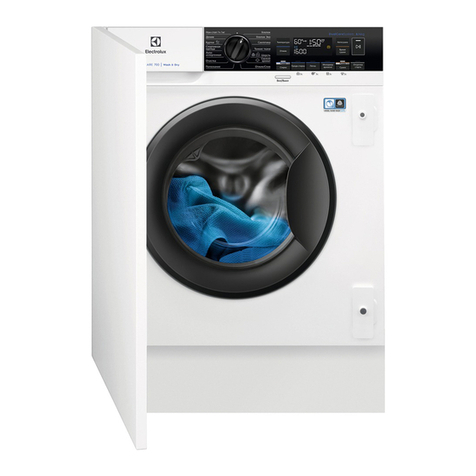

Electrolux EN7W4954OB User manual

EN7W4954OB
EN Washer Dryer User Manual

CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................6
3. PRODUCT DESCRIPTION................................................................................ 8
4. TECHNICAL DATA.............................................................................................8
5. INSTALLATION.................................................................................................. 9
6. ACCESSORIES................................................................................................12
7. CONTROL PANEL........................................................................................... 12
8. DIAL AND BUTTONS....................................................................................... 15
9. PROGRAMMES............................................................................................... 17
10. SETTINGS......................................................................................................25
11. BEFORE FIRST USE..................................................................................... 26
12. DAILY USE - WASHING ONLY......................................................................26
13. DAILY USE - WASHING & DRYING.............................................................. 30
14. DAILY USE - DRYING ONLY......................................................................... 32
15. FLUFF IN THE FABRICS............................................................................... 33
16. HINTS AND TIPS........................................................................................... 33
17. CARE AND CLEANING..................................................................................36
18. TROUBLESHOOTING....................................................................................40
19. CONSUMPTION VALUES..............................................................................44
20. ENVIRONMENTAL CONCERNS................................................................... 47
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website to:
Get usage advice, brochures, trouble shooter, service and repair information:
www.electrolux.com/support
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
www.electrolux.com2

Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damage that are the result
of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away from the appliance unless continuously
supervised.
•Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
•Children should be supervised to ensure that they do
not play with the appliance.
•Keep all packaging away from children and dispose of
it appropriately.
•Keep detergents away from children.
•Keep children and pets away from the appliance when
the door is open.
•If the appliance has a child safety device, it should be
activated.
ENGLISH 3

•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•This appliance is for washing and drying domestic-
type machine-washable and dryable laundry only.
•Do not use the dryer function if laundry has been
soiled with industrial chemicals.
•This appliance is designed for single household
domestic use in an indoor environment.
•This appliance may be used in, offices, hotel guest
rooms, bed & breakfast guest rooms, farm guest
houses and other similar accommodation where such
use does not exceed (average) domestic usage levels.
•Do not change the specification of this appliance.
•The appliance shall be installed as a freestanding
product or below the kitchen worktop if space margins
permit.
•Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite
side, that would prevent the appliance door from being
fully open.
•Connect the mains plug to the mains socket only at
the end of the installation process. Make sure that the
mains plug is accessible after installation.
•The ventilation opening in the base must not be
covered by a carpet, mat, or any floor covering.
•WARNING: The appliance must not be supplied
through an external switching device, such as a timer,
or connected to a circuit that is regularly switched on
and off by a utility.
•Ensure good air ventilation in the room where the
appliance is installed to avoid the backflow of
unwanted gases into the room from appliances
burning gas or other fuels, including open fires.
•Exhaust air must not be discharged into a flue which is
used for exhausting fumes from any appliances
burning gas or other fuels.
www.electrolux.com4

•The operating water pressure at the water entry point
from the outlet connection must be between 0.5 bar
(0.05 MPa) and 10 bar (1.0 MPa).
•The appliance maximum load is 9 kg. Do not exceed
the maximum load of each programme (refer to the
"Programmes" chapter).
•The appliance must be connected to the water mains
using the new supplied hose sets, or other new hose
sets supplied by the Authorised Service Centre.
•Old hose sets must not be reused.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•Wipe away lint or packaging debris that has
accumulated around the appliance.
•Items that have been soiled with substances such as
vegetable or mineral oil, acetone, alcohol, petrol,
kerosene, spot removers, turpentine, waxes and wax
removers should be washed separately with an extra
amount of detergent before being dried in the washer
dryer.
•Do not use the appliance if items have been soiled
with industrial chemicals.
•Do not dry unwashed items in the wash dryer.
•Items such as foam rubber (latex foam), shower caps,
waterproof textiles, and rubber backed articles and
clothes, or pillows fitted with foam rubber pads should
not be dried in the washer dryer.
•Fabric softeners, or similar products, should only be
used as specified by the product manufacturer’s
instructions.
•Remove all objects from items that could be a source
of fire ignition such as lighters or matches.
•WARNING: Never stop the washer dryer before the
end of the drying cycle unless all items are quickly
removed and separated so that residual heat can
dissipate.
ENGLISH 5

•The final part of the washer dryer cycle takes place
without heat (cool down cycle) to ensure that items
reach a temperature that will not cause damage to
them.
•Do not use high pressure water sprays and/or steam
to clean the appliance.
•Clean the appliance with a moist cloth. Use only
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
2. SAFETY INSTRUCTIONS
2.1 Installation
The installation must comply
with relevant national
regulations.
• Follow the installation instructions
supplied with the appliance.
• Do not install or use the appliance
where the temperature can be less
than 0°C or where it is exposed to the
weather.
• Always keep the appliance vertical
when it is being moved.
• Make sure that there is air circulation
between the appliance and the floor.
• Remove all the packaging and the
transit bolts.
• The floor area on which the appliance
is to be installed must be flat, stable,
heat resistant and clean.
• Keep the transit bolts in a safe place.
If the appliance is to be moved in the
future they must be reattached to lock
the drum to prevent an internal
damage.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use a damaged
appliance.
• Do not install the appliance where the
appliance door cannot be fully
opened.
• Adjust the feet to have the necessary
space between the appliance and the
flooring.
• When the appliance is in its
permanent position, check if it is
levelled correctly with the aid of a
spirit level. If it is not, adjust the feet
accordingly.
2.2 Electrical Connection
WARNING!
Risk of fire and electric
shock.
• WARNING: This appliance is
designed to be installed / connected
to a grounding connection in the
building.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
2.3 Water Connection
• The inlet water shall not exceed 25
°C.
• Do not cause damage to the water
hoses.
www.electrolux.com6

• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and
clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
• Do not use an extension hose if the
inlet hose is too short. Contact the
Authorised Service Centre for the
replacement of the inlet hose.
• When unpacking the appliance, It is
possible to see water flowing from the
drain hose. This is due to the testing
of the appliance with the use of water
in the factory.
• You can extend the drain hose to
maximum 400 cm. Contact the
Authorised Service Centre for the
other drain hose and the extension.
• Make sure that there is access to the
tap after the installation.
2.4 Use
WARNING!
Risk of injury, electric shock,
fire, burns or damage to the
appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the glass door while a
programme operates. The glass can
get hot.
• Do not dry damaged (torn, frayed)
items that contain padding or fillings.
• If laundry has been washed with a
stain remover, carry out an additional
rinse cycle before starting a drying
cycle.
• Make sure that all metal objects are
removed from the laundry.
• Dry only fabrics that are suitable to
dry in the appliance. Follow the
cleaning instruction on the item label.
• Do not sit or stand on the open door
of the appliance.
• Do not dry dripping wet clothes in the
appliance.
• Do not let hot items to touch the
plastic parts of the appliance.
• Remove a detergent ball (if used)
before starting a drying programme.
• Do not use a detergent ball if setting a
non-stop programme.
2.5 Service
• To repair the appliance contact the
Authorised Service Centre. Use
original spare parts only.
• Please note that self-repair or non-
professional repair can have safety
consequences and might void the
guarantee.
• The following spare parts will be
available for 10 years after the model
has been discontinued: motor and
motor brushes, transmission between
motor and drum, pumps, shock
absorbers and springs, washing drum,
drum spider and related ball bearings,
heaters and heating elements,
including heat pumps, piping and
related equipment including hoses,
valves, filters and aquastops, printed
circuit boards, electronic displays,
pressure switches, thermostats and
sensors, software and firmware
including reset software, door, door
hinge and seals, other seals, door
locking assembly, plastic peripherals
such as detergent dispensers. Please
note that some of these spare parts
are only available to professional
repairers, and that not all spare parts
are relevant for all models.
• Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended
to withstand extreme physical
conditions in household appliances,
such as temperature, vibration,
humidity, or are intended to signal
information about the operational
status of the appliance. They are not
intended to be used in other
applications and are not suitable for
household room illumination.
2.6 Disposal
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
ENGLISH 7

• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).
3. PRODUCT DESCRIPTION
3.1 Appliance overview
1 2 3 9
5
7
4
10
8
11 12
6
1Worktop
2Detergent dispenser
3Control panel
4Door handle
5Rating plate
6Drain pump filter
7Feet for levelling the appliance
8Drain hose
9Inlet hose connection
10 Mains cable
11 Transit bolts
12 Hose support
00000000
00A
Mod. xxxxxxxxx
000V ~ 00Hz 0000 W
910000000 00
A
B
C
Prod.No.
D
The rating plate reports the model name (A) ,
product number (B), electrical ratings (C) and
serial number (D).
4. TECHNICAL DATA
Dimension Width/ Height/ Total
depth
59.7 cm /84.7 cm /57.3 cm
www.electrolux.com8

Electrical connection Voltage
Overall power
Fuse
Frequency
230 V
2000 W
10 A
50 Hz
Level of protection against ingress of solid parti‐
cles and moisture ensured by the protective cov‐
er, except where the low voltage equipment has
no protection against moisture
IPX4
Water supply 1) Cold water
Water supply pressure Minimum
Maximum
0.5 bar (0.05 MPa)
10 bar (1.0 MPa)
Maximum wash load Cotton 9 kg
Maximum dry load Cotton
Synthetics
5 kg
3 kg
Spin Speed Maximum spin speed 1400 rpm
1) Connect the water inlet hose to a water tap with a 3/4'' thread.
5. INSTALLATION
WARNING!
Refer to Safety chapters.
5.1 Unpacking
1. Open the door. Remove all the items
from the drum.
Accessories delivered
with the appliance may
vary depending on the
model.
2. Put the packaging element on the
floor behind the appliance and
carefully put it down onto its rear
side. Remove the polystyrene
protection from the bottom.
1
2
CAUTION!
Do not lay washing
machine on its front.
3. Put the appliance back into an
upright position. Remove the power
supply cable and the drain hose from
the hose holders.
ENGLISH 9

It is possible to see
water flowing from the
drain hose. This is
because the washing
machine has been
tested at the factory.
4. Remove the three transit bolts and
pull out the plastic spacers.
We recommend that
you keep the
packaging and the
transit bolts for any
transport of the
appliance.
5. Put the plastic caps, that you find in
the user manual bag, in the holes.
5.2 Information for installation
Positioning and levelling
Adjust the appliance correctly to prevent
vibration, noise and movement of the
appliance when it operates.
1. Install the appliance on a flat hard
floor. The appliance must be levelled and
stable. Make sure that the appliance
does not touch the wall or other units and
there is air circulation below the
appliance.
2. Loosen or tighten the feet to adjust the
level. All feet must rest firmly on the floor.
WARNING!
Do not put cardboard, wood
or equivalent materials
below the appliance feet to
adjust the level.
The inlet hose
CAUTION!
Make sure there is no
damage to hoses and there
are no leaks from the
couplings. Do not use an
extension hose if the inlet
hose is too short. Contact
the service centre for a
replacement inlet hose.
1. Connect the water inlet hose to the
back of the appliance.
20º20º
45º45º
2. Position it toward left or right
depending on the positon of the water
tap. Make sure that the inlet hose is not
in vertical position.
3. If necessary, loosen the ring nut to set
it in the correct position.
4. Connect the water inlet hose to the
cold water tap with 3/4'' thread.
WARNING!
The inlet water shall not
exceed 25 °C.
Water drainage
The drain hose should stay at a height of
no less than 60 cm and not more than
100 cm.
www.electrolux.com10

You can extend the drain
hose to maximum 400 cm.
Contact the authorised
service centre for the other
drain hose and the
extension.

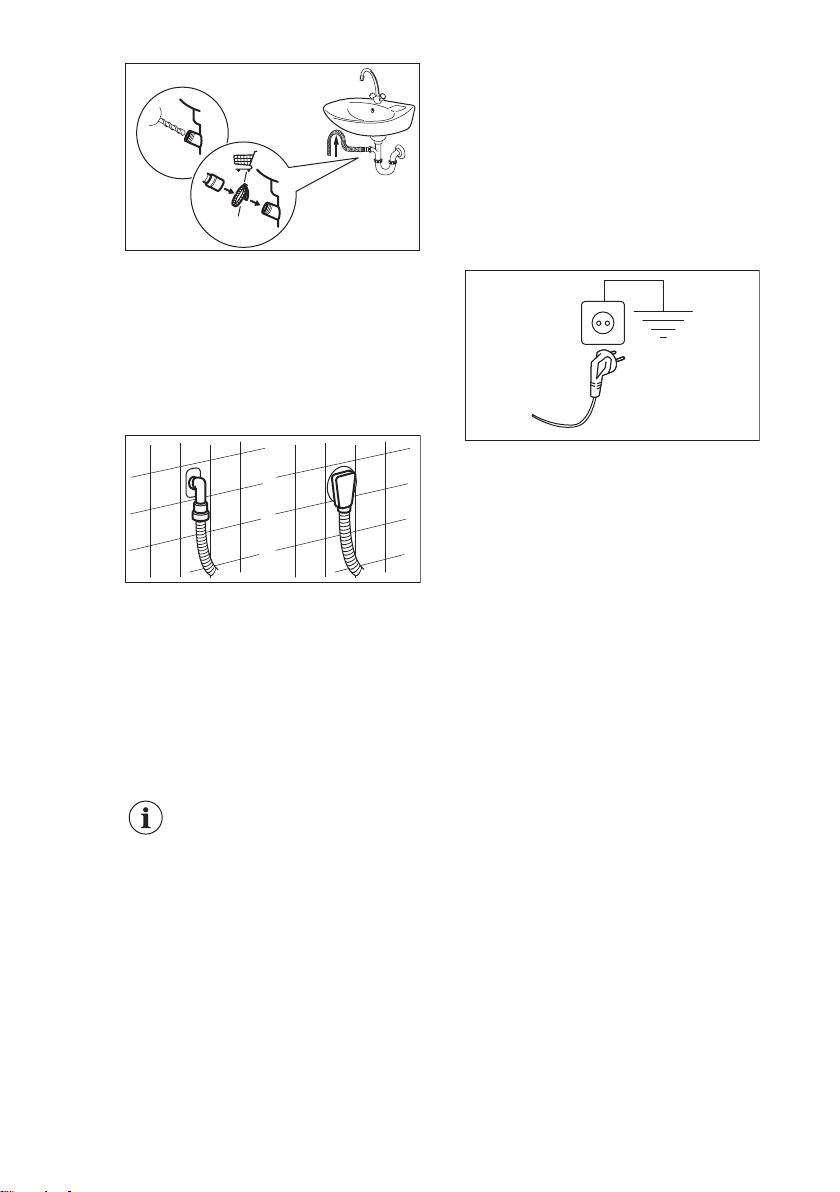

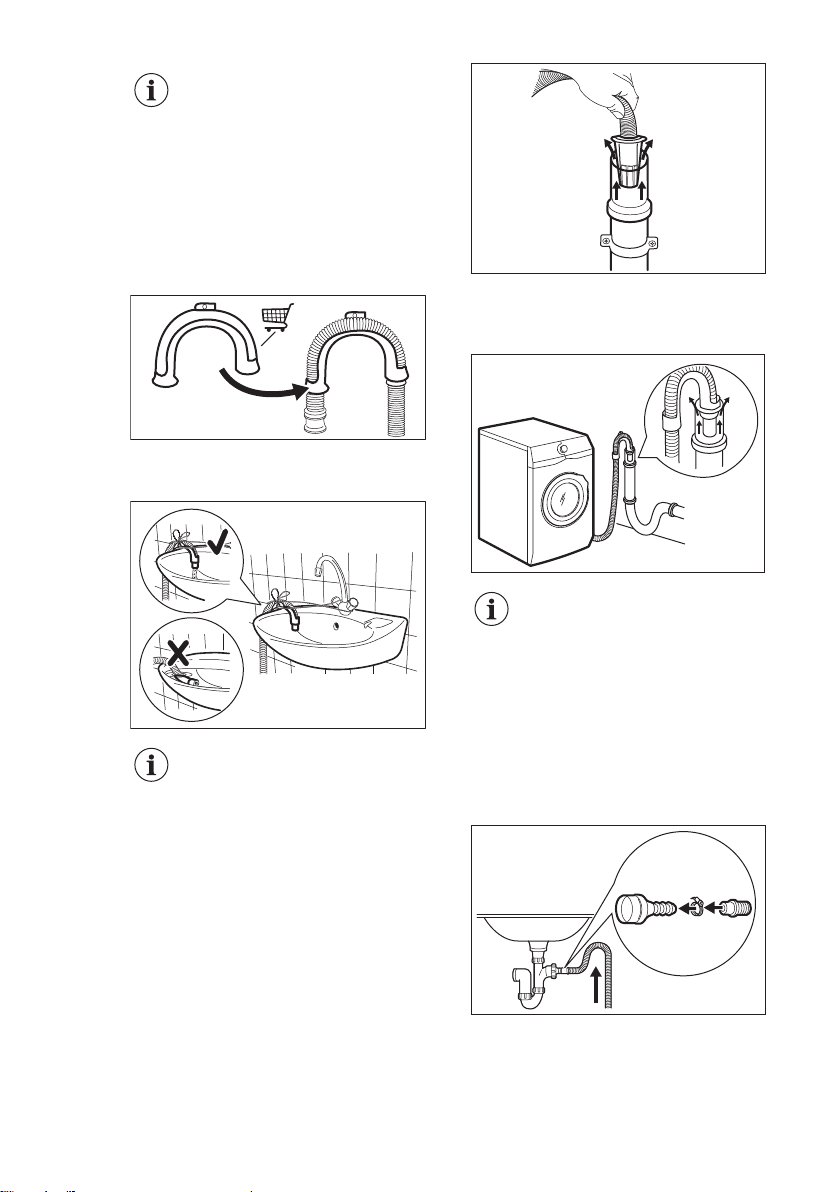

It is possible to connect the drain hose in
different ways:
1. Make a U shape with the drain hose
and put it around the plastic hose guide.
2. On the edge of a sink - Fasten the
guide to the water tap or to the wall.
Make sure that the plastic
guide cannot move when the
appliance drains and the
drain hose end is not
immersed in the water.
There may be a return of
dirty water into the
appliance.
3. If the end of the drain hose looks like
this (see the picture), you can push it
directly into the stand pipe.
4. To a stand pipe with vent hole - Insert
the drain hose directly into a drain pipe.
Refer to the illustration.
The end of the drain hose
must always be ventilated ,
i.e. the inner diameter of the
drain pipe (min. 38 mm -
min. 1.5") must be larger
than the external diameter of
the drain hose.
5. Without the plastic hose guide, to a
sink spigot- Put the drain hose in the
spigot and tighten it with a clamp. Refer
to the illustration.
Make sure that the drain hose makes a
loop to prevent particles going into the
appliance from the sink.
ENGLISH 11

ø16
1
W011
2
Connect the drain hose to the spigot and
tighten it with a clamp. Make sure that
the drain hose makes a loop to prevent
particles going into the appliance from
the sink.
6. Position the hose directly to a built-in
drain pipe in the room wall and tighten it
with a clamp.
5.3 Electrical connection
At the end of installation you can connect
the mains plug to the mains socket.
The rating plate and the 'Technical Data'
chapter indicate the necessary electrical
ratings. Make sure that they are
compatible with the mains power supply.
Check that your domestic electrical
installation can take the maximum load
required, also taking into account any
other appliances in use.
Connect the appliance to an earthed
socket.
The power supply cable must be easily
accessible after installing the appliance.
For any electrical work required to install
this appliance, contact our Authorised
Service Centre.
The manufacturer does not accept any
responsibility for damage or injury
through failure to comply with the above
safety precaution.
6. ACCESSORIES
6.1 Available in www.electrolux.com/shop or from authorised
dealer
Only appropriate accessories approved by ELECTROLUX ensure the
safety standards of the appliance. If unapproved parts are used, any
claims will be invalidated.
6.2 Fixing plate kit
If you install the appliance on a plinth
that is not an accessory supplied by
ELECTROLUX, secure the appliance in
the fixing plates.
Read carefully the instructions supplied
with the accessory.
7. CONTROL PANEL
7.1 Special features
Your new washer-dryer meets all modern
requirements for effective treatment of
laundry with low water, energy and
detergent consumption and detergent
consumption and proper care of fabric.
www.electrolux.com12

•SteamCare system, thanks to
FreshScent steam programme, offers
the perfect solution for refreshing
even the most delicate garments
without washing. Use the delicate
fragrance exclusively developed by
ELECTROLUX to add a pleasant
feeling of "just-washed" garment to
the removing odours and wrinkles
action.
• The SensiCare System detects the
laundry load size defining the
programme duration in 30 seconds.
The washing programme is tailored to
the laundry load and the type of fabric
without consuming more time, energy
and water than necessary.
7.2 Control panel description
Temp. °C
Lavar
90°
60°
40°
30°
20°
Frio
Secar
Temp. °C
Lavar
90°
60°
40°
30°
20°
Frio
Secar
Mix 5kg/69´
Eco 40-60
Sintéticos
Delicados
Lana/Lãs
FreshScent
Centrif./Drenar
Algod.
Limp. Máquina
Aclarado/Enxag.
Denim
Camisas 20´-
Lava+Seca 60´
Anti-
Alergia
Outdoor
On/Off
Lavar+
Secar
Pre-Lava.
Tiempo/
Tempo sec.
Auto Dry
Time
Manager
Inicio
Diferido
Centrif.
23 4 5
12 11 8
1
7 6
910
The permanent options are
set by holding pressed the
relative button for at least 3
seconds.
1Programme dial
2Display
3Auto Dry touch button
4Tiempo/Tempo sec. touch button
5Inicio/Pausa touch button
6Inicio Diferido touch button
7Time Manager touch button and
permanent Child Lock option
8Pre-Lava. touch button and
permanent Extra Rinse option
9Centrif. touch button
10 Temp. °C touch button
11 Lavar+Secar touch button:
• Lavar
• Secar
12 On/Off push button
ENGLISH 13

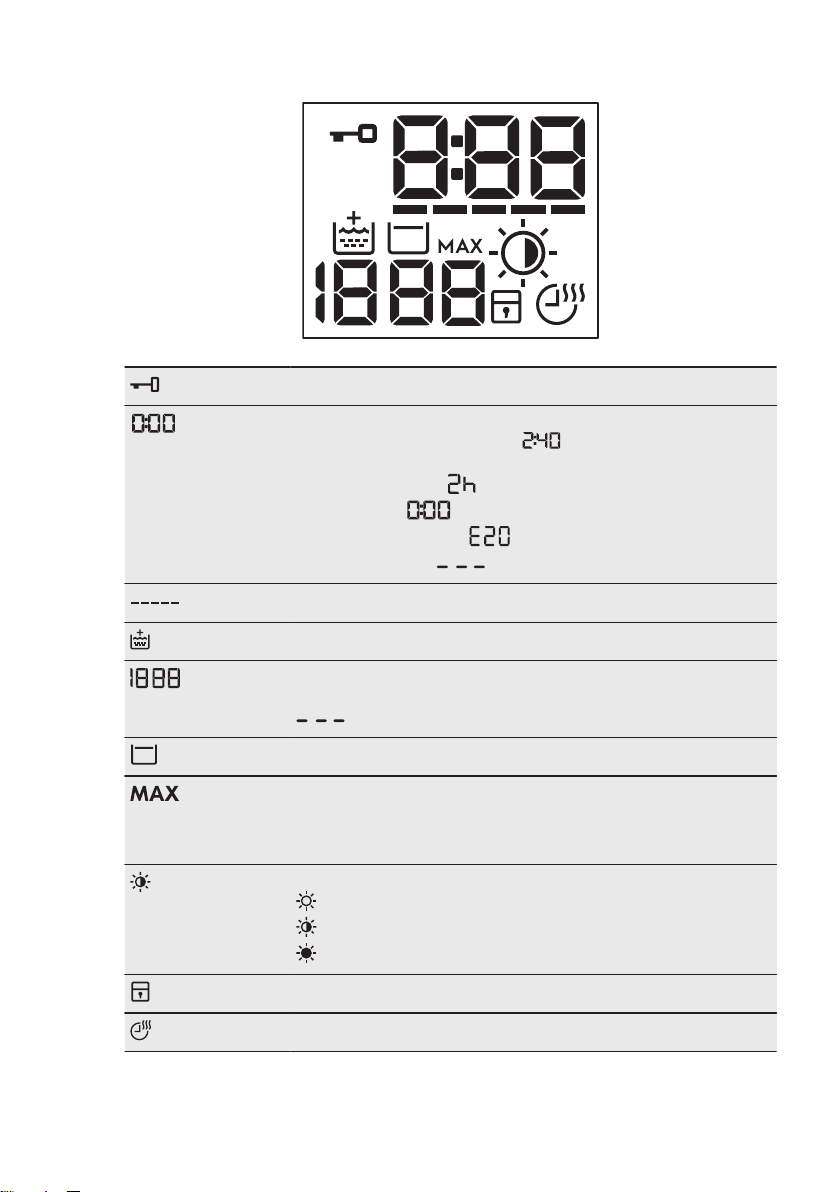

7.3 Display
Door locked indicator.
The digital indicator can show:
• Programme duration (e. g. , washing and/or drying
phase).
• Delay time (e. g. ).
• Cycle end ( ).
• Warning code (e.g. ).
• Error indicator ( ).
Time Manager indicator.
Extra Rinse indicator.
The spin area:
Spin speed indicator
No Spin indicator. Spin phase is off.
Rinse Hold indicator.
After the SensiCare System detection, it flashes when the
laundry load exceeds the maximum declared load of the selec‐
ted programme. Refer to "The SensiCare System load detec‐
tion " paragraph.
Auto Dry indicator:
Iron dry
Cupboard dry
Extra dry
Child safety lock indicator.
Tiempo/Tempo sec. and Non-Stop programme indicator.
www.electrolux.com14

8. DIAL AND BUTTONS
8.1 Introduction
The options/functions are
not available with all
washing programmes.
Check the compatibility
between options/functions
and washing programmes in
the "Programme Chart". An
option/function can exclude
another one, in this case the
appliance doesn't allow you
to set incompatible options/
functions.
8.2 On/Off
Press this button for a few seconds to
activate or deactivate the appliance. Two
different tunes sound while switching the
appliance on or off.
As the Stand-by function automatically
deactivates the appliance after several
minutes to reduce the energy
consumption, you may need to activate
the appliance again.
For more details, refer to Stand-by
paragraph in Daily Use chapter.
8.3 Lavar+Secar
Thanks to this button, a cycle can
perform:
•Only washing: Lavar indicator is on
(default mode).
•Washing and drying: Lavar and
Secar indicators are on.
•Only drying: Secar indicator is on.
8.4 Temp. °C
When you select a washing programme,
the appliance automatically proposes a
default temperature.
Tap on this button to change the water
temperature.
The indicator of the set temperature
comes on.
The indicator Frio corresponds to cold
water.
8.5 Centrif.
When you set a programme, the
appliance automatically sets the
maximum spin speed allowed, except for
programme Denim. With this option you
can decrease the default spin speed.
Touch repeatedly this button to:
•Decrease the spin speed. The
display shows only the spin speeds
available for the set programme.
• Additional spin options No Spin
.
Set this option to deactivate all spin
phases. The appliance performs the
only draining phase of the selected
washing programme. Set this option
for very delicate fabrics. The rinses
phase uses more water for some
washing programmes
• Activate the Rinse Hold option.
The final spin is not performed. The
water of the last rinse is not drained
out to prevent the fabrics from
creasing. The washing programme
ends with water in the drum.
The indicator is on display. The
door stays locked and the drum turns
regularly to reduce creasing. You
must drain the water to unlock the
door.
If you touch the Inicio/Pausa
button, the appliance performs the
spinning phase and drains the water.
The appliance empties
the water out
automatically after 18
hours approximately.
8.6 Pre-Lava.
With this option you can add a prewash
phase to a washing programme.
The corresponding indicator above the
touch button illuminates.
• Use this option to add a pre-wash
phase at 30 °C before the washing
phase.
This option is recommended for
heavily soiled laundry, especially if
ENGLISH 15

containing sand, dust, mud and other
solid particles.
The options can increase the
programme duration.
8.7 Permanent Extra Rinse
With this option you can permanently
have an extra rinse when you set a new
programme.
To activate/deactivate this option, hold
the Pre-Lava. button pressed for 3
seconds until the indicator comes on/
goes off on the display.
When it is activated, the appliance will
default to this option after you switch it
off or change/reset the programme.
This option increases the
programme duration.
8.8 Time Manager
With this option you can reduce the
programme duration depending on the
load size and the degree of soiling.
When you set a washing programme, the
display shows the default duration and
dashes.
Touch Time Manager button to reduce
the programme duration according to
your needs. The display shows the new
programme duration and a number of
dashes will decrease accordingly:
suitable for a full load of normally
soiled garments.
a quick cycle for a full load of lightly
soiled garments.
very quick cycle for a smaller lightly
soiled load (max. half load
recommended).
the shortest cycle to freshen up a
small amount of laundry.
The Time Manager is available only with
the programmes in the table.
indicator
Eco 40-60
Algod.
Sintéticos
1) ■■ ■
■ ■ ■
■■ ■
■ ■ ■
■ ■ ■
1) Default duration for all programmes.
Time Manager with steam
programmes
When setting a steam programme, this
button allows to chose three steam levels
and the programme duration is reduced
accordingly:
• : maximum.
• : medium.
• : minimum.
8.9 Child Lock
With this option you can prevent children
from playing with the control panel.
To activate/deactivate this option, hold
the Time Manager button pressed until
the indicator comes on/goes off on
the display.
When it is activated, the appliance will
default to this option after you switch it
off or change/reset the programme. If
you press any button, the indicator
blinks to indicate that the buttons are
disabled.
8.10 Tiempo/Tempo sec.
Touch this button to set the time that
suits the fabrics you have to dry (refer to
"Timed drying" table). The display shows
the set value.
www.electrolux.com16

Each time you touch this button the time
value increases by 5 minutes.
You cannot set all time
values for different types of
fabrics.
8.11 Auto Dry
Touch this button to set one the
automatic dryness levels proposed by
the appliance.
On the display the relevant dryness
indicator goes on:
• Iron dry: laundry to be ironed.
• Cupboard dry: laundry to be put
in store.
• Extra dry: laundry to be fully dried.
You can not set all
automatic levels for each
type of fabrics.
8.12 Inicio Diferido
With this option you can delay the start of
a programme to a more convenient time.
Touch the button repeatedly to set the
required delay. The time increases in
steps of 1 hour up to 20 hours.
The corresponding indicator above the
touch button illuminates.
The display shows the selected delay
time. After touching the Inicio/Pausa
button, the appliance begins the
countdown and the door is locked.
8.13 Inicio/Pausa
Touch the Inicio/Pausa button to
start, pause the appliance or interrupt a
running programme.
9. PROGRAMMES
9.1 Programme Chart
Programme
Default tempera‐
ture
Temperature
range
Refer‐
ence spin
speed
Spin
speed
range
Maxi‐
mum
load
Programme description
(Type of load and level of soiling)
Eco 40-60 (Wash
only mode)
40 °C1)
1400 rpm
1400 rpm
- 400 rpm
9 kg
White cotton and fast-coloured cotton.
Normally soiled items.
Eco 40-60 + Cup‐
board dry level
(Wash & Dry
mode)
40 °C2)
1400 rpm
1400 rpm
- 1000
rpm
5 kg
Eco 40-60 + Cup‐
board dry level
(Dry only mode)
-
5 kg White cotton and fast-coloured cotton.
ENGLISH 17

Programme
Default tempera‐
ture
Temperature
range
Refer‐
ence spin
speed
Spin
speed
range
Maxi‐
mum
load
Programme description
(Type of load and level of soiling)
Algod.
40 °C
90 °C - Cold
1400 rpm
(1400-
400 rpm)
9 kg White cotton and coloured cotton. Nor‐
mally, heavily and lightly soiled items.
Sintéticos
40 °C
60 °C - Cold
1200 rpm
(1200 -
400 rpm)
3 kg Synthetic items or mixed fabric items.
Normally soiled items.
Delicados
30 °C
40 °C - Cold
1200 rpm
(1200-
400 rpm)
2 kg Delicate fabrics such as acrylics, vis‐
cose and mixed fabrics requiring gentler
washing. Normally and lightly soiled items.
Lana/Lãs
40 °C
40 °C - Cold
1200 rpm
(1200 -
400 rpm)
1.5 kg Machine washable wool, hand washable
wool and other fabrics with «hand wash‐
ing» care symbol3).
Steam programme with FreshScent System
Steam programme can be used for reducing wrinkles and odours4) of garments that
just need to be refreshed, avoiding washing. The fabric fibres are relaxed and after‐
wards ironing becomes effortless. When the programme is completed, quickly re‐
move the laundry from the drum5). Steam programmes do not perform any hygienic
cycle. Do not set this programme with the following type of items:
• Items that are not suitable for tumble drying.
• Items with label "Dry clean only".
ELECTROLUX fragrance. If you use this special gentle fragrance, your laundry will
scent as just washed: pour a single dose bottle in the compartment and simply
start a steam programme. Reduce the fragrance dosage when treating smaller load.
By means of the Time Manager button, you can reduce the programme duration
when treating items labeled to be washed at low temperature.
DO NOT:
• Tumble dry the garments treated with fragrance. Its benefit would evaporate.
• Use the fragrance with different purposes than those here described.
• Use the fragrance on new garments. New garments may contain residual finishing
compounds which are not compatible with it.
The fragrance dose bottles are available on ELECTROLUX web shop or
by authorised dealer.
www.electrolux.com18

Programme
Default tempera‐
ture
Temperature
range
Refer‐
ence spin
speed
Spin
speed
range
Maxi‐
mum
load
Programme description
(Type of load and level of soiling)
FreshScent
-
1 kg Cottons, Synthetics, Delicates. Short and
gentle steam programme to refresh even
your very delicate garments, including very
delicate garments with sequins, lace etc.
When treating smaller loads, the pro‐
gramme duration can be further reduced by
means of the Time Manager option.
WARNING!
Do not use this programme
with wool and garments label‐
led as dry-clean only.
Centrif./Drenar
1400 rpm
(1400 -
400 rpm)
9 kg All fabrics, except woollens and delicate
fabrics. To spin the laundry and to drain
the water in the drum.
Aclarado/Enxag.
1400 rpm
(1400-
400 rpm)
9 kg All fabrics, except woollens and very
delicate fabrics. Programme for rinsing
and spinning the laundry. The default spin
speed is the one used for cotton pro‐
grammes. Reduce the spin speed accord‐
ing to the type of laundry. If necessary, set
the Aclarado/Enxague Extra option to add
rinses. With a low spin speed, the appliance
performs delicate rinses and a short spin.
Limp. Máquina
60 °C
1200 rpm
(1200 -
400 rpm)
-
Maintenance cycle with hot water to clean
and freshen the drum and to remove resi‐
due that may cause odour. For the best re‐
sult use this cycle once a month. Before
running this cycle, remove all items from the
drum. In the washing phase compartment of
the detergent dispenser, put the flap of the
compartment in upward position. Pour a
cup of chlorine bleach or a washing ma‐
chine cleaner in the washing phase com‐
partment. DO NOT use both together.
After the drum cleaning, run a
further rinse cycle with empty
drum and no detergent to re‐
move any residue of bleach.
If you set this programme with the Secar,
the appliance performs the anti-fluff action.
Refer to chapter 'Fluff in the fabrics'.
ENGLISH 19

Programme
Default tempera‐
ture
Temperature
range
Refer‐
ence spin
speed
Spin
speed
range
Maxi‐
mum
load
Programme description
(Type of load and level of soiling)
Anti-Alergia
60 °C
1400 rpm
(1400 -
400 rpm)
9 kg White cotton items. This high-performance
wash program combined with steam va‐
pour, removes more than 99,99% of bacte‐
ria and viruses6) keeping the temperature
above 60°C throughout the washing phase;
with an additional action on the fibers
thanks to a vapour phase, an enhanced
rinsing phase ensures a proper removal of
detergent and micro-organism residues.
This program ensures also a proper reduc‐
tion of pollens/allergenic items.
Outdoor
30 °C
40 °C - Cold
1200 rpm
(1200-
400 rpm)
2 kg Do not use fabric softener and
make sure that there is no soft‐
ener residue in the detergent
dispenser.
Outdoor clothing, technical, sport fab‐
rics, waterproof and breathable jackets,
shell jackets with a removable fleece or
inner insulation.
By performing a combined
wash and dry programme, the
drying phase also acts as wa‐
ter-repellent restorer. Make
sure that the garment care la‐
bel permits tumble drying.
Denim
30 °C
40 °C - Cold
1200 rpm
(1200 -
400 rpm)
3 kg Special programme for Denim clothing
with delicate washing phase to minimize
colour fading and marks. For better care
a reduced load size is recommended.
Mix 5kg/69´
30 °C
60 °C - 30 °C
1400 rpm
(1400 -
400 rpm)
5 kg Programme to treat mixed fabrics (cotton
and synthetic items) up to 5 kg. Complete
washing programme that washes the daily
soiled laundry efficiently at 30 °C and en‐
sures a good performance in only 69 mi‐
nutes. Add a drying phase to have a com‐
plete wash&dry treatment.
Camisas 20´-Lava
+Seca 60´
30 °C
40 °C - 30 °C
1200 rpm 1 kg Programme to treat up to 1 kg of mixed
synthetic shirts load in 20 minutes only.
Add a drying phase to have a complete
wash&dry treatment in 60 minutes.
www.electrolux.com20
