Electrolux ELTE7600AT User manual

electrolux.com
Use & Care Manual EN 2
Laundry Center
Manuel d’utilisation et d’entretien FR 79
Centre de buanderie
Manual de uso y cuidado SP 157
Centro de lavado

2IMPORTANT SAFETY INFORMATION
Please Read and Save this
Manual
Thank you for choosing Electrolux, our
premium brand in home appliances. This Use
& Care Manual is part of our commitment to
customer satisfaction and product quality
throughout the service life of your new
appliance.
We view your purchase as the beginning
of a relationship. To ensure our ability to
continue serving you, please use this page
to record important product information.
Table of Contents
Electrolux serial number
Electrolux model number
READ ALL INSTRUCTIONS BEFORE
OPERATING THIS LAUNDRY
CENTER.
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE.
Electrolux model series*
*The series number can be found within the
Model number (example ELTE7600AW=7600
series).
For toll free telephone support or on-line
support in the US and Canada contact:
U.S.
1-877-4ELECTROLUX (1-877-435-3287)
www.electrolux.com
Canada
1-800-265-8352
www.electrolux.ca
Purchase date
Keep a Record for Quick
Reference
Questions?
Important Safety Information........................... 2
Features.....................................................................9
Pre-Installation Requirements ........................ 10
Installation...............................................................21
Washer Controls and Settings...................... 40
Dryer Controls and Settings........................... 48
Washer Operating Instructions..................... 54
Dryer Operating Instructions......................... 58
Normal Operating Sounds ............................. 60
Stain Removal Guide ..........................................61
Care and Cleaning ............................................ 63
Troubleshooting .................................................. 68
Limited Warranty..................................................77

NOTE
Registering your product with Electrolux
enhances our ability to serve you. You can
register on-line at
www.electrolux.com, by sending your
Product Registration Card in the mail, or
PHOTOREGISTERSM using a smart phone.
See registration card for details.

3
IMPORTANT SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS - GAS DRYER
WARNING
FIRE or explosion hazard
Failure to follow safety warnings exactly could
result in serious injury, death, or property damage.
DO NOT store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
WHAT TO DO IF YOU SMELL GAS:
 DO NOT try to light any appliance.
 DO NOT touch any electrical switch; DO NOT use
any phone in your building.
• Clear the room, building or area of all
occupants.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.
DANGER
If using Liquid Propane (LP), STOP and install the LP
kit before operating your gas dryer.

4IMPORTANT SAFETY INFORMATION
WARNING
RISK OF FIRE
• Ensure the entire laundry center exhaust system is clean and free of lint and debris
prior to the installation of your new laundry center. The entire exhaust system
should be inspected and cleaned a minimum of every 18 months with normal
usage. Failure to comply with cleaning your exhaust system will increase the RISK
of FIRE.
• DO NOT install the laundry center with flexible plastic or flexible foil venting material.
Flexible venting materials are known to collapse, be easily crushed and trap lint.
These conditions will obstruct laundry center airflow and increase the risk of fire.
• DO NOT screen the exhaust ends of the vent system, or use any screws, rivets or
other fasteners that extend into the duct to assemble the exhaust system. NO screen
or grate of any mesh size is allowed to cover the outdoor exhaust opening.
• Install the laundry center according to the manufacturer’s instructions and local codes.
• Laundry center installation and service must be performed by a qualified installer,
service agency or the gas supplier.
• The electrical service to the laundry center must conform with local codes and
ordinances and the latest edition of the National Electrical Code, ANSI/NFPA 70, or
in Canada, the Canadian Electrical Code CSA C22.1 part 1.
• The gas service to the laundry center must conform with local codes and ordinances
and the latest edition of the National Fuel Gas Code ANSI Z223.1/NFPA 54, or in
Canada, the Natural Gas and Propane Installation Code, CSA B149.1. An individual
manual shutoff valve must be installed within 6 ft. (1.83 m) of the laundry center in
accordance with the National Fuel Gas Code, ANSI Z223.1/NFPA 54.
• The laundry center is designed under ANSI Z21.5.1/CSA 7.1 or UL 2158 - CAN/
CSA C22.2 No. 112 (latest editions) for HOME USE only. This laundry center is not
recommended for commercial applications such as restaurants, beauty salons, etc.
• Destroy the carton and plastic bags after the laundry center is unpacked. Children
might use them to play. Cartons covered with rugs, bedspreads, or plastic sheets
can become airtight chambers causing suffocation. Place all materials in a garbage
container or make materials inaccessible to children.
• To reduce the risk of severe injury or death, follow all installation instructions in this
manual.
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire
or explosion or to prevent property damage, personal injury or loss of life. DO NOT store
or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance. This Use & Care Manual is not meant to cover every possible condition and
situation that may occur. Common sense and caution must be practiced when installing,
operating and maintaining any appliance.
WARNING
Any damage resulting from improper disassembly/assembly or installation of product is
not covered by product warranty.

5
Important Safety Instructions
Safety Precautions
DO NOT attempt to install or operate your
unit until you have read the safety precautions
in this manual. Safety items throughout this
manual are labeled with a Danger, Warning,
or Caution based on the risk type.
Definitions
This is the safety alert symbol. It is used
to alert you to potential personal injury
hazards. Obey all safety messages that
follow this symbol to avoid possible injury
or death.
IMPORTANT
IMPORTANT indicates installation,
operation or maintenance information
which is important but not hazard-related.
CAUTION
CAUTION indicates a potentially
hazardous situation which, if not avoided,
may result in minor or moderate injury.
DANGER
DANGER indicates an imminently
hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
FIRE HAZARD
To reduce the risk of fire, electrical shock, or injury to persons when using this laundry
center, comply with the warnings listed below. Failure to comply with these Important Safety
Information and warnings could result in property damage, serious personal injury, or death.
WARNING
WARNING indicates a potentially
hazardous situation which, if not avoided,
could result in death or serious injury.
IMPORTANT SAFETY INFORMATION
Prevent Fire
 READ ALL INSTRUCTIONS BEFORE
USING THE APPLIANCE.
 DO NOT wash or dry items that have
been previously cleaned in, soaked
in, or spotted with gasoline, cleaning
solvents, kerosene, waxes, or other
flammable or explosive substances. DO
NOT store these items on or near the
laundry center. These substances give
off vapors that could ignite or explode.
 DO NOT place items exposed to
cooking oils in your dryer. Items
contaminated with cooking oils may
contribute to a chemical reaction
that could cause a load to catch
fire. To reduce the risk of fire due to
contaminated loads, the final part of a
tumble dryer cycle occurs without heat
(cool down period). Avoid stopping
a tumble dryer before the end of the
drying cycle unless all items are quickly
removed and spread out so that the
heat is dissipated.
 DO NOT dry articles containing rubber,
plastic or similar materials such as
bras, galoshes, bath mats, rugs, bibs,
baby pants, plastic bags and pillows
that may melt or burn. Some rubber
materials, when heated, can under
certain circumstances produce fire by
spontaneous combustion.
 DO NOT operate the dryer if the lint
screen is blocked, damaged or missing.
Fire hazard, overheating and damage to
fabrics can occur.
 DO NOT obstruct the flow of ventilating
air. DO NOT stack or place laundry or
throw rugs against the front or back of
the laundry center.
 DO NOT spray any type of aerosol into,
on or near laundry center at any time.
 DO NOT use fabric softeners or products
to eliminate static unless recommended
by the manufacturer of the fabric
softener or product.

6IMPORTANT SAFETY INFORMATION
• Do not wash items that have been
previously cleaned in, soaked in,
or spotted with gasoline, cleaning
solvents, kerosene, cooking oils,
waxes, or other flammable or explosive
substances. Do not store these items on
or near the washer. These substances
give off vapors or chemical reactions
that could ignite or explode.
 DO NOT put oily or greasy rags or
clothing on top of the washer. These
substances give off vapors that could
ignite the materials.
 DO NOT add gasoline, cleaning
solvents, or other flammable or
explosive substances to the wash water.
These substances give off vapors that
could ignite or explode.
 DO NOT store or use gasoline or other
flammable vapors or liquids in the
WARNING
FIRE HAZARD
Clean the lint screen before or after each
load. The interior of the dryer, lint screen
housing and exhaust duct should be
cleaned approximately every 18 months
by qualified service professional. An
excessive amount of lint build-up in these
areas could result in inefficient drying and
possible fire. See Care and Cleaning.
WARNING
FIRE HAZARD
The dryer operation of a laundry center
produces combustible lint. The dryer must
be connected to an outdoor exhaust.
Regularly inspect the outdoor exhaust
opening and remove any accumulation of
dust, dirt, and lint around the opening and
in the surrounding area.
WARNING
DO NOT continue to use the laundry center
if you hear squeaking, grinding, rubbing
or other unusual noises. This could be a
sign of mechanical breakdown and lead
to fire or serious injury. Contact a qualified
technician immediately.
vicinity of this or any other appliance.
• Under certain conditions, hydrogen gas
may be produced in a hot water system
that has not been used for 2 weeks or
more. HYDROGEN GAS IS EXPLOSIVE.
If the hot water system has not been
used for such a period, before using the
washer, turn on all hot water faucets
and let the water flow from each for
several minutes. This will release any
accumulated hydrogen gas. Hydrogen
gas is flammable; DO NOT smoke or use
an open flame during this time.
Failure to comply with these warnings could
result in fire, explosion, serious bodily injury
and/or damage to the laundry center
Protect Children
• Risk of suffocation and injury from
entrapment. Do not allow children to
play on or in the laundry center. Close
supervision of children is necessary
when the laundry center is used. As
children grow, teach them the proper,
safe use of all appliances.
• Destroy the carton, plastic bag and
other packing materials after the
laundry center is unpacked. Children
might use them for play. Cartons
covered with rugs, bedspreads or
plastic sheets can become airtight
compartments.
• Keep laundry products out of children’s
reach. To prevent personal injury,
observe all warnings on product labels.
• Remove the laundry center doors to
prevent accidental entrapment before
the laundry center is removed from
service or discarded.
• Failure to comply with these warnings
could result in serious personal injuries.
Risk of Child Entrapment
Child entrapment and suffocation are not
problems of the past. Junked or abandoned
laundry centers are still dangerous – even if
they will sit for “just a few days”. If you are getting
rid of your old laundry center, please follow the
instructions below to help prevent accidents.

7
IMPORTANT SAFETY INFORMATION
We strongly encourage responsible appliance
recycling/disposal methods. Contact your
State/Provence Energy Office, Local Electric
and Water Utilities or Conservation Program
Office or visit www.energystar.gov/recycle
for more information on recycling your old
laundry center.
Before You Throw away Your Old
Laundry Center
• Remove doors
• Remove the electric power cord
• Secure all hoses and drain pipes to
prevent water from leaking out and
creating a slip hazard.
Prevent Injury
• To prevent shock hazard and assure
stability during operation, the laundry
center must be installed and electrically
grounded by a qualified service person
in accordance with local codes.
Installation instructions are included
in this manual for reference. Refer to
the installation sections for detailed
grounding procedures. If the laundry
center is moved to a new location, have
it checked and reinstalled by a qualified
service professional.

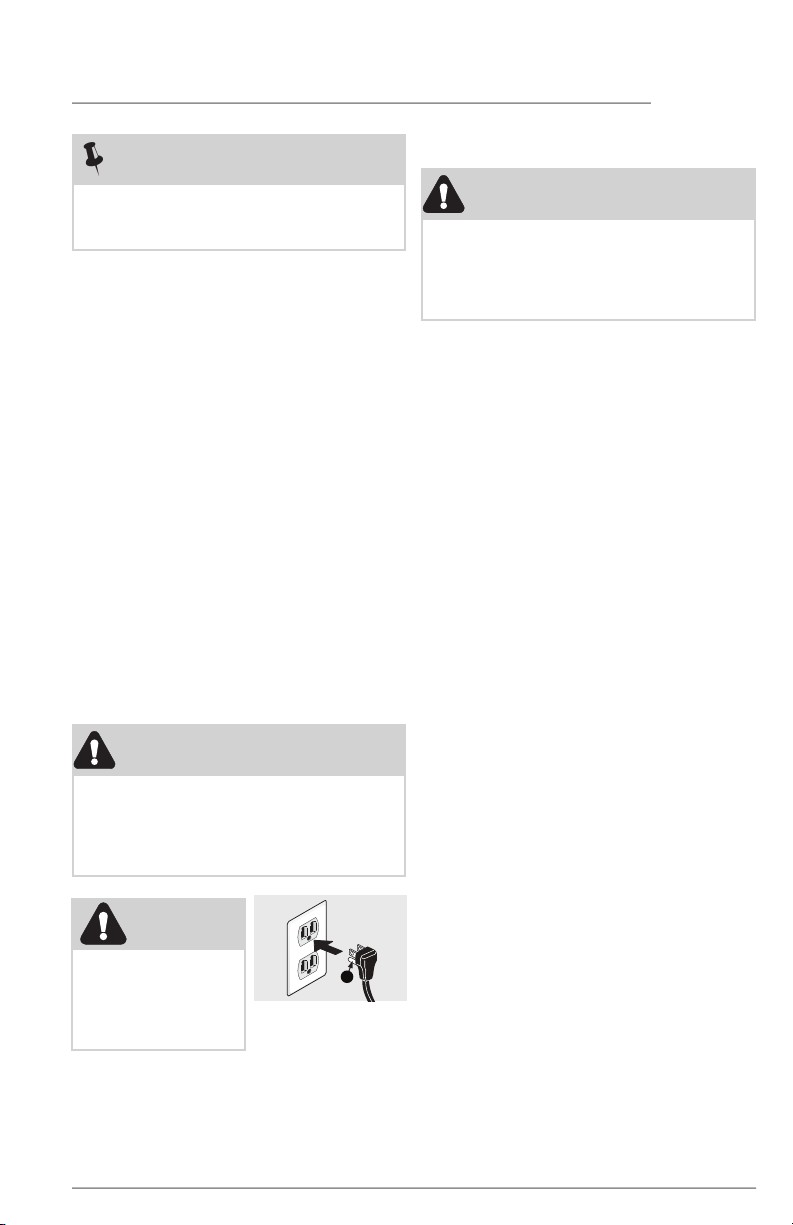

• To prevent personal injury or damage to
the laundry center, the electrical power
cord of a gas dryer must be plugged
into a properly grounded and polarized
3-prong outlet. The third grounding prong
must never be removed. Never ground
the dryer to a gas pipe. DO NOT use an
extension cord or an adapter plug.

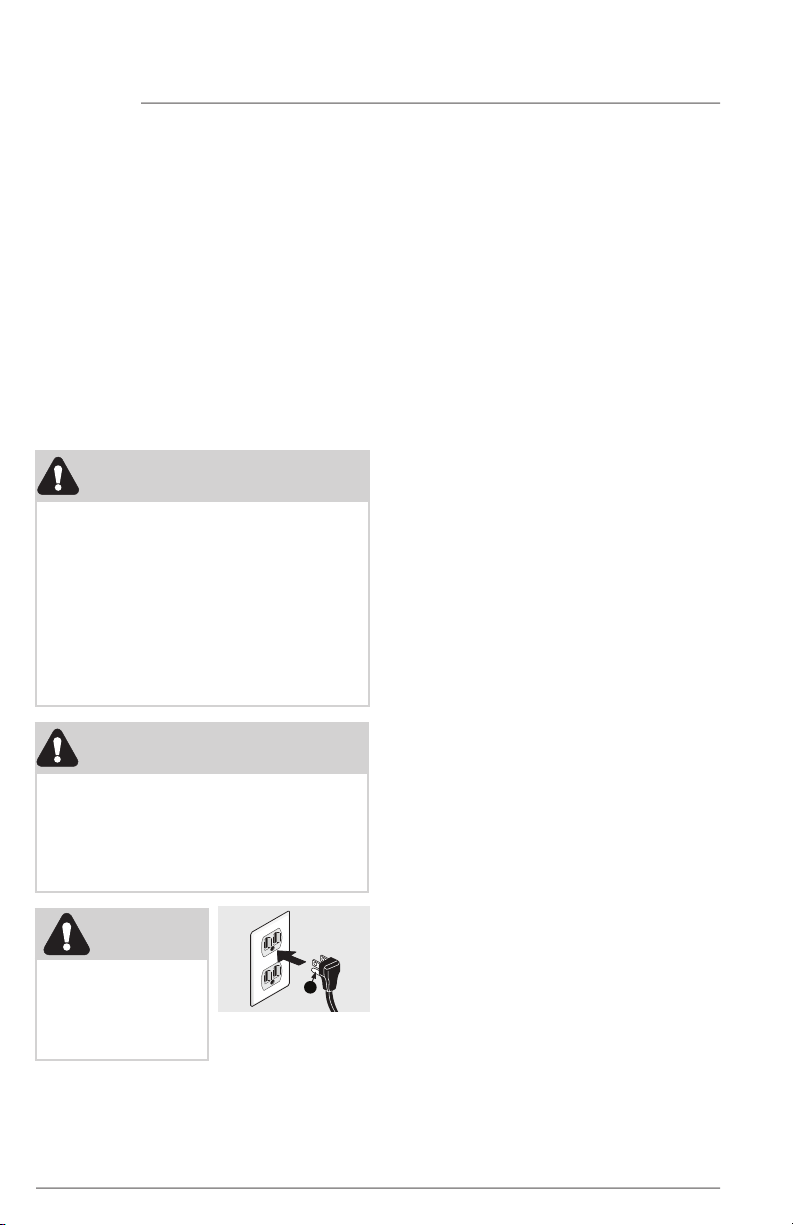

• To prevent personal injury or damage
to the washer, the electrical power cord
of the washer must be plugged into
a properly grounded and polarized
3-prong outlet. The third grounding
prong must never be removed. Never
ground the washer to a gas pipe.
DO NOT use an extension cord or an
adapter plug.
 DO NOT use any type of spray cleanser
when cleaning laundry center interior.
Hazardous fumes or electrical shock
could occur.
• To prevent injury, DO NOT reach into
the washer or dryer if the drum is
moving. Wait until the dryer has stopped
completely before reaching into the
drum.
• Do not operate either the washer or
dryer if they are separated from one
another.
Prevent Injury and Damage to the
Laundry Center
To prevent serious personal injury and
damage to the laundry center:
• All repairs and servicing must
be performed by an authorized
service provider unless specifically
recommended in this use and care
manual. Use only authorized factory
parts. Do not separate the dryer from
the washer if you are not a qualified
service professional.
 DO NOT tamper with controls.
 DO NOT sit on, step on or stand on
the laundry center. DO NOT rest heavy
loads on top. The laundry center is not
meant to support weight.
 DO NOT install or store the laundry
center where it will be exposed to
standing water, dripping water or
outdoor weather conditions.
• Thermal limiter switches automatically
turn off the motor in the unlikely event
of an overheated situation. A service
technician must replace the thermal
limiter switch(es) after correcting the fault.
 DO NOT install on carpet. Install
laundry center on a solid floor. It may
be necessary to reinforce the floor to
prevent vibration or movement.
• To reduce the risk of electric shock,
disconnect this appliance from the
power supply before attempting
any user maintenance. Pressing the
power button does not disconnect this
appliance from the power supply.
• This laundry center is equipped with
an electrical overload protector
which will stop the motor if it becomes
overheated.
• Do not use replacement parts that
have not been recommended by the
manufacture (e.g. parts made at home
using a 3D printer).
• Failure to comply with these warnings
could result in serious personal injuries.

8IMPORTANT SAFETY INFORMATION
WARNING
Improper grounding of the washer may cause
serious injury or death. Check with a licensed
electrician if you are in doubt as to whether
the appliance is properly grounded.
WARNING
HARMFUL VAPOR HAZARD
DO NOT use or mix liquid chlorine bleach
with other household chemicals such
as toilet cleaners, rust removers, acids
such as vinegar, or products containing
ammonia. These mixtures can produce
dangerous fumes which can cause serious
injury or death.
WARNING
RISK OF INJURY
DO NOT WASH: Water resistant and water
repellent clothing or other materials.
Failure to follow these instructions may
result in an abnormal vibrating and out-
of-balance condition that could result in
physical injury, property damage, and/or
appliance damage.
• Follow package directions when using
laundry products. Incorrect usage can
produce poisonous gas - resulting in
serious injury or death.
 DO NOT combine laundry products
for use in 1 load unless specified on
the label.
208/240V Electric Dryer
1
2
1
CAUTION
Do not, under any circumstances, cut,
remove, or bypass the grounding prong.

NOTE
UL - approved service cord must be
installed on electric dryers (not provided
with unit except those manufactured for
sale in Canada).
120V Gas Dryer
1. Power cord with
grounded prong.
1. 10-30R 3-wire (fused
30 amp)
2. 14-30R 4-wire (fused
30 amp)
WARNING
ELECTRICAL SHOCK HAZARD
This equipment has two connections to
the power supply. Disconnect both power
supply connections before servicing.
Each appliance shall be connected to an
individual branch circuit only. The washer
and dryer must be on separate circuits.

9
3
20
17
11
12
13
18
16
10
26
45
7
8
9
14
15
1
19
21
FEATURES
Not all cycles, options, or features listed
are available on every model.
1. Door striker
2. Reversible door
3. Laundry products dispenser
4. LED Display
5. Cycle Display
6. Drum light (select models)
7. Control lock
8. Serial and model #
9. Cascading wash vanes
10. Door latch with safety lock
11. Adjustable leveling legs
12. Stainless steel wash drum
13. Flexible door gasket
14. Wide angle door hinge
15. Inner bowl with small article
redistribution ramp
16. Door stand ventilation
17. Door Latch
18. Front-Mounted Moisture Sensor (on
select models)
19. Drum Light (on select models)
20. 3 Drum Vanes
21. LuxCare™ Lint Shield
drum light door reversibility Adaptive Dispenser™ detergent pack option pure rinse optic whites allergen sanitize stain treatment perfect steam fast wash
7300 Series no yes yes no no no no no yes no 15 min
7600 Series yes yes yes yes yes yes yes yes yes yes 15 min
Refer to the tables below for an overview of features available for each model series.
Washer
Door Reversibility Perfect Steam Wrinkle Release Extended Tumble Drum Light Delay Time Control Lock Sanitize Eco Dry Fast Dry
7300 Series yes no yes yes no yes yes no yes 15 min
7600 Series yes yes yes yes yes yes yes yes yes 15 min
Dryer

10 PREINSTALLATION REQUIREMENTS
Shipping Hardware
Foam shipping support (under wash
tub) removed and stored
Shipping bolts and spacers removed
from rear of appliance and stored
Hole plugs (shipped in manual bag)
installed in holes in backsheet
Leveling
Washer is level, side-to-side and front-
to-back
Cabinet is sitting solid on all corners
Water Supply
Use only new hoses and verify rubber
sealing washers are installed
HOT supply is connected to HOT inlet
and COLD supply is connected to
COLD inlet
HOT and COLD water supply
turned on
No leaks present at water supply
connections or appliance inlet
connections - recheck in 24 hours
Drain
Stand pipe or wall drain height
minimum 24”
Verify anti-siphon disc is attached
toward end of drain hose
Drain hose secured in place with
cable tie (shipped in drum)
Exhaust Venting
Free-flowing, clear of lint buildup
4 inch (102 mm) rigid metal or
semi-rigid metal transition ducting
of minimal length and turns
NO foil or plastic venting material
Approved vent hood exhausted to
outdoors
Door Reversal
Follow detailed instructions in
this manual
Test hinge and latch for function
Gas Supply (Gas Dryer)
Manual shutoff valve present in supply
All connections sealed with approved
sealer and wrench tight
Conversion kit for LP GAS system
# PCK4200 (not included) and must be
purchased separately
Gas supply turned on
No leaks present at all connections -
check with soapy water, NEVER check
with flame
240v Electric Supply
(Electric Dryer)
Approved NEMA 10-30 or 14-30 service
cord with all screws tight on terminal
block
Approved strain relief installed
Terminal access cover installed before
initial operation
Water Hookup (Select Models)
Inspect hoses for proper placement of
rubber washers
Water supply is turned on
Check for leaks
Steam model dryers require use of
ASSEMBLY HOSE Kit #5304495002
(not included) and must be purchased
separately.
Electrical Power
House power turned on
Washer plugged in
Dryer plugged in
Final Checks
Installation instructions and Use
& Care Manual read thoroughly
Door locks and water enters drum
when cycle starts
Washer door latches and drum tumbles
when cycle starts
Dryer door latches and drum tumbles
when cycle starts
Registration card sent in

Installation Checklist

11
A Universal Appliance
Wrench is available to aid
in laundry center/washer/
pedestal feet adjustment.
TOUCH UP PAINT PENS*
Classic White Touch Up Pen -
P/N 5304468812
PREINSTALLATION REQUIREMENTS
Tools and Materials Needed for Installation:
1. Adjustable Wrench OR 7. Flat or Louvered External Vent
Hood
3/8” or 10 mm box
wrench OR
8. 3 or 4 wire 240 volt cord kit
(Electric Laundry center) OR
Ratchet and Socket set 9. 4 in. rigid metal exhaust duct
work OR
2. Adjustable Pliers 4 in. semi-rigid metal exhaust
duct work
3. Carpenter’s Level 10. 4 in. (10.2 cm) clamp
4. Phillips, Flat, & Square
Bit Screwdrivers
11. Gas Line Shutoff Valve (Gas
Laundry center)
5. Pipe Wrench for gas
supply
12. 1/2” NPT union flare adapters (x2)
6. LP Resistant Sealant OR 13. Flexible gas supply line (Gas
laundry center)
LP Resistant Thread
Tape
14. Metal foil tape (not duct tape)

NOTE
Hoses are not included with washer
purchase.
Accessories
LP CONVERSION KIT
P/N PCK4200
Gas laundry centers intended for use in
a location supplied with LP must use a
conversion kit prior to installation.
UNIVERSAL APPLIANCE WRENCH
P/N 137019200
Replacement Parts in U.S. and
Canada:
If replacements parts are needed for
your washer, you can contact the source
where you purchased your washer, call
1-877-4ELECTROLUX (1-877-435-3287) in
the U.S. or 1-800-265-8352 in Canada, or
visit our website, www.electrolux.com in the
U.S. or www.electrolux.ca in Canada for
the Electrolux Authorized Parts Distributor
nearest you.
CAUTION
Do not attempt to use a pedestal with this
laundry center. Failure to use accessories
manufactured by (or approved by) the
manufacturer could result in personal
injury, property damage or damage to the
laundry center. Inlet hose x2
ASSEMBLY HOSE KIT
P/N 5304495002
For use in laundry center models that
include a steam feature.
INLET HOSE KITS
Please call 866-233-
8353 (in Canada, 800-
265-8352) to explore
hose kit options that will
meet your specific installation needs.
DRAIN HOSE EXTENSION
KIT P/N 137098000
In order to reach
standpipe heights or
distances beyond the
reach of the drain hose supplied, order the
Drain Hose Extension Kit

12 PREINSTALLATION REQUIREMENTS
Electrical System
Requirements

NOTE
Because of potentially inconsistent voltage
capabilities, the use of this laundry center
with power created by gas powered
generators, solar powered generators,
wind powered generators or any other
generator other than the local utility
company is not recommended.
Electrical Requirements for
Electric Dryer:
CIRCUIT - Individual 30 amp. branch circuit
fused with 30 amp. time delay fuses or
circuit breakers. Use separately fused
circuits for washer and dryer. DO NOT
operate washer and dryer on same circuit.
POWER SUPPLY - 3-wire or 4-wire, 120/240
volt, single phase, 60 Hz, Alternating
Current.

NOTE
A 120/208 volt, single phase, 60 Hz,
Alternating Current supply may be used on
dryers marked for use on rating plate.

NOTE
The electric laundry center has been
designed and certified to operate at both
240V and 208V. Drying times on a 208V
power supply will, however, be approximately
20% longer than drying times on a 240V
power supply. This is normal and expected
behavior and applies to all drying cycles.
IMPORTANT
The laundry center is internally grounded
to neutral unless it was manufactured for
sale in Canada.
Only a 4-conductor cord shall be used
when the appliance is installed in a
location where grounding through the
neutral conductor is prohibited. Grounding
through the neutral link is prohibited for: (1)
new branch circuit installations, (2) mobile
homes, (3) recreational vehicles, and (4)
areas where local codes DO NOT permit
grounding through the neutral.
3-wire Power Supply Cord (not
supplied)
The dryer MUST employ a 3-conductor
power supply cord NEMA 10-30 type SRDT
rated at 240 volt AC minimum,
30 amp, with 3 open end spade lug
connectors with upturned ends or closed
loop connectors and marked for use with
clothes dryers. For 3-wire cord connection
instructions see “Electrical connection
(non-Canada) - 3-wire cord” in Electrical
Installation section.
OUTLET RECEPTACLE - NEMA 10-30R
receptacle to be located so the power
supply cord is accessible when the
laundry center is in the installed position.
GROUNDING CONNECTION - See
“Grounding requirements” in Electrical
Installation section.
3-wire receptacle
(NEMA type 10-30R)
4-wire Power Supply Cord
(not supplied)
4-wire receptacle
(NEMA type 14-30R)
The dryer MUST employ a 4-conductor
power supply cord NEMA 14-30 type SRDT
or DRT (as required) rated at 240 volt AC
minimum, 30 amp, with 4 open end spade
lug connectors with upturned ends or closed
loop connectors and marked for use with
clothes dryers. For 4-wire cord connection
instructions see “Electrical connection
(non-Canada) - 4-wire cord” in Electrical
Installation section.
WARNING
FIRE HAZARD
• Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
• DO NOT install a booster fan in dryer
exhaust duct.
• Install all laundry centers in accordance
with the installation instructions in this
manual.

13
PREINSTALLATION REQUIREMENTS
OUTLET RECEPTACLE - NEMA 14-30R
receptacle to be located so the
power supply cord is accessible when
the laundry center is in the installed
position.
GROUNDING CONNECTION - See
“Grounding requirements” in Electrical
Installation section.
Electrical Requirements for
Gas Dryer:
CIRCUIT - Individual, properly polarized
and grounded 15 amp. branch circuit
fused with 15 amp. time delay fuse or
circuit breaker.
POWER SUPPLY - 2-wire, with ground, 120
volt, single phase, 60 Hz, Alternating
Current.
POWER SUPPLY CORD - Dryer is equipped
with 120 volt 3-wire power cord.
GROUNDING CONNECTION - See
“Grounding requirements” in Electrical
Installation section.
WARNING
Improper grounding of the laundry center
may cause serious injury or death. Check
with a licensed electrician if you are in
doubt as to whether the appliance is
properly grounded.

NOTE
Laundry centers manufactured for sale
in Canada have factory-installed, 4-wire
power supply cord (NEMA 14-30).
1. The gas service to the laundry center
must conform with local codes and
ordinances and the latest edition of the
National Fuel Gas Code ANSI Z223.1/
NFPA 54, or in Canada, the Natural
Gas and Propane Installation Code,
CSA B149.1.
2. The gas supply line should be 1/2 inch
(1.27 cm) pipe.
3. If codes allow, flexible metal tubing
may be used to connect your laundry
center to the gas supply line. The
tubing MUST be constructed of
stainless steel or plastic-coated brass.
4. The gas supply line MUST have an
individual shutoff valve installed in
accordance with the B149.1, Natural
Gas and Propane Installation Code.
5. A 1/8 inch (0.32 cm) N.P.T. plugged
tapping, accessible for test gauge
connection, MUST be installed
immediately upstream of the gas
supply connection to the laundry
center.
6. The laundry center MUST be
disconnected from the gas supply
piping system during any pressure
testing of the gas supply piping system
at test pressures in excess of 1/2 psig
(3.45 kPa).
7. The laundry center MUST be isolated
from the gas supply piping system
during any pressure testing of the gas
supply piping system at test pressures
equal to or less than 1/2 psig (3.45
kPa).
8. Connections for the gas supply
must comply with the Standard for
Connectors for Gas Appliances, ANSI
Z21.24/CSA 6.10.
Gas Supply Requirements
WARNING
EXPLOSION HAZARD
Uncoated copper tubing will corrode when
subjected to natural gas, causing gas leaks.
Use ONLY black iron, stainless steel, or
plastic-coated brass piping for gas supply.
1
1. Power cord with
grounded prong.
CAUTION
Do not, under any
circumstances, cut,
remove, or bypass
the grounding
prong.

14 PREINSTALLATION REQUIREMENTS
Electrical System
Requirements for Washer
CIRCUIT - Individual, properly polarized
and grounded 15 amp. branch circuit
fused with 15 amp. time delay fuse or
circuit breaker.
POWER SUPPLY - 2 wire, with ground, 120
volt single phase, 60 Hz, Alternating
Current.
OUTLET RECEPTACLE - Properly grounded
3-prong receptacle to be located so
the power supply cord is accessible
when the washer is in an installed
position.
WARNING
ELECTRIC SHOCK HAZARD
Certain internal parts are intentionally
not grounded and may present a risk
of electrical shock if contacted during
installation. Do not contact the following
parts while the appliance is energized
• Pump
• Drive motor
• Electrical control boards
• Water valves
WARNING
ELECTRICAL SHOCK HAZARD
Improper connection of the equipment
grounding conductor can result in a risk
of electrical shock. Check with a licensed
electrician if you are in doubt as to whether
the appliance is properly grounded.
Water Supply Requirements
Grounding requirements
1. The washer MUST be grounded. In the
event of malfunction or breakdown,
grounding will reduce the risk of
electrical shock by a path of least
resistance for electrical current.
2. Since your washer is equipped with
a power supply cord having an
equipment-grounding conductor and
a grounding plug, the plug MUST be
plugged into an appropriate, copper
wired receptacle that is properly
installed and grounded in accordance
with all local codes and ordinances or
in the absence of local codes, with the
National Electrical Code, ANSI/NFPA
70 (latest edition), or in Canada, the
Canadian electrical code C22.1 part 1.
If in doubt, call a licensed electrician.
DO NOT cut off or alter the grounding
prong on the power supply cord. In
situations where a two-slot receptacle
is present, it is the owner’s responsibility
to have a licensed electrician replace it
with a properly grounded three prong
grounding type receptacle.
Hot and cold water faucets MUST be
installed within hose length of your washer’s
water inlet. The faucets MUST be 3/4 inch
(1.9 cm) with threading for laundry hose
connection. Water pressure MUST be
between 20 and 120 psi. Pressure difference
between hot and cold cannot be more than
10 psi. Your water department can advise you
of your water pressure.
Drain System Requirements
1. Drain capable of eliminating 17 gals
(64.3 L) per minute.
2. A standpipe diameter of 1-1/4 in. (3.18
cm) minimum.
3. The standpipe height above the floor :
Minimum height: 24 in. (61 cm)
Maximum height: 96 in. (244 cm).
1
1. Power cord with
grounded prong.
CAUTION
Do not, under any
circumstances, cut,
remove, or bypass
the grounding
prong.

15
PREINSTALLATION REQUIREMENTS
1
2
Exhaust System Requirements
Duct Work Requirements
Use only 4 inch (102 mm) diameter rigid
or flexible metal duct and approved vent
hood which has a swing-out damper(s) that
open when the dryer is in operation. When
the dryer stops, the dampers automatically
close to prevent drafts and the entrance of
insects and rodents. To avoid restricting the
outlet, maintain a minimum of 12 inches (30.5
cm) clearance between the vent hood and
the ground or any other obstruction.

NOTE
Drain hose length is 59 in. (150 cm). For
installations requiring a longer drain hose,
use hose P/N 137098000, available from
an authorized parts distributor.

NOTE
For installations requiring a longer
drain hose, have a qualified technician
install a longer drain hose (according to
your model number) available from an
authorized parts distributor. For drain
systems in the floor, install a siphon break
kit available from your local hardware
store.
1. 96” (244cm) max.
2. 24” (61 cm) min.
If your present system is made up of plastic
duct or metal foil duct, replace it with a
rigid or semi-rigid metal duct. Also, ensure
the present duct is free of any lint prior to
installing dryer duct.
WARNING
FIRE HAZARD
DO NOT install a laundry center with
flexible plastic or metal foil venting
materials. Flexible venting materials are
known to collapse, be easily crushed and
trap lint. These conditions will obstruct
laundry center airflow and increase the
risk of fire.
WARNING
FIRE HAZARD
Failure to follow these instructions can create
excessive drying times and fire hazards.
The following are specific requirements for
proper and safe operation of your laundry
center.
WARNING
FIRE HAZARD
• A laundry canter must be exhausted
outdoors.
• DO NOT exhaust laundry center into
a chimney, a wall, a ceiling, an attic, a
crawl space or any concealed space of
a building.
• A laundry center produces combustible
lint. If the laundry center is not
exhausted outdoors, some fine lint
will be expelled into the laundry area.
An accumulation of lint in any area of
the home can create a health and fire
hazard.
• Regularly inspect the outdoor exhaust
opening and remove any accumulation
of lint around the outdoor exhaust
opening and in the surrounding area.

16 PREINSTALLATION REQUIREMENTS
Max. Number of 90°
turns
MAXIMUM LENGTH
of 4” (102 mm) Rigid Metal Duct
VENT HOOD TYPE
(Preferred)
4” (10.2 cm) louvered 2.5” (6.35 cm)
0 125 ft. (38 m) 110 ft. (33.5 m)
1 115 ft. (35 m) 100 ft. (30.5 m)
2 105 ft. (32 m) 90 ft. (27.5 m)
3 95 ft. (29 m) 80 ft. (24.5 m)
4 85 ft. (26 m) 70 ft. (21.5 m)
The laundry center must be connected to
an exhaust outdoors. Prior to installing
your new laundry center, inspect the
outdoor exhaust opening and remove any
accumulation of lint around the outdoor
exhaust opening and in the surrounding
area.
WARNING
FIRE HAZARD
• DO NOT allow combustible materials
(for example: clothing, draperies/
curtains, paper) to come in contact
with exhaust system. The laundry
center MUST NOT be exhausted into
a chimney, a wall, a ceiling, or any
concealed space of a building which
can accumulate lint, resulting in a fire
hazard.
 DO NOT screen the exhaust ends of the
vent system, or use any screws, rivets or
other fasteners that extend into the duct
to assemble the exhaust system. No
screen, grate, or guard of any mesh
size is allowed to cover
the exhaust opening.
Lint can become caught
in the screen, grate,
guard, or on the screws or
rivets, clogging the duct work
and creating a fire hazard as well
as increasing drying times. Use an
approved vent hood to terminate the
duct outdoors, and seal all joints with
metal foil tape. All male duct pipe
fittings MUST be installed downstream
with the flow of air.
WARNING
FIRE HAZARD
Never exceed more than 4-90˚ elbows in
the exhaust duct system. Exceeding the
length of duct pipe or number of elbows
allowed in the “MAXIMUM LENGTH”
charts can cause an accumulation of lint
in the exhaust system. Plugging the system
could create a fire hazard, as well as
increase drying times.
WARNING
FIRE HAZARD
• DO NOT install flexible plastic or flexible
foil venting material.
• DO NOT exceed 8 ft. (2.4 m) duct length
if installing semi-rigid venting.
• DO NOT use screws, rivets or other
fasteners that extend into the duct to
assemble the exhaust system.
Exhaust Direction
Directional exhausting can be accomplished
by installing a quick-turn 90° dryer vent elbow
directly to exhaust outlet of dryer. Dryer vent
elbows are available through your local parts
distributor or hardware store.
See Clearance Requirements

17
PREINSTALLATION REQUIREMENTS
WARNING
FIRE HAZARD
DO NOT install the laundry center where
gasoline or other flammables are kept or
stored. Installation must be a minimum of
18 inches (45.7 cm) above the floor if the
laundry center is in a garage. Failure to
do so can result in death, explosion, fire
or burns.

NOTE
90° quick-turn elbows
are required to meet
minimum installation
depth.
In installations where the exhaust system is
not described in the charts, the following
method must be used to determine if the
exhaust system is acceptable:
1. Connect an inclined or digital
manometer between the laundry center
and the point the exhaust connects to
the laundry center.
2. Set the dryer timer and temperature to
air fluff (cool down) and start the dryer.
3. Read the measurement on the
manometer.
4. The system back pressure MUST
NOT be higher than 1.0 inch of water
column. If the system back pressure is
less than 1.0 inch of water column, the
system is acceptable. If the manometer
reading is higher than 1.0 inch of water
column, the system is too restrictive
and the installation is unacceptable.
Install male fittings in the correct direction
Although vertical orientation of the exhaust
system is acceptable, certain extenuating
circumstances could affect the performance
of the laundry center:
• Only rigid metal duct work should be
used.
• Venting vertically through a roof may
expose the exhaust system to down
drafts causing an increase in vent
restriction.
• Running the exhaust system through
an uninsulated area may cause
condensation and faster accumulation
of lint.
• Compression or crimping of the exhaust
system will cause an increase in vent
restriction.
• The exhaust system should be
inspected and cleaned a minimum of
every 18 months with normal usage. The
more the dryer is used, the more often
you should check the exhaust system
and vent hood for proper operation and
that it is free of obstructions.
Manufactured or Mobile Home
Installation
1. Installation MUST conform to current
Manufactured Home Construction &
Safety Standard, Title 24 CFR, Part 32-
80 or the Standard For Mobile Homes,
CAN/CSA-Z240 MH.
2. The laundry center MUST be exhausted
outside (outdoors, not beneath the
mobile home) using metal ducting that
will not support combustion. Metal
ducting must be 4 inches (10.16 cm) in
diameter with no obstructions. Rigid
metal duct is preferred.
3. If the laundry center is exhausted
through the floor and area beneath the
mobile home is enclosed, the exhaust
system MUST terminate outside the
enclosure with the termination securely
fastened to a non-combustible portion
of the mobile home structure.
4. Refer to previous sections in this
manual for other important exhaust
venting system requirements.
5. When installing a gas laundry center

18 PREINSTALLATION REQUIREMENTS
Clearance Requirements
Installation In a Recess or
Closet
1. A laundry center installed in a recess or
closet MUST be exhausted outdoors.
2. No other fuel burning appliance shall
be installed in the same recess or closet
as a gas laundry center.
3. Your laundry center needs space
around it for proper ventilation. See
the“Clearance Requirements” chart.
4. A minimum of 120 square inches of inlet
ventilation opening to the recess or
closet is required for proper air flow to
the laundry center.
F or other than straight back venting, a quick-
turn 90° dryer vent elbow must be installed to
achieve 0” (0 cm) installation.
IMPORTANT
DO NOT INSTALL YOUR LAUNDRY
CENTER:
• In an area exposed to dripping water
or outside weather conditions. The
ambient temperature should never
be below 60° F (15.6° C) to maximize
detergent effectiveness.
• In an area where it will come in contact
with curtains, drapes, or anything that
will obstruct the flow of combustion and
ventilation air.
• In an area where gasoline or other
flammables are kept or stored.
• On carpet. Floor MUST be solid with
a maximum slope of 1 inch (2.5 cm).
To minimize vibration or movement,
reinforcement of the floor may be
necessary.
• Do not install laundry center on
pedestal.
5. Inlet air ventilation to the recess or
closet can be satisfied by adding 120
square inches of opening, equally
divided at the top and bottom of the
door and located 3 inches from the
bottom and top of the door.
or, adding 120 square inches of
ventilation openings to the top, sides
or rear wall of the closet wall, if the wall
is adjacent to an open room, hallway,
or exterior.
or, a louvered door with equivalent air
openings equaling 120 sq. inches of
ventilation for the full length of the door
is acceptable.
It is NOT approved to derive the 120
sq. inches of ventilation from the space
between the door edges and the
casing or the floor.
** The presence of forced heating and
air-conditioning vent openings in the
closet does NOT satisfy the 120 square
inch ventilation requirement to the
closet.

NOTE
To achieve an installation with 0” (0 cm)
clearance for the back of the dryer (for
other than straight back venting), a quick-
turn 90° dryer vent elbow must be installed
as described previously in this manual.
into a mobile home, a provision must
be made for outside make up air. This
provision is to be not less than twice
the area of the dryer exhaust outlet.
6. Installer MUST anchor this gas laundry
center or to the floor with approved
Mobile Home Installation Kit - P/N
137067200.

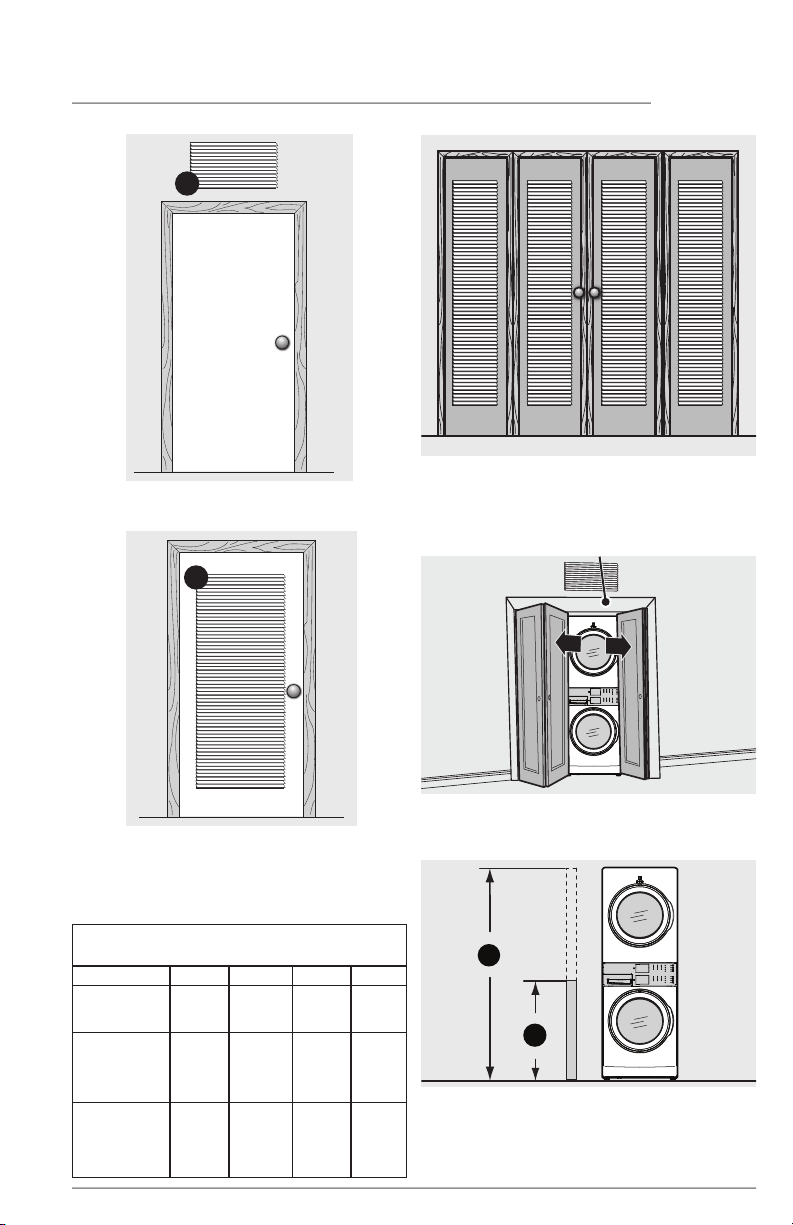

Ventilation Examples
1. 120 sq inches equally divided (60 sq in.) split
vent door
1
1

19
PREINSTALLATION REQUIREMENTS
2. Solid Door with 120 sq Wall Ventilation
2
3. Louvered Door with 120 sq. Inches min.
Louvered Opening
3
MIN. INSTALLATION CLEARANCES -
Inches (cm)
Sides Rear Top Front
Alcove/
recess
0"
(0 cm)
0"
(0 cm)
0"
(0 cm) Open
Closet with
door vent
0"
(0 cm)
0"
(0 cm)
0"
(0 cm)
1"
(2.5 cm)
Closet with
wall vent
1"
(2.5 cm)
1"
(2.5 cm)
1"
(2.5 cm)
1"
(2.5 cm)
1
2
Bi-Fold louvered doors with 120 sq. in of
ventilation
Solid Bi-Fold doors with no ventilation requires
door open for 120 sq. Inches of wall venting
120 sq. Inches of wall venting
1. 96” (244cm) max.
2. 24” (61 cm) min.

20 PREINSTALLATION REQUIREMENTS
Laundry Center Dimensions
Laundry Center Dimensions
1. Unit width 27” (69 cm)
2. Height to gas supply pipe on rear of gas unit 39.7” (101 cm)
3. Centerline height for rear vent 41.8” (106 cm)
4. Floor line --
5. Unit height 76.3” (194 cm)
6. Door clearance 53.9” (137 cm)
7. Unit depth 31.9” (81 cm)
8. Width distance to water connections 7.8” (20 cm)
9. Height to water connections 35.7” (91 cm)
10. Height to washer power connections 35.5” (91 cm)
11. Width distance to washer power connections 7.1” (18 cm)
12. Height to dryer electrical supply 48” (122 cm)
1
5
4
2
3
8
12
10
11
9
7
6
†

NOTE
• Allow minimum 36” of depth space for proper installation with 90° quick turn elbow for venting.
• Connection of water inlet hose on steam laundry center adds 3/4 in. (2 cm) to installation
depth.
• Power supply cord length on washer approximately 60 inches (152.5 cm).
• Drain hose length on washer approximately 59 inches (150 cm).
• Power supply cord length on gas laundry center or electric Canadian laundry center
approximately 60 inches (152.5 cm).
†Dryer electrical supply on rear of unit.
