Electrolux E784F303BI User manual

E784F303BI
EN Washing Machine User Manual

CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................4
3. INSTALLATION.................................................................................................. 6
4. PRODUCT DESCRIPTION.............................................................................. 16
5. CONTROL PANEL........................................................................................... 17
6. DIAL AND BUTTONS....................................................................................... 19
7. PROGRAMMES............................................................................................... 22
8. SETTINGS........................................................................................................26
9. BEFORE FIRST USE....................................................................................... 27
10. DAILY USE..................................................................................................... 27
11. HINTS AND TIPS........................................................................................... 31
12. CARE AND CLEANING..................................................................................32
13. TROUBLESHOOTING....................................................................................38
14. CONSUMPTION VALUES..............................................................................42
15. TECHNICAL DATA.........................................................................................43
16. PRODUCT INFORMATION SHEET IN REFERENCE TO E.U. REGULATION
1369/2017.............................................................................................................44
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2

1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the
result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away unless continuously supervised.
•Children of less than 3 years of age should be kept
away unless continuously supervised.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of
it appropriately.
•Keep detergents away from children.
•Keep children and pets away from the appliance when
the door is open.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•Do not change the specification of this appliance.
•This appliance is intended to be used in household
and similar applications such as:
–staff kitchen areas in shops, offices and other
working environments;
ENGLISH 3

–by clients in hotels, motels, bed & breakfast and
other residential type environments;
–areas for communal use in blocks of flats or in
launderettes.
•Do not exceed the maximum load of 8 kg (refer to the
"Programme chart" chapter).
•The operating water pressure at the water entry point
from the outlet connection must be between 0.5 bar
(0.05 MPa) and 8 bar (0.8 MPa).
•The ventilation opening in the base must not be
covered by a carpet, mat, or any floor covering.
•The appliance must be connected to the water mains
using the new supplied hose sets, or other new hose
sets supplied by the Authorised Service Centre.
•Old hose sets must not be reused.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
•Do not use high pressure water sprays and/or steam
to clean the appliance.
•Clean the appliance with a moist cloth. Use only
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
2. SAFETY INSTRUCTIONS
2.1 Installation
The installation must comply
with relevant national
regulations.
• Remove all the packaging and the
transit bolts including rubber bush
with plastic spacer.
• Keep the transit bolts in a safe place.
If the appliance is to be moved in the
future they must be reattached to lock
the drum to prevent an internal
damage.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Do not install or use the appliance
where the temperature can be less
www.electrolux.com4

than 0°C or where it is exposed to the
weather.
• The floor area on which the appliance
is to be installed must be flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• When the appliance is in its
permanent position, check if it is
levelled correctly with the aid of a
spirit level. If it is not, adjust the feet
accordingly.
• Do not install the appliance directly
above a floor drain.
• Do not spray water on the appliance
and do not expose it to excessive
humidity.
• Do not install the appliance where the
appliance door cannot be fully
opened.
• Do not put a closed container to
collect possible water leakage under
the appliance. Contact the Authorised
Service Centre to ensure which
accessories can be used.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• The appliance must be earthed.
• Always use a correctly installed
shockproof socket.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not touch the mains cable or the
mains plug with wet hands.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• UK and Ireland only. This appliance is
fitted with a 13 A mains plug. If it is
necessary to change the mains plug
fuse, use only a 13 A ASTA (BS
1362) fuse.
• This appliance complies with the
E.E.C. Directives.
2.3 Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and
clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
• Do not use an extension hose if the
inlet hose is too short. Contact the
Authorised Service Centre for the
replacement of the inlet hose.
• It is possible to see water flowing from
the drain hose. This is due to the
testing of the appliance with the use
of water in the factory.
• You can extend the drain hose to
maximum 400 cm. Contact the
Authorised Service Centre for the
other drain hose and the extension.
2.4 Use
WARNING!
Risk of injury, electric shock,
fire, burns or damage to the
appliance.
• Follow the safety instructions on the
detergent packaging.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Make sure that all metal objects are
removed from the laundry.
• Do not wash fabrics which are heavily
soiled with oil, grease or other greasy
substances. It can damage rubber
parts of the washing machine.
Prewash such fabrics by hand before
loading them into the washing
machine.
ENGLISH 5

• Do not touch the glass door while a
programme is in operation. The glass
can get hot.
2.5 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).
3. INSTALLATION
WARNING!
Refer to Safety chapters.
3.1 Be prepared for installation
It is recommended that
installation is carried out by
two persons.
3.2 The appliance is equipped
with ...
x1 x2
x1
E
x2
x1 x1
x1 x2
x4 x1 x1
BA C D
F G H L
3.3 Unpacking
WARNING!
Use the gloves.
WARNING!
Remove all the packaging and the transit bolts before installing the
appliance.
www.electrolux.com6

1. Put two polystyrene packaging
elements on the floor under the
appliance.
WARNING!
It is strongly
recommended that this
action is carries out by two
persons.
2. Carefully put the appliance down on its
rear side.
Make sure not to damage
the hoses.
1
2
3. Remove the polystyrene protection
from the bottom.
1
2
4. Return the appliance in vertical
position and remove the socket
polystyrene protection.
5. Remove the power supply cable and
the drain hose from the hose holders.
It is possible to see water
flowing from the drain
hose. This is due to the
testing with water of the
appliance in factory.
ENGLISH 7

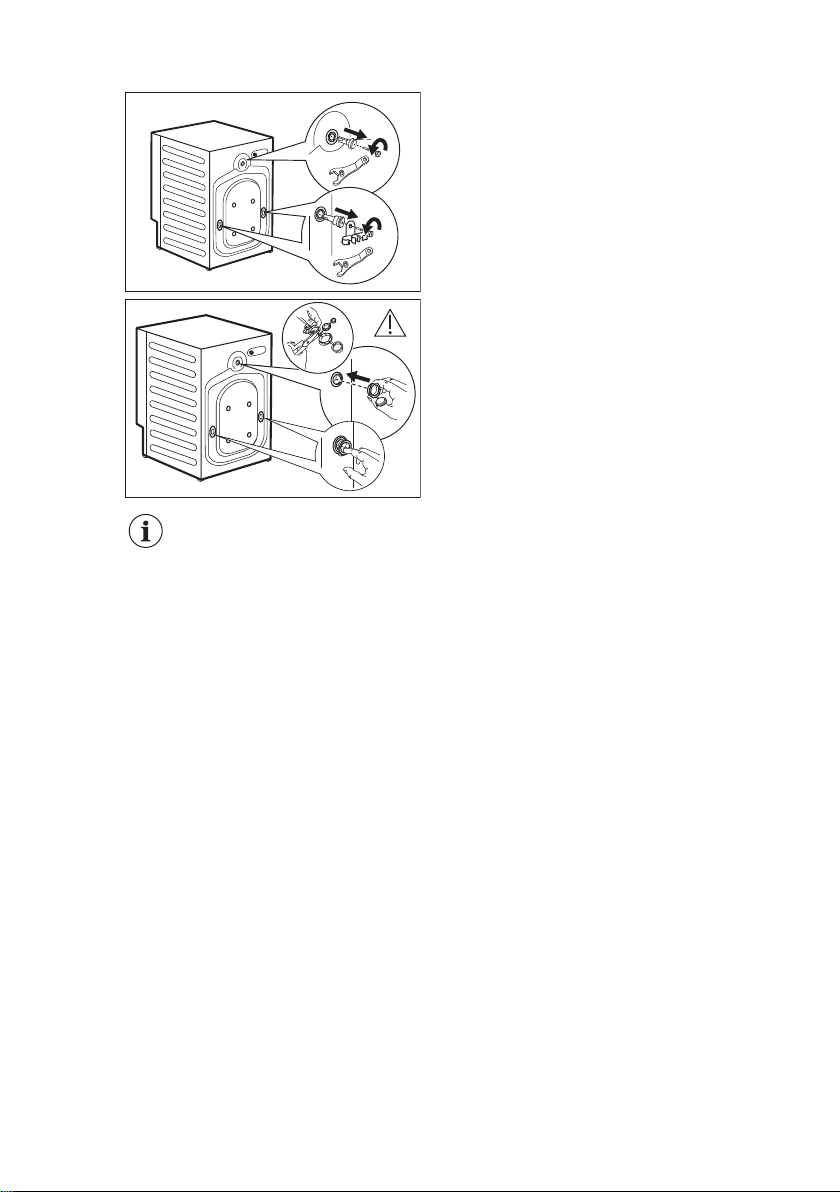

6. Remove the three bolts, the hose
holders and plastic spacers by using the
spanner supplied with the appliance.
F
G
7. Close the holes with the plastic caps
you find in the user manual bag. Put the
smallest cap F in upper hole and the two
bigger caps G in lower holes.
We recommend that you keep the packaging and the transit bolts for any
movement of the appliance.

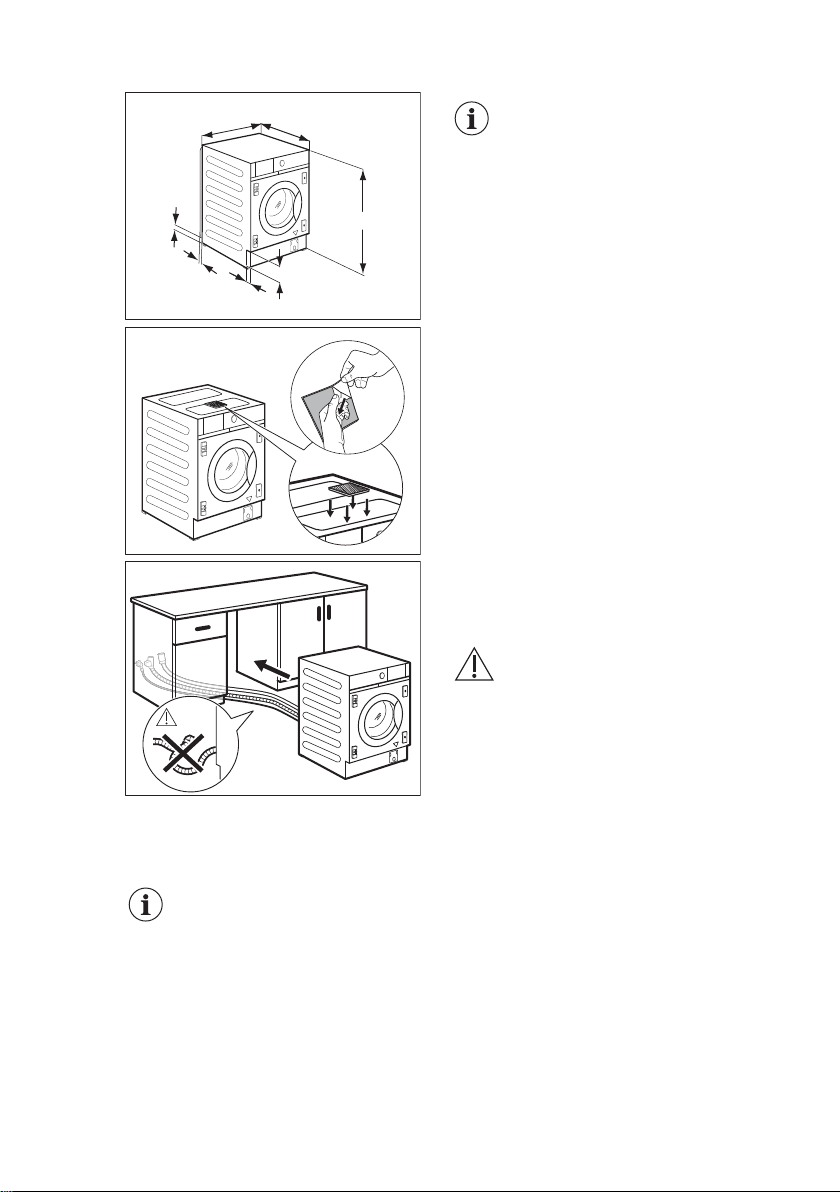

3.4 Installation on suspended
flooring
Suspended wooden floors are
particularly susceptible to vibration.
To limit vibration we recommend placing
a waterproof wooden panel, at least 15
mm thick, under the appliance. It should
be screwed to at least 2 floor beams and
should extend beyond the front feet.
If possible, install the appliance where
the floor is more stable.
www.electrolux.com8

3.5 Positioning and levelling
x4
1. Install the appliance on a flat hard floor.
WARNING!
Make sure that carpets do not
stop the air circulation below
the appliance.
Bring the appliance near the
furniture recess before
levelling it. For more details,
refer to paragraph "Building
in".
2. Loosen or tighten the feet to adjust the
level.
A correct adjustment of the
appliance level prevents the
vibration, noise and the
movement of the appliance
when in operation.
The appliance must be level and stable.
CAUTION!
Do not put cardboard, wood or
equivalent materials below the
appliance feet to adjust the
level.
3.6 Hose and cable connection
1100 mm 1450 mm
960 mm1230 mm
900 mm 1360 mm
max 1000 mm
min. 600 mm
max 1000 mm
min. 600 mm
ENGLISH 9

The inlet hose
1. Remove the inlet hose from inside the
drum.
2. To connect the water inlet hose towards
the proper direction and with the proper
inclination, check the position of the water tap
before connecting it to the back of the
appliance.
Make sure the hose is nor
kinked, squashed but neither
tensed.
20O 20O
45O 45O
3. Connect the hose to the back of the
appliance. Do not turn the inlet hose
downwards, but turn it left or right depending
on the position of your water tap.
4. Loosen the ring nut to fix it in the correct
position.
5. Connect the water inlet hose to the cold
water tap with 3/4 thread.
WARNING!
Make sure that there are no
leaks from the couplings.
Use the hose supplied with appliance.
Do not use an extension hose if the inlet hose is too short. Contact the
Authorised Service Centre for an inlet hose replacement.
Water drainage
The drain hose can be connected:
www.electrolux.com10

Ø 40 mm
To a stand pipe with vent-hole
Directly into a drain pipe at a height of not
less than 60 cm (23.6”) and not more than
100 cm (39.3”).
The end of the drain hose must always be
ventilated , i.e. the inner diameter of the drain
pipe (min. 40 mm - min. 1.6”) must be larger
than the external diameter of the drain hose.
max.600 mm
To a sink spigot
Put the drain hose in the spigot and tighten it
with the supplied cable tie L.
Make sure that the drain hose makes a loop
to prevent particles going into the appliance
from the sink.
L
To a wall-pipe
Directly to a built-in drain pipe in the room
wall and tighten it with the supplied cable tie
L.
You can extend the drain hose to maximum 400 cm. Contact the service
centre for the other drain hose and the extension.
3.7 Building in
600 mm
min.
820 mm
min.
560 mm
16-22 mm
min.
This appliance has been designed to be built
into the kitchen furniture. The recess should
have the dimensions shown in this picture.
For recess with a height
different than 820 mm, it is
possible to buy the appropriate
kit on the website.
ENGLISH 11

553 mm
596 mm
140 mm
76 mm
50 mm
50 mm 819 mm
If hoses run behind the
appliance, make sure that
nothing closes the small
recess indicated with the
measures 50 x 50 mm.
The appliance is also equipped with an
adhesive sponge pad H that you can find
inside the drum.
Attach it on the top of the appliance where
indicated in the drawing.
When levelling the appliance under the
furniture, DO NOT squeeze the sponge pad.
Before proceeding with appliance building in,
bring it near the recess and preposition the
inlet hose, the drain hose and the mains
cable.
WARNING!
Make sure they are not kinked
or squashed.
3.8 Installing anti-tilting device
If the height of the counter is 820 mm or lower, you cannot install the anti-
tilting device.
www.electrolux.com12

1. Remove the screws of the top cover on the
rear of the appliance and install the anti-tilting
device as shown in the drawing.
~10mm
2. Adjust the anti-tilting device so that the
distance from the counter is 10mm. Loosen
the nut counterclockwise with a 3mm wrench.
Adjust the height and turn the nut clockwise
to fix it.
3.9 Preparation and assembly of the cupboard door
The dimensions of the cupboard door should be:
• width min. 595 - max. 598 mm;
• thickness 16-22 mm.
Factory pre setting
The appliance is originally pre set for the
assembly of a cupboard door opening from
right to left.
The best solution would be to
screw the upper hinge to the
upper hole of the top plate
and the lower hinge to the
lower hole of the bottom plate.
ENGLISH 13

Reversibility of the cupboard door
Carry out the cupboard door reversibility
before the appliance is built in completely.
M
N
O
If the cupboard door has to be opened from
left to right, invert the position of the hinge
supports M with the magnetic plate N and
lower plate O.
M
N
O
Make sure that the plate with
magnet is on the upper
position.
x
y
y
Cupboard door preparation
For countersinking the door, it
is recommended to call a
professional.
Align the cupboard door to the furniture
correctly.
Measure the distance X to fix the height of
the hole to countersink the upper hinge. The
centre of the hole Y should be at the same
height of the stroke on the hinge support.
www.electrolux.com14

16-22 mm
22±1,5 mm
449
mm
595-598 mm
Ø 35 mm
12,5 - 14 mm
Set the position of the lower hole respecting
dimensions and distances shown in the
drawing (449 mm).
Countersink the holes.
A
Hinges
To mount the hinges it is necessary to drill
two holes (dia. 35 mm, depth 12.5 - 14 mm
depending on the depth of cupboard door) on
the inner side of the door.
The hinges will be fixed to the door by means
of the four supplied screws A.
max. 105°
To align the door perfectly,
make sure that the edge of
cupboard door is parallel with
the appliance edge and to
respect the proper opening
angle (max. 105 °C).
Mounting the door
Fix the hinges to the hinge supports on the
appliance by means of the two supplied
screws B.
The hinges can be adjusted to
compensate for possible
uneven thickness of the door.
ENGLISH 15

2
N
1
ED
C
Counter-magnet
The appliance is pre set for a magnetic
closure.
For a correct closure:
1. Position the screw C and the counter-
magnet D on the magnetic plate N. Lean
the cupboard door against the screw until
it leaves a mark.
2. Open the cupboard door and screw the
counter-magnet D (steel disk + rubber
ring E) with the screw C in the inner side
of the cupboard door, where the screw
left the mark as described in the first
step.
4. PRODUCT DESCRIPTION
4.1 Appliance overview
10 11 12
13
21 3
5
4
7
6
8
9
1Hinge supports
2Detergent dispenser
3Control panel
4Magnetic plate
5Door handle
6Rating plate
7Plate with rubber beater
8Drain pump filter
9Front feet for levelling the appliance
10 Drain hose
11 Mains cable
12 Inlet hose connection
13 Back feet for levelling the appliance
www.electrolux.com16

5. CONTROL PANEL
5.1 Control panel description
Cottons
Synthetics
Delicates
Anti-allergy
Spin/DrainRinse
Duvet
Rapid 14min
Sport
Outdoor
Denim
Wool/Silk
Cottons Eco
Steam
Manager
1
12 9 8 1011
13
72 3 4 5 6
1Programme dial
2Spin touch button
3Temp. touch button
4Display
5Delay Start touch button
6Time Manager touch button
7Start/Pause touch button
8Plus Steam touch button and
permanent Child Lock option
9Soft Plus touch button
10 Extra Rinse touch button
11 Stains touch button
12 On/Off push button
13 Prewash touch button
5.2 Display
ENGLISH 17

The Temperature area:
Temperature indicator .
Cold water indicator.
Child safety lock indicator.
Door locked indicator.
Delay start indicator.
The digital indicator can show:
• Programme duration (e. g. ).
• Delay time (e. g. ).
• Cycle end ( ).
• Warning code (e.g. ).
• Error indicator ( ).
Time Manager indicator.
Steam phase indicator.
Anti-crease phase indicator.
Drum clean indicator. This is a recommendation to perform the
drum cleaning.
The spin area:
Spin speed indicator
No Spin indicator. Spin phase is off.
Silent indicator.
Rinse Hold indicator.
Add garments indicator. it lights at the beginning of the wash‐
ing phase, when it is still possible to pause the appliance and
add more laundry.
Maximum load indicator (refer to "The SensiCare System load
detection " paragraph).
It flashes when the laundry load exceeds the maximum
declared load of the selected programme.
www.electrolux.com18

6. DIAL AND BUTTONS
6.1 Introduction
The options/functions are
not available with all
washing programmes.
Check the compatibility
between options/functions
and washing programmes in
the "Programme Chart". An
option/function can exclude
another one, in this case the
appliance doesn't allow you
to set incompatible options/
functions.
6.2 On/Off
Press this button for a few seconds to
activate or deactivate the appliance. Two
different tunes sound while switching the
appliance on or off.
As the Stand-by function automatically
deactivates the appliance after several
minutes to reduce the energy
consumption, you may need to activate
the appliance again.
For more details, refer to Stand-by
paragraph in Daily Use chapter.
6.3 Programme dial
For selecting the desired washing
programme. Refer to 'Programmes'
chapter for more details.
The position is a "Reset" function,
which stops and resets the running
programme. The display shows empty
dashes to indicate that no programme
was selected.
6.4 Temp.
When you select a washing programme,
the appliance automatically proposes a
default temperature.
Touch this button repeatedly until the
desired temperature value appears on
the display.
When the display shows the indicators
, the appliance does not heat the
water.
6.5 Spin
When you set a programme, the
appliance automatically sets the
maximum spin speed allowed, except for
programme Denim. With this option you
can decrease the default spin speed.
Touch repeatedly this button to:
•Decrease the spin speed. The
display shows only the spin speeds
available for the set programme.
• Additional spin options No Spin
.
Set this option to deactivate all spin
phases. The appliance performs the
only draining phase of the selected
washing programme. Set this option
for very delicate fabrics. The rinses
phase uses more water for some
washing programmes
• Activate the Rinse Hold option.
The final spin is not performed. The
water of the last rinse is not drained
out to prevent the fabrics from
creasing. The washing programme
ends with water in the drum.
The indicator remains displayed.
The door stays locked and the drum
turns regularly to reduce creasing.
You must drain the water to unlock
the door.
If you touch the Start/Pause
button, the appliance performs the
spinning phase and drains the water.
The appliance empties
the water out
automatically after 18
hours approximately.
• Activate the Silent option.
The intermediate and the final
spinning phases are suppressed and
the programme ends with water in the
drum. This helps to reduce creasing.
The indicator remains displayed.
The door stays locked. The drum
turns regularly to reduce creasing.
You must drain the water to unlock
the door.
ENGLISH 19

As the programme is very quiet, it is
suitable for use at night time when
cheaper electricity tariffs are
available. In some programmes the
rinses are performed with more water.
If you touch the Start/Pause
button, the appliance performs the
only draining phase.
The appliance empties
the water out
automatically after 18
hours approximately.
6.6 Prewash
With this option you can add a prewash
phase to a washing programme.
The corresponding indicator above the
touch button illuminates.
• Use this option to add a pre-wash
phase at 30 °C before the washing
phase.
This option is recommended for
heavily soiled laundry, especially if
containing sand, dust, mud and other
solid particles.
The options can increase the
programme duration.
6.7 Stains
Touch this button to add the stain phase
to a programme.
The corresponding indicator above the
touch button illuminates.
Use this option for laundry with hard
stains to remove.
When you set this option, put the stain
remover into compartment .
This option increases the
programme duration.
This option is not available
with a temperature lower
than 40 °C.
6.8 Permanent Extra Rinse
With this option you can add a few rinses
according to the selected washing
programme.
Use this option for people with allergies
to detergent residues and with sensitive
skin.
This option increases the
programme duration.
The corresponding indicator above the
touch button illuminates and also stays
permanently on during next cycles until
this option is deactivated.
6.9 Permanent Soft Plus
Set this option to optimise the fabric
softener distribution and improve fabric
softness.
Recommended when you use fabric
softener.
This option increases the
programme duration.
The corresponding indicator above the
touch button illuminates and also stays
permanently on during next cycles until
this option is deactivated.
6.10 Plus Steam
This option adds a steam phase followed
by a short anti-crease phase at the end
of the washing programme.
The steam phase reduces fabric
creasing and facilitates the fabric ironing.
The corresponding indicator above the
touch button illuminates.
The indicator is steady on during
steam phase.
This option can increase the
programme duration.
When the programme stops the display
shows , the indicator goes off
and the indicator is steady on. The
drum performs smooth movements for
about 30 minutes to keep the steam
benefit. By touching any button the anti-
crease movements stop and the door
unlocks.
A small laundry load helps to
reach better results.
www.electrolux.com20
