Electrolux EWF 86110 A User manual

user manual
Washing Machine
EWF 86110 A
EWF 106110 A

Electrolux. Thinking of you.
Share more of our thinking at www.electrolux.com
CONTENTS
Safety information 2
Environment concerns 3
Technical information 4
Product description 4
Control panel 5
Programmes 6
Hints and tips 7
Before first use 8
Daily use 8
Care and cleaning 10
Troubleshooting 13
Installation 15
Subject to change without notice
SAFETY INFORMATION
Before the installation and use, read this
manual carefully:
• For your safety and the safety of your
property
• To help the environment
• For the correct operation of the appli-
ance.
Always keep these instructions with the ap-
pliance also if you move or give it to a differ-
ent person.
The manufacturer is not responsible if an in-
correct installation and use causes dam-
age.
Children and vulnerable person safety
• Do not let persons, children included,
with reduced physical sensory, reduced
mental functions or lack of experience
and knowledge use the appliance. They
must have supervision or instruction for
the operation of the appliance by a per-
son who is responsible for their safety.
• Keep all packaging away from children.
There is the risk of suffocation or injury.
• Keep all detergents away from children.
• Keep children and pets away from the
appliance when the door is open.
• Before you close the appliance door,
make sure that children and pets are not
into the drum.
• If the appliance has a child safety device,
we recommend to activate it.
General safety
• Do not use the appliance for professional
use. The appliance is only for domestic
use.
• Do not change the specifications of this
appliance. There is the risk of injury and
damage to the appliance.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance. Risk of explo-
sion or fire.
• Obey the safety instructions on the deter-
gent packaging to prevent burns to eyes,
mouth and throat.
• Make sure that you remove all metal ob-
jects from the laundry. Hard and sharp
material can cause damage to the appli-
ance.
• Do not touch the glass of the door while
a programme operates. The glass can be
hot (only for front-loading appliances).
Care and cleaning
• Deactivate the appliance and disconnect
the mains plug from the mains socket.
• Do not use the appliance without the fil-
ters. Make sure that the installation of the
filters is correct. An incorrect installation
causes water leakages.
Installation
• The appliance is heavy, be careful when
you move it.
• Do not transport your appliance without
the transit bolts, you can damage internal
components and cause leakages or mal-
functions.
• Do not install and connect a damaged
appliance.
• Make sure to remove all packaging and
transport bolts.
2 electrolux

• Make sure that the mains plug is discon-
nected from the mains socket during in-
stallation.
• Only a qualified person must do the elec-
trical installation, the plumbing and the in-
stallation of the appliance. This to prevent
the risks of structural damage or injury.
•Donotinstalloruse the appliance where
the temperature is less than 0 °C.
• When you install the appliance on a car-
pet floor, make sure that there is air cir-
culation between the appliance and the
carpet. Adjust the feet to have the neces-
sary space between the appliance and
the carpet.
Water connection
• Do not connect the appliance with old
hoses already used. Only use new hoses.
• Make sure not to cause damage to the
water hoses.
• Do not connect the appliance to new
pipes or pipes not used for a long time.
Let the water flow for some minutes, then
connect the inlet hose.
• The first time you use the appliance,
make sure that the water hoses and the
couplings do not have leakages.
Electrical connection
• Make sure that the appliance is earthed.
• Make sure that the electrical information
on the rating plate agrees with the power
supply.
• Always use a correctly installed shock-
proof socket.
• Do not use multiple plugs and extension
cables. There is a risk of fire.
• Do not replace or change the mains ca-
ble. Contact the service centre.
• Make sure not to cause damage to the
mains plug and cable.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains
plug.
Discard the appliance
1. Disconnect the mains plug from the
mains socket.
2. Cut off the mains cable and discard it.
3. Discard the door catch. This prevents
children or pets to be closed in the ap-
pliance. There is a risk of suffocation
(only for front-loading appliances).
ENVIRONMENT CONCERNS
The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it should be taken to the appropriate
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will
help prevent potential negative
consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of
this product. For more detailed information
about recycling of this product, please
contact your local council, your household
waste disposal service or the shop where
you purchased the product.
Packaging materials
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it.
Ecological hints
To help the environment, use less water
and energy, obey these instructions:
• Set a programme without the prewash
phase to wash laundry with normal soil.
• Always start a washing programme with
the maximum load of laundry.
• If necessary, use a stain remover when
you set a programme with a low temper-
ature.
• To use the correct quantity of the deter-
gent, check the water hardness of your
domestic system
electrolux 3

TECHNICAL INFORMATION
Dimensions Width / Height / Depth 595 / 850 / 490 mm
Electrical connection: Voltage
Overall power
Fuse
Frequency
220-240 V
2100 W
10 A
50 Hz
Level of protection against ingress of solid particles and moisture
ensured by the protective cover, except where the low voltage
equipment has no protection against moisture
IPX4
Water supply pressure Minimum 0,5 bar (0,05 MPa)
Maximum 10 bar (1 MPa)
Water supply
1)
Cold water
Maximum load Cotton 6 kg
Spin speed Maximum 800 rpm (EWS86110A)
1000 rpm (EWS106110A)
1) Connect the water inlet hose to a water tap with a 3/4'' thread.
PRODUCT DESCRIPTION
1 2 3
4
5
6
712
8 9 10
11
1Worktop
2Detergent dispenser
3Control panel
4Door handle
5Drain pump
6Rating plate
7Feet for the appliance level
8Water drain hose
9Mains cable
10 Water inlet valve
11 Transit bolts
12 Feet for the appliance level
Accessories
1 2
34
1Inlet hose
To connect the appliance to the cold
water tap.
4 electrolux

2Large plastic caps
To close the holes on the rear side of
the cabinet after the removal of the
transit bolts.
3Plastic hose guide
To connect the drain hose on the edge
of a sink.
4Small plastic caps
To attach the protection cover to the
bottom of the appliance.
CONTROL PANEL
90°
60°
60°
40°
30°
40°
30°
30°
35°
40°
40°
1 2 3 4 5
1Programme knob
2Prewash button
3Extra rinse button
4Easy iron button
5Start Pause button
Programme knob 1
Turn this knob to set a programme.
Prewash button 2
Press this button to add a prewash phase
at 40° C before the washing programme.
The indicator above the button comes on.
We recommend that you use this function
when you have laundry with a high level of
soil.
The set of this function increases the
programme duration.
Extra rinse button 3
Press this button to add rinsing phases to a
programme.
Use this function for persons allergic to de-
tergents and in areas where the water is
soft.
Easy Iron button 4
Press this button to prevent the creases in
the fabrics. When you press this button, the
appliance decrease the intensity of the
washing phase and spin speed.
Automatically, the spin speed is set to 800
rpm.
Set this function to iron the laundry easily
and quickly.
Start/Pause button 5
Press this button to start or interrupt a pro-
gramme.
electrolux 5

PROGRAMMES
Programme
Temperature
Type of load and soil
Weight of load
Programme
phases
Possible
functions
Хлопок
90° C
White cotton with heavy soil. This
programmes add also the phase
of hygiene to the laundry.
max. 6 kg
Wash
Rinses
Spin phase at the
maximum speed
Хлопок
1)
60° C
White and fast coloured cotton
with normal soil.
max. 6 kg
Wash
Rinses
Spin phase at the
maximum speed
+ Хлопок
ЭКО
40° C
White and coloured cotton with
normal or light soil.
max. 6 kg
Wash
Rinses
Spin phase at the
maximum speed
Хлопок
Цветное
30° C
White and coloured cotton with
light soil.
max. 6 kg
Wash
Rinses
Spin phase at the
maximum speed
Синтетика
60° C
Synthetic or mixed fabric items
with normal level of soil
max. 3 kg
Wash
Rinses
Spin phase at 800
rpm
Синтетика
40° C
Synthetic or mixed fabric items
with normal or light level of soil. It
is possible to wash casual, sport
or quilted items. Set this pro-
gramme and the easy iron func-
tion not to iron the laundry.
max. 3 kg
Wash
Rinses
Spin phase at 800
rpm
Синтетика
30° C
Cotton, synthetic or mixed fabric
items with light level of soil or
worn once.
max. 3 kg
Wash
Rinses
Spin phase at 800
rpm
Деликатные
ткани
40° C
Delicate fabrics as acrylics, vis-
cose, polyester items with normal
soil.
max. 3 kg
Wash
Rinses
Spin phase at 500
rpm
Wool
40° – Cold
Machine washable wool. Hand
washable wool and delicate fab-
rics with «hand washing» care
symbol.
max. 1.5 kg
Wash
Rinses
Spin phase at 800
rpm
Handwash -
Silk
30° C
Hand washable delicate fabrics
with «hand washing» care symbol.
max. 1.5 kg
Wash
Rinses
Spin phase at 800
rpm
Quick wash
35° C
Quick wash of cotton, synthetic,
delicate or mixed fabric items with
light level of soil or worn once.
max. 3 kg
Wash
Rinses
Spin phase at the
maximum speed
6 electrolux

Programme
Temperature
Type of load and soil
Weight of load
Programme
phases
Possible
functions
Стирка без
нагрева
White and coloured cotton with
light soil.
max. 6 kg
Wash
Rinses
Spin phase at the
maximum speed
Полоскание All fabrics.
max. 6 kg
Rinse with additive
Spin phase at the
maximum speed
Отжим Spin phase for hand washed laun-
dry.
Drainage of the water
Spin phase at the
maximum speed
To cancel the programme that it operates or to deactivate the appliance.
1) Refer to this programme for the energy label values with a maximum load of cotton at the maximum spin speed. It
agrees with the EEC 92/75 standards.
HINTS AND TIPS
The laundry load
• Divide the laundry in: white, coloured,
synthetics, delicates and wool.
• Obey the washing instructions that are on
the laundry care labels.
• Do not wash together white and coloured
items.
• Some coloured items can discolour with
the first wash. We recommend that you
wash them separately for the first times.
• Button up pillowcases, close zippers,
hooks and poppers. Tie up belts.
• Empty the pockets and unfold the items.
• Turn inside out multilayered fabrics, wool
and items with painted illustrations.
• Remove hard stains.
• Wash with a special detergent heavy soil
stains.
• Be careful with the curtains. Remove the
hooks or put the curtains in a washing
bag or pillowcase.
•Donotwashinthe appliance :
– Laundry without hems or with cuts
– Underwired bras.
– Use a washing bag to wash small
items.
• A very small load can cause balance
problems with the spin phase. If this oc-
curs, adjust manually the items in the tub
and start the spin phase again.
Stubborn stains
For some stains, water and detergent is not
sufficient.
We recommend that you remove these
stains before you put the items in the appli-
ance.
Special stain removers are available. Use
the special stain remover that is applicable
to the type of stain and fabric.
Detergents and additives
• Only use detergents and additives spe-
cially made for washing machines.
• Do not mix different types of detergents.
• To help the environment, do not use
more than the correct quantity of deter-
gent.
• Obey the instructions that you find on the
on packaging of these products.
• Use the correct products for the type and
colour of the fabric, the programme tem-
perature and the level of soil.
• If you use liquid detergents, do not set
the prewash phase.
• If your appliance has not the detergent
dispenser with the flap device, add the
liquid detergents with a dosing ball.
Water hardness
If the water hardness in your area is high or
moderate, we recommend that you use a
water softener for washing machines. In
areas where the water hardness is soft it is
not necessary to use a water softener.
To know the water hardness in your area,
contact your local water authority.
Obey the instructions that you find on the
packaging of the products.
electrolux 7

Equivalent scales measure the water hard-
ness:
• German degrees (°dH).
• French degrees (°TH).
• mmol/l (millimol for each litre - interna-
tional unit for the hardness of water).
• Clarke degrees.

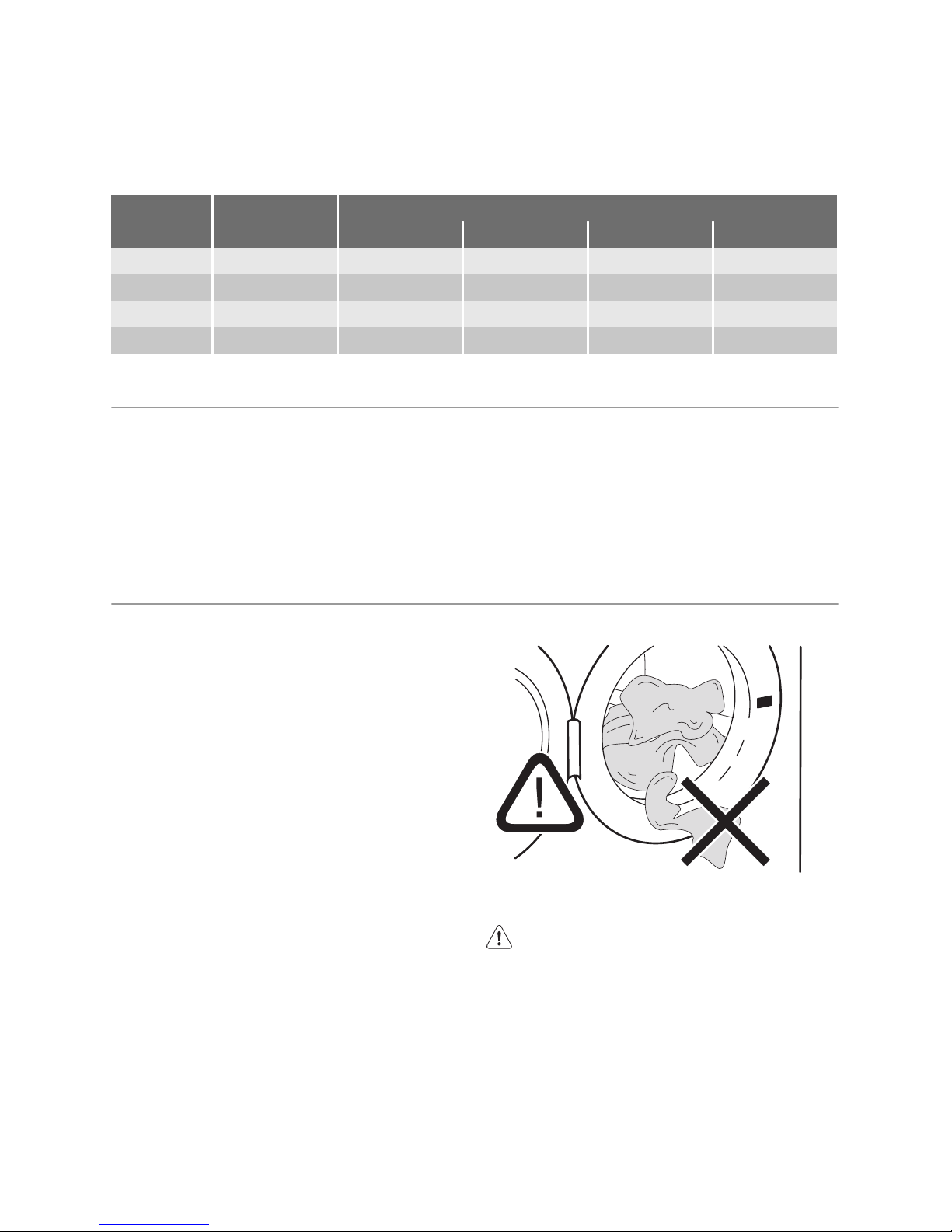

Water hardness table
Level Type Water hardness
°dH °T.H. mmol/l Clarke
1soft 0-7 0-15 0-1.5 0-9
2medium 8-14 16-25 1.6-2.5 10-16
3hard 15-21 26-37 2.6-3.7 17-25
4very hard > 21 > 37 >3.7 >25
BEFORE FIRST USE
1. To activate the drain system, put 2 litre
of water in the main wash compartment
of the detergent dispenser.
2. Put a small quantity of detergent in the
main wash compartment of the deter-
gent dispenser. Set and start a pro-
gramme for cotton at the highest tem-
perature without laundry. This removes
all possible dirt from the drum and the
tub.
DAILY USE
1. Open the water tap.
2. Connect the mains plug to the mains
socket.
3. Put the laundry in the appliance.
4. Use the correct quantity of detergent
and additives.
5. Set and start the correct programme
for the type of laundry and soil.
Loading the laundry
1. Open the appliance door.
2. Put the laundry in the drum, one item at
a time. Shake the items before you put
them in the appliance. Make sure not to
put too much laundry in the drum.
Make sure that no laundry stays be-
tween the seal and the door. There is a
risk of water leakage or damage to the
laundry.
3. Close the door.
Filling the detergent and additives
Caution! Use only specified detergents
for washing machine.
8 electrolux

2 1
1
The detergent compartment for the
prewash phase or for the soak pro-
gramme.
Add the detergent for prewash and
soak before the start of the pro-
gramme.
2
The detergent compartment for the
washing phase.
If you use a liquid detergent, put it im-
mediately before you start the pro-
gramme.
Liquid additives compartment (fabric
conditioner, starch).
Put the product in the compartment
before you start the programme.
Always obey the instructions that you find
on the packaging of the detergent prod-
ucts.
Using the liquid detergent
1. Pull out the detergent dispenser until it
stops.
2. Pull out the detergent divider from its
position (A).
3. Put it into the special guides in the mid-
dle of the compartment for the washing
phase.
When you use the detergent
divider:
– Do not use gelatinous or thick liquid
detergents.
– Do not put more liquid detergent
than the edge of the detergent divid-
er.
– Do not set the prewash phase.
– Do not set the delay start function, if
it is available.
4. Measure out the detergent and the fab-
ric conditioner.
5. Carefully close the detergent dispenser.
Setting and starting a programme
1. Turn the programme knob and set the
washing programme.
2. The button indicator of the Start/Pause
is off.
3. Set the available functions.
When you press the relevant button,
the indicator of the set function comes
on.
4. Press the Start/Pause button to start
the programme until the button indica-
tor is on.
Interrupt a programme
1. Press the Start/Pause button.
2. Press the same button again. The
washing programme continues.
Change a function
You can change only some functions be-
fore they operate.
1. Press the Start/Pause button.
2. Change the function set.
electrolux 9

Cancel a programme
1. Turn the programme knob to to
cancel the programme and to deacti-
vate the appliance.
2. Turn the programme knob again to ac-
tivate the appliance. Now, you can set
a new washing programme.
The appliance does not drain the wa-
ter.
Open the door
While a programme operates, the appliance
door is locked.
To open the appliance door:
1. Press the Start/Pause button to stop
the programme.
2. Wait for some minutes before to open
the appliance door.
3. Close the appliance door and press
again the Start/Pause button. The pro-
gramme continues.
If the temperature and level of the wa-
ter in the drum are too high, you can-
not open the door.
To open the door do the steps that fol-
low:
1. Turn the programme knob to to
deactivate the appliance.
2. Wait for some minutes.
3. Make sure that no water is in the
drum.
Caution! If you deactivate the
appliance, it is necessary to set the
programme again.
At the end of the programme
• The appliance stops automatically.
• The indicator of the Start/Pause button
flashes.
•Turn the programme knob to to deac-
tivate the appliance.
• Remove the laundry from the appliance.
Make sure that the drum is empty.
• Keep the door ajar, to prevent mildew
and odours.
• Close the water tap.
The washing programme is completed,
but there is water in the drum:
– The Rinse Hold option or a programme
that stops with water in the drum is set.
– The door stays locked.
– You must drain the water to open the
door.
To drain the water:
1. If the spin speed option is available, you
can decrease the spin speed.
2. Press the Start/Pause button. The ap-
pliance drain the water and spin.
3. When the programme is completed:
– The indicator of the Start/Pause but-
ton flashes or the End indicator is on.
– You can open the door.
4. Turn the programme knob to to de-
activate the appliance.
CARE AND CLEANING
Warning!
Disconnect the appliance from the mains
supply before you clean it.
External cleaning
Clean the appliance only with soap and
warm water. Fully dry all the surfaces.
Caution! Do not use alcohol, solvents
or chemical products.
Descaling
The water we use contains limescale. If it
becomes necessary, use a water softener
to remove limescales.
Use a special product made for washing
machines. Obey the instructions that you
find on the packaging of the manufacturer.
Do this separately from the laundry wash.
Maintenance wash
With the low temperature programmes it is
possible that some detergent stays in the
drum. Make regularly a maintenance wash.
To do this:
• Empty the laundry from the drum.
• Set the hottest cotton wash programme
• Use a correct quantity of powder deter-
gent with biological properties.
10 electrolux

After each wash, keep the door open for a
while to prevent mould and to let unpleas-
ant smells go out.
Drum
Regularly examine the drum to prevent
limescale and rust particles.
Only use special products to remove rust
particles from the drum.
To do this:
• Clean the drum with special product for
stainless steel.
• Start a short programme for cotton at the
maximum temperature with a small quan-
tity of detergent.
Door seal
Regularly examine the seal and remove all
objects from the inner part.
Detergent dispenser
To clean the dispenser:
1. Press the lever and pull the dispenser
out.
2. Remove the top part of the liquid addi-
tive compartment.
3. Clean all the parts with water.
4. Clean the dispenser recess with a
brush.
5. Put back the dispenser in the recess.
Drain pump
Regularly examine the drain pump and
make sure that it is clean.
Clean the pump if:
• The appliance does not drain the water.
• The drum cannot turn.
• The appliance makes an unusual noise
because of the blockage of the drain
pump.
Warning!
1. Disconnect the mains plug from
the mains socket.
2. Do not remove the filter while the
appliance operates. Do not clean
the drain pump if the water in the
appliance is hot. The water must
be cold before you clean the drain
pump.
electrolux 11

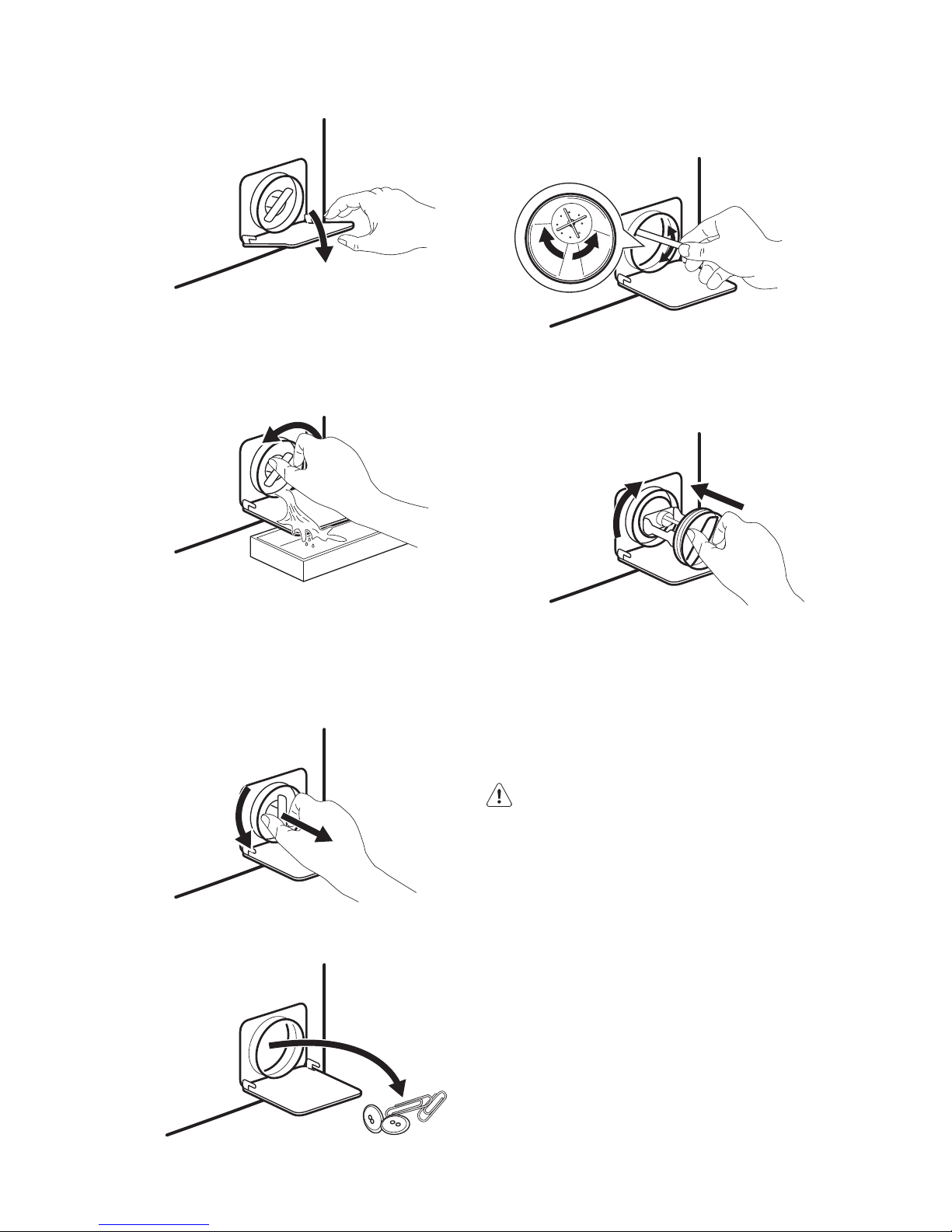

1. Open the pump door.
2. Put a container below the recess of the
drain pump to collect the water that
flows out.
3. Unscrew the filter to let the water flow
out.
4. When the container is full of water,
screw the filter again and empty the
container. Do steps 3 and 4 again and
again until no more water flows out
from the drain pump.
5. Unscrew the filter and remove it.
12
6. Remove fluff and objects from the
pump.
7. Make sure that the impeller of the
pump can turn. If this does not occur,
contact the service centre.
8. Clean the filter under the water tap and
put it back in the pump.
9. Make sure that you tighten correctly the
filter to prevent leakages.
1
2
10. Close the drain pump door.
Clean the inlet valve filter
It could be necessary to clean the filter
when:
• The appliance does not fill with water.
• The appliance fills with the water for a
long time.
Warning! Disconnect the mains plug
from the mains socket.
To clean the filter:
1. Close the water tap.
2. Remove the inlet hose behind the appli-
ance.
12 electrolux

3. Clean the filter in the valve with a stiff
brush or a towel.
4. Install again the inlet hose. Make sure
that the couplings are tight to prevent
leakages.
5. Open the water tap.
Emergency drain
Because of a malfunction, the appliance
cannot drain the water.
If this occurs, do steps (1) through (5) of 'To
clean the drain pump'.
If necessary, clean the pump.
When you drain the water with the emer-
gency drain procedure, you must activate
again the drain system:
1. Put 2 litres of water in the main wash
compartment of the detergent dispens-
er.
2. Start the programme to drain the wa-
ter.
Frost precautions
If the appliance is installed in an area where
the temperature can be less than 0 °C, re-
move the remaining water from the inlet
hose and the drain pump.
1. Disconnect the mains plug from the
mains socket.
2. Close the water tap.
3. Remove the water inlet hose
4. Put the two ends of the inlet hose in a
container and let the water flow out of
the hose.
5. Empty the drain pump. Refer to the
emergency drain procedure
6. When the drain pump is empty, install
the inlet hose again.
Warning! Make sure that the
temperature is more than 0 °C before
you use the appliance again.
The manufacturer is not responsible for
damages caused by low temperatures.
TROUBLESHOOTING
The start of the appliance does not occur or
it stops during operation.
First try to find a solution to the problem (re-
fer to the table). If not, contact the service
centre.
Warning! Deactivate the appliance
before you do the checks.
Problem Possible cause Possible solution
The appliance does not
start.
The mains plug is not connec-
ted in the mains socket.
Put in the mains plug.
The fuse in the box fuse is
damage.
Replace the fuse.
The appliance door is open. Close the door firmly.
You do not press the start but-
ton
Press the start button.
electrolux 13

Problem Possible cause Possible solution
The programme knob is not in
the correct position.
Turn the programme knob in the correct
position.
The delay start is set.
It is available only for models
with the Delay start.
To start immediately the programme,
cancel the delay start.
The appliance does not
fill with water.
The water tap is closed. Open the water tap.
The water inlet hose is dam-
aged.
Make sure that the water inlet hose has
no damages.
The filter in the water inlet
hose is blocked .
Clean the filter. Refer to 'Care and clean-
ing'.
The water tap is blocked or
there is limescale on it.
Clean the water tap.
The connection of the water
inlet hose is not correct.
Make sure that the connection is cor-
rect.
The water pressure is too low. Contact your local water authority.
The appliance does not
drain the water.
The water drain hose is dam-
aged.
Make sure that the water drain hose has
no damages.
The filter of the drain pump is
blocked.
Clean the filter of the drain pump. Refer
to 'Care and cleaning'.
The connection of the water
drain hose is not correct.
Make sure that the connection is cor-
rect.
A washing programme without
the drain phase is set.
Set the drain programme.
The function Rinse Hold is on. Set the drain programme.
The spin phase does
not operate.
The spin phase is off. Set the spin programme.
The filter of the drain pump is
blocked.
Clean the filter of the drain pump. Refer
to 'Care and cleaning'.
Balance problems with the
laundry load.
Adjust manually the items in the tub and
start the spin phase again.
There is water on the
floor.
Leakages from the couplings
of the water hoses.
Make sure that the couplings are tight.
Leakages from the drain
pump.
Make sure that the drain pump filter is
tight.
The water drain hose is dam-
aged.
Make sure that the water inlet hose has
no damages.
You cannot open the
appliance door.
The washing programme is in
operation.
Let the washing programme end.
There is water in the drum. Set the drain or the spin programme.
The appliance makes
an unusual noise.
Incorrect level of the appli-
ance.
Adjust the level of the appliance. Refer
to 'Installation'.
You did not remove the pack-
aging and/or the transit bolts.
Remove the packaging and/or the trans-
it bolts. Refer to 'Installation'.
The load is very small. Add more laundry in the drum.
14 electrolux

Problem Possible cause Possible solution
The appliance fills with
water and drain imme-
diately.
The end of the drain hose is
too low.
Make sure that the drain hose is in the
correct position. Refer to 'Installation'.
The washing results
are not satisfactory.
The detergent you used was
not sufficient or correct.
Increase the detergent quantity or use a
different one.
You did not remove the stub-
born stains before you wash
the laundry.
Use special products to remove the
stubborn stains.
Incorrect temperature was set. Make sure that you set the correct tem-
perature.
Too much laundry load. Decrease the laundry load.
After the check, activate the appliance. The programme continues from the point of inter-
ruption.
If the problem occurs again, contact the service centre.
Service
Refer to the information supplied with this
appliance for guarantee condition and point
of contact. The information to give to the
service is on the rating plate.
We recommend that you write the
information here:
Model ..................
Product number 914.............
Serial number
(S.N.)
..................
INSTALLATION
Unpacking
1. Use the gloves. With a scissor cut the
straps and with a cutter remove the ex-
ternal film.
Do not to discard the plastic cover (A).
1
2
A
2. Remove the polystyrene packaging
materials.
electrolux 15

3. Remove the internal film.
4. Open the door and remove all the items
from the drum.
5. Put the front piece on the floor behind
the appliance. Carefully put down the
appliance with the rear side on it. Make
sure not to damage the hoses.
6. Remove the polystyrene protection
from the bottom.
1
2
7. Install the plastic cover (A), removed
from the top of the packaging, to the
bottom of the appliance. Remove the
adhesive strip and close the bottom of
the appliance. Attach permanently the
plastic cover to the bottom of the appli-
ance with the small plastic caps that
you can find in the user manual bag.
A
8. Pull up the appliance in vertical posi-
tion.
9. Remove the four bolts with a key. Pull
out the plastic spacers. Remove the
power supply cable and the drain hose
from the hose holders.
21
16 electrolux

10. Replace the plastic spacers with the
large plastic caps. You can find these
large caps in the user manual bag.
Warning! Remove all the packaging
and the transit bolts before you install
the appliance.
We recommend that you keep the
packaging and the transit bolts for
when you move the appliance.
Positioning and levelling
• Install the appliance on a flat hard floor.
• Make sure that carpets do not stop the
air circulation below the appliance.
• Make sure that the appliance does not
touch the wall or other units
• Loosen or tighten the feet to adjust the
level. A correct adjustment of the appli-
ance level prevents the vibration, noise
and the movement of the appliance when
in operation.
x4
x4
• The appliance must be level and stable.
Caution! Do not put cardboard, wood
or equivalent materials below the
appliance feet to adjust the level.
The inlet hose
• Connect the hose to the appliance.
Loose the ring nut to set it in the correct
position.
• Connect the water inlet hose to the cold
water tap with 3/4 thread.
Caution! Make sure that there are no
leaks from the couplings.
Do not use an extension hose if the in-
let hose is too short. Contact the serv-
ice centre for the replacement of the in-
let hose.
Water drainage
There are different procedures to connect
the drain hose:
electrolux 17

With the plastic hose guide.
•
• On the edge of a sink.
Make sure that the plastic guide cannot
move when the appliance drains. Attach
the guide to the water tap or the wall.
• To a stand pipe with vent-hole.
Refer to the illustration. Directly into a
drain pipe at a height of not less than 60
cm and not more than 90 cm. The end of
the drain hose must always be ventila-
ted , i.e. the inner diameter of the drain-
pipe must be larger than the external di-
ameter of the drain hose.
Without the plastic hose guide.
• To a sink spigot.
Refer to the illustration. Put the drain
hose in the spigot and tighten it with a
clip. Make sure that the drain hose
makes a loop to prevent that remaining
particles go in the appliance from the
sink.
• Directly to a built-in drain pipe in the
room wall and tighten it with a clip.
18 electrolux

electrolux 19

155219040-A-182011
www.electrolux.com/shop
