Electrolux EIFLS60LSS User manual

137395900 A (1010)
Installation Instructions
Electrolux Front-Load Washer
Instructions d’installation
Laveuse à chargement frontal Electrolux
Instrucciones de Instalación
Lavadora de carga frontal Electrolux

2Important Safety Instructions
©2010 Electrolux Major Appliances All rights reserved.
Recognize safety symbols, words and
labels
Safety items throughout this manual are labeled
with a WARNING or CAUTION based on the risk
type as described:
Destroy the carton and plastic bags after the dryer is unpacked. Children might use them for play. Cartons• covered with rugs, bedspreads, or plastic sheets can become airtight chambers causing suffocation. Place
all materials in a garbage container or make materials inaccessible to children.
For your safety the information in this manual must be followed to minimize the risk of fire or explo-• sion or to prevent property damage, personal injury or loss of life. Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of this or any other appliance.
Install the washer according to the manufacturer’s instructions and local codes.•
The electrical service to the washer must conform with local codes and ordinances and the latest edi-•
tion of the National Electrical Code, ANSI/NFPA 70, or in Canada, the Canadian electrical code C22.1
part 1.
To avoid back or other injury, have more than one person move or lift the washer.•
Do not stack a dryer on top of washer already installed on pedestal. Do not stack washer on top of• dryer. Do not stack washer on top of another washer.
The instructions in this manual and all other literature included with this dryer are not meant to cover• every possible condition and situation that may occur. Good safe practice and caution MUST be ap-
plied when installing, operating and maintaining any appliance.
WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.•
Do not touch any electrical switch; do not use any phone in your building.•
Clear the room, building or area of all occupants.•
Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.•
If you cannot reach your gas supplier, call the fire department.•
Save these instructions for future reference.
This symbol alerts you to situa-
tions that may cause bodily injury
or property damage.
Table of contents
This symbol alerts you to situa-
tions that may cause serious body
harm, death or property damage.
WARNING
For your safety the information in this manual must be followed to minimize the risk of fire or explosion
or to prevent property damage, personal injury or loss of life. Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of this or any other appliance.
Important Safety Instructions......................................... 2
Installation Requirements............................................3-5
Installed Dimensions ...................................................... 6
Installation Instructions .............................................7-11
Reversing Door........................................................12-17
Options......................................................................... 18
WARNING
RISK OF FIRE - Read all of the following instructions before installing and using this appliance:

3
Installation Requirements
Tools and materials needed for installation:
Pre-installation requirements
Adjustable
pliers
Adjustable
wrench
3/8” or 10 mm
box wrench
OR OR OR AND AND
Ratchet and
socket set
Carpenter’s level
Universal wrench
supplied with
washer
Please read and save this guide
Thank you for choosing Electrolux, the new
premium brand in home appliances. These
Installation Instructions are part of our commitment
to customer satisfaction and product quality
throughout the life of your new appliance.
Questions?
For toll-free telephone support in the U.S. and
Canada: 1-877-4ELECTROLUX (1-877-435-3287).
For online support and product information visit
http://www.electroluxappliances.com.
Installation Checklist
Drain
 Stand pipe or wall drain height minimum 24”
Drain hose snapped in “U” channel
(shipped in drum)
Drain hose secured in place with cable tie
(shipped in drum)
Door Reversal
Follow detailed instructions in this guide
Test hinge and latch for function
Electrical Power
House power turned on
Washer plugged in
Final Checks
Installation Instructions and Use and Care
Guide read thoroughly
Door locks and water enters drum when
cycle starts
Registration card sent in
Shipping Hardware
Foam shipping support (under wash tub)
removed and stored
Shipping bolts and spacers removed from
rear of appliance and stored
Hole plugs (shipped in bag in drum)
installed in holes in backsheet
Leveling
 Washer is level, side-to-side and front-to-
back
Cabinet is setting solid on all corners
Water Supply
HOT supply is connected to HOT inlet and
COLD supply is connected to COLD inlet
HOT and COLD water supply turned on
 No leaks present at water supply
connections or appliance inlet connections -
recheck in 24 hours

4

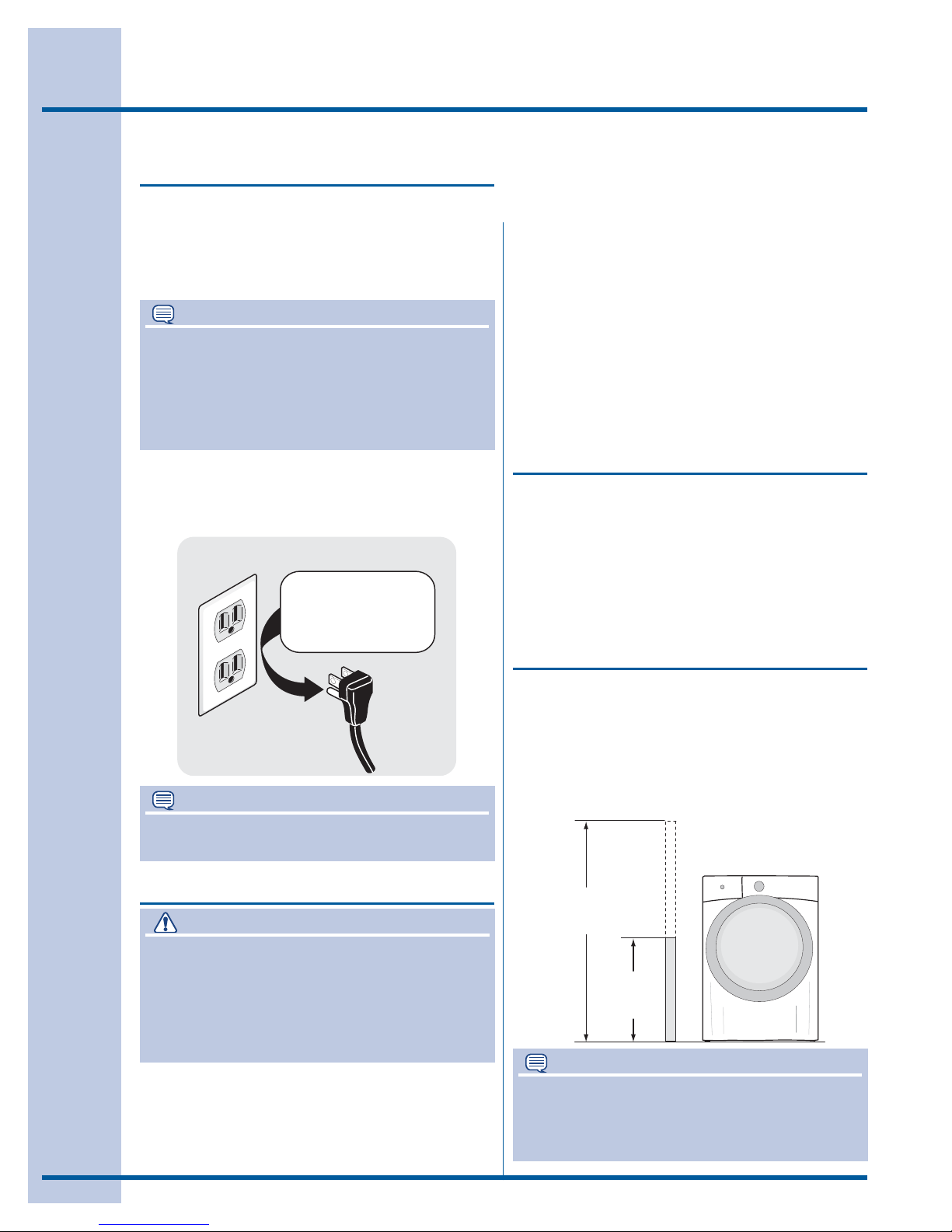

Electrical system requirements
Water supply requirements
Grounding requirements
Drain system requirements
CIRCUIT - Individual, properly polarized and
grounded 15 amp. branch circuit fused with 15
amp. time delay fuse or circuit breaker.
POWER SUPPLY - 2 wire, with ground, 120 volt
single phase, 60 Hz, Alternating Current.
OUTLET RECEPTACLE - Properly grounded
3-prong receptacle to be located so the power
supply cord is accessible when the washer is in
an installed position.
Grounding type
Grounding type
wa
wa
ll receptacl
ll receptacle
Po
Po
wer cord with
wer cord with
3-prong
3-prong
gr
gr
ounded plug
ounded plug
Do not,
Do not,
under
under
an
an
y cir
y cir
cumstances,
cumstances,
cut,
cut,
remo
remo
ve
ve,
or b
or b
ypass th
ypass the
gr
gr
ounding pr
ounding pr
ong.
ong.
Installation Requirements
NOTE
Because of potentially inconsistent voltage
capabilities, the use of this washer with power
created by gas powered generators, solar
powered generators, wind powered generators
or any other generator other than the local utility
company is not recommended.
NOTE
Drain hose attached to the washer can reach a 79
in. (201 cm) high standpipe. For higher standpipe,
use hose P/N 137098000, available from an
authorized parts distributor.
NOTE
GFI (Ground Fault Interrupter) receptacle is not
required.
WARNING
ELECTRICAL SHOCK HAZARD
Improper connection of the equipment grounding
conductor can result in a risk of electrical shock.
Check with a licensed electrician if you are in
doubt as to whether the appliance is properly
grounded.
The washer MUST be grounded. In the event1.
of malfunction or breakdown, grounding will
reduce the risk of electrical shock by a path of
least resistance for electrical current.
Since your washer is equipped with a power2.
supply cord having an equipment-grounding
conductor and a grounding plug, the plug
MUST be plugged into an appropriate, copper
wired receptacle that is properly installed and
grounded in accordance with all local codes and
ordinances or in the absence of local codes,
with the National Electrical Codes, ANSI/NFPA
70 (latest edition). If in doubt, call a licensed
electrician. DO NOT cut off or alter the grounding
prong on the power supply cord. In situations
where a two-slot receptacle is present, it is
the owner’s responsibility to have a licensed
electrician replace it with a properly grounded
three prong grounding type receptacle.
Hot and cold water faucets MUST be installed
within 42 inches (107 cm) of your washer’s water
inlet. The faucets MUST be 3/4 inch (1.9 cm) with
threading for laundry hose connection. Water pres-
sure MUST be between 30 and 120 psi. Pressure
difference between hot and cold cannot be more
than 10 psi. Your water department can advise you
of your water pressure.
Drain capable of eliminating 17 gals (64.3 L) per1.
minute.
A standpipe diameter of 1-1/4 in. (3.18 cm)2.
minimum.
The standpipe height above the floor should be:3.
Minimum height: 24 in. (61 cm)
Maximum height: 96 in. (244 cm)
96”
(244cm)
max.
24”
(61cm)
min.

5
MINIMUM INSTALLATION CLEARANCES - Inches (cm)
SIDES REAR TOP FRONT
Alcove 0” (0 cm) 0” (0 cm)* 0” (0 cm) n/a
Under-
Counter 0” (0 cm) 0” (0 cm)* 0” (0 cm) n/a
Closet 0” (0 cm) 0” (0 cm)* 0” (0 cm) 1” (2.54 cm)
Installation Requirements
Clearance requirements
0”
(0cm)
0”
(0cm)
1”
(2.54cm)
0”
(0cm)
IMPORTANT
DO NOT INSTALL YOUR WASHER:
1. In an area exposed to dripping water or out-
side weather conditions. The ambient temper-
ature should never be below 60° F (15.6° C) to
maximize detergent effectiveness.
2. In an area (garage or garage-type building)
where gasoline or other flammables (including
automobiles) are kept or stored.
3. On carpet. Floor MUST be solid with a maxi-
mum slope of 1 inch (2.54 cm). To minimize
vibration or movement, reinforcement of the
floor may be necessary.
INSTALLATION IN A RECESS OR CLOSET
If washer and dryer are installed in the same
closet, door ventilation is required: A minimum of
120 square inches (774.2 cm²) of opening, equally
divided at the top and bottom of the door, is
required. Louvered openings should be located 3
inches (7.6 cm) from bottom and top of door. Air
openings are required to be unobstructed when a
door is installed. A louvered door with equivalent
air openings for the full length of the door is
acceptable.
60 sq. in.
(387.1cm²)
3”
(7.6cm)
60 sq. in.
(387.1cm²)
3”
(7.6cm)
closet door

6Installation Requirements
38.00”
(96.52cm)
53.00”
(134.62cm)
50.6” (128.53cm)*
to clear open door 31.50” (80.01cm)*
to front of closed door
water supply
connection
on rear of unit ¹
drain hose
on rear of unit ²
power
cord
on rear
of unit ³
freestand washer
on floor
floor line
floor line
washer mounted on
optional pedestal
27.00”
(68.58cm)
* To obtain these minimal depth dimensions, dryer must either be vented straight back or with a quick-turn 90° elbow.
Connection of water inlet hose on Steam Models adds 3/4 in. (2 cm) to installation depth.
¹ Hot and cold inlet hose length approximately 48.5 inches (123cm)
² Drain hose length approximately 59 inches (150cm).
³ Power supply cord length approximately 60 inches (152.5cm).
Installed washer dimensions
75.75”
(192.5cm)
41.00”
(105cm)
39.00”
(99cm)
gas supply
pipe on rear
of gas unit
50.6” (128.5cm)*
to clear open door 31.50” (80cm)*
to front of closed door
centerline
height for
rear vent
* To obtain these minimal depth dimensions, dryer must either be vented straight back or with a quick-turn 90° elbow.
Connection of water inlet hose on Steam Models adds 3/4 in. (2 cm) to installation depth.
¹ Hot and cold inlet hose length approximately 48.5 inches (123cm)
² Drain hose length approximately 59 inches (150cm).
³ Power supply cord length approximately 60 inches (152.5cm).
electrical
supply on
rear of
dryer
27.00”
(68.5cm)
38.00”
(96.5cm)
water supply
connection
on rear of
washer ¹
drain hose
on rear of
washer ²
power cord
on rear of
washer ³

7
Unpacking Washer
Removing foam packaging
Temporarily remove door tape.1.
Open washer door and remove everything from2.
the drum.
Close door and reapply door tape.3.
Using a rug, blanket or piece of cardboard to4.
protect the floor, carefully lay the washer on it’s
back.
Remove styrofoam base and shipping plug and5.
set them aside.
Carefully return the washer to an upright posi-6.
tion.
Carefully move the washer to within 4 feet (1 m)7.
of its final location.
IMPORTANT
Save styrofoam base and shipping plug for use
to help prevent washer damage during any future
moves.
CAUTION
EXCESSIVE WEIGHT HAZARD
To avoid back or other injury, have more than one
person move or lift the washer.
WARNING
SUFFOCATION HAZARD
Destroy the carton and plastic bags after the
washer is unpacked. Children might use them
for play. Cartons covered with rugs, bedspreads,
or plastic sheets can become airtight chambers
causing suffocation. Place all materials in a
garbage container or make materials inaccessible
to children.

8Unpacking Washer
Removing shipping hardware
Installing hole plugs
NOTE
Rubber expansion material
on spacers may need time to
relax before they can be easily
pulled through shipping hole.
IMPORTANT
Save all shipping bolts and spacers for future
use. If the washer is to be transported at a later
date, the shipping hardware must be reinstalled
to help prevent shipping damage.
5 SPACERS
5 SPACERS
5 P CLAMPS
5 P CLAMPS
7 HOLE PLUGS
(IN BAG)
1 SHIPPING FORK
1 SHIPPING FORK
Remove all of the following:
Locate 7 hole plugs in the small bag supplied
with washer instruction guides. Insert them in
the holes in washer back panel.
UNIVERSAL
WRENCH
(SUPPLIED)
5 BOLTS
5 BOLTS

9
Installation Instructions
Leveling your washer
Excessive noise and vibration can be prevented by
properly leveling the washer.
For free standing installation and with the1. washer within 4 feet (1 m) of its final location,
place a level on top of the washer.
Use the universal wrench to adjust the level-2. ing legs so the washer is level front-to-rear and
side-to-side, and stable corner-to-corner.
Press down on alternate corners and sides and3. feel for the slightest movement. Adjust the
appropriate leg(s) so the washer sits solidly on
the floor on ALL four legs. Keep the leveling leg
extension at a minimum for best performance
of the washer.
NOTE
For pedestal installations, see additional
installation instructions included with the pedestal.
Connecting inlet water
Run some water from the hot and cold faucets1. to flush the water lines and remove particles
that might clog the water valve screens and to
determine which faucet is hot and which is cold
supply.
Look in the end of each water supply inlet hose2. and verify that the rubber washers are in place.
Connect the HOT inlet hose to the HOT water3. supply and the COLD inlet hose to the COLD
water supply. Tighten by hand until snug.
Tighten each supply connection another 2/34. turn with pliers. Do not bend, kink or pinch
water inlet hoses.
Turn on the water and check for leaks.5.
NOTE
HOT and COLD water inlet hoses are color
coded for identification. The HOT inlet hose is
marked with a RED band and the COLD inlet
hose is marked with a BLUE band.
RUBBER WASHERS
MUST BE PRESENT
raise lower
ab
cd
ab
cd

10 Installation Instructions
Snap one end of the drain hose hanger1.
(shipped in washer drum) onto the drain hose.
Continue wrapping it around the hanger and
snap it in place.
Place the hook end of the drain hose in the drain2.
opening. Secure the drain hose with the cable tie
(provided in the enclosure package) to the stand-
pipe, inlet hose, laundry tub, etc. so the hose
does not pull out from the force of the water.
Connecting drain and electrical
Grounding type
Grounding type
wa
wa
ll receptacl
ll receptacle
Po
Po
wer cord with
wer cord with
3-prong
3-prong
gr
gr
ounded plug
ounded plug
Do not,
Do not,
under
under
an
an
y cir
y cir
cumstances,
cumstances,
cut,
cut,
remo
remo
ve
ve,
or b
or b
ypass th
ypass the
gr
gr
ounding pr
ounding pr
ong.
ong.
IMPORTANT
Check to ensure the power is off at a circuit
breaker/fuse box before plugging the power cord
into an outlet.
Plug the power cord into a grounded outlet.3.
Turn on the power at a circuit breaker/fuse box.4.
Carefully slide the washer to its final position.5.
Recheck for level and rock corners for stability.
Remove and discard door tape.
Read the6. Use & Care Guide provided with the
washer. It contains valuable and helpful infor-
mation that will save you time and money.
See the next page about performing a brief,7.
helpful “Installation Cycle” on your new washer.
If you have any questions during initial opera-8.
tion, please review the “Service Prevention
Checklist” in your Use & Care Guide before
calling for service.
Place these instructions in a location near the9.
washer for future reference.
NOTE
A wiring diagram and technical data sheet are
located under the washer top panel, on top of the
detergent dispenser housing.
CABLE TIE

11
Installation Instructions
If your washer has this console:
If your washer has this console:
Empty washer’s drum and close door.1.
After you plug in the washer the first time: wake up the washer by pressing any button, rotate cycle knob to cycle2. one up from lower right position (1), press the start button (3) and then the cancel button (4).
Wake up the washer again by pressing any button, then immediately and simultaneously press and hold buttons3. 2a and 2b for 5 seconds, or until the LCD display changes.
The LCD window will display4. INSTAL CYCLE and show estimated time of cycle completion. Press the start
button (3). The Installation Cycle will automatically perform various diagnostic routines. At cycle completion, the
LCD window may display INSTAL PASS!, meaning your new washer is properly installed and ready for use. If it
prompts an action such as NO WATER, CHECK HOSES or CALL SERVICE 877 435 3287, review the
installation steps and make the necessary corrections before you attempt to use the washer.
Your washer will exit the Installation Cycle and return to normal operation the next time you wake it up.5.
After you plug in the washer the first time: wake up the washer by pressing any button and then follow the1. prompts on the LCD User Interface, including language selection.
The Installation Cycle will automatically perform various diagnostic routines. At cycle completion, the LCD window2. may display INSTAL PASS!, meaning your new washer is properly installed and ready for use. If it prompts an
action such as NO WATER, CHECK HOSES or
CALL SERVICE 877 435 3287, review the installation steps and make the necessary corrections before
you attempt to use the washer.
Your washer will exit the Installation Cycle and return to normal operation the next time you wake it up.3.
Please read the6. Use & Care Guide and enjoy your new premium washer!
Please read the4. Use & Care Guide and enjoy your new premium washer!
Performing Installation Cycle
NOTE
Washer will stay awake for 3 minutes after the Installation Cycle. If you wish to immediately
run the washer through a washing cycle, press the cancel button to put the unit to sleep
and then rewake it immediately to continue the normal operating mode.
NOTE
Washer will stay awake for 3 minutes after the Installation Cycle. If you wish to immediately
run the washer through a washing cycle, press the cancel button to put the unit to sleep
and then rewake it immediately to continue the normal operating mode.
1
2a 2b
34
With your washer in final location, perform an Installation Cycle to assist in proper installation.

12 Reversing Door
WARNING
ELECTRICAL SHOCK HAZARD
Failure to disconnect power source before servicing
could result in personal injury or even death.
B) Removing Door from Hinge
1 Reopen door to 90 degree angle.
2 Remove 4 long, course-thread, counter-sunk
hinge screws from door.
A) Removing Trim Ring
1 Open the door to a 90 degree angle.
2 Remove and save the trim plug and long,
course-thread, panhead screw.
3 Close the door.
4 Rotate the door trim approximately ¾”
counter-clockwise and pull it away from the
front of the door.
3 While supporting the weight of the door
with both hands, separate the door from the
hinge.
4 Gently place the door face down on a flat,
covered work surface.
Removing door and hardware
1 Be sure you have adequate swing area before reversing door.
2 You will need a screw driver with a #2 square bit.
3 Protect flat work surface, such as top of washer or floor near
washer, with a soft cloth or towel.
4 Be sure washer is unplugged from power source!
Preparing to reverse door swing
Screwdrivers with
#2 square &
straight bit
Tools needed:

13
Reversing Door
WARNING
ELECTRICAL SHOCK HAZARD
Failure to disconnect power source before
servicing could result in personal injury or even
death.
C) Removing Hinge from Front Panel
1 With the hinge in open position, remove 2
short, course-thread, panhead screws on
hinge plate.
D) Removing Door Lock from Front Panel
1 Remove 2 short, course-thread, panhead
screws from the door lock.
2 Remove 3 short, fine-thread, counter-sunk
screws in hinge side.
3 Slide the hinge toward the center of the front
panel, and then pivot the hinge inward while
slowly pulling it away from the front panel to
expose the attached harness.
4 Lift up on the tab and the release harness
from the retainer, allowing the harness to lay
outside the front panel.
2 Slide the lock toward the outer edge of the
front panel. Pivot the lock slightly outward
while slowly pulling it through opening to
expose the attached harness.
3 Release the harness from the terminal with
the small lever on back of the lock. Separate
the harness from the lock, allowing the
harness to lay outside the front panel.

14 Reversing Door
E) Reattaching Door Lock to Front Panel
1 Rotate the door lock and move it to the
opposite opening.
2 Connect the harness to the door lock by
inserting it in the terminal and firmly pushing
it in place.
4 Secure the lock with 2 short, course-thread,
panhead screws.
3 Insert the harness connection through the
front panel first, and then pivot the lock until
it is flush. Slide the lock toward the center of
the front panel until the screw holes line up.
F) Reattaching Hinge to Front Panel
1 Rotate the hinge and move it to the opposite
opening.
2 Connect the harness to the hinge retainer
by inserting it in the retention terminal and
gently pushing until you hear the fastening
tab click.
3 Gently pull on the harness to be sure it is
secure.
4 Use the side locating pins to align the hinge
and install 1 short, fine-thread, counter-sunk
screw in the center hole of hinge side.
5 Install the other 2 short, fine-thread, counter-
sunk screws in the upper and lower holes of
hinge side.
6 Install 2 short, course-thread, panhead
screws through hinge plate.
Reversing door and hardware

15
Reversing Door
H) Removing Latch Indicator
1 Insert flat blade screwdriver into open slot of
latch indicator.
2 Gently pry upward to release tab.
3 Pull the indicator out and set it aside.
3 Pull the hole plug out and set it aside.
G) Removing Striker Plate
1 Remove 2 long, course-thread, counter-sunk
screws and striker plate.
2 Set the striker plate to the side for later.
I) Removing Hole Plug
1 Insert flat blade screwdriver into open slot of
hole plug.
2 Gently pry upward to release tab.

16 Reversing Door
insert tab
insert tab
insert tab
insert tab
insert tab
insert tab
press down
press down
and snap
and snap
press down
press down
and snap
and snap
K) Reattaching Striker Plate
1 Rotate the striker plate and move it to the
opposite side of door above the indicator.
2 Reattach with 2 long, course-thread,
counter-sunk screws.
J) Reinserting Latch Indicator
1 Rotate the latch indicator and move it to the
opposite hole in the door.
3 Firmly press downward on the indicator until
the tab snaps in place.
insert indicator
insert indicator
through
through
slot
slot
L) Reinserting Hole Plug
1 Rotate the hole plug and move it to the
opposite hole in the door.
2 Firmly insert the two small tabs on either
side of the hole plug into the two slots on
either side of the hole in the door.
2 Firmly insert the two small tabs on either
side of the latch indicator into the two slots
on either side of the hole in the door.
3 Firmly press downward on the hole plug until
the tab snaps in place.

17
Reversing Door
M) Reattaching Door Assembly
1 Open the hinge to a 90 degree angle.
2 Install the door onto the hinge locating pins.
N) Reversing Trim Ring
1 Trim ring orientation is marked on the back.
2 Remove the trim ring cover plate. To remove
the cover plate from the right, pivot point is
up. To remove the cover plate from the left,
pivot point is down.
O) Reinstalling Trim Ring
1 Close the door.
2 Orient the trim so 12 position is
approximately ¾” to the left of top center.
The opening in the trim ring should be on the
hinge side.
3 Insert the trim ring in the slots and rotate it
clockwise approximately ¾”.
P) Reinstalling Trim Plug
1 Open the door to a 90 degree angle.
2 Install the trim plug with 1 long, course-
thread, panhead screw.
3 Secure the door with 4 long, course-thread,
counter-sunk screws.
4 Close the door and test the operation of the
latch.
3 Rotate the trim ring cover plate and move
it to the opposite opening in the trim and
reinsert.
Reattaching door and hardware
Q) Plug in washer and continue operation.
UP

18 Options
If replacements parts are needed for your washer,
contact the source where you purchased your
washer, call 1-877-4ELECTROLUX (1-877-435-3287),
or visit our website, www.electroluxappliances.com,
for the Electrolux Authorized Parts Distributor nearest
you.
WARNING
ELECTRICAL HAZARD
Label all wires prior to disconnection when
servicing controls. Wiring errors can cause
improper and dangerous operation. Verify proper
operation after servicing.
Accessories
Replacement parts: 1-877-4ELECTROLUX (1-877-435-3287)
MATCHING STORAGE PEDESTAL*
Island White Pedestal - P/N EPWD15IW
Mediterranean Blue Pedestal - P/N EPWD15MB
Silver Sands Pedestal - P/N EPWD15SS
Turquoise Sky Pedestal - P/N EPWD15TS
Red Hot Red Pedestal - P/N EPWD15RR
Kelly Green Pedestal - P/N EPWD15KG
A storage pedestal accessory, specifically designed for
this washer may be used to elevate the dryer for ease
of use. This pedestal will add about 15” (38.1cm) to the
height of your unit for a total height of 53” (134.62 cm).
*Other colors may be available. Contact the source where you
purchased your washer.
DRYER STACKING KIT
P/N 134700400
Depending on the model you purchased, a kit for stacking
a matching dryer on top of this washer may have been
included in the initial purchase of your dryer. If your
model did not include a stacking kit or you desire another
stacking kit, you may order one.
DRAIN HOSE EXTENSION KIT
P/N 137098000
In order to reach standpipe heights or distances beyond
the reach of the drain hose supplied, order the DRAIN
HOSE EXTENSION KIT.
MOBILE HOME INSTALLATION KIT
P/N 137067200
Installation in a mobile home requires the use of a
MOBILE HOME INSTALLATION KIT.
UNIVERSAL APPLIANCE WRENCH
P/N 137019200
Your washer was supplied with a UNIVERSAL
APPLIANCE WRENCH. If you desire another wrench,
you may order one.
TOUCH UP PAINT PENS
Island White Touch Up Pen - P/N 5304468812
Mediterranean Blue Touch Up Pen - P/N 5304468813
Silver Sands Touch Up Pen - P/N 5304468814
Turquoise Sky Touch Up Pen - P/N 5304468815
Red Hot Red Touch Up Pen - P/N 5304471226
Kelly Green Touch Up Pen - P/N 5304471231
*Other colors may be available. Contact the source where you
purchased your washer.
CAUTION
Failure to use accessories manufactured
by (or approved by) the manufacturer could
result in personal injury, property damage or
damage to the washer.
26.44”
26.44”
(67.16cm)
(67.16cm)
15.00”
15.00”
(38.10cm)
(38.10cm)
27.00”
27.00”
(68.58cm)
(68.58cm)

Installation Instructions
Electrolux Front-Load Washer
Instructions d’installation
Laveuse à chargement frontal Electrolux
Instrucciones de Instalación
Lavadora de carga frontal Electrolux

2Mesures de sécurité importantes
© Electrolux Major Appliances, 2010 Tous droits réservés.
Sachez reconnaître les symboles, les aver-
tissements et les étiquettes de sécurité.
Les mesures de sécurité présentées dans ce guide
sont identifiées par le mot AVERTISSEMENT ou AT-
TENTION selon le type de risque présenté.
Détruisez le carton d'emballage et les sacs en plastique après avoir déballé l'appareil. Les enfants pour-• raient les utiliser pour jouer. Le carton recouvert de tapis, les couvertures et les feuilles de plastique peuvent
être étanches à l'air et provoquer la suffocation. Déposez tous les matériaux d'emballage dans un conteneur
à déchets ou faites en sorte que les enfants ne puissent y avoir accès.
Pour votre sécurité, l’information contenue dans ces instructions doit être suivie afin de réduire les• risques d’incendie ou d’explosion ou pour prévenir les dommages matériels, les blessures ou la mort.
Vous ne devez ni entreposer, ni utiliser d’essence ou d’autres vapeurs ou liquides inflammables à
proximité de cet appareil ou de tout autre appareil électroménager.
Installez l'appareil conformément aux instructions du fabricant et aux codes locaux.•
L’installation électrique de la laveuse doit être conforme aux codes et aux règlements locaux ainsi qu’à la• toute dernière édition du National Electrical Code (ANSI/NFPA 70), ou au Canada, au Code canadien de
l’électricité (C22.1, article 1).
Pour éviter les blessures au dos ou d’autres types de blessure, demandez l’aide d’autres personnes• pour déplacer ou soulever la laveuse.
Ne superposez pas une sécheuse sur une laveuse déjà installée sur un socle. Ne superposez pas une• laveuse sur une sécheuse. Ne superposez pas une laveuse sur une autre laveuse.
Les instructions comprises dans ce guide et toute autre documentation fournie avec cet appareil ne sont• pas conçues pour couvrir toutes les éventualités ou situations qui pourraient survenir. Vous DEVEZ faire
preuve de bon sens et de prudence durant l'installation, l'utilisation et l'entretien de tout appareil ménager.
QUE FAIRE SI VOUS DÉTECTEZ UNE ODEUR DE GAZ :
Ne mettez pas d'appareil en marche.•
Ne touchez à aucun commutateur électrique; n'utilisez aucun téléphone de votre domicile.•
Évacuez la pièce, le bâtiment ou la zone touchée.•
En utilisant le téléphone d'un voisin, appelez immédiatement le fournisseur de gaz. Suivez ses instructions.•
Si vous ne pouvez joindre votre fournisseur de gaz, appelez les pompiers.•
Conservez ces instructions pour vous y reporter ultérieurement.
Ce symbole vous avertit à pro-
pos des situations pouvant causer des dommages
matériels ou des blessures.
Table des matières
Mesures de sécurité importantes................................... 2
Exigences d’installation...............................................3-5
Dimensions de l’installation............................................ 6
Instructions d’installation ..........................................7-11
Inversion de la porte................................................12-17
Options......................................................................... 18
Ce symbole vous avertit à
propos des situations pouvant causer des dommages
matériels, des blessures graves ou même la mort.
AVERTISSEMENT
Pour votre sécurité, l'information contenue dans ces instructions doit être suivie afin de réduire les
risques d'incendie ou d'explosion ou pour prévenir les dommages matériels, les blessures ou la mort.
Vous ne devez ni entreposer, ni utiliser d'essence ou d'autres vapeurs ou liquides inflammables à
proximité de cet appareil ou de tout autre appareil électroménager.
AVERTISSEMENT
RISQUE D’INCENDIE - Lisez toutes les instructions de sécurité suivantes avant d’installer et d’utiliser
votre appareil :
