Electrolux EWF 1287 HDW User manual

EWF 1287 HDW
EWF 1487 HDW
EWF 1687 HDW
EN WASHING MACHINE USER MANUAL 2
RU СТИРАЛЬНАЯ МАШИНА ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ 27

CONTENTS
1. SAFETY INFORMATION...................................................................................... 3
2. SAFETY INSTRUCTIONS.....................................................................................4
3. PRODUCT DESCRIPTION................................................................................... 5
4. CONTROL PANEL............................................................................................... 6
5. PROGRAMMES ..................................................................................................7
6. CONSUMPTION VALUES..................................................................................10
7. OPTIONS...........................................................................................................11
8. SETTINGS......................................................................................................... 13
9. BEFORE FIRST USE..........................................................................................14
10. DAILY USE...................................................................................................... 14
11. HINTS AND TIPS............................................................................................. 17
12. CARE AND CLEANING....................................................................................18
13. TROUBLESHOOTING......................................................................................22
14. TECHNICAL DATA...........................................................................................24
15. EMERGENCY DOOR OPENING...................................................................... 25
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can be
safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2

1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Do not let children play with the appliance.
•Keep all packaging away from children.
•Keep all detergents away from children.
•Keep children and pets away from the appliance door
when it is open.
•If the appliance has a child safety device, we
recommend you activate it.
•Cleaning and user maintenance shall not be made by
children without supervision.
1.2 General Safety
•Do not change the specification of this appliance.
•Obey the maximum load volume of 8 kg (refer to the
“Programme chart” chapter).
•The operating water pressure (minimum and maximum)
must be between 0,5 bar (0,05 MPa) and 8 bar (0,8
MPa).
•The ventilation openings in the base (if applicable) must
not be obstructed by a carpet.
•The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
ENGLISH 3

•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
•Before maintenance, deactivate the appliance and
disconnect the mains plug from the mains socket.
•Do not use water spray and steam to clean the
appliance.
•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging and the
transit bolts.
• Keep the transit bolts. When you move
the appliance again you must block the
drum.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Do not install or use the appliance
where the temperature is less than 0
°C or where it is exposed to the
weather.
• Make sure that the floor where you
install the appliance is flat, stable, heat
resistant and clean.
• Do not install the appliance where the
appliance door can not be fully
opened.
• Make sure that there is air circulation
between the appliance and the floor.
• Adjust the feet to have the necessary
space between the appliance and the
carpet.
• Do not install the appliance where the
appliance door can not be fully
opened.
2.2 Electrical Connection
• The appliance must be earthed.
• Always use a correctly installed
shockproof socket.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by
our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not touch the mains cable or the
mains plug with wet hands.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Only for UK and Ireland: The appliance
has a 13 amp mains plug. If it is
necessary to change the fuse in the
mains plug, use a 13 amp ASTA (BS
1362) fuse.
• This appliance complies with the E.E.C.
Directives.
2.3 Water connection
• Make sure not to cause damage to the
water hoses.
• Before you connect the appliance to
new pipes or pipes not used for a long
time, let the water flow until it is clean.
• The first time you use the appliance,
make sure that there is no leakage.
www.electrolux.com4

2.4 Use
WARNING!
Risk of injury, electrical
shock, fire, burns or damage
to the appliance.
• Use this appliance in a household only.
• Obey the safety instructions on the
detergent packaging.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Make sure that you remove all metal
objects from the laundry.
• Do not put a container to collect
possible water leakage under the
appliance. Contact the Authorised
Service Centre to ensure which
accessories can be used.
• Do not touch the glass of the door
while a programme operates. The
glass can be hot.
2.5 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
3. PRODUCT DESCRIPTION
3.1 Appliance overview
1
2
3
5
6
7
4
1Worktop
2Detergent dispenser
3Control panel
4Door handle
5Rating plate
6Drain pump filter
7Feet for the appliance level
3.2 How to activate the child
safety device
This device prevents children or pets to be
closed in the drum.
Turn the device clockwise, until the groove
is horizontal.
You cannot close the door. To close the door, turn the device
anticlockwise until the groove is vertical.
3.3 Fixing plate kit (4055171146)
Available from your authorized dealer.
ENGLISH 5

If you install the appliance on a plinth,
secure the appliance in the fixing plates.
Read carefully the instructions supplied
with the kit.
4. CONTROL PANEL
4.1 Control panel description
Jeans
Delicates
Synthetics
Cottons
Rinse
Duvet
Spin/Drain
Sports
14 Min.
AutoOff
Refresh
Synthetics
Cottons
Wool/Handwash
TimeManager
MyFavourite Start/Pause
Extra Rinse
Delay Start
Easy Iron
Prewash
Temperature
Spin
Cottons Eco
53 4
1012 11
8
7
9
6
1 2
1On Off button (On/Off)
2Programme knob
3Spin reduction touchpad (Spin)
4Temperature touchpad
(Temperature)
5Display
6Prewash touchpad (Prewash)
7Delay start touchpad (Delay Start)
8Extra rinse touchpad (Extra Rinse)
9Easy iron touchpad (Easy Iron)
10 Start/Pause touchpad (Start/
Pause)
11 Time Manager touchpads
(Time Manager)
12 Favourite programme touchpad
(My favourites)
4.2 Display
A B C D E
FGHJ IK
www.electrolux.com6

A) The Temperature area:
: Temperature indicator
: Cold water indicator
B) : Maximum laundry load1
C) : Time Manager indicator
D) The time area:
•: The programme duration
• : The delay start
• : The alarm codes
• : The message of error
•: Programme is completed.
E) : The delay start indicator
F) : The permanent extra rinse
indicator
G) : The indicator of the child lock
H) : The door locked indicator
• You cannot open the appliance
door when the symbol is on.
• You can open the door only when
the symbol goes off.
I) Washing indicators:
• : The washing phase
• : The rinses phase
• : The spin phase
• : The steam phase
When a programme is
set, all the indicators of
the phases related to the
programme come on.
When the programme
starts, only the indicator
of the phase in operation
flashes. When a phase is
complete the indicator of
the phase remains on.
When the programme is
completed, the symbol of
the last phase is on.
J) : The Eco Info indicator
K) The spin area:
• : The spin speed indicator
• : The no spin indicator
• : The Rinse Hold indicator
• : The Extra Silent indicator
5. PROGRAMMES
5.1 Programme Chart
Programme
Temperature
range
Programme description
Maximum spin speed
Washing programmes
Cottons
90°C - Cold
White cotton and coloured cotton. Normal soil and light soil.
8 kg
1200 rpm for model EWF1287HDW; 1400 rpm for model
EWF1487HDW; 1600 rpm for model EWF1687HDW
Cottons Eco1)
60°C - 40°C
White cotton and colour-fast cotton. Normal soil. The energy
consumption decreases and the time of the washing programme
is extended.
8 kg
1200 rpm for model EWF1287HDW; 1400 rpm for model
EWF1487HDW; 1600 rpm for model EWF1687HDW
1 Visible only when the door is open.
ENGLISH 7

Programme
Temperature
range
Programme description
Maximum spin speed
Synthetics
60°C - Cold
Synthetic items or mixed fabric items. Normal soil.
4 kg
1200 rpm for model EWF1287HDW; 1200 rpm for model
EWF1487HDW; 1200 rpm for model EWF1687HDW
Delicates
40°C - Cold
Delicate fabrics as acrylics, viscose, polyester items. Nor-
mal soil.
4 kg
1200 rpm for model EWF1287HDW; 1200 rpm for model
EWF1487HDW; 1200 rpm for model EWF1687HDW
Wool/Hand-
wash
40°C - Cold
Machine washable wool, hand washable wool and delicate
fabrics with «hand washing» care symbol.2)
2 kg
1200 rpm for model EWF1287HDW; 1200 rpm for model
EWF1487HDW; 1200 rpm for model EWF1687HDW
Jeans
60°C - Cold
Items in denim and jersey. Also for dark coloured items.
8 kg
1200 rpm for model EWF1287HDW; 1200 rpm for model
EWF1487HDW; 1200 rpm for model EWF1687HDW
Rinse To rinse and spin the laundry. All fabrics.
8 kg
1200 rpm for model EWF1287HDW; 1400 rpm for model
EWF1487HDW; 1600 rpm for model EWF1687HDW
Spin/Drain3) To spin the laundry and to drain the water in the drum. All fab-
rics.
8 kg
1200 rpm for model EWF1287HDW; 1400 rpm for model
EWF1487HDW; 1600 rpm for model EWF1687HDW
Duvet
60°C - 30°C
Special programme for one synthetic blanket, duvet, bed-
spread and so on.
3 kg
800 rpm
Sports
30°C
Synthetic and delicate items. Light soil items or items to re-
fresh.
2.5 kg
800 rpm
14 Min.
30°C
Synthetic and mixed fabric items. Light soil and items to fresh-
en up.
1.5 kg
800 rpm
www.electrolux.com8

Programme
Temperature
range
Programme description
Maximum spin speed
Steam programmes4)
Steam can be used for dried, washed or worn once laundry. These programmes can
reduce creases and odours and make your laundry more soft.
Do not use any detergent. If necessary, remove stains by washing or using localized
stain removal.
Steam programmes do not perform any hygienic cycle.
Do not set a Steam programme with these types of items:
• items where it is not specified on the care label as being suitable for tumble drying.
• all items with plastic, metal, wooden parts or alike.
Steam Re-
fresh
40°C
Steam programme for cotton and synthetic items. This cycle
removes odours from the laundry.5)
1.5 kg
Steam Syn-
thetics
40°C
Steam programme for synthetic items. This cycle helps to dew-
rinkle the laundry.
1.5 kg
Steam Cot-
tons
40°C
Steam programme for cottons. This cycle helps to dewrinkle the
laundry.
1.5 kg
1) Cottons energy saving programme. This programme at a 60ºC with a load of 8 is the refer-
ence programme for data entered in the energy label, in compliance with EEC 92/75 stand-
ards. Set this programme to have a good washing results and decrease the energy consump-
tion. The time of the washing programme is extended.
2) During this cycle the drum rotates slowly to ensure a gentle washing. It can seem that the
drum doesn't rotate or doesn't rotate properly. Consider this as a normal functioning of the ap-
pliance.
3) Set the spin speed. Make sure it agrees with the laundry. If you set No Spin option the only
drain phase is available.
4) If you set a Steam programme with dried laundry, at the end of the cycle the laundry could
be humid. It is better to expose the items to the fresh air for about 10 minutes to let the humid-
ity dry. When the programme is completed, quickly remove the laundry from the drum. After a
steam cycle, items may to be ironed anyway, but with less effort!
5) Steam does not remove animal odours.
Programme options compatibility
Programme
■ ■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■
ENGLISH 9

Programme
■ ■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■
1) ■ ■ ■
■ ■
■ ■ ■
■ ■ ■ ■
1) Set the spin speed. Make sure it agrees with the laundry. If you set No Spin option the only
drain phase is available.
6. CONSUMPTION VALUES
The data of this table are approximate. Different causes can change the
data: the quantity and type of laundry, the water and ambient temperature.
At programme start the display shows the duration programme for the
maximum load capacity. During the washing phase the programme dura-
tion is automatically calculated and can be greatly reduced if the laundry
load is lower than the maximum load capacity (e.g. Cotton 60°C, maxi-
mum load capacity 8 kg, the programme duration exceeds 2 hours; real
load 1 kg, the programme duration don’t reach 1 hour). When the appli-
ance is calculating the real programme duration a dot blinks in the display.
Pro-
grammes
Load
(kg)
Energy
con-
sump-
tion
(kWh)
Water
con-
sump-
tion (li-
tre)
Approxi-
mate
pro-
gramme
duration
(mi-
nutes)
Remaining moisture (%)1)
EWF128
7HDW
EWF148
7HDW
EWF168
7HDW
Cottons 60
°C 8 1.60 72 168 53 52 44
www.electrolux.com10

Pro-
grammes
Load
(kg)
Energy
con-
sump-
tion
(kWh)
Water
con-
sump-
tion (li-
tre)
Approxi-
mate
pro-
gramme
duration
(mi-
nutes)
Remaining moisture (%)1)
Cottons
Eco 60
°C2)
8 0.88 57 208 53 52 44
Cottons 40
°C 8 1.00 72 164 53 52 44
Synthetics
40 °C 4 0.60 50 110 35 35 35
Delicates
30 °C 4 0.70 60 91 35 35 35
Wool/
Handwash
30 °C
2 0.35 57 58 30 30 30
1) At the end of spin phase.
2) Cottons Eco at 60°C with a load of 8 kg is the reference programme for the data entered in
the energy label, in compliance with EEC 92/75 standards.
Off Mode (W) Left On Mode (W)
0,05 0,05
The information given in the chart above are in compliance with the EU Commission
regulation 1015/2010 implementing directive 2009/125/EC.
7. OPTIONS
7.1 Temperature
Set this option to change the default
temperature.
Indicator = cold water.
The display shows the set temperature.
7.2 Spin
With this option you can decrease the
default spin speed.
The display shows the indicator of the set
speed.
Additional spin options:
No Spin
• Set this option to remove all spin
phases.
• Set it for very delicate fabrics.
• The rinse phase uses more water for
some washing programmes.
• The display shows the indicator .
Rinse Hold
• Set this option to prevent the laundry
creases.
• The washing programme stops with
the water in the drum. The drum turns
regularly to prevent the laundry
creases.
• The door stays locked. You must drain
the water to unlock the door.
• The display shows the indicator .
ENGLISH 11

To drain the water refer to ‘At
the end of the programme’.
Extra Silent
• Set this option to remove all spin
phases and to perform a silent
washing.
• The rinse phase uses more water for
some washing programmes.
• The washing programme stops with
the water in the drum. The drum turns
regularly to prevent the laundry
creases.
• The door stays locked. You must drain
the water to unlock the door.
• The display shows the indicator .
To drain the water refer to ‘At
the end of the programme’.
7.3 Prewash
With this option you can add a prewash
phase to a washing programme.
Use this option for heavy soil.
When you set this option the programme
duration increases.
The related indicator comes on.
7.4 Easy Iron
The appliance carefully washes and spins
the laundry to prevent the creases.
The appliance decreases the spin speed,
uses more water and adapts the
programme duration to the type of
laundry.
The related indicator comes on.
7.5 Delay Start
With this option you can delay the start of
a programme from 30 minutes to 20
hours.
The display shows the related indicator.
7.6 Extra Rinse
With this option you can add some rinses
to a washing programme.
Use this option for persons allergic to
detergents and in areas where the water is
soft.
The related indicator comes on.
7.7 Time Manager
When you set a washing programme, the
display shows the default duration.
Press or to decrease or increase
the programme duration.
The Time Manager is available only with
the programmes in the table.
In-
di-
ca-
tor
1) 1)
2) ■ ■ ■
■■■ ■ ■
■ ■ ■
■ ■ ■ ■ ■ ■
■ ■ ■
■3) ■3) ■ ■3) ■
■ ■ ■
4) ■ ■ ■3) ■3) ■■3)
1) If available.
2) Shortest: to fresh the laundry.
3) Programme default duration.
4) Longest: Increasing the programme dura-
tion gradually decreases the energy con-
sumption. The optimized heating phase
saves energy and the longer duration main-
tains the same washing results (specially for
normal soil).
Eco Info
The Eco Info stripes (available only in
cotton and synthetics programmes) show
the efficiency of the washing programme
in terms of energy saving:
www.electrolux.com12

• 6 stripes: the most efficient setting to
optimize the washing programme
performance.
• 1 stripe: the less efficient setting.
The number of Eco Info stripes changes if
you modify the duration of the washing
programme (refer to Time Manager), the
washing temperature and the laundry
weight. To optimize the washing
programme performance, the stripe
number must increase:
• If you increase the programme
duration, the Eco Info stripes
increases. The increasing the washing
programme duration allows a constant
performance that reduces the energy
consumption.
• If you decrease the washing
temperature, the Eco Info stripes
increases.
Some advices to have the most
efficient setting:
• Set the Time Manager indicators or
.
• Set the possible lower washing
temperature.
• Do not set the Prewash option.
7.8 My favourites
With this option you can memorise your
favourite programme and options.
It is not possible to memorise the delay
start option with MyFavourite.
How to memorise a programme
1. Press the button to activate the
appliance.
2. Set the programme and the options
that you want to memorise.
3. Press MyFavourite until the display
shows the text “MEM”.
How to set the memorised
programme
1. Press the button to activate the
appliance.
2. Press shortly MyFavourite.
The delay start is not
memorised.
8. SETTINGS
8.1 Child Lock
With this option you can prevent that the
children play with the control panel.
• To activate/deactivate this option,
press and at the same time
until the indicator comes on/goes
off.
You can activate this option:
• After you press : the options and
the programme knob are locked.
• Before you press : the appliance
cannot start.
8.2 Permanent Extra Rinse
With this option you can permanently have
an extra rinse when you set a new
programme.
• To activate/deactivate this option
press and at the same time
until the indicator comes on/goes
off.
8.3 Acoustic signals
The acoustic signals operate when:
• The programme is completed.
• The appliance has a malfunction.
To deactivate/activate the acoustic
signals, press and at the same
time for 6 seconds.
If you deactivate the acoustic
signals, they continue operate
when the appliance has a
malfunction.
ENGLISH 13

9. BEFORE FIRST USE
1. Put a small quantity of detergent in the
compartment for washing phase.
2. Set and start a programme for cotton
at the highest temperature without
laundry.
This removes all possible dirt from the
drum and the tub.
10. DAILY USE
WARNING!
Refer to Safety chapters.
10.1 Loading the laundry
1. Open the appliance door
2. Put the laundry in the drum, one item
at a time.
3. Shake the items before you put them
in the appliance.
Make sure not to put too much laundry in
the drum.
4. Close the door.
CAUTION!
Make sure that no laundry stays between
the seal and the door. There is a risk of
water leakage or damage to the laundry.
10.2 Using detergent and
additives
1. Measure out the detergent and the
fabric conditioner.
2. Carefully close the detergent drawer
10.3 Detergent compartments
CAUTION!
Use only specified detergents for washing machine.
Always obey the instructions that you find on the packaging of the detergent
products.
Detergent compartment for prewash phase.
Detergent compartment for washing phase.
www.electrolux.com14

Compartment for liquid additives (fabric conditioner, starch).
Flap for powder or liquid detergent.
10.4 Liquid or powder detergent
1.
A
2.
3.
B
4.
• Position A for powder detergent (factory setting).
• Position B for liquid detergent.
When you use the liquid detergent:
• Do not use gelatinous or thick liquid detergents.
• Do not put more liquid then the maximum level.
• Do not set the prewash phase.
• Do not set the delay start.
10.5 Activating the appliance
Press the button to activate or
deactivate the appliance. A tune sounds
when the appliance is activated.
10.6 Setting a programme
1. Turn the programme knob and set the
programme:
• The related programme indicator
comes on.
• The indicator of the flashes.
• The display shows the level of the
Time Manager, the programme
duration and the indicators of the
programme phases.
2. If necessary, change the temperature,
the spin speed, the cycle duration or
add available options. When you
ENGLISH 15

activate an option, the indicator of the
set option comes on.
If you set something
incorrect, the display shows
the message .
10.7 Starting a programme
without the delay start
Press .
• The indicator of stops to flash
and stays on.
• The indicator starts to flash on
the display.
• The programme starts, the door
locks, the display shows the
indicator .
• The drain pump can operate for a
short time when the appliance fills
water.
After approximately 15
minutes from the start of the
programme:
• The appliance adjusts
automatically the
programme duration
agree with the laundry
load.
• The display shows the
new value.
10.8 Starting a programme with
the delay start
1. Press again and again until the
display shows the delay you want to
set.
The related indicator comes on the
display.
2. Press :
• The appliance starts the
countdown.
• When the countdown is
completed, the programme starts
automatically.
You can cancel or change
the set of the delay start
before you press the . To
cancel the delay start:
• Press to set the
appliance to pause.
• Press until the
display shows '.
• Press again to
start the programme
immediately.
10.9 Interrupting a programme
and changing the options
You can change only some options before
they operate.
1. Press .
The indicator flashes.
2. Change the options.
3. Press again.
The programme continues.
10.10 Cancelling a running
programme
1. Press the button for some seconds
to cancel the programme and to
deactivate the appliance.
2. Press the same button again to
activate the appliance. Now, you can
set a new washing programme.
Before starting the new
programme the appliance
could drain the water. In this
case, make sure that the
detergent is still in the
detergent compartment, if
not fill the detergent again.
10.11 Opening the door
CAUTION!
If the temperature and level of
the water in the drum are too
high and the drum still
rotates, you cannot open the
door.
www.electrolux.com16

While a programme or the delay start
operates, the appliance door is locked
and the display shows the indicator .
Open the appliance door when the
programme or the delay start
operates:
1. Press to pause the appliance.
2. Wait until the door lock indicator
goes off.
3. Open the door.
4. Close the door and press again .
The programme or delay start continues
to operate.
10.12 At the end of the
programme
• The appliance stops automatically.
• The acoustic signal operates (if it is
activated).
• In the display comes on.
• The indicator of theStart/Pause goes
off.
• The door lock indicator goes off.
• You can open the door.
• Remove the laundry from the
appliance. Make sure that the drum is
empty.
• Close the water tap.
• Press the button On/Off for some
seconds to deactivate the appliance.
• Keep the door ajar, to prevent the
mildew and odours.
The washing programme is
completed, but there is water in the
drum:
• The drum turns regularly to prevent the
creases in the laundry.
• The door lock indicator is on. The
door stays locked.
• You must drain the water to open the
door.
To drain the water:
1. Press .
The appliance drains the water and spins.
2. To make the appliance drain only, set
. If necessary, decrease the
spin speed.
3. When the programme is completed
and the door lock indicator goes
off, you can open the door.
4. Press the button On/Off for some
seconds to deactivate the appliance.
The appliance drains and
spins automatically after
approximately 18 hours
(except for Wool programme).
10.13 AUTO OFF option
The AUTO OFF option automatically
deactivates the appliance to decrease the
energy consumption when:
• You do not use the appliance for 5
minutes before you press .
Press the button to activate the
appliance again.
• After 5 minutes from the end of the
washing programme
Press the button to activate the
appliance again.
The display shows the end of the last
set programme.
Turn the programme knob to set a new
cycle.
11. HINTS AND TIPS
11.1 The laundry load
• Divide the laundry in: white, coloured,
synthetics, delicates and wool.
• Obey the washing instructions that are
on the laundry care labels.
• Do not wash together white and
coloured items.
• Some coloured items can discolour
with the first wash. We recommend
that you wash them separately for the
first times.
• Button up pillowcases, close zippers,
hooks and poppers. Tie up belts.
• Empty the pockets and unfold the
items.
• Turn inside out multilayered fabrics,
wool and items with painted
illustrations.
• Remove hard stains.
ENGLISH 17

• Wash with a special detergent heavy
soil stains.
• Be careful with the curtains. Remove
the hooks or put the curtains in a
washing bag or pillowcase.
• Do not wash in the appliance laundry
without hems or with cuts. Use a
washing bag to wash small and/or
delicate items (e.g. underwired bras,
belts, tights, etc. ).
• A very small load can cause balance
problems with the spin phase. If this
occurs, adjust manually the items in
the tub and start the spin phase again.
11.2 Stubborn stains
For some stains, water and detergent is
not sufficient.
We recommend that you remove these
stains before you put the items in the
appliance.
Special stain removers are available. Use
the special stain remover that is applicable
to the type of stain and fabric.
11.3 Detergents and additives
• Only use detergents and additives
specially made for washing machines:
– powder detergents for all types of
fabric,
– powder detergents for delicate
fabrics (40 °C max) and woollens,
– liquid detergents, preferably for low
temperature wash programmes (60
°C max) for all types of fabric, or
special for woollens only.
• Do not mix different types of
detergents.
• To help the environment, do not use
more than the correct quantity of
detergent.
• Obey the instructions that you find on
the on packaging of these products.
• Use the correct products for the type
and colour of the fabric, the
programme temperature and the level
of soil.
• If your appliance has not the detergent
dispenser with the flap device, add the
liquid detergents with a dosing ball
(supplied by the detergent's
manufacturer).
11.4 Ecological hints
• Set a programme without the prewash
phase to wash laundry with normal soil.
• Always start a washing programme
with the maximum load of laundry.
• If necessary, use a stain remover when
you set a programme with a low
temperature.
• To use the correct quantity of the
detergent, check the water hardness of
your domestic system
11.5 Water hardness
If the water hardness in your area is high
or moderate, we recommend that you use
a water softener for washing machines. In
areas where the water hardness is soft it is
not necessary to use a water softener.
To know the water hardness in your area,
contact your local water authority.
Use the correct quantity of the water
softener. Obey the instructions that you
find on the packaging of the product.
12. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
12.1 External cleaning
Clean the appliance only with soap and
warm water. Fully dry all the surfaces.
CAUTION!
Do not use alcohol, solvents
or chemical products.
12.2 Descaling
If the water hardness in your area is high
or moderate, we recommend that you use
a water descaling product for washing
machines.
Regularly examine the drum to prevent
limescale and rust particles.
To remove rust particles use only special
products for washing machine. Do this
separately from the laundry wash.
www.electrolux.com18

Always obey the instructions
that you find on the
packaging of the product.
12.3 Maintenance wash
With the low temperature programmes it is
possible that some detergent stays in the
drum. Make regularly a maintenance
wash. To do this:
• Remove the laundry from the drum.
• Set the cotton programme with the
highest temperature with a small
quantity of detergent.
12.4 Door seal
Regularly examine the seal and remove all
objects from the inner part.
12.5 Cleaning the detergent dispenser
1.
1
2
2.
3. 4.

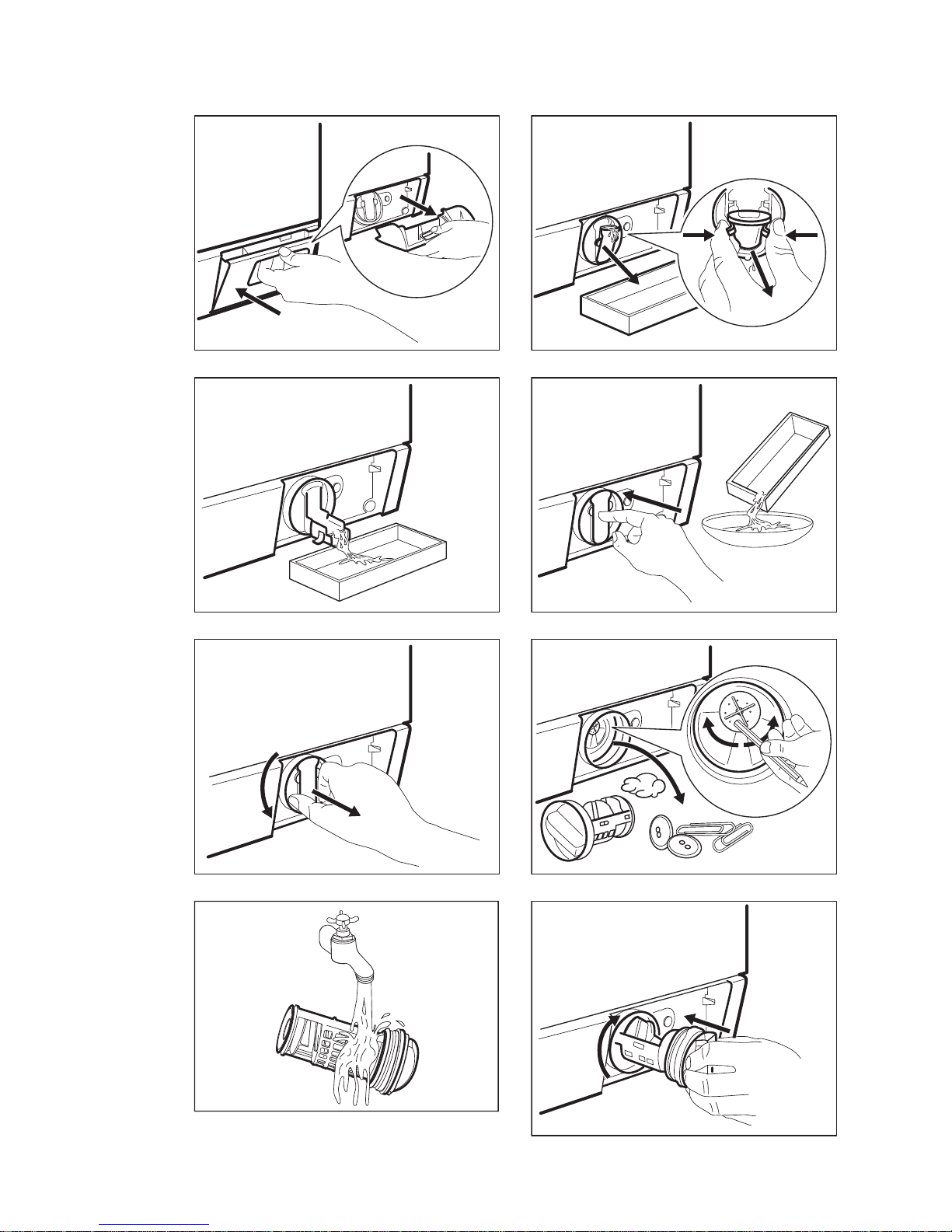

12.6 Cleaning the drain filter
WARNING!
Do not clean the drain filter if
the water in the appliance is
hot.
ENGLISH 19

1.
1
2
2.
2
11
3. 4.
12
5.
12
6.
7. 8.
1
2
www.electrolux.com20
