Electrolux EWF1141SESA User manual

EWF1141SESA
EN WASHING MACHINE
Depdag No. I.14.EI1.02943.0619
MESIN CUCI
USER MANUAL
PANDUAN BAGI PENGGUNA
WI-FI CONNECTIVITY SETUP
SETELAN KONEKSI WI-FI
2
50
48
97
IN

2 www.electrolux.com
Visit our website to:
Warning / Caution-Safety information. General information and tips
Environmental information.
Subject to change without notice.
CUSTOMER CARE AND SERVICE
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings
with it decades of professional experience and innovation. Ingenious and stylish, it has
been designed with you in mind. So whenever you use it, you can be safe in the
knowledge that you’ll get great results every time. Welcome to Electrolux.
We recommend the use of original spare parts.When contacting Service, ensure that
you have the following data available. The information can be found on the rating plate.
Model, PNC, Serial Number.
Adherence to the directions for use in this manual is extremely important for health and
safety. Failure to strictly adhere to the requirements in this manual may result in personal
injury, property damage and affect your ability to make a claim under the Electrolux
manufacturer’s warranty provided with your product. Products must be used, installed and
operated in accordance with this manual. You may not be able to claim on the Electrolux
manufacturer’s warranty in the event that your product fault is due to failure to adhere to
this manual.
IMPORTANT INFORMATION THAT MAY IMPACT YOUR
MANUFACTURER’S WARRANTY
WE’RE THINKING OF YOU
Get usage advice, brochures, trouble shooter, service information, buy accessories &
spare parts, online product registration : www.electrolux.com

ENGLISH 3
CONTENTS
1. SAFETY INFORMATION ........... 4
1.1 Conditions Of Use ..................... 4
1.2 Child Safety............................... 5
1.3 General Safety .......................... 5
1.4 Installation ................................. 6
1.5 Use............................................ 6
2. PRODUCT DESCRIPTION ............. 7
2.1 Parts.......................................... 7
2.2 Accessories ............................... 8
2.3 Load Sensor.............................. 9
2.4 The Autodose Technology
(Autodosing)............................ 10
3. CONTROL PANEL......................... 11
3.1 Control Panel Description ....... 11
3.2 Program Chart......................... 12
3.3 Program Options Compatibility 14
3.4 Options.................................... 14
3.5 Settings ................................... 17
3.6 Start/Pause ( ) and
Add Clothes ( ) Touchpad ... 18
4. BEFORE FIRST USE.................... 18
5. DAILY USE .................................... 19
5.1 Loading The Laundry .............. 19
5.2 Detergent Dispenser With
Autodose Tanks And Manual
Compartments......................... 19
5.3 Options Setting........................ 25
5.4 Starting A Cycle ( ) .............. 26
5.5 Interruption Of A Program ....... 26
5.6 Changing A Program ............... 26
5.7 Changing The Options ............ 26
5.8 Opening The Door................... 26
5.9 At The End Of The Program.... 27
5.10 When The Washing Program
Is Completed, But There Is
Water In The Drum................ 27
5.11 AUTO Off Mode ..................... 27
6. WASHING HINTS.......................... 28
6.1 Sorting The Laundry................ 28
6.2 Temperatures .......................... 28
6.3 Before Loading The Laundry... 28
6.4 Maximum Loads...................... 28
6.5 Removing Stains ..................... 28
6.6 Detergents Type And Quantity
Of Detergent............................ 29
7. INTERNATIONAL WASH CODE
SYMBOLS .................................... 30
8. CARE AND CLEANING................. 31
8.1 External Cleaning.................... 31
8.2 Descaling ................................ 31
8.3 After Each Wash...................... 31
8.4 Maintenance Wash With
“Tub Clean” Program............... 31
8.5 Cleaning The Detergent
Dispenser And The Autodose
Tanks....................................... 31
8.6 Cleaning The Pump................. 33
8.7 Cleaning The Water Inlet Filter. 35
8.8 Frost Precautions .................... 37
9. TROUBLESHOOTING .................. 38
9.1 Possible Failures..................... 38
9.2 Emergency Door Opening....... 41
10. TECHNICAL DATA ...................... 42
11. INSTALLATION............................ 42
11.1 Unpacking.............................. 42
11.2 Positioning ............................. 44
11.3 Water Inlet ............................. 45
11.4 Water Drainage ..................... 45
11.5 Electrical Connection............. 47
12. ENVIRONMENT CONCERNS .... 47
12.1 Packaging Materials.............. 47
12.2 Old Machine .......................... 47
12.3 Ecological Hints..................... 47
13. WI-FI CONNECTIVITY SETUP 48
13.1 Installing and conguring
“Electrolux Life” App. ............. 48
13.2 Remote Start ..................... 49

4 www.electrolux.com
In the interest of your safety and to ensure the correct
use, before installing and first using the appliance, read
this user manual carefully, including its hints and
warnings.
This appliance is intended to be used in household and
similar applications such as:
farm houses;
by clients in hotels, motels, and other residential type
environments;
To avoid unnecessary mistakes and accidents, it is
important to ensure that all people using the appliance
are thoroughly familiar with its operation and safety
features.
Save these instructions and make sure that they remain
with the appliance if it is moved or sold, so that everyone
using it through its life will be properly informed on
appliance use and safety.
●
bed and breakfast type environtments;
●
areas for communal use in blocks of flats or in
launderettes.
●
staff kitchen areas in shops, offices and other working
environtment;
●
●
WARNING! The appliance must not be supplied
through an external switching device, such as timer,
or connected to a circuit that is regularly switched on
and off by utility.
1. SAFETY INFORMATION
1.1 Conditions Of Use

ENGLISH 5
●
●
●
●
This washing machine is not intended for use by
young children or infirm persons without supervision.
Young children should be supervised to ensure that
they do not play with the appliance.
The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children - danger of
suffocation! Keep them out of children’s reach.
Keep all detergents in a safe place out of children’s
reach.
It is dangerous to alter the specifica-
tions or attempt to modify this product
in any way.
During high temperature wash
program the door glass may get hot.
Do not touch it!
Make sure that small pets do not
climb into the drum. To avoid this,
please check inside the drum before
using the appliance.
Any objects such as coins, safety
pins, nails, screws, stones or any
other hard, sharp material can cause
extensive damage and must not be
placed into the machine.
Only use manufacturer’s
recommended quantities of fabric
softener and detergent. Damage to
the fabric or appliance can occur if
you exceed the recommended
amount.
Wash small items such as socks,
laces, washable belts etc in a
washing bag or pillow case as it is
possible for such items to slip down
between the tub and the inner drum.
Do not use your washing machine to
wash articles with whalebones,
material without hems or torn
material.
Make sure that children or pets do not climb into the
drum.
This machine is provided with child safety lock option
( ) to prevent children playing with the control panel.
●
●
●●
●
●
●
●
●
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
Always unplug the appliance and turn
off the water supply after use, clean
and maintenance.
●
●
1.2 Child Safety
1.3 General Safety
(see page 17)

6 www.electrolux.com
Never use the washing machine if
the power supply cable, the control
panel, the working surface or the
base are damaged so that the inside
of the washing machine is accessi-
ble.
This appliance is heavy. Care should
be taken when moving it.
When unpacking the appliance, check
that it is not damaged. If in doubt, do
not use it and contact the Service
Centre.
All packing and transit bolts must be
removed before use. Serious damage
can occur to the product and to
property if this is not adhered to. See
relevant section in the user manual.
Under no circumstances should you
attempt to repair the machine
yourself. Repairs carried out by
inexperienced persons may cause
injury or serious malfunctioning.
Contact your local Service Centre.
Always insist on genuine spare parts.
After having installed the appliance,
check that it is not standing on the
inlet and drain hose and the worktop
is not pressing the electrical supply
cable.
If the appliance is installed on a
carpeted floor, please adjust the feet
in order to allow air to circulate freely.
Always be sure, that there is no water
leakage from hoses and their
connections after the installation.
Any plumbing work required to install
this appliance should be carried out
by a qualified plumber.
Any electrical work required to install
this appliance should be carried out
by a qualified electrician.
Only wash fabrics which are
designed to be machine washed.
Follow the instructions on each
garment label.
Do not overload the appliance. See
the relevant section in the user
manual.
Before washing, ensure that all
pockets are empty and buttons and
zips are fastened. Avoid washing
frayed or torn articles and treat stains
such as paint, ink, rust, and grass
before washing.
Garments which have been in
contact with volatile petroleum
products should not be machine
washed. If volatile cleaning fluids are
used, care should be taken to ensure
that the fluid is removed from the
garment before placing in the
machine.
Never pull the power supply cable to
remove the plug from the socket;
always take hold of the plug itself.
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
May cause electric shock! if the
machine is not connected to an
earthed/ground system. DO NOT
touch the wet clothes and metal
parts.
For safety reasons do not use
double adaptors, extension
cords and multi-plug adapters.
1.4 Installation 1.5 Use

ENGLISH 7
Detergent/Softener
Dispenser
Cabinet
Front Panel
Door
Drain Pump Filter
Level Adjustment
Feet (Front)
Level Adjustment
Feet (Back)
Water Inlet Hose
Transit Bolts &
Hose Support
Transit Bolts &
Hose Support
Mains Cable
Water Drain Hose
Worktop
Control Panel
Transit Bolts

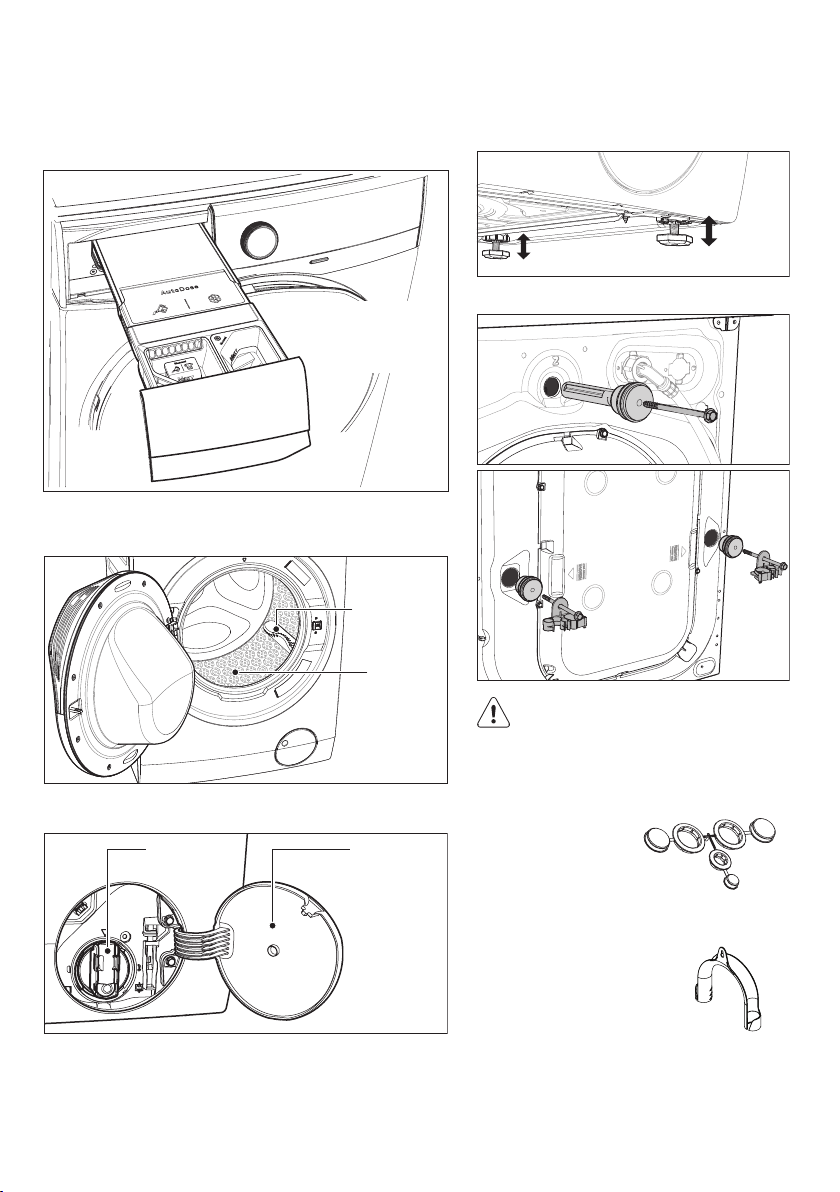

2.1 Parts
2. PRODUCT DESCRIPTION
(see page 19) (see page 11)
(see page 33)
(see page 45)
(see page 45)

8 www.electrolux.com
Drain Pump
Filter Door
Drain Pump
Filter

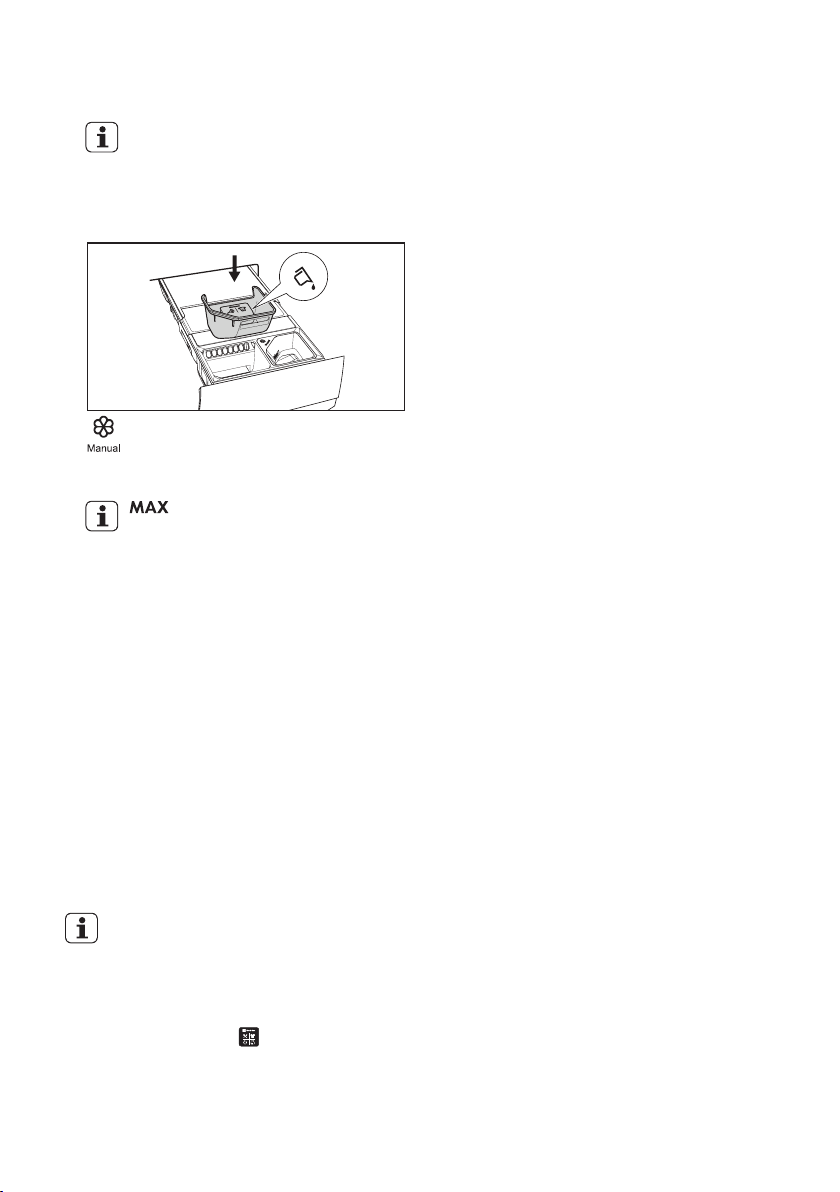

Detergent dispenser with AutoDose tanks and manual
compartments
Transit Bolt (when remove)
Transit bolts must be removed
before using the appliance.
Drain Pump Filter (when open)
Level Adjustment Feet
Drum Lifter
Stainless
Steel
Washing
Drum
Door (when open)
for more informations
For more
informations
(see page 19)
, see page 19
2.2 Accessories
Plastic Caps
To close the holes
on the rear side of
the cabinet after the
removal of the transit
bolts.
Plastic Hose Guide
To connect the drain hose
on the edge of a sink.

ENGLISH 9
Drain Pump
Filter Door
Drain Pump
Filter
Detergent dispenser with AutoDose tanks and manual
compartments
Transit Bolt (when remove)
Transit bolts must be removed
before using the appliance.
Drain Pump Filter (when open)
Level Adjustment Feet
Drum Lifter
Stainless
Steel
Washing
Drum
Door (when open)
for more informations
For more
informations
ENGLISH 9

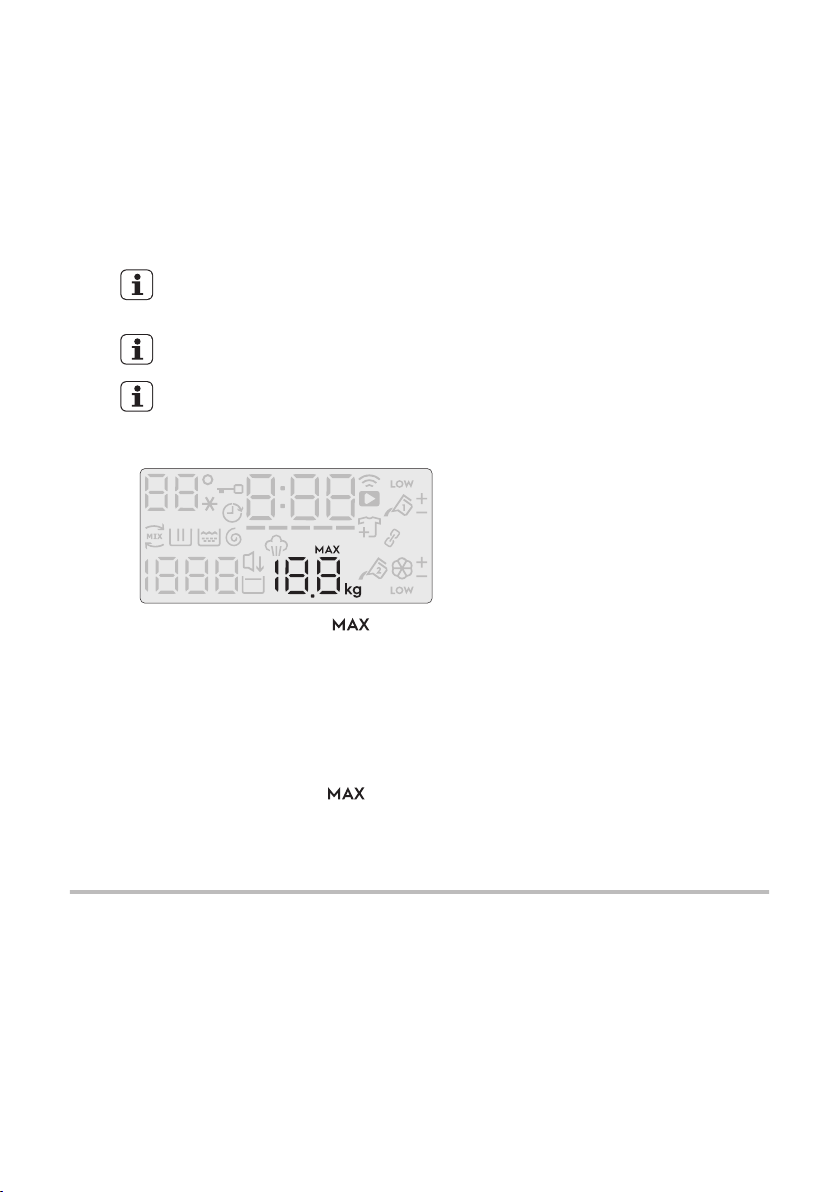

This machine has “Load Sensing Device”
which shows how much load you put in
the machine and maximum load
recommended for selected wash
program.
The weight shown on display is
an approximate weight only.
For correct operation of the load
sensor, activate the appliance
and set a wash program BEFORE
loading the laundry in the drum.
The display shows these
indicators when the door is
open.
2.3 Load Sensor
–The display will show “ ” when
max limit is reached for selected
program.
–On the display, the weight of the
laundry updates by 0.5 kg steps.
–The weight is a general indication that
changes with the type of the laundry.
–If you exceed the max weight limit of a
program, the symbol “ ” will start
ashing if the load in the drum is more
than recommended load, even after
the door is closed.

10 www.electrolux.com

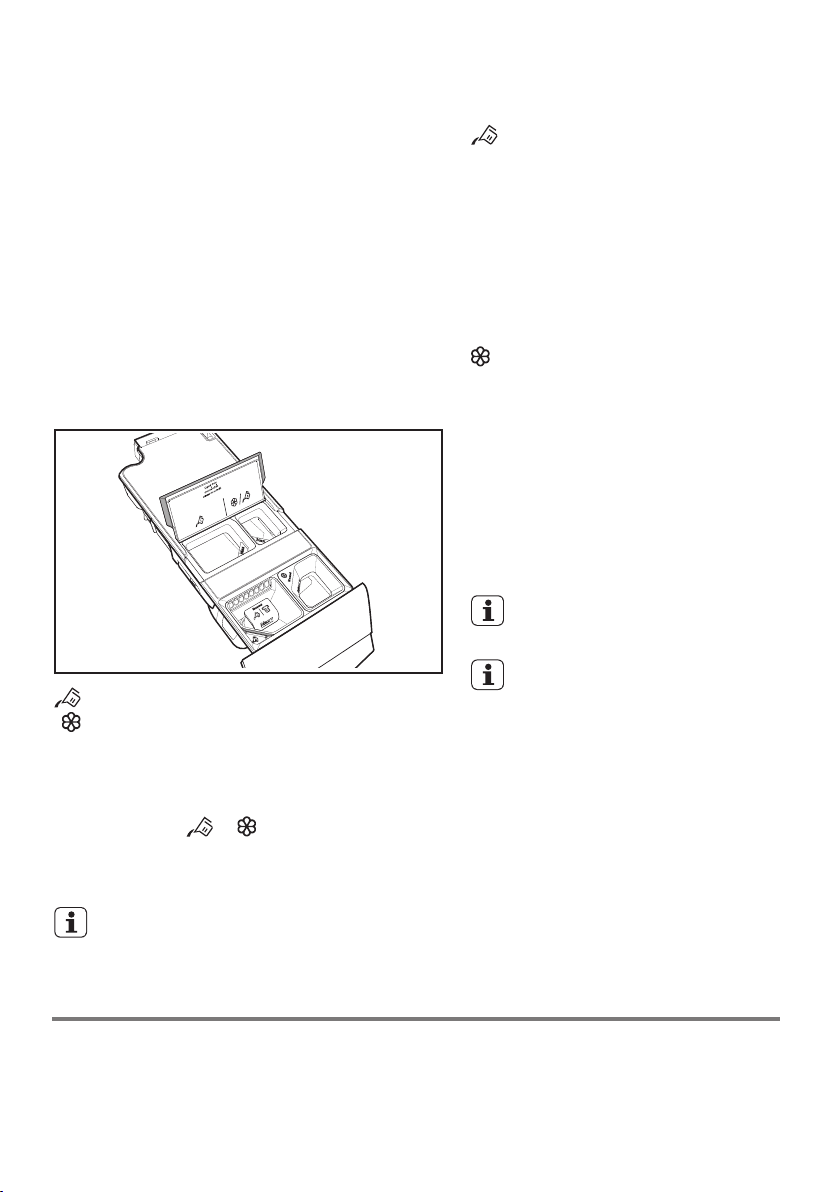

2.4 The Autodose Technology
(Autodosing)
Introduction
Using the right amount of detergent and fabric
softener not only improves the wash performance
of your machine it is also benecial for your clothes
and environment by avoiding excessive detergent
usage.
This appliance is equipped with an automatic
dosing system enabling the machine to
automatically dispense the right amount of
detergent and fabric softener for selected wash
cycle based on laundry weight.
When Either of Auto dose features are selected,
relevant symbols or are shown on display.
If one or both options are not shown on the
display, detergent and softener should be added
manually.
• Cottons
• Mixed
• Bedding
• Energy Saver
• Baby Care
• Quick 15
• Daily 60
• Delicates
• Cottons
• Mixed
• Bedding
• Energy Saver
• Rinse + Spin
• Baby Care
• Quick 15
• Daily 60
• Wool
• Delicates
Auto dose detergent is available for
the following wash programs:
AutoDose Fabric Softener; Program
available are:
The appliance is pre-set by the factory to suit
most users habits.
When Auto dosing is disabled,
use manual detergent and fabric
softener compartments.
Note: Auto dose is not available
for some wash programs as some
garments require special detergents and
treatments.
For more informations, refer to
page 19 to page 25.
AutoDose detergent tank.
AutoDose fabric softener tank.

ENGLISH 11

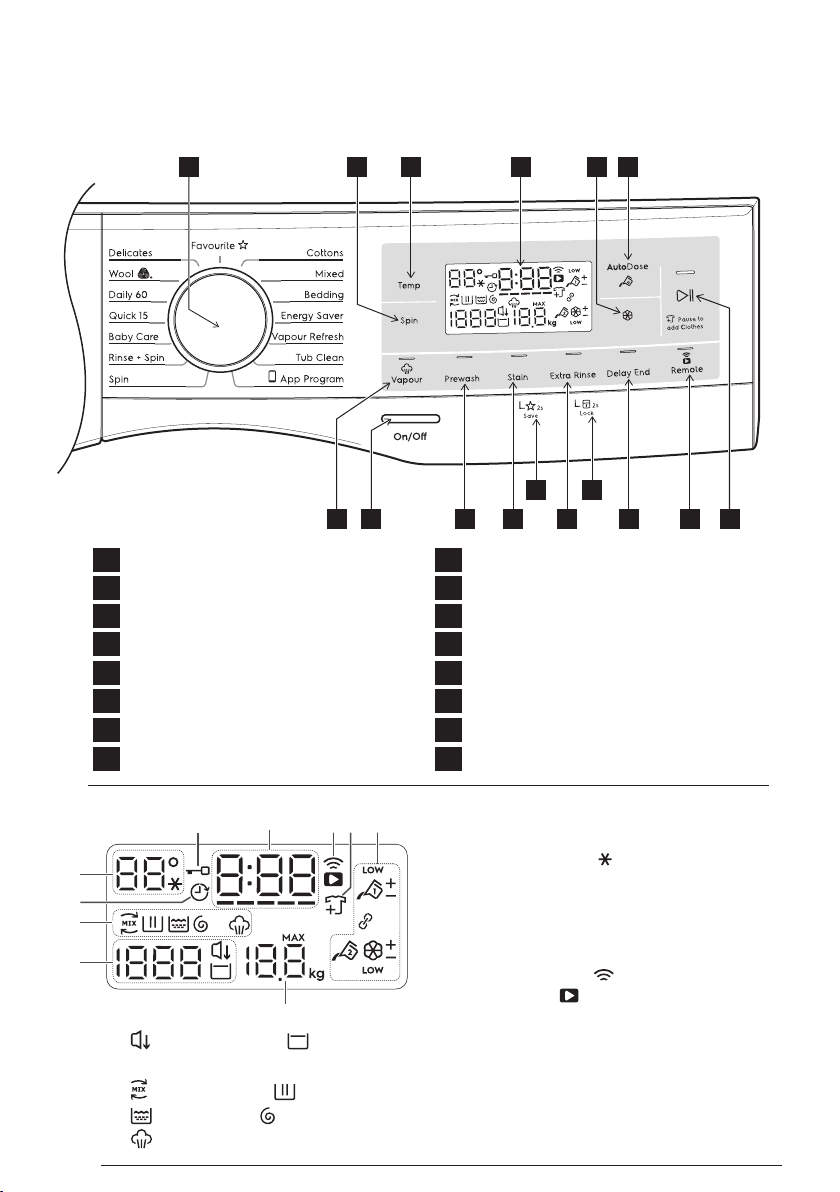

3. CONTROL PANEL
3.1 Control Panel Description
Delay End Icon
Temperature (“ ” represents Cold
water)
Door Lock Icon
Program Duration / Delay End Time /
Alarm Code
Remote Icon ( Wi-Fi connection
indicator, Remote connection
indicator.)
Add Clothes Icon
AutoDose Icon
Maximum Load Capacity of Selected
Program / Load Weight
Spin Speed
Extra Silent Icon, Rinse Hold Icon
Program Phase Indication Icon
Ultramix phase, Wash phase,
Rinse phase, Spin phase,
Vapour phase
A)
C)
D)
E)
F)
G)
H)
I)
J)
B)
1
2
3
4
5
7
8
6
9
Program Selector Knob
Display
Temperature Selection Touchpad
Spin Selection Touchpad
Remote Touchpad 16 Child Lock Option
AutoDose Softener Touchpad
Start/Pause and Add Clothes Touchpad
Delay End Touchpad
11 Stain Touchpad
12 Prewash Touchpad
13 On/Off Button
14 Vapour Touchpad
15 Save Favourite Program Option
10 Extra Rinse Touchpad
AutoDose Detergent Touchpad
Display
D
E
C
B
A
FG IH
J
21 53 4 6
1314
15
12
16
79 811 10

12 www.electrolux.com
Program;
Temperature
range
Cold to 90°C
1400
rpm
11 kg
1200
rpm
4 kg
800
rpm
3 kg
1400
rpm
11 kg
1400
rpm
11 kg
1400
rpm
11 kg
1200
rpm
4 kg
800
rpm
1.5 kg
1400
rpm
5.5 kg
–1.5 kg
––
Type of load and soil levelMax.
Spin
Speed
Max. Load
(Dry Clothes)
30°C
60°C
Vapour
Refresh
Lightly soiled synthetics or mixed fabrics.
This cycle removes odours and helps to
dewrinkle the laundry.
Cold to 60°C
Cold to 60°C
30°C to 60°C
Bedding; Special program for one synthetic blanket,
duvet, bedspread and so on.
Rinse + Spin To rinse and spin the laundry.
Spin To spin the laundry and drain the water in
the drum.
Energy
Saver;
40°C and
60°C1)
White and colourfast cotton. Set this
program to have a good washing results and
decrease the energy consumption. The time
of the washing program is extended.
Coloured cotton e.g. shirts, blouses, towels
and undergarments with normal level of soil.
Baby cotton clothes and delicate knitting
items with normal soil.
Cottons;
Mixed;
Daily 60;
Quick 15;
Baby Care;
Tub Clean; For cleaning the tub.
Do not add detergent.
White and coloured cotton.
Synthetic or mixed fabric items.
Cold to 40°C
––
You can send any additional program from
Mobile Application to store at this program
position and can recall to using it everytime
when you rotate program knob to this
position. This can be done through the App.
App
Program
Program “Outdoor” is the default stored
program from factory.
3.2 Program Chart

ENGLISH 13
12 www.electrolux.co.th
Program;
Temperature
range
1200
rpm
2 kg
1200
rpm
4 kg
––
Type of load and soil levelMax.
Spin
Speed
Max. Load
(Dry Clothes)
Cold to 40°C
Cold to 40°C
Specially tested program for woollen
garments bearing the “Pure new woollen,
non-shrink, machine washable” label.
Delicates;
Wool ;
Favourite Recall you favourite program.
Delicate fabrics such as acrylics, viscose,
polyester items.
Woolmark Apparel Care - Blue
The wool wash cycle of this machine has been approved by
The Woolmark Company for the washing of wool garments
labelled as “hand wash” provided that the garments are
washed according to the instructions issued by the manufac-
turer of this washing machine. Follow the garment care label
for drying and other laundry instructions. M1361
The Woolmark symbol is a Certification mark in many
countries.
1) Energy Saver Program with Temperature 60°C, Spin speed 1400rpm, Off
AutoDose Detergent, Off Autodose Softener options selected is recommended for a
full load of normally soiled cotton.

14 www.electrolux.com
The door stays locked with the water
in the drum. To continue the cycle,
you must press (Start/Pause).
Program
Option
Cottons
Mixed
Bedding
Energy Saver
Vapour Refresh
Tub Clean
Spin
Rinse + Spin
Baby Care
Quick 15
Daily 60
Wool
Delicates
Favourite







































App Program
1) “Vapour” option can be combined with temperature 40 to 90 °C only.
2) “Stain” option can be combined with temperature 40 to 90 °C only.
Temperature Touchpad
Press this touchpad repeatedly to increase
or decrease the wash temperature if you
want your laundry to be washed at a
temperature different from the one
proposed by the washing machine.
Spin Selection Touchpad
●
●
Press this touchpad repeatedly to increase
or decrease the spin speed or select Rinse
Hold, if you want your laundry to be spun
at a speed different from the one proposed
by the washing machine.
No spin option eliminates all the spin
phases and increase the number of
rinses.
No Spin ( )
By selecting this option the water of the last
rinse is not emptied out and the drum turns
regularly to prevent the laundry creases.
The door is still locked to indicate that the
water must be emptied out.
Rinse Hold ( )
AutoDose
Detergent
No
Spin
Rinse
Hold
−− −
−− −













−
−
AutoDose
Softener













−
−
Extra
Rinse













Delay
End
−
−
1)
Vapour













−
−
Prewash













−
−













Extra
Silent
−
−
●
By selecting this option, the machine will
not drain the water of the last rinse to avoid
wrinkling the laundry. All spinning phases
are suppressed (intermediate spin and final
spin). This washing cycle is very quiet, and
can be selected at night or other
appropriate times.
Extra Silent ( )
The door stays locked with the water
in the drum. To continue the cycle,
you must press (Start/Pause).
2)
Stain
−
−













3.3 Program Options Compatibility
3.4 Options

ENGLISH 15
Delay End ( ) Touchpad
Before you start the program, this option
makes it possible to define the end of the
washing program from minimum of 1 hour
to maximum of 20 hours.
If program duration is longer than
3 hours, minimum Delay End
option starts from 4 hours.
After selecting Delay End time, press
Start/Pause touchpad to start the
program. Machine will then countdown
and update time on the display every
hours until it reaches the starting point of
the wash cycle.
Press the Delay End touchpad to choose
the end time as you wish. The display
shows the number of hours and the
indicator beside the touchpad is on.
For example, if the program duration of
your selected program is 3.20 hours and
you define the “Delay End” time to 6
hours. This means your wash program
will finish in 6 hours. (See diagram)
3.20 hrs.2.40 hrs.
Working Cycle
“Delay End” Time : 6 hrs.
Pressed
Start/Pause
End of
Cycle
Start the
Program
Countdown
This option must be selected after
choosing the wash program, and
before pressing the “Start/Pause”
touchpad.
If you wish to modify or cancel Delay End
option after starting the program, follow
the steps below:
set the washing machine to PAUSE by
pressing “Start/Pause” touchpad;
–
press the “Start/Pause” to start the
program.
–
deselect this option by pressing
“Delay End” touchpad, the display will
show delay time “ ”;
–
Remote ( ) Touchpad
This option allows you to connect
washing machine to Wi-Fi network and to
link it to your smart phone.
By this functionality you can receive
notifications, control and monitor your
washing machine from your mobile
devices.
To connect the washing machine with
your smart phone you need:
When the door is open, remote
functions are disabled.
Connection setting and other
suggestions please refer to attached
leaflet of this user manual.
WI-FI specification requirements:
Wireless network at home with internet
connection enabled.
●
Smart Phone connected to wireless
network.
●
Frequency
Protocol
Max Power
2.4 GHz according to
local country regulation
IEEE 802.11b/g/n
According to local country
regulation
AutoDose Liquid Detergent
Touchpad
AutoDose Fabric Softener
Touchpad
For activating and deactivating the
automatic detergent dosing refer to
“5.2 Detergent dispenser with AutoDose
tanks and manual compartments” on
page 19.
For activating and deactivating the
automatic fabric softener loading
Refer to “5.2 Detergent dispenser
with AutoDose tanks and manual
compartments” on page 19.

16 www.electrolux.com

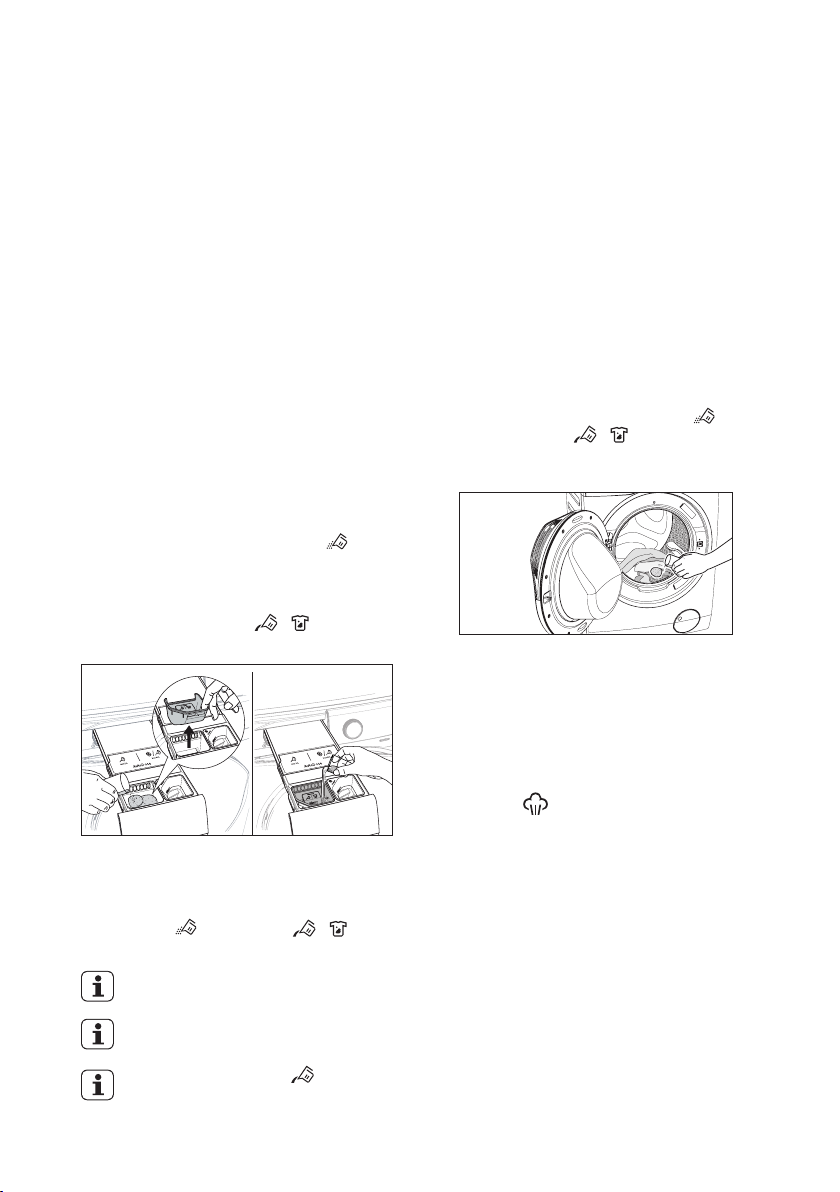

Extra Rinse Touchpad
Detergent
for
Prewash
phase.
This option is recommended for people
who are allergic to detergents, and in
areas where the water is very soft. Use
this option to add two rinse phases to a
program.
Select this option if you wish your
laundry to be pre-washed before the
main wash.
Use this option for heavy soil, especially
if containing sand, dust, mud and other
solid particles.
This option increases the program
duration.
You have 2 options for adding
prewash detergent:
Select this option to add approximately
30 minutes of tumbling in vapour during
the wash cycle. Vapour helps open
fabric bers up to allow laundry additives
to release tough stains. The indicator of
this option will be on.
• Vapour may not necessarily be visible
inside the drum during a vapour wash
cycle. Vapour is created below the
drum and allowed to naturally rise
into the clothes.
• Vapour may not be present during the
entire vapour wash cycle.
• Vapour function is more effective with
half load.
1. If AutoDose Detergent is Off, put
the detergent for Main wash phase
into the compartment “Manual”
(for powder) or I (for liquid)
and pour detergent for Prewash
phase directly into the drum.
2. If AutoDose Detergent is On,
detergent is dispensed from the
AutoDose compartment during
Prewash phase. So, you do not
need to add more detergent.
Prewash Touchpad
Vapour ( ) Touchpad
Stain Touchpad
Press this touchpad to add the stain
phase to a program. The indicator of this
option comes on.
Use this function for laundry with hard to
remove stains.
You have 2 choices for adding stain
remover:
1. If AutoDose Detergent is Off, when
you set this function,
2. If AutoDose Detergent is On, The
detergent is dispensed from the
AutoDose compartment. You can put
stain remover into the compartment
“Manual” (powder) or I
(liquid).
This function increases the program
duration.
• put the powder stain remover into
the compartment “Manual”
(powder) together with powder
detergent or
• put the liquid stain remover into
the compartment I (liquid)
together with liquid detergent.
If you press AutoDose button
while Stain option is active,
AutoDose function is switched off,
but Stain option still remains active
in manual mode.
Stain option can be combined with
temperature 40 to 90 °C only.
powder liquid

ENGLISH 17
3.5 Settings
Child Safety Lock ( ) Option
Program settings that are frequently used
can be saved (e.g. Cotton, 60°C, 1200 rpm,
with Prewash and Vapour).
To program/re-program Favourite with your
own selections and save them, proceed as
follows:
• At the end of the Vapour cycle, the clothes
will be warmer, softer and detached from
the drum.
This setting permits you to either enable
or disable the buzzer at the end of the
program. As an example, you might wish
to disable this buzzer when you start a
wash when going to bed, so that when
the wash nished approximately 1 hour
later, it will not disturb you through the
night.
• To disable the buzzer sound, press
“Prewash” and “Stain” touchpads at
the same time about 3 seconds, the
icon “ ” will show on display along
with buzzer sound.
• To return to default conguration press
these 2 touchpads at the same time
about 3 seconds, the icon “ ” will
show on display along with buzzer
sound.
To recall the favourite wash program, turn
selector knob to “Favourite ” program.
You will get acknowledgement on the screen
when the Favourite program is loaded.
Your appliance is provided with CHILD
SAFETY LOCK which permits you to leave
the appliance unsupervised with the door
closed without having to worry that children
might be injured by or cause damage to the
appliance.
To set “Child Lock” option:
1. Put machine in Stand-By mode.
2. Select your desired wash settings.
3. To save favourite program, press and hold
“Stain” touchpad about 2 seconds and you
will hear “Bip, Bip” sound and “Favourite”
LED is ashing.
If Vapour option is selected, rinse
temperatures will be elevated.
During a vapour cycle, you may notice
vapour exiting from the drain hose of
the washing machine, this is normal
and there is no cause for alarm.
App Program cycle cannot be saved as
a Favourite on the appliance.
Set this option after pressing the
Start/Pause touchpad.
Error warning beeps such as critical
faults are not disabled.
Save Favourite ( ) Program
Enabling/Disabling End-Of-
Wash Buzzer
• To activate the function, press and
hold “Extra Rinse” touchpad about 2
seconds until the display shows the
icon “ ”.
• To deactivate the function, press and
hold “Extra Rinse” touchpad about 2
seconds until the display shows the
icon “ ”.
If you press any touchpad while
Child Lock is activated, the icon
“ ” will ash on display 3 times
along with buzzer sound.
The touchpads are locked (except
for the On/Off button).
This function remains enabled even
after the appliance is switched off.

18 www.electrolux.com
This touchpad has 2 functions:
Start/Pause ( )1.
To interrupt a program which is
running, press this touchpad to pause
the machine, the Start/Pause pilot light
flashes.
After you have selected the desired
program and options, press this
touchpad to start the machine. If you
have selected a “Delay End” option,
the countdown will begin and will be
shown on the display.
To restart the program from the point
at which it was interrupted, press this
touchpad again, the Start/Pause pilot
light will stop flashing.
Add Clothes ( )2.
To add clothes:
Pressing the “Start/Pause”
touchpad to pause the program.
You can only add clothes when
the icon “ ” shown on the
display.
1.
2.
Resume the program by pressing
“Start/Pause” touchpad again.
4.
Add clothing and close the door.
3.
Wait for the machine to come to a
complete stop before opening the
door (wait for door lock “ ” icon
to turn off).
During installation or before rst use
you may observe some water in the
machine. This is a residual water left
in the machine after a full functional
test in the factory to ensure the
machine is delivered to customers in
perfect working order and is no cause
for concern.
1. Make sure that all transit bolts have
been removed from the appliance.
2. Ensure that the electrical and
water connections comply with the
installation instructions.
3. Make sure to ll with liquid detergent
and fabric softener the tanks
marked by . Refer to “Basic
Setting” paragraph in “The AutoDose
technology” chapter.
4. Put 2 litres of water in the detergent
compartment for washing phase.
This activates the drain system.
5. Set and start a program for Cotton
at the highest temperature without
any laundry in the drum (turn off
AutoDose system).
This removes all possible dirt from
the drum and the tub.
NOTE
3.6 Start/Pause ( ) and Add
Clothes ( ) Touchpad
4. BEFORE FIRST USE

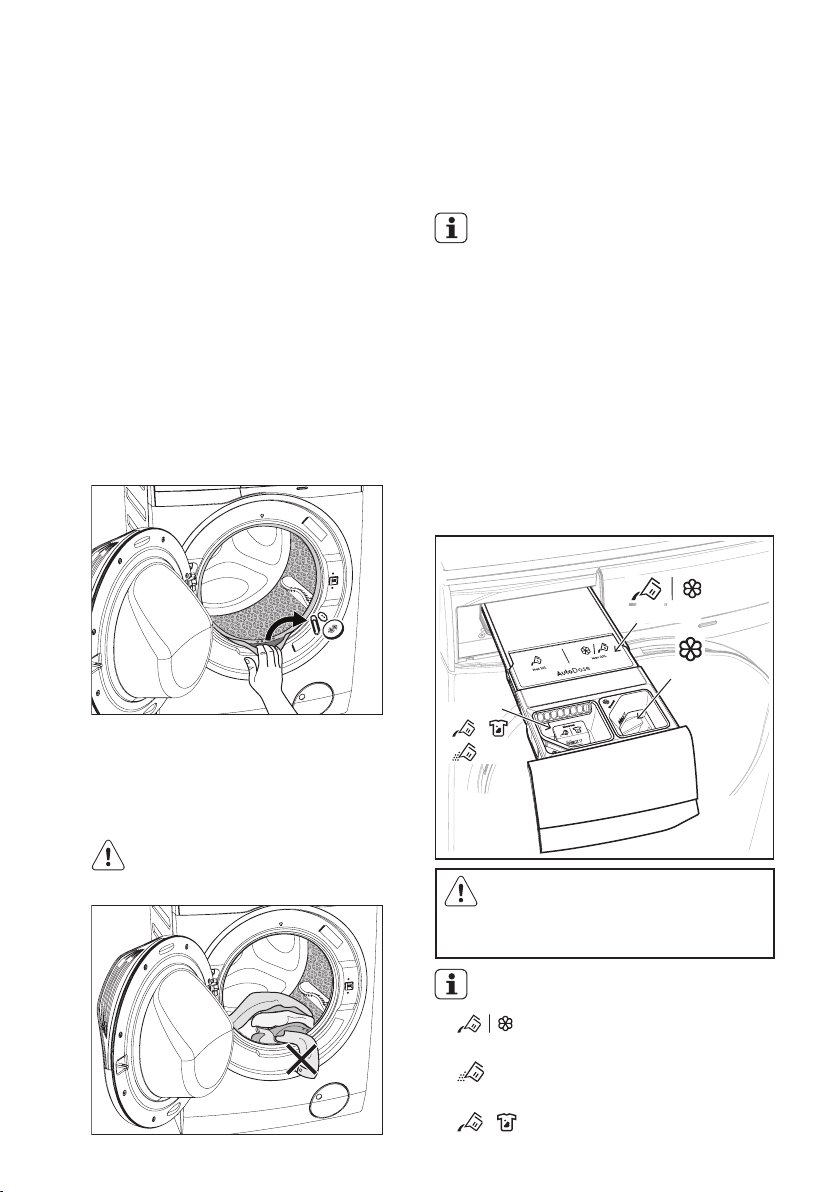

ENGLISH 19
Press the On/Off button to turn on the
washing machine. Turn the knob to
set a program. The washing machine
will propose a temperature and
automatically select the spin value
provided for the program you have
chosen.
Check and remove objects (if there
are any) that could be trapped in the
fold.
1.
2. Connect the main plug to the main
socket.
Turn the water tap on.
3.
Place the laundry in the drum, one
item at a time, shaking them out as
much as possible.
5.
Close the door.
6.
4.
Make sure that no laundry
remains between the seal and
the door.
The selector knob can be turned either
clockwise or counter-clockwise.
5. DAILY USE
5.1 Loading The Laundry 5.2 Detergent Dispenser With
Autodose Tanks And Manual
Compartments
When using detergent and any other
treatments, always follow the instructions
that you nd on the packaging of the
detergent products.
We recommend not to exceed the
maximum indicated level in each
compartment (Max).
Do not put POWDER detergent in the
AutoDose compartment.
If both AutoDose options are enabled for
selected program, detergent and fabric
softener are automatically loaded.
If one or both AutoDose options are
disabled, manually add detergents to the
relevant manual compartments.
NOTE
Read this chapter carefully.
WARNING!
• Auto-dosing tanks are for liquid
detergent and fabric softener only.
• Manual compartment for powder
detergent.
• I Manual compartment for liquid
detergent.
(Refer to page 28 “WASHING HINTS”)
AutoDose
Manual
Manual
• I
•

20 www.electrolux.com
The pre-set dosages are 50ml for
detergent tank and 40ml for fabric
softener tank: the optimal conguration
to meet majority of use condition.
However, under extreme conditions (very
soft or very hard water) and particular type
of detergent (such as super concentrated),
we recommend to adjust the pre-set
dosage by following the instruction given
on detergent and fabric softener container:
e.g when using super concentrated
detergent you may need to reduce the
pre-set dosage considerably.
If the washing results are not satisfactory
or there is too much foam during washing,
you may need to change this setting.
Check on the detergent product instruction
to identify the right dosage considering
a normal laundry soil level, the actual
water hardness and the additional dosage
suggested for larger load.
1. Identifying the water hardness
level: Hard water can reduce the
effectiveness of the detergent, for
this reason detergent manufacturer
recommend to adjust the dosage
based on water hardness level. Check
the water hardness level in your area.
The levels are generally indicated as:
soft, medium and hard. If necessary,
please contact your local water
authority to check the water hardness
in your area.
2. Identifying the customized detergent
dosage: Check the label in the
detergent/fabric softener container
suggesting the quantity to use. This
suggestion is measured combining
three different factors:
• Water hardness level;
• Normal soil level;
• Rated capacity of the appliance
(e.g. maximum load capacity
9 kg). If the rated capacity on
the product container refers to
lower capacity appliances, the
customized dosage should be
increased.
When using liquid detergent
(Manual compartment), make sure
that the special container for liquid
detergent is inserted. Refer to the
“Manual lling the detergent and
additives” paragraph in this chapter.
Maximum level for detergent/
additives quantity.
(*) By factory default, the appliance
operates in basic Standard Mode.
To change conguration to Dual-
Detergent Mode or Link Detergent
Mode, you need to complete the
setup on the mobile application
“Electrolux Life” .
Advance functions like ne-tuning,
can be enabled on the app to make
available on the control panel.
• Manual compartment for liquid
additives (fabric softener, fabric
conditioner, starch).
AutoDose
The AutoDose system has 3 modes:
1. Standard Mode - Allows you to store
liquid detergent and softener in the
AutoDose compartments, and to toggle
on/off auto dosing of detergent and/or
softener.
2. Dual-Detergent Mode - Allows
you to store 2 different types of
liquid detergents in the 2 AutoDose
compartments, and toggle on/off or
switch between them.
3. Link Detergent Mode - Allows you to
store 1 type of liquid detergent in both
AutoDose compartments, and toggle on/
off auto doing of the liquid detergent.
*
*
** Apps and services are subject to change
without notice.
