Electrolux EWT 105410 W User manual

user manual
Washing Machine
EWT 105410 W

1
2
4
3

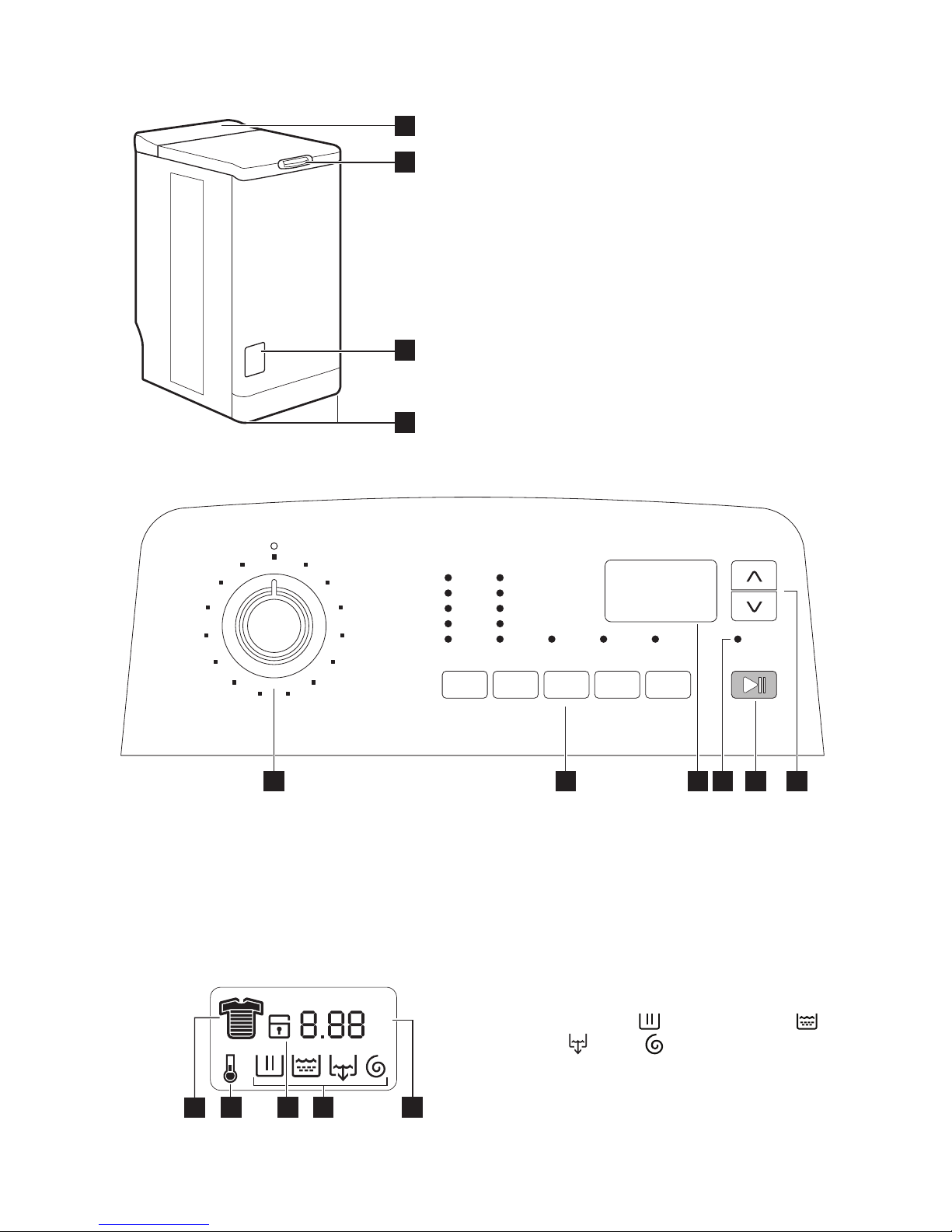

1. The control panel
2. Lid button
3. Filter access cover
4. Adjustable levelling feet
Control panel
1 2 3 4 5 6
1. Programme selector
2. Pushbuttons and their functions
3. Display
4. "Add washing" light
5. "Start/Pause" pushbutton
6. "Time manager" pushbuttons
The symbols
12 34 5
1. Time manager
2. Temperature
3. Child safety
4. Cycle running : Prewash/Wash,
Rinse, Drain, Spin
5. Length of cycle or Timer delay count-
down
2 electrolux

Dispenser box
Prewash
Wash
Softener (do not fill above the MAX symbol
M
)
SAFETY INFORMATION
Please read these points carefully before in-
stalling and using your appliance. Keep this
user manual with your appliance.
General safety
• Do not modify or attempt to modify this
appliance. This would put yourself in dan-
ger.
• Ensure that all coins, safety pins, brooch-
es, screws etc have been removed be-
fore starting a washing programme. If left
in washing, they can seriously damage
the appliance.
• Use the recommended quantity of deter-
gent.
• Put small items together (socks, belts
etc.) in a small linen bag or pillow case.
• Unplug and close inlet hose tap after us-
ing appliance.
• Always disconnect the power supply
from the appliance before cleaning or
maintenance.
• Do not machine wash clothes with rib-
bing, unfinished or torn material.
Installation
• Unpack or ask for the appliance to be un-
packed immediately upon delivery.
Check the outside of the appliance is not
damaged in any way. Report all transit
damage to your retailer.
• Remove all transit bolts and packaging be-
fore installing the appliance.
• Connection to the water supply must be
carried out by a qualified plumber.
• If your domestic electrical circuit needs
adapting to allow the appliance to be plug-
ged in, use a qualified electrician.
• Ensure that, after installation, the power
cable is not trapped under the appliance.
• If the appliance is installed on carpeted
floor, ensure that the carpet does not ob-
struct any ventilation ducts located at the
base of the appliance.
• The appliance must be equipped with an
earthed power plug which conforms to
regulations.
• Before connecting your appliance to the
power supply, carefully read the instruc-
tions in the chapter entitled “Electrical con-
nection”.
• Replacing the power cable should only
be carried out by an authorised service en-
gineer.
• The manufacturer cannot be held respon-
sible for any damage resulting from incor-
rect installation.
Precautions to be taken against frost
If your appliance is exposed to tempera-
tures below 0°C, the following precautions
must be taken:
• Close the tap and disconnect the inlet
hose.
• Place the end of this hose and the drain
hose in a basin on the floor.
• Select the Drain programme let it run until
the end of the cycle.
• Disconnect the appliance from the power
supply by turning the programme selec-
tor to “Stop” .
• Unplug the appliance.
• Replace the inlet hose and drain hose.
This way, the water remaining in the hoses
will be drained away, avoiding any ice forma-
tion which would damage your appliance.
Before turning your appliance on again, en-
sure that it is installed in an area where the
temperature will not fall below freezing.
electrolux 3

Use
• Your appliance is intended for normal do-
mestic use. Do not use the appliance for
commercial or industrial purposes or for
any other purpose.
• Refer to the instructions on the label of
each item before washing.
• Do not put items into the washing ma-
chine which have had stains removed
with petrol, alcohol, trichlorethylen etc. If
such stain removers have been used,
wait until the product has evaporated be-
fore putting these items into the drum.
• Empty pockets and unfold items.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge, un-
less they have been given supervision or
instruction concerning use of the appli-
ance by a person responsible for their
safety.
Children should be supervised to ensure
that they do not play with the appliance.
PERSONALISATION
Child safety
This option provides two types of locking :
• if the option is activated after the cycle
has started, no changes to the options or
programme is possible.
The cycle runs and you must deactivate
the option to run a new cycle.
• if the option is activated before the cycle
has started, the appliance cannot be star-
ted.
To activate child safety, turn appliance on
and press “Rinse plus” and “Delay start”
simultaneously until the confirmation
symbol shows on in the display. The ap-
pliance memorises the selection of this op-
tion. To deactivate child safety, repeat the
process.
Audible signal
When the audible signal is activated, it
sounds when a button is pressed, at the
end of the programme, to indicate a fault.
To deactivate, turn appliance on and press
“Prewash” and “Rinse plus” simulta-
neously until the beep sounds. The signal is
only active if alarm sounds. To reactivate it,
repeat the same process.
HOW TO RUN A WASH CYCLE?
Using for the first time
• Ensure the electrical and water con-
nections comply with the installation
instructions.
• Remove the polystyrene insert and
all other items inside the drum.
• Run an initial wash cycle at 90°C,
without any washing but with deter-
gent to clean the water tank.
DAILY USE

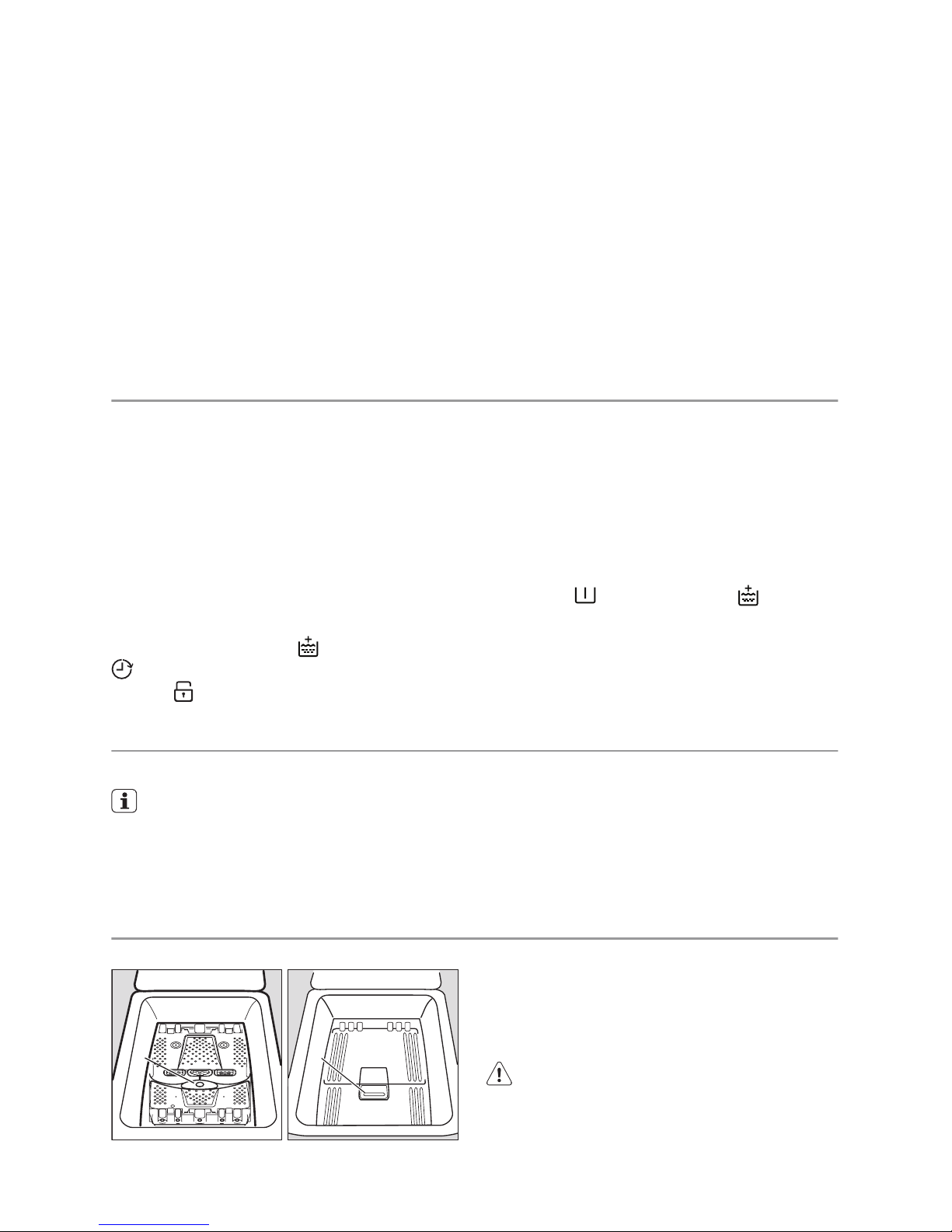

Loading washing
A
A
• Open the lid of the appliance.
• Open the drum by depressing the locking
button A
1)
: The two shutters unlock auto-
matically.
• Load the washing, close the drum and
the lid of your washing machine.
Warning! Before closing the lid of your
appliance, ensure that the drum is
properly closed :
• When the two shutters are closed,
• locking button A released.
1) Depending on model.
4 electrolux

Proportioning of detergents
Pour the amount of washing powder into
the washing and prewash compart-
ments if you have selected the “prewash”
option. Pour fabric softener into the com-
partment if necessary.
Selection of desired programme
Turn the programme selector to the re-
quired programme. The “Start/Pause”
pushbutton flashes green.
If you turn the programme selector to anoth-
er programme while a cycle is in progress,
the appliance will ignore the new selected
programme. “Err” flashes and the “Start/
Pause” pushbutton flashes red for a few
seconds.
Selecting the temperature
Press the “Temperature” pushbutton re-
peatedly to increase or decrease the tem-
perature (see “Programmes table”). The
symbol means a cold wash.
Selecting the spin speed
Press the “Spin” pushbutton to change
the spin speed.
The maximum spin speeds are :
for Cottons, Wool, Lingerie, Eco, Jeans :
1000 rpm, for Synthetics, Easy iron, Inten-
sive sport : 900 rpm, for Delicates, Silk,
Sport : 700 rpm.
At the end of the programme, if you have se-
lected “Rinse hold” or “Night silence
plus” , you then need to select a “Spin”
or “Drain” programme to finish the cy-
cle and empty the water.
Night silence plus : the cycle contains no
spin and ends with a rinse hold.
Selecting options
You must select the different options after
selecting the programme and before press-
ing the “Start/Pause” pushbutton (see
“Programme table”). Press the desired but-
ton(s) ; the corresponding lights come on. If
pressed again, the lights go out. If one of
the options is not compatible with the selec-
ted programme, “Err” flashes on the display
and the “Start/Pause” pushbutton flash-
es red.
“Prewash” option
The appliance runs a prewash at 30°C max.
“Rinse plus” option
The washing machine will add one or more
rinses during the cycle. This option is recom-
mended for people with sensitive skin and
in soft water areas.
Temporary : Press the “Rinse plus” push-
button. The option is only active for the se-
lected programme.
Permanent : Hold down the “Prewash”
and “Delay Start” pushbuttons for a few
seconds. The option is permanently activa-
ted, even if the appliance is switched off. To
deactivate it, repeat the process.
“Delay start”
This option allows you to delay the start of a
wash programme by 30, 60, 90, 2 hours to
20 hours. The selected time appears on the
display for a few seconds.
You can change or cancel the delayed start
time at any time before you press the “Start/
Pause” pushbutton, by pressing the “De-
lay start” pushbutton again (0’ indicates
immediate start).
If you have already pressed the “Start/
Pause” pushbutton and you want to
change or cancel the delayed start, pro-
ceed as follows :
• To cancel the delayed start and start the
cycle immediately, press “Start/Pause”
and then “Delay start” . Press “Start/
Pause” to start the cycle.
• To change the timer delay period, you
must go through the “Stop” position
and reprogramme your cycle.
The lid will be locked during the delayed
start time. If you need to open it, you must
first pause the appliance by pressing the
“Start/Pause” pushbutton. After closing
the lid again, press the “Start/Pause”
pushbutton.
Time Manager
The cycle can be made longer or shorter by
using the “Time Manager” pushbuttons.
The level of soiling of the laundry is also indi-
cated.
electrolux 5

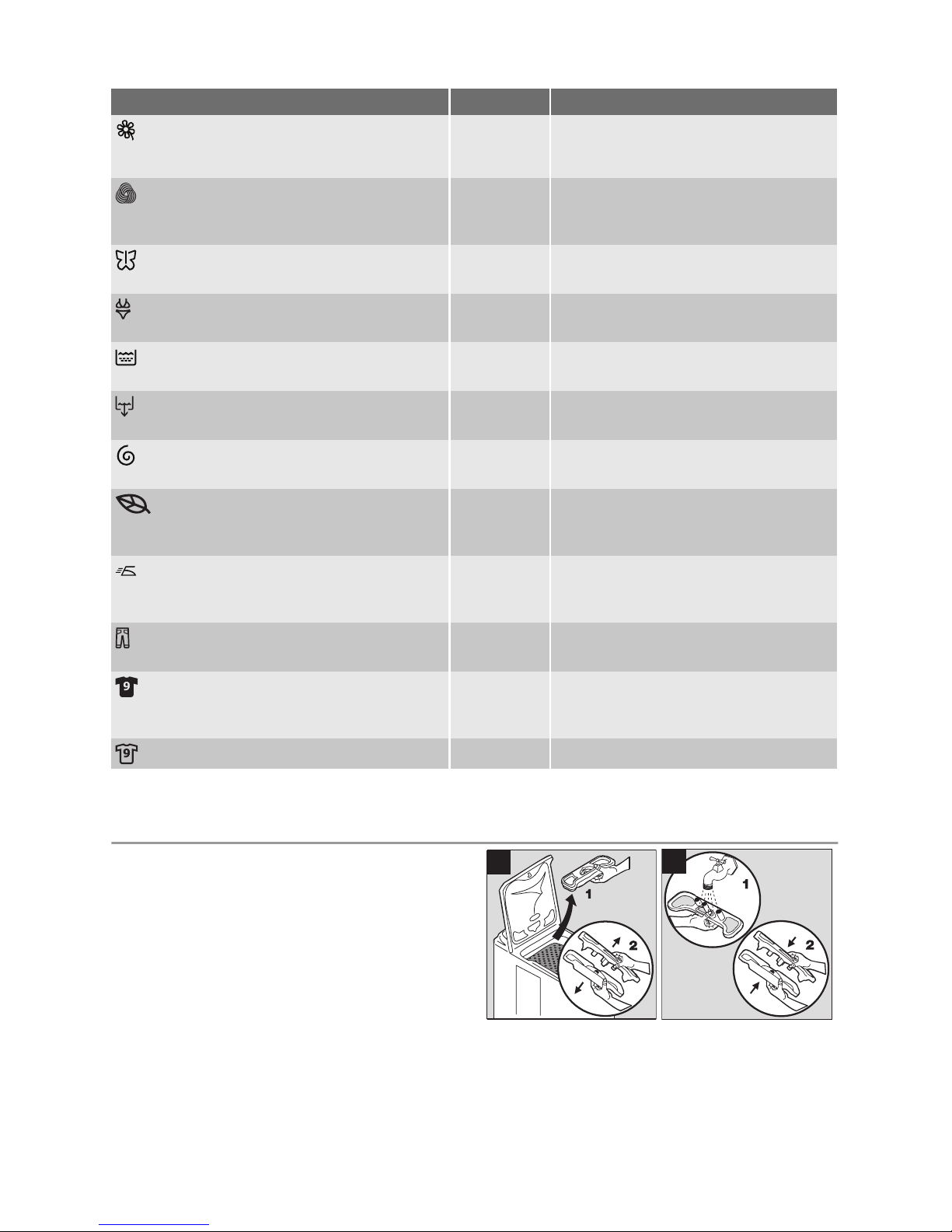

Soil level Icon Type of fabric
Intensive For heavy soiled
items
Normal For normal soiled
items
Daily For daily soiled items
Light For slightly soiled
items
Quick
1)
For very slightly
soiled items
Super quick
1)
For items used or
worn for a short time
Refresh
1)
2)
For refreshing items
only
Super re-
fresh
1)
2)
For refreshing a very
few items only
1) To use on a half load.
2) The symbol flashes and disappears : this wash cycle
is a refresh cycle only.
The availability of these different levels var-
ies depending on the selected programme
type.
Start of the programme
Press the “Start/Pause” pushbutton to
start the cycle ; the corresponding light will
come on green. It is normal for the pro-
gramme selector to remain stationary dur-
ing the cycle. The symbol for the current cy-
cle and the remaining time appear on the
display. If a delayed start has been selec-
ted, the countdown appears on the display.
Warming up
During the cycle, the symbol comes on
when the appliance is reaching the right tem-
perature.
Interrupting a programme
Adding washing
When the “Add washing” light is on, you
can add washing by proceeding as follows.
Press the “Start/Pause” pushbutton :
the corresponding light will flash green while
the appliance is paused. The lid can only be
opened around 2 minutes after the washing
machine has come to a stop. Press the
“Start/Pause” pushbutton again to con-
tinue the programme.
Modifying the programme in progress
Before making any changes to the current
programme, you need to pause the wash-
ing machine by pressing the “Start/Pause”
pushbutton. If the modification is not pos-
sible, “Err” flashes in the display and the
“Start/Pause” pushbutton flashes red for
a few seconds. If you still decide to change
the programme, you must cancel the cur-
rent programme (see below).
Cancelling the programme
If you want to cancel the programme, turn
the programme selector to the “Stop” posi-
tion .
End of the programme
The washing machine stops automatically ;
the “Start/Pause” pushbutton goes out
and “0” flashes on the display. The lid can
only be opened around 2 minutes after the
washing machine has come to a stop. Turn
the programme selector to the “Stop” po-
sition. Remove washing. Unplug and close
water inlet tap.
Stand by : once the programme has finish-
ed after a few minutes the energy saving sys-
tem will be enabled. The brightness of the
display is reduced. By pressing any button
the appliance will come out of the energy
saving status.
PROGRAMMES TABLE
Programme / Type of washing Load Possible options
Cottons (cold - 90°) : White or colour,
e.g. normally soiled work clothes, bed linen,
table linen, body linen, towels.
5,5 kg Rinse hold, Night silence plus, Pre-
wash, Rinse plus, Time manager, De-
lay start
Synthetics (cold - 60°) : Synthetic fab-
rics, body linen,fab, coloured farics, non-iron
shirts, blouses.
2,5 kg Rinse hold, Night silence plus, Pre-
wash, Rinse plus, Time manager, De-
lay start
6 electrolux

Programme / Type of washing Load Possible options
Delicates (cold - 40°) : For all delicate
materials, for example curtains.
2,5 kg Rinse hold, Night silence plus, Pre-
wash, Rinse plus, Time manager, De-
lay start
Wool (cold - 40°) : Machine washable
wool carrying the labels “pure new wool, ma-
chine washable, does not shrink”.
1,0 kg Rinse hold, Night silence plus, Delay
start
Silk (cold - 30°) : Fabric machine wash-
able at 30°C.
1,0 kg Rinse hold, Night silence plus, Delay
start
Lingerie (cold - 40°) : For very delicate
items, like lingerie.
1,0 kg Rinse hold, Night silence plus, Delay
start
Rinse : Hand washed items can be
rinsed in this programme.
5,5 kg Rinse hold, Night silence plus, Rinse
plus, Delay start
Drain : Runs an empty cycle after a
Rinse hold (or Night silence plus).
5,5 kg
Spin : A spin cycle from 500 to 1000
rpm after a Rinse hold (or Night silence plus).
5,5 kg Delay start
Eco
1)
(40° - 90°) : White or colour,
e.g. normally soiled work clothes, bed linen,
table linen, body linen, towels.
5,5 kg Rinse hold, Night silence plus, Pre-
wash, Rinse plus, Delay start
Easy iron (cold - 60°) : For washing cot-
tons and synthetics. Reduces creasing and
makes ironing easier.
1,0 kg Rinse hold, Prewash, Rinse plus, De-
lay start
Jeans (cold - 60°) : For washing denim
clothes. The Rinse plus option is activated.
3,0 kg Rinse hold, Night silence plus, Pre-
wash, Delay start
Intensive sport (cold - 40°) : For dirty
outside sport clothes. The Prewash option is
activated.
2,5 kg Rinse hold, Night silence plus, Rinse
plus, Delay start
Sport (30°) : For sport clothes. 2,5 kg Delay start
1) Reference programme for test confirming to CEI 456 standard : 46 L / 0,93 kWh / 170 min
CARE AND CLEANING
Unplug the appliance before cleaning.
Descaling the appliance
To descale the appliance, use an appropri-
ate non-corrosive product designed for
washing machines. Read product label for
recommended amounts and how often des-
caling should be carried out.
The exterior
Use warm soapy water to clean the exterior
of the appliance. Never use alcohol, sol-
vents or similar products.
Dispenser box
To clean, proceed as follows :
1
2
Drainage filter
Clean the filter located at the base of the ap-
pliance regularly :
electrolux 7

1
2
3
4
Water inlet filters
To clean, proceed as follows :
1
OPERATING PROBLEMS
Numerous checks were carried out on your
appliance before it left the factory. Howev-
er, should you notice a malfunction, please
refer to the sections below before contact-
ing the after-sales service.
Problems Causes
The washing machine
doesn’t start or doesn’t
fill :
• the appliance isn’t plugged in correctly, the electrical installation isn’t
working,
• the lid of your appliance and the drum shutters aren’t closed firmly,
• the programme start command hasn’t been properly selected,
• there is a power failure,
• the water supply has been cut off,
• the water inlet tap is closed,
• the water inlet filters are dirty,
•a red tab appears on the water inlet hose
1)
.
The appliance fills but
empties straight away :
• the drainage U-piece is fixed too low (see installation section).
The washing machine
doesn’t rinse or doesn’t
empty :
• the drain hose is blocked or bent,
• the drainage filter is obstructed,
• the out of balance detector has been activated : washing is unevenly
distributed in the drum,
• the “Drain” programme or “Night Silence Plus” or “Rinse hold” option
have been selected,
• the height of the drainage U-piece is unsuitable.
You have found water
around the washing ma-
chine :
• too much detergent has caused foam to overflow,
• the detergent is unsuitable for machine washing,
• the drainage U-piece isn’t attached correctly,
• the drainage filter hasn’t been put back in place,
• the water inlet hose is leaking.
Wash is unsatisfactory : • the detergent is unsuitable for machine washing,
• there is too much washing in the drum,
• the wash cycle is unsuitable,
• there isn’t enough detergent.
8 electrolux

Problems Causes
The appliance vibrates,
is noisy :
• all packaging have not been removed from the appliance (see installa-
tion section),
• the appliance isn’t level and is unbalanced,
• the appliance is too close to the wall or furniture,
• washing is unevenly distributed in the drum,
• the load is too small.
The wash cycle is much
too long :
• the water inlet filters are dirty,
• the power or water supply has been cut off,
• the motor overheating detector has been activated,
• the water inlet temperature is lower than usual,
• the foam detection security system has been activated (too much de-
tergent) and the washing machine has begun draining the foam,
• the out of balance detector has been activated: an extra phase has
been added to distribute washing more evenly in the drum.
The washing machine
stops during a wash cy-
cle :
• the water or electricity supply is defective,
• a Rinse hold has been selected,
• the drum shutters are open.
The lid doesn’t open at
the end of the cycle :
•the “immediate opening”
1)
light is not lit,
• the temperature inside the drum is too high,
•the lid unlocks 1 - 2 minutes after the end of the cycle
1)
.
The E40 error code ap-
pears in the display
2)
and the “Start/Pause”
pushbutton flashes
red
3)
:
• the lid is not closed properly.
The E20 error code ap-
pears in the display
2)
and
the “Start/Pause” push-
button flashes red
3)
:
• the drainage filter is obstructed,
• the drain hose is blocked or bent,
• the drain hose is fixed to high (see "Installation" section),
• the drainage pump is blocked,
• the standpipes blocked.
The E10 error code ap-
pears in the display
2)
and the “Start/Pause”
pushbutton flashes red
3)
:
• the water tap is closed,
• the water supply has been cut off.
•a red tab appears on the water inlet hose
1)
.
The EF0 error code ap-
pears in the display
2)
and the “Start/Pause”
pushbutton flashes red
3)
:
• the drainage filter is obstructed,
• the anti-flooding security system has been activated, please proceed
as follows :
- close the water inlet tap,
- empty the appliance for 2 minutes before unplugging,
- call the after-sales service.
Softener runs directly in-
to the drum when filling
the dispenser box:
• you have gone past the MAX indicator.
1) Depending on model.
2) On some models, the auditable signals can sound
3) After solving any problems, press "Start/Pause" pushbutton to restart the interrupted programme.
DETERGENTS AND ADDITIVES
Only use detergents and additives designed
for use in a washing machine. We do not
recommend mixing different types of deter-
gents. This may spoil the washing. There
are no restrictions on the use of powder de-
tergents. Liquid detergents must not be
electrolux 9

used when a prewash or the reference pro-
gramme (see Programmes table) has been
selected. For cycles without prewash, they
must be added via means of a dosing ball.
Detergent tablets or doses must be placed
in the detergent compartment of your appli-
ance's dispenser box.
TECHNICAL SPECIFICATIONS
DIMENSIONS Height
Width
Depth
850 mm
400 mm
600 mm
LINE VOLTAGE /FREQUENCY
POWER CONSUMPTION
230 V / 50 Hz
2300 W
WATER PRESSURE Minimum
Maximum
0,05 MPa (0,5 bar)
0,8 MPa (8 bar)
Connection to water supply Type 20/27
INSTALLATION
Remove all protective packaging for transit
before using for the first time. Keep in case
needed for future transit: Transporting a non-
secured appliance may damage internal
components and cause leakages and mal-
functions. The appliance can also be dam-
aged through physical contact.
Unpacking
1
2
3
4
Untying
2
3
1b
a
1a 1b
2a 2b
3 4
To install your washing machine at the
same level as surrounding furniture, pro-
ceed as shown on picture 4.
Water supply
Install the supplied water inlet hose at the
rear of your washing machine by proceed-
ing as follows. Do not reuse an old hose.
The water inlet hose can not be extended. If
it is too short, please contact the after-sales
service.
1
1 2
10 electrolux

Open the water inlet tap. Check there are
no leaks.

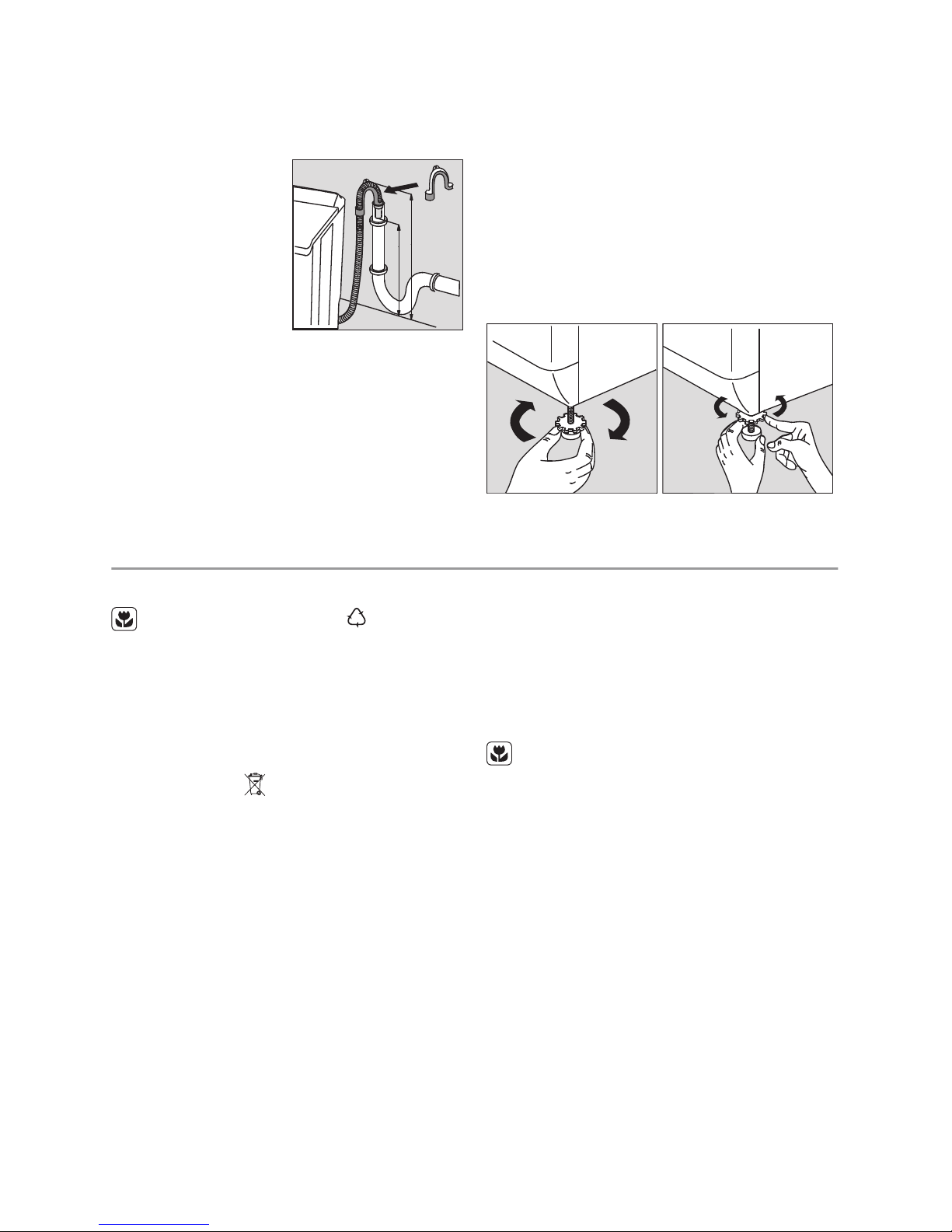

Drainage
Fit the U-piece on
the drainage hose.
Place everything in a
drainage point (or in
a sink) at a height of
between 70 and 100
cm. Ensure it is posi-
tioned securely. Air
must be able to en-
ter the end of the
hose, to avoid any risk of siphoning.
The drain hose must never be stretched. If
it is too short, contact an engineer.
Electrical connection
This washing machine must only be connec-
ted in single-phased 230 V. Check the fuse
size: 13 A for 230 V. The appliance must
MINI 70 cm
MAXI 100 cm
not be connected with an extension lead or
multi-plug adaptor. Ensure that the plug is
earthed and that it is in accordance with cur-
rent regulations.
Positioning
Position the appliance on a flat and hard sur-
face in a ventilated location. Ensure the ap-
pliance does not come into contact with the
wall or other furniture. Accurate levelling
avoids vibrations, noise and prevents the ap-
pliance from moving when running.
ENVIRONMENT
Disposing of the appliance
All materials carrying the symbol are
recyclable. Dispose of them at a waste
collection site (enquire at your local
council) for collection and recycling.
When disposing of your appliance, re-
move all parts which could be danger-
ous to others: cut off the power supply
cable at the base of the appliance.
The symbol on the product or on its
packaging indicates that this product
may not be treated as household
waste. Instead it should be taken to the
appropriate collection point for the recy-
cling of electrical and electronic equip-
ment. By ensuring this product is dis-
posed of correctly, you will help pre-
vent potential negative consequences
for the environment and human health,
which could otherwise be caused by in-
appropriate waste handling of this prod-
uct. For more detailed information
about recycling of this product, please
contact your local council, your house-
hold waste disposal service or the shop
where you purchased the product.
Protecting the environment
To save water and energy and there-
fore help protect the environment, we
recommend the following:
• Whenever possible, use the appli-
ance at full capacity and avoid partial
loads.
• Only use the prewash and soak pro-
grammes for heavily soiled items.
• Use an appropriate amount of deter-
gent for the hardness of the water,
the size of the load and how soiled
the washing is.
electrolux 11

108571500-A-262010
www.electrolux.com/shop
