Contents
2
Dear customer,
Please read these operating instructions carefully
and pay particular attention to the safety notes
indicated in the first pages. We recommend that you
keep this instruction booklet for future reference and
pass it on to any future owners.
The symbols you will see on some paragraphs of this booklet have the following meaning:
The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly
important for your safety or correct functioning of the appliance.
The information marked with this symbol provides additional instructions and practical tips on the use of
the appliance.
Tips and information about economical and ecological use of the machine are marked with this symbol.
Our contribution to the protection of the
environment: we use recycled paper.
Transport damages
When unpacking the appliance, check that it is not
damaged. If in doubt, do not use it and contact the
Service Centre.
Programme information 13
Washing hints 14
Sorting the laundry 14
Temperatures 14
Before loading the laundry 14
Maximum loads 14
Laundry weights 14
Removing stains 14
Detergents and additives 15
Quantity of detergent to be used 15
International wash code symbols 16
Operating sequence 17-19
Washing programmes 20
Special programmes 21
Maintenance 22-23
Bodywork 22
Door seal 22
Detergent dispenser drawer 22
Drain filter 22
Water inlet filter 23
Emergency emptying out 23
Frost precautions 23
Something not working? 24-25
Warnings 3
Disposal 4
Tips for environmental protection 4
Technical specifications 4
Installation 5
Unpacking 5
Positioning 5
Water inlet 6
Water drainage 6
Electrical connection 6
Building-in 6-7
Preparation and assembly of the door 7
Your new washing machine 8
Description of the appliance 8
Detergent dispenser drawer
and programme chart 8
Use 9
Control panel 9
Controls 9-12
132984410.qxd 02/11/2005 10.47 Pagina 2

ENGLISH
Warnings
Installation
• All internal packing must be removed before using
the appliance. Serious damage may be caused to
the machine or adjacent furniture if the protective
transit devices are not removed or are not
completely removed. Refer to the relevant
paragraph in the instruction book.
• Any electrical work required to install this appliance
must be carried out by a qualified electrician.
• Any plumbing work required to install this
appliance must be carried out by a qualified
plumber.
• After having installed the machine, check that it is
not standing on its electrical supply cable.
• If the appliance is placed on a carpeted floor,
ensure that air can circulate freely between the
feet and the floor.
Use
• This appliance is designed for domestic use. It
must not be used for purposes other than those for
which it was designed.
• Only wash fabrics which are designed to be
machine washed. Follow the instructions on each
garment label.
• Do not overload the appliance. Follow the
instructions in the instruction book.
• Make sure that all pockets are empty. Objects such
as coins, safety pins, pins and screws can cause
extensive damage.
• Do not machine wash garments saturated with
petroleum, methylated spirits, trichlorethylene, etc.
If such fluids have been used to remove stains
prior to washing, wait until they have completely
evaporated from the fabric before placing
garments in the appliance.
• Place small items such as socks, belts, etc. in a
cloth bag or pillowcase to prevent them getting
trapped between the drum and the tub.
• Use only the recommended quantities of fabric
softener. An excessive amount could damage the
laundry.
• Leave the porthole door slightly ajar when the
appliance is not in use. This preserves the door
seal and prevents the formation of musty smells.
• Always check that water has emptied out before
opening the door. If not, drain the water following
the instructions in the instruction book.
• Always unplug the appliance and shut the water
tap after use.
General safety
• Repairs to the machine must be carried out only by
qualified personnel. Repairs carried out by
inexperienced persons could cause serious
danger. Contact your local Service Centre.
• Never pull the power supply cable to remove the
plug from the socket; always take hold of the plug
itself.
• During high temperature wash programmes the
door glass may get hot. Do not touch it!
Child safety
• Children are often not aware of how dangerous
electrical appliances can be. When the machine is
working, children should be carefully supervised
and not be allowed to play with the appliance.
• The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children - danger
of suffocation! Keep them out of children’s reach.
• Keep all detergents in a safe place out of children’s
reach.
• This machine incorporates a special child safety
feature to prevent small children from being
trapped inside the machine.
To activate this device, rotate the button (without
pressing it) inside the door clockwise until the
groove is horizontal. If necessary use a coin.
To disable this device and restore the possibility of
closing the door, rotate the button anti-clockwise
until the groove is vertical.
• When the appliance is to be scrapped, cut off the
electrical supply cable and destroy the plug with
the remaining cable. Disable the door catch in
order to prevent children from becoming trapped
inside while playing.
P1131
The following warnings are provided in the interests of overall safety. You must read them carefully before
installing or using the appliance.
3
132984410.qxd 02/11/2005 10.47 Pagina 3

Technical specifications
DIMENSIONS Height 82 cm
Width 60 cm
Depth 54 cm
MAXIMUM LOAD Cotton 5 kg
Synthetics 2 kg
Delicates 2 kg
Woollens/handwash 1 kg
SPIN SPEED 1200 rpm max.
POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz
TOTAL POWER ABSORBED 2200 W
MINIMUM FUSE PROTECTION 10 A
WATER PRESSURE Minimum 0,05 MPa
Maximum 0,8 MkPa
This appliance complies with the following EEC Directives:
73/23/EEC of 19/02/73 relating to low voltage
89/336/EEC of 03/05/89 relating to electromagnetic compatibility.
4
Disposal
Tips for environmental protection
Packaging materials
The materials marked with the symbol are
recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by disposing of
them properly in appropriate collection containers.
Machine
Use authorised disposal sites for your old appliance.
Help to keep your country tidy!
The symbol on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it shall be handed over to
the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused
by inappropriate waste handling of this product. For
more detailed information about recycling of this
product, please contact your local city office, your
household waste disposal service or the shop where
you purchased the product.
To save water, energy and to help protect the
environment, we recommend that you follow these
tips:
• Normally soiled laundry may be washed without
prewashing in order to save detergent, water and
time (the environment is protected too!).
• The machine works more economically if it is fully
loaded.
• With adequate pre-treatment, stains and limited
soiling can be removed; the laundry can then be
washed at a lower temperature, so saving energy.
• Measure out detergent according to the water
hardness, the degree of soiling and the quantity of
laundry being washed.
132984410.qxd 02/11/2005 10.47 Pagina 4

ENGLISH
Installation
5
Unpacking
All transit bolts and packing must be removed
before using the appliance.
You are advised to keep all transit devices so that
they can be refitted if the machine ever has to be
transported again.
1. Using a spanner, unscrew and remove the rear
right-hand bolt and lay the machine on its back,
taking care not to squash the hoses. This can be
avoided by placing one of the corner packing
pieces between the machine and the floor.
2. Remove the polystyrene base and take off the
bottom panel by unscrewing the central screw.
3. Carefully remove the right-hand bag.
4. Carefully slide out the other bags.
5. Re-fit the bottom panel using the 4 screws
supplied with the door hinges (in the plastic bag)
and the previously removed screw.
P0453
P0016
P0015
P0457
P0255
6. Set the machine upright and remove the two
remaining bolts from the back.
7. Pull out the three plastic spacers from the holes
into which the bolts were fitted.
8. Plug all the holes with the plugs which you will
find in the plastic envelope containing the
instruction booklet.
Positioning
Install the machine on a flat hard floor.
Make sure that air circulation around the machine is
not impeded by carpets, rugs etc. Check that the
machine does not touch the wall or other kitchen
units.
Carefully level by screwing the adjustable feet in or
out. Never place cardboard, wood or similar
materials under the machine to compensate for any
unevenness in the floor.
P1051
P0020
P0256
132984410.qxd 02/11/2005 10.47 Pagina 5

6
Water inlet
Connect the water inlet hose supplied with the
machine to a tap with a 3/4" thread. Do not use
already employed hoses.
The other end of the inlet hose which connects to the
machine can be turned in any direction. Simply
loosen the fitting, rotate the hose and retighten the
fitting, making sure there are no water leaks.
The inlet hose must not be lengthened. If it is too
short and you do not wish to move the tap, you will
have to purchase a new, longer hose specially
designed for this type of use.
Water drainage
The end of the drain hose can be positioned in three
ways:
Hooked over the edge of a sink using the plastic
hose guide supplied with the machine. In this
case, make sure the end cannot come unhooked
when the machine is emptying.
This could be done by tying it to the tap with a piece
of string or attaching it to the wall.
In a sink drain pipe branch. This branch must be
above the trap so that the bend is at least 60 cm
above the ground.
Directly into a drain pipe at a height of not less
than 60 cm and not more than 90 cm.
The end of the drain hose must always be
ventilated, i.e. the inside diameter of the drain pipe
must be larger than the outside diameter of the drain
hose.
P0022
P0021
P1088
The drain hose must not be kinked. Run it along the
floor; only the part near the drainage point must be
raised.
Electrical connection
This machine is designed to operate on a 220-230 V,
single-phase, 50 Hz supply.
Check that your domestic electrical installation can
take the maximum load required (2.2 kW), also
taking into account any other appliances in use.
Connect the machine to an earthed socket.
The manufacturer declines any responsibility
for damage or injury through failure to comply
with the above safety precaution.
Should the appliance power supply cable
need to be replaced, this should be carried
out by our Service Centre.
Building-in
This appliance has been designed to be built into the
kitchen furniture.
The recess should have the dimensions shown in
picture A.
P0965
820 min
600
600
596
416 176,5 818
541
195
490
160
120
90
8
515
165
A
P0023
132984410.qxd 02/11/2005 10.47 Pagina 6

ENGLISH
Preparation and assembly of the door
The machine is originally pre-arranged for the
assembly of a door opening from right to left.
In this case it is sufficient to screw in the hinges (1)
and the counter-magnet (6) provided with the
appliance, at the right level (Fig. B).
a) Door
The dimensions of the door should be:
- width 595-598 mm
- thickness 16-22 mm
The height (C-Fig. C) depends on the height of the
adjacent furniture's base.
b) Hinges
To mount the hinges it is necessary to drill two holes
(dia. 35 mm, depth 14 mm) on the inner side of the
door. The distance between the holes must be
416 mm.
The distance (B) from upper edge of the door to the
centre of the hole depends on the adjacent
furniture's dimensions.
The required dimensions are given in the picture C.
The hinges will be fixed to the door by means of
screws for wood (2-Fig. B).
Ø 35 mm - Depth 14 mm
16-22
B
C
22+1,5
595-598
416
P0026 C
4
12
3
6
1
2
3
P0982
7
B
5
c) Mounting the door
Fix the hinges to the machine by means of the M5x8
screws (3-Fig. B). The hinges can be adjusted to
compensate for possible uneven thickness of the
door.
To align the door perfectly it is necessary to loosen
the screw (3-Fig. B), adjust the door and tighten the
screw again.
d) Counter-magnet (6)
The appliance is pre-arranged for a magnetic closure
of the door. To enable a correct operation of this
device, it is necessary to screw the counter-magnet
(6) (steel disk + rubber ring) into the inner side of the
door.
Its position must correspond to the magnet (4) on the
appliance (see picture D).
If the door has to be opened from left to right, invert
the position of the plates (5 and 7) and the magnet
(4) (Fig. B and E). Mount the countermagnet (6) and
the hinges (1) as previously described.
When the appliance is installed the power supply
cable must be easily accessible.
4
6
5
1
2
3
7
E
P0983
P0 984
6
4
D
7
132984410.qxd 02/11/2005 10.47 Pagina 7

Your new washing machine
8
This new washing machine, which is fitted with the Direct Spray system, meets all modern needs for effective
treatment of laundry with low water, energy and detergent consumption.
Further savings are achieved by washing small loads of laundry, since water and electricity consumption is
proportional to the quantity and type of laundry being washed.
•The programme selector dial combines the function of programme and temperature selection, making it
easier to set the programme.
•The programme progress display shows the programme steps selected and the programme phase which
is running.
•The special wool programme with its new delicate wash system treats your woollens with extreme care.
•The balance control device ensures the machine is stable during the spin.
1 Detergent dispenser drawer
2 Programme chart
3 Control panel
4 Door handle
5 Drain filter
6 Adjustable feet
Detergent dispenser drawer and
programme chart
Prewash
Main wash
Fabric softener, starch
Description of the appliance
EWI 1235
1200
900
700
500
40°
40°
60°
40°
30°
30°
95°
60°
E60°
E40°
30°
E60°
40°
30°
P0239
132984410.qxd 02/11/2005 10.47 Pagina 8

ENGLISH
9
Use
14
12 13
EWI 1235
1200
900
700
500
40°
40°
60°
40°
30°
30°
95°
60°
E60°
E40°
30°
E60°
40°
30°
Control panel
1 Detergent dispenser drawer
2 Mains-on light
This light comes on when the ON/OFF button is
pressed, and goes out when it is pressed again.
3 ON/OFF button
Press this button to switch the machine on. Press it
again to switch the machine off.
Programme Option buttons
Depending on the programme, different functions
can be combined. These must be selected after
choosing the desired programme and before
depressing the START/PAUSE button .
When these buttons are pressed, the corresponding
pilot lights come on. When they are pressed again,
the pilot lights go out.
If an incorrect option is selected, the corresponding
pilot light flashes for about 2 seconds and the
message Err is displayed.
4 Prewash button
The machine performs a prewash cycle at 30°C max.
The prewash cycle ends with a short spin at 650 r.p.m.
in programmes for Cotton and Synthetics, and with
emptying of the water for Delicates.
This option is not available with the wool/handwash
programme and (Miniprogram 30’).
For use when washing heavily soiled laundry.
5 Spin speed button
Press this button to reduce the maximum speed of the
final speed proposed by the machine for the selected
programme or to select position (rinse hold).
The light corresponding to the selected option
illuminates.
The following speeds are available for the different
fabrics:
• Cotton, linen:
500/700/900 max 1200 r.p.m.
• Synthetics, wool/ (Handwash):
500/700 max 900 r.p.m.
• Delicates, (Miniprogram 30’):
500 max 700 r.p.m.
Rinse Hold
When RINSE HOLD option is selected, the last rinse
water is not emptied out, to prevent the fabrics from
creasing. When the programme has finished, the
light of the START/PAUSE button and the pilot light
(Door) go out, the light and the pilot light
(end) are alight to indicate
that the water must be emptied out.
To empty out water there are 2 possibilities:
• Select programme (Drain):
The water is emptied out without spinning.
• Select programme (Spin) or (Delicate spin),
reduce eventually the spin speed by means of the
relevant button and then depress the START/
PAUSE button .
The water is emptied out and the laundry is spun
at the selected spin speed.
Attention! Before selecting programmes (Drain),
(Spin) or (Delicate spin), the selector dial has
to be positioned on O(cancelling).
132984410.qxd 02/11/2005 10.47 Pagina 9

6 Soak button
To be used for heavily soiled laundry. The machine
performs a soak of about 30 minutes at 30°C. By
pressing the DELAY START button the soak time
can be prolonged up to 10 hours max. After this time
the wash cycle will start automatically.
This option is not suitable for wool/handwash and
cannot be selected with PREWASH option .
The soak programme ends with a short spin in
programmes for cottons and synthetics, and with
emptying of the water without spinning for delicates.
7 Quick wash button
This option can be used for lightly soiled cotton,
synthetic or delicate items hat have been used or
worn for a short time.
This option is not available with the WOOl/handwash
programme, the Energy saving programmes
(E60° and E40°) and Miniprogram .
8 Extra rinse button
This option can be selected with all programmes,
except the WOOl/handwash programme and
Miniprogram . The machine will add 2 rinses for
cottons and 1 rinse for synthetics and delicates.
This option is recommended for people who are
allergic to detergents and in areas where the water is
very soft.
9 Easy iron button
Selecting this button the laundry is gently washed
and spun to avoid any creasing. In this way ironing is
easier. Furthermore the machine will perform 6
rinses instead of 3 for cotton and 4 rinses instead of
3 for synthetics. This function can be used only for
cotton and synthetic fabrics.
If this option is selected for cotton programmes, the
spin speed automaticaly will reduce to 900 rpm.
If this option is selected for synthetic programmes
with a temperature of 60°C, the machine will perform
a washing cycle at max 40°C.
10 Delay Start button
The wash programme can be delayed from 30 min -
60 min - 90 min, 2 hours and then by 1 hour up to a
maximum of 23 hours by means of this button.
Selecting the delayed start
• Select the programme and the required options.
• Select the delay start.
• Depress START/PAUSE button: the machine
starts its hourly countdown.
The programme will start after the selected delay has
expired. The DELAY START cannot be used with
(Drain), (Spin) or (Delicate spin)
programmes.
Cancelling the delayed start
• Depress START/PAUSE button .
• Depress DELAY START button until «0’»is
displayed.
• Depress START/PAUSE button again , if you
wish to restart the machine immediately.
11 START/PAUSE button
This button has two functions:
Start - Pause
After having selected the required programme, press
this button to start the machine; the corresponding
pilot light stops flashing.
If you have selected the delayed start, the machine
begins its countdown. The duration of the
programme or the delay appears on the display.
To interrupt a programme which is running, depress
the Start/Pause button: the corresponding pilot light
starts to flash.
To restart the programme from the point at which it
was interrupted, press the START/PAUSE button
again.
12 Programme progress display
By selecting the wash programme, the pilot lights
corresponding to the various phases making up the
programme come on.
After the machine has started, the (Door) pilot
light and only the running phase light illuminate and
stay on.
Pause
Start
10
132984410.qxd 02/11/2005 10.47 Pagina 10

ENGLISH
When the programme has finished, the (end)
pilot light comes on and the (Door) pilot light
goes off.
The (Door) pilot light indicates if during the
washing cycle the door can be opened:
•Light on: the door can be opened
(when the washing machine is set to PAUSE, the
(Door) pilot light will go off).
•Light off: the door cannot be opened
(when the washing machine is set to PAUSE, the
(Door) pilot light will start to flash)
The (end) pilot light flashes in the event of
operating problems and the corresponding alarm
code appears on the display.
E10 = the machine does not fill
E20 = the machine does not empty
E40 = the door has not been closed
To eliminate the problem, see paragraph “Something
not working”.
If the (filter clogged) pilot light flashes at the end
of the programme this means that the drain filter
must be cleaned.
13 Programme selector dial
The selector is divided into 5 sections:
• Cotton, linen
• Synthetics
• Delicates
• Woollens (hand washing)
• Special programmes
• Reset programme O
40°
40°
60°
40°
30°
30°
95°
60°
E60°
E40°
30°
E60°
40°
30°
oor
The selector dial can be turned either clockwise or
anticlockwise.
Position Ecorresponds to the ENERGY SAVING
programme and position to “cold wash”.
At the end of the programme the selector dial
must be turned to position O (reset).
14 Display
The display shows the following information:
Duration of the programme - Delayed start -
Incorrect option selection - Alarm code - End of
programme.
After selecting a programme, the duration is
displayed in hours and minutes ( for example 2.05).
The duration is calculated automatically on the basis of
the maximum recommended load for each type of fabric.
After the programme has started, the time remaining
is updated every minute
The selected delay (23 hours max) set by means of
the relevant button appears on the display for 3
seconds, then the duration of the previously selected
programme is displayed.
The countdown is updated every hour and when
remain the last 2 hours each 30 min.
Delayed start
Duration of the selected
programme
11
132984410.qxd 02/11/2005 10.47 Pagina 11

If an option which is not compatible with the set wash
programme is selected, the message Err is
displayed for 2 seconds.
In the event of operating problems, some alarm
codes can be displayed, for example E20 (see
paragraph “Something not working”).
When the programme has finished a flashing zero
is displayed. The door can be opened when the
(Door) pilot light has gone out and if the (rinse
hold) option has not been selected.
End of programme
Alarm codes
Incorrect option selection
12
132984410.qxd 02/11/2005 10.47 Pagina 12

ENGLISH
13

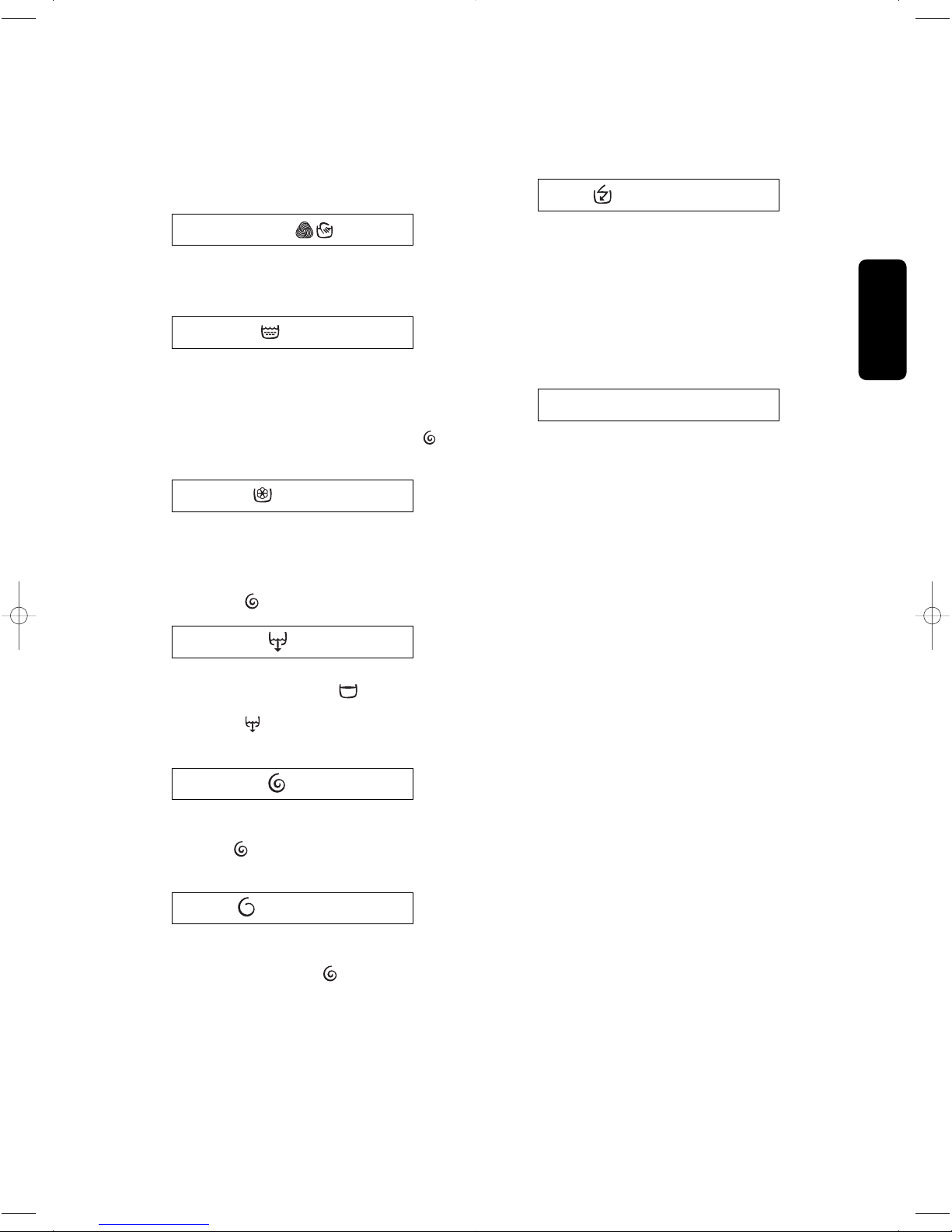

Programme information
Washing programme for machine washable wool as
well as for hand washable woollens and delicate
fabrics with the “hand washing” care symbol.
With this programme it is possible to rinse and spin
cotton garments which have been washed by hand.
The machine performs 3 rinses, followed by a final
spin at 1200 r.p.m.
You can reduce the speed by means of button to
adapt it to the fabrics to be spun.
Hand washed garments can be softened with this
programme.
The machine performs 1 rinse, followed by a final
spin at the max. speed, which can be reduced by
depressing button .
For emptying out the water of the last rinse in
programmes with the Anti-crease option.
Turn first the programme selector dial to O, then
select programme and depress the
START/PAUSE button.
Separate long spin at the maximum speed for hand
washed garments. You can reduce the speed by
means of button to adapt it to the fabrics to be
spun.
Separate short spin at 700 rpm for hand washed
synthetics, delicate and wollen garments. You can
reduce the speed by means of button to adapt it
to the fabrics to be spun.
Delicate spin
Spin
Drain
Softeners
Rinses
Wool This is a complete programme that can be
combined with the following options: spin speed
reduction, rinse hold and delay start.
To be used for laundry which is lightly soiled or
which needs freshening up.
Max load 2 kg.
Washing temperature 30°C
Programme duration 30 minutes
Final spin speed 700 r.p.m.
To reset a programme turn the selector dial to O.
Now can a new programme be selected.
O = Cancelling
Miniprogram 30’
132984410.qxd 02/11/2005 10.47 Pagina 13

14
Washing hints
Sorting the laundry
Follow the wash code symbols on each garment
label and the manufacturer’s washing instructions.
Sort the laundry as follows:
whites, coloureds, synthetics, delicates, woollens.
Temperatures
95° for normally soiled white cottons and linen
(e.g. tea cloths, towels, tablecloths,
sheets...).
60° for normally soiled, colour fast garments
(e.g. shirts, night dresses, pyjamas....) in
linen, cotton or synthetic fibres and for
lightly soiled white cotton (e.g. underwear).
(cold)for delicate items (e.g. net curtains), mixed
30°-40° laundry including synthetic fibres and
woollens.
Before loading the laundry
Never wash whites and coloureds together. Whites
may lose their “whiteness” in the wash.
New coloured items may run in the first wash; they
should therefore be washed separately the first time.
Make sure that no metal objects are left in the
laundry (e.g. hair clips, safety pins, pins).
Button up pillowcases, close zip fasteners, hooks
and poppers. Tie any belts or long tapes.
Remove persistent stains before washing. Rub
particularly soiled areas with a special detergent or
detergent paste.
Treat curtains with special care. Remove hooks or tie
them up in a bag or net.
Maximum loads
Recommended loads are indicated in the
programme charts.
General rules:
Cotton, linen: drum full but not too tightly packed;
Synthetics: drum no more than half full;
Delicate fabrics and woollens: drum no more than
one third full.
Washing a maximum load makes the most efficient
use of water and energy.
For heavily soiled laundry, reduce the load size.
Laundry weights
The following weights are indicative:
bathrobe 1200 g
napkin 100 g
quilt cover 700 g
sheet 500 g
pillow case 200 g
tablecloth 250 g
towelling towel 200 g
tea cloth 100 g
night dress 200 g
ladies’ briefs 100 g
man’s work shirt 600 g
man’s shirt 200 g
man’s pyjamas 500 g
blouse 100 g
men’s underpants 100 g
Removing stains
Stubborn stains may not be removed by just water
and detergent. It is therefore advisable to treat them
prior to washing.
Blood: treat fresh stains with cold water. For dried
stains, soak overnight in water with a special
detergent then rub in the soap and water.
Oil based paint: moisten with benzine stain
remover, lay the garment on a soft cloth and dab the
stain; treat several times.
Dried grease stains: moisten with turpentine, lay
the garment on a soft surface and dab the stain with
the fingertips and a cotton cloth.
Rust: oxalic acid dissolved in hot water or a rust
removing product used cold. Be careful with rust
stains which are not recent since the cellulose
structure will already have been damaged and the
fabric tends to hole.
Mould stains: treat with bleach, rinse well (whites
and fast coloureds only).
Grass: soap lightly and treat with bleach (whites and
fast coloureds only).
Ball point pen and glue: moisten with acetone (*),
lay the garment on a soft cloth and dab the stain.
Lipstick: moisten with acetone as above, then treat
stains with methylated spirits. Remove any residual
marks from white fabrics with bleach.
Red wine: soak in water and detergent, rinse and
treat with acetic or citric acid, then rinse. Treat any
132984410.qxd 02/11/2005 10.47 Pagina 14

ENGLISH
Quantity of detergent to be used
The type and quantity of detergent will depend on
the type of fabric, load size, degree of soiling and
hardness of the water used.
Water hardness is classified in so-called “degrees” of
hardness. Information on hardness of the water in
your area can be obtained from the relevant water
supply company, or from your local authority.
Follow the product manufacturers’ instructions on
quantities to use.
Use less detergent if:
– you are washing a small load,
– the laundry is lightly soiled,
– large amounts of foam form during washing.
Degrees of water hardness
residual marks with bleach.
Ink: depending on the type of ink, moisten the fabric
first with acetone (*), then with acetic acid; treat any
residual marks on white fabrics with bleach and then
rinse thoroughly.
Tar stains: first treat with stain remover, methylated
spirits or benzine, then rub with detergent paste.
(*) do not use acetone on artificial silk.
Detergents and additives
Good washing results also depend on the choice of
detergent and use of the correct quantities to avoid
waste and protect the environment. Although
biodegradable, detergents contain substances
which, in large quantities, can upset the delicate
balance of nature.
The choice of detergent will depend on the type of
fabric (delicates, woollens, cottons, etc.), the colour,
washing temperature and degree of soiling.
All commonly available washing machine detergents
may be used in this appliance:
– powder detergents for all types of fabric,
– powder detergents for delicate fabrics (60°C max)
and woollens,
– liquid detergents, preferably for low temperature
wash programmes (60°C max) for all types of
fabric, or special for woollens only.
The detergent and any additives must be placed in
the appropriate compartments of the dispenser
drawer before starting the wash programme.
If using concentrated powder or liquid detergents, a
programme without prewash must be selected.
The washing machine incorporates a recirculation
system which allows an optimal use of the
concentrated detergent.
Pour liquid detergent into the dispenser drawer
compartment marked just before starting the
programme.
Any fabric softener or starching additives must be
poured into the compartment marked before
starting the wash programme.
Follow the product manufacturer’s recommendations
on quantities to use and do not exceed the «MAX»
mark in the detergent dispenser drawer.
15
Level Characteristic
Degrees
German
°dH
French
°T.H.
soft
medium
hard
very hard
0- 7
8-14
15-21
more than
21
0-15
16-25
26-37
more than
37
1
2
3
4
132984410.qxd 02/11/2005 10.47 Pagina 15

16
International wash code symbols
These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.
Energetic wash
Delicate wash
Max. wash
temperature
95°C
Max. wash
temperature
60°C
Max. wash
temperature
40°C
Max. wash
temperature
30°C
Hand wash Do not
wash
at all
Bleaching Bleach in cold water Do not bleach
Ironing Hot iron
max 200°C
Warm iron
max 150°C
Lukewarm iron
max 110°C
Do not iron
Dry cleaning Dry cleaning
in all solvents
Dry cleaning in
perchlorethylene,
petrol, pure alcohol,
R 111 & R 113
Dry cleaning
in petrol,
pure alcohol
and R 113
Do not
dry clean
Drying Flat On the line On clothes
hanger
Tumble dry
high
temperature
low
temperature
Do not
tumble dry
95
60
60
40
40
40
30
30
132984410.qxd 02/11/2005 10.47 Pagina 16

ENGLISH
17
4. Switch the machine on
To switch the machine on, press the ON/OFF button
:the mains-on light comes on. The display will
show three flashing dashes or a blinking zero.
5. Select the desired programme
Turn the programme selector dial to the desired
position: the display will show the duration of the
selected programme.
The lights corresponding to the different phases
making up the selected programme light on.
6. Select the spin speed
or option
Depress the spin speed button to choose the
required speed or option : the corresponding light
comes on.
1200
900
700
500
oor
40°
40°
60°
40°
30°
30°
95°
60°
E60°
E40°
30°
E60°
40°
30°
---
0
Operating sequence
Before washing your first load of laundry, we
recommend that you run a cotton cycle at 95°C, with
the machine empty, in order to remove any
manufacturing residue from the drum and tub.
Pour half a measure of detergent into the main wash
compartment and start up the machine.
1. Place the laundry in the drum
Open the door.
Place the laundry in the drum, one item at a time,
shaking them out as much as possible.
Close the door.
2. Measure out the detergent
Pull out the dispenser drawer until it stops. Measure
out the amount of detergent recommended by the
manufacturer in a graduated cup and pour it into the
main wash compartment .
If you wish to carry out the prewash or a soak phase,
pour detergent into the appropriate compartment
marked .
3. Measure out the additive
If required, pour fabric softener into the compartment
marked , without exceeding the «MAX» mark.
P0005
P0006
P0004
132984410.qxd 02/11/2005 10.47 Pagina 17

If you have chosen a delayed start, the washing
machine will begin the countdown.
The display will show the duration of the programme
or the selected delay.
10. How to change an option or a
programme during its cycle
Before you make any change, you must pause the
machine by pressing the START/PAUSE button .
It is possible to change any phase before the
programme carries it out.
Changing a running programme is possible only by
cancelling it and selecting a new programme.
The machine will resume the cycle from the
beginning and the washing water in the tub will not
emptied out.
If it is necessary to drain the water in order to change
the programme in progress, proceed as follows:
• turn the programme selector dial to «O»;
• select programme ;
• press the START/PAUSE button again.
When the water has been drained, the display shows
a blinking zero and the light light on.
You may now select a new programme and press
the START/PAUSE button to start it.
11. Interrupting a programme
Depress the START/PAUSE button to interrupt a
programme which is running: the corresponding light
starts to flash.
Depress the same button to restart the programme.
12. Cancelling a programme
Turn the selector dial to Oto cancel a programme
which is running. Now you can select a new
programme.
18
7. Select the required options
The light corresponding to the depressed button
illuminates.
8. Select the Delay Start
To delay starting of the programme, press the
DELAY start button. The figures corresponding to the
selected delay will be displayed for about 3 seconds,
after which the duration of the selected programme
will appear on the display.
During this period it is possible to load other laundry:
• depress START/PAUSE button;
• open the door;
• load the laundry;
• close the door and depress START/PAUSE button
again.
9. Start the programme
To start the selected programme, press the
START/PAUSE button; the corresponding light stops
flashing and the door pilot light illuminates.
The pilot light corresponding to the wash phase
which is running is on. The machine starts operating.
132984410.qxd 02/11/2005 10.47 Pagina 18

ENGLISH
13 Opening the door after the
programme has started
You can open the door, after having set the washing
machine to PAUSE, provided the following
conditions exist:
• the washing machine has not heated beyond 55°C;
• the level of the water is not high;
• the drum is not turning.
If these requirements are met, the (Door) pilot
light will be on and, when you pause the washing
machine, it will go out: the door can be opened.
Should it not be possible to open the door, and
should it be absolutely necessary to do so, switch
the machine off by pressing the ON/OFF button :.
After approximately 3 minutes, you can open the
door.
Pay attention to the level and temperatures of the
water in the washing machine!
When you close the door and press the ON/OFF
button :again, the washing machine will resume
the programme from the point where it had been
interrupted.
14. At the end of the programme
The machine stops automatically.
If the rinse hold option has been selected, the
door is blocked, the light of the START/PAUSE
button and (Door) pilot light go out and
and remain lit to indicate that the water must be
emptied out before opening the door. The display
shows a blinking zero.
There are 2 possibilities to empty out water:
• Select programme (draining):
The water is emptied out without spinning.
• Select programme or . Select the spin
speed by means of the relevant button and then
depress the START/PAUSE button . The water
is emptied out and the laundry is spun at the
selected spin speed.
Attention! Before selecting programme , and
the selector dial has to be positioned on O
(cancelling).
At the end of the cycle, the light of the
START/PAUSE button and the (Door) pilot light
go out, and the (End) light illuminates. The door
can be opened.
Turn the programme selector dial to Reset O.
Switch the machine off by pressing the ON/OFF
button .
Remove the laundry from the drum and carefully
check that the drum is empty so as to avoid any
forgotten items being damaged in a subsequent
wash (e.g. shrinking) or their colour running into a
load of whites.
If you do not intend to carry out another wash, close
the water tap.
Leave the door open to prevent the formation of
mildew and unpleasant smells.
19
132984410.qxd 02/11/2005 10.47 Pagina 19

20
Programme chart
Washing programmes
* The consumption data shown on this chart is to be considered purely indicative, as it may vary depending on
the quantity and type of laundry, on the inlet water temperature and on the ambient temperature. It corresponds
to the highest temperature for each wash programme and to a wash load, for cotton, of 5 kg.
** In compliance with EC directive 92/75, the consumption figures indicated on the energy label refer to the
60°C wash programme for cotton with a load of 5 kg.
Section
95°
E60°**
60°
E40°
30°-
40°
60°
E60°
30°-
40°
30°-40°
30°-
40°
Temp. Type of
fabric
Additional
functions
5 kg
5 kg
5 kg
5 kg
5 kg
2 kg
2 kg
2 kg
2 kg
1 kg
Max.
load
1.9
0.85
1.2
0.95
0.7
0.85
0.5
0.45
0.55
0.40
52
49
49
49
49
41
41
38
58
58
140
145
119
139
116
87
87
77
58
57
Consumption*
Energy
kWh
Water
lt
Time
min
White
cotton
White cotton
economy
Whites
and fast
coloureds
Coloureds
economy
Non-fast
coloureds
Synthetics
Synthetics
economy
Synthetics
Delicates
Wool/hand-
wash
Programme
description
Wash at 95°C
3 rinses
Normal spin
Wash at 60°C
3 rinses
Normal spin
Wash at 60°C
3 rinses
Normal spin
Wash at 40°C
3 rinses
Normal spin
Wash at 30°-40°
or cold wash
3 rinses
Normal spin
Wash at 60°C
3 rinses
Delicate spin
Wash at 40°C
3 rinses
Delicate spin
Wash at 30°-
40°C or cold
wash
3 rinses
Delicate spin
Wash at 30°-
40°C
3 rinses
Delicate spin
Wash at 30°-
40°C or cold
wash
3 rinses
Delicate spin
132984410.qxd 02/11/2005 10.47 Pagina 20
