Electrolux EWT1574M7SA User manual

Top-Load Washing Machine
EWT1574M7SA
EWT1374M7SA
EWT1574M7WA
EWT1374M7WA
EWT1174M7WA
User Manual 2
EN

2www.electrolux.com
Adherence to the directions for use in this manual is extremely important for health and
safety. Failure to strictly adhere to the requirements in this manual may result in personal
injury, property damage and affect your ability to make a claim under the Electrolux
manufacturer’s warranty provided with your product. Products must be used, installed and
operated in accordance with this manual. You may not be able to claim on the Electrolux
manufacturer’s warranty in the event that your product fault is due to failure to adhere to
this manual.
IMPORTANT INFORMATION THAT MAY IMPACT YOUR
MANUFACTURER’S WARRANTY
We recommend the use of original spare parts.When contacting Service, ensure that
you have the following data available. The information can be found on the rating plate.
Model, PNC, Serial Number.
Subject to change without notice.
Warning / Caution-Safety information.
General information and tips.
Environmental information.
CUSTOMER CARE AND SERVICE
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings
with it decades of professional experience and innovation. Ingenious and stylish, it
has been designed with you in mind. So whenever you use it, you can be safe in the
knowledge that you’ll get great results every time. Welcome to Electrolux.
Get usage advice, brochures, trouble shooter, service information, buy
accessories & spare parts, online product registration : www.electrolux.co.th
WE’RE THINKING OF YOU
Visit our website to:

ENGLISH 3
Adherence to the directions for use in this manual is extremely important for health and
safety. Failure to strictly adhere to the requirements in this manual may result in personal
injury, property damage and affect your ability to make a claim under the Electrolux
manufacturer’s warranty provided with your product. Products must be used, installed and
operated in accordance with this manual. You may not be able to claim on the Electrolux
manufacturer’s warranty in the event that your product fault is due to failure to adhere to
this manual.
IMPORTANT INFORMATION THAT MAY IMPACT YOUR
MANUFACTURER’S WARRANTY
CONTENTS
1. SAFETY INFORMATION.......4
1.1 Conditions Of Use.....................4
1.2 Child Safety...............................5
1.3 General Safety..........................6
1.4 In󰀬allation .................................6
1.5 Use............................................7
2. PRODUCT DESCRIPTION..........8
2.1 Parts..........................................8
2.2 Product Features.....................10
3. CONTROL PANEL....................... 11
3.1 Control Panel Description ....... 11
3.2 Program Chart.........................13
3.3 Program Options Compatibility.14
3.4 Options....................................16
3.5 Settings...................................18
4. DAILY USE...................................19
4.1 Starting Your Washing Machine19
4.2 Load The Washing Machine....19
4.3 Add The Detergent/Bleach......19
4.4 Add Fabric Softener ................20
4.5 Adding Bleach .........................20
4.6 Setting a Program...................21
4.7 Starting a Program..................21
4.8 Interruption Of A Program .......21
4.9 Changing A Program...............21
4.10 Changing The Options..........21
4.11 At The End Of The Program..22
5. WASHING HINTS........................23
5.1 Sort Your Washing Into
Separate Wash Loads.............23
5.2 Pre-treatment Sprays And
Stain Removers ......................24
5.3 Detergent ................................24
5.4 A Guide To Stain Removal.......24
6. INTERNATIONAL WASH CODE
SYMBOLS....................................26
7. CARE AND CLEANING...............27
7.1 What To DoAfter You Have
Finished Your Washing............27
7.2 Cleaning The Lint Filter...........27
7.3 Cleaning The Dispenser .........27
7.4 Cleaning The Drawer Recess.28
7.5 Cleaning The Water Inlet Filter.28
7.6 Cleaning Your Washing
Machine...................................29
7.7 Cleaning Stains In The
Washbowl................................29
8. TROUBLESHOOTING.................30
8.1 Possible Failures.....................30
8.2 Troubleshooting Fault Displays.32
8.3 Yellowing Or Greying Clothes .34
9. TECHNICAL DATA.......................35
10. INSTALLATION..........................38
10.1 Unpacking.............................38
10.2 Positioning.............................40
10.3 Water Inlet.............................40
10.4 Water Drainage.....................41
10.5 Electrical Connection ............42
11. ENVIRONMENT CONCERNS..43
11.1 Packaging Materials..............43
11.2 Old Machine ..........................43
11.3 Ecological Hints.....................43

4www.electrolux.com
In the interest of your safety and to ensure the correct
use, before installing and first using the appliance, read
this user manual carefully, including its hints and
warnings.
This appliance is intended to be used in household and
similar applications such as:
farm houses;
by clients in hotels, motels, and other residential type
environments;
To avoid unnecessary mistakes and accidents, it is
important to ensure that all people using the appliance
are thoroughly familiar with its operation and safety
features.
Save these instructions and make sure that they remain
with the appliance if it is moved or sold, so that everyone
using it through its life will be properly informed on
appliance use and safety.
●
bed and breakfast type environments;
●areas for communal use in blocks of flats or in
launderettes.
●
staff kitchen areas in shops, offices and other working
environtment;
●
●
WARNING! The appliance must not be supplied
through an external switching device, such as timer,
or connected to a circuit that is regularly switched on
and off by utility.
1. SAFETY INFORMATION
1.1 Conditions Of Use

ENGLISH 5
In the interest of your safety and to ensure the correct
use, before installing and first using the appliance, read
this user manual carefully, including its hints and
warnings.
This appliance is intended to be used in household and
similar applications such as:
farm houses;
by clients in hotels, motels, and other residential type
environments;
To avoid unnecessary mistakes and accidents, it is
important to ensure that all people using the appliance
are thoroughly familiar with its operation and safety
features.
Save these instructions and make sure that they remain
with the appliance if it is moved or sold, so that everyone
using it through its life will be properly informed on
appliance use and safety.
●
bed and breakfast type environments;
●areas for communal use in blocks of flats or in
launderettes.
●
staff kitchen areas in shops, offices and other working
environtment;
●
●
WARNING! The appliance must not be supplied
through an external switching device, such as timer,
or connected to a circuit that is regularly switched on
and off by utility.
●
●
●
●
This appliance is not intended for use by young
children or infirm persons without supervision.
Young children should be supervised to ensure that
they do not play with the appliance.
The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children - danger of
suffocation! Keep them out of children’s reach.
Keep all detergents in a safe place out of children’s
reach.
Make sure that children or pets do not climb into the
drum.
●
●
This machine is provided with child safety lock option
( ) to prevent children playing with the control
panel. (see page 18)
1.2 Child Safety

6www.electrolux.com
It is dangerous to alter the specifica-
tions or attempt to modify this product
in any way.
Make sure that small pets do not climb
into the washbowl. To avoid this, please
check into the washbowl before using
the appliance.
Only use the advised quantities of fabric
softener and detergent. Damage to the
fabric can ensue if you overfill. Refer to
the manufacturer’s recommendations of
quantities.
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
Wash small items such as socks,
laces, washable belts etc in a washing
bag or pillow case as it is possible for
such items to slip down between the
tub and the agitator.
Do not use your washing machine to
wash articles with whale bones,
material without hems or torn material.
Always unplug the appliance and turn
off the water supply after use, clean
and maintenance.
Under no circumstances should you
attempt to repair the machine yourself.
Repairs carried out by inexperienced
persons may cause injury or serious
malfunctioning. Contact your local
Service Centre. Always insist on
genuine spare parts.
Any objects such as coins, safety pins,
nails, screws, hairpin, toothpick, stones
or any other hard, sharp material can
cause extensive damage and must not
be placed into the machine. When unpacking the appliance, check
that it is not damaged. If in doubt, do
not use it and contact the Service
Centre.
After having installed the appliance,
check that it is not standing on the inlet
and drain hose.
The appliance should not be installed
in a humid place. The machine should
be installed indoors without touch the
rain.
If the machine is situated on a carpeted
floor, please adjust the feet in order to
allow air to circulate freely.
Always be sure, that there is no water
leakage from hoses and their connec-
tions after the installation.
Any plumbing work required to install
this appliance should be carried out by
a qualified plumber.
Any electrical work required to install
this appliance should be carried out by
a qualified electrician.
If the supply cord is damaged,
should the appliance power supply
cable need to be replaced, this shall
be carried out by our Service Centre.
This appliance is designed for domestic
use. It must not be used for purposes
other than those for which it was
designed.
Make sure that the drainage is working
properly.
Only wash fabrics which are designed
to be machine washed. Follow the
instructions on each garment label.
Do not overload the appliance. See the
relevant section in the user manual.
Before washing, ensure that all pockets
are empty and buttons and zips are
fastened. Avoid washing frayed or torn
articles and treat stains such as paint,
ink, rust, and grass before washing.
Garments which have been in contact
with volatile petroleum products should
not be machine washed. If volatile
cleaning fluids are used, care should be
taken to ensure that the fluid is
removed from the garment before
placing in the machine.
Never pull the power supply cable to
remove the plug from the socket,
always take hold of the plug itself.
Never use the Top-load Washing
Machine if the power supply cable, the
control panel, the working surface or
the base are damaged so that the
inside of the Top-load Washing
Machine is accessible.
Components in the machine
are designed to be used with
water not hotter than 60 °C.
Water pressures between minimum
50kPa and maximum 800kPa are
acceptable.
Do not touch the power plug
while your hand still wet.
Do not put your hand, foot, or
anything under the washing
machine while the machine is
operated.
May cause electric shock! if the
machine is not connected to an
earthed/ground system. DO NOT
touch the wet clothes and metal
parts.
For safety reasons do not use
double adaptors, extension cords
and multi-plug adapters.
1.3 General Safety
1.4 Installation

ENGLISH 7
It is dangerous to alter the specifica-
tions or attempt to modify this product
in any way.
Make sure that small pets do not climb
into the washbowl. To avoid this, please
check into the washbowl before using
the appliance.
Only use the advised quantities of fabric
softener and detergent. Damage to the
fabric can ensue if you overfill. Refer to
the manufacturer’s recommendations of
quantities.
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
Wash small items such as socks,
laces, washable belts etc in a washing
bag or pillow case as it is possible for
such items to slip down between the
tub and the agitator.
Do not use your washing machine to
wash articles with whale bones,
material without hems or torn material.
Always unplug the appliance and turn
off the water supply after use, clean
and maintenance.
Under no circumstances should you
attempt to repair the machine yourself.
Repairs carried out by inexperienced
persons may cause injury or serious
malfunctioning. Contact your local
Service Centre. Always insist on
genuine spare parts.
Any objects such as coins, safety pins,
nails, screws, hairpin, toothpick, stones
or any other hard, sharp material can
cause extensive damage and must not
be placed into the machine. When unpacking the appliance, check
that it is not damaged. If in doubt, do
not use it and contact the Service
Centre.
After having installed the appliance,
check that it is not standing on the inlet
and drain hose.
The appliance should not be installed
in a humid place. The machine should
be installed indoors without touch the
rain.
If the machine is situated on a carpeted
floor, please adjust the feet in order to
allow air to circulate freely.
Always be sure, that there is no water
leakage from hoses and their connec-
tions after the installation.
Any plumbing work required to install
this appliance should be carried out by
a qualified plumber.
Any electrical work required to install
this appliance should be carried out by
a qualified electrician.
If the supply cord is damaged,
should the appliance power supply
cable need to be replaced, this shall
be carried out by our Service Centre.
This appliance is designed for domestic
use. It must not be used for purposes
other than those for which it was
designed.
Make sure that the drainage is working
properly.
Only wash fabrics which are designed
to be machine washed. Follow the
instructions on each garment label.
Do not overload the appliance. See the
relevant section in the user manual.
Before washing, ensure that all pockets
are empty and buttons and zips are
fastened. Avoid washing frayed or torn
articles and treat stains such as paint,
ink, rust, and grass before washing.
Garments which have been in contact
with volatile petroleum products should
not be machine washed. If volatile
cleaning fluids are used, care should be
taken to ensure that the fluid is
removed from the garment before
placing in the machine.
Never pull the power supply cable to
remove the plug from the socket,
always take hold of the plug itself.
Never use the Top-load Washing
Machine if the power supply cable, the
control panel, the working surface or
the base are damaged so that the
inside of the Top-load Washing
Machine is accessible.
Components in the machine
are designed to be used with
water not hotter than 60 °C.
Water pressures between minimum
50kPa and maximum 800kPa are
acceptable.
Do not touch the power plug
while your hand still wet.
Do not put your hand, foot, or
anything under the washing
machine while the machine is
operated.
May cause electric shock! if the
machine is not connected to an
earthed/ground system. DO NOT
touch the wet clothes and metal
parts.
For safety reasons do not use
double adaptors, extension cords
and multi-plug adapters.
1.5 Use

8www.electrolux.com
Control Panel
Lid
Cabinet
Front Feet
Levelling Adjustable : Right /HIW
Mains Cable
Water Inlet Hose
Old inlet hose should be
discharged if any and use
the inlet hose provided
with machine.
Outlet Hose/Drain Hose (See
installation instructions sheet
to fit & position drain hose)
Rear Feet
Levelling Adjustable : Right /HIW
2. PRODUCT DESCRIPTION
2.1 Parts

ENGLISH 9
Low Profile Agitator
Bleach Dispenser (option)
Softener Dispenser (see page 20)
Detergent / Bleach Dispenser (see page 19)
Lint Filter (see page 27)

10 www.electrolux.com
2.2 Product Features
Auto sensing water level
Auto sensing is a feature where the
washer fills automatically with water to
just the right level for your clothes load.
You do have the option to manually set
the water level if you wish.
We recommend you use the auto sensing
water level option to ensure there is just
the right amount of water for the wash
load in the machine. In other words, it will
usually give you the best wash while also
being the most efficient in terms of water
usage.
At times during a wash it may appear
your machine is either doing nothing or
intermittently it is only gently vibrating/
jiggling/agitating.
This is because your machine could be:
• In auto sensing test mode and the
machine is determining the correct
amount of water for your wash.
• At a drain stage of the wash program
and the machine is allowing time for
water to flow the washbowl to the out
bowl.
• Engaging or disengaging the drive
clutch mechanism. wait a short time,
your washing machine will complete
the above tasks and continue with the
wash.
The amount of water for auto is factory
set at an optimised level. You can adjust
the Auto level up or down by a small
amount.
Power Failure Recovery
When there is power failure while machine is
washing or rinsing or spinning. The machine
tries to save the settings at which stage the
machine is doing and then when the power
returns back the machine will starts washing
from the stage where it is left off.
UltraMix
This feature helps to dissolve and activate the
active ingredients of the detergent, by blending
the detergent with the water (except Quick 20
program), before dispensing into the tub and
onto the clothes.
Dual Jets System
Dual jets help to improve cleaning results by
spraying directly on the clothes and give a
more thorough rinse-out of stains and dirt.

ENGLISH 11
ﻞﻴﺟﺄﺗ
ﺔﻳاﺪﺒﻟا
ﻞﻔﻗ
Delay End
ﻊﻘﻧ
Soak
Lock
B C D E FGH I
KJ
A
G H I
B C D E F
Stain
ﻊﻘﺒﻟا ﻞﻳﺰﻣ
Spin
Rinse | Spin
Tub Clean
ﺮﺼﻋ
ﺮﺼﻋ | ﻒﻄﺷ
نﺮﺠﻟا ﻒﻴﻈﻨﺗ
Abaya
Bedding
Energy Saver
ﺔﻳﺎﺒﻋ
تﺎﺿﺎﻴﺑ
ﺔﻗﺎﻄﻟا ﺮﻴﻓﻮﺗ
45
20
90
120
60
Dirty
Extra Dirty
ﺦﺴﺘﻣ
اًّ ﺪﺟ ﺦﺴﺘﻣ
Fast
Daily
ﻲﻣﻮﻳ
ﻊﻳﺮﺳ
Full Load
ﺔﻠﻣﺎﻛ ﺔﻟﻮﻤﺣ
A
Hot
Warm
Normal
Cold
Extra
Regular
Fast
Eco
High
Mid
Low
No Spin
Auto
ﻲﺋﺎﻘﻠﺗ ﻦﺧﺎﺳ ﻰﻓﺎﺿإ
Full
ﺊﻠﺘﻤﻣﺊﻓاديدﺎﻋ
Medium
ﻂﺳﻮﺘﻣ يدﺎﻋ ﻊﻳﺮﺳ
Low
ﻞﻴﻠﻗ درﺎﺑ يدﺎﺼﺘﻗا
ﻲﻟﺎﻋ
ﻂﺳﻮﺘﻣ
ﻞﻴﻠﻗ
ﺮﺼﻋ ﻻ
Water LevelTemp Rinse Spin
هﺎﻴﻤﻟا ىﻮﺘﺴﻣ ةراﺮﺤﻟاﻒﻄﺷ ﺮﺼﻋ
Power
ﻞﻴﻐﺸﺗ
Start / Pause
ﻒﻴﻗﻮﺗ/ﺔﻳاﺪﺑ
3. CONTROL PANEL
3.1 Control Panel Description
For model EWT1374M7WA, EWT1374M7SA, EWT1574M7WA,
EWT1574M7SA
Press the touch buttons with your finger in the area with the symbol.
Do not wear gloves when you operate the control panel.
Make sure that the control panel is always clean and dry.
AProgram knob GSoak touchpad
BWater Level touchpad HDelay End touchpad
CTemp touchpad IStart/Pause touchpad
DRinse touchpad JDisplay
ESpin touchpad KPower touchpad
FChild safety lock option (press and
hold touchpad about 2 seconds)
AUltraMix Phase icon
BSoak Phase icon
CWash Phase icon
DRinse Phase icon
ESpin Phase icon
FClean Filter Reminder icon
GChild safety lock option icon
HProgram Duration / Delay End Time / Alarm Code
IDelay End icon
Display

12 www.electrolux.com
For model EWT1174M7WA



Delay End

Soak
Lock
B C D E FGH I
KJ
A
G H I
B C D E F
A
Press the touch buttons with your finger in the area with the symbol.
Do not wear gloves when you operate the control panel.
Make sure that the control panel is always clean and dry.
AProgram knob GSoak touchpad
BWater Level touchpad HDelay End touchpad
CTemp touchpad IStart/Pause touchpad
DRinse touchpad JDisplay
ESpin touchpad KPower touchpad
FChild safety lock option (press and
hold touchpad about 2 seconds)
AUltraMix Phase icon
BSoak Phase icon
CWash Phase icon
DRinse Phase icon
ESpin Phase icon
FClean Filter Reminder icon
GChild safety lock option icon
HProgram Duration / Delay End Time / Alarm Code
IDelay End icon
Display

ENGLISH 13
Program Type of load and soil levelMax. Load
(Dry Clothes)
1)
Abaya For Abaya fabric items.
For cotton fabric with heavy soil.
For cotton fabric with moderate soil.
For cotton fabric with normal soil.
Synthetic and mixed fabric items with
normal soil.
Synthetic and mixed fabric items with
light soil.
Extra Dirty 120
Dirty 90
Full Load 60
Daily 45
Energy Saver
3)
White and colourfast, cotton with
normal soil. Set this program to have a
good washing results and decrease
the energy consumption.
Bedding One synthetic blanket, duvet, bedspread
and so on.
Rinse │ Spin For items that you want to rinse and
spin eg. Clothes items you have hand
washed in a wash tub.
Spin For very wet clothes to remove the
water.
Tub Clean Clean the tub.
2 kg
2 kg
2 kg
2 kg
2 kg
2 kg
2 kg
2 kg
Maximum Capacity
No Load
2 kg
4 kg
2 kg
4 kg
4 kg
4 kg
4 kg
2 kg
4 kg
–
Max
–
Max
Max
–
Max
4 kg
Max
–
Max2)
–
Stain This program help to remove certain
types of tough stains that are not easily
removed by handwashing.
3 kg–––
Max
Max
–
Max
4 kg
–
–Fast 20
1) Clothes Load depends on the Water level selected. For the best washing result, do not exceed the load weight
over the suggestion as in the table above.
2) Maximum capacity depended on the model of the Washing Machine.
The energy label specification have been determined by using the following program according to SASO 2885.
1. Cotton 60 °C at full load: Energy saver, Hot, Water level Full, No soak, Rinse Regular, Spin speed High.
2. Cotton 60 °C at half load: Energy saver, Hot, Water level Medium, No soak, Rinse Regular, Spin speed High.
3. Cotton 40 °C at half load: Energy saver, Warm, Water level Medium, No soak, Rinse Regular, Spin speed
High.
3)
Water Level
Auto Full Mid Low
Model : EWT1574M7SA
EWT1374M7SA
EWT1574M7WA
EWT1374M7WA
15 kg
13 kg
15 kg
13 kg
EWT1174M7WA 11 kg
3.2 Program Chart

14 www.electrolux.com
Program
Option
Delay
End
Spin
High Mid Low No Spin
Rinse
Extra Regular Fast Eco
Temp
Hot Warm Normal Cold
Extra Dirty 120 





Dirty 90  


Full Load 60 



Daily 45 



Fast 20 

Abaya 






Energy Saver
Bedding 






Stain 



Tub Clean
Soak
45 Mins. 30 Mins. 15 Mins. No Soak










Rinse | Spin 





Spin 

Water Level
Auto Full Medium Low
Remark
 Default option
 Available select option


 













 


 
3.3 Program Options Compatibility
For model EWT1374M7WA, EWT1374M7SA, EWT1574M7WA,
EWT1574M7SA

ENGLISH 15
Program
Option
Delay
End
Spin
High Mid Low No Spin
Rinse
Extra Regular Fast Hold
Temp
Hot Warm Normal Cold
Extra Dirty 120 





Dirty 90  


Full Load 60 



Daily 45 



Fast 20 

Abaya 





Energy Saver
Bedding 






Stain 



Tub Clean
Soak
45 Mins. 30 Mins. 15 Mins. No Soak










Rinse | Spin 





Spin 

Water Level
Auto Full Medium Low
Remark
 Default option
 Available select option






























 



For model EWT1174M7WA

16 www.electrolux.com

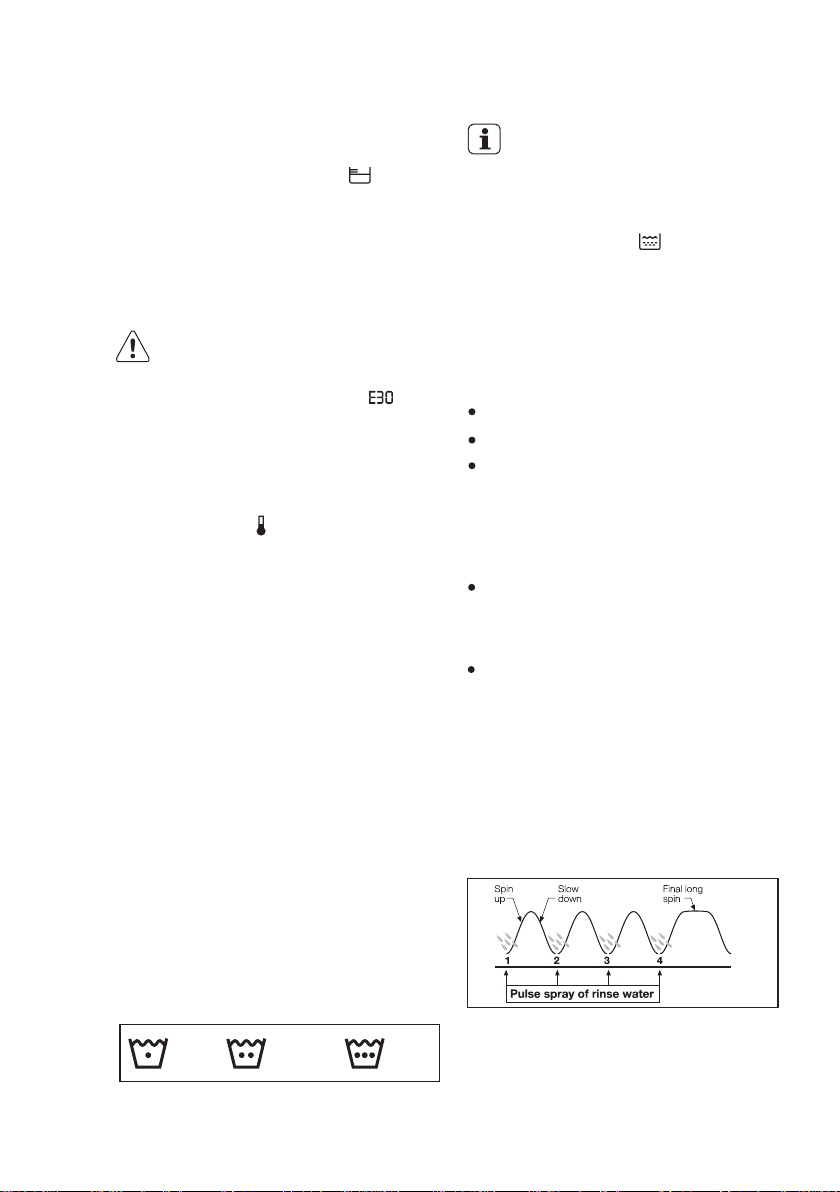

Water Level Touchpad
Choose the water level by press “Water
Level” touchpad.
Use only the amount of water you need for
the wash load.
Please refer to program table on page 12.
Flood diagnostic is explained on
page 30. You should refer to this if
you have water pouring onto the
floorThe display will show “ ” and
you will hear rapid short beep
continuously to remind you about
this problem.
Temp Button
For each wash program your washing
machine automatically selects a suitable
fill water temperature. If you want to use a
different wash water temperature, press
the Temperature button repeatedly.
The temperature of warm water will
depend on the temperature and pressure
of your hot and cold water supplies. The
recommended temperature for warm is
35°C.
You have four temperatures to choose
from Hot, Warm, Normal and Cold.
The water temp lights will tell you the
temperature for each press of the button.
Always check your label for the washing
temperature symbols which the
International Care Labelling Code now
uses
If you have a cold water connection
ONLY and the hot inlet valve is
capped off (refer installation
instructions) you must select Cold
washes only.
You can adjust the flow rate of the water
supplies to adjust the Warm temperature.
All rinse water temperatures are cold.
Cold,Warm, Hot.
Pressing the Rinse touchpad to choose
the rinse type for your wash load. For
most washes, the machine automatically
fills the full tub of water for a rinse.
Rinse Touchpad
There are four rinses to choose from
Extra, Regular, Fast, Eco and Hold.
Extra rinse - 2 rinses cycles.
Regular rinse - 1 rinse cycle.
Fast rinse - Spraying water 3 rinses
cycles (Model EWT1374M7WA,
EWT1374M7SA, EWT1574M7WA,
EWT1574M7SA)
- Spraying water 1 rinse cycle (Model
EWT1174M7WA)
Eco - Spraying water 4 rinses cycles
(Model EWT1374M7WA,
EWT1374M7SA, EWT1574M7WA,
EWT1574M7SA)
When Eco rinse is used, rinse water is
sprayed into the washbowl in pulses.
After each pulse the washbowl will spin
to remove detergent laden water from
the clothes.
How does Eco Rinse work ?
The machine will go through a series of
maximum 4 pulses spray and short spin
cycles in this manner, depending on
program selection, followed by a final
long spin that removes the water from the
clothes to complete the full wash
program.
Hold - by selecting this option the
water of the last rinse is not emptied
out and the agitator turns every minute
to prevent the laundry creases.
3.4 Options
Delay End Touchpad
Before you start the program, this option
makes it possible to define the end of the
washing program from minimum of 1 hour
to maximum of 20 hours.
After selecting Delay End time, press
Start/Pause touchpad to start the
program. Machine will then countdown
and update time on the display every
hours until it reaches the starting point of
the wash cycle.
Press the Delay End touchpad to choose
the end time as you wish. The display
shows the number of hours.
For example, if the program duration of
your selected program is 3.20 hours and
you define the “Delay End” time to 6
hours. This means your wash program
will finish in 6 hours. (See diagram)
3.20 hrs.2.40 hrs. Program Cycle
: 6 hrs.
Pressed
Start/Pause End of Cycle
Start the
Program
Countdown
This option must be selected after
choosing the wash program, and
before pressing the “Start/Pause”
touchpad.
If you wish to modify or cancel Delay End
option after starting the program, follow
the steps below:
set the washing machine to PAUSE by
pressing “Start/Pause” touchpad;
-
deselect this option by pressing
“Delay End” touchpad repeatedly till
the display shows delay time “ ”;
-
press the “Start/Pause” to start the
program.
-
Press this touchpad to select the spin
speed or no spin, if you want your
laundry to be spun at a speed different
from the one proposed by the washing
machine.
The speed of spin level are:
–High, about 700 rpm ;
–Mid, about 650 rpm ;
–Low, about 550 rpm.
Spin Touchpad
This option allows you to soak heavily
soiled clothes at the beginning of the
wash. To do this, press Soak touchpad to
select the soak time.
Soak Touchpad
The lid must be closed to allow Soak
functions to operate. The machine will
agitate for short periods. At other times,
the clothes are soaking and the machine
will be doing nothing.
Note:
Compare this with Regular rinse
where much more water is used.
Regular rinse, water enters the
machine filling up to the wash water
level selected. The washer agitates
and finally empties the rinse water
through the drain hose.
Extra rinse, this is special option for
those people who suffer from
allergies, this extra rinse will provide
3 rinses to ensure all detergent
residue has been removed.
Select Regular rinse if you are going
to use fabric softener.
Eco and Fast rinse is not designed to
be used with fabric softener.
Regular rinse ensures the fabric
softener is correctly dispensed and
thoroughly removed from your
clothes during rinsing.

ENGLISH 17
Delay End Touchpad
Before you start the program, this option
makes it possible to define the end of the
washing program from minimum of 1 hour
to maximum of 20 hours.
After selecting Delay End time, press
Start/Pause touchpad to start the
program. Machine will then countdown
and update time on the display every
hours until it reaches the starting point of
the wash cycle.
Press the Delay End touchpad to choose
the end time as you wish. The display
shows the number of hours.
For example, if the program duration of
your selected program is 3.20 hours and
you define the “Delay End” time to 6
hours. This means your wash program
will finish in 6 hours. (See diagram)
3.20 hrs.2.40 hrs. Program Cycle
: 6 hrs.
Pressed
Start/Pause End of Cycle
Start the
Program
Countdown
This option must be selected after
choosing the wash program, and
before pressing the “Start/Pause”
touchpad.
If you wish to modify or cancel Delay End
option after starting the program, follow
the steps below:
set the washing machine to PAUSE by
pressing “Start/Pause” touchpad;
-
deselect this option by pressing
“Delay End” touchpad repeatedly till
the display shows delay time “ ”;
-
press the “Start/Pause” to start the
program.
-
Press this touchpad to select the spin
speed or no spin, if you want your
laundry to be spun at a speed different
from the one proposed by the washing
machine.
The speed of spin level are:
–High, about 700 rpm ;
–Mid, about 650 rpm ;
–Low, about 550 rpm.
Spin Touchpad
This option allows you to soak heavily
soiled clothes at the beginning of the
wash. To do this, press Soak touchpad to
select the soak time.
Soak Touchpad
The lid must be closed to allow Soak
functions to operate. The machine will
agitate for short periods. At other times,
the clothes are soaking and the machine
will be doing nothing.
Note:
Compare this with Regular rinse
where much more water is used.
Regular rinse, water enters the
machine filling up to the wash water
level selected. The washer agitates
and finally empties the rinse water
through the drain hose.
Extra rinse, this is special option for
those people who suffer from
allergies, this extra rinse will provide
3 rinses to ensure all detergent
residue has been removed.
Select Regular rinse if you are going
to use fabric softener.
Eco and Fast rinse is not designed to
be used with fabric softener.
Regular rinse ensures the fabric
softener is correctly dispensed and
thoroughly removed from your
clothes during rinsing.

18 www.electrolux.com
This setting permits you to either enable
or disable the buzzer at the end of the
program. As an example, you might wish
to disable this buzzer when you start a
wash when going to bed, so that when
the wash finished approximately 1 hour
later, it will not disturb you through the
night.Error warning beeps such as critical
faults are not disabled.
Enabling/Disabling End-Of-Wash
Buzzer
To disable the buzzer sound, press
“Water Level” and “Temp” touchpads
at the same time about 3 seconds,
the icon “ ” will show on display
along with buzzer sound.
To return to default configuration press
these two touchpads at the same time
about 3 seconds, the icon “ ” will
show on display along with buzzer
sound.
●
●
–
–
Child Safety Lock ( ) Option
Your appliance is provided with CHILD
SAFETY LOCK which permits you to leave
the appliance unsupervised with the door
closed without having to worry that children
might be injured by or cause damage to
the appliance.
Set this option AFTER pressing the
Start/Pause touchpad.
To activate the function, press and
hold “Lock ” touchpad about
2 seconds until the display shows the
icon “ ”.
To set “Child Lock” option:
To deactivate the function, press and hold
this touchpad again until the icon “ ” in
the display disappear.
You must deactivate the function
before operating the washing
machine.
All the touchpads are locked.
●
●
If you press any touchpad while
Child Lock is activated, the icon
“ ” and “ ” will flash on
display 3 times along with buzzer
sound.
To start the selected program, press
the “Start/Pause” touchpad.
If you have started your wash and you
wish to stop it for some reason, press
the “Start/Pause” touchpad to enter
PAUSE mode
Start/Pause Touchpad
To restart the program from the point at
which it was interrupted, press the
“Start/Pause” again.
If the lid is opened during
operation, the machine will go
into PAUSE mode and display
show “ ”.
After closing the lid press
Start/Pause touchpad on control
panel to restart the program.
3.5 Settings
When loading the clothes into your
washing machine, there are four things to
remember:
Clothes must be loaded evenly
around the agitator. For best results
load small items first, followed by
large items.
1.
1.
Clothes must not be wrapped around
the tub.
2.
The washing machine must not be
overloaded. Clothes must be able to
move during wash.
3.
The load should contain only three or
four large items, for example sheets.
The rest of the load should be small
items. A mixed load of large and
small items will wash cleaner than a
load of all large items.
4.
Powder, Liquid Detergent / Bleach
Connect the mains plug to the mains
socket. 1. Pull the dispenser drawer forward out
from its position.
Liquid Detergent (Option)
1. Measure the correct amount of liquid
detergent by following the
recommendations on the package.
Pouring onto the clothes.
2. Mix detergent in one litre of water.
3. Add the pre-mixed detergent to the
wash load.
2. Measure the correct amount of powder
or liquid detergent by following the
recommendations on the package.
3. Pour it into the detergent dispenser
drawer.
4. Put the dispenser back into its recess.
2. Turn the water tap on.
move around
the tub
Liquid
Powder

ENGLISH 19
When loading the clothes into your
washing machine, there are four things to
remember:
Clothes must be loaded evenly
around the agitator. For best results
load small items first, followed by
large items.
1.
1.
Clothes must not be wrapped around
the tub.
2.
The washing machine must not be
overloaded. Clothes must be able to
move during wash.
3.
The load should contain only three or
four large items, for example sheets.
The rest of the load should be small
items. A mixed load of large and
small items will wash cleaner than a
load of all large items.
4.
Powder, Liquid Detergent / Bleach
Connect the mains plug to the mains
socket. 1. Pull the dispenser drawer forward out
from its position.
Liquid Detergent (Option)
1. Measure the correct amount of liquid
detergent by following the
recommendations on the package.
Pouring onto the clothes.
2. Mix detergent in one litre of water.
3. Add the pre-mixed detergent to the
wash load.
2. Measure the correct amount of powder
or liquid detergent by following the
recommendations on the package.
3. Pour it into the detergent dispenser
drawer.
4. Put the dispenser back into its recess.
2. Turn the water tap on.
move around
the tub
Liquid
Powder
4. DAILY USE
4.1 Starting Your Washing
Machine 4.3 Add The Detergent/Bleach
4.2 Load The Washing
Machine

20 www.electrolux.com
Do not use gelatinous or thick liquid
detergents.
NOTE: When you use the
liquid detergent
-
Residues of detergent, softener and
water may remain in the dispenser. It is
recommended to clean the dispenser
regularly to remove any residue.
Pour the fabric softener into the fabric
softener compartment.
2.
Do not spill fabric softener on the
clothes as it may stain them.
If you are going to use fabric softener,
you must select the Regular Rinse
option, ie deselect the Fast Rinse
option.
3.
Measure the correct amount of fabric
softener by following the
recommendations on the package.
1.
Close the drawer gently.
–
The softener unable to used with Eco
and Fast rinse
–
–
–The softener amount used must not
exceed the “MAX” mark in the drawer.
If you use thick softeners it is
recommended to dilute with water.
NOTE
Press the Start/Pause touchpad to
commence water fill.
2.
Pour the bleach solution down the hole
in the top of washing tub during fill when
there is some water in the washbowl by
tilted the washing tub as picture below.
3.
Turn Program Selector to a Full Load
60 position.
1.
Bleaching of clothes can help to remove
stains, heavy soiling and to kill bacteria.
This is generally a powder type bleach.
Pour it into the detergent dispenser
drawer or mix the required quantity with
water and pour down the bleach hole in
the top of washing tub during the fill when
there is some water in the washbowl.
This type of bleach should not be mixed
with detergent. Mix the bleach with water
as per the instructions on the container.
How to soak with bleach, proceed as
follows:
Oxygen Type
Chlorine Type
Allow the machine to agitate for a few
minutes, then let it stand for the
required time by pressing Start/Pause
touchpad to pause the machine.
4.
When soaking bleach reached to the
required time, turn Program Selector
to 5LQVH,Spin position and press the
Start/Pause touchpad to empty the
washbowl.
5.
tilted the
washing tub
–
4.4 Add Fabric Softener
4.5 Adding Bleach
