SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
if an incorrect installation and use causes injuries and dam-
ages. Always keep the instructions with the appliance for fu-
ture reference.
Children and vulnerable people safety
Warning! Risk of suffocation, injury or permanent disability.
• Do not let persons, children included, with reduced physical
sensory, reduced mental functions or lack of experience and
knowledge use the appliance. They must have supervision
or instruction for the operation of the appliance by a person
who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the appliance door when
it is open.
• If the appliance has a child safety device, we recommend
you activate it.
General Safety
• Before maintenance, deactivate the appliance and discon-
nect the mains plug from the mains socket.
• Do not change the specification of this appliance.
2 electrolux

• Obey the maximum load volume of 7 kg (refer to the “Pro-
gramme chart” chapter).
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
• The operating water pressure (minimum and maximum)
must be between 0,5 bar (0,05 MPa) and 8 bar (0,8 MPa)
• The ventilation openings in the base (if applicable) must not
be obstructed by a carpet.
• The appliance is to be connected to the water mains using
the new supplied hose-sets. Old hose sets must not be
reused.
SAFETY INSTRUCTIONS
Installation
• Remove all the packaging and the transit
bolts.
• Keep the transit bolts. When you move
the appliance again you must block the
drum.
• Do not install or use a damaged appli-
ance.
•Donotinstalloruse the appliance where
the temperature is less than 0 °C or
where it is exposed to the weather.
• Obey the installation instruction supplied
with the appliance.
• Make sure that the floor where you install
the appliance is flat, stable, heat resistant
and clean.
• Do not install the appliance where the ap-
pliance door can not be fully opened.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Make sure that there is air circulation be-
tween the appliance and the floor.
• Adjust the feet to have the necessary
space between the appliance and the
carpet.
Electrical connection
Warning! Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the power
supply. If not, contact an electrician.
• Always use a correctly installed shock-
proof socket.
• Do not use multi-plug adapters and ex-
tension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable. Con-
tact the Service or an electrician to
change a damaged mains cable.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains
plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• This appliance complies with the E.E.C.
Directives.
Water connection
• Make sure not to cause damage to the
water hoses.
• The appliance is to be connected to the
water mains using the new supplied
hose-sets. Old hose sets must not be
reused.
• Before you connect the appliance to new
pipes or pipes not used for a long time,
let the water flow until it is clean.
electrolux 3

• The first time you use the appliance,
make sure that there is no leakage.
Use
Warning! Risk of injury, electrical
shock, fire, burns or damage to the
appliance.
• Use this appliance in a household envi-
ronment.
• Obey the safety instructions on the deter-
gent packaging.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
• Do not touch the glass of the door while
a programme operates. The glass can be
hot.
• Make sure that you remove all metal ob-
jects from the laundry.
• Do not put a container to collect possible
water leakage under the appliance. Con-
tact the Service to ensure which acces-
sories can be used.
Care and Cleaning
Warning! Risk of injury or damage to
the appliance.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
Disposal
Warning! Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent chil-
dren and pets to get closed in the appli-
ance.
Service
• Contact the Service to repair the appli-
ance. We recommend only the use of
original spare parts.
FROST PRECAUTION
If the appliance is installed in a place where
the temperature could drop below 0°C,
proceed as follows to remove any water re-
maining inside the appliance:
1. unplug the appliance;
2. turn off the water tap;
3. unscrew the water inlet hose from the
tap;
4. unfasten the drain hose from the rear
support and unhook it from sink or spi-
got;
5. place a bowl on the floor;
6. let the drain hose run along the floor,
place the external extremities of the
drain and inlet hoses in the bowl placed
on the floor and let water drain out
completely;
7. screw the water inlet hose back on and
reposition drain hose again;
When you intend to start the appliance up
again, make sure that the room tempera-
ture is above 0°C.
4 electrolux

ENVIRONMENT CONCERNS
The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it should be taken to the appropriate
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will
help prevent potential negative
consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of
this product. For more detailed information
about recycling of this product, please
contact your local council, your household
waste disposal service or the shop where
you purchased the product.
Packaging materials
The materials marked with the symbol
are recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by
disposing of them properly in appropriate
collection containers.
Ecological hints
To save water, energy and to help protect
the environment, we recommend that you
follow these tips:
• Normally soiled laundry may be washed
without prewashing in order to save de-
tergent, water and time (the environment
is protected too!).
• The machine works more economically if
it is fully loaded.
• With adequate pre-treatment, stains and
limited soiling can be removed; the laun-
dry can then be washed at a lower tem-
perature.
• Measure out detergent according to the
water hardness, the degree of soiling and
the quantity of laundry being washed.
PRODUCT DESCRIPTION
1 2 3
4
5
6
9
7
10
11
12
8
1
Detergent dispenser drawer
2
Worktop
3
Control panel
4
Door opening handle
5
Rating plate (on the inner edge)
6
Front adjustable feet
7
Water drain hose
8
Drain hose support
9
Hose holders
10
Water inlet hose
11
Mains cable
12
Back feet
RWP 107109 W = 2 front adjustable feet RWP 127109 W = 4 adjustable feet
electrolux 5

Child safety device
Make sure that children or pets do not
climb into the drum. To prevent children
and pets becoming trapped inside the
drum the machine incorporates a special
feature. To activate this device, rotate the
button (without pressing it) inside the door
clockwise until the groove is horizontal. If
necessary use a coin.
To disable this device and restore the pos-
sibility of closing the door, rotate the button
counterclockwise until the groove is vertical.
TECHNICAL DATA
Dimensions Width / Height / Depth / Depth
(Overall dimensions)
60 / 85 / 50 / 55 mm
Electrical connection Voltage
Overall power
Fuse
Frequency
230 V
2200 W
10 A
50 Hz
Water supply pressure Minimum
Maximum
0,5 bar (0,05 MPa)
8 bar (0,8 MPa)
Level of protection against ingress of solid particles and moisture IPX4
Water supply
1)
Cold water
Maximum Load Cotton 7 kg
Spin Speed Maximum 1000 rpm (RWP 107109 W)
1200 rpm (RWP 127109 W)
1) Connect the water inlet hose to a water tap with a 3/4'' thread.
INSTALLATION
Unpacking
Warning!
• Read carefully the "Safety informa-
tion" chapter before installing the ap-
pliance.
Warning! Remove and keep all
transit devices so that they can be
refitted if the appliance ever has to be
transported again.
x 3
x 3
x 2
x 1
B
A
C
Necessary tools
1)
10 mm 30 mm
• Remove the external film. Use a cutter, if
necessary.
1) These tools are not provided with the appliance.
6 electrolux

• Remove the cardboard top.
• Remove the polystyrene packaging ma-
terials.
• Spread the front piece on the floor be-
hind the appliance and then lay the appli-
ance carefully rear side down on it. Make
sure that no hoses are crushed in the
process.
• Remove the polystyrene base from the
bottom.
2
1
• Return appliance to the upright position.
• Open the door and remove the plastic
hose guide, the bag containing the in-
struction booklet, the water inlet hose
and the plastic plug caps from the drum.
• Remove the power supply cable and the
draining hose from the hose holders on
the rear of the appliance.
• Unscrew the three bolts and remove the
hose holders.
• Slide out the relevant plastic spacers.
electrolux 7

Warning! Do not remove the drain
hose from the rear support.
Remove this hose only if it is
necessary to drain the water. Refer
to "Frost precaution" and "What to
do if".

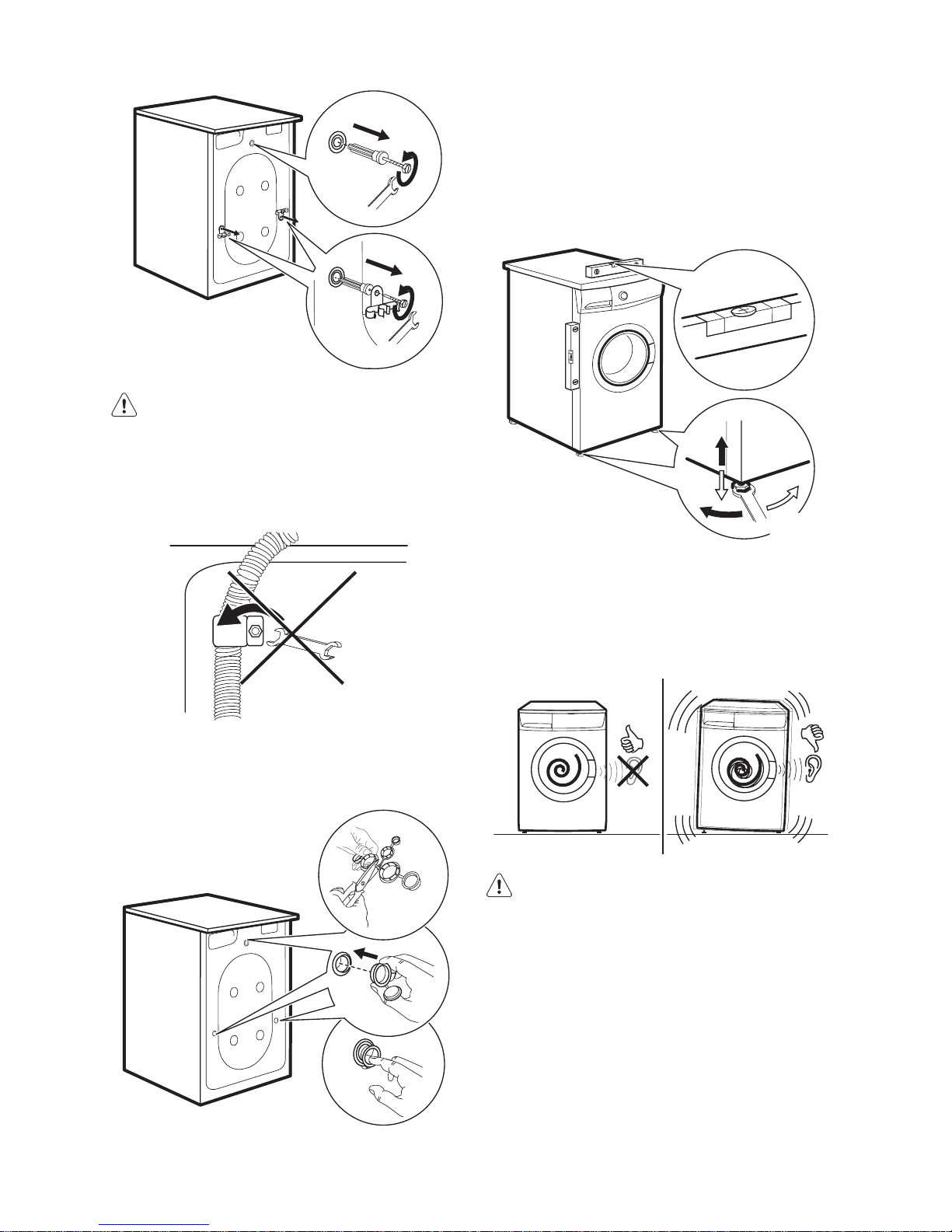

• Plug the smaller upper hole and the two
large ones with the corresponding plastic
plug caps.
Positioning and levelling
Level the appliance by raising or lowering
the feet.
The appliance MUST be level and stable on
a flat hard floor. If necessary, check the set-
ting with a spirit level. Any necessary ad-
justment can be made with a spanner.
x 4
Accurate levelling prevents vibration, noise
and displacement of the appliance during
operation.
Repeat the levelling action, if the appliance
is not level and stable.
Warning! This appliance is free
standing only. Do not remove the
worktop for any reason.
Water inlet
An inlet hose is supplied and can been
found inside the machine drum. Do not use
the hose from your previous machine to
connect to the water supply.
Important! This appliance must be con-
nected to a cold water supply.
1. Open the porthole and extract the inlet
hose.
8 electrolux

2. Connect the hose with the angled con-
nection to the machine. Do not place
the inlet hose downwards. Angle the
hose to the left or right depending on
the position of your water tap.
3. Set the hose correctly by loosening the
ring nut. After positioning the inlet hose,
be sure to tighten the ring nut again to
prevent leaks.
4. Connect the hose to a tap with a 3/4”
thread. Always use the hose supplied
with the appliance.
The inlet hose must not be lengthened. If it
is too short and you do not wish to move
the tap, you will have to purchase a new,
longer hose specially designed for this type
of use.
Water drainage
Form a hook at the end of the drain hose
using the plastic hose guide, if necessary.
45°
35°
The end of the drain hose can be posi-
tioned in four ways:
•Hooked over the edge of a sink using
the plastic hose guide.
Tie the plastic hose guide to the tap with
a string to prevent that the drain hose un-
hooks when the appliance is emptying.
•Onto a sink outlet spigot.
Push the drain hose onto the spigot and
secure with a clip, ensure a loop is
formed in the drain hose to prevent
waste from the sink entering the appli-
ance.
If the outlet spigot has not been used be-
fore, remove any blanking plug that may
be in place.
•Directly into a drain pipe at a height
of not less than 60 cm and not more than
100 cm. The end of the drain hose must
always be ventilated, i.e. the inside di-
ameter of the drain pipe must be larger
electrolux 9

than the outside diameter of the drain
hose. The drain hose must not be kinked.
•Directly to a built-in drain pipe in the
room wall.
The drain hose may be extended to a
maximum of 4 metres. An additional
drain hose and joining piece is available
from your Local Centre.

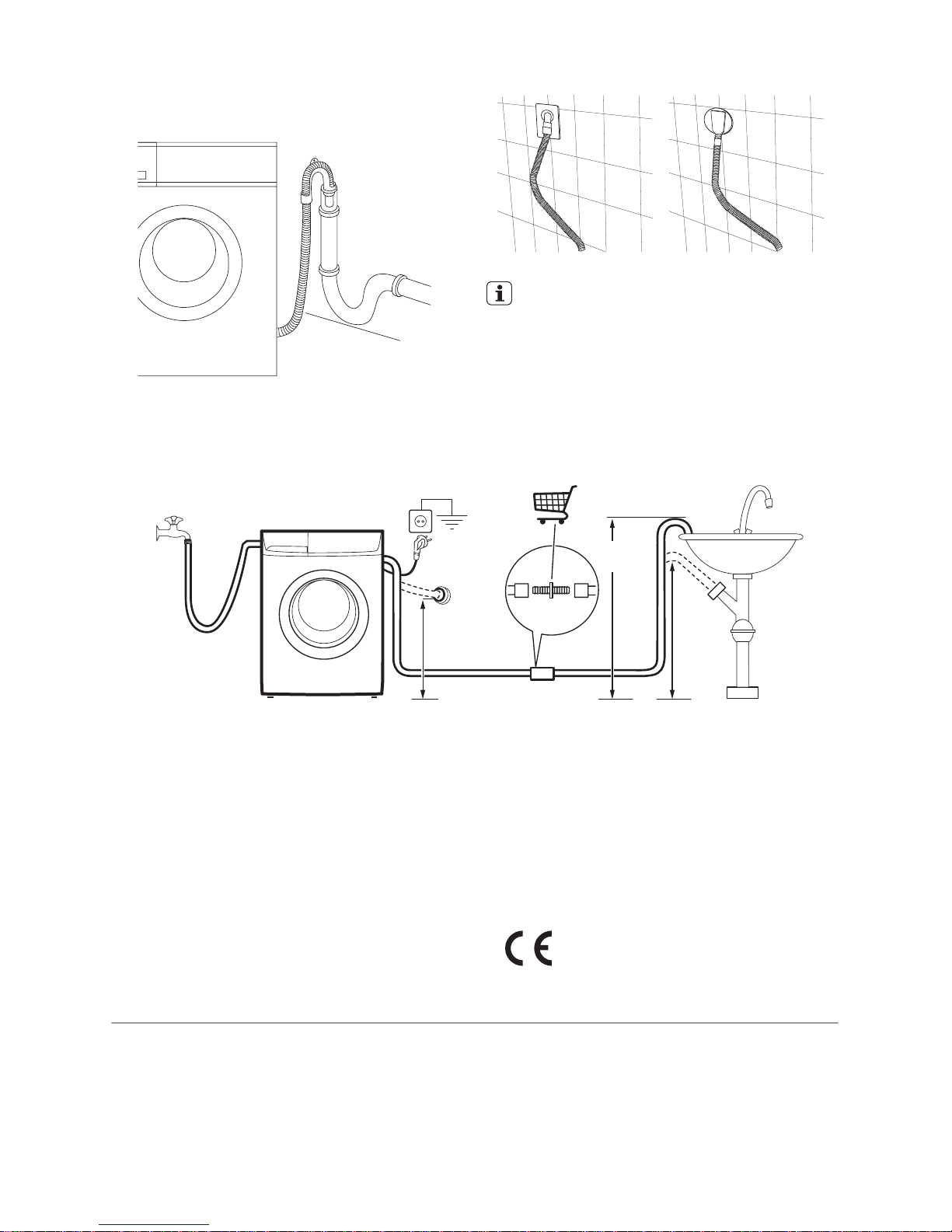

Connections overview
~max.400 cm
min. 60 cm
max. 100 cm
0.5 bar (0.05 MPa)
8 bar (0.8 MPa)
min.
60 cm
max.
100 cm
Electrical connection
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agree with your do-
mestic power supply.
• Always use a correctly installed shock-
proof socket.
• Do not use multi-way plugs, connectors
and extension cables. There is a risk of
fire.
• Do not replace or modify the mains cable
yourself. Contact the After Sales Service.
• Make sure that the mains plug and cable
is not squashed or damaged by the back
of the appliance.
• Make sure that the mains plug is accessi-
ble after installation.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains
plug.
• This appliance complies with the E.E.C.
Directives.
SPECIAL ACCESSORIES
Rubber feet kit (4055126249)
Available from your authorized dealer.
The rubber feet are particularly recommen-
ded on floating, slippery and wooden floors.
Mount the rubber feet to prevent vibration,
noises and displacement of the appliance
during operation.
Read carefully the instructions supplied with
the kit.
10 electrolux

FIRST USE
• Ensure that the electrical and water
connections comply with the installa-
tion instructions.
• Ensure that the drum is empty.
• Before the first wash, run a cotton
cycle at the highest temperature
without any laundry in the machine,
to remove any manufacturing residue
from the drum and tub. Pour 1/2 a
measure of detergent into the main
wash compartment and start the
machine.
DAILY USE
Sort out the laundry
Follow the wash code symbols on each
garment label and the manufacturer’s
washing instructions. Sort the laundry as
follows: whites, coloureds, synthetics, deli-
cates, woollens.
Before Loading The Laundry
Important! Make sure that no metal
objects are left in the laundry (e.g. hair clips,
safety pins, pins). Button up pillowcases,
close zip fasteners, hooks and poppers. Tie
any belts or long tapes. Remove any hooks
(e.g curtains).
• Never wash whites and coloureds to-
gether. Whites may lose their «whiteness»
in the wash.
• New coloured items may run in the first
wash; they should therefore be washed
separately the first time.
• Rub particularly soiled areas with a spe-
cial detergent or detergent paste.
• Treat curtains with special care.
• Wash the socks and the gloves inside the
bag or a net.
Remove stubborn stains before wash-
ing:
Blood: treat fresh stains with cold water.
For dried stains, soak overnight in water
with a special detergent then rub in the
soap and water.
Oil based paint: moisten with benzine
stain remover, lay the garment on a soft
cloth and dab the stain; treat several times.
Dried grease stains: moisten with turpen-
tine, lay the garment on a soft surface and
dab the stain with the fingertips and a cot-
ton cloth.
Rust: oxalic acid dissolved in hot water or a
rust removing product used cold. Be careful
with rust stains which are not recent since
the cellulose structure will already have
been damaged and the fabric tends to hole.
Mould stains: treat with bleach, rinse well
(whites and fast coloureds only).
Grass: soap lightly and treat with bleach
(whites and fast coloureds only).
Ball point pen and glue: moisten with
acetone
2)
, lay the garment on a soft cloth
and dab the stain.
Lipstick: moisten with acetone as above,
then treat stains with methylated spirits.
Treat any residual marks with bleach.
Red wine: soak in water and detergent,
rinse and treat with acetic or citric acid,
then rinse. Treat any residual marks with
bleach.
Ink: depending on the type of ink, moisten
the fabric first with acetone
2)
, then with
acetic acid; treat any residual marks on
white fabrics with bleach and then rinse
thoroughly.
Tar stains: first treat with stain remover,
methylated spirits or benzine, then rub with
detergent paste.
2) do not use acetone on artificial silk.
electrolux 11

Open the door by carefully pulling the
door handle outwards
Load the laundry
Place the laundry in the drum, one item at a
time, shaking them out as much as possi-
ble.
Maximum Loads
Recommended loads are indicated in the
«Washing Programmes».
General rules:
•Cotton, linen: drum full but not too
tightly packed;
•Synthetics: drum no more than half full;
•Delicate fabrics and woollens: drum
no more than one third full.
Close the door gently
Warning! Make sure that any fabrics
were not trapped when closing the
door.
Detergents and additives
Good washing results also depend on the
choice of detergent and use of the correct
quantities to avoid waste and protect the
environment.
Although biodegradable, detergents contain
substances which, in large quantities, can
upset the delicate balance of nature.
The choice of detergent will depend on the
type of fabric (delicates, woollens, cottons,
etc.), the colour, washing temperature and
degree of soiling.
All commonly available washing machine
detergents may be used in this appliance:
• powder detergents for all types of fabric,
• powder detergents for delicate fabrics
(40°C max) and woollens,
• liquid detergents, preferably for low tem-
perature wash programmes (60°C max)
for all types of fabric, or special for wool-
lens only.
Quantity of detergent to be used
The type and quantity of detergent will de-
pend on the type of fabric, load size, de-
gree of soiling and hardness of the water
used.
For the quantity of detergent, refer always
to what is written on the product packing.
Use less detergent if:
• you are washing a small load,
• the laundry is lightly soiled,
• large amounts of foam form during wash-
ing.
Degrees of water hardness
Water hardness is classified in so-called
“degrees” of hardness. Information on hard-
ness of the water in your area can be ob-
tained from the relevant water supply com-
pany, or from your local authority.
If the water hardness degree is medium or
high we suggest you to add a water soften-
er following always the manufacturer’s in-
structions.
When the degree of hardness is soft, read-
just the quantity of the detergent.
Open the detergent dispenser drawer
Compartment for powder or liquid de-
tergent used for main wash. Compart-
ment for liquid additives (fabric softener,
starch).
12 electrolux

Warning! If you wish to carry out the
prewash, pour the detergent among
washing items into the drum.
Warning! Depending on the type
detergent you use (powder of liquid),
ensure that the flap, placed in the main
wash compartment, is in the desired
position.
Bleach
Alternatively the softener, it is also possible
to use a bleach agent in the compartment
in the programmes for white cottons.
Proceed as follows:
•Put the bleach in the compartment .
Do not exceed the «MAX» mark in the
detergent dispenser drawer.
• Run a programme for white cottons.
• At the end of the programme, run the
RINSE programme. This helps to elimi-
nate any bleach residues. If desired, use
softener.
Never pour bleach and softener into
the compartment at the same time.
Flap for powder or liquid detergent
UP- Flap position if using POWDER de-
tergent
PUSH
REMOVE
TO CLEAN
DOWN - Flap position if using LIQUID
detergent during main wash
PUSH
REMOVE
TO CLEAN
If the flap is not in the desired position:
electrolux 13

• Remove the drawer. Push the drawer
edge outwards where indicated by the
arrow (PUSH) to facilitate drawer remov-
al.
The flap is down and you wish to use
powder detergent:
• Rotate the flap upwards. Ensure to fit the
flap completely in.
• Carefully put the drawer back.
P
O
W
D
E
R
D
E
T
E
R
G
E
N
T
• Measure out the detergent.
• Pour the powder detergent into the main
wash compartment .
The flap is up and you wish to use liq-
uid detergent:
• Rotate the flap downwards.
• Carefully put the drawer back.
L
I
Q
U
I
D
D
E
T
E
R
G
E
N
T
1
2
0
m
l
6
0
m
l
• Measure out the detergent.
For the quantity of detergent, refer al-
ways to what is written on the product
packing and ensure that the detergent
can be poured in the drawer.
• Pour the liquid detergent in the compart-
ment without exceeding the limit indi-
cated in the flap. The detergent must be
placed in the appropriate compartments
of the dispenser drawer before starting
the wash programme.
Warning! Do not use the flap in
"DOWN" position with:
• Gelatinous detergent or thick deter-
gent.
• Powder detergent.
• With programmes with prewash.
• Do not use liquid detergent if the
washing programme doesn't start
immediately.
In all above listed cases, use the flap in
"UP" position .
Measure out the fabric softener
Pour fabric softener or any additives into
the compartment marked (do not ex-
ceed the «MAX» mark in the drawer). Any
additives must be placed in the appropriate
compartments of the dispenser drawer just
before starting the wash programme.
Close the detergent dispenser drawer
14 electrolux

Set your washing programme
The control panel permits to select a washing programmes and different options.
When an option button is selected, the corresponding pilot light is on. Otherwise it is off.
For compatibility among washing programmes and options, see the "Washing Pro-
gramme Chart". If an incorrect option is selected, the integrated red pilot light of the
button 7flashes 3 times.
Speciali Cotoni
Cotoni
+Prelav. 90°
60°
40°
30°
.
pmeT agufirtneC odipaR asuaP/oivvA
Delay
1000
3 h 6 h 9 h
oigga
va
L
o
l
ciceni
F
700
Eco
Scuri
Mini
program
Camicie
Sintetici
Mix
Delicati
Lana/
A mano
Stiro
Facile
Centrifuga
Scarico
Risciacquo
1 2 3 4 5 76
Extra
Risciacquo
1
Programme selector
dial
Speciali Cotoni
Cotoni
+Prelav.
Eco
Mini
program
Camicie
Sintetici
Mix
Delicati
Lana/
A mano
Stiro
Facile
Centrifuga
Scarico
Risciacquo
Scuri
Turn the programme selector dial to the required
programme. The selector dial can be turned either
clockwise or counter-clockwise. The green pilot
light of the button 7starts flashing: the appliance is now
switched on.
If you turn the programme selector dial to another
programme when the appliance is working, the red
pilot light of the button 7will flash 3 times to indi-
cate a wrong selection. The appliance will not per-
form the new selected programme.
•Toswitch the appliance off, turn the programme
selector dial to the position .
•Tocancel or change a running programme, switch
the appliance off by turning the programme selector
dial to the position . Select the new programme
by turning the selector to the desired programme.
Start the new programme by pressing the button 7
again. The water in the tub will be not emptied out.
2
Temperature button
90°
60°
40°
30°
Temp.
Push the temperature button to select the most
suitable temperature for washing your laundry .
Cold: Cold wash.
electrolux 15

3
Riduzione Centrifuga
and Esclusione cen-
triguga
agufirt
ne
C
1000
700
Riduzione Centrifuga
By selecting a programme, the appliance proposes au-
tomatically the maximum spin speed provided for that
programme.
Press this button repeatedly to change the spin speed,
if you want your laundry to be spun at a different speed.
The relevant light illuminates.
- Esclusione centriguga
By selecting this option, all spinning phases are sup-
pressed and replaced by a drain, so as not to wrinkle
the laundry. Recommended for extremely delicate fab-
rics. On some programmes the rinses will be performed
with more water.
4
odipaR
By pressing this button the corresponding pilot light illu-
minates.
Short cycle for lightly soiled items or for laundry which
needs only freshening up.
With this option, a reduced load of laundry is recom-
mended:
• Cottons 3,5 kg
• Synthetics and delicates 2 kg
Extra risciacquo
agufirt
ne
CodipaR
This appliance is designed for saving water. However,
for people with very delicate skin (allergic to detergents)
it may be necessary to rinse the laundry using an extra
quantity of water.

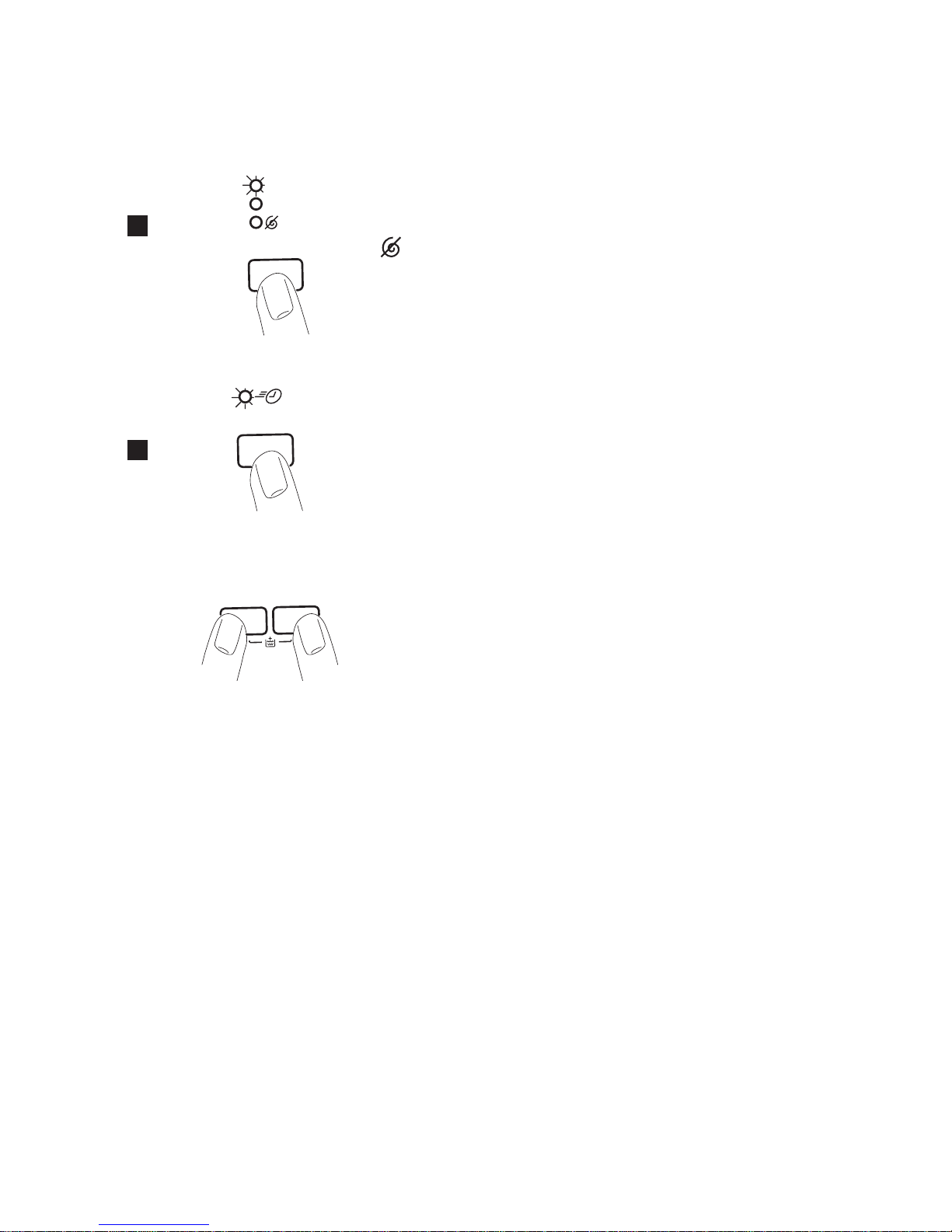

Press simultaneously the buttons 3and 4for some sec-
onds: the pilot light 6.2 comes on. This function stays
permanently on. To remove it press the same buttons
again until the pilot light 6.2 goes off.
16 electrolux

5
Delay
3h 6h 9h
The start of the programme can be delayed by 9, 6 or 3
hours by means of this button. The relevant light illumi-
nates.
You must select this option after you have set the pro-
gramme and before you start the programme.
Select a delayed start:
• select the programme and the required options;
• select the delay start by pressing the button 5;
• press the button 7:
– the appliance starts its hourly countdown.
– The programme will start after the selected delay
has expired.
Cancelling the delayed start after having started
the programme:
• set the appliance to PAUSE by pressing the button 7;
• press the button 5once, the light relevant to the se-
lected delay goes off;
• press the button 7again to start the programme.
The DELAY START cannot be selected with the drain
programme.
Important! The selected delay can be changed only af-
ter selecting the washing programme again. The door
will be locked throughout the delay time. If you need to
open the door, you must set the appliance to PAUSE
(by pressing the button 7) and then wait a few minutes.
After you have closed the door, press the button 7
again.
6.1
6.2
6.3
Indicator pilot lights
Extra
Risciacquo
Lavaggio
Fine ciclo
• When you start the programme by pressing the but-
ton 7, the washing phase pilot light (6.1) illuminates.
This means that the appliance is operating.
• The additional rinses pilot light (6.2) illuminates when
the appliance performs an extra rinse.
• When the programme has finished the end cycle pilot
light (6.3) comes on.
electrolux 17

7
asuaP/oivvA
Start the programme by pressing the button 7
•Tostart the selected programme, press the button
7, the corresponding green pilot light stops flashing.
The pilot light 6.1 illuminates to indicate that the ap-
pliance starts operating and the door is locked. If you
have chosen a delayed start, the appliance will begin
the countdown.
•Tointerrupt a programme which is running, press
the button 7: the corresponding green pilot light
starts flashing. It is possible to change some options
of a running programme before the programme car-
ries them out.
•Torestart the programme from the point at which it
was interrupted, press the button 7.
• After the programme has started the door is locked.
If, for any reason, you need to open the door, set
firstly the appliance to PAUSE by pressing the button
7. After a few minutes it will be possible to open the
door.
If the door remains locked, this means that the appli-
ance is already heating or that the water level is too
high. In any case, do not try to force the door!
If you cannot open the door but you need to open it
you have to switch the appliance off by turning the
selector dial to . After a few minutes the door can
be opened (pay attention to the water level and
temperature!). After closing the door, it is necessary
to select the programme and options again and to
press the button 7.
At the end of the programme
The appliance stops automatically. The pilot
light of the button 7and the pilot light cor-
responding to the just finished washing
phase go off. The light 6.3 illuminates.
If a programme or an option that ends with
water left in the tub has been selected and
the door remains locked to indicate that the
water must be emptied out before opening
the door.
Follow the below instructions to empty out
the water:
•Turn the programme selector dial to .
• Select the draining or spinning pro-
gramme.
• Reduce the spin speed if needed, by
pressing the relevant button.
• Press the button 7.
At the end of the programme, the door can
be now opened. Turn the programme se-
lector dial to to switch the appliance off.
Remove the laundry from the drum and
carefully check that the drum is empty. If
you do not intend to carry out another
wash, close the water tap. Leave the door
open to prevent the formation of mildew
and unpleasant smells.
Warning! If there are children or pets
in the house, activate the child safe-
ty device in the inner side of the door
frame (for more details read " Child
safety" in the chapter "Safety Informa-
tion").
Stand by: during programme setting
up and once the programme has finish-
ed, if the programme selector dial and
any button are not touched, after a few
minutes the energy saving system is
enabled. The pilot lights go off. The
green pilot light of the button 7flashes
with a low frequency. By pressing any
button the appliance will come out of
the energy saving status.
18 electrolux

Door seal
At the end of every cycle, check from the
door seal and remove objects that could be
trapped in the fold.
WASHING PROGRAMMES
Programme - Maximum and Minimum Temperature
- Cycle Description - Maximum Spin Speed - Maxi-
mum Fabrics Load - Type of Laundry
Options
Detergent
Compart-
ment
- COTONI
90°- (Cold)
Main wash - Rinses - Maximum spin speed at 1000 rpm
(RWP 107109 W), 1200 rpm (RWP 127109 W)
Max. load 7 kg - Reduced load 3,5 kg
1)
White, coloured cotton and linen. Normally soiled
items.
SPIN REDUCTION,
ESCLUSIONE CEN-
TRIFUGA, RAPIDO,
DELAY, EXTRA RIS-
CIACQUO
- COTONI + PRELAVAGGIO
90° - (Cold)
Prewash - Main wash - Rinses - Maximum spin speed at
1000 rpm (RWP 107109 W), 1200 rpm (RWP 127109 W)
Max. load 7 kg - Reduced load 3,5 kg
1)
White, coloured cotton and linen. Heavy soiled items.
SPIN REDUCTION,
ESCLUSIONE CEN-
TRIFUGA, RAPIDO,
DELAY, EXTRA RIS-
CIACQUO
- COTONI ECO
2)
60° - 40°
Main wash - Rinses - Maximum spin speed at 1000 rpm
(RWP 107109 W), 1200 rpm (RWP 127109 W)
Max. load 7 kg
White and coloured cotton. This programme can be
selected for slightly or normally soiled cotton items. The
temperature will decrease and the washing time will be
extended. This allows to obtain a good washing efficien-
cy by saving energy.
SPIN REDUCTION,
ESCLUSIONE CEN-
TRIFUGA, DELAY, EX-
TRA RISCIACQUO
- SINTETICI
60° - (Cold)
Main wash - Rinses - Maximum spin speed at 1000 rpm
(RWP 107109 W), 1200 (RWP 127109 W)
Max. load 3.5 kg - Reduced load 2 kg
1)
Synthetic or mixed fabrics: underwear, coloured gar-
ments, non-shrink shirts, blouses . Normally soiled items.
SPIN REDUCTION,
ESCLUSIONE CEN-
TRIFUGA, RAPIDO,
DELAY, EXTRA RIS-
CIACQUO
electrolux 19

Programme - Maximum and Minimum Temperature
- Cycle Description - Maximum Spin Speed - Maxi-
mum Fabrics Load - Type of Laundry
Options
Detergent
Compart-
ment
MIX
20°
Main wash - Rinses - Maximum spin speed at 1000 rpm
(RWP 107109 W), 1200 (RWP 127109 W)
Max. load 3.5 kg
Highly energy efficient cold wash programme for lightly
soiled laundry. This programme requires a detergent
which is active in cold water.
SPIN REDUCTION,
ESCLUSIONE CEN-
TRIFUGA, DELAY, EX-
TRA RISCIACQUO
-
DELICATI
40°- (Cold)
Main wash - Rinses - Maximum spin speed at 700 rpm
Max. load kg 3.5 - Reduced load 2 kg
1)
Delicate fabrics: acrylics, viscose, polyester . Normally
soiled items.
ESCLUSIONE CEN-
TRIFUGA, RAPIDO,
DELAY, EXTRA RIS-
CIACQUO
- LANA / - A MANO
40°- (Cold)
Main wash - Rinses - Maximum spin speed at 1000 rpm
(RWP 107109 W), 1200 (RWP 127109 W)
Max. load 2 kg
Machine washable wool, hand washable woollens
and delicate fabrics with «hand washing» care sym-
bol. Note: A single or bulky item may cause imbalance.
If the appliance doesn’t perform the final spin phase, add
more items, redistribute the load manually and then se-
lect the spinning programme.
SPIN REDUCTION,
ESCLUSIONE CEN-
TRIFUGA , DELAY
- RISCIACQUO
Rinse - Short spin speed 700 rpm. If a spin speed higher
than 700 rpm is selected, by pressing the relevant but-
ton, the appliance performs a long spin. (Maximum spin
speed at 1000 rpm (RWP 107109 W), 1200 rpm (RWP
127109 W))
Max. load 7 kg
To rinse and spin cotton garments which have been
washed by hand. Select the EXTRA RINSE option to in-
tensify the rinsing action. The appliance adds additional
rinses.
SPIN REDUCTION,
ESCLUSIONE CEN-
TRIFUGA , DELAY,
EXTRA RISCIACQUO
- SCARICO
Draining of water
For emptying out the water left in the drum.
- CENTRIFUGA
Drain and long spin at maximum spin speed at 1000 rpm
(RWP 107109 W), 1200 rpm (RWP 127109 W)
Max. load 7 kg
Separate spin for hand washed garments and after pro-
grammes with the No Spin option selected. You can
choose the spin speed by pressing the relevant button to
adapt it to the fabrics to be spun.
If a spin speed at 700 rpm or lower is selected, by press-
ing the relevant button, the appliance performs a short
spin.
SPIN REDUCTION,
DELAY
20 electrolux
