Electrolux TJ1053 User manual

JETSYSTEM
WASHING
MACHINE
TJ1053
INSTRUCTION BOOKLET

WARNINGS AND GUIDANCE
It is most important that this instruction book should be retained with the appliance for
future reference. Should the appliance be sold or transferred to another owner, or should
you move house and leave the appliance, always ensure that the book is left with the
appliance in order that the new owner can get to know the functioning of the appliance and
the relevant warnings.
These warnings are provided in the interest of safety. You MUST read them carefully
before installing or using the appliance.
•This appliance is designed to be operated by adults. • Before selecting a programme or changing an
Children should not be allowed to tamper with the
controls or play with the product.
• It is dangerous to alter the specifications or attempt to
modify this product in any way.
• Any electrical work required to install the appliance
should be carried out by a qualified plumber or
competent person.
• This product should be serviced by an authorised
Zanussi Service Centre, and only genuine Zanussi
spare parts should be used.
• Care must be taken to ensure that the appliance does
/' hot stand on the electrical supply cable.
• Always unplug the appliance and turn off the water
after use.
• Do not overload the appliance. See relevant section
in the instruction book.
• This appliance is heavy. Care should be taken when
moving it.
• All packing and transit bolts must be removed before
use. Serious damage can occur to the product and to
property if this is not adhered to. See relevant section
in instruction book.
f • Only wash fabrics which are designed to be machine
washed. If in doubt, consult the manufacturer of that
item.
• Before washing, ensure that all pockets are empty
and buttons and zips are fastened. Avoid washing
frayed or torn articles and treat stains such as paint,
ink, rust, and grass before washing.
• Underwired bras must NOT be machine washed.
• Any objects such as coins, safety pins, nails, screws,
, stones or any other hard, sharp material can cause
4, extensive damage and must not be placed in the
appliance.
v ongoing programme, the machine must be switched
off by depressing the ON/OFF push-button.
• Garments which have been in contact with volatile
petroleum products should not be machine washed. If
volatile cleaning fluids are used, care should be taken
to ensure that the fluid is removed from the garment
before placing in the machine. Always check that
there are no volatile or flammable objects left in
pockets.
• Wash small items such as socks, laces, washable
belts etc in a washing bag or pillow case, as it is
possible for such items to slip down between the tub
and the inner drum.
• Only use the advised quantities of fabric softener.
Damage to the fabric can ensue if you over-fill. Refer
to the manufacturer's recommendations of quantities.
• As some duvets and eiderdowns should be washed/
dried in large commercial machines because of their
bulk, please check with the manufacturer of the item
before washing in a domestic machine, even if the dry
weight of the item is within the limit advised.
• Pets have been known to climb into washing machi¬
nes. Please check the tub before use.
. Under no circumstances should you attempt to repair
the machine yourself. Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning. Contact your local Zanussi Service
Force Centre. Always insist on genuine Zanussi
spare parts.
• Never tumble dry items that have had contact with
chemicals such as dry cleaning fluid. These are of a
volatile nature and could cause an explosion. Only
tumble dry items which have been washed in water or
require airing.
• The users should always check that they have not left
their gas lighters (disposable or otherwise) in their
clothing. 1
• If the machine is situated on a carpeted floor, please
adjust the feet to ensure that air can circulate freely.
2

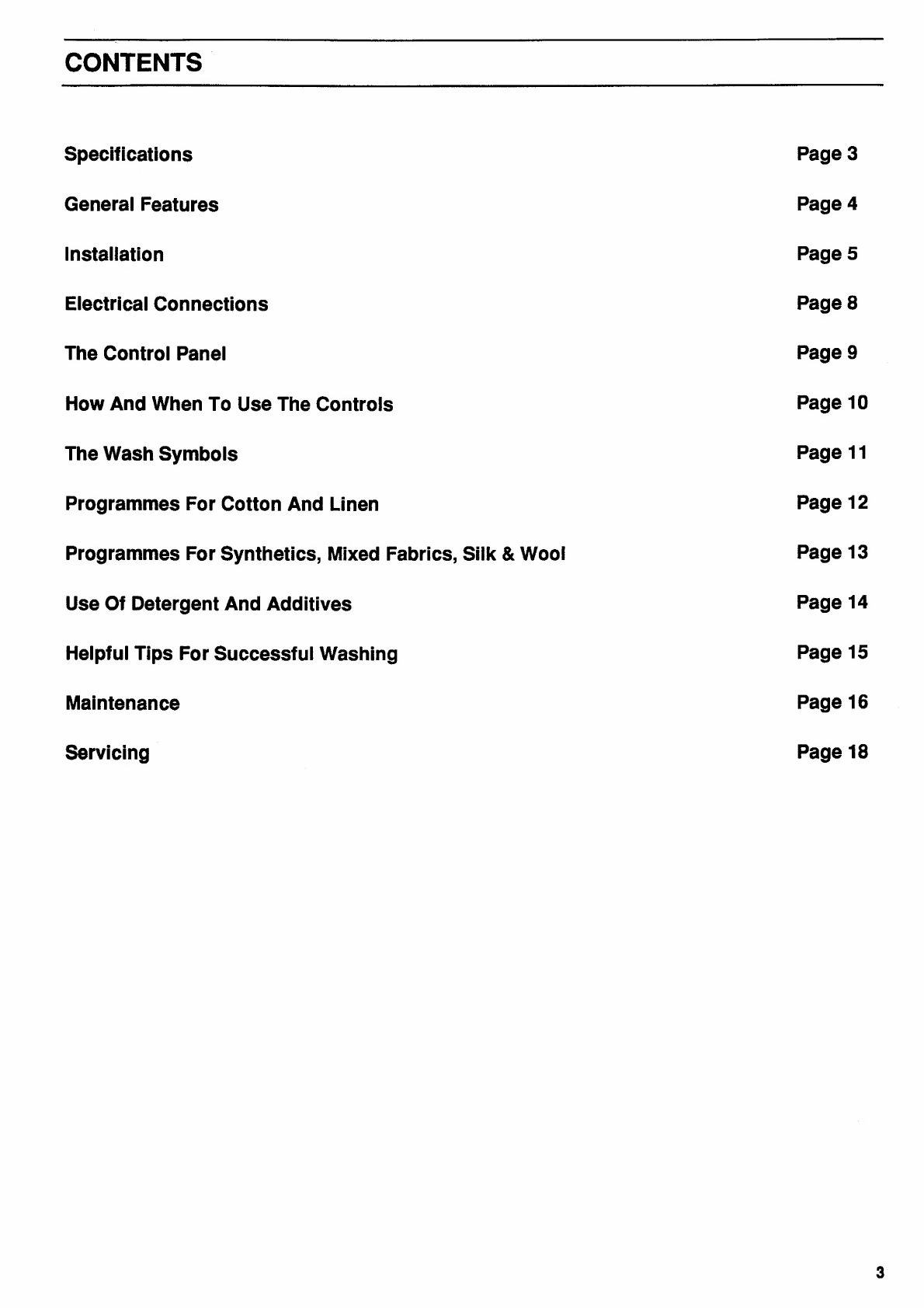

CONTENTS
Specifications
Page 3
General Features
Page 4
Installation
Pages
Electrical Connections
Page 8
The Control Panel
Page 9

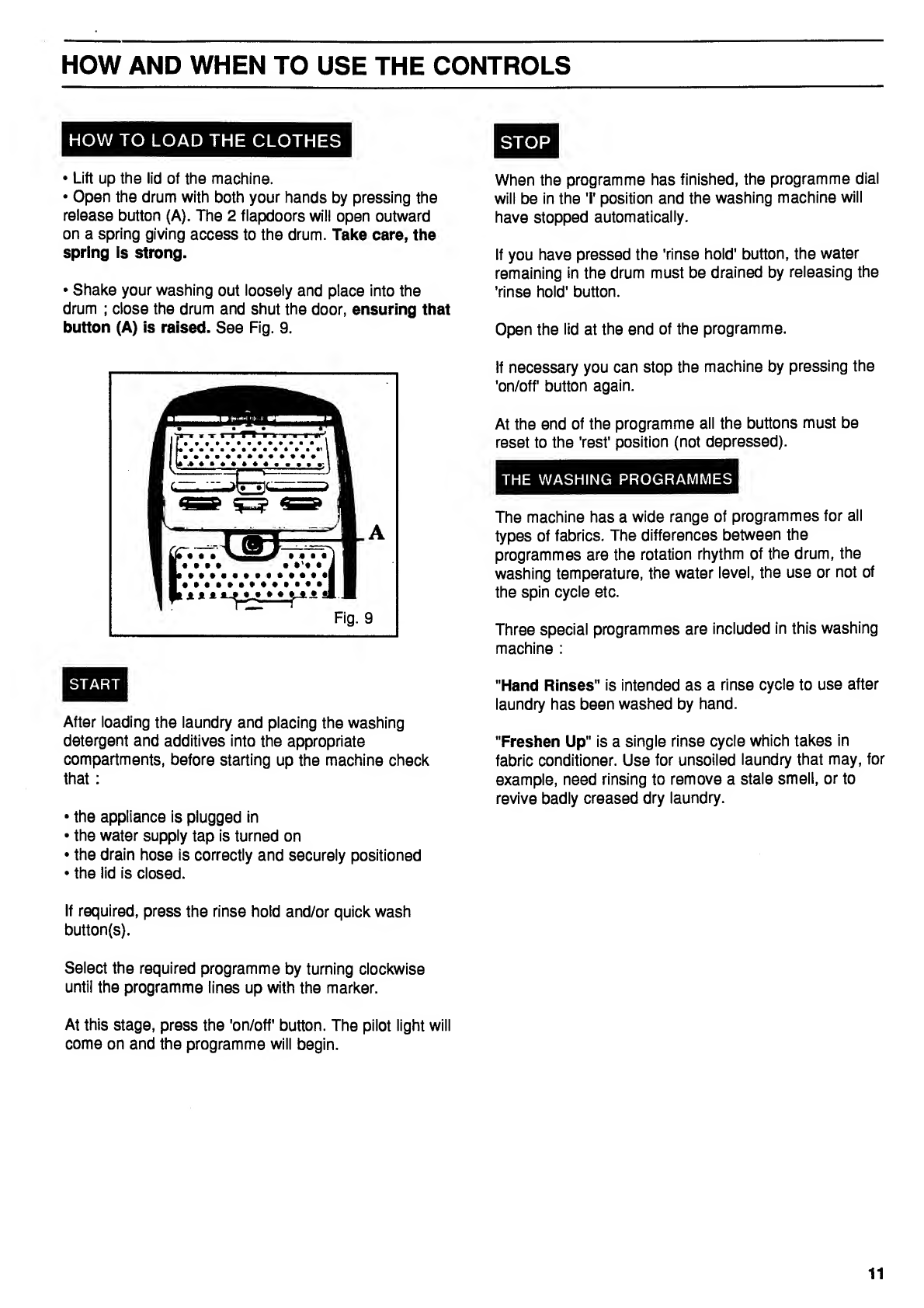

How And When To Use The Controls
Page 10
The Wash Symbols
Page 11
Programmes For Cotton And Linen
Page 12

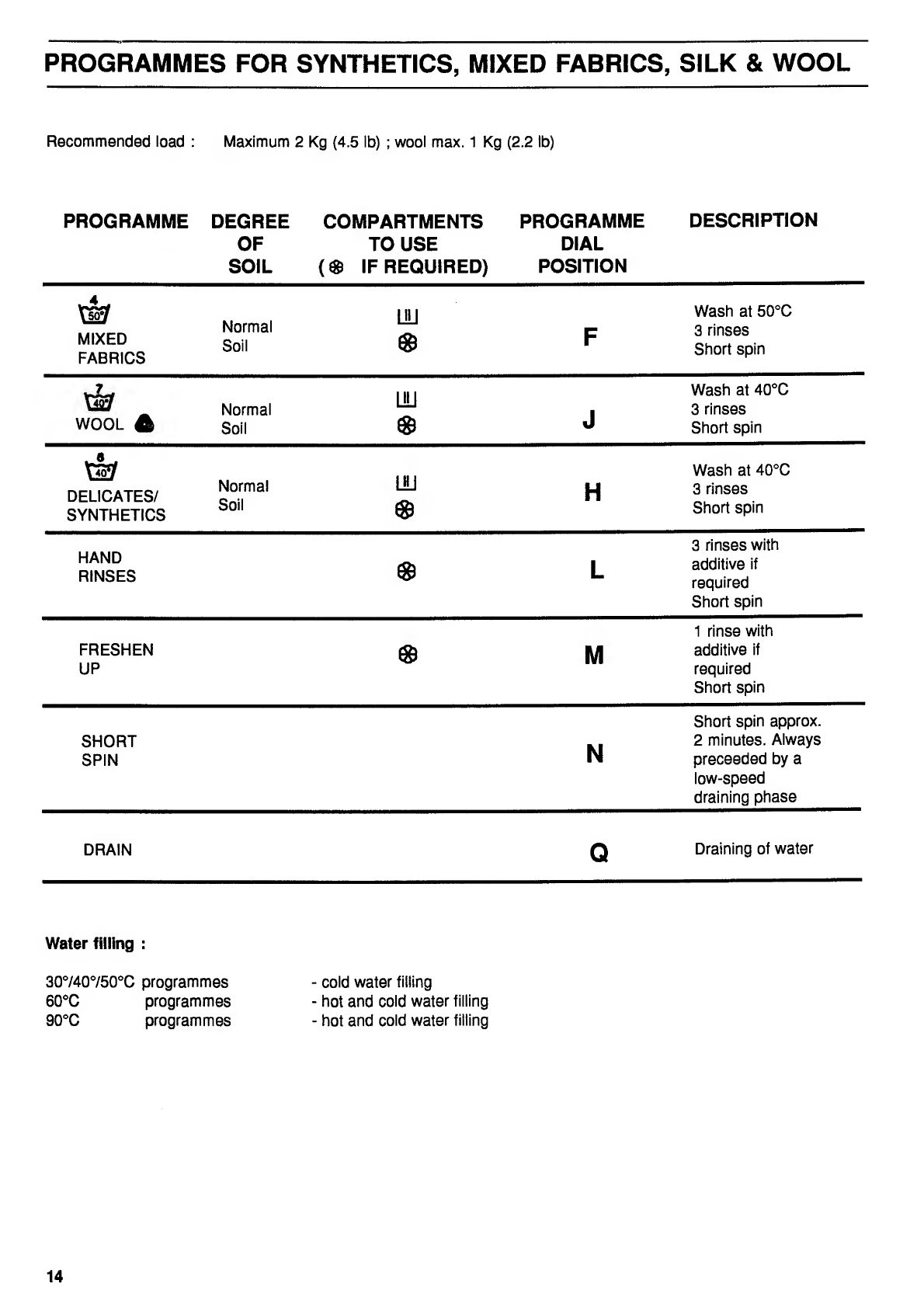

Programmes For Synthetics, Mixed Fabrics, Silk & Wool
Page 13
Use Of Detergent And Additives
Page 14
Helpful Tips For Successful Washing
Page 15
Maintenance
Page 16

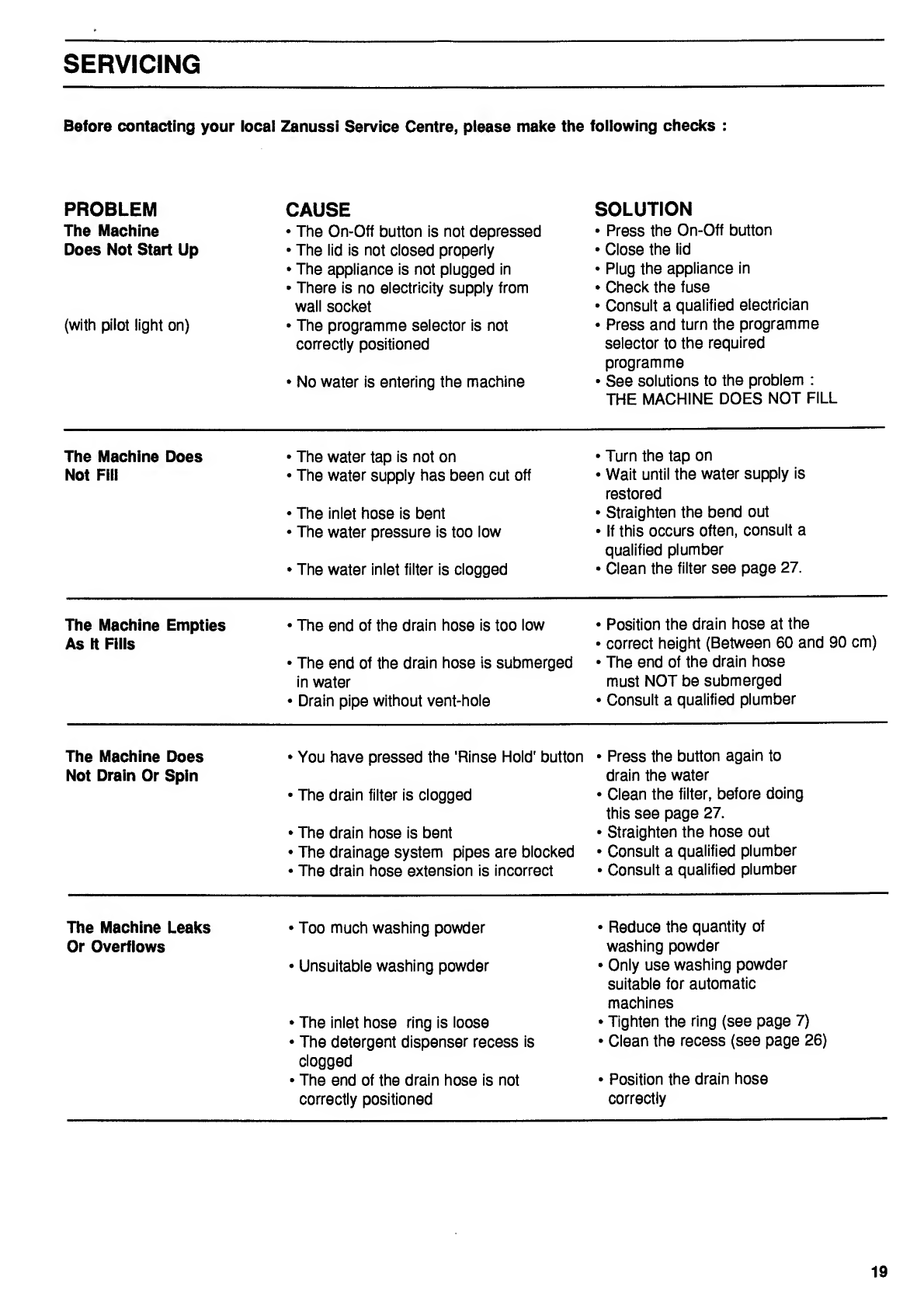

Servicing
Page 18
3

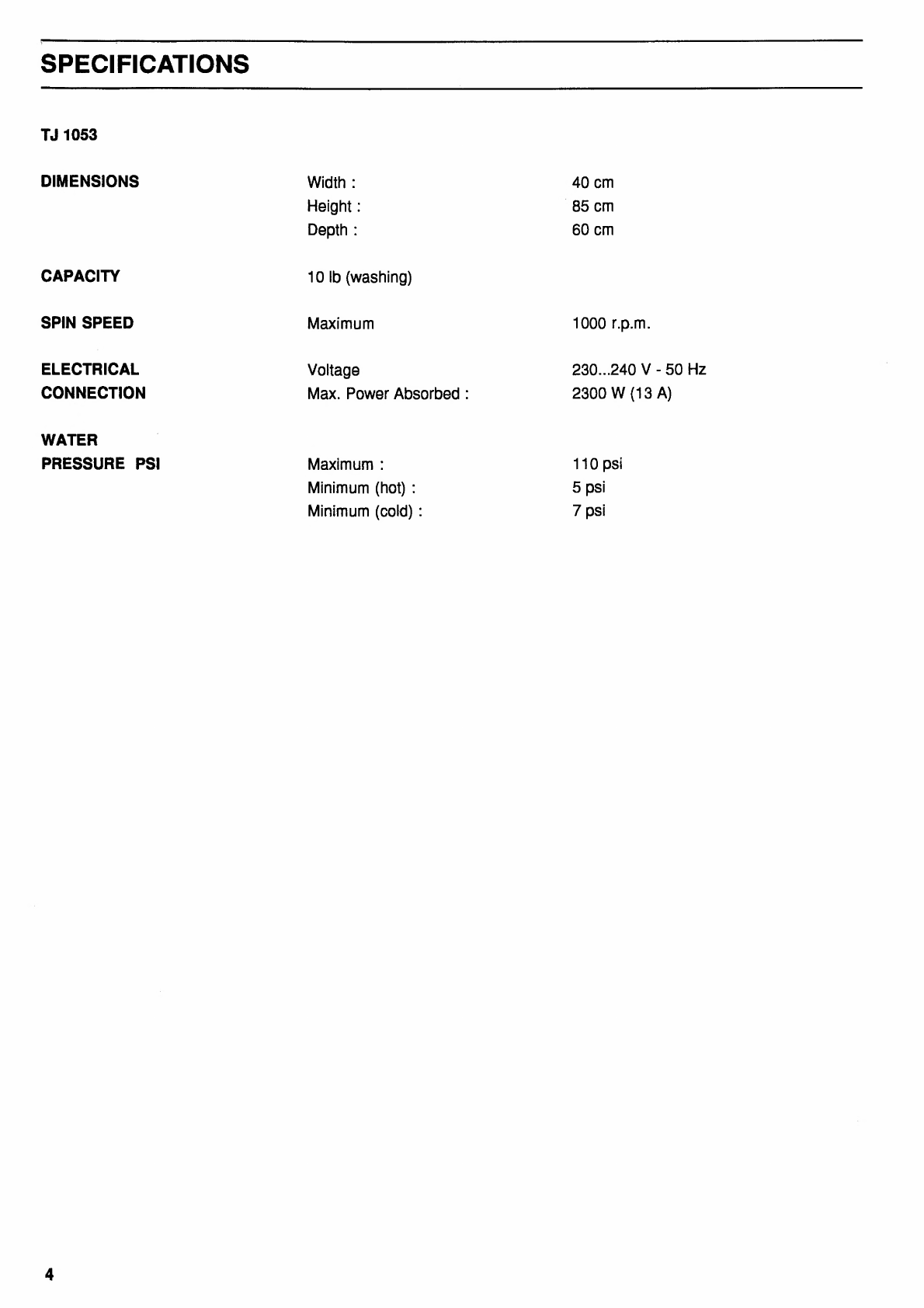

SPECIFICATIONS
TJ 1053
DIMENSIONS
CAPACITY
SPIN SPEED
ELECTRICAL
CONNECTION
WATER
PRESSURE PS1
Width :
Height:
Depth :
10 lb (washing)
Maximum
Voltage
Max. Power Absorbed :
Maximum :
Minimum (hot) :
Minimum (cold):
40 cm
85 cm
60 cm
1000 r.p.m.
230...240 V - 50 Hz
2300 W (13 A)
110 psi
5 psi
7 psi
4

GENERAL FEATURES

INSTALLATION
UNPACKING
Having removed the outer carton, reinforcing angles
and polythene wrapping, you must take out the internal
packing which protects the appliance's 'works' during
transit.
Open the lid of your washing machine and take the
polystyrene block away. See Fig. 1.
Then using a spanner remove and pull the 2 threated
pins A ; remove the 2 red plastic sleeves B using the
ring. Do not remove the black protective caps.
See Fig. 2.
Plug the holes left by pins A with plugs C {to be found
in the plastic bag with the instruction manual) taking
care to shut down the central part as shown on Fig. 2.
If you want to keep the alignment of
your appliance with the adjacent
cupboards, you have the possibility
to cut the crossbar holding the hoses
located in the back of your washing
machine (fig. 4)
INSTALLING
Your new Zanussi washing machine has been
designed to be permanently plumbed into your home’s
water supply, and drainage system.
However, if this is not possible, it may be connected to
suitable existing taps, with the drain hose discharging
into a sink.
Lay the machine carefully on its back making sure that the
hoses and mains lead and plug are not squashed.
Unscrew and remove screws D. Lift away part E. Keep for
future use. See Fig. 3.
The appliance has one inlet valve, cold, with female 2/
4" BSP thread connector. If this connection size is not
compatible with the plumbing of the existing installation,
a variety of connectors are available from good
hardware stores and plumbers merchants to suit most
domestic plumbing. Any alterations to your existing
plumbing must be carried out by a competent person,
or qualified plumber.
The water inlets are normal for cold water ("smooth"
grey pipe) and red for hot water (grey pipe).
Fig. 5
6

Before connecting the hose be sure to fit the mesh filter
supplied, see Fig. 5.
Installation should comply with local water authority and
building regulations' requirements. The appliance must
be given a separate cold water supply and not be
connected to a mixer tap, a single outlet water heater or
a booster pump. A minimum water pressure of 7 psi is
required for safe operation of the appliance.
If you cannot make the cold water connection direct
from the rising mains, you may be able to operate from
your cold water storage system. There should be a
minimum distance of 5.02 m (16 1/2 ft) between the
appliance’s inlet and the bottom of the tank.
Set the inlet hose correctly by loosening the ring nut.
After positioning the hose, be sure to tighten the ring
nut again to prevent leaks.
If you intend the drain hose from the machine to empty
into a sink, make sure that the sink is empty and that
the plug hole is not blocked.
If the machine is permanently plumbed in, hook the end
of the hose into a standpipe installed for that purpose.
This should have an internal diameter of at least 38 mm
(1 1/2") thus leaving an air gap between the hose and
pipe, and should be designed in such a way that the
water level within it, never covers the end of the hose,
see Fig. 6.
Important
Before connecting up the appliance to new pipework or
to pipework that has not been used for some time, run
off a reasonable amount of water to flush out any debris
that may have collected in the pipes.
Whether discharging into a sink or a standpipe check
that the end of the hose is neither too high nor too low.
The top curve in the hose's end should be no more than
90 cm (35.4") and no less than 60 cm (23.6") above
floor level.
LEVELLING
It is essential that your machine is absolutely level. The
machine is levelled by either raising or lowering the
front feet, see Fig. 7.
After levelling, block the adjustable feet by tightening the
collars manually or with a screwdriver.
Accurate levelling reduces vibration, noises and
displacement of the washing machine during operation.
Some vibration is inevitable, especially if the machine is
mounted on a wooden floor. Sprung wooden floors are
particularly suseptible to vibration. For advice, consult a
builder. If possible, always place the machine on a solid
floor.
POSITIONING
Your washing machine can easily slide in and out from
its position by lowering the retractable roller. To do this,
turn the special lever at the bottom front of the machine
from the right to the left. (This can be done with your
foot). Reverse this procedure when the machine is back
in place. See Fig. 8.
If the floor is carpeted or covered with crumbly or soft
material, insert a rigid support base under the feet to
prevent noises, vibrations or displacement. The base
should protrude a few centimetres beyond the edge of
the washing machine front and back.
7

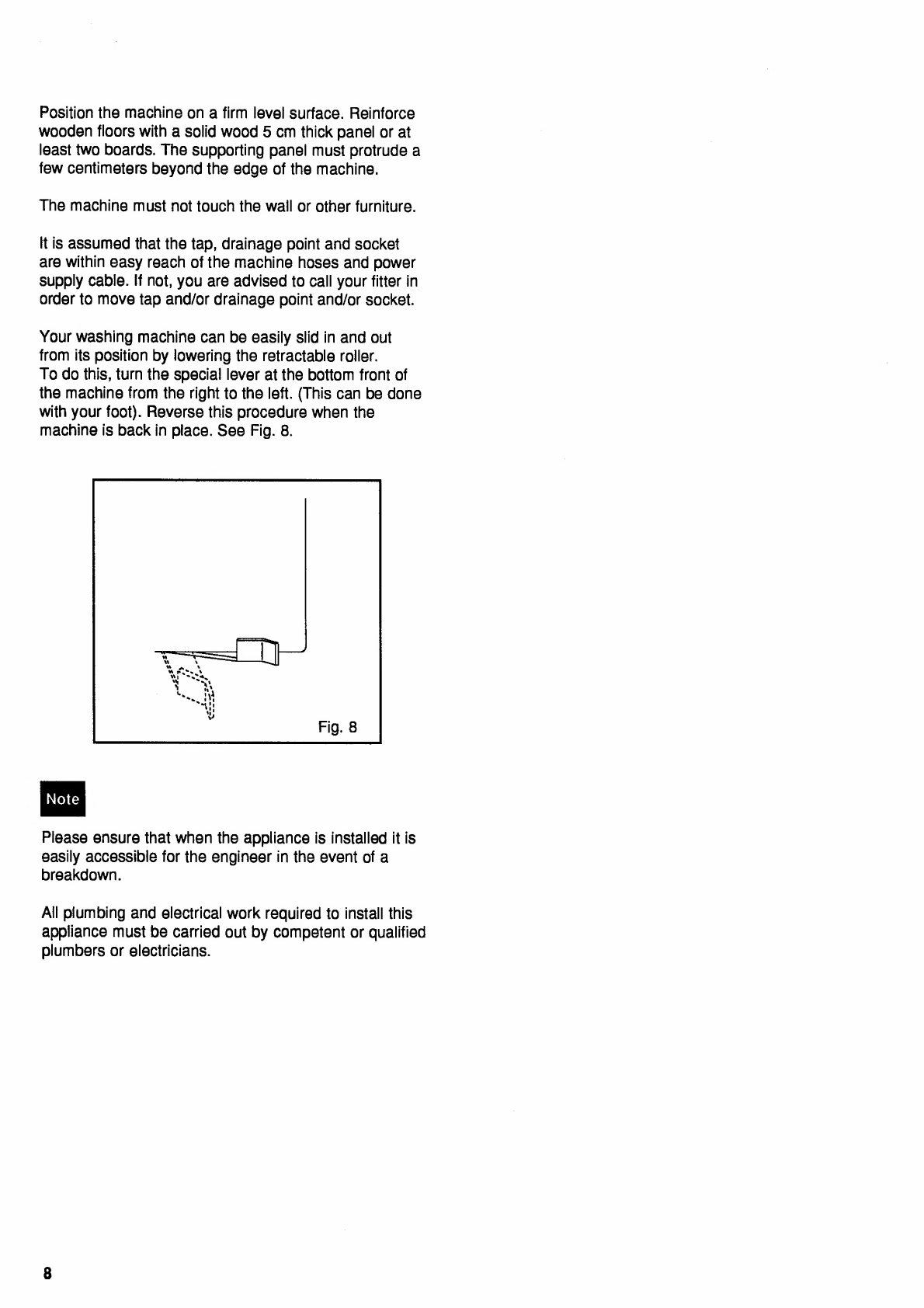

Position the machine on a firm level surface. Reinforce
wooden floors with a solid wood 5 cm thick panel or at
least two boards. The supporting panel must protrude a
few centimeters beyond the edge of the machine.
The machine must not touch the wall or other furniture.
It is assumed that the tap, drainage point and socket
are within easy reach of the machine hoses and power
supply cable. If not, you are advised to call your fitter in
order to move tap and/or drainage point and/or socket.
Your washing machine can be easily slid in and out
from its position by lowering the retractable roller.
To do this, turn the special lever at the bottom front of
the machine from the right to the left. (This can be done
with your foot). Reverse this procedure when the
machine is back in place. See Fig. 8.
Note
Please ensure that when the appliance is installed it is
easily accessible for the engineer in the event of a
breakdown.
All plumbing and electrical work required to install this
appliance must be carried out by competent or qualified
plumbers or electricians.
8

ELECTRICAL CONNECTIONS
WARNING : THIS APPLIANCE MUST BE
EARTHED.
The manufacturer declines any liability should this
safety measure not be observed.
If the plug that is fitted to your appliance is not suitable
for your socket outlet, it must be cut off and the
appropriate plug fitted.
Remove the fuse and carrier from the cut off plug. The
plug should then be disposed to prevent the hazard of
electric shocks in case it should be plugged into a 13
amp socket in another part of your home.
Important
The wires in this mains lead are coloured in accordance
with the following code :
Green and Yellow - Earth
Blue - Neutral
Brown - Live
If you fit your own plug, the colours of the wires in the
mains lead of your appliance may not correspond with
the markings identifying the terminals in your plug.
Proceed as follows :
Connect the blue (neutral) wire to the terminal in the
plug which is marked with the letter ’N’ or coloured blue.
Connect the brown (live) wire to the terminal in the plug
which is marked with the letter 'L' or coloured red or
brown.
The plug moulded on to the cord incorporates a fuse.
For replacement, use a 13 amp BS1362 fuse. Only
ASTA approved fuses should be used. The fuse cover/
carrier must be refitted should it be removed to replace
a fuse. It should be red in colour.
The plug must not be used if the fuse cover/carrier is
lost. A replacement red cover/carrier must be obtained
from you local Zanussi Service Centre whose address
is listed in the directory toward the back of this instruc¬
tion book and can also be found in your local telephone
directory under ’z'.
The appliance complies with E.E.C. Directive
N°. 87/308 of 2.6.87 relative to radio interference
suppression.
Connect the green and yellow (earth) wire to the
terminal in the plug which is marked with the letter 'E' or
the earth symbol —i— or coloured green, or
green and yellow.
9

THE CONTROL PANEL
12 3 4
1. O n - O f f Button
To start the machine, press this button in, the wash
programme display will illuminate ; to stop, press
the button again.
2. Q u i c k Wash Button
Press at the start of the programme F to M and the
programme time will be shortened.
3. R i n s e Hold Button
Press this button to leave the water in the drum after
the wash cycle is completed.
This works only on mixed fabrics, wool or delicate/
synthetic programmes (programmes F to N). The
clothes are left suspended in water after the final rinse
to prevent the formation of creases. Depress this button
to drain the water.
4. P r ogramme Selector Dial
To select the required programme, turn the knob
clockwise, until the marker at the top of the dial
coincides with the required programme.
10
