Elektra Beckum SR 340 User manual

115 167 7840 / 1801 - 1.2
SR 340
Betriebsanleitung. . . . . . . . . . . . . . . . . . . . 3
Operating Instruction . . . . . . . . . . . . . . . . . 6
Instructions d’utilisation . . . . . . . . . . . . . . . 9
Handleiding . . . . . . . . . . . . . . . . . . . . . . . 12
Manuale d’istruzioni. . . . . . . . . . . . . . . . . 15
Manual de uso. . . . . . . . . . . . . . . . . . . . . 18
Betjeningsvejledning . . . . . . . . . . . . . . . . 21
Bruksanvisning . . . . . . . . . . . . . . . . . . . . 24
K0026IVZ.fm

2
D DEUTSCH ENG ENGLISH
KONFORMITÄTSERKLÄRUNG DECLARATION OF CONFORMITY
Wir erklären in alleiniger Verantwortlichkeit, dass dieses Produkt mit
den folgenden Normen übereinstimmt* gemäß den Bestimmungen der
Richtlinien**.
We herewith declare in our sole repsonsibility that this product complies
with the following standards*
in accordance with the regulations of the undermentioned Directives**
F
FRANÇAIS
NL
NEDERLANDS
DECLARATION DE CONFORMITE CONFORMITEITSVERKLARING
Nous déclarons, sous notre seule responsabilité, que ce produit est en
conformité avec les normes ou documents normatifs suivants* en vertu
des dispositions des directives **
Wij verklaren als enige verantwoordelijke, dat dit product in
overeenstemming is met de volgende normen*
conform de bepalingen van de richtlijnen**
IT
ITALIANO
ES
ESPAÑOL
DICHIARAZIONE DI CONFORMITÀ DECLARACION DE CONFORMIDAD
Noi dichiariamo sotto la nostra esclusiva responsabilità che il presente
prodotto è conforme alle seguenti norme*. in conformità con le
disposizioni delle normative **
Declaramos bajo nuestra exclusiva responsabilidad, que el presente
producto cumple con las siguientes normas*.de acuerdo a lo dispuesto
en las directrices**
PT
PORTUGUÊS
SV
SVENSKA
DECLARAÇÃO DE CONFORMIDADE
FÖRSÄKRAN OM ÖVERENSSTÄMMELSE
Declaramos sob nossa responsabilidade que este produto está de
acordo com as seguintes normas*.de acordo com as directrizes dos
regulamentos **
Vi försäkrar på eget ansvar att denna produkt överensstämmer med
följande standarder*. Enligt bestämmelserna i direktiven**
FIN
SUOMI
NO
NORGE
VAATIMUKSENMUKAISUUSVAKUUTUS SAMSVARSERKLÆRING
Vakuutamme, että tämä tuote vastaa seuraavia normeja*.on direktiivien
määräysten mukainen** Vi erklærer under eget ansvar at dette produkt samsvarer med følgende
normer*. henhold til bestemmelsene i direktiv**
DA
DANSK
POL
POLSKI
OVERENSSTEMMELSESATTEST 2 :,$'&=(1,(2=*2'12 &,
Hermed erklærer vi på eget ansvar, at dette produkt stemmer overens
ed følgende standarder*. Iht bestemmelserne i direktiverne**
2 ZLDGF]DP\]SH Q RGSRZLHG]LDOQR FL  HQLQLHMV]\SURGXNW
RGSRZLDGDZ\PRJRPQDVW SXM F\FKQRUPZHG XJXVWDOH Z\W\F]Q\FK
**
EL
+1,.$ HU MAGYAR
 0(*(*<(= 6e*,1<,/$7.2=$7
         
 
     
.L]iUyODJRVIHOHO VVpJQNWXGDWiEDQH]HQQHOLJD]ROMXNKRJ\H]D
termék kielégíti az alábbi szabványokban lefektetett
N|YHWHOPpQ\HNHWPHJIHOHOD]DOiEELLUiQ\HOYHNHO tUiVDLQDN
SR 340
* prEN 792-6
** 98/37/EG, 93/68/EWG
Jürgen Kusserow
Vorstand
ELEKTRA BECKUM AG – Daimlerstraße 1 – 49716 Meppen
1001007/ 01
U2K0026.fm

6
ENGLISH

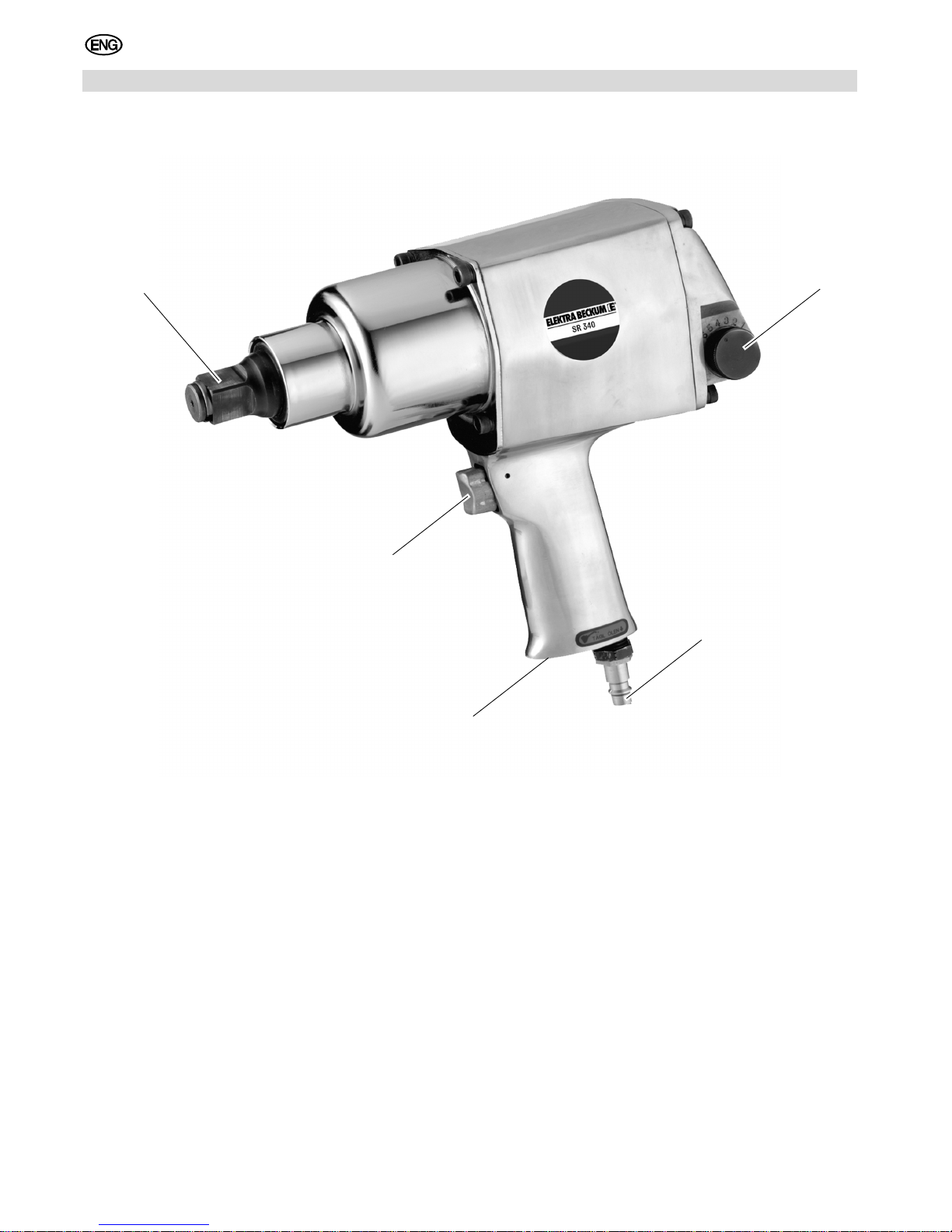

1. Tool Overview
12
5
3
4
13/4" square drive for sockets
2Combination torque regulator
forward/reverse selector
3Air inlet
4Exhaust
5Trigger
Not shown:
socket set (26 mm, 27 mm,
29 mm,30 mm, 32 mm, 35 mm,
36 mm, 38 mm)
Xk0018e1.fm Operating Instruction ENGLISH

7
ENGLISH
1. Tool Overview .............................6
2. Please read first!.........................7
3. Safety...........................................7
3.1 Specified conditions of use...........7
3.2 Safety information.........................7
4. Operation.....................................7
5. Care and maintenance ...............7
6. Available accessories ................7
7. Repairs.........................................7
8. Environmetal protection ............7
9. Technical specifications ............8
•Read these instructions before use.
Pay special attention to the safety
information.
•If you notice transport damage while
unpacking, notify your supplier
immediately. Do not operate the
machine!
•Dispose of the packing in an envi-
ronmentally friendly manner. Take
to a proper collecting point.
•Keep these instructions for refer-
ence on any issues you may be
uncertain about.
•If you lend or sell this air tool be sure
to have the instructions to go with it.
3.1 Specified conditions of
use
This air tool is used for running, driving
and removing nuts and bolts.
This air tool shall only be powered by an
air compressor. The max. permissible
working pressure stated in the Technical
Specifications must not be exceeded.
This air tool must not be operated with
gases that are explosive, combustible or
detrimental to health.
Any other use is not as specified. Use
not as specified, alteration of the
machine or use of parts that are not
approved by the equipment manufac-
turer, can cause unforeseeable damage!
3.2 Safety information
Danger!
When using this air tool follow the
safety instructions given below, to
exclude the risk of personal injury or
material damage.
Keep all documents, supplied with the
tool, for future reference.
Observe the statuary accident insurance
institution regulations and regulations for
the prevention of accidents pertaining to
the operation of air compressors and air
tools, where applicable.
Keep your work area tidy – a messy
work area invites accidents.
Be alert. Do not operate this tool while
under the influence of drugs, alcohol or
medication.
Wear hearing protection.
Always use a quick coupler to connect
this air tool to a compressor.
Make sure that the max. permissible
working pressure stated in the Technical
Specifications is not exceeded.
Do not overload tool – use it only within
the performance range it was designed
for (see Technical Specifications).
Do not touch any rotating parts.
Disconnect tool from air supply before
changing sockets or if left unattended.
Do not attempt to repair the tool yourself!
Only trained specialists are permitted to
service or repair compressors, pressure
vessels and air tools.
Caution:
In order for this air tool to func-
tion properly, it must be supplied with
sufficient qunatities of pneumatic oil.
This can be achieved as follows:
−By a service unit on the compres-
sor.
−By a lubricator, installed in the air
line or directly on the air tool.
−By adding approx. 3-5 drops of
pneumatic oil by hand every 15
minuts of use (constant opera-
tion) to the air inlet.
1. Put socket on the drive.
2. Set direction of rotation by sliding
the torque regulator into position:
−F(= Forward) clockwise rotation/
driving
−R(= Revers) counter-clockwise
rotation/removing
3. Set torque between 1to 6at the
torque regulator:
−1= little torque
−6= Maximum torque
4. Adjust working pressure at the com-
pressor (see Technical Specifica-
tions for max. permissible working
pressure).
5. Connect quick coupler to the com-
pressor.
6. To start pull trigger.
Danger!
Always disconnect tool from
air supply before servicing.
Repair and maintenance work other
than described in this section must
only be carried out by qualified spe-
cialists.
•Check all screwed connections for
tightness, tighten if necessary.
•If the tool is not lubricated by a serv-
ice unit or a line lubricator, add 3-5
drops pneumatic oil to the air inlet
every 15 minutes of use (constant
operation).
•Do not store tool unprotected out-
doors or in damp environment.
•Pneumatic oil 0.5 litre
Special oil for air tools, service units
and line oilers.
Stock-no. 090 100 8540
•Add-on lubricator R3/8" female
Installs directly on air tool. Sight-
glass always indicates oil level.
Stock-no. 090 105 4592
Danger!
Repairs to air tools must be
carried out by qualified specialists
only!
Air tools in need of repair can be send to
the service centre in your country. See
spare parts list for address.
Please attach a description of the fault to
the power tool.
The machine's packaging can be 100 %
recycled.
Worn out machines and accessories
contain considerable amounts of valua-
ble raw and plastic materials, which can
be recycled.
These instructions are printed on chlo-
rine-free bleached paper.
Table of Contents
2. Please read first!
3. Safety
4. Operation
5. Care and maintenance
6. Available accessories
7. Repairs
8. Environmetal protection

8
ENGLISH
9. Technical specifications
Air consumption l/min 450
Max. permissible working pressure bar 6.3
Square drive "3/4
Max. bolt size M22
Max. torque (removing) Nm 1290
Max. torque (driving) Nm 1290
Recommended air hose diameter (inner) mm 9
Vibration m/s2<4.6
sound pressure level dB (A) 91
Dimensions length x width x height mm 200 x 70 x 190
Weight kg 5.3
