Elektron E 60 LS-E User manual

Libretto istruzioni
Instruction booklet
Manual de instrucciones
Lavastoviglie
Dishwasher
Lavavajillas
E 60 LS-E

Important safety information 17
Description of the appliance 17
The control panel 18
Before use 19
Setting the water softener 19
Filling with salt 19
Rinse aid 20
Use of detergent 20

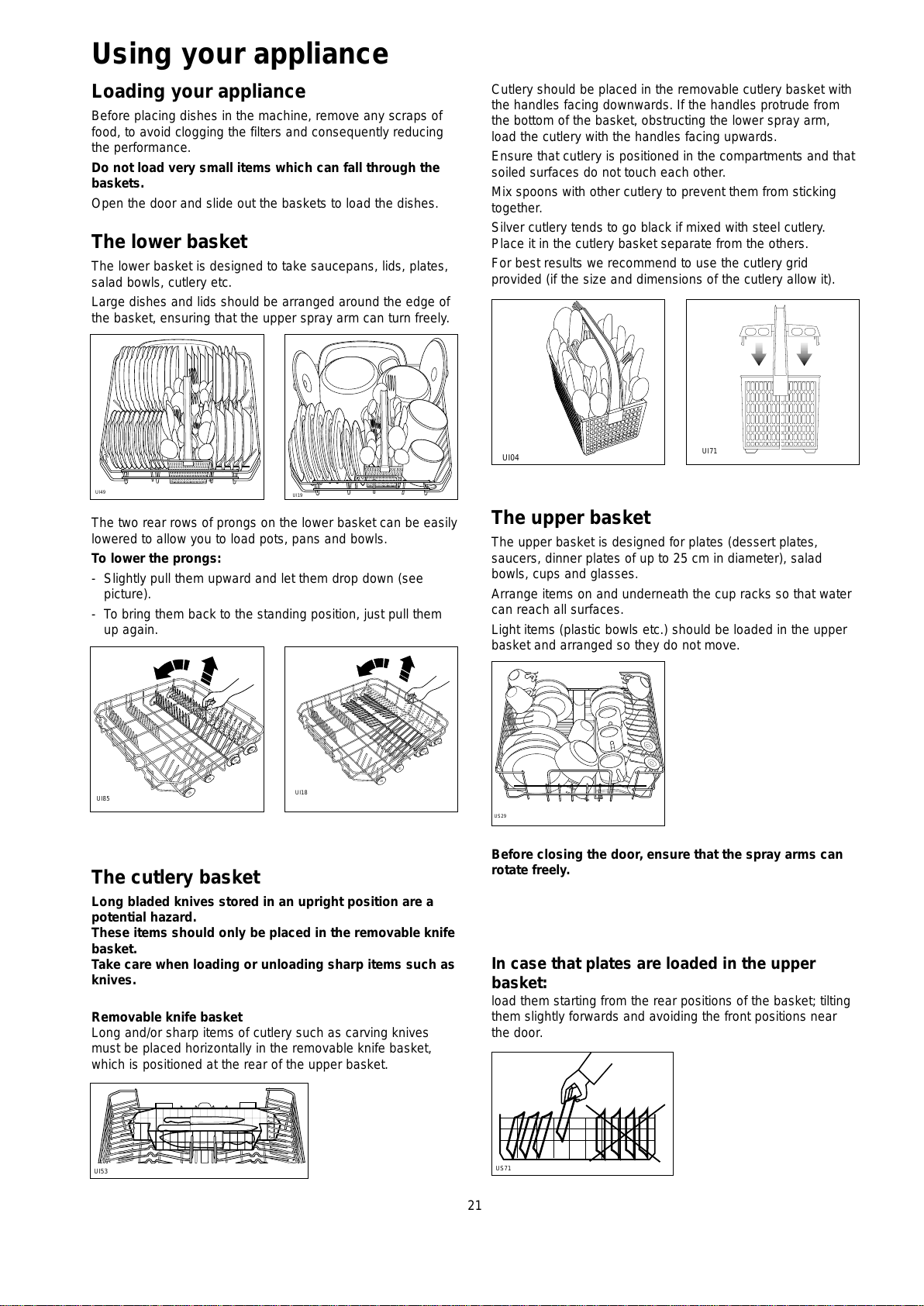

Using your appliance 21
Loading your appliance 21
Adjusting the height of the upper basket 22
Hints and tips 22
Washing programmes 23

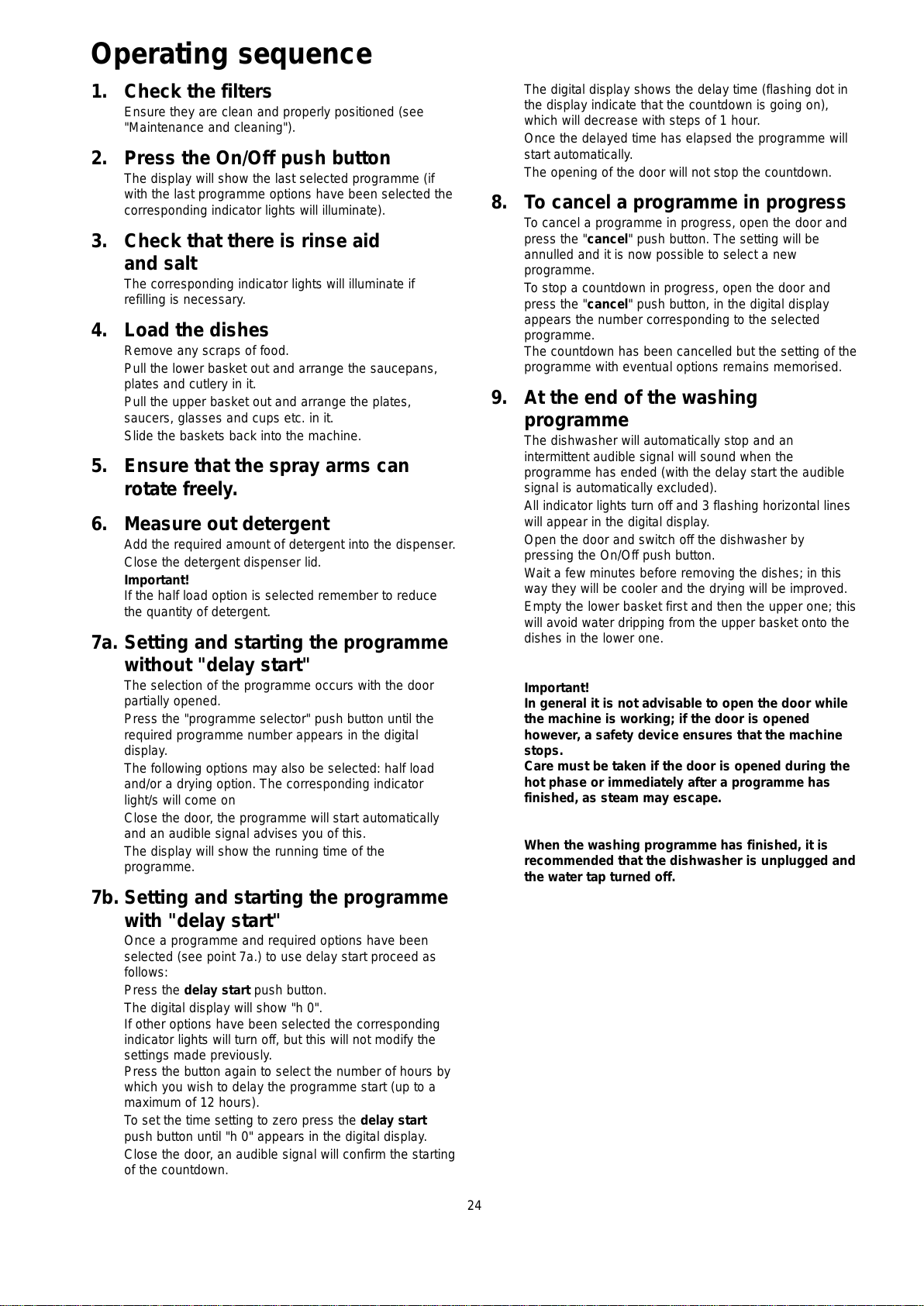

Operating sequence 24
Maintenance and cleaning 25
Internal cleaning 25
Cleaning the filters 25
External cleaning 25
Prolonged periods of non-operation 25
Frost precautions 25
Moving the machine 25

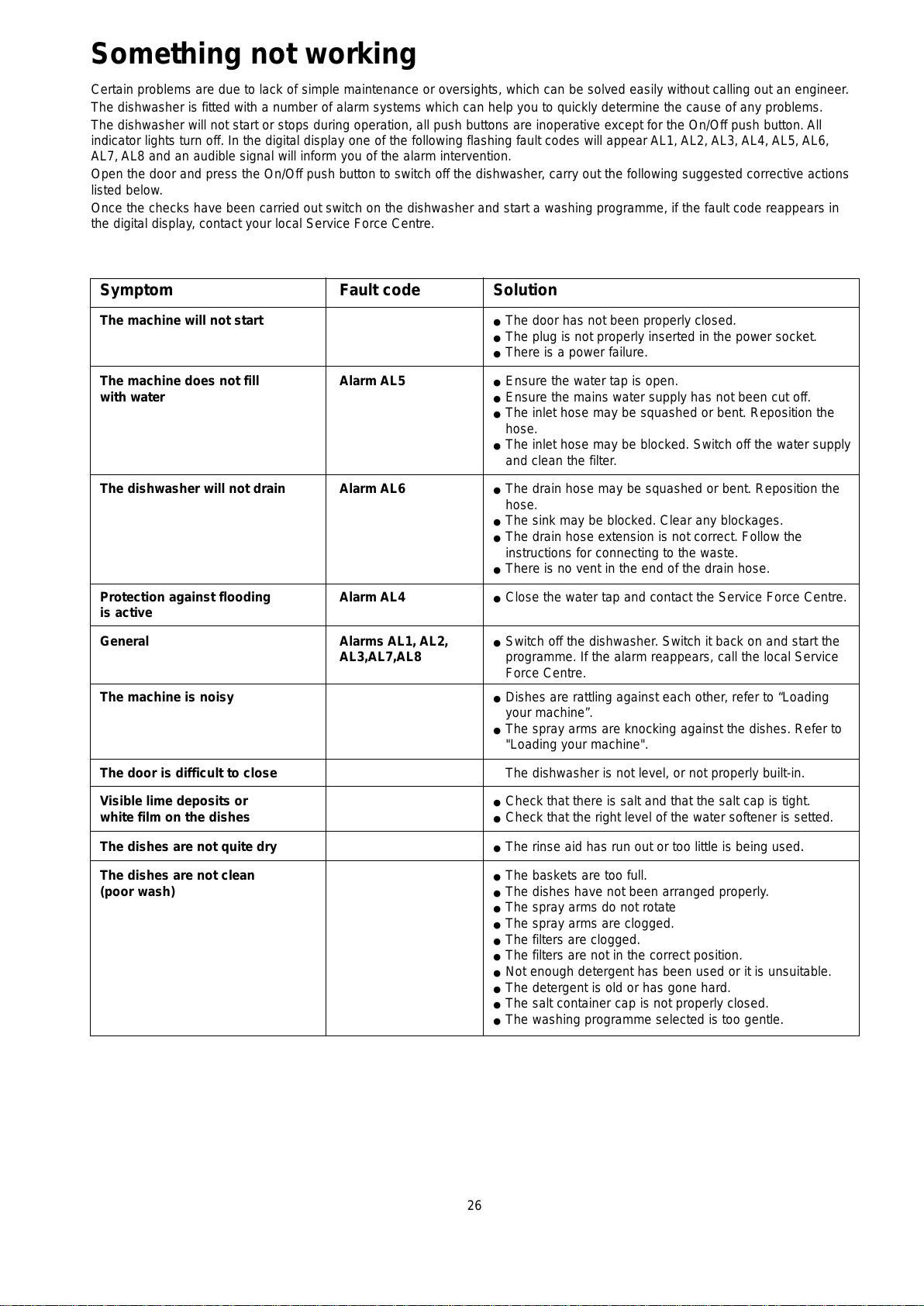

Something not working 26

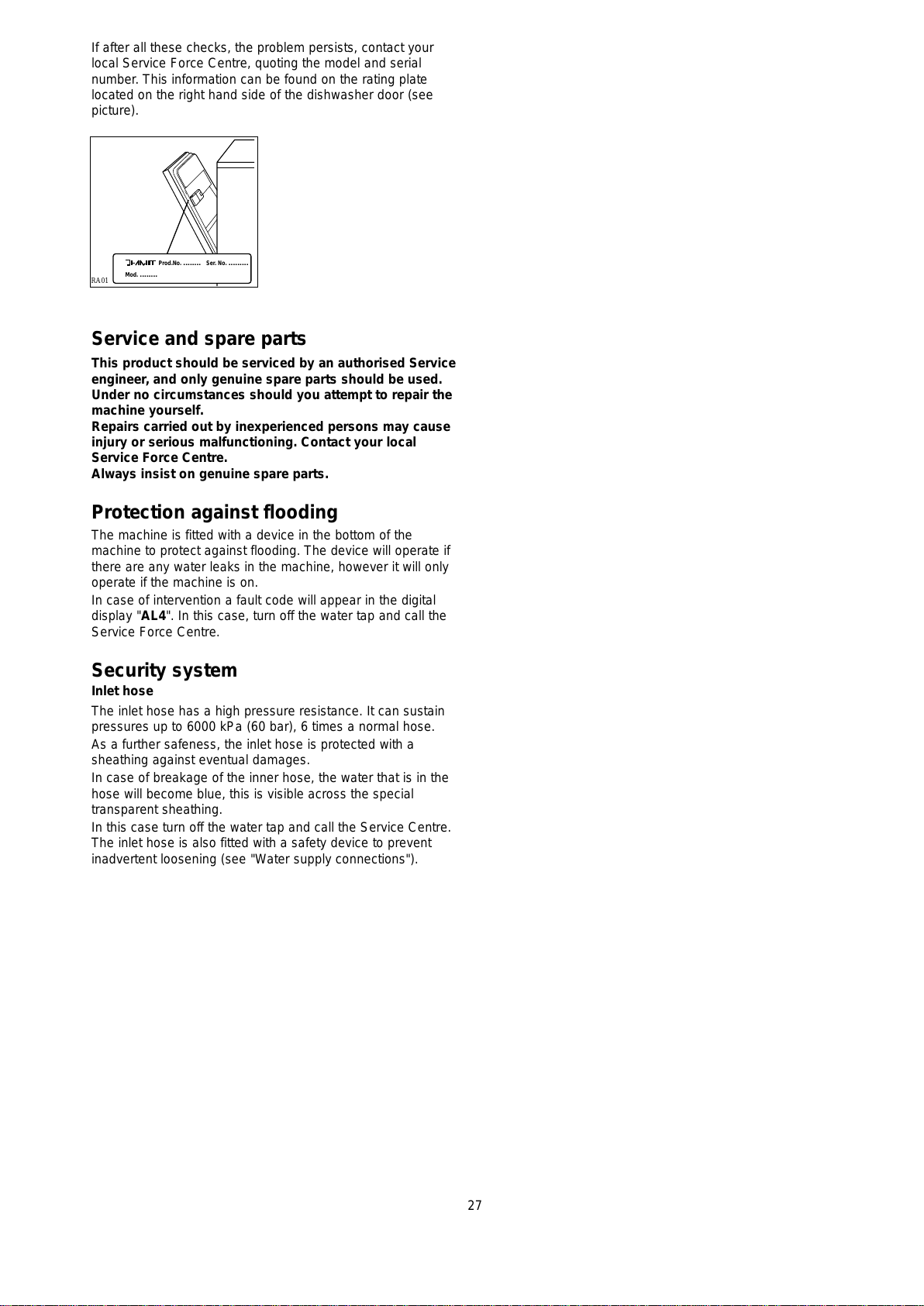

Service and spare parts 27
Protection against flooding 27
Security system 27
Hints for test centres 28
Installation instructions 29
Water supply connections 29
Water outlet hose connection 29
Electrical connection 29
16
Contents
This appliance complies with the following E.E.C. Directives:
- 73/23 of 19.2.73 (Low Voltage Directive) and subsequent modifications;-
- 89/336 of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
Dimensions Width 59.6 cm
Height 81.8 - 89.8 cm
Max depth 55.5 cm
Max depth with open door 111.4 cm
Electrical connection Voltage 230 V - 50 Hz
Motor rating during wash 200 W
Power of heating element 2100 W
Overall power 2300 W
Water supply pressure Minimum 50 kPa (0.5 bar)
Maximum 800 kPa (8 bar)
Capacity 12 place settings
Technical specifications

It is most important that this instruction book should be retained with the appliance for future reference. Should the
appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure
that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and
the relevant safety information.
This information has been provided in the interest of your safety. You MUST read it carefully before installing or using the
appliance.
Installation
●This appliance is heavy. Care should be taken when
moving it.
●It is dangerous to alter the specifications or attempt to
modify this product in any way.
●Care must be taken to ensure that the appliance does not
stand on the electrical supply cable.
●Any electrical work re uired to install this appliance should
be carried out by a ualified electrician or competent
person.
●Any plumbing work re uired to install this appliance should
be carried out by a ualified plumber or competent person.
Child Safety
●This appliance is designed to be operated by adults.
Children should not be allowed to tamper with the controls
or play with the product.
●Keep all packaging well away from children.
●Keep all detergents in a safe place out of children's reach.
During Use
●Items that are contaminated by petrol, paint, steel or iron
debris, corrosive, acidic or alkaline chemicals must not be
washed in this dishwasher.
●Under no circumstances should you open the door whilst
the appliance is in operation. Always turn off the appliance
before opening the door.
●Only use detergent specifically designed for use in
dishwashers.
●Long bladed knives stored in an upright position are a
potential hazard.
●Long and/or sharp items of cutlery such as carving knives
must be positioned horizontally in the upper basket.
●When finishing loading or unloading close the door, as an
open door can be a hazard.
●Do not sit or stand on the open door.
●Isolate the appliance from the power supply and turn off the
water supply after use.
●Care should be taken when cleaning the bottom door seal
and hinge area as any exposed metal edges may cut if
care is not taken.
●This product should be serviced by an authorised Service
engineer, and only genuine spare parts should be used.
●Under no circumstances should you attempt to repair the
machine yourself. Repairs carried out by inexperienced
persons may cause injury or serious malfunctioning.
Contact your local Service Force Centre. Always insist on
genuine spare parts.
Conservation
In the interest of the environment:
●Materials marked with the symbol are recyclable.
●Check with your local Council or Environmental Health
Office to see if there are facilities in your area for re-cycling
this appliance.
●When the appliance is to be scrapped, cut off the power
supply cable and make the door closing device unusable to
prevent young children from being trapped inside.
●Help to keep your country tidy - use authorised disposal
sites for your old appliance.
1. Levelling spacers
2. Upper basket stop
3. Salt container
4. Lower spray arm
5. Detergent dispenser
6. Control panel
7. Rating plate
8. Rinse aid dispenser
9. Large filter
10. Central filter
11. Upper spray arm
12. Upper basket
17
Important safety information
Description of the appliance
1
2
3
4
5
7
8
9
10
11
IN86
12
6

1. On/Off push button
2. Salt and rinse aid refilling indicator
lights
3. SID indicator light
Illuminates when programme 2(Intensive 70°C) is
selected.
4. Digital display
5. Programme selector push button
6. "Half load" push button
This option is useful and economical when only a few
dishes need washing.
Load the dishes into both baskets.
When selected, the indicator light comes on.
With the following programmes the "half load" option
is not available: programme 1 (Rinse and Hold),
programme 8 (Quick Wash 55°C) programme 11
(Daily 30' 65°C), programme 12 (Plate warmer)
7. Drying options push button
By pressing this button you can opt to reduce the
temperature of the last rinse (no dry) or improve the
drying performance of the programme (super dry).
no dry
super dry
The indicator light corresponding to the selection will
come on.
If both indicator lights are off, the normal drying cycle will
be carried out.
With the selection of programme 6 (Bio 50°C with
prewash) super dry is automatically selected by default.
However it is possible to exclude the super dry option
or select no dry by simply pressing the push button.
With the following programmes the "drying options"
are not available: programme 1 (Rinse and Hold),
programme 8 (Quick Wash 55°C) programme 11
(Daily 30' 65°C), programme 12 (Plate warmer)
8. "Delay start" push button
Allows the start of the programme to be delayed by a
minimum of 1 hour, up to 12 hours.
9. "Cancel" push button
Audible signals
Audible signals have been introduced to help indicate which
operations the dishwasher is performing.
Short "instruction accepted" signal
When any of the pushbuttons are pressed, a short audible
signal informs you that the machine has accepted the
instruction given.
Long "programme run" signal
A continuous audible signal informs you, once closed the
door, that the washing programme is starting.
Intermittent "end of programme" signal
An short intermittent audible signal informs you that the
washing programme has ended.
"Alarm" intermittent signal
The machine is fitted with a number of alarm systems to
help you determine the cause of any problems (see
"Something not working").
An intermittent audible signal informs you that an alarm is
activated.
To deactivate these audible signals, press simultaneously both
"programme selector" and "drying options" push buttons for
at least 3 seconds. During these 3 seconds an intermittent
audible signal is heard at the end of which the audible signals
will be deactivated.
To reactivate these audible signals, press simultaneously both
"programme selector" and "drying options" push buttons for
at least 3 seconds. At the end of which an intermittent audible
signal will inform you that the audible signals have been
reactivated.
Both operations (to deactivate or reactivate the audible
signals) can be carried out before starting or during a
washing programme.
Control panel
SO423
18

Before using your dishwasher for the first time:
1. Ensure that the electrical and water connections comply
with the installation instructions
2. Remove all packaging from inside the appliance
3. Set the water softener
4. Pour 1 litre of water inside the salt container and then fill
with salt
5. Fill the rinse aid dispenser.
6. Run a "Rinse and Hold" programme.
Setting the water softener
The dishwasher is e uipped with a water softener designed to
remove minerals and salts from the water supply, which would
have a detrimental or adverse effect on the operation of the
appliance.
The higher the content of these salts, the harder your water is.
Water hardness is measured in e uivalent scales, German
degrees, French degrees and PPM (parts per Million).
The softener should be adjusted according to the hardness of
the water in your area. Your local Water Authority can advise
you on the hardness of the water in your area.
The dishwasher is factory set at level 4.
If this level is not suitable for your area the softener should be
adjusted.
If your water is level 0 it is already soft and therefore
there is no need to use salt.
With the setting of the water softener at level 0 the salt
indicator light on the control panel will always remain off.
Use salt from level 1 upwards.
The adjustment of the water softener is possible only with
the machine in setting mode.
To select a different level proceed as follows:
1. Press "half load" and "drying options" push buttons
simultaneously for about 5 seconds. In the display appears
a "L" followed by a number which corresponds to the
current level.
2. Press within 5 seconds the "drying options" push button
(the "no dry" indicator light flashes) as many times as
necessary until the re uired level appears in the display.
The level increases by 1 each time the button is pressed.
3. 5 seconds after this button has last been pressed, the
dishwasher memorises the level selected and returns to the
programme setting mode.
The setting will remain memorised after switching off the
dishwasher.
Filling with salt
Only use salt specifically designed for use in
dishwashers.
All other types of salt not specifically designed for use in
a dishwasher, especially table salt, will damage the water
softener.
Only fill with salt just before starting one of the complete
washing programmes. This will prevent any grains of salt
or salty water, which may have been spilled, remaining on
the bottom of the machine for any period of time, which
may cause corrosion.
To fill:
1. To fill with salt, unscrew the cap of the salt
container.
2. Pour 1 litre of water inside
the container (this is
necessary only before filling
with salt for the first time).
3. Using the funnel provided,
pour in the salt until the
container is full.
Do not worry if water over
flows from the unit when
filling with salt, this is uite
normal.
4. Replace the cap making sure that there is no trace
of salt on the screw thread or on the gasket.
5. Screw on the cap tightly.
The salt container will re uire topping up periodically.
You are reminded of this by the salt indicator light on the
control panel which comes on when the salt has finished.
The salt indicator light on the control panel can remain
illuminated for 2-6 hours after the salt has been
replenished, assuming the dishwasher remains switched
on. If you are using salts that take longer to dissolve then
this can take longer. The function of the machine is not
affected.
19
SO424
Before use
Level
French
degrees
°TH
German
degrees
°dH
Use
of salt
PPM
(parts per
million)
0
1
2
3
4
5
6
7
8
9
0 - 8
9 - 14
15 - 20
21 - 30
31 - 40
41 - 50
51 - 60
61 - 70
71 - 80
81 - 120
0 - 4
5 - 8
9 - 11
12 - 17
18 - 22
23 - 28
29 - 33
34 - 39
40 - 45
46 - 67
0 - 80
81 - 140
141 - 200
201 - 300
301 - 400
401 - 500
501 - 600
601 - 700
701 - 800
801 - 1200
NO
YES
YES
YES
YES
YES
YES
YES
YES
YES
Water hardness
SALE
SALT
SALZ
SEL
SR06

Rinse aid
Rinse aid is automatically added during the last rinse,
ensuring thorough rinsing, and spot and streak free drying.
The dispenser, which is positioned inside the door, holds
about 110 ml of rinse aid, which is sufficient for 16 - 40
dishwashing programmes, depending upon the dosage
setting.
Filling with rinse aid
1. Open the container by turning the lid (A) anticlockwise.
2. Add the rinse aid until the container is completely full.
The indicator (B) will be completely dark.
3. Top up the rinse aid when the rinse aid indicator light on
the control panel illuminates.
Ensure that the lid is closed after every refill.
Do not put liquid detergent in the rinse aid compartment.
Clean up any rinse aid spilt during filling with an absorbent
cloth to avoid excess foaming during the next wash.
Adjusting the dose
According to the finish and drying results obtained, adjust the
dose of rinse aid by means of the 6 position selector (C)
(position 1 minimum dosage, position 6 maximum dosage).
Increase the dose if there are drops of water or lime spots on
the dishes after washing. Reduce it if there are sticky whitish
streaks on the dishes.
Use of detergent
Only use detergents specifically designed for use in
dishwashers.
If using powder detergents proceed as follows:
1. Open the dispenser lid by pulling the catch (D).
2. Add the detergent according to the recommended uantity
given in the "Washing programmes" chart.
As all detergents are not the same, you should consult the
instructions on the packet.
3. Always close the lid.
4. If the programme has a prewash add a little amount of
detergent over the lid of the detergent dispenser.
Follow the recommended uantity of detergent given in the
"Washing programmes" chart.
If using detergent in tablets proceed as follows:
1. For all programmes; place 1 tablet inside the detergent
dispenser.
2. Always close the lid.
3. For all programmes with prewash; place a portion of a
further tablet on the lid of the detergent dispenser.
Insufficient quantities of detergent will produce poor
washing results, whereas an excessive amount of
detergent will not improve washing results and is also
wasteful.
Using no more than the correct amount also contributes
to reducing pollution.
Compact detergents with enzymes
In these compact powders the environmentally unfriendly
components have been replaced by natural enzymes and
other more biodegradable substances.
The enzymes deploy their full dirt dissolving power at a
temperature as low as 50°C.
By choosing the "Bio 50°C" programmes you can therefore
achieve the same cleaning results that would otherwise be
achievable only with 65°C programmes and conventional
detergents.
These new compact powders are generally phosphate-free.
20
BR02
C
m
a
x
6
5
4
3
2
1
BR01
A
m
a
x
6
5
4
3
2
1
B
BR03
D
MIN
MAX
DE17
Min = 15 g
Max = 30 g
DE02

21
Loading your appliance
Before placing dishes in the machine, remove any scraps of
food, to avoid clogging the filters and conse uently reducing
the performance.
Do not load very small items which can fall through the
baskets.
Open the door and slide out the baskets to load the dishes.
The lower basket
The lower basket is designed to take saucepans, lids, plates,
salad bowls, cutlery etc.
Large dishes and lids should be arranged around the edge of
the basket, ensuring that the upper spray arm can turn freely.
The two rear rows of prongs on the lower basket can be easily
lowered to allow you to load pots, pans and bowls.
To lower the prongs:
- Slightly pull them upward and let them drop down (see
picture).
- To bring them back to the standing position, just pull them
up again.
The cutlery basket
Long bladed knives stored in an upright position are a
potential hazard.
These items should only be placed in the removable knife
basket.
Take care when loading or unloading sharp items such as
knives.
Removable knife basket
Long and/or sharp items of cutlery such as carving knives
must be placed horizontally in the removable knife basket,
which is positioned at the rear of the upper basket.
Cutlery should be placed in the removable cutlery basket with
the handles facing downwards. If the handles protrude from
the bottom of the basket, obstructing the lower spray arm,
load the cutlery with the handles facing upwards.
Ensure that cutlery is positioned in the compartments and that
soiled surfaces do not touch each other.
Mix spoons with other cutlery to prevent them from sticking
together.
Silver cutlery tends to go black if mixed with steel cutlery.
Place it in the cutlery basket separate from the others.
For best results we recommend to use the cutlery grid
provided (if the size and dimensions of the cutlery allow it).
The upper basket
The upper basket is designed for plates (dessert plates,
saucers, dinner plates of up to 25 cm in diameter), salad
bowls, cups and glasses.
Arrange items on and underneath the cup racks so that water
can reach all surfaces.
Light items (plastic bowls etc.) should be loaded in the upper
basket and arranged so they do not move.
Before closing the door, ensure that the spray arms can
rotate freely.
In case that plates are loaded in the upper
basket:
load them starting from the rear positions of the basket; tilting
them slightly forwards and avoiding the front positions near
the door.
Using your appliance
UI49 UI19
UI85
UI18
UI53
UI04
UI71
US29
US71

Adjusting the height of the upper
basket
If washing very large plates (over 27 cm and up to 32 cm in
diameter) you can load them in the lower basket after moving
the upper basket to the higher position.
To move to the higher position proceed as follows:
1. Pull out the basket until it stops.
2. Carefully lift both sides upwards until the mechanism is
engaged and the basket is stable.
Attention!
Never lift or lower the basket on one side only.
When the top basket is in the higher position it will only take
plates up to 20 cm in diameter and you will not be able to use
the cup racks.
To lower the basket to the original position proceed as
follows:
1. Pull out the basket until it stops.
2. Carefully lift both sides upwards and the allow the
mechanism to drop back slowly, keeping hold of it.
After loading your machine always close the door, as an
open door can be a hazard.
To save energy
Place dishes in the machine immediately after every meal and
wait until the dishwasher is full before washing.
If necessary run the Rinse and Hold programme (see
"Washing Programmes" chart) so that any food scraps do not
become caked on the dishes while you are waiting to run the
complete wash programme.
Do not prewash dishes under running water.
Select an economic/ uick programme when dishes are not
very soiled, following the instructions given in the "Washing
programmes" chart.
Select the no dry option.
Select the half load option if only a few dishes need washing.
For best washing results
Before loading, remove all scraps of food and soak very
heavily soiled pots and pans.
Arrange saucepans, cups and glasses etc. upside-down.
Tilt items with convex or concave surfaces so that the water
drains off easily.
Avoid contact between the dishes as far as possible.
Items not suitable for dishwashers
The following items should not be washed in the dishwasher
(unless they are sold as dishwasher proof):
- Cutlery with wooden or horn handles or glued parts
- bronze cutlery
- saucepans with wooden handles
- aluminium ware
- crystal ware
- leaded glass
- plastic items
- anti ue or fine decorated china
Certain types of decoration can discolour when washed in a
dishwasher.
Crystal-ware and plastic objects, if not guaranteed dishwasher
proof should be washed by hand.
Certain types of glass can also become opa ue
after being washed several times in a dishwasher.
A chemical reaction can occur between silver cutlery and
stainless steel cutlery. As a precaution, do not wash together.
Iron and cast iron objects can rust and stain other items.
Aluminium tends to go black, copper, pewter and brass tend to
stain.
If in doubt check with manufacturer of the item.
When buying new dishes, ensure that they are
dishwasher proof.
22
RC04
Hints and tips

Washing programmes
23
Programme Degree of soil and
type of load
Heavy soil.
Crockery, cutlery, pots and pans
Normal soil.
Crockery, cutlery, pots and pans
Normal soil.
Crockery and cutlery
Light soil.
Crockery and cutlery
Light soil.
Crockery and cutlery
Light soil.
Crockery, cutlery and party crockery
Fresh soil.
Crockery and cutlery
Normal soil.
Crockery and cutlery
Normal soil.
Delicate china and glassware
Light soil.
Glassware and crystal glass
This is a programme designed both to heat
plates before serving or remove dust from
dishes which have not been used for a long time
Any.
Partial load (to be completed later in the day).
Cycle descriptionRecommended quantity
of detergent
2.
Intensive 70°C
3.
Normal Plus 65°C
with prewash
*4.
Daily 80I65°C
**** 11.
Daily 30I65°C
5.
Normal 65°C
no prewash
** 6.
Bio 50°C
with prewash
7.
Bio 50°C
no prewash
*** 8.
uick Wash 55°C
9.
Delicate 45°C
with prewash
10.
Crystal 40°C
12.
Plate warmer
1.
Rinse and Hold
Hot prewash
Main wash up to 70°C
3 cold rinses
1 hot rinse
Turbo drying
Warm prewash
Main wash up to 65°C
2 cold rinses
1 hot rinse
Turbo drying
Warm prewash
Main wash up to 65°C
1 cold rinse
1 hot rinse
Turbo drying
Main wash up to 65°C
1 cold rinse
1 hot rinse
Turbo drying
Warm prewash
Main wash up to 50°C
2 cold rinses
1 hot rinse
Super drying
Main wash up to 50°C
1 cold rinse
1 hot rinse
Turbo drying
Main wash up to 55°C
1 cold rinse
1 hot rinse
Cold prewash
Main wash up to 45°C
2 cold rinses
1 hot rinse
Turbo drying
Cold prewash
Main wash up to 40°C
2 cold rinses
1 hot rinse
Turbo drying
Main wash up to 65°C
1 hot rinse
1 hot rinse
1 cold rinse,
(to avoid food scraps from
sticking together).
*Ideal for washing a complete load of 12 place settings with normal soil. Characterised by a duration of about 80 minutes
and a washing temperature of 65°C. The time value is approximate and depends on the pressure and the temperature of the
water and also by the variations of the power supply.
** Testing programme for EN 50242. (See “Hints for test centres“).This programme, developed for the use of detergents with
enzymes, allows to achieve, with reduced consumption of energy, the same cleaning results that would otherwise be obtained
only with 65°C programmes and conventional detergents. To compensate the lower temperature, the duration of the
programme has been prolonged.
*** This is a special programme for uick washing a full load of lightly soiled dishes, glasses and crockery (except pots) so that
you may re-use them promptly.
****Ideal for washing crockery and cutlery of breakfast and dinner (fresh soil). Characterised by a duration of about 30 minutes
and a washing temperature of 65°C. The time value is approximate and depends on the pressure and the temperature of the
water and also by the variations of the power supply.
This is a programme made to meet the needs of a family of 4 persons who only wish to load breakfast and dinner crockery
and cutlery.
//
//
20 g 10 g
20 g 10 g
20 g 10 g
20 g 10 g
25 g 5 g
25 g 5 g
30 g /
30 g /
30 g /
20 g /
wash prewash

1. Check the filters
Ensure they are clean and properly positioned (see
"Maintenance and cleaning").
2. Press the On/Off push button
The display will show the last selected programme (if
with the last programme options have been selected the
corresponding indicator lights will illuminate).
3. Check that there is rinse aid
and salt
The corresponding indicator lights will illuminate if
refilling is necessary.
4. Load the dishes
Remove any scraps of food.
Pull the lower basket out and arrange the saucepans,
plates and cutlery in it.
Pull the upper basket out and arrange the plates,
saucers, glasses and cups etc. in it.
Slide the baskets back into the machine.
5. Ensure that the spray arms can
rotate freely.
6. Measure out detergent
Add the re uired amount of detergent into the dispenser.
Close the detergent dispenser lid.
Important!
If the half load option is selected remember to reduce
the uantity of detergent.
7a. Setting and starting the programme
without "delay start"
The selection of the programme occurs with the door
partially opened.
Press the "programme selector" push button until the
re uired programme number appears in the digital
display.
The following options may also be selected: half load
and/or a drying option. The corresponding indicator
light/s will come on
Close the door, the programme will start automatically
and an audible signal advises you of this.
The display will show the running time of the
programme.
7b. Setting and starting the programme
with "delay start"
Once a programme and re uired options have been
selected (see point 7a.) to use delay start proceed as
follows:
Press the delay start push button.
The digital display will show "h 0".
If other options have been selected the corresponding
indicator lights will turn off, but this will not modify the
settings made previously.
Press the button again to select the number of hours by
which you wish to delay the programme start (up to a
maximum of 12 hours).
To set the time setting to zero press the delay start
push button until "h 0" appears in the digital display.
Close the door, an audible signal will confirm the starting
of the countdown.
The digital display shows the delay time (flashing dot in
the display indicate that the countdown is going on),
which will decrease with steps of 1 hour.
Once the delayed time has elapsed the programme will
start automatically.
The opening of the door will not stop the countdown.
8. To cancel a programme in progress
To cancel a programme in progress, open the door and
press the "cancel" push button. The setting will be
annulled and it is now possible to select a new
programme.
To stop a countdown in progress, open the door and
press the "cancel" push button, in the digital display
appears the number corresponding to the selected
programme.
The countdown has been cancelled but the setting of the
programme with eventual options remains memorised.
9. At the end of the washing
programme
The dishwasher will automatically stop and an
intermittent audible signal will sound when the
programme has ended (with the delay start the audible
signal is automatically excluded).
All indicator lights turn off and 3 flashing horizontal lines
will appear in the digital display.
Open the door and switch off the dishwasher by
pressing the On/Off push button.
Wait a few minutes before removing the dishes; in this
way they will be cooler and the drying will be improved.
Empty the lower basket first and then the upper one; this
will avoid water dripping from the upper basket onto the
dishes in the lower one.
Important!
In general it is not advisable to open the door while
the machine is working; if the door is opened
however, a safety device ensures that the machine
stops.
Care must be taken if the door is opened during the
hot phase or immediately after a programme has
finished, as steam may escape.
When the washing programme has finished, it is
recommended that the dishwasher is unplugged and
the water tap turned off.
24
Operating sequence

Internal cleaning
Ensure that the seals around the door, the detergent and rinse
aid dispensers are cleaned regularly with a damp cloth.
We recommend every 3 months to run a 65°C wash
programme without dishes using detergent.
Cleaning the central filter
(After each wash)
Scraps of food may accumulate in the drain filter (A) and
should be removed by rinsing the filter under running water.
To remove the drain filter
- simply pull it out by the handle.
Once cleaned, refit the filter by pushing it back to its original
position until it engages.
Cleaning the large filter
(Every week)
If necessary clean the large filter (B) on both sides under
running water, using a brush.
To remove the large filter
1. Remove the spray arm by pulling it upwards on one side.
2. Turn the column (C) anticlockwise by 90° and then slide out
the filter.
3. Once cleaned refit it following the above instructions in
reverse order.
4. Ensure the filter is in its original position, the handle of the
drain filter should be pointing towards the front of the
appliance.
The dishwasher must not be used without filters.
Incorrect repositioning and fitting of the filters will
produce poor washing results.
Cleaning the filters is vital to ensure correct operation of
the machine.
External cleaning
Clean the external surfaces of the machine and control panel
with a damp soft cloth. If necessary use only neutral
detergents. Never use abrasive products, scouring pads or
solvent (acetone, trichloroethylene etc....).
Prolonged periods of non-operation
If you are not using the machine for any period of time you are
advised to:
1. Unplug the appliance and then turn off the water.
2. Fill the rinse aid dispenser.
3. Leave the door ajar to prevent the formation of any
unpleasant smells.
4. Leave the inside of the machine clean.
Frost precautions
Avoid placing the machine in a location where the temperature
is below 0°C. If this is unavoidable, empty the machine, close
the appliance door, disconnect the water inlet pipe and empty
it.
Moving the machine
If you have to move the machine (moving house etc....):
1. Unplug it.
2. Turn the water tap off.
3. Remove the water inlet and discharge hoses.
4. Pull the machine out together with the hoses.
Avoid over tilting the machine during transportation.
25
Maintenance and cleaning
A
MA04
MA19
C
90°
B
MA05
MA20
MA21
MA18

Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer.
The dishwasher is fitted with a number of alarm systems which can help you to uickly determine the cause of any problems.
The dishwasher will not start or stops during operation, all push buttons are inoperative except for the On/Off push button. All
indicator lights turn off. In the digital display one of the following flashing fault codes will appear AL1, AL2, AL3, AL4, AL5, AL6,
AL7, AL8 and an audible signal will inform you of the alarm intervention.
Open the door and press the On/Off push button to switch off the dishwasher, carry out the following suggested corrective actions
listed below.
Once the checks have been carried out switch on the dishwasher and start a washing programme, if the fault code reappears in
the digital display, contact your local Service Force Centre.
26
Something not working
Symptom Fault code Solution
The machine will not start ●The door has not been properly closed.
●The plug is not properly inserted in the power socket.
●There is a power failure.
The machine does not fill Alarm AL5 ●Ensure the water tap is open.
with water ●Ensure the mains water supply has not been cut off.
●The inlet hose may be s uashed or bent. Reposition the
hose.
●The inlet hose may be blocked. Switch off the water supply
and clean the filter.
The dishwasher will not drain Alarm AL6 ●The drain hose may be s uashed or bent. Reposition the
hose.
●The sink may be blocked. Clear any blockages.
●The drain hose extension is not correct. Follow the
instructions for connecting to the waste.
●There is no vent in the end of the drain hose.
Protection against flooding Alarm AL4 ●Close the water tap and contact the Service Force Centre.
is active
General Alarms AL1, AL2, ●Switch off the dishwasher. Switch it back on and start the
AL3,AL7,AL8 programme. If the alarm reappears, call the local Service
Force Centre.
The machine is noisy ●Dishes are rattling against each other, refer to “Loading
your machine”.
●The spray arms are knocking against the dishes. Refer to
"Loading your machine".
The door is difficult to close The dishwasher is not level, or not properly built-in.
Visible lime deposits or ●Check that there is salt and that the salt cap is tight.
white film on the dishes ●Check that the right level of the water softener is setted.
The dishes are not quite dry ●The rinse aid has run out or too little is being used.
The dishes are not clean ●The baskets are too full.
(poor wash) ●The dishes have not been arranged properly.
●The spray arms do not rotate
●The spray arms are clogged.
●The filters are clogged.
●The filters are not in the correct position.
●Not enough detergent has been used or it is unsuitable.
●The detergent is old or has gone hard.
●The salt container cap is not properly closed.
●The washing programme selected is too gentle.

If after all these checks, the problem persists, contact your
local Service Force Centre, uoting the model and serial
number. This information can be found on the rating plate
located on the right hand side of the dishwasher door (see
picture).
Service and spare parts
This product should be serviced by an authorised Service
engineer, and only genuine spare parts should be used.
Under no circumstances should you attempt to repair the
machine yourself.
Repairs carried out by inexperienced persons may cause
injury or serious malfunctioning. Contact your local
Service Force Centre.
Always insist on genuine spare parts.
Protection against flooding
The machine is fitted with a device in the bottom of the
machine to protect against flooding. The device will operate if
there are any water leaks in the machine, however it will only
operate if the machine is on.
In case of intervention a fault code will appear in the digital
display "AL4". In this case, turn off the water tap and call the
Service Force Centre.
Security system
Inlet hose
The inlet hose has a high pressure resistance. It can sustain
pressures up to 6000 kPa (60 bar), 6 times a normal hose.
As a further safeness, the inlet hose is protected with a
sheathing against eventual damages.
In case of breakage of the inner hose, the water that is in the
hose will become blue, this is visible across the special
transparent sheathing.
In this case turn off the water tap and call the Service Centre.
The inlet hose is also fitted with a safety device to prevent
inadvertent loosening (see "Water supply connections").
27
Prod.No. ........ Ser. No. .........
Mod. ........
RA01

28
Hints for test centres
Before starting any test it is necessary to fill completely with salt the salt container and with rinse aid the rinse aid dispenser.
Test standard: EN 50242
Reference programme: Programme 6 *(Bio 50°C with prewash)
Load: 12 standard place settings
Rinse aid selector: position 5
Detergent dosage: 20 g in the dispenser
10 g on the dispenser lid
Arrangement upper basket Arrangement lower basket
Arrangement cutlery basket
Arrangement knife basket
*Important!
Programme 6 automatically selects, by default, the super dry option (corresponding indicator light on).
However, when selecting programme 6, the super dry option is not setted (corresponding indicator light off) the
operator MUST activate it by pressing the drying options push button until the super dry indicator light illuminates.

Remove all packaging before positioning the machine.
If possible, position the machine next to a water tap and a
drain.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Any plumbing work required to install this appliance
should be carried out by a qualified plumber or competent
person.
Water supply connections
This dishwasher may be fed with either hot (max. 60°) or cold
water.
Nevertheless we advise you a cold water supply.
A hot water supply is not always efficient with very soiled
crockery as it shortens the washing programmes a lot.
The water pressure must be within the limits given in the
technical specifications.
Your local Water Authority will advise you on the average
mains pressure in your area.
The dishwasher features fill and drain hoses which can be
turned either to the left or the right to suit the installation.
The locknut must be correctly fitted to avoid water leaks.
Avoid bends or kinks in the hose which could prevent or slow
down the water supply.
If the machine is connected to new pipes or pipes which have
not been used for a long time, you should run the water for a
few minutes before connecting the inlet hose. This will prevent
deposits of sand or rust clogging the inlet hose filter.
Do not use, for connection, old hoses which have been
used in another appliance.
For making the connection itself, the coupling nut fitted to the
machine’s supply hose is designed to screw onto either a 3/4
inch gas thread spout, or to a purpose made uick-coupling
tap such as the Press-block.
The inlet hose is fitted with a
safety device to prevent
inadvertent loosening.
To detach the hose, press the
lever (B) and turn the
retaining ring (A)
anticlockwise.
Water outlet hose connection
The end of the drain hose can be connected in the following
ways:
1. To the sink outlet siphon, securing it if necessary with a
clip.
2. To a stand pipe provided with vent-hole, minimum internal
diameter 4 cm.
The waste connection must be at a height of between 30 cm
(minimum) and 100 cm (maximum) from the bottom of the
dishwasher.
The drain hose can face either to the right or left of the
dishwasher
Ensure the hose is not bent or s uashed as this could prevent
or slow down the discharge of water.
If you use a drain hose extension it must be no longer than 2
metres and its internal diameter must be no smaller than the
diameter of the hose provided.
Likewise the internal diameter of the couplings used for
connections to the waste outlet must be no smaller than the
diameter of the hose provided.
The sink plug must not be in place when the machine is
draining as this could cause the water to siphon back into the
machine.
Attention!
Our appliances are supplied with a security device to
protect against the return of dirty water back into the
machine. If the spigot of your sink has a "no return valve"
incorporated this can prevent the correct draining of your
dishwasher.
We advise you therefore to remove it.
Electrical connection
Before plugging the appliance into the wall socket, make sure
that:
1. The mains voltage corresponds to the voltage given in the
"Technical specifications".
2. The meter, fuses, mains power supply and wall socket can
all take the maximum load re uired.
Make sure that the socket and plug are compatible without
having to use any type of adaptor. If necessary, have the
domestic wiring system socket replaced.
Safety standards require the appliance to be earthed.
The manufacture accepts no liability for failure to observe
the above safety precautions.
29
Installation instructions
A
CA14
B
CS13
min 30 cm max 100 cm
min 4 cm
Ø 21
Ø 18
1 2
min 30 cm max 100 cm
max 100 cm
+ 2 m max
CS10
Ø 18 Ø 21

152975 36/0
IGB E
