Element EWR18BE User manual

WINDOW TYPE ROOM AIR CONDITIONER
User’s Manual
IMPORTANT NOTE:
Before using your air conditioner, please read
this manual carefully and keep it for future reference.
•
EWR18BE
EWR25BE

!
Table of Contents
Important Safety Instructions ...................................................03

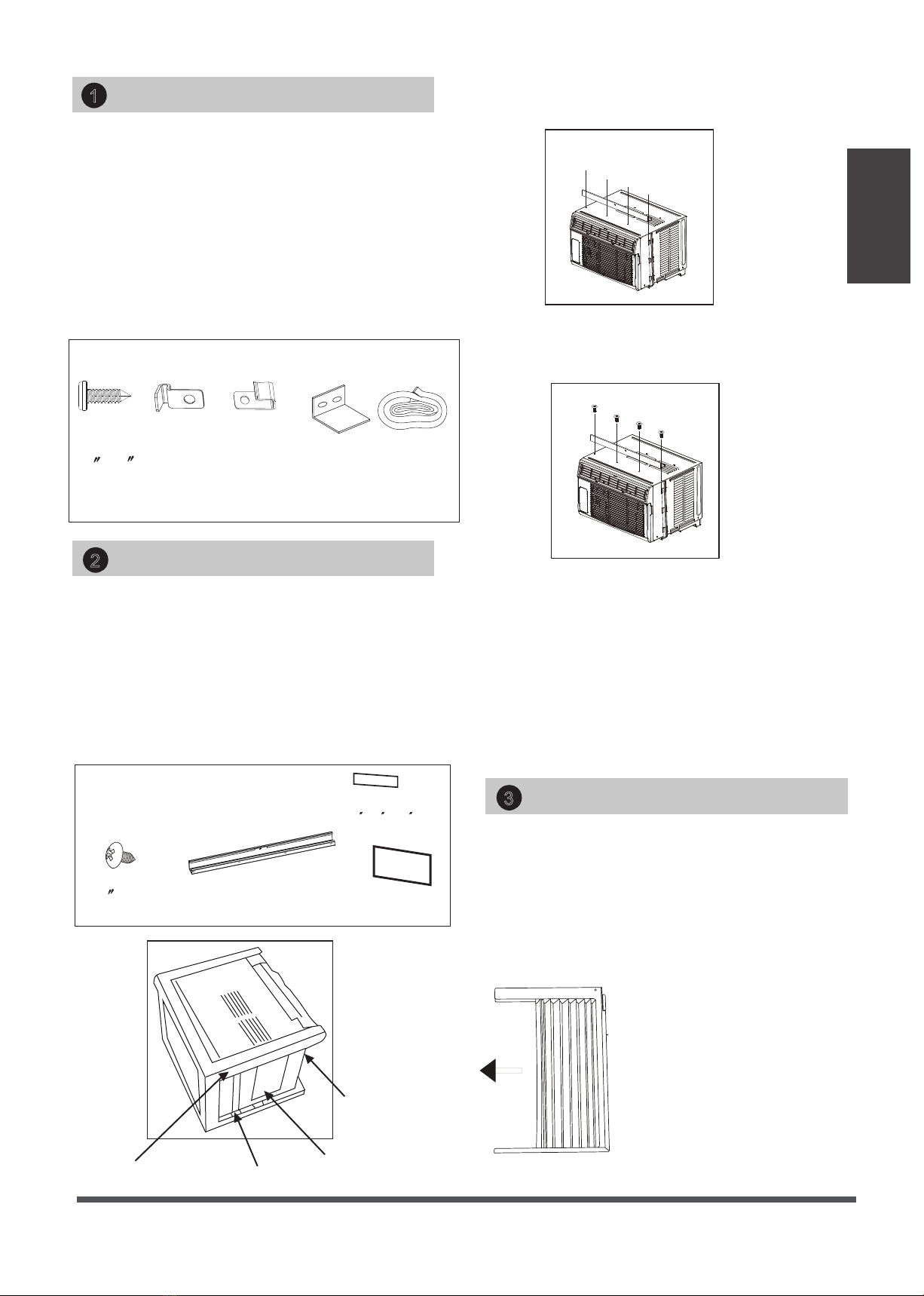

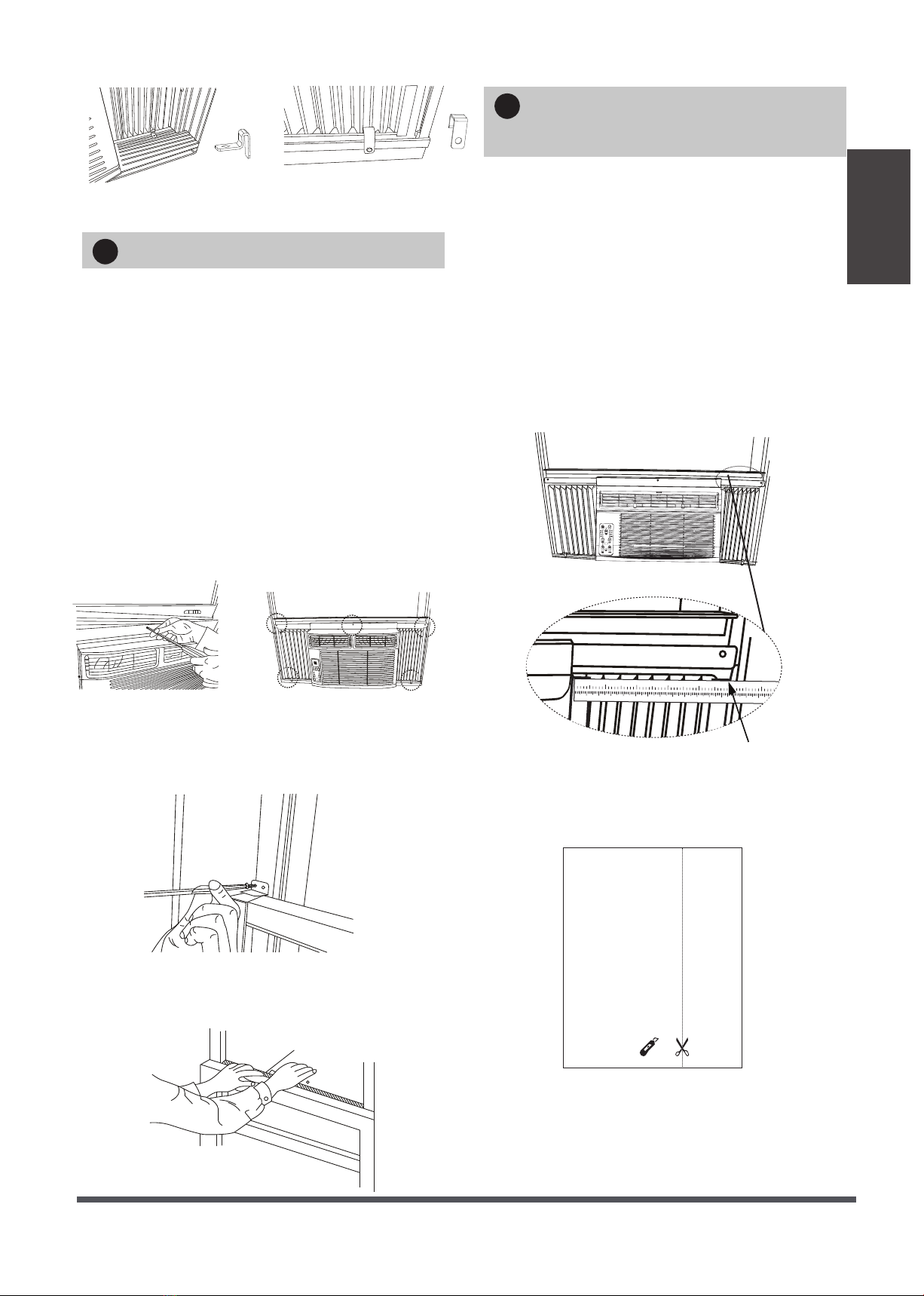

Installation Instructions..............................................................13
Normal Sounds............................................................................27

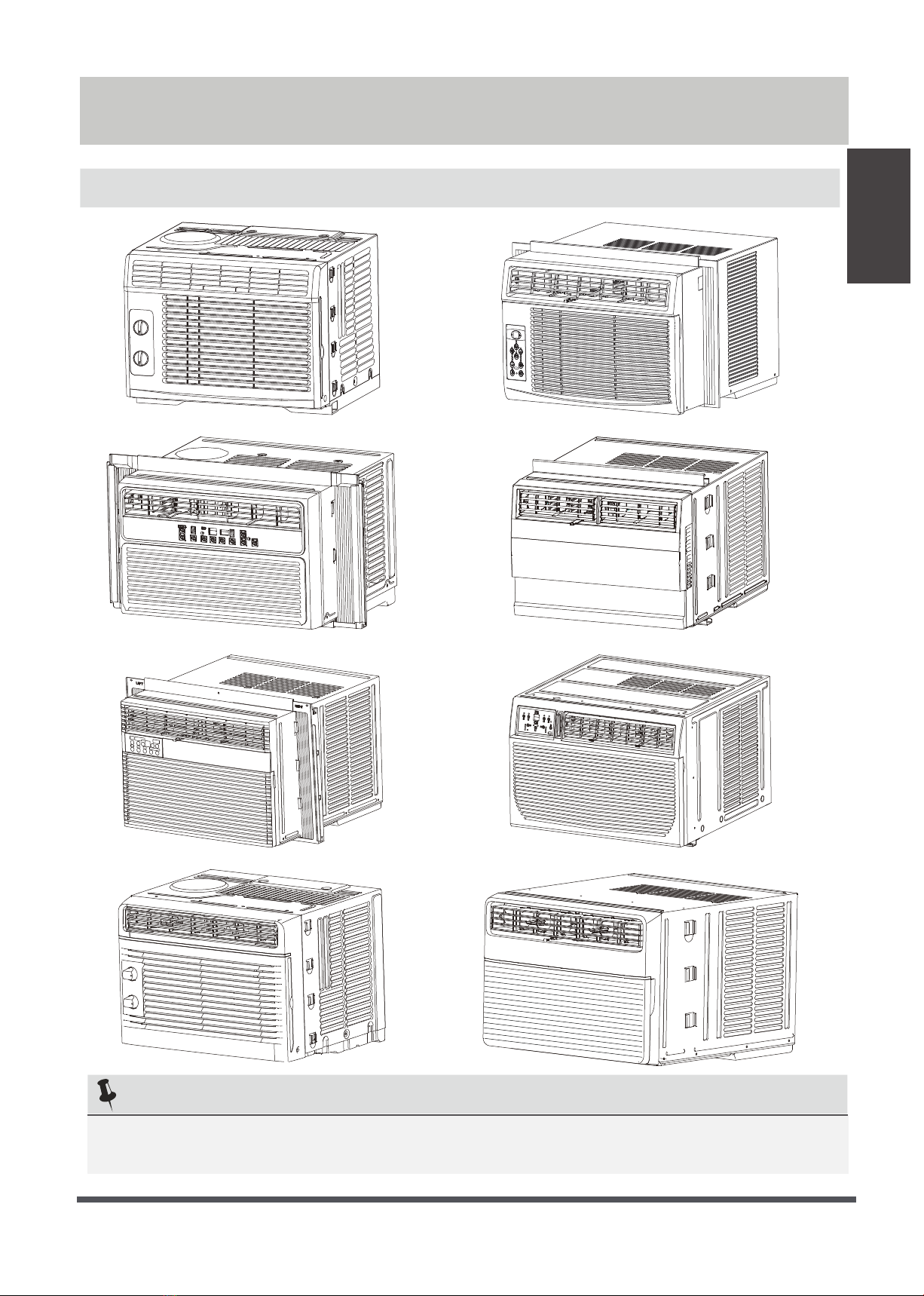

Air Conditioner Features............................................................28
Care and Cleaning.......................................................................33
Troubleshooting Tips..................................................................34

WARNING
Important Safety
Instructions
Important Safety Instructions
Inside you will find many helpful hints on how to use and maintain your air conditioner
properly. Just a little preventive care on your part can save you a great deal of time and
money over the life of your air conditioner. You'll find many answers to common
problems in the chart of troubleshooting tips. If you review our chart of Troubleshooting
Tips first, you may not need to call for service at all.
To prevent injury to the user or other people and property damage, the following
instructions must be followed. Incorrect operation due to ignoring of instructions may
cause harm or damage. The seriousness is classified by the following indications.
.
READ THIS MANUAL
Plug in power plug properly. Otherwise, it may cause electric shock or fire due to excess
heat generation. Do not operate or stop the unit by inserting or pulling out the power
plug.It may cause electric shock or fire due to heat generation. Do not damage or use
an unspecified power cord.It may cause electric shock or fire. If the power cord is da-
maged, it must be replaced by the manufacturer or an authorised service centre or a
similarly qualified person in order to avoid a hazard.
Always install circuit breaker and a dedicated power circuit. Incorrect installation may
cause fire and electric shock. Do not operate with wet hands or in damp environment.
It may cause electric shock . Do not direct airflow at room occupants only. This could
damage your health.
Always ensure effective grounding.Incorrect grounding may cause electric shock. Do
not allow water to run into electric parts.It may cause failure of machine of electric
shock. Do not modify power cord length or share the outlet with other appliances. It
may cause electric shock or fire due to heat generation.
Unplug the unit if strange sounds, smell, or smoke comes from it. It may cause fire and
electricshock. Do not use the socket if it is loose or damaged. It may cause fire and el-
ectric shock. Do not open the unit during operation. It may cause electric shock.
Keep firearms away. It may cause fire. Do not use the power cord close to heating
appliances.It may cause fire and electric shock.
Do not use the power cord near flamma-
ble
gas or combustibles, such as gasoline, benzene, thinner, etc. It may cause an explosion
or fire.
Ventilate room before operating air conditioner if there is a gas leakage from another
appliance. It may cause explosion, fire and, burns. Do not disassemble or modify unit.
It may cause failure and electric shock.
This symbol indicates the possibility of death or serious injury .
Always do this.
Never do this.
CAUTION
This symbol indicates the possibility of injury or damage to property.
WARNING
Page 3 

CAUTION
Important Safety
Instructions
This appliance is not intended for use by persons (including children) with reduced
physical ,sensory or mental capabilities or lack of experience and knowledge, unless
they have beengivensu pervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
The appliance shall be installed in accordance with national wiring regulations.
Do not operate your air conditioner in a wet room such as a bathroom or laundry room.
The appliance with electric heater shall have at least 1meter space to the combustible
materials.
Contactthe authorised service technician for repair or maintenance of this unit.
Contact the authorised installer for installation of this unit.
Do not operate the louvers with your hands, it may cause an injury.
CAUTION
When the air filter is to be removed, do not touch the metal parts of the unit. It may
cause
an injury. Do not put a pet or house plant where it will be exposed to direct air
flow. This could injure the pet or plant. Ventilate the room well when used together
with a stove, etc. An oxygen shortage may occur.
Do not use strong detergent such as wax or thinner but use a soft cloth. Appearance
may be deteriorated due to change of product color or scratching of its surface. Do not
clean the air conditioner with water. Water may enter the unit and degrade the insula-
tion. It may cause an electric shock. Do not use for special purposes. Do not use this air
conditioner to preserve precision devices, food, pets, plants, and art objects.lt may cause
deterioration of quality, etc.
Stop operation and close the window in storm or hurricane. Operation with windows
opened may cause wetting of indoor and soaking of household furniture. When the
unit is to be cleaned, switch off, and turn off the circuit breaker.Do not clean unit when
power is on as it may cause fire and electric shock, it may cause an injury. Ensure that
the installation bracket of the outdoor appliance is not damaged due to prolonged
exposure.
If bracket is damaged, there is concern of damage due to falling of unit.
Always insert the filters securely. Clean filter once every two weeks. Operation without
filters may cause failure. Hold the plug by the head of the power plug when taking it
out. It may cause electric shock and damage. Turn off the main power switch when
not using the unit for a long time. It may cause failure of product or fire.
Do not place obstacles around air-inlets or inside of air-outlet. It may cause failure of
appliance or accident. Do not place heavy object on the power cord and ensure that
the cord is not compressed. There is danger of fire or electric shock. Do not drink water
drained from air conditioner. It contains contaminants and could make you sick.
Use caution when unpacking and installing. Sharp edges could cause injury.
If water enters the unit, turn the unit off at the powei outlet and switch off the circuit
breaker. Isolate supply by taking the power-plug out and contact a qualified service
technician.
Page 4 

WARNING
Page 5 
Important Safety
Instructions
Do not, under any
circumstances, cut,
remove, or bypass
the grounding prong.
NOTE:
The power supply cord with this air conditioner contains a current detection device
designed to reduce the risk of fire. Please refer to the section Operation of Current
Device for details.In the event that the power supply cord is damaged, it cannot be
repaired-it must be replaced with acord from the Product Manufacturer.
Avoid fire hazard or electric shock. Do not
use an extension cord or an adaptor plug.
Do not remove any prong from the power
cord.
Grounding type wall receptacle
Power supply cord with
3-prong grounding plug
and current detection
device.
WARNING
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
To reduce the risk of fire, electrical shock, or injury to persons when using your air
conditioner, follow basic precautions, including the following:
Be sure the electrical service is adequate for the model you have chosen. This
information can be found on the serial plate, which is located on the side of the the
cabinet and behind the grille.
If the air conditioner is to be istalled in a window,you will probably want to clean both
sides of the glass first. If the window is a triple-trackty pew it has creen panel included,
remove the screen completely before installation.
Be sure the airconditionerh as been securely and correctly in stalled accordingto the
installation instructions in this manual. Save this manual for possible future use in
removing or installing this unit. When handling the air conditioner, be careful to
avoid cutsf romsnarpm etalf ins on front and rear coils.
For Your Safety
Prevent Accidents
The complete electical rating of your new room air conditioner is stated on the serial
plate. Refer to the rating when checking the electrical requirements.
Be sure the air conditioner is properly grounded. To minimize shock and fire hazards,
proper grounding is important. The power cord is equipped with a three-prong
grounding plug for protection against shock hazards.
Your air conditioner must be used in a properly grounded wall receptacle. If the wall
receptacle you intend to use is not adequately grounded or protected by a time delay
fuse or circuit breaker, have a qualified electrician install the proper receptacle. Ensure
the receptacle is accessible after the unit installation.
Do not run air conditioner without side protective cover in place.This could result in
mechanical damage within the air conditioner.
Do not use an extension cord or an adapter plug.
Electrical Information

Important Safety
Instructions
Operation of Current Device
(Applicable to the unit adopts current detection device only )
Note: Performance may be reduced
outside of these operating
temperatures.
WARNING：(for using R290/R32 refrigerant only)
-Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer.
-The appliance shall be stored in a room without continuously operating ignition sources
(for example: open flames, an operating gas appliance) and ignition sourcesor (for example:
an operating electric heater) close to the appliance. The appliance shall be stored in a room
without continuously operating ignition sources (for example: open flames, an operating
gas appliance or an operating electric heater).
-Do not pierce or burn.
-Be aware that the refrigerants may not contain an odour.
-Compliance with national gas regulations shall be observed.
-Keep ventilation openings clear of obstruction.
-The appliance shall be stored so as to prevent mechanical damage from occurring.
-A warning that the appliance shall be stored in a well-ventilated area where the room size
corresponds to the room area as specified for operation.
-Any person who is involved with working on or breaking into a refrigerant circuit should
hold a current valid certificate from an industry-accredited assessment authority, which
authorises their competence to handle refrigerants safely in accordance with an industry
recognised assessment specification.
NOTE:
Do not use this device to turn the unit on or off.
Always make sure the RESET button is pushed in for correct operation.
The power supply must be replaced if it fails reset when either the TEST button is
pushed, or it cannot be reset. A new one can be obtained from the product manufacturer.
If power supply cord is damaged, it cannot be repaired. It MUST be replaced by one
obtained from the product manufacturer.
NOTE:This air conditioner is designed to be operated under condition as follows:
The power supply cord contains a current device that senses damage to the power cord.
To test your power supply cord do the following:
1. Plug in the Air Conditioner.
2. The power supply cord will have TWO buttons on the plug head. Press the TEST
button, you will notice a click as the RESET button pops out.
3. Press the RESET button, again you will notice a click as the button engages.
4. The power supply cord is now supplying electricity to the unit. (On some products this
it also indicated by a light on the plug head.)
Page 6 
Cooling
operation
Outdoor temp:
Indoor temp:
Heating
operation
Outdoor temp:
O
O
23-76 F/ C-5-24
Indoor temp:
O
32-80 F/
O
0-27 C
O O O O
64-109 F/18-43 C (64-125 F/18-52 C
for special tropical models)
O
62-90 F/
O
17-32 C

Important Safety
Instructions
-Servicing shall only be performed as recommended by the equipment manufacturer.
Maintenance and repair requiring the assistance of other skilled personnel shall be carried
out under the supervision of the person competent in the use of flammable refrigerants.
-DO NOT modify the length of the power cord or use an extension cord to power the unit.
DO NOT share a single outlet with other electrical appliances. Improper power supply can
cause fire or electrical shock.
-Please follow the instruction carefully to handle, install, clear, service the air conditioner to
avoid any damage or hazard. Flammable Refrigerant R32 is used within air conditioner.
When maintaining or disposing the air conditioner, the refrigerant (R32 or R290) shall be
recovered properly, shall not discharge to air directly.
-No any open fire or device like switch which may generate spark/arcing shall be around air
conditioner to avoid causing ignition of the flammable refrigerant used.
Please follow the instruction carefully to store or maintain the air conditioner to prevent
mechanical damage from occurring.
-Flammable refrigerant -R32 is used in air conditioner. Please follow the instruction carefully
to avoid any hazard.
Caution: Risk of fire/
flammable materials
(Required for R32/R290 units only)
IMPORTANT NOTE:Read this manual
carefully before installing or operating
your new air conditioning unit. Make sure
to save this manual for future reference.
AVERTISSEMENT
Ne pas utiliser de produits permettant d accélérer le dégel ou de produits de nettoyage
autres que ceux recommandés par le fabricant.
L appareil doit être entreposédans un endroit sans source d allumage fonctionnant
en continu (par exemple : flamme nue, appareil au gaz en marche ou radiateur électrique
en marche).
Ne pas percer ni bruler.
Attention : les frigorigènes peuvent être inodores.
,
,
Explanation of symbols displayed on the unit(For the unit adopts R32/R290
Refrigerant only):
WARNING
This symbol shows that this appliance used a flammable refrigerant. If the refrigerant
is leaked and exposed to an external ignition source, there is a risk of fire.
CAUTION
This symbol shows that the operation manual should be read carefully.
CAUTION
This symbol shows that a service personnel should be handling this equip-
ment with reference to the installation manual.
CAUTION
This symbol shows that information is available such as the operating
manual or installation manual.
Page 7 

Important Safety
Instructions
WARNINGS (for using R290/R32 refrigerant only)
1.Transport of equipment containing flammable refrigerants
See transport regulations
2.Marking of equipment using signs
See local regulations
3.Disposal of equipment using flammable refrigerants
See national regulations.
4.Storage of equipment/appliances
The storage of equipment should be in accordance with the manufacturer's instructions.
5.Storage of packed (unsold) equipment
Storage package protection should be constructed such that mechanical damage to the
equipment inside the package will not cause a leak of the refrigerant charge.
The maximum number of pieces of equipment permitted to be stored together will be
determined by local regulations.
6.Information on servicing
1)Checks to the area
Prior to beginning work on systems containing flammable refrigerants, safety checks are
necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating
system, the following precautions shall be complied with prior to conducting work on
the system.
2)Work procedure
Work shall be undertaken under a controlled procedure so as to minimise the risk of a
flammable gas or vapour being present while the work is being performed.
3)General work area
All maintenance staff and others working in the local area shall be instructed on the
nature of work being carried out. Work in confined spaces shall be avoided. The area
around the workspace shall be sectioned off. Ensure that the conditions within the area
have been made safe by control of flammable material.
4)Checking for presence of refrigerant
The area shall be checked with an appropriate refrigerant detector prior to and during
work, to ensure the technician is aware of potentially flammable atmospheres. Ensure
that the leak detection equipment being used is suitable for use with flammable
refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.
5)Presence of fire extinguisher
If any hot work is to be conducted on the
refrigeration equipment or any associated parts,
appropriate fire extinguishing equipment shall be available to hand. Have a dry powder
or CO2 fire extinguisher adjacent to the charging area.
6)No ignition sources
No person carrying out work in relatio
n to a refrigeration system which involves exposing
any pipe work that contains or has contained flammable refrigerant shall use any sources
of ignition in such a manner that it may lead to the risk of fire or explosion. All possible
ignition sources, including cigarette smoking, should be kept sufficiently far away from
the site of installation, repairing, removing and disposal, during which flammable
refrigerant can possibly be released to the surrounding space. Prior to work taking place,
the area around the equipment is to be surveyed to make sure that there are no
flammable hazards or ignition risks. No Smoking signs shall be displayed.
Page 8 

WARNINGS (for using R290/R32 refrigerant only)
Important Safety
Instructions
7)ventilated area
Ensure that the area is in the open or that it is adequately ventilated before breaking
into the system or conducting any hot work. A degree of ventilation shall continue
during the period that the work is carried out. The ventilation should safely disperse
any released refrigerant and preferably expel it externally into the atmosphere.
8)Checks to the refrigeration equipment
Where electrical components are being changed, they shall be fit for the purpose and
to the correct specification. At all times the manufacturer's maintenance and service
guidelines shall be followed. If in doubt consult the manufacturer's technical department
for assistance. The following checks shall be applied to installations using flammable
refrigerants:
The charge size is in accordance with the room size within which the refrigerant
containing parts are installed;
The ventilation machinery and outlets are operating adequately and are not obstructed;
If an indirect refrigerating circuit is being used, the secondary circuit shall be checked
for the presence of refrigerant;
Marking to the equipment continues to be visible and legible. Markings and signs that
are illegible shall be corrected;
Refrigeration pipe or components are installed in a position where they are unlikely to
be exposed to any substance which may corrode refrigerant containing components,
unless the components are constructed of materials which are inherently resistant to
being corroded or are suitably protected against being so corroded.
9)Checks to electrical devices
Repair and maintenance to electrical components shall include initial safety checks and
component inspection procedures. If a fault exists that could compromise safety, then
no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If
the fault cannot be corrected immediately but it is necessary to continue operation, an
adequate temporary solution shall be used. This shall be reported to the owner of the
equipment so all parties are advised.
Initial safety checks shall include:
That capacitors are discharged: this shall be done in a safe manner to avoid possibility
of sparking;
That there no live electrical components and wiring are exposed while charging,
recovering or purging the system;
That there is continuity of earth bonding.
7.Repairs to sealed components
1)During repairs to sealed components, all electrical supplies shall be disconnected from
the equipment being worked upon prior to any removal of sealed covers, etc. If it is
absolutely necessary to have an electrical supply to equipment during servicing, then a
permanently operating form of leak detection shall be located at the most critical point
to warn of a potentially hazardous situation.
2)P
articular attention shall be paid to the following to ensure that by working on electrical
components, the casing is not altered in such a way that the level of protection is affected.
This shall include damage to cables, excessive number of connections, terminals not made
to original specification, damage to seals, incorrect fitting of glands, etc.
Ensure that apparatus is mounted securely.
Page 9 

WARNINGS (for using R290/R32 refrigerant only)
Page 10
Important Safety
Instructions
Ensure that seals or sealing materials have not degraded such that they no longer serve
the purpose of preventing the ingress of flammable atmospheres. Replacement parts
shall be in accordance with the manufacturer's specifications.
NOTE: The use of silicon sealant may inhibit the effectiveness of some types of leak
detection equipment. Intrinsically safe components do not have to be isolated prior to
working on them.
8.Repair to intrinsically safe components
Do not apply any permanent inductive or capacitance loads to the circuit without
ensuring that this will not exceed the permissible voltage and current permitted for the
equipment in use. Intrinsically safe components are the only types that can be worked on
while live in the presence of a flammable atmosphere. The test apparatus shall be at the
correct rating.Replace components only with parts specified by the manufacturer. Other
parts may result in the ignition of refrigerant in the atmosphere from a leak.
9.Cabling
Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration,
sharp edges or any other adverse environmental effects. The check shall also take into
account the effects of aging or continual vibration from sources such as compressors or fans.
10.Detection of flammable refrigerants
Under no circumstances shall potential sources of ignition be used in the searching for or
detection of refrigerant leaks. A halide torch (or any other detector using a naked flame)
shall not be used.
11.Leak detection methods
The following leak detection methods are deemed acceptable for systems containing
flammable refrigerants. Electronic leak detectors shall be used to detect flammable
refrigerants, but the sensitivity may not be adequate, or may need re-calibration.
(Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the
detector is not a potential source of ignition and is suitable for the refrigerant used. Leak
detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be
calibrated to the refrigerant employed and the appropriate percentage of gas (25 %
maximum) is confirmed. Leak detection fluids are suitable for use with most refrigerants
but the use of detergents containing chlorine shall be avoided as the chlorine may react
with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked
flames shall be removed/ extinguished. If a leakage of refrigerant is found which requires
brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of
shut off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN)
shall then be purged through the system both before and during the brazing process.
12.Removal and evacuation
When breaking into the refrigerant circuit to make repairs or for any other purpose
conventional procedures shall be used. However, it is important that best practice is
followed since flammability is a consideration. Opening of the refrigeration systems shall
not be done by brazing. The following procedure shall be adhered to:
Remove refrigerant;
Purge the circuit with inert gas;
Evacuate;
Purge again with inert gas;

Page 11
Important Safety
Instructions
WARNINGS (for using R290/R32 refrigerant only)
Open the circuit by cutting or brazing.
The refrigerant charge shall be recovered into the correct recovery cylinders. The system
shall be flushed with OFN to render the unit safe. This process may need to be repeated
several times. Compressed air or oxygen shall not be used for this task.
Flushing shall be achieved by breaking the vacuum in the system with OFN and
continuing to fill until the working pressure is achieved, then venting to atmosphere, and
finally pulling down to a vacuum. This process shall be repeated until no refrigerant is
within the system. When the final OFN charge is used, the system shall be vented down
to atmospheric pressure to enable work to take place. This operation is absolutely vital if
brazing operations on the pipe-work are to take place.
Ensure that the outlet for the vacuum pump is not close to any ignition sources and there
is ventilation available.
13.Charging procedures
In addition to conventional charging procedures, the following requirements shall be
followed. Ensure that contamination of different refrigerants does not occur when using
charging equipment. Hoses or lines shall be as short as possible to minimise the amount
of refrigerant contained in them.
Cylinders shall be kept upright.
E
nsure that the refrigeration system is earthed prior to charging the system with refrigerant.
Label the system when charging is complete (if not already).
Extreme care shall be taken not to overfill the refrigeration system.
Prior to recharging the system it shall be pressure tested with OFN. The system shall be
leak tested on completion of charging but prior to commissioning. A follow up leak test
shall be carried out prior to leaving the site.
14.Decommissioning
Before carrying out this procedure, it is essential that the technician is completely familiar
with the equipment and all its detail. It is recommended good practice that all refrigerants
are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall
be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential
that electrical power is available before the task is commenced.
a)Become familiar with the equipment and its operation.
b)Isolate system electrically.
c)Before attempting the procedure ensure that:
Mechanical handling equipment is available,
if required, for handling refrigerant cylinders;
All personal protective equipment is available and being used correctly;
The recovery process is supervised at all times by a competent person;
Recovery equipment and cylinders conform to the appropriate standards.
d)Pump down refrigerant system, if possible.
e)If a vacuum is not possible, make a manifold so that refrigerant can be removed from
various parts of the system.
f)Make sure that cylinder is situated on the scales before recovery takes place.
g)Start the recovery machine and operate in accordance with manufacturer's instructions.
h)Do not overfill cylinders. (No more than 80 % volume liquid charge).
i)Do not exceed the maximum working pressure of the cylinder, even temporarily.

Page12 
Important Safety
Instructions
WARNINGS (for using R290/R32 refrigerant only)
j)When the cylinders have been filled correctly and the process completed, make sure
that the cylinders and the equipment are removed from site promptly and all isolation
valves on the equipment are closed off.
k)Recovered refrigerant shall not be charged into another refrigeration system unless it
has been cleaned and checked.
15.Labelling
Equipment shall be labelled stating that it has been de-commissioned and emptied of
refrigerant. The label shall be dated and signed. Ensure that there are labels on the
equipment stating the equipment contains flammable refrigerant.
16.Recovery
When removing refrigerant from a system, either for servicing or decommissioning, it is
recommended good practice that all refrigerants are removed safely.
When transferring refrigerant into cylinders, ensure that only appropriate refrigerant
recovery cylinders are employed. Ensure that the correct number of cylinders for holding
the total system charge is available. All cylinders to be used are designated for the
recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the
recovery of refrigerant). Cylinders shall be complete with pressure relief valve and
associated shut-off valves in good working order. Empty recovery cylinders are evacuated
and, if possible, cooled before recovery occurs.
The recovery equipment shall be in good working order with a set of instructions
concerning the equipment that is at hand and shall be suitable for the recovery of
flammable refrigerants.In addition, a set of calibrated weighing scales shall be available
and in good working order. Hoses shall be complete with leak-free disconnect couplings
and in good condition. Before using the recovery machine, check that it is in satisfactory
working order, has been properly maintained and that any associated electrical
components are sealed to prevent ignition in the event of a refrigerant release. Consult
manufacturer if in doubt.
The recovered refrigerant shall be returned to the refrigerant supplier in the correct
recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants
in recovery units and especially not in cylinders. If compressors or compressor oils are to
be removed, ensure that they have been evacuated to an acceptable level to make
certain that flammable refrigerant does not remain within the lubricant. The evacuation
process shall be carried out prior to returning the compressor to the suppliers. Only
electric heating to the compressor body shall be employed to accelerate this process.
When oil is drained from a system, it shall be carried out safely.

Page 13
Installation Instructions
Installation
Instructions
NOTE:
NOTE: The unit you purchased may be look like one of the followings:
All the illustrations in this manual are for explanation purpose only. The air conditioner
you have may be slightly different. The actual shape shall prevail.

Page 14 
Installation Instructions
(for 5000 to 14500Btu/h)
Installation
Instructions
NOTE:
Save Carton and these Installation
Instructions for future reference. The
carton is the best way to store unit during
winter, or when not in use.
CAUTION
Do not, under any circumstances, cut or
remove the third (ground) prong from
the power cord.
Do not change the plug on the power
cord of the air conditioner.
Aluminum house wiring may present
special problems- consult a qualified
electircian.When handling unit, be careful
to avoid cuts from sharp metal edges and
aluminum fins on front and rear coils.
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
MPORTANT-Save these instructions for
local inspector’s use.
IMPORTANT-Observe all governing codes
and ordianaces.
Note to Installer- Be sure to leave these
instructions with the Consumer.
Note to Consumer- Keep these
instructions for futrue reference.
Skill level- Installatio of this appliance
requires basic mechanical skills.
Completion time- Approximately 1 hour.
We recommend that two people install
this product.
Proper installation is the responsibility of
the installer.
Product failure due to improper installation
is not covered under the Warranty.
You MUST use all supplied parts and use
proper installation procedures as
described in these instructions when
installing this air conditioner.
TOOLS YOU WILL NEED
TOOLS YOU MAY USE
H
WINDOW REQUIREMENTS
Your air conditioner is designed to install
in standard double hung windows with
opening widths of 23 to 36 inches
(584mm to 914mm).
Screwdriver
Level
Screwdriver
Pencil
Ruler or tape
measure
Scissors or knife
Model
H
6000~8000Btu/h
10000~14500Btu/h
14 (356mm)
15-1/2 (394mm)
Ta b le 1
5000~6000Btu/h
13 (330mm)
H

Installation
Instructions
Page 15 
3/ 4 (or 1/
Screws
(7)
2 )
Lock Frame
(2)
Sash Lock
(1)
Window sash
seal foam
(1)
Lock Frame
(2)
(For Wooden
windows)
(For Vinyl-Clad
windows)
(on some models)
Lower sash must open sufficiently to allow a clear
vertical opening. The window opening height shall
be based on the different Models:
13inches/330mm(5k~6k units), 14inches/356mm
(6k~8k units), 15-1/2inches/394mm(10k~12k units).
Side louvers and the rear of the AC must have clear
air space to allow enough airflow through the
condenser, for heat removal. The rear of the unit
must be outdoors, not inside a building or garage.
PREPARE THE WINDOW
1
Mounting Hardware
A: Remove the air conditioner from the carton
and place on a flat surface.
B: Remove top rail and R1 hardware and weather
stripping from the packaging material as shown
in Fig. A(R1 hardware and weather stripping are
only available for�15000Btu / h Energy star
models).
Packaging Top Rail R1 hardware
R1 hardware
Top Rail Hardware
3/8 Screws
4)
Top Rail
1)
R1 hardware
2)
(10 *3/4 *1/12 )
Weather stripping
5)
PREPARE AIR CONDITIONER
2
3INSTALL THE ACCORDION PANELS
NOTE: The top rail hardware and the Fig.A,
Fig.B and Fig.C are not applicable to the units
more than 10000Btu/h.Before installing unit,
the top rail must be assembled on the unit
(For <10000Btu/h models only).
C: Align the hole in the top rail with those in the
top of the unit as shown in Fig.B
D: Secure the top rail to the unit with the 3/8"
Screws as shown in Fig.C.
Fig.1
Fig.A
Fig.C
Fig.B
NOTE: For safety reasons, all four(4) screws
MUST be securely fastened.
NOTE: Top rail and Sliding Panels at each
side are offset to provide the proper pitch
to the rear of (5/16 "). This is necessary for
proper condensed water utilization and
drainage. If you are not using the Side Pa-
nels for any reason, this pitch to the rear
must be maintained.
A.Place unit on floor, a bench
or a table. Hold the Accordion
Panel in one hand and gently
pull back the center to free
the open end. See Fig.1

Installation
Instructions
Page 16 
"Ⅰ"section
Top Rail
Bottom Rail
Top Rail
Bottom Rail
Top left
Top right
Fig.2
Fig.3
Fig.4
NOTE: If storm window blocks AC, see Fig. 11.
B. Slide the free end " I" section of the panel
directly into the cabinet as shown in Fig. 2.
Slide the panel down. Be sure to leave enough
space to slip the top and bottom of the frame
into the rails on the cabinet.
C. Once the panel has been installed on the side
of the cabinet, make sure it sits securely inside
the frame channel by making slight adjustments.
Slide the top and bottom ends of the frame into
the top and bottom rails of the cabinet. Fig .3.
D. Slide the panel all the way in and repeat on
the other side.
Vinyl-Clad Windows
INSIDE
OUTSIDE
H:About 3/4 to 1 （for 5 to 8K);
Measure from the cabinet edge
3
H:About 1 to 1 / （for 10 to12K);
8
H
INSTALL SUPPORT BRACKET
5
SECURE THE ACCORDION PANELS
NOTE: Check that air conditioner is tilted
back about H (Fig.5A and Fig.5B) (tilted
about 3°to 4°downward to the outside).
After proper installation, condensate
should not drain from the overflow drain
hole during normalu se,correct the slope
otherwise.
Fig.5A
Fig.5B
Fig.6
A. Keep a firm grip on the air conditioner,
carefully place the unit into the window
opening so the bottom of the air conditioner
frame is against the window sill (Fig.5A and
Fig.5B). Carefully close the window behind the
top rail of the unit.
B. Extend the side panels out against the window
frame(Fig.6).
A. Place the frame lock between the frame
extensions and the window sill as shown(Fig.7A
for Wooden windows), (Fig.7B for Vinyl-Clad
windows) .
window
frame
4
Wooden Windows
INSIDE
OUTSIDE
H:About 3/4 to 1 （for 5 to 8K);
Measure from the cabinet edge
3
H:About 1 to 1 / （for 10 to12K);
8
H

Page 17 
Installation
Instructions
Measure the inner width
of the side curtain
1 2 3456789 10 11 12 13 14 15 16 17
1 2 3 4 5 6
Fig.7A Fig.7B
Fig.8A Fig.8B
Fig.9
Fig.10
A: For wooden windows:
Drive 1/ 2" (12.7 mm) locking screws through the
frame lock and into the sill (Fig.8A).
NOTE: To prevent window sill from splitting, drill
1/8 " (3mm) pilot holes before driving screws.
Drive 1/ 2" (12.7mm) locking screws through
frame holes into window sash (Fig.8B).
B: For Vinyl-Clad windows:
Drive 1/ 2" (12.7 mm) locking screws through
the frame lock and into the window sashl (Fig.8B).
NOTE: Before driving the screws, use a drill to
drill 5 holes through the holes in the frame lock
and frame extensions into the windows sash as
shown (Fig. 8B).
C. To secure lower sash in place, attach right angle
sash lock with 3/4" (19mm) or 1/2" (12.7mm)
screw as shown(Fig.9).
D. Cut window sash seal foam and insert it in the
space between the upper and lower sashes
(Fig. 10).
DRIVE LOCKING SCREWS
6
FOAM SEAL
Fig.11
Fig.12
In order to minimize air leaks and ensure optimal
insulation, it is necessary to install the included
R1 hardware to the side curtain. Follow the
instructions below.
Step 1. After the unit is installed to the window,
measure the inner width of the side curtain as
shown (Fig.11).
Step 2. Remark a line on the provide R1 insulation
panel according to a length 1/8 “ (3mm) less than
the measured width in step 1, then cut the R1
insulation panel along the line (Fig .12).
INSTALL R1 HARDWARE (only
applicable to ≥15000Btu/h Energy
star models )
7
or

Page 18 
Installation
Instructions
8INSTALL WEATHER STRIPPING
(only be applicable to Energy star
models )
Fig.13
Fig.14
Step 3. Slide the R1 insulation panel into the side
curtain, the side with pattern should facing the
indoor side.(Fig.13)
Step 4. Repeat on the other side.
In order to minimize air leaks between the room
air conditoner and the window opening, trim the
weather stripping with a proper length, peel off
the protective backing and plug any gaps if
needed (Fig .14).
Board
thickness
as required,
for proper
pitch to rear,
along entire
sill. Fasten
with nails or
screws.
Storm window
frame or other
obstruction.
SASH
1-1/2"min
(38 mm)
If AC is Blocked by Storm Window
Fig.15
Add wood as shown in Fig.15, or remove
storm window before air conditioner is
installed.
If Storm Window Frame must remain, be sure
the drain holes or slots are not caulked or
painted shut. Accumulated Rain Water or
Condensation must be allowed to drain out.
Removing AC From Window
Turn AC off, and disconnect power cord.
Remove sash seal from between windows, and
unscrew safety sash lock.
Remove screws installed through frame and
frame- lock.
Remove the R1 Panel and close (slide) side panels
into frame.
Keeping a firm grip on air conditioner, raise sash
and carefully remove.
Be carefully not to spill any remaining water while
lifting unit from window. Store parts WITH air
conditioner.

Installation Instructions
(for 15000 to 28500Btu/h)
Installation
Instructions
Page 19 
CAUTION
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.Do not change the plug on the
power cord of the air conditioner.
Aluminum house wiring may present
special problems- consult a qualied
electircian.When handling unit, be careful
to avoid cuts from sharp metal edges and
aluminum ns on front and rear coils.
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
IMPORTANT-Save these instructions for
local inspector ’ s use.
IMPORTANT-Observe all governing codes
and ordianaces.
Note to Installer- Be sure to leave these
instructions with the Consumer.
Note to Consumer- Keep these
instructions for futrue reference.
Skill level- Installation of this appliance
requires basic mechanical skills.
Completion time- Approximately 1 hour.
We recommend that two people install
this product.
Proper installation is the responsibility of
the installer.
P roduct failure due to improper installation
is not covered under the Warranty.
You MUST use all supplied parts and use
proper installation procedures as described
in these instructions when installing this
air conditioner.
NOTE:
Save Carton and these Installation Instr-
uctions for future reference. The carton
is the best way to store unit during
winter, or when not in use.
Do the following before starting to install unit.
See illustrations below.
Check dimensions of your unit to determine
model type:
Unit Height: 18 5/8 " 17 5/8 "
Unit Width: 26 " 23 "
Min. Window Opening: 19 " 18 "
Min. Window Width: 31" 28"
Max. Window Width: 42" 40 "
1 .Check window opening size-- the moun-
ting parts furnished with this air conditioner
are made to install in a wooden sill double-hung
window. The standard parts are for window
dimensions listed above. Open sash to a mini-
mum of 19 inches(483mm). See Fig.D.
2.Check condition of window-- all wood
parts of window must be in good shape and
able to firmly hold the needed screws. If not,
make repairs before installing unit.
12
/
12
/12
/
12
/
58
/
SASH
.
19 MIN.
indow Frame or
bstruction Storm Window
Frame or Other
Obstruction
Board
Thickness
As Required,
Along Entire
Sill. Fasten
With Two Nails
Or Screws.
/2 MIN.
1/2 MIN.
1
19 MIN.
SASH
Window Sash Seal
Safety Lock and
3 /4 (or1/2 ) Long
Hex Head Screw
Top Angle
Foam Gasket
Washer Head
Locking screw
Frame
Assembly
(Left)
Side Retainer
Bottom rail
seal to Unit 1 /2 Long
Screw and
Locknuts
Locknut
3 /4 Long
Flat Head
Bolt Sill Angle
Bracket
Window Support
Bracket
Frame
Assembly
(Right)
Preliminary Instructions
Fig.D Fig.E

Installation
Instructions
Page 20
Locking screw 10X 1/ 4 panhead
screws (for Vinyl-Clad window)(on some models)
Phillips
7/16 inch Locking screw and
Flat washer for window panels
3 / 4 （or 1/2)inch Long
Hex-head Screw
Safety Lock
1 / 2 inch Long screw and Locknut
3 / 4 inch Long Flat Head
Bolt and Locknut
Sill Angle Bracket
Long hex-head locking
screw for top angle, side
retainer 5 /16 inch Long
2 ea.
7
1
4ea.
2ea.
2
10
Foam insert 2
Window sash
seal foam 1
R1 hardware 2
(10 *3/4 *1/12 )
NOET:R1 hardware and Weather stripping is only for
Energy star models(for ≥ 15000Btu/h models only).
Weather stripping 5
Safety Lock
(for Vinyl-Clad window)(on some models)
2
2
Lock Frame(For Wooden
windows)(on some models)
2
3 / 4 inch Long Screw(on some models)
2
3. Check your storm windows-- if your
storm window frame does not allow the clea-
rance required, correct by adding a piece of
wood as shown in Fig.E,or by removing storm
window while room air conditioner is being
installed.
4 .Check for anything that could block
airflow- check area outside of window for
things such as shrubs, trees, or awnings. Inside,
be sure furniture, drapes, or blinds will not stop
proper airflow.
5. Check the available electrical service-
Power supply must be the same as that shown
on the unit serial nameplate. Power cord is 48
inches long. Be sure you have an outlet near.
6. Carefully unpack air conditioner- Remove
all packing material. Protect floor or carpet from
damage. Two people should be used to move
and install unit.
Tools Required
A large flat blade screwdriver; Tape measure;
Adjustable wrench or pliers; Pencil; Level Socket
wrenches; Phillips Screwdriver.
Hardware(Packed with the unit)
1
Front Grille
Front Panel
shipping
screws
Remove Air Conditioner from Cabinet
A. Window Mounting
NOTE: Remove any packaging material from
cabinet exterior.
1. Pull down front grille and remove filter.
(See Fig.1).
2. Lift front grille upwards and place to one side.
3. Locate the four front screws and remove. These
screws will be needed to re-install the front panel
(see Fig.2).
4. Push metal cabinet side to release plastic tabs
on each side of front panel (see Fig.3).
5. Gently lift front panel off unit(see Fig.3A).
6. Disconnect the connector plug of the display
panel from the unit and place front panel to
one side(see Fig.4).
7. Remove shipping screws from top of unit and
also on the side by the base if installed(see Fig.5).
8. Hold the cabinet while pulling on the base
pan handle, and carefully remove the unit.
9. Add two foam inserts to holes in top of
cabinet where shipping screws were
removed from (see Fig .6)
Fig.1 Fig.2
Fig.3
Fig.3A
Fig.4
Fig.5 Fig.6
Sill angle bracket 2
(on some models)
