Element ELST5016S User manual

INSTRUCTION MANUAL
Please read all the instructions carefully before using this TV,
and keep the manual for future reference.
Digital LED TV
Please refer to the actual product

1
CONTENTS
Important Safety Instructions 2
Additional Safety Information 3
Preparations 4
What's Included 4
Front View 5
Rear View 6
Wall Mounting 6
Remote Control 7
Connecting External Devices 8
Customizing TV Settings 9
Turning On/Off Your TV 9
Initial Setup 9
Source 11
Channel Selection 11
Volume Adjustment 11
Streaming 12
Media 13
Viewing Photos 13
Listening To Music 14
Watching Videos 14
TV Settings 15
General 16
Picture Settings 18
Audio Settings 19
Network Settings 19
Channel Settings 20
Time Settings 21
Lock Settings 22
APP Settings 23
Parental Control 24
Troubleshooting 26
FCC Notes 29
OTT APP Service 30

2
IMPORTANT SAFETY INSTRUCTIONS
 Read these instructions – All the safety
and operating instructions should be read
before this product is operated.
 Keep these instructions – The safety
and operating instructions should be
retained for future reference.
 Heed all warnings – All warnings on
the appliance and in the operating
instructions should be adhered to.
 Follow all instructions – All operating
and use instructions should be followed.
 Do not use this apparatus near water
– The appliance should not be used near
water or moisture – for example, in a wet
basement or near a swimming pool, and
the like.
 Clean only with dry cloth.
 Do not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions.
 Do not install near any heat sources such
as radiators, heat registers, stoves, or

produce heat.
 Do not defeat the safety purpose of
the polarized or grounding-type plug. A
polarized plug has two blades with one
wider than the other. A grounding-type
plug has two blades and a third grounding
prong. The wide blade or the third
prong are provided for your safety. If the

consult an electrician for replacement of
the obsolete outlet.
 Protect the power cord from being walked
on or pinched particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
 Only use attachments/accessories

 Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
 Unplug this apparatus during lightning
storms or when unused for long periods
of time.
 Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as the power-supply cord or
plug is damaged, liquid has been spilled
or objects have fallen into the apparatus,
the apparatus has been exposed to rain
or moisture, does not operate normally, or
has been dropped.
 Please keep the unit in a well-ventilated
environment.
WARNING:
shock, do not expose this apparatus to rain
or moisture. The apparatus should not be
exposed to dripping or splashing. Objects

placed on apparatus.
WARNING: The batteries shall not be exposed

like.
WARNING: The main plug is used as
disconnect device, the disconnect device shall
remain readily operable.
WARNING: To reduce the risk of electric

are no user-serviceable parts inside. Refer

This lightning flash with arrowhead
symbol within an equilateral triangle
is intended to alert the user to
the presence of non-insulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance instructions in
the literature accompanying the appliance.
This equipment is a Class II or double
insulated electrical appliance. It
has been designed in such a way
that it does not require a safety connection to
electrical earth.
RISQUE DE CHOC ELECTRIQUE NE
PAS OUVRIR

3
ADDITIONAL SAFETY INFORMATION
To ensure reliable and safe operation of this equipment, please read carefully all the
instructions in this user guide, especially the safety information below.
Electrical Safety
 The TV set should only be connected to a main power supply with voltage that
matches the label at the rear of the product.
 To prevent overload, do not share the same power supply socket with too many other
electronic components.
 Do not place any connecting wires where they may be stepped on or tripped over.
 Do not place heavy items on them, which may damage the leads.
 Hold the main plug, not the wires, when removing from a socket.
 During a thunderstorm, or when not using the television for extended period of time,
turn off the power switch on the back of the television.
 Do not allow water or moisture to enter the TV or power adapter. Do NOT use in wet,
moist areas, such as bathrooms, steamy kitchens or near swimming pools.
 Pull the plug out immediately, and seek professional help if the main plug or cable
is damaged, liquid is spilt onto the set, if accidentally exposed to water or moisture,
if anything accidentally penetrates the ventilation slots or if the set does not work
normally.
 Do not remove the safety covers. There are no user serviceable parts inside. Trying
to service the unit yourself is dangerous and may invalidate the product’s warranty.

 To avoid battery leakage, remove exhausted batteries from the remote control, or
when not using for long period.
 
 Do not mix old and new batteries.
 

Physical Safety
 Do not block ventilation slots in the back cover. You may place the TV in a cabinet,

 Do not tap or shake the TV screen, or you may damage the internal circuits. Take
good care of the remote control.
 
 Do not install near any heat sources such as radiators, heat registers, stoves or other

 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong, the wide blade, or the third prong is provided for

replacement of the obsolete outlet.
 Protect the power cord from being walked on or pinched particularly at plugs.
 Unplug the apparatus during lightning storms or when unused for long periods.
 
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled, or objects have fallen into the apparatus, has been
exposed to rain or moisture, does not operate normally, or has been dropped.
 Please always connect your television to a power outlet with protective groud
connection.

4
What is Included?
PREPARATIONS
TV SetRemote Control with Batteries
User Manual Quick Start Guide
INSTRUCTION MANUAL
Please read all the instructions carefully before using this TV,
and keep the manual for future reference.
Digital LED TV
Please refer to the actual product
QUICK START GUIDE
TV

5
PREPARATIONS
Front View

Switch the TV between On / Standby mode.
 SOURCE
Press to select among different input signal sources.
 MENU

 CH
Press to select a channel.
 VOL +/-
Press to adjust the volume.
 LED
The LED light indicates when the TV is activated.
 IR
Infrared Receiver.

6
PREPARATIONS

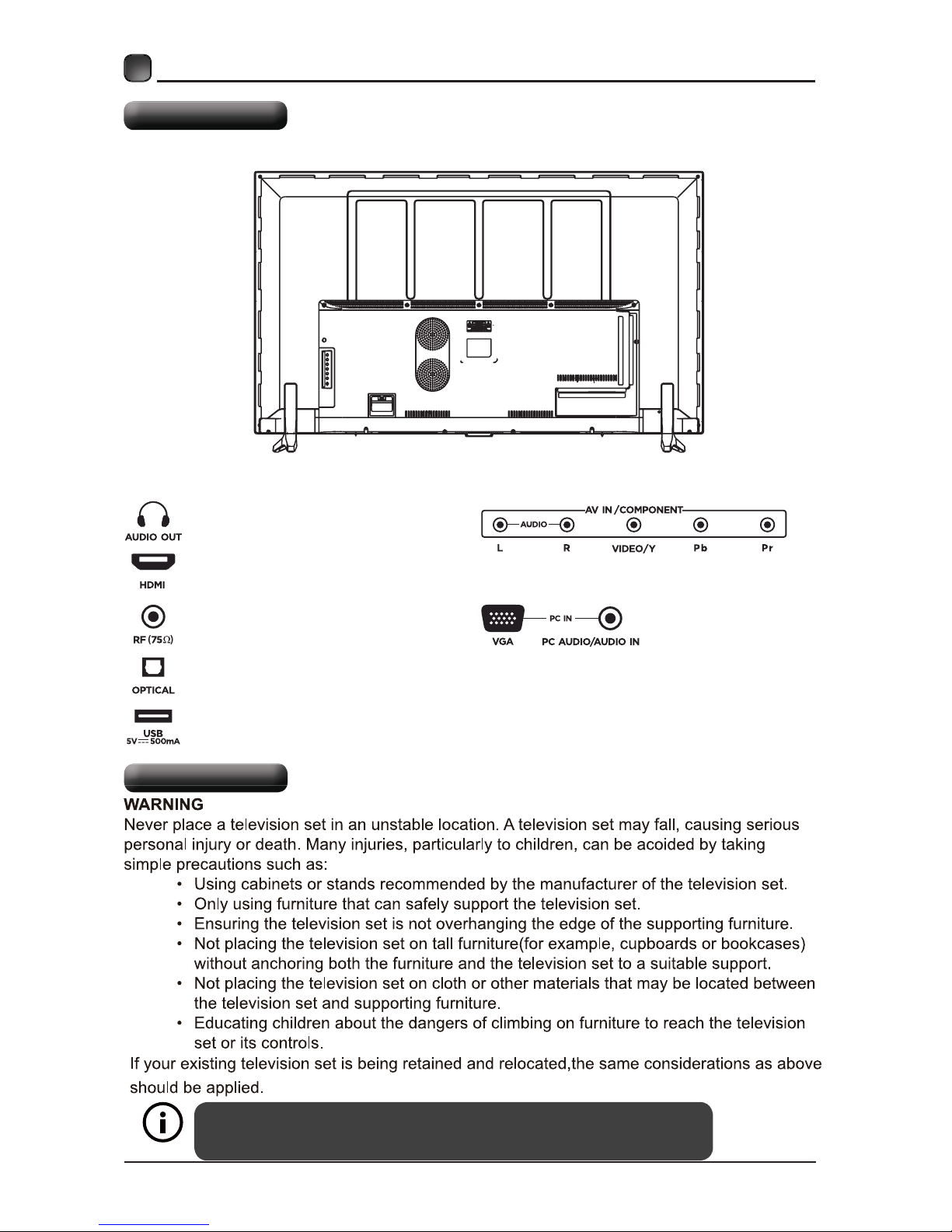

Rear View
Your new TV is heavy, please consult with professional wall
mount installer to perform this installation.
Wall Mounting
Headphone Output
HDMI Input

Optical Output
USB Input
VGA Input/PC Audio Input
AV/Component Input

7
PREPARATIONS
Remote Control
1. :Switch the TV between On and Standby
mode.
2. :Mute and restore TV sound.
3. 0~9:
4. :Enter multiple program channel number
such as 2-1.
5. :Return to the previous viewing
channel.
6. APP:Press to select the desired APP.
7. MENU:Display the main menu.
8. SOURCE:Select among the different input
signal sources:TV/AV/COMPONENT/HDMI1/
HDMI2/HDMI3/VGA/USB.
9. :Allows you to navigate the on
screen display menus and adjust the system
settings to your preference.
10. OK:
11. RETURN:Return to previous menu.
12. EXIT:Exit the on screen display menu.
13. ASPECT:Select the aspect ratio.
settings:standard/wide/wide zoom/zoom/Just Scan

14. VOL+/-:Adjust the volume.
15. CH :Select the channel.
16. TV:Into the TV channel.
17. :Start playback or pause.
18. :Reverse playback rapidly.
19. :Advance playback rapidly.
20. :Skip to the beginning of the previous
chapter/track/photo.
21. :Skip to the beginning of the next chapter/
track/photo.
22. FREEZE:Freeze the picture.
23. :Stop the playback.
24. ADD/ERASE:Add or delete Favorite channels.
25. FAV:Display the favorite channel list.
26. INFO:Display the present screen information
such as the current channel and input source.
27. MTS:Switch among different audio
channels:STEREO/MONO/SAP.
28. CC:Closed Caption selection:ON/OFF/CC On
Mute.
29. V-CHIP:Set up parental control.
30. P.MODE:Select picture mode:dynamic/movie/
user/standard.
31. S.MODE:Select sound mode:standard/music/
movie/user.
32. CH.LIST:Display program list.
TV

8
CONNECTING EXTERNAL DEVICES

9
Use the UP and DOWN arrows
on your remote control or TV
keypad to select your local time
zone.
Welcome to the Element TV
Setup Wizard.
Follow this guide to help setup
your TV to scan channels or
access your external devices
like your Antenna,Set-Top Box,
Blu-ray,DVD,Gaming systems
or other devices.
Use the UP and DOWN arrows on
your remote control or TV
keypad to select the language
of the on screen menu.
Turning On/Off Your TV
CUSTOMIZING TV SETTINGS
 Connect the power cord to the power socket after you have completed all the
physical connections. At this stage, the TV will enter Standby Mode and the red
LED indicator will illuminate.
 In Standby Mode, press the button on the main unit or on the remote control to
turn the TV on. The red LED indicator will turn blue.
The POWER button on the main unit or on the remote control can only
switch the TV into standby. To completely turn off the TV, please disconnect
the power cord from the power socket.
Initial Setup
 
the Setup Wizard. Press the Arrow buttons
to highlight and select your desired mode and
press OK
DATA COLLECTION AND FIRMWARE UPDATES NOTICE
When this television is connected to the internet, it will


and its service providers. Certain of this information may
be aggregated ad shared with third party parters for
business and product analysis purposes.By clicking
"Accept" you acknowledge and agree to the collection
and sharing of this information as described in more
detail in the "View Additional Details" section, as well as

updates.
VIEW ADDITIONAL DETAILS ACCEPT

10
CUSTOMIZING TV SETTINGS
Initial Setup
 ,IFKDQQHOVFDQQRWEHIRXQGWKLVIUDPH
ZLOOEHGLVSOD\HGDXWRPDWLFDOO\
SCAN CHANNELS FROM THE ANNTENNA OR COAXIAL CABLE
INPUT
Use the UP and DOWN arrows
on your remote control or TV
keypad to select the network
scan type.
Auto scanning program stops manually.
5
7
SCANNING CHANNELS SCANNING CHANNELS
SCANNING CHANNELS

11
CUSTOMIZING TV SETTINGS
Source
 Press SOURCE on the remote control or on
the main unit to display the source menu, then
use the Arrow buttons to cycle among the
different input sources: TV/AV/COMPONENT/
HDMI/VGA/USB, then use the Arrow buttons
to highlight the desired source and press OK

Channel Selection
 Press the CH /CH buttons on the main unit or on the remote control repeatedly
to select the channel.
 Press the 0-9 buttons on the remote control to select the channel directly.
Press "4", and then press OK button to select channel 4.
Press "4" and "5", and then press OK button to select channel 45.
Press "1", "2" and "3", and then press OK button to select channel 123.
 Press the VOL+/- buttons on the main unit or on the remote control to adjust the
volume.
 If you wish to switch the sound off, press the MUTE button again or the VOL+
button to resume the sound.
Volume Adjustment
SOURCE
TV
AV
COMPONENT
HDMI 1
HDMI 2
HDMI 3
VGA
USB

12
CUSTOMIZING TV SETTINGS
Streaming
NETFLIX Enjoys TV shows & movies streamed instantly over the
Internet.
YouTube YouTube your way on the best screen in your house.
VUDU
Discover, watch and collect the latest movies and
TV shows in high quality 1080p. Free to sign up. No
subscriptions, late fees or commitments.
Pandora
Free personalized radio that offers effortless and
endless music enjoyment and discovery. Just start with
the name of one of your favorite artists, songs, genres
or composers and Pandora will do the rest. It’s easy to
create personalized stations that play only music you’ll
love.
AccuWeather
Displays the current weather conditions and the
temperature anywhere in the world in centigrade or
Fahrenheit.
 Press MENU button on the main unit or on the remote to display the main
interface. Then use the Arrow buttons to select STREAMING and press OK to
enter. Use the Arrow buttons to select the desired APP and press OK button to
view. Or press the hotkey on the remote control to enter the desired APP directly.
For full listing of available Apps, please visit elementelectronics.com.

13
CUSTOMIZING TV SETTINGS
Media
Viewing Photos
 After entering the picture file, use the Arrow buttons to select the desired picture,
then press the to display. When the picture is playing, the picture Function Bar will be
displayed. Use the Arrow buttons to select the desired function available on the bar.
 Use the Arrow buttons to highlight the PHOTOS option and press OK, then it will jump
OK to enter. After entering PHOTOS, use the Arrow
buttonsOK to enter.
 Press MENU button to display the main interface, then use the Arrow buttons to
highlight MY MEDIA and press OK
Video to view what you like.
Note: Portable drives should be inserted before entering MY MEDIA menu.
Directories:10 Files:0 Total:10
Directories:10 Files:0 Total:10
RETURN
RETURN

14
CUSTOMIZING TV SETTINGS
Listening To Music
Watching Videos
 the Arrow buttons to select the desired music, then press
the to display. When the music is playing, the music Function Bar will be displayed. Use
the Arrow buttons to select the desired function available on the bar.
 Use the Arrow buttons to highlight the MUSIC option and press OK, then it will jump
to confirm the inserted drive, press OK to enter. After entering MUSIC, use the Arrow
buttonsOK to enter.
 the Arrow buttons to select the desire video, then press
the to display. When the video is playing, the video function bar will be displayed. Use the
Arrow buttons to select the desired function available on the bar.
 Use the Arrow buttons to highlight the VIDEOS option and press OK, then it will jump
OK to enter. After entering VIDEOS, use the Arrow
buttonsOK to enter.
Directories:10 Files:0 Total:10
Directories:10 Files:0 Total:10
Directories:10 Files:0 Total:10
Directories:10 Files:0 Total:10
RETURN
RETURN
RETURN
RETURN
TITLE:08.1 Hz L
ALBUM:ABEX Test CD
YEAR:
SAMPLE FREQUENCY:44100
BIT RATE: 128
TOTAL TIME:60

15
CUSTOMIZING TV SETTINGS
TV Settings
 Press the MENU button on the main unit or on the remote control to display the
main interface. Then use the Arrow buttons to highlight TV Settings and press
OK to enter. Then use the Arrow buttons to cycle among the following options
and select the desired one to enter.

16
CUSTOMIZING TV SETTINGS
General
 Press MENU to display the main interface, then
use the Arrow buttons to highlight TV Settings
and press OKthe Arrow buttons
to cycle among different options and select
General to enter and adjust each option setting.
MENU LANGUAGE
Select the menu language among
English, Français or Español. The
default on-screen menu language is
English.
TRANSPARENCY Select to turn On/Off transparency
function.
ZOOM MODE
Select zoom mode:
Wide/Wide Zoom/Zoom/Standard/


Note: With a different input source,
the zoom mode options may differ.
VGA SETTINGS
$GMXVWDGYDQFHGRSWLRQ¶VVHWWLQJ
3269326&ORFN3KDVHRU
$XWRRQO\DYDLODEOHLQ9*$PRGH
CLOSED CAPTION
CC mode On/Off/CC on Mute.
Basic
Selection
CC1, CC2, CC3,
CC4, TEXT1, TEXT2,
TEXT3, TEXT4,OFF.
Advanced
Selection
Service1/Service2.../
Service6/OFF.
Option
Mode, Font Style,
Font Size, Font Edge
Style, Font Edge
Color, FG_ Color,
BG_ Color, FG_
Opacity, BG_Opacity.
WIDE

View End-User License
Software Update(Network
Software Information

17
CUSTOMIZING TV SETTINGS
OTHER SETTINGS
HDMI EDID: Mode1/Mode2.
INLINK: LINLINK
CONTROL,DEVICE POWER
OFF,TV Auto Power On,AUDIO
RECEIVER,LINLINK DEVICE
LIST,ROOT MENU.
Accessibility TTS：Voice
Guide,VERBOSITY,RATE
SUPPORT,PITCH
SUPPORT,VOICE,Video
Description
DLC: Select to turn On/Off DLC.
RESTORE DEFAULT Restore the TV to factory default
settings.
SOFTWARE
UPDATE (USB)
Software Update In the case of a
USB device.
VIEW END-USER
LICENSE
Select VIEW ADDITIONAL DETAILS
or ACCEPT.
SOFTWARE
UPDATE
(NETWORK)
Software Update In the case of a
NETWORK device.
SOFTWARE
INFORMATION
Check Module Software Version
NetReady Device ID.
How to turn the Text-to-Speech (TTS) voice guide on or
off?
• Press “MENU” key on the remote control
• Turn the GENERAL menu.
• Select “OTHER SETTING”
• Select “Accessibility”
• Select “Voice Guide” and turn it on or off.
www.elementelectronics.com
Mode1
HDMI EDID
INLINK
Accessibility
OFF
DLC
,VD VOLUME

18
CUSTOMIZING TV SETTINGS
Picture Settings
PICTURE MODE
&\FOHDPRQJSLFWXUHPRGHV
'\QDPLF6WDQGDUG0RYLH8VHU
$OWHUQDWLYH3UHVV302'(EXWWRQRQ
UHPRWHFRQWUROWRVHWWKHSLFWXUHPRGH
GLUHFWO\
BRIGHTNESS ,QFUHDVHRUGHFUHDVHWKHDPRXQWRI
ZKLWHLQWKHSLFWXUH
CONTRAST $GMXVWWKHGLIIHUHQFHEHWZHHQOLJKW
DQGGDUNOHYHOVLQWKHSLFWXUHV
COLOR &RQWUROWKHFRORULQWHQVLW\
SHARPNESS
$GMXVWFULVSQHVVOHYHOLQHGJHV
EHWZHHQOLJKWDQGGDUNDUHDVRIWKH
SLFWXUH
TINT Adjust the balance between red and
green levels.
COLOR
TEMPERATURE
Cycle among color temperatures:
Normal/Warm/COOL.
ADVANCED
OPTION
Set the following options:
Noise Reduction: Reduce the noise
level of the connected device: OFF/
WEAK/MEDIUM/STRONG.
White Balance: To set the different
options of white balance.
R-GAIN/G-GAIN/B-GAIN/R-OFFSET/
G-OFFSET/B-OFFSET.
Backlight: To set the value of
backlight.
OPEN HDR Cycle among picture modes:
OFF/AUTO/LOW/MIDDLE/HIGH
 Press MENU to display the main interface, then
use the Arrow buttons to highlight TV Settings
and press OKArrow buttons
to cycle among different options and select
Picture to enter and adjust each option setting.
AUTO
OPEN HDR
