Elite Acoustics M2-6 User manual

Elite Acoustics Engineering
M2-6 Live-Performance Studio Monitor
with 4 Channels, Mixer, Effects,
and Bluetooth®
User’s Manual
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks
by Elite Acoustics Engineering, Inc is under license
NOTE: Due to continuous development and improvements of our products, features and specications are subject to
change without notice. All weights and measures are approximate.

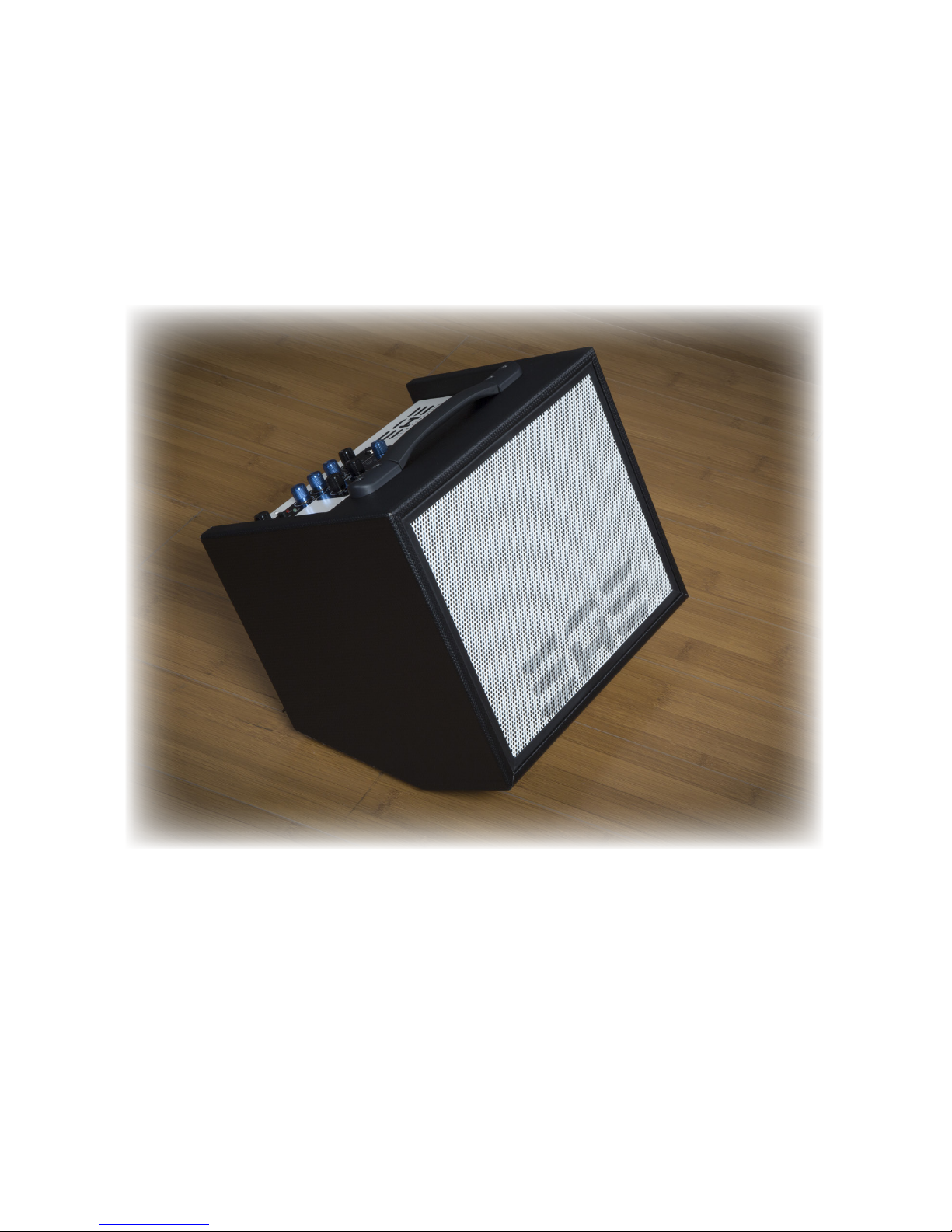

Elite Acoustics’ M2-6 Live-Performance Studio Monitor with Mixer, Effects, and
Bluetooth® features an ergonomically sculpted cabinet for inclined-horizontal or
vertical placement; 6-1/2 inch woofer for superior bass response along with a 1 inch
silk-dome tweeter to deliver maximum clarity. M2-6 offers 4 input channels and 16
Digital Effects with a high-efciency Class D bi-amp. The Master Section contains
a 3-band EQ, Monitor Volume and stereo AUX input with level control. Selectable
Direct Out or Main Outputs are provided for seamless system expansion.

QUICK START
1. Check that the Battery Switch [49] is set to the “Connect” position. (Battery Switch is a
built in circuit breaker to preserve battery life.)
2. Make sure the SPEAKER VOLUME [3] control is turned all the way down.
3. Connect microphones and/or instruments. You can use Channel 1 or Channel 2, or
both. If using Channel 1, be sure the Instr-Mic/Line push-switch [22] is not pushed
in when using a mic or line level signal. Microphones are connected to the XLR MIC
IN [29], for 1/4” Line Levels signals use [28], and use [27] for unbuffered instrument
applications (note this is a high gain setting and should not be used for active outputs
such as battery powered guitar preamps).
4. Turn on the POWER switch [50]
5. If desired, connect a Bluetooth® [13] device; see Bluetooth® Function on page 3.
6. Turn on your source signal(s) and adjust level for normal operation. Turn up GAIN [14]
until there is a solid green LED showing “signal” at the desired playing level. The red
“peak” LED, indicating too much signal, should only light for very brief periods, less than
one second, or not at all. Note if you are using an iPhone or iPad via Bluetooth®, set the
volume on your device about halfway. Maximum volume will distort.
7. Adjust the SPEAKER VOLUME [3] to a comfortable level.

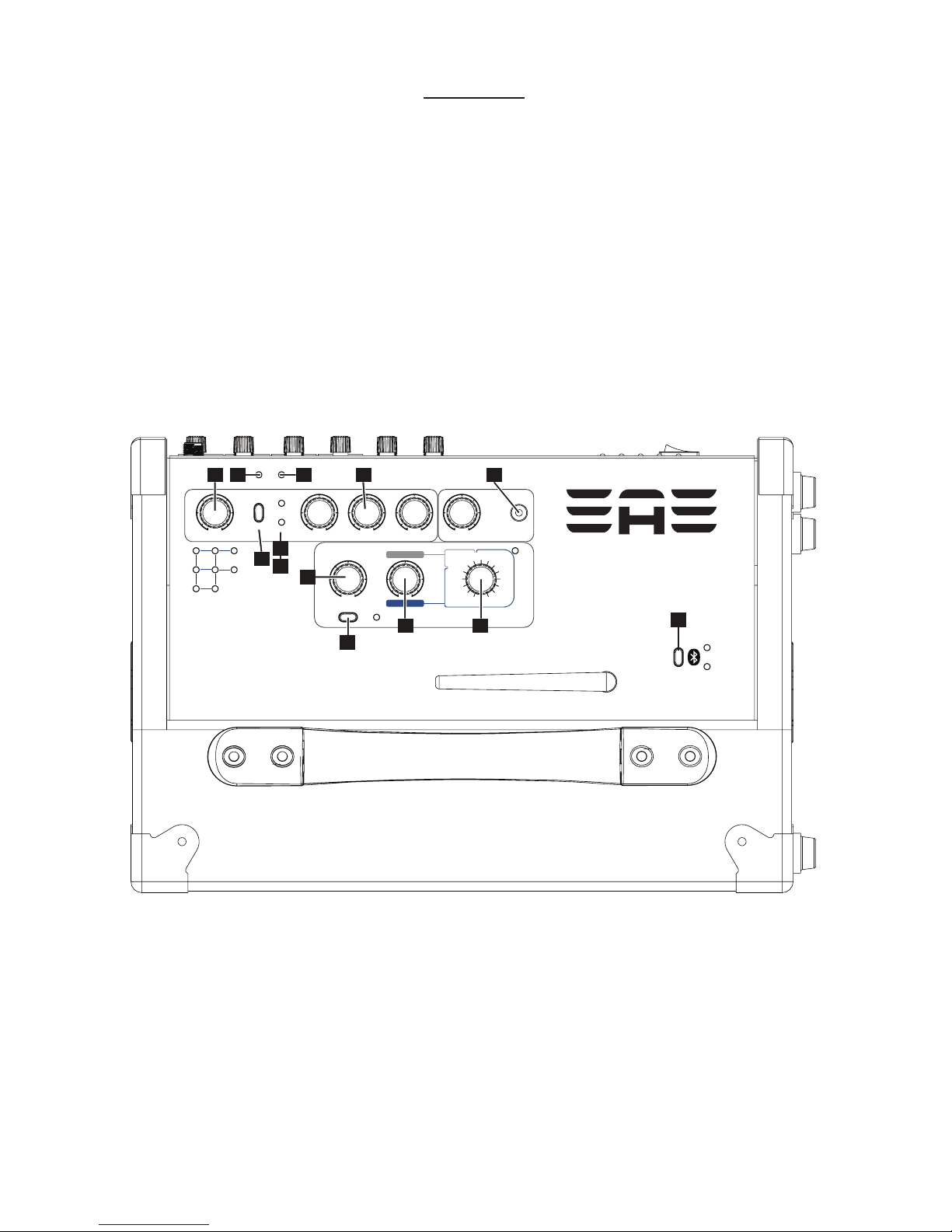

TOP PANEL CONTROLS
LED’s:
[1] Power: Blue indicates unit is ON
[2] +48V LED: Orange indicates Phantom Power is on
Monitor Output Controls
[3] Speaker Volume: Control speakers’ volume level
[4] Mono: Changes speaker output from Left Only to Mono
[5] Equalizer: Adjust High, Mid, and Low Frequency response
[6] Peak LED: RED indicate Signal Clip
[7] Signal LED: GREEN indicate Signal Present
[8] Aux Input/Level: Connect audio source with 1/8” jack from MP3/CD player, etc.
Effects Controls
[9] Effects Mix: Amount of effect being added to output
[10] Rate/Decay: Controls the duration of the effect
[11] Effects Knob Selector: Select effect of choice
[12] EFX Bypass: Turn effects on or off (When LED is on, the effects are turned off)
[13] Bluetooth: Activate Bluetooth function
Refer to Page 2 and 4, for the following Controls
WHAT IS IN THE BOX
Your M2-6 package contains the following:
(1) Speaker
(1) 12V AC Power Supply Adapter
(1) 12V DC Car Battery Supply Adapter
(1) Quick Start Guide
(1) Registration Card
(1) Speaker Handle Grip
1

2
TOP PANEL
Output Level
Monitor
Right Output
Main Outputs
CHAN 1/2
Direct Output
+48V
Le Right
CHAN 1 CHAN 2 CHAN 3/4
Connect Disconnect
Battery Switch
OnOff
Power DC INPUT
12VDC 2A
Footswitch
TIP - EFX Bypass
Serial Number
Designed, Assembled, & Tested
in California, USA
Charge Only
Mute
EFX/AUX
Send Level EFX/AUX
Send Level
EFX AUX Phase EFX AUX
PAD
Mute
EFX Level
Le (Mono)
Right
AUX Send
AUX Return
Level
PAD
Line
Instr
Mic/Line
Instrument Line Mic 1 Mic 2
Gain 60501020
INSTR
Gain 305010-10
3 2 1 Low Charge
Baery Level
High
-10 +10
Mid
-10 +10
Mid Frequency
250 5k
Low
-10 +10
Notch Filter
-10 +10
Frequency
100 450
For Maximum Battery Life
- Recharge after every use
- Use & recharge battery at least once a month
- Do not leave power switch in the “ON” position
when it is not in use
- Keep unit in a cool, dry place away from extreme
temperature
- Do not service, modify, or replace the battery
- If battery fails to charge, contact Elite Acoustics
www.EliteAcoustics.com
ELITE ACOUSTICS
14
15
16
17
18
50 49
30
31
32
33
34
35
19
20
23
24
25
26
21
37
51
42
38
39
40 45
46
43
44
41
48
22
27 28 29 36 47
R1 - Bright Cavern
R2 - Dark Cavern
R3 - Bright Hall
R4 - Dark Hall
R5 - Bright Room
R6 - Dark Room
R7 - Bright Plate
R8 - Dark Plate
R9 - Ambience1
R10 - Ambience2
E1 - Echo
E2 - Repeat Echo
ER1 - Echo/Rev1
ER2 - Echo/Rev2
CHO - Chorus
Flange - Flange
M2-6 EFFECTS
Low
-15 +15
Mid
-15 +15
High
-15 +15
Monitor Level
0 10 Mono
Peak
Signal AUX In
Level
0 10
EFX Mix
DRY WET
EFX
Bypass EFX
R1 R2
R3
R4
R5
R6
R7
R10 R9 R8
E1
E2
ER1
ER2
Clip
Signal
Mute
CHO
Flange
RATE
DECAY
CH 2 CH 3/4
On/Off : Hold
Pair : Quick Tap
CH 1
+48V Power
M2-6 - Live-Performance Monitor
with 4 Channels, Mixer, Effects, and Bluetooth®
ELITE ACOUSTICS
13
3
4
2
9
12
10 11
1
7
6
5 8

3
REAR PANEL CONTROLS
Channel 1
[14] Gain: Apply gain for level control
[15] Mute: Mute Channel
[16] EFX/AUX Send Level: Adjust the level to “send” out
[17] EFX/AUX select: select whether you are sending to internal EFX or external AUX bus
[18] PAD: xed attenuation for “hot” signals
[19] Notch Filter: set amount of cut or boost for Notch Filter
[20] Frequency: set the frequency of the Notch Filter
[21] Phase: Reverse the phase of input waveform
[22] Instr-Mic/Line: Select input source; Instrument or Mic/ Line input
[23] High: set amount of High Frequency cut or boost
[24] Mid: set amount of Mid Frequency cut or boost
[25] Mid Frequency: set the frequency of the Mid cut or boost
[26] Low: set amount of Low Frequency cut or boost
[27] Instrument: 1/4” TS input
[28] Line: 1/4” TS input
[29] Mic: XLR for Microphone Input
Channel 2
[30] Gain: Apply gain for level control
[31] Mute: Mute Channel
[32] EFX/AUX Send Level: Adjust the level to “send” out
[33] EFX/AUX select: select internal EFX or external AUX bus
[34] PAD: xed attenuation for “hot” signals
[35] Line: 1/4” TS input
[36] Mic In: XLR for Microphone Input
Channel 3/4
[37] Level: Set the gain for both channels 3 & 4
[38] EFX Send Level: Adjust the level to “send” out
[39] Left (Mono): 1/4” mono TR input
[40] Right: 1/4” mono TR input

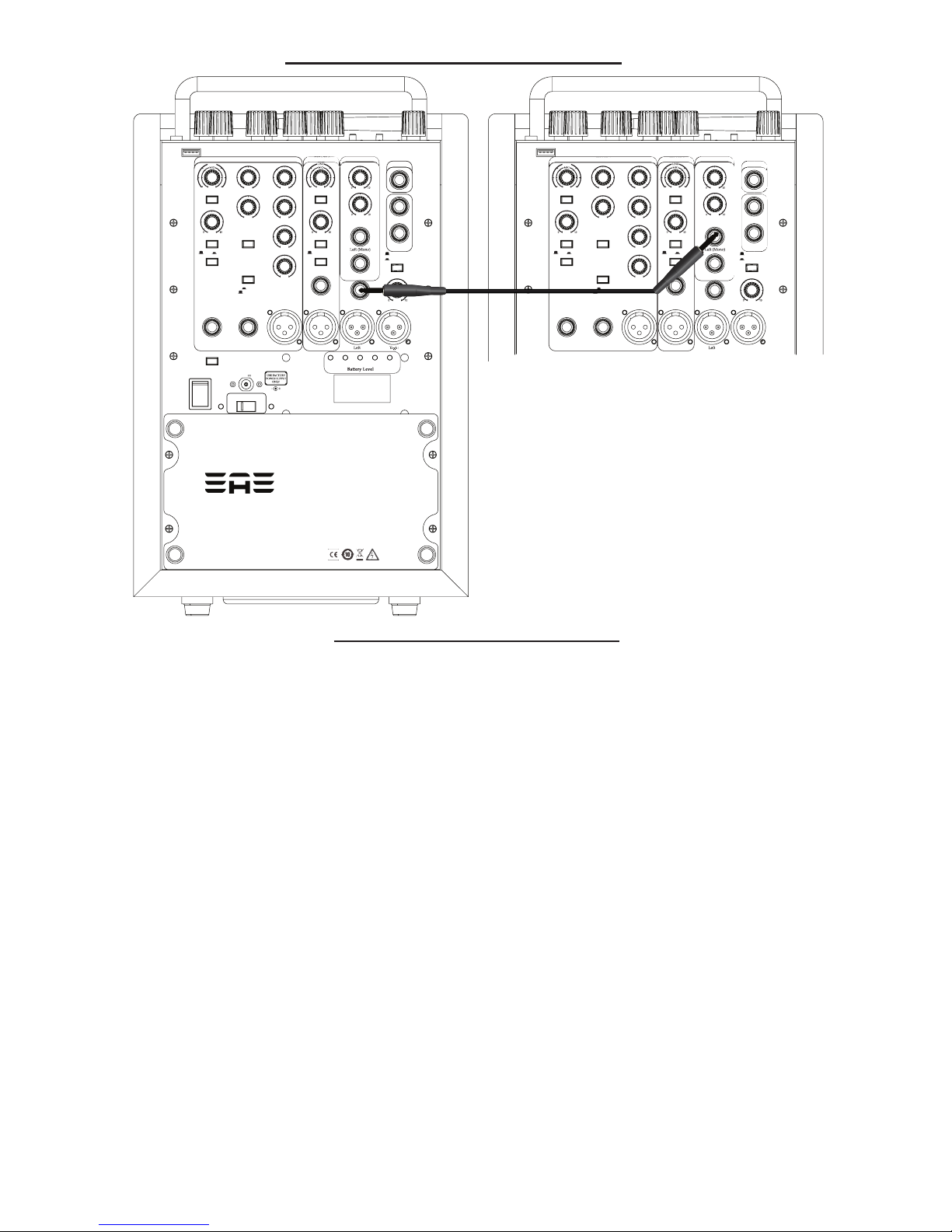

[41] Monitor Right Output: Connect to another speaker using 1/4” TS
[42] Foot Switch: TR footswitch to control Effects Bypass remotely
[43] AUX Send: 1/4” TR output
[44] AUX Return: 1/4” TR input
[45] Main Outputs / Chan 1/2 Direct Output: Select source of XLRs as Main mix or Direct
Outputs for Chan 1 & 2
[46] Output Level: Set output level for XLRs
[47] Left: XLR Left Output
[48] Right: XLR Right Output
[49] Battery Switch: Built in Circuit Breaker to preserve battery life.
Connect: Enable battery power when using unit
Disconnect: Disable battery power when storing unit to preserve battery life
[50] Power Switch: Turn you speaker on or off
[51] USB Charging Dock: Conveniently recharge your portable devices

4
REAR PANEL
Output Level
Monitor
Right Output
Main Outputs
CHAN 1/2
Direct Output
+48V
Le Right
CHAN 1 CHAN 2 CHAN 3/4
Connect Disconnect
Battery Switch
OnOff
Power DC INPUT
12VDC 2A
Footswitch
TIP - EFX Bypass
Serial Number
Designed, Assembled, & Tested
in California, USA
Charge Only
Mute
EFX/AUX
Send Level EFX/AUX
Send Level
EFX AUX Phase EFX AUX
PAD
Mute
EFX Level
Le (Mono)
Right
AUX Send
AUX Return
Level
PAD
Line
Instr
Mic/Line
Instrument Line Mic 1 Mic 2
Gain 60501020
INSTR
Gain 305010-10
3 2 1 Low Charge
Baery Level
High
-10 +10
Mid
-10 +10
Mid Frequency
250 5k
Low
-10 +10
Notch Filter
-10 +10
Frequency
100 450
For Maximum Battery Life
- Recharge after every use
- Use & recharge battery at least once a month
- Do not leave power switch in the “ON” position
when it is not in use
- Keep unit in a cool, dry place away from extreme
temperature
- Do not service, modify, or replace the battery
- If battery fails to charge, contact Elite Acoustics
www.EliteAcoustics.com
ELITE ACOUSTICS
14
15
16
17
18
50 49
30
31
32
33
34
35
19
20
23
24
25
26
21
37
51
42
38
39
40 45
46
43
44
41
48
22
27 28 29 36 47
R1 - Bright Cavern
R2 - Dark Cavern
R3 - Bright Hall
R4 - Dark Hall
R5 - Bright Room
R6 - Dark Room
R7 - Bright Plate
R8 - Dark Plate
R9 - Ambience1
R10 - Ambience2
E1 - Echo
E2 - Repeat Echo
ER1 - Echo/Rev1
ER2 - Echo/Rev2
CHO - Chorus
Flange - Flange
M2-6 EFFECTS
Low
-15 +15
Mid
-15 +15
High
-15 +15
Monitor Level
0 10 Mono
Peak
Signal AUX In
Level
0 10
EFX Mix
DRY WET
EFX
Bypass EFX
R1 R2
R3
R4
R5
R6
R7
R10 R9 R8
E1
E2
ER1
ER2
Clip
Signal
Mute
CHO
Flange
RATE
DECAY
CH 2 CH 3/4
On/Off : Hold
Pair : Quick Tap
CH 1
+48V Power
M2-6 - Live-Performance Monitor
with 4 Channels, Mixer, Effects, and Bluetooth®
ELITE ACOUSTICS
13
3
4
2
9
12
10 11
1
7
6
5 8

5
E L I T E A C O U S T I C S
Output Level
Monitor
Right Output
Main Outputs
CHAN 1/2
Direct Output
+48V
CHAN 1CHAN 2CHAN 3/4
Connect Disconnect
Battery Switch
On
Off
Power
DC INPUT
12VDC 2A
Footswitch
TIP - EFX Bypass
Serial Number
Designed, Assembled, & Tested
in California, USA
Charge Only
Mute
EFX/AUX
Send Level
EFX/AUX
Send Level
EFX AUX Phase EFX AUX
PAD
Mute
EFX Level
Right
AUX Send
AUX Return
Level
PAD
Line
Instr
Mic/Line
Instrument Line Mic 1 Mic 2
Gain
60
5010
20
INSTR
Gain
30
5010-10
321 Low Charge
High
-10 +10
Mid
-10 +10
Mid Frequency
250 5k
Low
-10 +10
Notch Filter
-10 +10
Frequency
100 450
For Maximum Battery Life
- Recharge after every use
- Use & recharge battery at least once a month
- Do not leave power switch in the “ON”
position when it is not in use
- Keep unit in a cool, dry place away from extreme
temperatures
- Do not service, modify, or replace the battery
- If the battery fails to charge, contact Elite Acoustics
WARNING
Only exchange the original speaker system
battery with a genuine Elite Acoustics
Engineering replacement. Elite Acoustics
Engineering cannot guarantee the safety and
compatibility of batteries from other
manufactures for the use in operating the speaker
system. Use of an uncertified battery may void all
warranties.
Battery Switch
- Connect - to enable battery power
- Disconnect - to disable battery power
www.EliteAcoustics.com
Output Level
Monitor
Right Output
Main Outputs
CHAN 1/2
Direct Output
Right
CHAN 1CHAN 2CHAN 3/4
Footswitch
TIP - EFX Bypass
Charge Only
Mute
EFX/AUX
Send Level
EFX/AUX
Send Level
EFX AUX Phase EFX AUX
PAD
Mute
EFX Level
Right
AUX Send
AUX Return
Level
PAD
Line
Instr
Mic/Line
Instrument Line Mic 1 Mic 2
Gain
60
5010
20
INSTR
Gain
30
5010-10
High
-10 +10
Mid
-10 +10
Mid Frequency
250 5k
Low
-10 +10
Notch Filter
-10+10
Frequency
100 450
CONNECTING TO ANOTHER SPEAKER
The Monitor Right Output allows you to add
a second active monitor while preserving the
stereo image. The Monitor unit will play the
Left Channel content and the extension monitor
will play the Right Channel. If stereo imaging
is not desired, simply engage the Mono button
on the M2’s top panel. Note that the Monitor
Right Output will not drive a passive speaker; it
is a Line-level output that can drive ampliers
or active monitor systems.
ABOUT EQ AND PHASE SETTINGS
High – used to add sibilance and crispness to your sound, with the knob at 12:00, there is no
boost or cut to the high frequency content.
Mid – Helps control the clarity of your overall mix and should be adjusted to suit lower or
higher volume performance levels. Boosting the mids helps speech clarity and intelligibility at
lower volumes while cutting the mids produces a more natural sound at higher volumes. The
Mid frequency selection knob allows for a range extending from high LF to low HF. When set
to 12:00 the Mid frequency peak is around 1.2k Hz, with +/- 12dB of boost or cut depending
on the setting of the Mid knob. Here again, with Mid set to 12:00 the mid control is effectively
out of the circuit.
Low – In general, lower volumes can benet from LF boost to help bring out the bass at
these lower settings, but it is usually left at or even slightly cut for high playback levels.
Notch – When it comes to the mechanics, Notch ltering is very much like the adjustable
mid frequency described above. However, the frequency range is much lower, and the lter
itself is much tighter, hence the term “notch.” When used in “cut” mode, this is very effective
in managing feedback, which is explained in some detail in our Feedback section. However,
the notch can be set to cut or boost to allow for the full range of possibilities. Many times
feedback is not an issue, and the artist can take advantage of a particular notch setting to
effectively tweak a nal mix to accommodate specic room or instrumentation considerations.
Phase – Use the phase setting that best supports your overall sound and system integration
considerations. For example, Phase can be set to facilitate the best bass response at low
volumes, and it can also be effective as a feedback deterrent, which will be reviewed in our
Feedback section.

HOW TO DEAL WITH ACOUSTIC FEEDBACK
Simply put, the annoying shrilling howl of growing and untamed feedback is the result of “in-
phase” frequencies getting together and being reinforced by the sound system and environ-
ment.
Phase Switch – since the purpose of the Phase Switch is to reverse the polarity, the rst line
of defense is to change the phase, which can sometimes be a cure all by itself. This has the
effect of changing the phase relationship between the amplied signal and live sound, which
can break up some “in-phase” reinforcing components. On the other hand, it’s preferred if we
can leave the phase set to provide the most natural and balanced sound.
Notch Filter – Another way to prevent “in-phase” reinforcement is to simply nd and “notch”
out the offending frequency. The approach is straight forward; with the Notch set to full “cut”
(counter clockwise), slowly rotate the Notch Frequency to align with and cancel the offensive
tone.
Phase and Notch – probably the most widely used approach is to start without the notch
lter engaged, and to bring up the gain and or volume to encourage feedback. Changing the
Phase will change the frequency of the feedback. Leave the Phase set to whichever setting
produces the higher pitched note.
Next, use the aforementioned Notch technique to hone in on and prevent the feedback. Keep
in mind, ghting feedback in this manner may or may not appeal to your taste in overall tone.
It’s certainly fair to experiment and try it the other way around, i.e., Phase switch to stop HF
tone and Notch to cutout the LF tone. After all, Live Sound is an Art and when it’s all said and
done tone is King.
6
FOR MAXIMUM BATTERY LIFE
• Recharge after every use
• Use & recharge battery at least once a month
• DO NOT leave power switch in the “ON” position when it is not in
use. Doing so after a long period of time will damage the battery
• Keep unit in a cool, dry place away from extreme
temperatures
• Do not service, modify, or replace the battery
• If the battery fails to charge, contact Elite Acoustics Designs
EAE BATTERY & RECHARGING INFORMATION
1. To fully charge a unit –
a. Set Battery Switch to “CONNECT”
b. Turn Power Switch OFF
c. Connect “AC” adaptor to Power Jack.
d. Blue “Charge” LED should be lit, Charge time can vary from 24 – 36 hours
depending on model.
2. When unit is powered with “AC” adaptor, Battery Switch should be in “CONNECT”
position.
3. Battery Switch should be on “DISCONNECT” when unit is packed for transit or unit
is in storage. Make sure battery is fully charged before UNIT is put into storage. We
recommend fully charging the battery at least once each month.
4. SLA battery lifetime is typically 1 – 2 years depending on usage.
Battery
Level
3
2
1
Low
Charge

7
SYSTEM SPECIFICATIONS
Speakers:
Woofer = 6 1/2”
Tweeter = 1” Silk-Dome
Optimized front ports for extended low-frequency response
Frequency response 70Hz - 20k Hz
103 dB SPL
Amplier:
Ultra High-Efciency Class D 30W Bi-AMP
EQ Controls:
Low +/- 12dB @ 50Hz (shelving)
Mid +/- 12dB @ 200Hz – 4k Hz (resonant)
High +/- 12dB @ 10k Hz (shelving)
Notch +/- 12dB @ 80Hz – 400 Hz (high-Q resonant)
Battery:
Built-in SLA type, rechargeable [12V, 9Ah/20hr]
Typical recharge time ~ 20 hours
Play time ~ 6 to 8 hours
Power Supply:
DC 12V, 3000 mA
Physical:
Dimensions: 13”L x 11”W x 9”H
Weight: 24 lbs
BLUETOOTH® FUNCTION
1. Turn Bluetooth® function ON/OFF;
Press the MODE button and hold for approximately 5 seconds
Both LEDs will ash at the same time
2. Pair device to the speaker system
While both LED’s are ashing, quickly tap the MODE button once
Both Flashing LED: indicate Bluetooth®is ready to be paired
Flashing Blue LED only: indicate Bluetooth®is connected

8
Effect Rate/Decay
R1 Bright Cavern Variable Decay 300mS to 3 Seconds
R2 Dark Cavern Variable Decay 300mS to 3 Seconds
R3 Bright Hall Variable Decay 300mS to 3 Seconds
R4 Dark Hall Variable Decay 300mS to 3 Seconds
R5 Bright Room Variable Decay 300mS to 3 Seconds
R6 Dark Room Variable Decay 300mS to 3 Seconds
R7 Bright Plate Variable Decay 300mS to 3 Seconds
R8 Dark Plate Variable Decay 300mS to 3 Seconds
R9 Ambiance 1 Variable Decay 300mS to 3 Seconds
R10 Ambiance 2 Variable Decay 300mS to 3 Seconds
E1 Echo Variable Decay 300mS to 3 Seconds
E2 Repeat Echo Variable Decay 300mS to 3 Seconds
ER1 Echo / Rev 1 20 mS to 1000 mS, single tap,
static reverb
ER2 Echo / Rev 2 20 mS to 1000 mS, 10 taps attenuated
by -6dB per tap, static reverb
CHO Chorus Fixed LFO 1 Hz, variable depth
FLAN Flange Fixed LFO 1 Hz, variable depth
EFFECTS TABLE

9
LEVEL
MIC
LINE
DRY
FX MIX
WET
16 FX
PGM
MONITOR RIGHT OUTPUT
FX send
MUTESIGNAL PEAK
L
R FX
DIR OUT
1 2
CHAN 1
LEDs
DLY
WOOFER
TWEETER
LEFT CHAN ONLY
CHAN 2
CHAN 3/4
AUX IN
BLUE TOOTH
LEDs
SIGNAL CLIP
PHASE
PAD MUTE
INSTRUMENT
MIC
LINE
PAD
FX
AUX
LEVEL
FX send
MUTE SIGNAL PEAK
LEDs
MUTE
FX
AUX
AMPLITUDE
RETURN
AUX SEND
FX bypass FOOTSWITCHFX bypass
FX bypass LED
RIGHT OUTPUT
LEFT OUTPUT
LEVEL
DIR 1/2 or MAIN SELECT
AUX
LEVEL FX send
LEVEL
3 BAND EQ NOTCH
3 BAND EQ
MONO

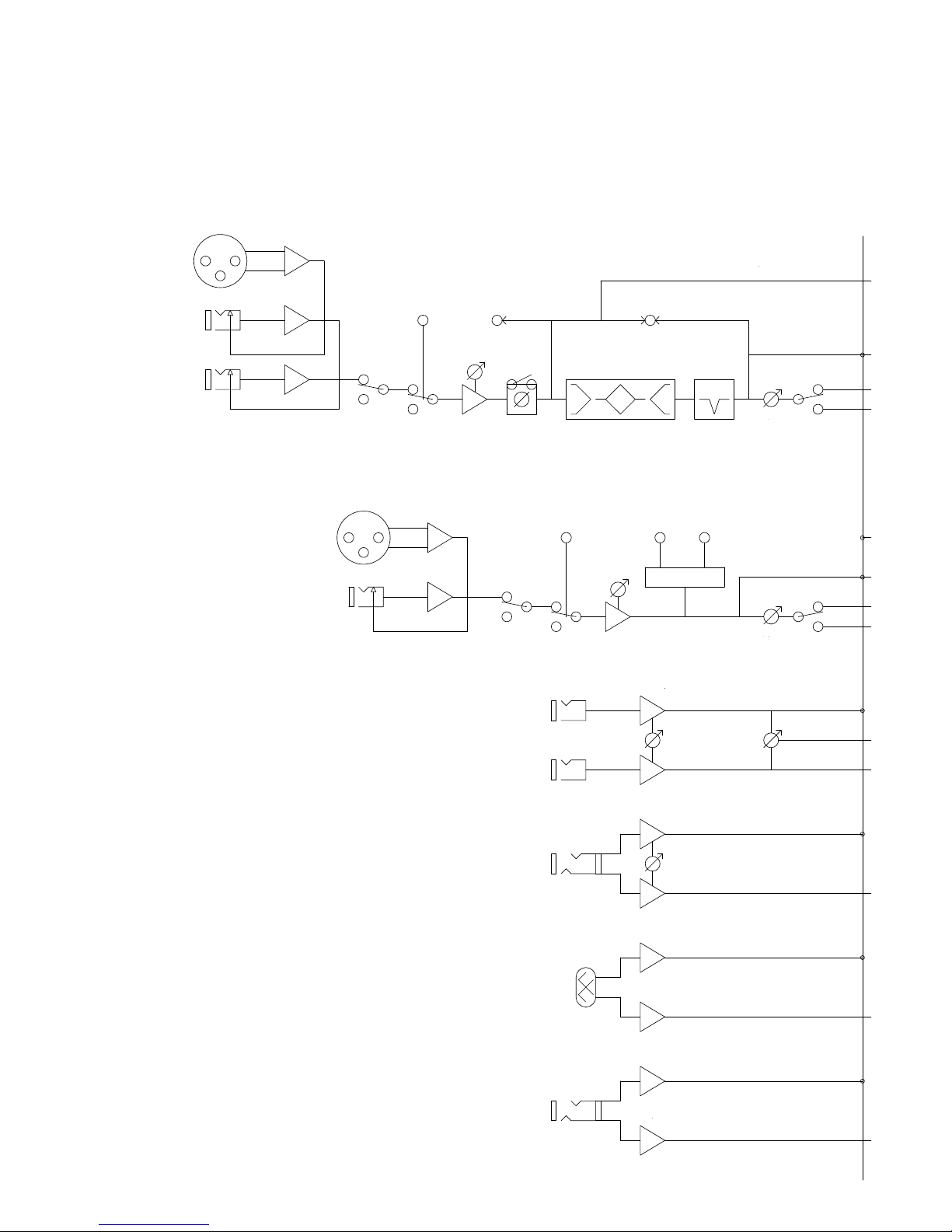

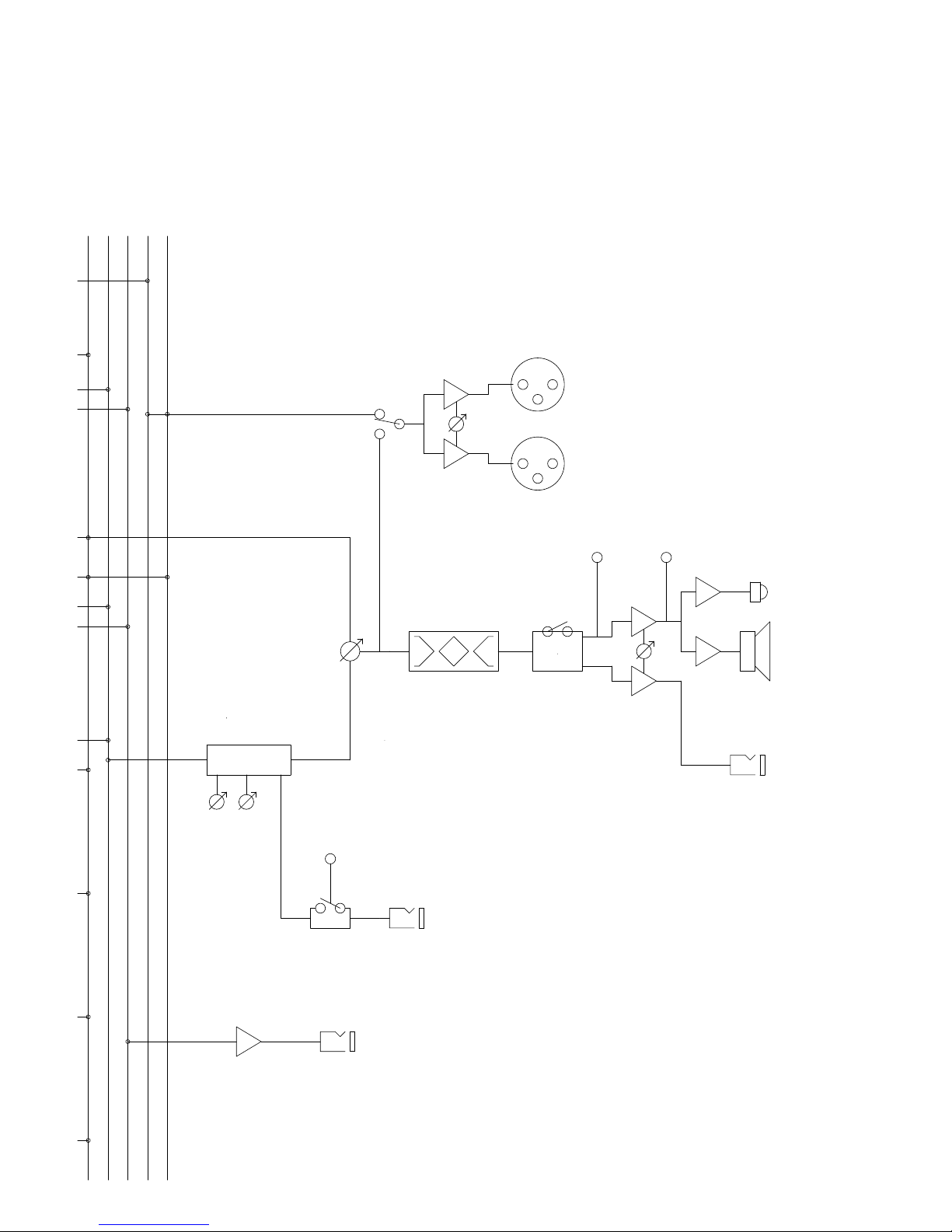

Block Diagram

10
LEVEL
MIC
LINE
DRY
FX MIX
WET
16 FX
PGM
MONITOR RIGHT OUTPUT
FX send
MUTESIGNAL PEAK
L
R FX
DIR OUT
1 2
CHAN 1
LEDs
DLY
WOOFER
TWEETER
LEFT CHAN ONLY
CHAN 2
CHAN 3/4
AUX IN
BLUE TOOTH
LEDs
SIGNAL CLIP
PHASE
PAD MUTE
INSTRUMENT
MIC
LINE
PAD
FX
AUX
LEVEL
FX send
MUTE SIGNAL PEAK
LEDs
MUTE
FX
AUX
AMPLITUDE
RETURN
AUX SEND
FX bypass FOOTSWITCHFX bypass
FX bypass LED
RIGHT OUTPUT
LEFT OUTPUT
LEVEL
DIR 1/2 or MAIN SELECT
AUX
LEVEL FX send
LEVEL
3 BAND EQ NOTCH
3 BAND EQ
MONO

WARRANTY
Elite Acoustics Engineering Inc. warrants this product to be free of defects in material and workmanship (excluding battery) for a
period of 1 year from the date of original retail purchase. Elite Acoustics Engineering Inc. warrants the Speaker’s Battery for 90
days from the date of original retail purchase. This warranty is enforceable only by the original retail purchaser. To be protected by
this warranty, the purchaser must complete and return the enclosed warranty card within 14 days of purchase. During the warranty
period EAE shall, as its sole and absolute option, either repair or replace, free of charge, any product that proves to be defective on
inspection by EAE or its authorized service representative. To obtain warranty service, contact Elite Acoustics Engineering Technical
Support via email: [email protected]. PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT
TO AN ELITE ACOUSTIC ENGINEERING SERVICE CENTER. All inquires must be accompanied by a description of the problem.
All authorized returns must be sent to the EAE repair facility postage prepaid, insured and properly packaged. EAE reserves the
right to update any unit returned for repair. EAE reserves the right to change or improve the design of the product at any time without
prior notice. This warranty does not cover claims for damage due to abuse, neglect, alteration, or attempted repair by unauthorized
personnel and is limited to failures arising during normal use that are due to defects in material or workmanship in the product. Any
implied warranties, including implied warranties of merchantability and tness for a particular purpose, are limited in duration to the
length of this limited warranty. Some states do not allow limitations on how long an implied warranty lasts, therefore above limitation
may not apply to you. In no event will EAE be liable for incidental, consequential, or other damages resulting from the breach of
any express or implied warranty, including among other things, damage to property, damage based on inconvenience or on loss
of use of the product, and, to the extent permitted by law, damages for personal injury. Some states do not allow the exclusion of
limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives
you specic legal rights, and you may also have other rights, which vary from state to state. This warranty only applies to products
sold and used in the United States of America. For warranty information in all other countries please refer to your local distributor.
©Elite Acoustics Engineering Inc.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO
THE FOLLOWING TWO CONDITIONS.
1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
www.EliteAcoustics.com
