Elite Force 2.5019 User manual

2.5019 | 10R12 © 2012
Operating instructions 3 - 9 Bedienungsanleitung 10 - 17
Mode d´emploi 17 - 23 Manual de instrucciones 24 - 30
chronograph

2
Safety instructions
Sicherheitshinweise
Consignes de sécurité
Instucciones de seguridad
Description
Benennung
Désignation des pièces
Designacion
Operation
Bedienung
Utilisation
Reglaje

3
EN
SAFETY INSTRUCTIONS | WARRANTY
CAUTION
• not suitable for firearms
• for airsoft guns only
CAUTION
• Always read through this user guide before use.
• Wear eye protective gear at all times.
• Beware of bounce-back BBs from the target shooting.
• Shoot straight through the shooting gate. Otherwise the measured V0 values will not be
accurate.
• You can get the rate of fire (r/m or r/s) only for automatic firing.
• This device Is not water-resistant. Keep it dry!
• Never punch the device or let it fall to the ground.
• Use only the rechargeable battery included.
• Please recharge your battery if the display of POWER VOLTAGE is low.
• Do not disassemble the device; this will void the warranty.
WARRANTY
The Umarex company will repair or replace your chronograph free of charge (up to 12
months from date of purchase) provided the defect was not caused by you. Return the
device to the authorised dealer from where you bought it.
TECHNICAL DATA
Item no. 2.5019
Measurement range V0 from 20 m/s to 150 m/s
Supply voltage 7,5 V DC
Dimensions 105 mm x 85 mm x 37 mm
Weight 190 g
Tripod socket 1/4 ˝

4
DESCRIPTION
EN
Charger Connector
Navigation Keys
Display
Up
Down
Power Key
Shooting Gate
(BB in)
Shooting Gate
(BB out)
• Compact,ergonomicdesign
• ExtralargeLEDdisplayforindoororoutdooruse,
day or night
• Power-savingfunction(autoshutdownin2minutes)
• Built-inrechargeableNi-MHbatteryforlong-time
performance
• Built-intripodadaptor
• Pre-setBBweightvs.energy(Joule)
• Compact, ergonomic design
• Extra large LED display for indoor or outdoor use, day or night
• Power-saving function (auto shut down in 2 minutes)
• Built-in rechargeable Ni-MH battery for long-time performance
• Built-in tripod adaptor
• Pre-set BB weight vs. energy (Joule)

5
EN

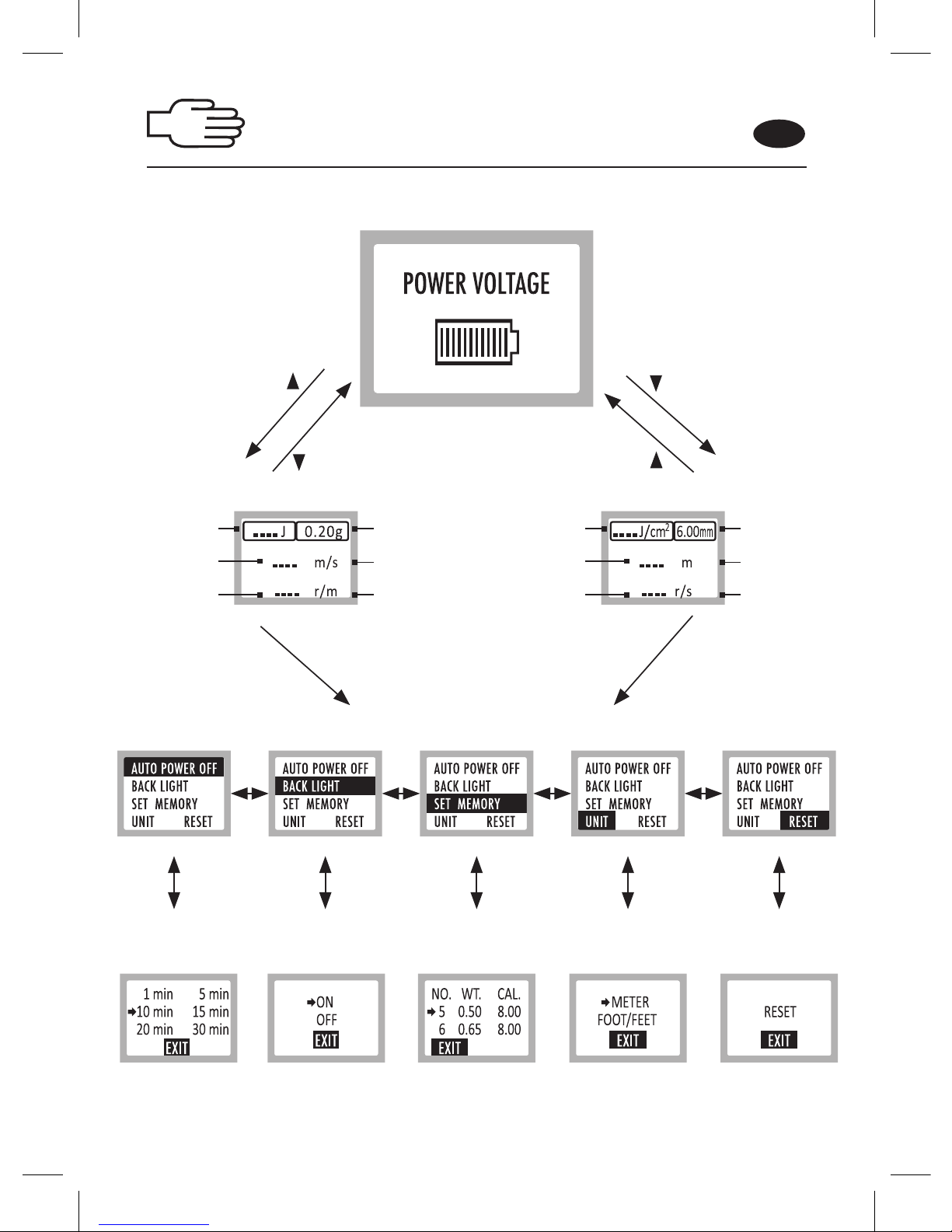

GENERAL OPERATION
BATTERY STATUS
MAIN SCREEN A
Energy
(joules)
Muzzle
velocity V0
Effective
range (m)
Rate of fire Rate of fire
Weight of BB
Meter / seconds Meter
Rounds / minute Rounds / second
MAIN SCREEN B
Energy per BB
(joules/cm²) Caliber of BB
SET UP MENU
AUTO POWER OFF UNIT RESETBACK LIGHT SET MEMORY
