Elite TDCH CST 100I User manual

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v1 Page 1of 25
USER MANUAL
ELITE TDCH
Installation Instructions and User Manual

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v1 Page 2of 25
INDEX
1 GENERAL SAFETY WARNINGS......................................................................2
2 OPERATING PRINCIPLE....................................................................................3
3 TECHNICAL FEATURES....................................................................................4
4 INSTALLATIONS.................................................................................................8
4.1 HYDRAULIC CONNECTIONS........................................................................8
4.2 ELECTRICAL CONNECTIONS.......................................................................10
4.3 FILLING THE ACCUMULATOR....................................................................11
4.4 TURNING THE SYSTEM ON..........................................................................11
5 USAGE RULES....................................................................................................12
5.1 TEMPERATURE ADJUSTMENT....................................................................12
5.2 ELECTRICAL RESISTANCE...........................................................................13
6 MAINTENANCE, REPAIR AND CLEANING...................................................14
7 TROUBLESHOOTING.........................................................................................15
8 PREVENTION OF ISSUES..................................................................................17
NOTES TO END USER
THIS UNIT SHOULD ONLY BE INSTALLED BY QUALIFIED PERSONNEL
IF AFTER INSTALLATION THE UNIT DEVELOPES ANY FAULTS CONTACT
YOUR INSTALLER
Installer Name Tel Number Date Installed
Serial Number

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v1 Page 3of 25
For any warranty questions contact the manufacturer:
Hidrodinamica Solar, S.L
Ave De Los Labrodores, 5, Local
28760 Tres Cantos
Madrid, Spain
Tel [phone]
Email [email protected]
To avoid injury as well as the damaging the TDCH unit the following instructions
should be followed.

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v1 Page 4of 25

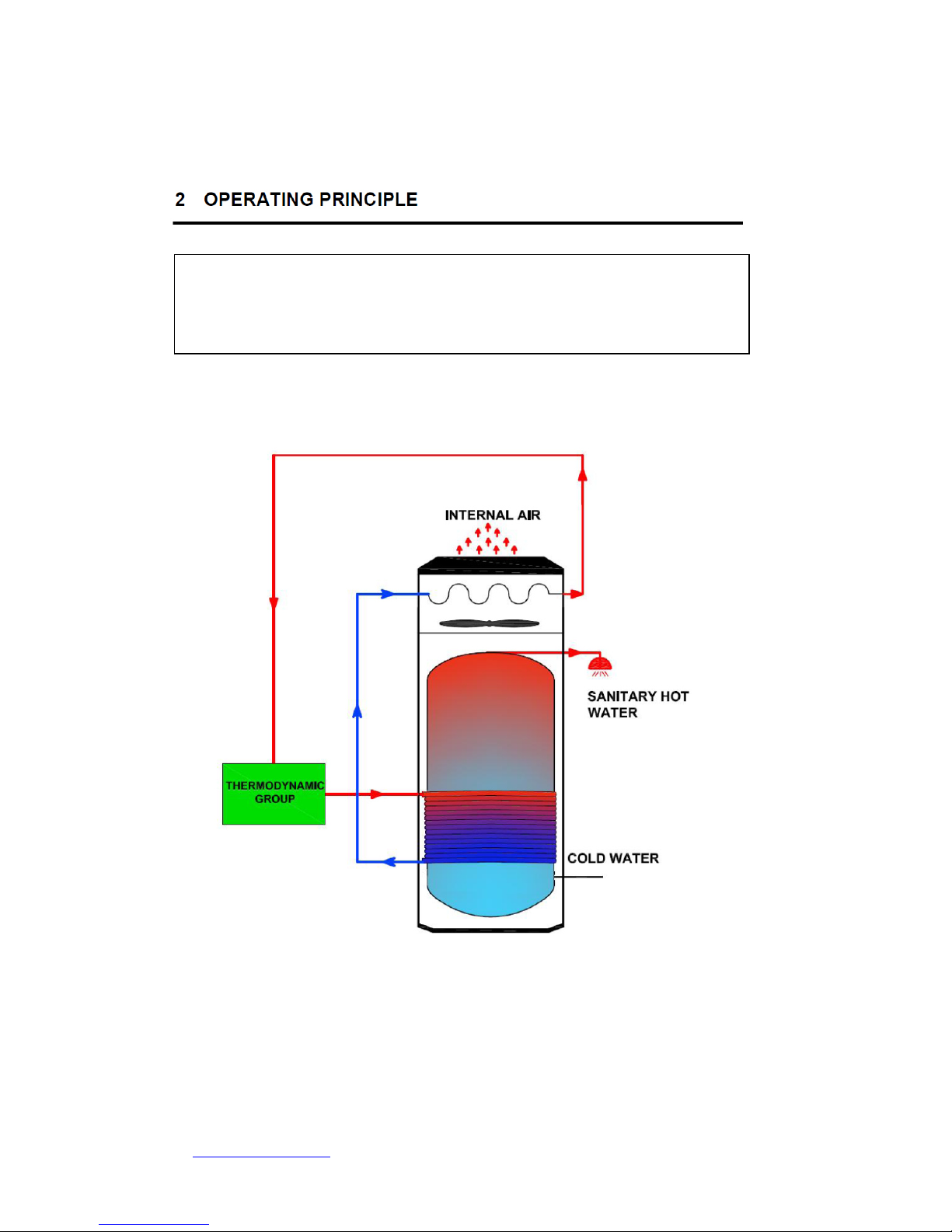

The TDCH is a thermo dynamic sytem based on air source heat pump
using ambient room air which is then forced through a heat exchanger
and condenser using refrigerent fluid. This is all contained in a
compact easy to install housing

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v1 Page 5of 25

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v1 Page 6of 25
1. Compressor
2. Tank
3. Drum
4. Dehydrator
5. Expansion Valve
6. Ventilator
7. Condenser coil externa
8. Evaporator
9. CH booster coil internal
9

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v1 Page 7of 25
250 litres tank
A = 176 cm
B = 59 cm

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v1 Page 8of 25

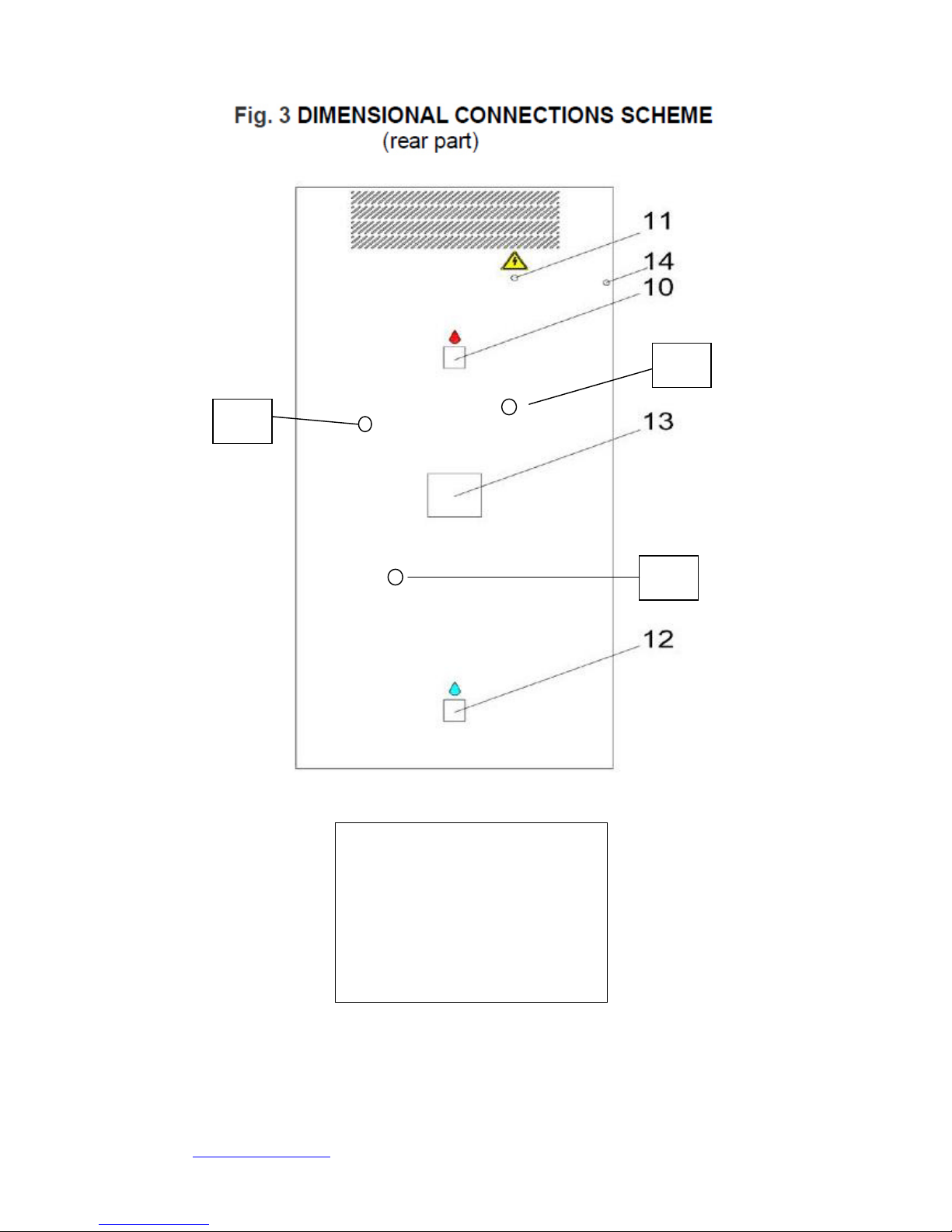

10. Hot Water Outlet
11. Electrical Connection
12. System Water Inlet
13. Immerser coil
14. Heat exchange drip line
15.CH flow
16.Pressure reducing outlet
17. CH return
15
16
17

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v1 Page 9of 25

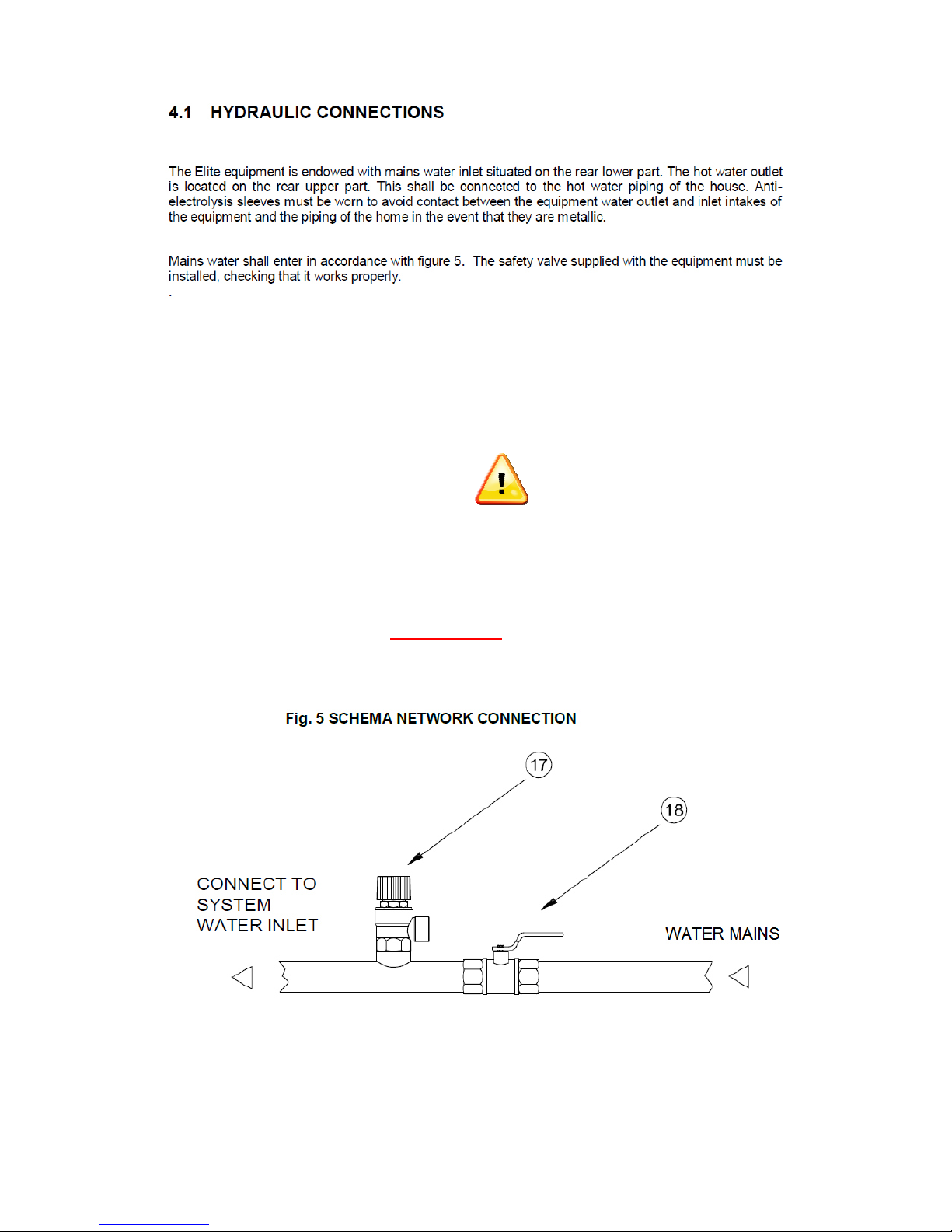

Before Operating the System the following connections should be made.
REFER TO PAGE 8
1. Cold water feed to Item 12
2. Hot water feed Item 10
3. Pressure & temperature reducing valve to Item 16, this then connected to overflow
4. Heat exchange drip line connected down stream of P&T overflow( #3)
5. Central heating flow to Item 15
6. Central heating return to Item 17
7. Pump and timer installed in Central Heating outlet
8. Plug in unit
9. Plug in timer / pump

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v1 Page 10 of 25
Ensure adequate ventilation if the
unit is placed in a cupboard type
space
for air in and air out

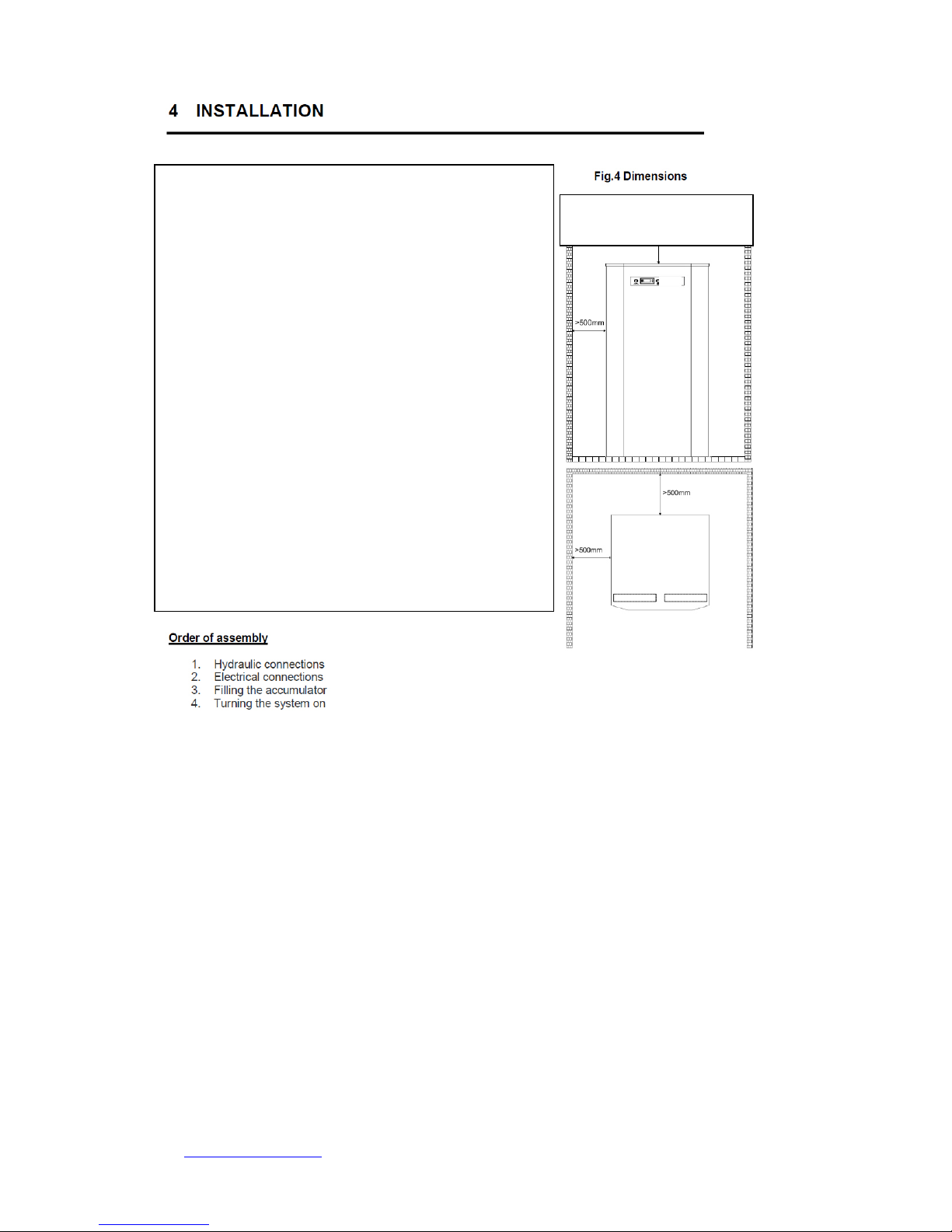

The installation should be carried out as detailed
below:
•Check that there is sufficient space for the
unit see Fig 4
•Check that there is sufficient space to hook up
the pipework and electrics.
•The unit must be transported vertically
•The unit must be installed vertically
•Check that the setting area in strong enough
to take the units weight
a 250 litre unit weighs approx. 300 Kgs when full of
water

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v1 Page 11 of 25
NOTE
The TDCH works by drawing ambient air in, extracting the heat, and expelling cold air out at the
rear of the unit.
It is best pactice to situate the unit next to an outside wall and and fit ducting to direct the cold
air to the outside of the building.
Hot air drawn in through top of unit and
cold air expelled at rear through wall
ducting

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v1 Page 12 of 25
IMPORTANT
The equipment is rated to 6 bar on the cold water feed side and a safety valve is
supplied see Fig 5 and should be installed.
It is recommended that an expansion vessel (tank) is fitted on the cold water outlet side.
The current plumbing regulations should be referred to when fitting the
expansion vessel
17 is located on the rear of the unit see Page 8

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v1 Page 13 of 25

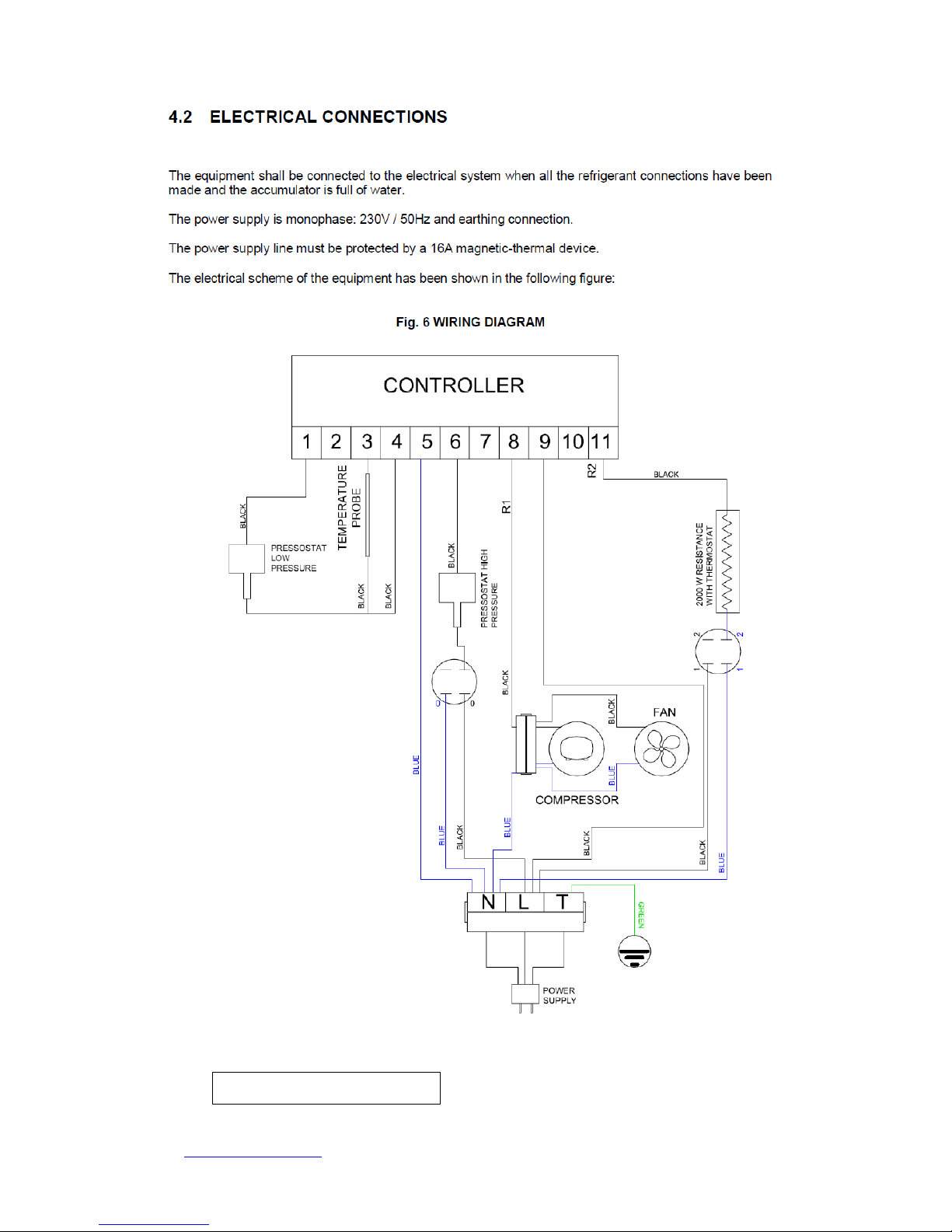

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v1 Page 14 of 25
Filling the tank

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v1 Page 15 of 25
NB Resitance refers to Immerser Coil
After the pipework for the tank and the CH coil have been fitted.
Fill the tank by opening the cold water feed at the bottom of the unit See page 8,
allow the tank to fill and monitor the hot water outlet for water returns.
Close the cold water feed and hook the hot water outlet to the hot water system

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v1 Page 16 of 25

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v1 Page 17 of 25
The unit is fitted with a 2 K watt immerser coil situated at the back of the unit this can be
switched on manually maximum temperature is set at 70 deg C, the switch is on the front
of the cabinet see Fig 7 (resistance switch).
NOTE
To activate the immerser coil both the thermodynamic and the immerser coil switches
must be in the on position
Immerser Coil

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v1 Page 18 of 25

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v1 Page 19 of 25

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v1 Page 20 of 25
Trouble shooting cont.
