Elk Products ELK-44 User manual

PO Box 100 • Hildebran, NC 28637 • 800-797-9355 • 828-397-4200
Fax[phone]•www.elkproducts.com•[e-mail]

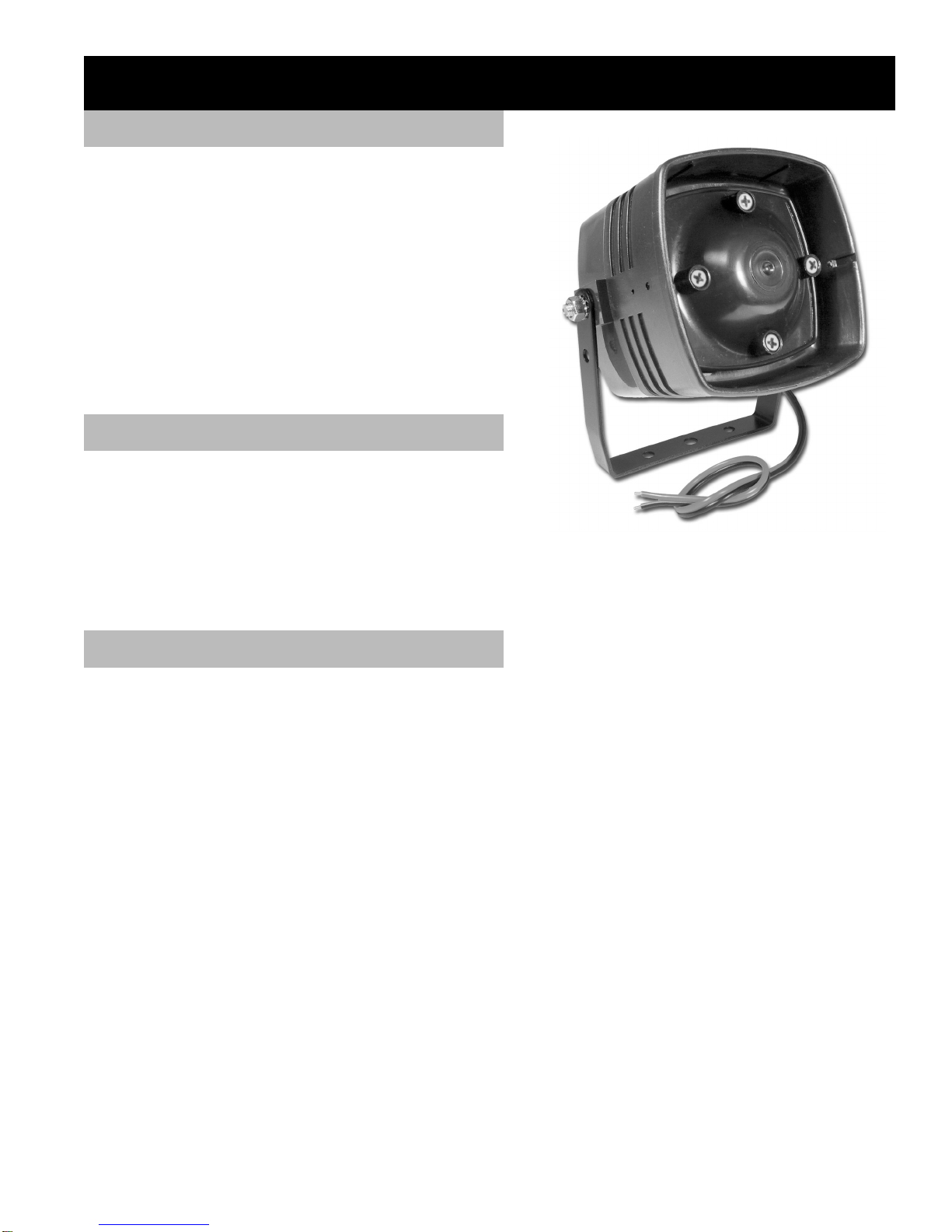

30 Watt Speaker
TheELK-44 is a universal 30Watt -8 Ohm
Speaker which may be connected to any siren
driveroramplifier.Itfeaturesaheavydutyvoice
coilandmagnet,allowingit to withstand up to 50
Wattsof peak power.TheELK-44’sremovable“U”
shapedmountingbracketmakesinstallationquick
andsimple.It’ssmall and compact size allows it to
beplacedinvents, attic eaves and soffits, and
otheruniquelocationswherelargeandbulky units
willnot fit.
• InstallerFriendly- EasyToMount.
• Exterior/ Interioruse.
• Compact - Less Noticeable.
• Loud-Rivals Sound of Larger Speakers.
• HeavyDuty 1.8lbMagnet.
• High Fidelity Voice Coil.
• LifetimeLimitedWarranty.
• Rating: 30Watts Nominal / 50WattsPeak.
• Impedance: 8Ohms.
• FrequencyResponse: 500to7000 Hz.
• Size: 4"H x 4"W x 3.5"D.
ELK-44
Features
Specifications
ELK
PRODUCTS, INC.
Features or Specifications subject to change without notice.
05/02

Instructions ELK-44
1. MounttheU shaped bracket to the wall.
2. InsertoneofthetwoshortboltsintoeachsideoftheU shaped bracket with the threads protruding
out.
3. Aligntheheadsofthe bolts with the slotted openings on eachsideofthe speaker housing.
4. Slidethespeakerontothebolt heads. Installa washer and nut on each bolt and tighten.
5. ConnectBlackandRed wires to the output ofasiren driver or amplifier.
ELK-45
ELK-44 WIRING CONFIGURATIONS
SIREN OUTPUT
TERMINALS
ELK-44
SPEAKER
ONE SPEAKER (8 OHMS)
SIREN DRIVER BOARD
SIREN OUTPUT
TERMINALS
TWO SPEAKERS (4 OHMS)
EXTERIOR
ELK-44
SPEAKER
INTERIOR
ELK-44
SPEAKER
1.5 Amp FUSE
RED RED
BLKBLK
SIREN OUTPUT
TERMINALS
ELK-44
SPEAKER
THREE SPEAKERS (6 OHMS)
SPLICE
RED
RED
BLK
BLK
BLK
RED
SIREN OUTPUT
TERMINALS
FOUR SPEAKERS (8 OHMS)
SPLICE
RED
SPLICE
RED
RED RED
BLK BLK
BLK BLK
SIREN OUTPUT
TERMINALS
SIX SPEAKERS (5 OHMS)
SPLICE SPLICE
RED
SPLICE
RED
BLKBLK
RED
RED
BLK BLK
BLKBLK RED
RED
Exposed exterior speakers should be fused with a
1.5 Amp fuse so other speakers will continue to
operate if the exposed speaker is shorted.
ELK-44
SPEAKER
ELK-44
SPEAKER
ELK-44
SPEAKER
ELK-44
SPEAKER
ELK-44
SPEAKER
ELK-44
SPEAKER ELK-44
SPEAKER ELK-44
SPEAKER
ELK-44
SPEAKER ELK-44 SPEAKER
ELK-44
SPEAKER ELK-44
SPEAKER
