Elmo QBiC MS-1 User guide

Part names

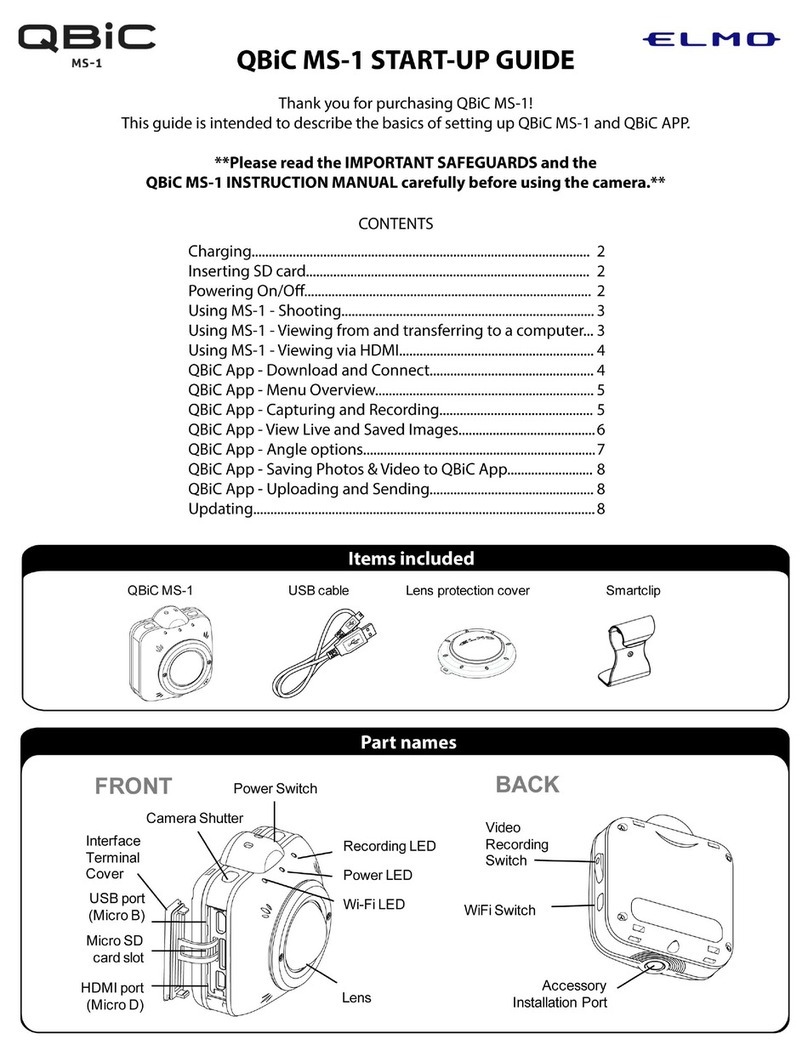

QBiC MS-1 START-UP GUIDE
Thank you for purchasing QBiC MS-1!
This guide is intended to describe the basics of setting up QBiC MS-1 and QBiC APP.
**Please read the IMPORTANT SAFEGUARDS and the
QBiC MS-1 INSTRUCTION MANUAL carefully before using the camera.**
QBiC MS-1 USB cable Lens protection cover Smartclip
WiFi Switch
Accessory
Installation Port
Video
Recording
Switch
Recording LED
Power LED
Wi-Fi LED
USB port
(Micro B)
Micro SD
card slot
HDMI port
(Micro D)
Camera Shutter
Interface
Terminal
Cover
Power Switch
Lens
FRONT BACK
Items included
Charging...................................................................................................
Inserting SD card...................................................................................
Powering On/O....................................................................................
Using MS-1 - Shooting..........................................................................
Using MS-1 - Viewing from and transferring to a computer...
Using MS-1 - Viewing via HDMI.........................................................
QBiC App - Download and Connect................................................
QBiC App - Menu Overview................................................................
QBiC App - Capturing and Recording.............................................
QBiC App - View Live and Saved Images........................................
QBiC App - Angle options....................................................................
QBiC App - Saving Photos & Video to QBiC App.........................
QBiC App - Uploading and Sending................................................
Updating....................................................................................................
2
2
2
3
3
4
4
5
5
6
7
8
8
8
CONTENTS

This camera has a built-in battery and cannot be removed by the user. The battery is not fully charged at the time of
purchase. Charge the battery before using the camera for the first time.
1. Ensure the camera is powered off.
2. Open the Interface Terminal Cover. Connect the Micro B connector (smaller
connector) of the supplied USB cable to the USB port of the camera.
3. Connect the USB plug of the USB cable to a USB port on your computer. Battery
charging will start. The [Power LED] turns red while charging.
4. Battery is fully charged when the [Power LED] turns off.
1. Open the Interface Terminal Cover.
2. Insert the Micro SD card to the Micro SD card slot.
*Pay attention to the direction of the card when inserting the Micro SD card.
Insert the Micro SD card until it clicks. Improper insertion of the card may
cause error or damage the camera.
*Refer to the QBIC MS-1 INSTRUCTION MANUAL for the compatible list of
the Micro SD card.
3. Close the Interface Terminal Cover.
*Make sure to close the cover completely so that the water resistance
performance does not deteriorated and cause damage to the camera.
Charging
Inserting the SD card
Contacts face
toward camera lens
Powering On
Press and hold (for more than 1 second) the [Power Switch] to power on the
camera. The [Power LED] turns blue.
Powering Off
Press and hold (for more than two seconds) the [Power Switch] to power off the
camera. All LED lights turn off.
Powering On/O
2

Viewing Videos and Images on a TV or through a projector via HDMI
3
Recording Video
The movie recording starts with a confirmation sound when the Recording Switch is pressed. The
Recording LED turns red during the recording. Press the [Recording Switch] again to stop the
recording. The recording stops with a confirmation sound. The [Recording LED] turns off.
Taking Photos
Press the [Camera Shutter] to take photos.
A photo is taken with a shutter sound. The [Recording LED] turns blue while recording a photo.
Using QBiC MS-1- Shooting
Viewing and Transferring Videos and Images on a computer
1. Open the Interface Terminal Cover. With the camera powered off, connect the camera to your computer using the
supplied USB cable.
2. Press the [Power Switch]. The Micro SD card inside the camera is recognized as
a removable disk.
3. Open the device folder to view the videos/photos or transfer to the computer.
4. Power off the camera. Remove the USB cable from the camera and close the Interface Terminal Cover.
Viewing Videos and Images on a TV or through a projector via HDMI
1. Open the Interface Terminal Cover.
2. Connect the camera’s HDMI port to the HDMI input port of a TV or projector via the HDMI cable (not included).
(Use the HDMI cable with micro D connector.)
3. Press and hold (for at least 1 second) the [Power Switch] to power on the camera.
When the camera is powered on, the Live view is displayed on a TV or projector screen
4. Press the [Power Switch] and the camera enters the Playback mode.
Press the Camera Shutter button to view the
next tab (Videos/Photos/Videos & Photos)
Press the Power button to scroll through content
and Live Image icon.
Press the Video Recording Switch to play
selected video or photo. Select the Thumbnail
mode after the playback of the file is finished.
Then press the Recording Switch to return to
the Thumbnail mode.

Using QBiC MS-1- Download and Connect
MS-
3. From the Home screen of the mobile device, tap
“Settings” and then tap “Wi-Fi”.
4. Slide “Wi-Fi” to “ON.”
5. From the list of [Choose a Network…], choose
[QBiCMSxxxxxxx] (xxxxxxx corresponds to the serial
number of your camera).
4
By connecting the camera to a smart phone via Wi-Fi, you can view the video you are recording in real-time and
control the camera remotely.
Installing the [QBiC App] from Google Play.
(See the QBiC MS-1 Start up Guide for iOS at:
http://www.elmousa.com/sites/default/files/QBiC MS-1 Quick Start Guide iOS.pdf
After downloading the QBiC APP:
1. Turn on the camera.
2. Verify that the [Wi-Fi LED] flashes blue and then turns
on (this ensures the Wi-Fi function is activated). If the
[Wi-Fi LED] does not turn on, press the [Wi-Fi Switch] to
activate it.
6. The Password menu appears.
Enter “1234567890”.
7. Tap the [Connect] button.
8. The connection status of [QBiC MS-1] becomes
“Connected.”
9. Close the Wi-Fi setting menu to return to the Home
screen.
10. Open the application [QBiC App] from the Home
screen.
11. The Live view is displayed and the image from the
camera appears on the screen.

-
Capture photo
Tap on the screen to display menu icons.
Tap on Camera icon.
5
Using QBiC APP - Menu Overview
Saved
photos/
videos
Angle of
View
White
balance
Self-timer
Wide Dynamic
Range shooting
Exposure
settings
Resolution (includes High-speed
shooting options)
Start/Stop
Video
recording
shooting
Camera Settings
Metering
Distortion Correction
Image Stabilization
Image Rotation
Photo shooting mode
Burst shooting mode
Interval Recording mode
Wi-Fi Settings
Streaming settings
Camera Wi- Auto-o
From Live View mode, tap on the screen to display menu icons.
Using QBiC APP - Menu Overview
Record Video
Tap on Video Recording icon to start recording.
Tap on Video Recording icon again to stop
recording.
Using QBiC APP - Capturing photos and Recording video
Grid
Display

iOS
QBiC
6
Using QBiC APP - View saved images and videos
Using QBiC APP - Wide Angle Options
1. Tap on the screen to display menu icons.
Tap on File.
1. Tap on the screen to display menu icons.
Tap on the Angle Option icon.
2. Tap the Camera icon (to access saved content
on camera’s SD card) and Saved images icon
(select Saved videos icon to display video
recordings). Tap the image thumbnail to view full
screen.
2. Choose from 185°, 165° or 135°. Tap “OK”.

MS-
7
1. Ensure the mobile device is connected via Wi-Fi to
the MS-1. Tap “File” in the QBiC App to go to saved
files.
2. Tap the “Camera” icon to display saved videos or
images from the sd card. Select “Saved videos” or
“Saved photos.”
Then tap the “Edit” icon at the bottom of the screen.
3. Select the image(s) (or videos, if in video mode) to
be saved to the mobile device. Then tap “Download”
icon at the bottom of the screen.
Using QBiC APP - Saving Photos and Video to QBiC App
4. Choose “OK” to download. Click “OK” again after
downloading.
5. Tap the return arrow and select the “Mobile Device”
icon to view photos and videos save to the mobile
device.
See page 8 to send and upload contect to social
media.

8
QBiC APP
This camera and the application software QBiC App will be updated from time to time to improve their
performance and functionality.
Get the latest information from the following QBiC Product Website:
QBiC Product Website: http://www.elmoqbic.com/
Updating QBiC MS-1 and QBiC App
Using QBiC APP - Sending or Uploading to Social Media
1. In the “File” screen, select the “Mobile Device” icon
to view photos and videos saved to the mobile device.
Tap the “Edit” icon at the bottom of the screen.
2. Select the image(s) (or videos, if in video mode) to
be uploaded to social media or sent. Then tap
“Upload” icon at the bottom of the screen.
3. Choose how to upload or send the image(s) (or
videos).
In order to upload or send content, ensure that the
content has already been saved to the QBiC App
from the QBiC MS-1’s SD card. See page 7 for
details.
