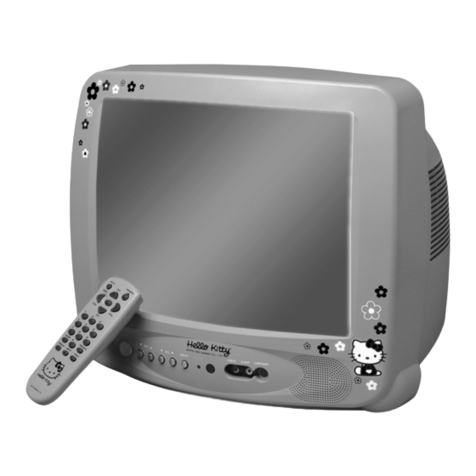

Emerson Hello Kitty HKTV13 User manual

SERVICE MANUAL HKTV13
MODEL
CAUTION
Before servicing the chassis, read the “IMPORTANT SERVICE SAFETY INFORMATION” on pages1 and 2
of this manual.
14” REMOTE CONTROL COLOR TELEVISION
WITHONSCREENDISPLAY
SPECIFICATIONS
AC POWER INPUT ……………………………. 108V to 132V, 60Hz
AC POWER CONSUMPTION …………………… 57Watts @ 120V
PICTURE SIZE ………………….. 14”(MEASURED DIAGONALLY)
FOCUS LENS ……………………………………………... Bipotential
AUDIO POWER OUTPUT RATING …………… 1.2W @ 10% THD
FREQUENCY RESPONSE ………………………. 250Hz 0±3dB
6KHz-3±3dB
SPEAKER SIZE …………………………………. 50 x 70mm /OVAL
VOICE COIL IMPEDANCE ………………………. 8 ohms @ 1KHz
ANTENNA INPUT IMPEDANCE …………… 75 ohm Coaxial Input
RECEIVINGCHANNELS
VHF ..…………………………………………………………… 2-13
UHF ..…………………………………………………………. 14-69
CATV ..……………………………………………… 01-97 (5A-A3)
98-99(A2-A1)
14-12(A-1)
23-36(J-W)
37-65 (AA-FFF)
66-125 (GGG-125)
INTERMEDIATEFREQUENCY
Picture IF Carrier Frequency ………………………….. 45.75MHz
Sound IF Carrier Frequency …………………………… 41.25MHz
Color IF Carrier Frequency …………………………….. 42.17MHz
WEIGHT ………………………………………………………. 9.5 Kgs
DIMENSIONS ……………………… 376(W) x 341(H) x 376(D) mm
CONTENTS
IMPORTANT SERVICE SAFETY INFORMATION ……………… 1
GUIDELINES FOR COLOR TELEVISION RECEIVERS …. 1
BLOCK DIAGRAM ………………………………………………..... 3
ALIGNMENT INSTRUCTIONS ……………………………………. 4
SERVICE MODE ADJUSTMENTS ………………………..… 4
ASSEMBLYADJUSTMENTS …………………………..…..... 5
PARENTAL CONTROL PASSWORD SETTINGS ….……… 9
VOLTAGE CHART …………………………………………………. 10
WAVEFORMS …………………………………………………........ 13
SCHEMATIC DIAGRAM …………………………………………... 16
EXPLODED VIEW …………………………………………………. 17
ELECTRICALPARTS LIST ……………………………….……… 18
APPENDIX
IC DESCRIPTION ………………………………………………….. 25
TROUBLESHOOTING CHART …….…………………………….. 32
NO POWER …………………………………………………... 32
NO PICTURE …………………………………………………. 33
NO SOUND …………………………………………………… 34
CH DON’T STOP …………………………………………….. 35
NO COLOR …………………………………………………… 36
NO VERTICAL DEFLECTION ……………………………… 36
NO ON-SCREEN DISPLAY………………………………… 37
REMOTE CONTROL DOES NOT OPERATE ……………. 37
SERVICE PUBLICATION #24-2001
Note. All the specifications and features are subject to change without notice. EMERSON RADIO CORP.
ⓒCopyright 2001, Emerson Radio Corp. All rights reserved. Parsippany, NJ 07054
www.emersonradio.com

1
IMPORTANT SERVICE SAFETY INFORMATION - Guidelines for Color Television Receivers
CAUTION : Do not attempt to modify this product in any way. Unau-
thorized modifications will not only void the warranty, but may lead to
your being liable for any resulting property damage or user injury.
Service work should be performed only after you are thoroughly
familiar with all of the following safety checks and servicing guide-
lines. To do otherwise, increases the risk of potential hazards and
injury to the user.
SAFETY CHECKS
Aftertheoriginalserviceproblemhasbeencorrected,acheckshould
be made of the following:
SUBJECT : FIRE & SHOCK HAZARD
1. Be sure that all components are positioned in such a way as to
avoid possibility of adjacent component shorts. This is especially
important on those chassis which are transported to and from the
repairshop.
2.Neverrelease a repair unless all protective devices such as insula-
tors, barriers, covers, shields, strain reliefs, and other hardware
have been reinstalled per original design.
3.Solderingmustbeinspectedtodiscover possible cold solderjoints,
frayed leads, damaged insulation (including A.C. cord), solder
splashes or sharp solder points. Be certain to remove all loose for-
eign particles.
4. Check for physical evidence of damage or deterioration to parts
and components, and replace if necessary. Follow original layout,
lead length and dress.
5.No leadsorcomponents shouldtoucha receivingtubeor aresistor
rated at 1 watt or more. Lead tension around protruding metal sur-
faces must be avoided.
6. All critical components such as fuses, flameproof resistors, capaci-
tors, etc. must be replaced with exact factory types. Do not use
replacement components other than those specified or make
unrecommendedcircuitmodifications.
7. After re-assembly of the set always perform an A.C. leakage test
on all exposed metallic parts of the cabinet, (the channel selector
knob, antenna terminals, handle and screws) to be sure the set is
safe to operate without danger of electrical shock. Do not use a
line isolation transformer during this test. Use an A.C. voltmeter,
having 5000 ohms per volt or more sensitivity, in the following
manner: connect a 1500 ohm 10 watt resistor, paralleled by a 0.15
mfd. 150V A.C. type capacitor between a known good earth
ground (water pipe, conduit, etc.) and the exposed metallic parts,
one at a time. Measure the A.C. voltage across the combination of
1500 ohm resistor and .15 MFD capacitor. Reverse the A.C. plug
and repeat A.C. voltage measurements for each exposed metallic
part. Voltage measured must not exceed 0.75 volts R.M.S. This
corresponds to 0.5 milliamp A.C. Any value exceeding this limit
constitutes a potential shock hazard and must be corrected imme-
diately.
GRAPHIC SYMBOLS :
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to alert
theservicepersonneltothe presence of uninsu-
lated “dangerous voltage” that may be of suffi-
cient magnitude to constitute a risk of electric
shock.
The exclamation point within an equilateral tri-
angle is intended to alert the service personnel
to the presence of important safety information
inservice literature.
Fuse symbol is printed on pcb adjacent to the
fuse, with “RISK OF FIRE REPLACE FUSE AS
MARKED”. The symbol is explained in the ser-
vice manual with the following wording or equiv-
alent.
“CAUTION : FOR CONTINUED PROTECTION AGAINST FIRE
HAZARD, REPLACE ONLY WITH SAME TYPE (4A, 125V)” and
“ ATTENTION : AFIN D’ASSU UNE PROTECTION PERMANENTE
CONTRE LES RISQUES D’INCENDIE, REMPLACER UNIQUE-
MENT PAR UN FUSIBLE DE MEME TYPE ET DE ”4A, 125V”.
SUBJECT : X-RADIATION
the subject of X-radiation.The only potential source of X-rays in
current T.V. receivers is the picture tube.
However, this tube does not emit X-rays when the high voltage is
atthe factory specified level.Theproper value isgivenin the appli-
cable schematic. Operation at higher voltages may cause a failure
of the picture tube or high voltage supply and, under certain cir-
cumstances, may produce radiation in excess of desirable levels.
2. Only factory specified C.R.T. anode connectors must be used.
Degaussing shields also serve as X-ray shield in color sets.
Alwaysre-installthem.
3. It is essential that the serviceman has available an accurate and
reliable high voltage meter. The calibration of the meter should be
checked periodically against a reference standard. Such as the
one available at your distributor.
4. When the high voltage circuitry is operating properly there is no
possibility of an X-radiation problem. Every time a color chassis is
serviced, the brightness should be run up and down while monitor-
ingthehigh voltage with a meter tobecertainthat the high voltage
does not exceed the specified value and that it is regulating cor-
rectly. We suggest that you and your service organization review
test procedures so that voltage regulation is always checked as a
standardservicing procedure. Andthatthe high voltagereadingbe
recorded on each customer’sinvoice.
5. When troubleshooting and making test measurements in a receiver
with a problem of excessive high voltage, avoid being unnecessarily
close to the picture tub e and the high voltage compartment.
Do not operate the chassis longer than is necessary to locate the
cause of excessive voltage.
6. Refer to HV, B+and Shutdown adjustment procedures described in
the appropriate schematic and diagrams(where used).
10WATT
Good earth ground,
such as the water
pipe, conduit, etc. 1500 OHM
A.C. VOLTMETER
Place this probe
on each exposed
metal part.
0.15 uF
1. Be sure procedures and instructions to all service personnel cover

2
SUBJECT : IMPLOSION
1. All direct viewed picture tubes are equipped with an integral implo-
sion protection system, but care should be taken to avoid damage
during installation. Avoid scratching the tube. If scratched, replace
it.
2. Use only recommended factory replacement tubes.
SUBJECT : TIPS ON PROPER INSTALLATION
1. Never install any receiver in closed-in recess, cubbyhole or closely
fitting shelf space over, or close to heat duct, or in the path of
heatedairflow.
2. Avoid conditions of high humidity such as : Outdoor patio installa-
tions where dew is a factor. Near steam radiators where steam
leakage is a factor, etc.
3. Avoid placement where draperies may obstruct rear venting. The
customer should also avoid the use of decorative scarves or other
coverings which might obstruct ventilation.
4. Wall and shelf mounted installations using a commercial mounting
kit, must follow the factory approved mounting instructions. A
receiver mounted to a shelf or platform must retain its original
feet(or the equivalent thickness in spacers) to provide adequate
air flow across the bottom, bolts or screws used for fasteners
must not touch any parts or wiring. Perform leakage test on cus-
tomized installations.
5. Caution customers against the mounting of a receiver on sloping
shelf or a tilted position, unless the receiver is properly secured.
6. A receiver on a roll-about cart should be stable on its mounting to
thecart. Caution thecustomeronthe hazards oftryingto roll acart
with small casters across thresholds or deep pile carpets.
7.Cautioncustomersagainst the use of a cart or stand which has not
been listed by underwriters laboratories, inc. For use with their
specific model of television receiver or generically approved for
usewithT.V.’s of the same or larger screen size.

3
BLOCK DIAGRAM

4
ALIGNMENT INSTRUCTIONS
1. SERVICE MODE ADJUSTMENTS
Follow the steps below whenever service adjustment is required. See Table- A and Table- B to determine if
service adjustments are required.
1) How to enter the service mode using the user remote control.
• Turn the set on.
• Direct the remote control to the reception window of TV.
• Push buttons of remote control in sequence as follows.
1 → MUTE → DISPLAY → MUTE
• Then, the screen will appear as follows.
• Using the channel up or channel down button, select the item you wish to adjust.
(The color of selected item turns into the red.)
• Press the volume up or down button to enter in the service mode you wish to adjust.
2) How to memorize the adjusted values in the service mode.
• After all of adjustments, adjusted data is memorized when you press the DISPLAYbutton
on the remote control.
Table-A : Adjust the values of service mode when a part is replaced.
PART
REPLACED
ADJUSTMENT NOTES
NECESSARY UNNECESSARY
I701
(U-COM) OData is stored in I703.
I101
(MAIN) O
I703
(EEPROM) O
Initial setting values are written from I701.
Adjusting Items
CRT OAdjust items related to picture tube only.(White Balance adjustment)
S2 SCRN
S5 IFC
S6 GEO
S8 W/B
S9 DP
S12 FACT
S7 PTRN NORMAL
S5 RFAGCD
S6 H.PHASE/V.POSI/V.SIZE
S8 RD/BD/RB/GB/BB
S9 Subbrightness

5
ALIGNMENT INSTRUCTIONS
Table-B
Note : Items marked with '*' vary. Please confirm.
2. ASSEMBLY ADJUSTMENTS
1) SCREEN ADJUSTMENT (S2)
• Enter the service mode and select service adjustment S2.
• You can see the one horizontal line on the screen.
• Adjust the Screen Control Volume (located on FBT) so that the horizontal line onscreen
disappears.
• Press the volume up or down button to exit in the screen adjustment mode.
MODE ADJUSTMENT ITEMS DATA REMARKS
INITIAL RANGE
S2 Screen Adjustment - -
S5
Auto RF AGC - -
Video Level (VIDEOL) 70 ~ 7 Must be set to 7
RF AGC Delay (RFAGCD) *0 ~ 63 Align RF AGC threshold
FM Level (FM.LEV) 80 ~ 31 Must be set to 20
AGC Point 3.75 -Select AGC reference voltage
A/DVALUE - -
S6
Horizontal Phase(H.PHASE) *0 ~ 31 Align sync to flyback pulse, using internal cross pattern(S7)
Vertical Position (V.POSI) *0 ~ 63 Align vertical DC bias, using internal cross pattern(S7)
Vertical Size (V.SIZE) *0 ~ 127 Align vertical amplitude, using internal cross pattern(S7)
NO SD POWER OFF YES -Automatically turn off in 15min for no received signal.
Vertical S-Correction (V SC) 00 ~ 31 Must be set to 6
Vertical Linearity (V LIN) 20 0 ~ 31 Must be set to 16
S7
Internal Black - - Display internal BLACK pattern
Internal 100% White - - Display internal 100% WHITE
Internal 60% White - - Display internal 60% WHITE
Internal Cross Pattern - - Display internal CROSS pattern
S8
Red Drive (RD) *0 ~ 127 Align RED OUT AC level
Green Drive (GD) 10 0 ~ 15 Must be set to 10
Blue Drive (BD) *0 ~ 127 Align BLUE OUT AC level
Red Bias (RB) *0 ~ 255 Align RED OUT DC level
Green Bias (GB) *0 ~ 255 Align GREEN OUT DC level
Blue Bias (BB) *0 ~ 255 Align BLUE OUT DC level
S9
Subbrightness *0 ~ 127 Align common RGB DC level
Contrast 10 0 ~ 27
Tint 27 0 ~ 27
Color 15 0 ~ 27
S12 Forwarding Mode -Factory Initialization
INTHE SCREENADJUSTMENT MODE,DON 'TPRESS OTHERBUTTONS EXCEPTVOLUME UPOR DOWNBUTTON.
NOTE

6
2) FOCUS ADJUSTMENT
• Turn in a local station and adjust the Focus Control knob (located on FBT) for best picture
details at high light condition.
3) RF AGC DELAY ADJUSTMENT (S5)
• Receive a good local channel.
• Enter the service mode and select service adjustment S5.
• You can see the OSD as shown below.
• Select RFAGCD item, press the volume up or down button until noise or beat in picture disappears.
• Press the DISPLAY button to memorize the data.
4) GEOMETRIC ADJUSTMENTS (S6)
• Enter the service mode and select service adjustment S7.
• Whenever you select the “S7” using the volume up or down button, the screen is changing like this.
• Using the volume up or down button, select internal cross pattern.
• Select service adjustment S6
• You can see the OSD as shown below.
4-1. Horizontal Position Adjustment
• Select H.PHASE item, adjust H.PHASE data value to obtain proper horizontal centering of the
internal cross pattern at the left and right of the screen.
4-2. Vertical Position Adjustment
• Select V.POSI item, adjust V.POSI data value to center the raster properly on the screen.
ALIGNMENT INSTRUCTIONS
IF CONTROL
AUTORFAGC START
VIDEOL 7
RFAGCD 10
FM.LEV 8
AGC POINT 3.75
A/D VALUE : 8DH
¡ã¡åMOVE ¢¸¢ºADJUST RECALL : SET
GEOMETRY
H. PHASE 20
V. POSI 29
V. SIZE 70
NO SD POWER OFF YES
VSC 0
VLIN 20
¡ã¡åMOVE ¢¸¢ºADJUST RECALL : SET
NORMAL BLACK WHITE100 WHITE60 CROSS

7
ALIGNMENT INSTRUCTIONS
4-3. Vertical Size Adjustment
• Select “V.SIZE” item, adjust “V.SIZE”data value to proper vertical size as follows.
5) WHITE BALANCE ADJUSTMENT(S8)
• Receive a good local channel.
• Enter the service mode and select service adjustment S8.
• You can see the OSD as shown below.
• Using volume up or volume down, adjust service adjustment data of RD/GD/BD and RB/GB/BB until a good gray
scale with normal whites is obtained.
• Press the DISPLAY button to memorize the data.
6) DIGITAL PRESET(D.P) ADJUSTMENTS(S9)
SUBBRIGHTNESS ADJUSTMENT
• Receive a good local channel.
• Enter the service mode and select service adjustment S9.
• You can see the OSD as shown below.
RD 58
GD 10
BD 65
RB 105
GB 160
BB 100
¡ã¡åMOVE ¢¸¢ºADJUST RECALL : SET
D.P.
SUB BRIGHTNESS 64
CONTRAST 10
TINT 27
COLOR 15
¡ã¡åMOVE ¢¸¢ºADJUST RECALL : SET

8
ALIGNMENT INSTRUCTIONS
• Select Subbrightness item, adjust Subbrightness data value to obtain normal brightness level.
• Press the DISPLAY button to memorize the data.
CONTRAST
• Fixed value = 27
TINT
• Fixed value = 32
COLOR
• Fixed value = 20
7) FACTORY OUTGOING MODE (S12 : FACT)
• If you select the S12, then the set becomes factory outgoing status.
• You can see the OSD “outgoing OK”

9
3. PARENTAL CONTROL PASSWORD SETTINGS
If the user forgetsthe password, set the Parental Control Password as follows.
1) CHANGE THE PASSWORD.
• Turn the set on.
• Direct the remote control to the Remote Sensor of the TV.
• Using the MENU buttons, select the Special menu.
• Using the the channel up ( ¡ã ) or down ( ¡å ) buttons, select parental control.
• Using the volume up ( ¢º ), set the password Menu.
• Push buttons of remote control in sequence as follows.
2 2 1 1
• Parental control password is reset.
• Using the 0~9 buttons, enter the password.
• Using the 0~9 buttons, repeat the password.
2) RESET THE PASSWORD
• Turn the set on.
• Direct the remote control to the Remote Sensor of the TV.
• Push buttons of remote control in sequence as follows.
1 › MUTE › INFO ›MUTE
• Then, the screen will appear as follows.
• Using the channel up ( ¡ã ) or down ( ¡å ) buttons, select S12 FACT.
Press the volume up ( ¢º ) button, the set becomes factory outgoing status.
• Parental control password is reset.
• Using the MENU buttons, select the parental control menu, set the new password.
ALIGNMENT INSTRUCTIONS
FIELDSVC
S2 SCRN V.=02h RCCR=00h
S5 IFC
S6 GEO
S8 W/B
S9 DP
S12 FACT
S7 PTRN NORMAL
¢ºS10 SOUND
Closed Caption : OFF
CC on Mute : OFF
Power Restore : OFF
Parental Control
Special
Select Enter n Exit
Enter the Password
# # # #
Parental control
[0 - 9] : Adjust n Exit
Enter New Password
Parental control
[0 - 9] : Adjust
n
Exit
Repeat the Password
# # # #
Parental control
[0 - 9] : Adjust
n
Exit

10
VOLTAGE CHART
MODE
LOC PIN ON OFF
I101 12.37 0
22.3 0
32.63 0
42.22 0.49
52.88 0
62.88 0
700
84.92 0.57
92.25 0
10 2.29 0.28
11 4.9 4.89
12 4.85 4.84
13 3.94 0
14 1.5 0
15 1.53 0
16 1.53 0
17 00
18 8.04 0
19 2.52 0
20 2.63 0
21 2.59 0
22 0.2 0
23 0.22 0
24 2.56 0
25 5.14 4.23
26 2.65 2.2
27 0.69 0.16
28 0.81 1.37
29 1.71 1.4
30 00
31 NC NC
32 2.79 0.31
33 00
34 00
35 0.36 0
36 3.41 0
37 0.55 0
38 2.81 0.35
39 3.27 0
40 0 0
41 0 0
42 2.52 0
43 4.95 0.5
MODE
LOC PIN ON OFF
44 2.73 0
45 1.94 0
46 2.36 0
47 2.44 0
48 4.25 0.51
49 4.25 0.51
50 3.56 0
51 3.04 0.65
52 1.98 0.32
53 2.39 0
54 3.11 0.3
MODE
LOC PIN ON OFF
I301 1 0 0
213.35 0
326.34 3.63
42.22 0
52.22 0
625.85 0
72.33 0
MODE
LOC PIN ON OFF
I401 17.62 0
200
35.05 0.6
MODE
LOC PIN ON OFF
I601 114.55 10.92
27.56 5.52
37.81 5.87
40.87 0.82
500
600
700
800
900
10 00
11 00
12 00
13 00
14 00
15 00
16 00

11
VOLTAGE CHART
MODE
LOC PIN ON OFF
I701 14.9 4.89
24.81 4.8
35.04 4.99
45.04 4.99
500
61.9 1.9
72.68 2.66
84.97 4.92
95.04 4.99
10 00
11 2.22 0.49
12 04.89
13 4.95 4.89
14 3.4 3.37
15 2.69 2.47
16 03.52
17 4.65 4.99
18 4.14 4.99
19 00
20 00
21 00
22 00
23 NC NC
24 NC NC
25 00
MODE
LOC PIN ON OFF
I701 26 00
27 3.81 3.46
28 4.97 4.92
29 4.77 4.71
30 5.04 4.99
31 4.08 0
32 5.04 4.99
33 00
34 5.04 4.99
35 00
36 00
MODE
LOC PIN ON OF
I703 100
200
300
400
54.89 4.86
64.86 4.83
700
85.04 4.99
MODE
LOC PIN ON OF
I801 16.72 4.12
2163.8 173.53
314.4 11.02
44.53 3.21
52.35 3.91
67.55 3.45
75.04 4.55

MODE MODE
LOC PIN
ON OFF
LOC PIN
ON OFF
C 5.10 5.03 C 4.67 5.02
E 3.36 3.32 E 0 0
Q201
B 2.52 2.48
Q702
B 1.25 0.13
C 38.67 37.58 C 5.09 5.01
E 0 0 E 0.63 0
Q401
B 0.31 0.01
Q703
B 1.25 0
C 0.54 0.01 C 5.00 4.95
E 0 0 E 5.03 4.98
Q403
B 0.01 0.68
Q704
B 4.40 4.34
C 9.50 0.02 C 5.10 5.03
E 0 0 E 0.45 4.25
Q404
B 0.01 0
Q707
B 0.06 4.94
C 3.58 0.02 C 2.36 1.25
E 3.65 0.01 E 0 0
Q501
B 3.55 0.11
Q708
B 0.26 0
C 0 0 C 0 0
E 1.33 0.03 E 133.2 111.95
Q570
B 0.63 0
Q804
B 132.6 111.61
C 0.6∼1.0 0.31 C 12.58 8.20
E 9.24 0.33 E 5.08 5.03
Q575
B 9.50 0
Q805
B 5.67 5.64
C 4.17 5.03 C 6.99 0.01
E 0 0 E 0 0
Q701
B 0.26 0
Q851
B 0.01 0.70
12
VOLTAGE CHART

13
WAVEFORMS
(1) I101 PIN 19 (2) I101 PIN 20
(3) I101 PIN 21 (4) I101 PIN 23
(5) I101 PIN 40 (5) I101 PIN 44
(7) I101 PIN 46 (8) I301 PIN7

14
WAVEFORMS
(9) I701 PIN 7 (10) I701 PIN 17
1) I701 PIN 18 (12) I801 PIN 2
(13) T402 PIN 25.5V (14) T402 PIN 10.5V
(15) T402 PIN HEATER (16) T402 PIN 200V

15
WAVEFORMS
(17) T401 PIN H.V.(18) T801 PIN 133V
(19) Q403 COLLECTOR (20) CRT SOCKET PIN B
(21) CRT SOCKET PIN R (22) CRT SOCKET PIN G

16
SCHEMATIC DIAGRAM

17
EXPLODED VIEW
NO PART NUMBER PART NAME Q’ty MATERIAL
1 4852075960
MASK FRONT 1 FR HIPS PK
2 4852157740
COVER BACK 1 FR HIPS PK
3,4 4851941300
BUTTON CTRL 1 4947700+5542501
5 4858314010
SPEAKER 1 SP-5070F01 3W 8ohm
6 7178301011
SCREW TAPPTITE 4 TT2 WAS 3X10 MFZN
7 4853214800
BRACKET 1 FR HIPS BK
8 4853535300
HOLDER BRKT 1 FR HIPS BK
9 4853535500
HOLDER CORD 1 NYROLN 66
10 4856215402
WASHER RUBBER 4 CR T2.0
11 4856013300
SCREW CRT FIX 2 30X80 BK
12 4856013301
SCREW CRT FIX 2 30X140 YL
13 PTRTPWH394 CRT AS 1 NTSC 14" ITC CRT AS
14 PTCPMSH552 CRT PCB ASS’Y 1 HKTV13(DTQ-14V6NK)
15 PTMPMSH552 MAIN PCB ASS’Y 1 HKTV13(DTQ-14V6NK)
16 4857027101
HEAT SINK 1 SPCC T1.0+SN
17 7174300811
SCREW TAPPTITE 1 TT2 RND 3X8 MFZN
18 4855415800
SPEC PLATE 1 150ART P/E FILM (C/TV)
19 7172401612
SCREW TAPPING 4 TT2 TRS 4X16 MFZN BK
20 7172401612
SCREW TAPPING 2 TT2 TRS 4X16 MFZN BK

LOC PART NUMBER PART NAME DESCRIPTION REMARK LOC PART NUMBER PART NAME DESCRIPTION REMARK
ZZ100 48B4343A06 TRANSMITTER REMOCON R-43A06 (AA) 40 2291050301 FLUX SOLVENT IM-1000
ZZ110 PTACPWH552 ACCESSORY AS HKTV13(DTQ-14V6NK) 50 2291140501 WAX COVER
00010 4850A02510 ANT ROD S3BW216B (L=600 MM) 80 2TP07545CL TAPE OPP 45X50 CLEAR
00040 4850A00250 TRANS ANT MATCHING IMT-06 100 2291130215 GREASE SILICON G-600
10000 48586001E2 MANUAL INSTRUCTION HKTV13(DTQ-14V6NK) C403 CCYB2H103K C CERA 500V B 0.01MF K
M821 4858213800 BAG INSTRUCTION L.D.P.E T0.05X250X400 C404 CMYH3C722H C MYLAR 1.6KV BUP 7200PF H
ZZ120 PTBCSHH552 COVER BACK AS HKTV13(DTQ-14V6NK) C406 CMYE2D434J C MYLAR 200V PU 0.43MF J
M211 4852157740 COVER BACK FR HIPS PK C801 CL1UC3104M C LINE ACROSS WORLD AC250V 0.1UF M R.47
M781 4857817611 CLOTH BLACK FELT 200X20X0.7 C802 CMYH3C332J C MYLAR 1.6KV BUP 3300PF J
ZZ130 PTPKCPH504 PACKING AS HKTV13(DTQ-14V6**) C804 CEYN2D331P C ELECTRO 200V LHS 330MF !
10 6520010100 STAPLE PIN AUTO W65 C881 CH1BFE472M C CERA AC AC400V 4700PF M U/C/V !
M801 485803871D BOX CARTON SW-2 C882 CH1BFE472M C CERA AC AC400V 4700PF M U/C/V !
M811 4858195400 PAD EPS D703 DLH2PR---- LED BLOCK LH-2P-R
M821 4858215700 BAG PE PE FOAM t0.5x1000X950 D801 DPBS208GUF DIODE BRIDGE PBS208GU-CA (FORMING) !
ZZ131 58G0000078 COIL DEGAUSSING DC-1400 ! F801 5F1GB4021L FUSE GLASS TUBE UL/CSA TL 4A 125V MF51
ZZ132 48519A4710 CRT GROUND NET 1401S-1015-1P I101 1DCT814B-- IC CHROMA DCT814B
ZZ140 PTCACAH552 CABINET AS HKTV13(DTQ-14V6NK) I301 PTC2SW7101 HEAT SINK ASS`Y 1LA7841--- + 7174300811
CRT1 PTRTPWH394 CRT AS NTSC 14" ITC CRT AS I301 1LA7841--- IC VERTICAL LA7841
V01 58D0000082 COIL DY ODY-M1489 !I301A 4857027101 HEAT SINK SPCC T1.0+SN
V02 2233030001 PAINT LOCK 760G I301B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN
V03 2TC18019BE TAPE CLOTH T0.18XW19X50M BEIGE I401 1K1A7805P1 IC REGULATOR KIA7805API
V04 2224050026 BOND SILICON RTV 122 CARTRIDGE I601 1TDA7267-- IC AUDIO AMP TDA7267
V05 4850PM001- MAGNET CP NY-225 (MINI NECK) I701 1DW8634PA1 IC MICOM DW863440V-PA1(5Y56)
V06 48A96R004- RUBBER WEDGE HMR 28 SR (|0X54) I703 124LC04B-- IC MEMORY 24LC04B
V901 48A96314C3 CRT BARE A34KQV42X !I801 1MA8630--- IC POWER MA8630 !
M201A 4856013300 SCREW CRT FIXING 30X80 BK I802 1LTV817C-- IC PHOTO COUPLER LTV-817C !
M201B 4856215402 WASHER RUBBER CR T2.0 I803 1DP133---- IC ERROR AMP DP133
M201C 4856013301 SCREW CRT FIXING 30X140 YL IL701 1SRV21M--- IC PREAMP SRV-21M
M211A 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK JP02 4859109950 JACK PIN BOARD PH-JB-9710A
M211B 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK JP03 4859109150 JACK PIN BOARD PH-JB-9615C
M541 4855415800 SPEC PLATE 150ART P/E FILM (C/TV) L111 58C5580019 COIL CHOKE TRF-9225 (0.55UH)
M681 4856812001 TIE CABLE NYLON66 DA100 L501 58N0000042 COIL VCO TRF-V008
SP01A 7178301011 SCREW TAPPTITE TT2 WAS 3X10 MFZN L801 5PLF24A1-- FILTER LINE LF-24A1 !
ZZ200 PTFMSJH552 MASK FRONT AS HKTV13(DTQ-14V6NK) M352 4853535500 HOLDER CORD NYROLN 66
M191 4851941300 BUTTON CTRL 4947700+5542501 M681 4856812001 TIE CABLE NYLON66 DA100
M201 4852075960 MASK FRONT FR HIPS PK 14V6 P401 4859240020 CONN WAFER YFW500-05
M321 4853214800 BRKT FR HIPS BK PWC1 4859907910 CORD POWER AS ME301P+TER=1830 !
M351 4853535300 HOLDER BRKT FR HIPS BK Q402 TKSC5386-- TR KSC5386
ZZ202 PTSPPWH407 SPEAKER AS HKTV13(DTQ-14** common) R801 RX07B229JP R CEMENT 7W 2.2 OHM J BEN 15MM 4P
PA601 4850703S50 CONNECTOR YH025-03+35098+ULW=200 R881 DEC7R0M140 POSISTOR ECPAC7R0M140 !
SP01 4858314010 SPEAKER SP-5070F01 3W 8 OHM RLY1 5SC0101338 SW RELAY DQ5D1-O(M)/GJ-SS-105LM !
ZZ290 PTMPMSH552 PCB MAIN MANUAL AS HKTV13(DTQ-14V6NK) RS801 DSVC471D14 VARISTOR SVC471D14A !
10 2193102005 SOLDER BAR SN:PB=63:47 S63S-1320 SF101 5PTSF5241P FILTER SAW TSF5241P
20 2193011101 SOLDER WIRE RS 60-1.2 1.6A T401 50D10A3--- TRANS DRIVE TD-10A3
30 2291050616 FLUX SOLDER JS-64T3 T402 50H0000210 FBT LTC-509 !
18
ELECTRICAL PARTS LIST
“ I “is a part related to safety. Please replace with exact replacement part.
CAUTION
!

LOC PART NUMBER PART NAME DESCRIPTION REMARK LOC PART NUMBER PART NAME DESCRIPTION REMARK
T801 50M3541T2- TRANS SMPS TSM-3541T2 !RC156 HRFT473JCA R CHIP 1/10 47K OHM J 2012
U102 4859721730 TUNER VARACTOR DT5-NF20F N RC223 HRFT224JCA R CHIP 1/10 220K OHM J 2012
X701 5XYR03276C CRYSTAL QUARTZ C-001R 32.768000KHZ 20PPM RC224 HRFT224JCA R CHIP 1/10 220K OHM J 2012
Z501 5PYXT4R5MB FILTER CERA XT 4.5MB RC225 HRFT392JCA R CHIP 1/10 3.9K OHM J 2012
ZZ200 PTMPJ2H552 PCB CHIP MOUNT B AS HKTV13(DTQ-14V6NK) RC226 HRFT101JCA R CHIP 1/10 100 OHM J 2012
CC151 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 RC228 HRFT103JCA R CHIP 1/10 10K OHM J 2012
CC152 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 RC229 HRFT750JCA R CHIP 1/10 75 OHM J 2012
CC153 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 RC453 HRFT103JCA R CHIP 1/10 10K OHM J 2012
CC154 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 RC454 HRFT102JCA R CHIP 1/10 1K OHM J 2012
CC155 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 RC455 HRFT331JCA R CHIP 1/10 330 OHM J 2012
CC528 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012 RC503 HRFT752JCA R CHIP 1/10 7.5K OHM J 2012
CC551 HCQK101JCA C CHIP CERA 50V CH 100PF J 2012 RC508 HRFT102JCA R CHIP 1/10 1K OHM J 2012
CC552 HCQK101JCA C CHIP CERA 50V CH 100PF J 2012 RC509 HRFT102JCA R CHIP 1/10 1K OHM J 2012
CC556 HCQK809DCA C CHIP CERA 50V CH 8PF D 2012 RC510 HRFT561JCA R CHIP 1/10 560 OHM J 2012
CC560 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 RC511 HRFT123JCA R CHIP 1/10 12K OHM J 2012
CC562 HCQK180JCA C CHIP CERA 50V CH 18PF J 2012 RC525 HRFT102JCA R CHIP 1/10 1K OHM J 2012
CC567 HCQK181JCA C CHIP CERA 50V CH 180PF J 2012 RC526 HRFT102JCA R CHIP 1/10 1K OHM J 2012
CC568 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 RC530 HRFT561JCA R CHIP 1/10 560 OHM J 2012
CC569 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 RC531 HRFT561JCA R CHIP 1/10 560 OHM J 2012
CC570 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012 RC533 HRFT390JCA R CHIP 1/10 39 OHM J 2012
CC571 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012 RC541 HRFT682JCA R CHIP 1/10 6.8K OHM J 2012
CC573 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012 RC542 HRFT332JCA R CHIP 1/10 3.3K OHM J 2012
CC575 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012 RC548 HRFT824JCA R CHIP 1/10 820K OHM J 2012
CC580 HCBK152KCA C CHIP CERA 50V X7R 1500PF K 2012 RC551 HRFT121JCA R CHIP 1/10 120 OHM J 2012
CC612 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012 RC556 HRFT000-CA R CHIP 1/10 0 OHM 2012
CC662 HCBK153KCA C CHIP CERA 50V X7R 0.015MF K 2012 RC557 HRFT182JCA R CHIP 1/10 1.8K OHM J 2012
CC752 HCQK180JCA C CHIP CERA 50V CH 18PF J 2012 RC558 HRFT103JCA R CHIP 1/10 10K OHM J 2012
CC753 HCQK180JCA C CHIP CERA 50V CH 18PF J 2012 RC559 HRFT331JCA R CHIP 1/10 330 OHM J 2012
CC754 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 RC561 HRFT561JCA R CHIP 1/10 560 OHM J 2012
CC755 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 RC562 HRFT914JCA R CHIP 1/10 910KOHM J 2012
CC756 HCQK221JCA C CHIP CERA 50V CH 220PF J 2012 RC565 HRFT123JCA R CHIP 1/10 12K OHM J 2012
CC757 HCBK333KCA C CHIP CERA 50V X7R 0.033MF K 2012 RC566 HRFT123JCA R CHIP 1/10 12K OHM J 2012
CC758 HCQK101JCA C CHIP CERA 50V CH 100PF J 2012 RC567 HRFT103JCA R CHIP 1/10 10K OHM J 2012
CC759 HCQK101JCA C CHIP CERA 50V CH 100PF J 2012 RC568 HRFT472FCA R CHIP 1/10 4.7K OHM F 2012
CC760 HCQK101JCA C CHIP CERA 50V CH 100PF J 2012 RC570 HRFT103JCA R CHIP 1/10 10K OHM J 2012
CC768 HCQK101JCA C CHIP CERA 50V CH 100PF J 2012 RC572 HRFT223JCA R CHIP 1/10 22K OHM J 2012
CC780 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 RC573 HRFT102JCA R CHIP 1/10 1K OHM J 2012
CC796 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012 RC576 HRFT000-CA R CHIP 1/10 0 OHM 2012
JC701 HRFT000-CA R CHIP 1/10 0 OHM 2012 RC577 HRFT201JCA R CHIP 1/10 200 OHM J 2012
JC702 HRFT000-CA R CHIP 1/10 0 OHM 2012 RC629 HRFT102JCA R CHIP 1/10 1K OHM J 2012
JC703 HRFT000-CA R CHIP 1/10 0 OHM 2012 RC630 HRFT104JCA R CHIP 1/10 100K OHM J 2012
JC704 HRFT000-CA R CHIP 1/10 0 OHM 2012 RC655 HRFT162JCA R CHIP 1/10 1.6K OHM J 2012
JC710 HRFT000-CA R CHIP 1/10 0 OHM 2012 RC701 HRFT220JCA R CHIP 1/10 22 OHM J 2012
RC105 HRFT153JCA R CHIP 1/10 15K OHM J 2012 RC704 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RC150 HRFT153JCA R CHIP 1/10 15K OHM J 2012 RC705 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RC151 HRFT104JCA R CHIP 1/10 100K OHM J 2012 RC706 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RC154 HRFT473JCA R CHIP 1/10 47K OHM J 2012 RC707 HRFT102JCA R CHIP 1/10 1K OHM J 2012
ELECTRICAL PARTS LIST
19
