INSTRUCTION MANUAL
ProSet 3400 Series
Pneumatic Blind Rivet Tool
INSTRUCTION MANUAL
ProSet® 3400 Series
Pneumatic Blind Rivet Tool

Page 2 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
Contents
Introduction...............................................................................................................................................2
Safety Instructions....................................................................................................................................3
Specifications ...........................................................................................................................................4
Packaged Accessories..........................................................................................................................4
Tool Requirements................................................................................................................................4
ProSet®3400 Tool Dimensions.............................................................................................................5
Common Nosepieces ...........................................................................................................................6
Basic Tool Operation ................................................................................................................................6
Front End Service.................................................................................................................................7
Mandrel Collection System (MCS) – ProSet®3400 MCS .....................................................................8
Cleaning the Collector Silencer.............................................................................................................8
Tool Assembly Torque Requirements....................................................................................................9
ProSet®3400/3400MCS Diagram ..........................................................................................................10
Parts List ................................................................................................................................................12
Hydraulic Oil Charging Procedure ..........................................................................................................14
Maintenance...........................................................................................................................................15
Safety Data.............................................................................................................................................16
Troubleshooting......................................................................................................................................17
EC Declaration of Conformity .................................................................................................................18
Notes......................................................................................................................................................19
Introduction
POP ®ProSet®3400 tools are light weight, Air/Hydraulic rivet setting tools recommended for use with genuine
POP ®Brand Rivets per the following chart:
Rivet Diameter
Rivet Type Material
(Body – Mandrel) 1/8”(*)
[3.2 mm]
5/32” (*)
[4.0 mm]
3/16” (**)
[4.8 mm]
1/4” (†)
[6.4 mm]
Al – Al 9999
Al – St / SS 9999
St – St 9999
Open End & MultiGrip™
SS – SS; Mo – St /SS 9999
Al – Al 9999
Al – St / SS; Cu – St 9999
St – St 9999
Closed End
SS – SS 9999
LSR Rivets Al – Al 999(†) NA
T - Rivet Al – St 999(†) 9
Self Plugger St – St 999(†) 9
HR™ Rivets St – St 999(†) 8
HS Rivets Al – Al; St – St, NA NA NA 9
Ultra-Grip®Al – Al; St – St; SS – SS NA NA 9(†) 9
Al: Aluminum, St: Steel, SS: Stainless Steel, Cu: Cooper, Mo: Monel . (*) Use PRG540-46 Jaws and FAN276-064 Jaw Pusher set up.
(**) Use PRG540-46 Jaws and DPN276-006 Jaw Pusher set up. (†) Use PRG540-44 Jaws and DPN276-006 Jaw Pusher set up.

A

A
Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 3
Safety Instructions
TO INSURE PROPER FUNCTIONING AND SAFE OPERATION READ THIS MANUAL
CAREFULLY BEFORE SETTING UP OR OPERATING THE POP ®ProSet®3400 SERIES TOOLS
1. DO NOT use this tool in a manner other than that recommended by Emhart Teknologies.
2. Always wear eye protection when using or when near a tool that is in use.
3. This tool is NOT designed for use in explosive atmospheres.
4. Inspect tool for damage before connecting to air supply including all air connections.
5. Trained personnel must perform tool repair and/or maintenance at the prescribed intervals.
6. Disconnect the air supply when adjusting, servicing or removing any part of the tool.
7. Keep fingers off the trigger when connecting the air supply or if the air supply fails.
8. Keep fingers away from the front of the tool when connecting the air supply or setting rivets.
9. DO NOT point the tool at anyone.
10. DO NOT operate tool with the Nose Housing removed.
11. DO NOT operate tool without the Deflector or Collector.
12. DO NOT modify the tool in any way. Modification will make void any applicable warranties
and could result in damage to the tool or physical injury to the user.
13. DO NOT look into the tool from the front or the back during use or when connected to air
supply.
14. The operating pressure must not exceed 100 psi (6.9 bar).
15. DO NOT direct tool exhaust towards anyone.
16. Wash hands if exposed to hydraulic fluid or lubricant.
17. Keep hair, fingers and loose clothing away from moving parts of the tool.

Page 4 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
Specifications
ProSet®3400 ProSet®3400MCS
Weight 4.19 lbs. (1.90 kg) 4.41 lbs. (2.00 kg)
Length 12.17” (309 mm) 13.15” (344 mm)
Height 12.44” (316 mm) 10.20” (316 mm)
Stroke 1.02” (26 mm) 1.02” (26 mm)
Air Consumption 0.172 cu. ft. per rivet
(4.86 lper rivet)
2.83 scfm (max.)
(80 l/min (max.))
Pulling Force 4160 lbs. @ 90 psi (18500 N @ 0.62 MPa)
Noise Level LAeq,T = 78.5 dB(A), LWA = 84.0 dB(A), LPeak = 103.6 dB(C)
Vibration Level 0.61 m/s2, Time to 2.5 m/s2> 24hrs (EAV)
Packaged Accessories
Qty Item ProSet®3400 ProSet®3400MCS Part No.
1 ProSet®3400 Rivet Tool 99-
1 Operating Instructions 99P449
1 Maintenance Manual 99P551
1 Nosepiece for 4 size open end rivets 99PRN414
1 Nosepiece for 5 size open end rivets 99PRN514
1 Nosepiece for 6 size open end rivets 99PRN614
1 Nosepiece for 8 size open end rivets Installed Installed PRN811
1 Jaw Pusher (Assy) for 4&5 size rivets 99FAN276-064
1 Air Line Assembly 99FAN276-154
1 4 mm Hex. Socket Screw Key 99DPN239-139
1 Warranty Card 99FG2184
Tool Requirements
Air supply * 6 scfm (150 l/min) Minimum
Recommended Operating Pressure 72.5-90 PSI (0.50-0.62 MPa) dry, filtered
Maximum Operating Pressure 100 PSI (0.69 MPa) dry, filtered
Hydraulic Oil ** POP ®p/n: PRG540-130 [1 qt. (.945 ml)]
Jaw Lubricant ** POP ®p/n: PRG510-130 [6 oz. (177 ml)]
Seal Lubricant ** POP ® p/n: PSA075508P [1 ¾ oz. (54 g)]
(*) Note: For best results and long service life, use dry, filtered air supply.
(**) Note: See lubricant safety information.

•
Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 5

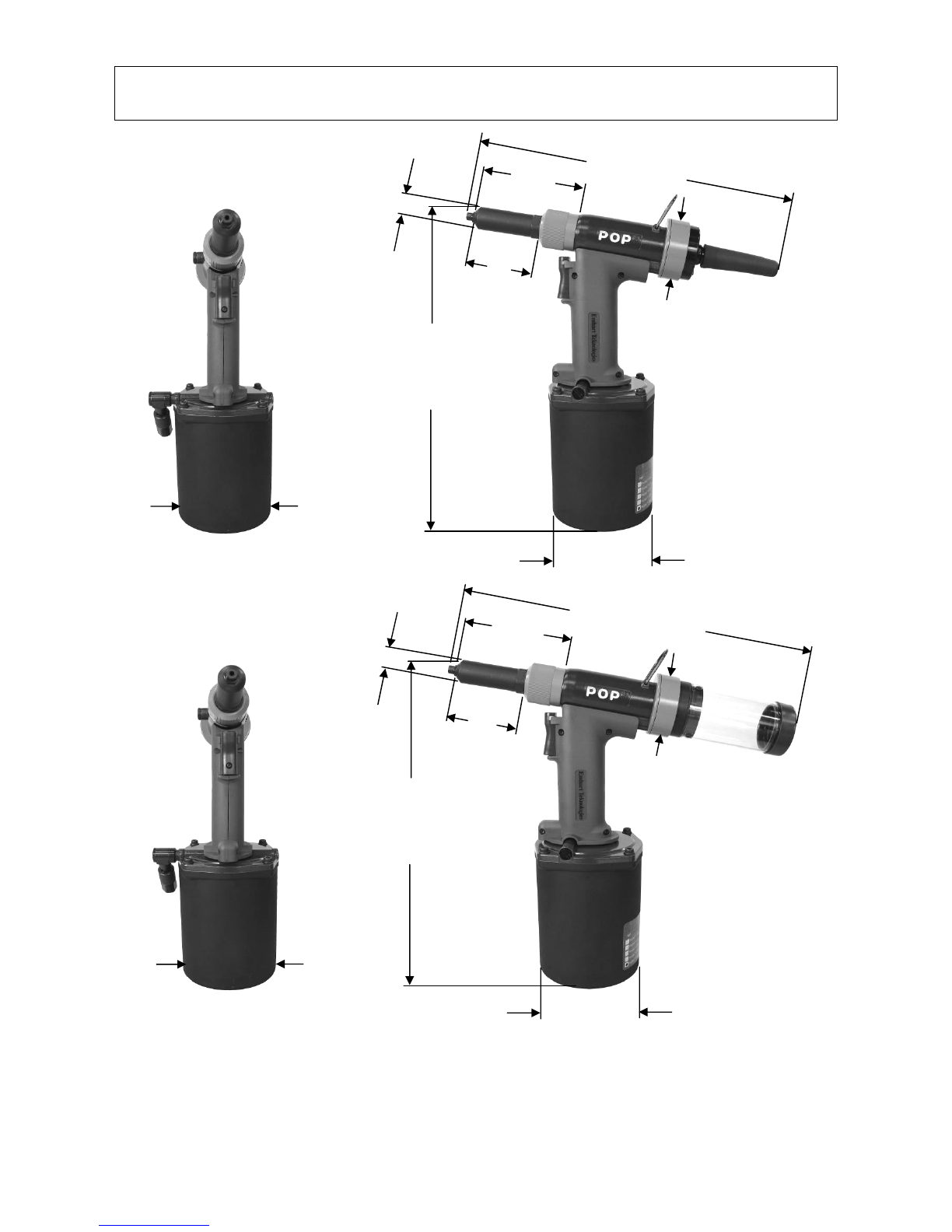

ProSet®3400 Tool Dimensions
ProSet
®
3400 MCS
ProSet
®
3400
4.21” (107 mm)
.882” (22.4 mm)
12.17” (309 mm)
12.44” (316 mm)
4.21” (107 mm)
2.32” (59 mm)
4.06”
(103 mm)
2.66” (67.5 mm)
4.21” (107 mm)
4.21” (107 mm)
.882” (22.4 mm)
12.44” (316 mm)
4.06”
(103 mm)
2.66” (67.5 mm)
2.32” (59 mm)
13.15” (334 mm)

Page 6 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
Common Nosepieces
* Included with the tool
For T-Rivets use PRN625 nosepiece when using 3/16” (4.8mm) diameter rivets and PRN825 for ¼” (6.4mm)
diameter rivets. For Monobolt®rivets use N-410 nosepiece for 3/16” (4.8mm) and N-414 for ¼” (6.4mm)
diameter rivets.
Basic Tool Operation
Before operating the tool check the following:
Inspect tool for damage or leaking oil – do not use tool if it is damaged or leaking oil.
Check that correct nosepiece is fitted and tightened to 60 - 65 in-lbs [6.8 – 7.3 N-m] torque.
Check that the Nose Housing Nut (8) is tight – hand tighten only.
Connect tool to air supply – see air supply requirements (page 4).
Fit Mandrel Collector (113) – (MCS tool only).
Open air supply valve by sliding red OS Slider (130) on side of tool (see note below).
Insert rivet into nosepiece.
Position rivet in work piece.
Pull trigger to set rivet.
Release trigger – if equipped, MCS suction will draw spent mandrel into the collector.
!Note: The ProSet®3400 has an OS (Open-Shut) Valve for switching the air supply ON and OFF to
save air when the tool is not in use.
Closed End HR Rivets
Rivet
Diameter Open End Steel
Mandrel
Aluminum
Mandrel
Aluminum
Body
Steel
Body
HS Rivets Ultra-Grip®Jaw Pusher
1/8”
(3.2 mm) PRN414* PRN424 PRN434 PRN414* PRN4HR - -
5/32”
(4.0 mm) PRN514* PRN524 PRN534 PRN514* PRN5HR - -
FAN276-064*
3/16”
(4.8 mm) PRN614* PRN624 PRN634 PRN614* PRN6HR - N-406
1/4”
(6.4 mm) PRN811* PRN822 - PRN811* - PRN8PS
PRN8PS or
N-407
DPN276-006*
Air Supply ON: Open OS Valve
by sliding OS Slider in the
direction shown (up).
Air Supply OFF: Close OS Valve
by sliding OS Slider in the
direction shown (down).
OS Slider

1
Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 7

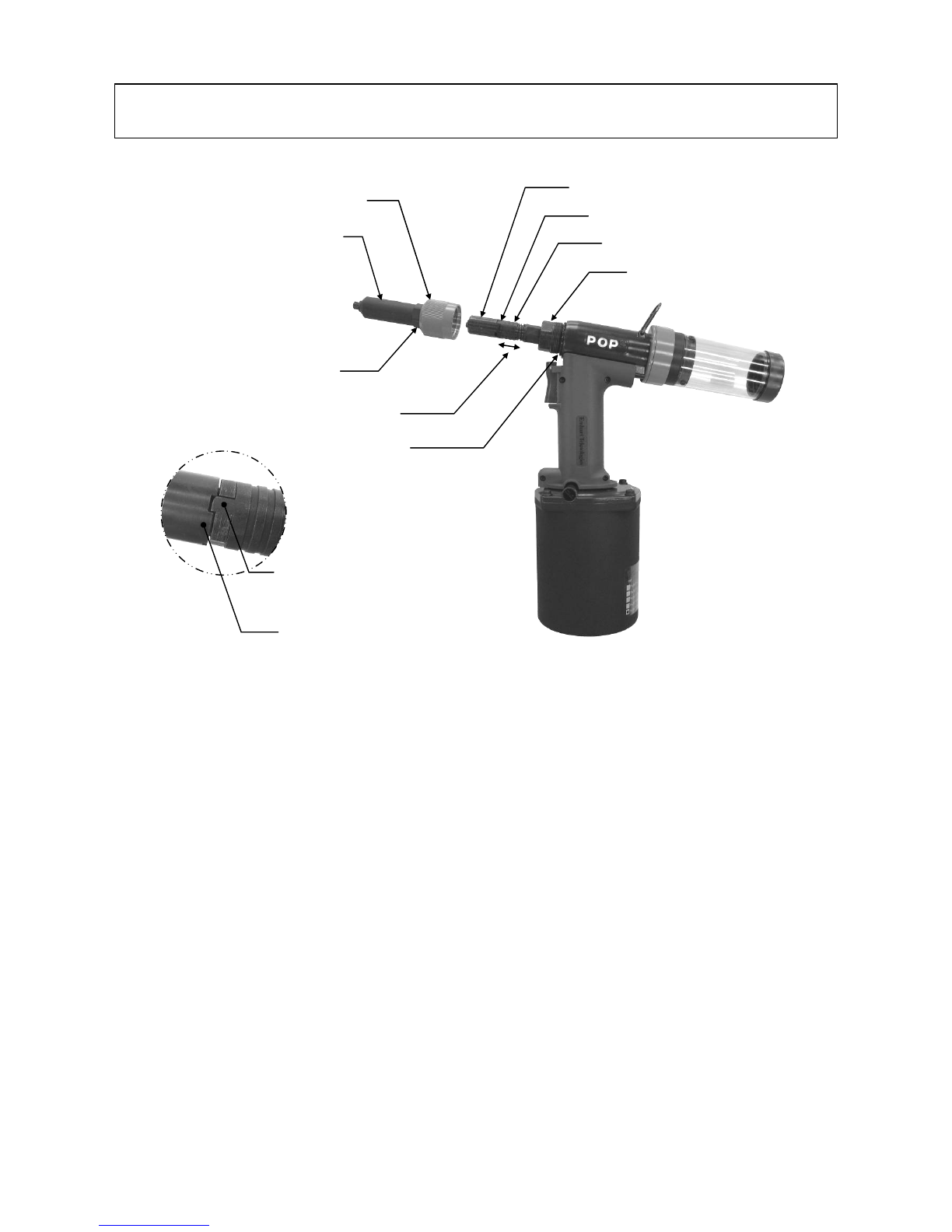

Front End Service
For optimum tool performance, Front-End maintenance should be performed regularly as per the “Preventative
Maintenance Schedule”.
!Note: UNPLUG AIR SUPPLY while servicing front-end to avoid INJURY.
1. REMOVE NOSE HOUSING:
Unscrew the Nose Housing Nut by hand and
slide Nose Housing off the tool.
2. REMOVE JAW GUIDE TO ACCESS JAWS
AND INTERNAL PARTS:
Pull back the Jaw Guide Lock to disengage the
Jaw Guide Lock teeth and unscrew and remove
the Jaw Guide.
Remove Jaws, Jaw Pusher, and Jaw Pusher
Spring for servicing.
3. CLEAN PARTS:
Clean Jaws, Jaw Guide, Jaw Pusher, Spring
and thread area of the Pulling Head.
Apply Seal Lubricant to outside surface of Jaws
and inside surface of the Jaw Guide.
4. REASSEMBLY OF INTERNAL PARTS AND JAW
GUIDE:
Place the Jaws into the Jaw Guide and slide the Jaw
Pusher Spring and Jaw Pusher into the Pulling Head.
Apply a small amount of Seal Lubricant to the Pulling
Head threads and Jaw Guide Lock teeth. Screw the Jaw
Guide onto the Pulling Head until it stops. Check to
make sure the teeth are engaged.
Apply Jaw Lubricant to the Jaw area by submerging the
assembled Jaw Guide into Jaw lube about 1 in. (25mm).
Clean off excess Jaw Lube from the outside of the Jaw
Guide.
(! Make sure the air supply is disconnected !)
5. REINSTALL NOSE HOUSING ASSEMBLY:
Refit the Nose Housing and hand-tighten the Nose
Housing Nut securely against the O-Ring. If the nut is
not tightened sufficiently against the O-Ring there may
be a loss of suction on the MCS tool version.
Nose Housing
Nose Housing Nut
Wrench Flat
Jaw Guide
Pulling Head
Jaw Guide Lock
Housing Adapter
O-Ring
Jaw Guide Lock motion
Pulling Head Locking Teeth.
Jaw Guide teeth

Page 8 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
Collector Silencer (119)
Collector End (121)
Collector End Cap (120)
Collector End Nut (122)

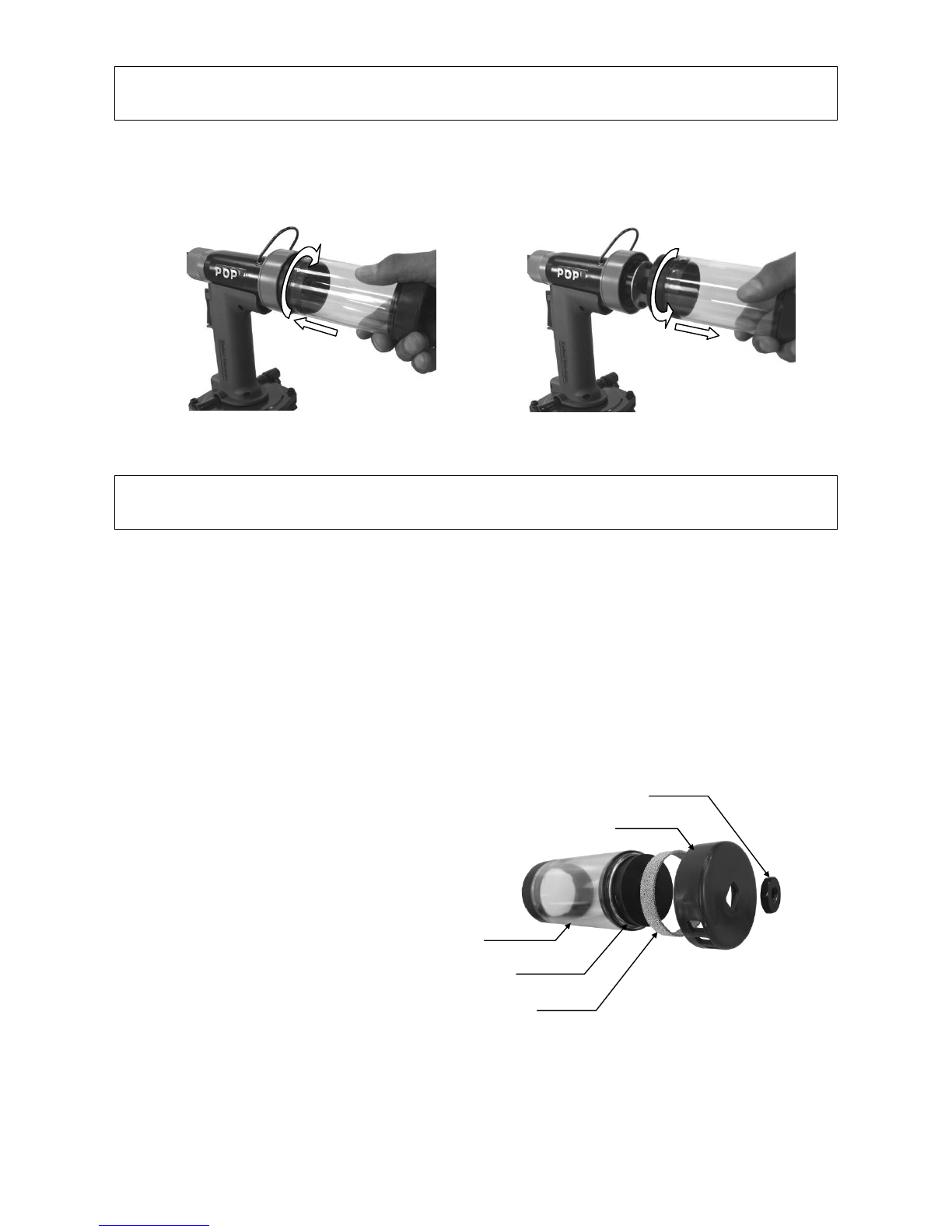

Mandrel Collection System (MCS) – ProSet®3400 MCS
For safety purposes, removing the Collector from the tool automatically turns the MCS suction OFF. Refitting
the Collector turns the MCS suction ON.
Cleaning the Collector Silencer
For optimum performance, the Collector Silencer should be cleaned at regular intervals as per the
“Preventative Maintenance Schedule”.
!Note: UNPLUG AIR SUPPLY while servicing Collector to avoid INJURY.
1. CLEAN THE COLLECTOR :
•Remove and empty the Collector (113) by turning counterclockwise.
•Remove the Collector End Nut (122) (17mm wrench) and remove the Collector End Cap (120).
•Remove the Collector Silencer (119).
•Clean and remove debris from all components.
Collector Body (118)
MCS suction ON MCS suction OFF

Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 9

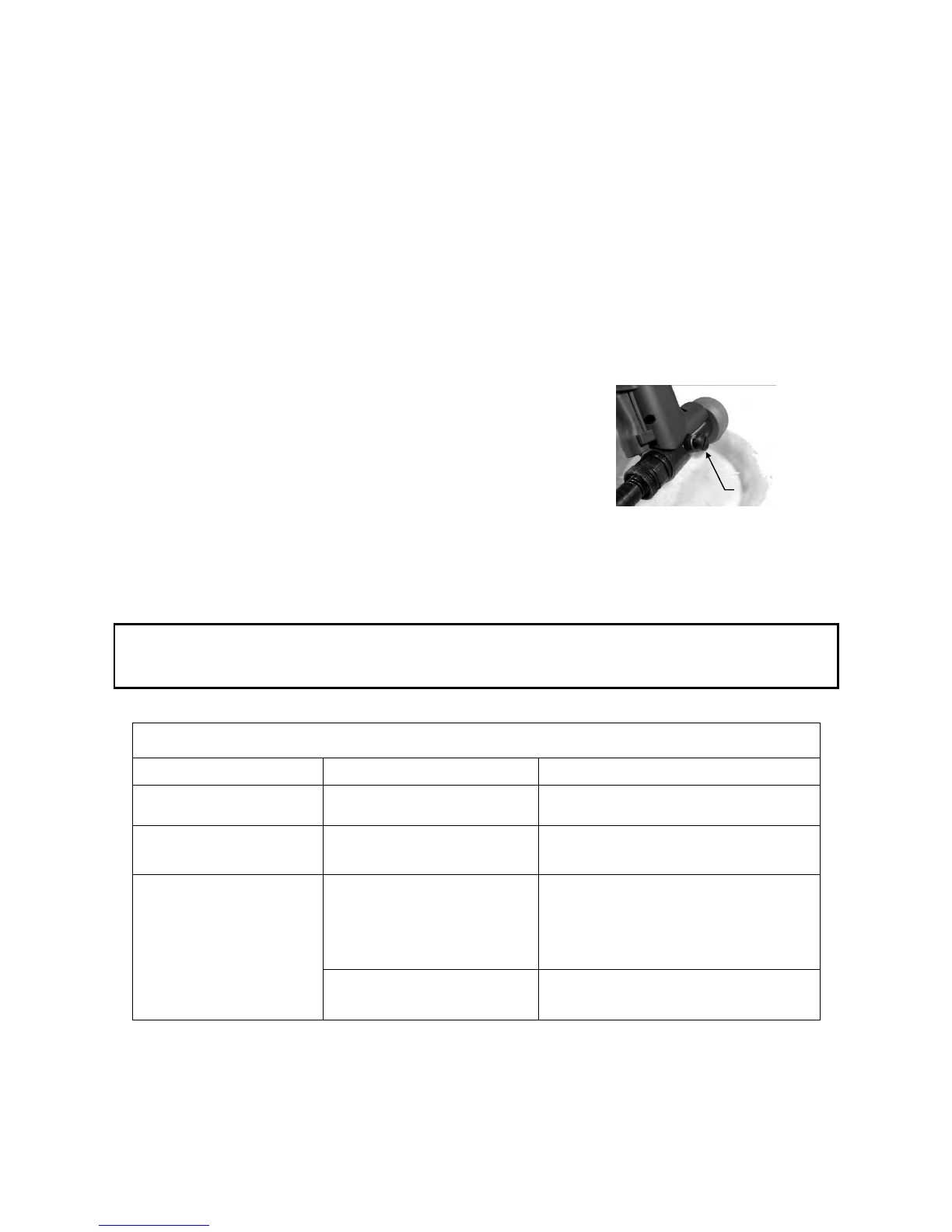

2. RE-ASSEMBLE THE COLLECTOR :
•Secure Collector End (121) to Collector Body (118). Use a screwdriver or similar tool to hold the
Collector End in place during re-assembly (see picture below).
•Place the Collector Silencer (119) onto the Collector End (121).
•Place Collector End Cap (120) on Collector End (121).
•Install and tighten Collector End Nut (122) on Collector End (121).
Tool Assembly Torque Requirements
Item Part No. Description Torque Value
1
137
136
135
PRN811
PRN614
PRN514
PRN414
Nosepiece 8 size
Nosepiece 6 size
Nosepiece 5 size
Nosepiece 4 size
60 – 65 in-lbs (6.8 – 7.3 N-m)
61 DPN276-031 Sleeve Lower 55 - 63 ft-lbs (75 - 85 N-m)
81 DPN276-043 Sleeve Lock Nut 44 - 52 ft-lbs (60 - 70 N-m)
111 DPN907-003 Socket Head Cap Screw 46 - 51 in-lbs (5.2 – 5.8 N-m)

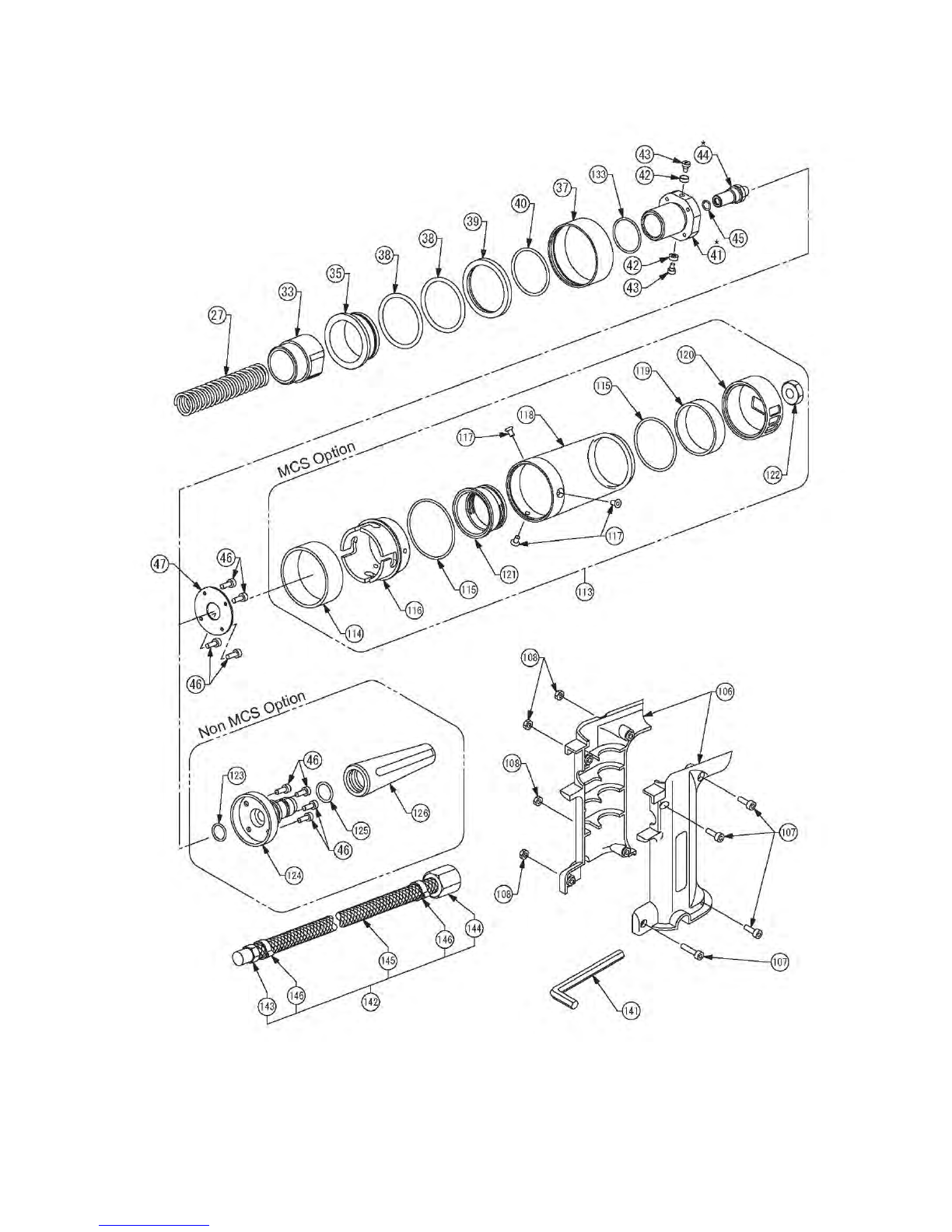

See exploded ProSet®3400/3400MCS Diagram
Screwdriver

ProSet
®
3400/3400MCS Diagram
Page 10  Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
Page 10 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
ProSet®3400/3400MCS Diagram

Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 11
(*) These items require Loctite®242 adhesive.
(†) These items have a specific tightening torque as indicated in the “Tool Assembly Torque Requirements” table.

Page 12 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
Parts List
Item Part No. Description 3400 3400
MCS
1 PRN811 Nosepiece 1 1
2 PRG540-44 Jaws 1 1
3 DPN276-001 Jaw Guide 1 1
4 DPN276-002 Pulling Head 1 1
5 DPN276-003 Jaw Guide Lock 1 1
6 DPN276-004 Nose Housing 1 1
7 DPN900-059 O-Ring 1 1
8 DPN276-005 Nose Housing Nut 1 1
9 DPN276-006 Jaw Pusher 1 1
10 DPN900-060 O-Ring 1 1
11 DPN901-019 Jaw Pusher Spring 1 1
12 DPN901-020 Spring 1 1
13 DPN276-007 Pulling Head Joint 1 1
14 DPN276-008 Hydraulic Piston 1 1
15 DPN276-009 Spacer Pipe 1 1
16 DPN276-010 Housing Adapter 1 1
17 DPN900-061 O-Ring 1 1
18 DPN276-011 Rod Seal Case 1 1
19 DPN908-015 Scraper 1 1
20 DPN900-062 O-Ring 1 1
21 DPN908-021 B.U-Ring 2 2
22 DPN908-022 Penta Seal 2 2
23 DPN900-063 O-Ring 1 1
24 DPN908-023 B.U-Ring 1 1
25 DPN900-064 O-Ring 1 1
26 DPN276-012 Handle Upper 1 1
27 DPN901-021 Return Spring 1 1
28 DPN900-065 O-Ring 2 2
29 DPN276-013 MCS Valve Case 1 1
30 DPN276-014 MCS Valve Rod 1 1
31 DPN900-066 O-Ring 2 2
32 DPN901-022 Spring 1 1
33 DPN276-015 End Cap Adapter 1 1
34 DPN276-016 MCS Cap Front 1 1
35 DPN276-017 Slider 1 1
36 DPN900-067 O-Ring 1 1
37 DPN276-019 MCS Cap Tail 1 1
38 DPN900-068 O-Ring 2 2
39 DPN276-018 Slider Pusher 1 1
40 DPN900-069 O-Ring 1 1
41 DPN276-020 End Cap 1 1
42 DPN276-061 Collar 2 2
43 DPN276-021 Collar Screw 2 2
44 DPN276-023 Ejector Guide 1 1
45 DPN900-013 O-Ring 1 1
46 DPN907-002 Socket Head Cap Screw 6 6
47 DPN276-024 End Cap Plate - 1
48 FAN276-022 Ejector (Assembly) 1 1
52 DPN900-045 O-Ring 2 2
53 DPN239-047 Fill Screw 1 1
54 DPN900-007 O-Ring 1 1
55 DPN900-070 O-Ring 1 1
56 DPN900-036 O-Ring 1 1
57 DPN276-028 Sleeve Upper 1 1
58 DPN276-029 Restrictor 1 1
59 DPN902-002 Retaining Ring 1 1
60 DPN276-030 Upper Plate 1 1
61 DPN276-031 Sleeve Lower 1 1
62 DPN276-085 Pan Head Screw 1 1
63 FAN276-033 Handle Lower Assembly 1 1
66 FAN276-036 Air Piston Assembly 1 1
69 DPN900-071 O-Ring 1 1
70 FAN275-022 EXT Valve (Assembly) 2 2
71 DPN275-025 EXT Valve Head 2 2
72 DPN901-008 EXT Valve Spring 2 2
73 DPN275-024 EXT Valve Case 2 2
74 DPN275-023 EXT Valve Rod 2 2
75 DPN900-030 O-Ring 2 2
Item Part No. Description 3400 3400
MCS
76 DPN900-072 O-Ring 1 1
77 DPN276-039 Tube Seal Case 1 1
78 FAN276-040 Tube Assembly 1 1
81 DPN276-043 Sleeve Lock Nut 1 1
82 DPN276-044 Bottom Plate 1 1
83 DPN276-045 J Valve Cap 1 1
84 DPN900-073 O-Ring 1 1
85 DPN900-012 O-Ring 1 1
86 DPN900-074 O-Ring 3 3
87 DPN900-035 O-Ring 1 1
88 DPN276-046 J Valve Rod 1 1
89 DPN239-069 EXT Silencer 1 1
90 DPN900-075 O-Ring 1 1
91 DPN900-076 O-Ring 1 1
92 DPN276-047 J Valve Fitting 1 1
93 DPN276-048 H.L Fitting 1 1
94 DPN276-049 Air Tube 2 2
95 DPN239-120 Fitting 2 2
96 FAN239-074 S Valve Case Assembly 1 1
99 DPN900-014 O-Ring 2 2
100 DPN902-001 Retaining Ring 1 1
101 DPN239-078 S Valve Rod 1 1
102 DPN906-001 Button Head Cap Screw 1 1
103 DPN239-150 Trigger 1 1
104 DPN900-015 O-Ring 2 2
105 DPN239-083 Connect Tube 1 1
106 DPN276-050 Handle R,L 1 1
107 DPN907-001 Socket Head Cap Screw 4 4
108 DPN239-086 Hexagon Nut 4 4
109 DPN276-051 Plug 1 1
110 DPN276-052 Chamber 1 1
111 DPN907-009 Socket Head Cap Screw 4 4
112 DPN276-063 Hook 1 1
113 FAN276-055 Collector (Assembly) - 1
114 DPN276-056 Collector Lock Collar - 1
115 DPN900-077 O-Ring - 2
116 DPN276-057 Collector Lock - 1
117 DPN903-001 Flat Head Cap Screw - 3
118 DPN276-058 Collector Body - 1
119 DPN276-059 Collector Silencer - 1
120 DPN276-060 Collector End Cap - 1
121 DPN276-062 Collector End - 1
122 DPN239-152 Collector End Nut - 1
123 DPN900-079 O-Ring 1 -
124 DPN276-080 Deflector Adapter 1 -
125 DPN900-022 O-Ring 1 -
126 PRG510-56 Deflector 1 -
127 DPN276-053 R Joint Spacer 1 1
128 DPN276-076 R Joint 1 1
129 DPN276-054 R Joint Adapter 1 1
130 DPN276-078 OS Slider 1 1
131 DPN900-078 O-Ring 2 2
132 DPN276-077 OS Joint 1 1
133 DPN900-080 O-Ring 1 1
Accessories
134 PRG540-46 Jaws 1 1
135 PRN414 Nosepiece 4 size 1 1
136 PRN514 Nosepiece 5 size 1 1
137 PRN614 Nosepiece 6 size 1 1
138 FAN276-064 Jaw Pusher (Assembly) 1 1
141 DPN239-139 HS Screw Key 4mm 1 1
142 FAN276-154 Air Line Assembly 1 1
143 DPN276-155 Air Line Fitting 1 1
144 DPN276-156 Hose Female Fitting 1 1
145 DPN276-157 Air Tube 1 1
146 DPN276-158 Ear Clamp 2 2

Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 13
Optional Parts and Kits are also available separately.
Part No. Description
FAN276-075 ProSet®3400 Font End Extension Kit –
7.9” length
Contains:
2 PRG540-44 Jaws 1
3 DPN276-001 Jaw Guide 1
5 DPN276-003 Jaw Guide Lock 1
7 DPN900-059 O-Ring 1
8 DPN276-005 Nose Housing Nut 1
9 DPN276-006 Jaw Pusher 1
10 DPN900-060 O-Ring 1
11 DPN901-019 Jaw Pusher Spring 1
12 DPN901-020 Spring 1
DPN276-067 Nose Housing 1
DPN276-068 Pulling Head Extension 1
DPN276-069 Pulling Head Joint 1
FAN276-072 Jaw Pusher (Assembly) 1
FAN276-152 ProSet®3400/3400MCS Seal Kit
Contains:
7 DPN900-059 O-Ring 1
17 DPN900-061 O-Ring 1
19 DPN908-015 Scraper 1
20 DPN900-062 O-Ring 1
21 DPN908-021 B.U-Ring 2
22 DPN908-022 Penta Seal 2
23 DPN900-063 O-Ring 1
24 DPN908-023 B.U-Ring 1
25 DPN900-064 O-Ring 1
45 DPN900-013 O-Ring 1
54 DPN900-007 O-Ring 1
69 DPN900-071 O-Ring 1
76 DPN900-072 O-Ring 1
86 DPN900-074 O-Ring 2
131 DPN900-078 O-Ring 2
Part No. Description
FAN276-165 ProSet®3400 MCS Retrofit Kit
Contains:
47 DPN276-024 End Cap Plate 1
113 FAN276-055 Collector Assembly 1
FA203-408 Remote MCS (MCS5000) Adaptor Kit
for 4, 5 & 6 Size Rivets
Contains:
MCS5000-78 Adapter Cap 1
MCS5000-81 Strain Relief 1
PRT5250-24 Tapered Bushing 4 size rivets 1
PRT5250-26 Tapered Bushing 5 & 6 size rivets 1
PRT5250-98 Fitting for 5 & 6 size rivets 1
PRT5250-99 Fitting for 4 size rivets 1
FA203-414 Remote MCS (MCS5000) Adaptor Kit
for 8 Size Rivet
MCS5000-23 3/8” Hose Fitting 2
MCS5000-24 3/8” Hose – 15ft 1
MCS5000-78 Adapter Cap 1
PRH840-3400 PRH840 Corner Head Adaptor
DPN276-081 Corner Head Adapter 1
DPN276-082 Draw Bolt 1
DPN905-008 Socket Set Screw 3
PRH840-19 Draw Bolt Pin 1
PRH850-3400 PRH850 Corner Head Adaptor
DPN276-083 Corner Head Adapter 1
DPN276-084 Draw Bolt 1
DPN905-008 Socket Set Screw 3
PRH850-19 Draw Bolt Pin 1
RP4-501 RP4/RP5 Receptacle for ProSet®3400
RP6-501 RP6 Receptacle for ProSet®3400

e
Page 14 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
Fig. 1
Socket Head Cap
Screw
(
111
)
Chamber (110)
Air Piston Assembly (66)
Tube Assembly (78)
Tube Assembly (78)
Hydraulic Oil Charging Procedure
! IMPORTANT. TOOL MUST BE DISCONNECTED FROM THE AIR SUPPLY. USE ONLY APPROVED
HYDRAULIC OIL SPECIFIED IN THIS MANUAL.
1. Disconnect from air supply.
2. Remove Nose Housing (6) and Collector (113).
3. Remove four Socket Head Cap Screws (111) using 4mm Hex-Key wrench
(141-accessory). (Fig. 1)
4. Turn tool upside down and remove Chamber (110).
Then pull out Air Piston Assembly (66) and Tube Assembly (78). (Fig. 2)
5. Drain the oil from the tool into a waste oil container.
6. Clean the dirt off the Air Piston Assembly (66) and inner Chamber (110)
with a clean rag.
Apply a thin layer of Seal Lubricant to inner Chamber.
7. Loosen Jaw Guide (3) approximately 3 full turns or a 0.12" (3mm) gap
and loosen Fill Screw (53) approximately 3 - 3½ full turns or a
0.14"(3.6mm) gap (Fig. 3).
8. Secure the tool upside down again and pour hydraulic oil into Sleeve Lower (61) to the level of
the Backup Ring (white part) (21). (Fig. 4)
9. Push Air Piston Assembly (66) into Sleeve Lower (61) to half-way point so that dirty hydraulic
oil and air bubbles will come out from the loosened Fill Screw (53).
Hold Air Piston Assembly until no more oil or bubbles come out. (Fig. 5)
10. Loosely tighten Fill Screw (53) and pull out Air Piston Assembly (66).
11. Pour more hydraulic oil into Sleeve Lower (61) to the level of
the Backup Ring and push Air Piston Assembly (66) into
Sleeve Lower (61). Push Air Piston inwards then outwards 5-6
times in a slow, constant motion.
Then pull it out and check for bubbles rising to the oil
surface.
If there are still bubbles, repeat the procedure until there
are no more bubbles (Fig. 6).
It may be necessary to repeat this procedure 2-3 times to bleed all bubbles
from the oil.
If after 3 attempts, there are still bubbles in the oil, go back to step No.5 and start again by draining the hydraulic oil.
Fig. 2
Fig. 6
Sleeve Lower (61)
Air Piston Assembly (66)
Fig. 4
Backup Ring (21)
Sleeve Lower (61)
0.12"(3mm)
Fig. 3
0.14"(3.6mm)
Fill Screw (53)
Jaw Guide (3)
Fig. 5
Fill Screw (53)
Air Piston Assembly (66)

Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 15
12. When there are no more bubbles in the oil, top off the hydraulic oil in the Sleeve Lower (61) to the level of the Backup
Ring (21).
13. Make sure the Jaw Guide (3) is loose (see step No.7). Push the Air Piston Assembly (66) and Tube Assembly (78)
into the Sleeve Lower (61) to the half-way point. While holding the Air Piston at the half-way point, replace the Nose
Housing and hand tighten.
14. With a clean rag, wipe off any oil on the Air Piston Assembly (66), Handle Lower Assembly (63), and Sleeve Lower
(61). Put Chamber (110) over Air Piston Assembly (66) then turn the tool upright and tighten the four Socket Head
Cap Screws (111) to a Torque of 65 - 75 in-lbs (7.5 – 8.5 N-m).
15. Remove the Nose Housing (6), and tighten the Jaw Guide (3) by hand until it stops.
16. Loosen the Fill Screw (53) approximately 3 - 3½ full turns or a 0.14"(3.6mm) gap to allow excess hydraulic oil and
bubbles to escape. When no more oil comes out, tighten the Fill Screw (Fig. 7).
17. Wipe off any dirt and oil on the tool.
18. Replace the Nose Housing (6) and Collector (113).
Maintenance
Preventative Maintenance Schedule
Item Action Frequency
Clean and lubricate Front
End of tool See “Front End Service” 1 x per day or
5,000 rivet settings.
Inspect jaws Look for broken jaws and
damage or wear on jaw teeth.
During “Front End Service” or when jaws
slip on mandrel.
Empty Collector
When the quantity of stored spent
Mandrels starts to interfere with
mandrels entering the Collector.
(Storage quantity depends on rivet –
approx. 50-60 1/4” (6.4mm) rivets).
Collector
Clean Collector Silencer
Once a week or when MCS suction will
not pull spent mandrels into the
Collector.
Note: Only use Emhart specified greases and lubricants
Fig. 7
Fill Screw (53)
Note: During assembly and disassembly, do not allow any metal swarf or dirt into the Hydraulic
Oil and inner Chamber.

Page 16 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
Safety Data
SEAL LUBE (P/N: PSA075508P)
LUBRIPLATE®130-AA
Manufactured by:
Fiske Brothers Refining Co.
Phone: [phone]
Emergency: [phone]
ALVANIA®EP Grease 1
Prod Code: 71124
Manufactured by:
Shell Oil Products
Phone: [phone]
MSDS#: 57072E-5
First Aid:
SKIN:
Remove any contaminated clothing and
wash with soap and warm water. If
injected by high pressure under skin,
regardless of the appearance of its size,
contact a physician IMMEDIATELY.
Delay may cause loss of affected part
of body.
INGESTION:
Call a physician immediately. Do not
induce vomiting.
EYES:
Flush with clear water for 15 minutes or
until irritation subsides. If irritation
persists, consult a physician.
Fire:
FLASH POINT: COC- 400°F
Cool exposed containers with water.
Use foam, dry chemical, carbon dioxide
or water spray.
Environment:
WASTE DISPOSAL:
Assure conformity with applicable
disposal regulations. Dispose of
absorbed material at an approved
waste disposal facility or site.
SPILLAGE:
Scrape up grease, wash remainder with
suitable petroleum solvent or add
absorbent.
Handling/ Storage:
Keep containers closed when not in
use. Do not handle or store near heat,
sparks, flame or strong oxidants.
Lubriplate®is a registered trademark of Fiske
Brothers Refining Company.
JAW LUBE (P/N: PRG510-130)
SUNPAR 107
Manufactured By:
Sunoco, Inc.
Emergency Phone: [phone]
First Aid:
SKIN:
Wash with soap and water until no
odor remains. If redness or
swelling develops, obtain medical
assistance. Wash cloths before
reuse.
INGESTION:
Do not induce vomiting! Do not
give liquids! Obtain emergency
medical attention. Small amounts
that accidentally enter mouth
should be rinsed out until taste of it
is gone.
EYES:
Flush with water.
Fire:
FLASH POINT: Greater than 200°F
Can be made to burn. Use water
spray, regular foam, dry chemical or
carbon dioxide.
Environment:
WASTE DISPOSAL:
Do not flush to drain or storm sewer.
Contract authorized disposal
service.
SPILLAGE:
Contain Spill. Absorb onto inert
material. Shovel, sweep or
vacuum spill.
Handling/ Storage:
NFPA Class IIIB Storage. Avoid
prolonged breathing of mist or
vapor. Avoid prolonged or
repeated contact with skin. Avoid
contact with eyes. Wash thoroughly
after handling.
HYDRAULIC OIL (P/N: PRG540-130)
MOBIL DTE 26
Manufactured By:
ExxonMobil Corporation
Emergency Phone: [phone]
MSDS Fax on Demand:
[phone] MSDS # 602649-00
Shell TELLUS 68
Manufactured By:
SOPUS Products
Health Information: [phone]
MSDS Assistance:
[phone] MSDS # 402288L-0
Distributed By:
Emhart Teknologies
Phone: [phone]
First Aid:
SKIN:
Remove contaminated clothing and
shoes and wipe excess from skin.
Flush skin with water, then wash with
soap and water. If irritation occurs,
get medical attention.
INGESTION:
Do not induce vomiting. In general, no
treatment is necessary unless large
quantities of product are ingested.
However, get medical attention.
EYES:
Flush with water. If irritation occurs, get
medical attention.
Fire:
FLASH POINT: 390°F/198.9°C
Material will float and can be re-ignited
on the surface of water. Use water fog,
‘alcohol foam’, dry chemical or carbon
dioxide (CO2) to extinguish flames. Do
not use a direct stream of water.
Environment:
SPILLAGE:
Soak up residue with an absorbent such
as clay, sand or other suitable material.
Place in a non-leaking container and
seal tightly for proper disposal.
Handling:
Wash with soap and water before
eating, drinking, smoking, applying
cosmetics or using toilet. Properly
dispose of leather articles such as
shoes or belts that cannot be
decontaminated. Use in a well
ventilated area.
Storage:
Store in a cool, dry place with adequate
ventilation. Keep away from open
flames and high temperatures.
Please refer to the actual MSDS for complete safety and handling
information. These can be obtained from the point of purchase.

Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 17
Troubleshooting
Symptom Probable Cause Remedy
TOOL FAILS TO OPERATE
Tool not connected to air supply.
OS Valve is in “OFF” position.
Insufficient air pressure.
Air pressure is too high.
Tool is low on hydraulic fluid.
Connect to recommended air supply source.
Slide OS Valve to ON position.
Adjust air supply pressure.
Adjust air supply pressure.
Service tool by qualified service personnel.
TOOL NOT RETURNING Possible jam due to debris in Nose Housing.
Perform “Front End Service” and check for debris
or damage.
TOOL LOSING STROKE Tool low on hydraulic fluid. Service tool by qualified service personnel.
JAWS SLIPPING ON MANDRELS Jaws dirty or need lubrication.
Jaws worn.
Clean and lube jaws.
Replace jaws.
JAWS FAIL TO OPEN
Dirty Nose Housing, Jaws or Jaw Guide.
Nose Housing or Nosepiece loose.
Excess hydraulic oil in tool.
Perform “Front End Service” and clean inside of
Nose Housing.
Tighten Nose Housing or Nosepiece.
Service tool by qualified service personnel.
MANDREL STICKING IN JAWS Jaws dirty or need lubrication.
Perform “Front End Service” to clean and
lubricate Jaws.
RIVET FAILS TO INSERT INTO
NOSEPIECE
Incorrect nosepiece.
Shear ring stuck in hole of nosepiece.
Install correct nosepiece.
Remove shear ring, check for the correct
Nosepiece and review application parameters to
ensure proper riveting.
RIVET MANDREL DOES NOT
BREAK
Rivet not fully set.
Mandrel break load requirement too high.
Insufficient air pressure.
Repeat stroke required, or change rivet.
Upgrade tool.
Adjust air supply pressure to recommended
level.
MCS NOT WORKING
Tool not connected to air supply.
Collector not tight or missing.
Mandrel path blocked.
Connect to recommended air supply source.
Check Collector.
Clear mandrel path.
LOW VACUUM
Dirty Collector Silencer.
Collector is full of mandrels.
Insufficient air pressure.
Clean or change Collector Silencer.
Discard the mandrels.
Adjust air supply pressure.

,
94' 4 -
Page 18 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
EC Declaration of Conformity
We, Emhart Teknologies
Tucker Fasteners Limited
Birmingham B42 1BP
United Kingdom.
Declare that:
ProSet®3400
ProSet®3400 MCS
Conforms to the following standards:
EN ISO 12100 part 1 and part 2 ISO prEN 15744
ISO 3744 EN 28662 - 1
ISO prEN 792 part 1 EN 12096
EN ISO 4871
Following the provisions of the Machine Directive 98/37/EEC which replaces Directive 89/392/EEC and its
amending Directives 91/368/EEC, 93/44/EEC and 93/68/EEC.
Signed: ____________________________________
Eymard Chitty, Vice President, R&D
Birmingham
1st. July 2008

Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 19
Notes

Blind Rivets
EMHART
-raccricer_ocims
A StanleyBlack&Decker, Inc. Company
Emhart Teknologies
USA Office
50 Shelton Technology Center
Shelton, CT 06484
Tel: 877-EMHART-1
FAX: [phone]
Canada Office
9870 Boulevard du Golf
Anjou, Quebec Canada
Tel: [phone]
FAX: [phone]
Mexico Office
Av. Antonio Dovali Jaime No 70
Torre B Piso 9
La Fe, Santa Fe
Mexico, D.F. 01210
Tel: [phone]
FAX: [phone]
www.emhartamericas.com
© Emhart Teknologies P551.r3 (01/12)
