POP NUT™
Tool
PNT800A
Maintenance Manual

Page 2 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
Page intentionally blank

Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 3
Contents
Introduction...............................................................................................................................................3
Safety Instructions....................................................................................................................................5
Specifications ...........................................................................................................................................6
Tool Parts..............................................................................................................................................7
Packaged Accessories..........................................................................................................................7
Tool Set Up...............................................................................................................................................8
Stroke Adjustment ....................................................................................................................................9
Basic Tool Operation ..............................................................................................................................14
PNT800A Diagram .................................................................................................................................18
Parts List ................................................................................................................................................20
Maintenance and Testing........................................................................................................................22
Troubleshooting......................................................................................................................................28
Safety Data.............................................................................................................................................30
EC Declaration of Conformity.................................................................................................................31
Introduction
The PNT800A is a small, lightweight tool for installing POP®brand POP NUT™ blind rivet nuts and
other blind threaded inserts. It is driven by compressed air.
Table 2-1 lists the POP NUT blind rivet nuts that can be fastened using this tool. The Nosepiece
and Mandrel must be changed to fit some sizes of POP Nut. (See table 2-2)
Table 2-1 Tool capacity
Thread Size
M3 M4 M5 M6 M8 M10
POP NUT Type Material
6-32 8-32 10-24 /
10-32 1/4-20 5/16-18 3/8-16
Steel 333333
Aluminum 333333
Standard nut
Stainless 33333
Steel 333333
Aluminum 333333
Closed End nut
Stainless 33333
Steel 33333
Hexgonal nut Aluminum 3333
Square nut Steel 3333
Knurled nut Steel 3333

Page 4 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
Table 2-2
Flat Nosepiece Mandrel
Thick Wall
POP NUT
Thread
size
POP NUT Tool
Part No.
Part No. I.D. Part No.
Thread
size
M3×0.5 PNT800A-3 PNT600-02-3 Φ4.0 PNT600-01-3 M3×0.5
M4×0.7 PNT800A-4 PNT600-02-4 Φ4.5 PNT600-01-4 M4×0.7
M5×0.8 PNT800A-5 PNT600-02-5 Φ5.1 PNT600-01-5P M5×0.8
M6×1.0 PNT800A-6 PNT600-02-6 Φ6.1 PNT600-01-6P M6×1.0
M8×1.25 PNT800A-8 PNT600-02-8 Φ8.1 PNT600-01-8 M8×1.25
M10×1.5 PNT800A-10 PNT600-02-10 Φ10.1 PNT600-01-10A M10×1.5
M4,M5,M6
set PNT800A
6 – 32 PNT800A-632R PNT600-02-632 Φ3.6 PNT600-01-632 6 – 32
8 – 32 PNT800A-832R PNT600-02-832 Φ4.3 PNT600-01-832 8 – 32
10 – 24 PNT800A-1024R PNT600-02-5 Φ5.1 PNT600-01-1024 10 – 24
10 – 24 PNT800A-1032R PNT600-02-5 Φ5.1 PNT600-01-1032 10 – 32
¼ - 20 PNT800A-420R PNT600-02-420 Φ6.5 PNT600-01-420 ¼ - 20
5/16 – 18 PNT800A-518R PNT600-02-8 Φ8.1 PNT600-01-518R 5/16 – 18
3/8 – 16 PNT800A-616R PNT600-02-10 Φ10.1 PNT600-01-616R 3/8 – 16
Piloted Nosepiece Mandrel
Thin Wall
TK, TL &
TH
POP NUT
Thread
size
POP NUT Tool
Part No.
Part No. I.D. Part No.
Thread
size
6 – 32 PNT800A-632P PNT600-02-3P Φ3.6 PNT600-01-632 6 – 32
8 – 32 PNT800A-832P PNT600-02-4P Φ4.3 PNT600-01-832 8 – 32
10 – 24 PNT800A-1024P PNT600-02-5P Φ5.1 PNT600-01-1024 10 – 24
10 – 24 PNT800A-1032P PNT600-02-5P Φ5.1 PNT600-01-1032 10 – 32
¼ - 20 PNT800A-420P PNT600-02-420P Φ6.5 PNT600-01-420 ¼ - 20
5/16 – 18 PNT800A-518P PNT600-02-8P Φ8.1 PNT600-01-518 5/16 – 18
3/8 – 16 PNT800A-616P PNT600-02-10P Φ10.1 PNT600-01-616 3/8 – 16
M4×0.7 PNT800A-4P PNT600-02-4P Φ4.3 PNT600-01-4P M4×0.7
M5×0.8 PNT800A-5P PNT600-02-5P Φ5.1 PNT600-01-5P M5×0.8
M6×1.0 PNT800A-6P PNT600-02-6P Φ6.1 PNT600-01-6P M6×1.0
M8×1.25 PNT800A-8P PNT600-02-8P Φ8.1 PNT600-01-8P M8×1.25
M10×1.5 PNT800A-10P PNT600-02-10P Φ10.1 PNT600-01-10P M10×1.5
* Refer to the Maintenance and Testing section for details of Nosepiece and Mandrel replacement.
I.D.Thread size M8×1.0
I.D.Thread size M8×1.0

Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 5
Safety Instructions
TO INSURE PROPER FUNCTIONING AND SAFE OPERATION READ THIS MANUAL
CAREFULLY BEFORE SETTING UP OR OPERATING THE POP NUT SERIES TOOLS
DEFINITIONS:
•CAUTION! – Failure to observe this precaution could result in physical damage or
minor injury.
•WARNING! – Failure to observe this precaution could result in physical damage,
serious injury or even death.
CAUTION!
1. DO NOT use this tool in a manner other than that recommended by Emhart Teknologies.
2. DO NOT modify the tool in any way. Modification will void any applicable warranties and
could result in damage to the tool or physical injury to the user.
3. Disconnect air supply when adjusting, servicing or removing any part of the tool.
4. Trained personnel must perform tool repair and/or maintenance at prescribed intervals.
5. Only use genuine Emhart Teknologies parts for tool maintenance and repair.
6. Do not operate the tool with the Nose Housing removed.
7. Keep fingers away from the front of the tool when connecting the air supply or using the
tool.
8. Do not attempt to turn the Mandrel when the air supply is connected.
9. Keep hair, fingers and loose clothing away from moving parts of the tool.
10. Do not direct tool exhaust towards anyone. The tool uses lubricated air and may eject oil
mist or debris.
11. Do not use organic solvents to clean the tool, this can damage the tool.
12. Wash hands thoroughly if exposed to hydraulic fluid or lubricant.
WARNING!
1. DO NOT exceed the maximum recommended air pressure of 0.6 MPa (87 psi / 6.0 bar).
2. DO NOT point the tool at anyone when in use.
3. Always wear safety rated eye protection when using or when near a tool in use.
4. Inspect the tool and connections for damage, worn or loose parts before connecting to the
air supply. If damaged, stop use immediately and have the tool repaired or replaced.
5. This tool is not designed for use in explosive atmospheres.

Page 6 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
Specifications
Table 3-1
Hydraulic oil
Use only Emhart Teknologies specified hydraulic oils as shown in Tabel 3-2.
Use of any other oil could reduce the tool performace or even damage the tool..
Table 3-2 Specified hydraulic oils
Company name Product name
Mobile Mobile DTE26
Shell Shell Telus Oil C68
Idemitsu Daphne Hydro 68A
Cosmo Cosmo Olpas 68
Esso Telesso 68
Nisseki FBK RO68
Mitsubishi Diamond Lube RO68 (N)
Feature Specification
Weight 1.68 kg (3.7 lbs)
Overall length 288 mm (11.3 in)
Overall height 263 mm (10.4 in)
Tool Stroke 1.3 - 6.3 mm (0.05 - 0.248 in)
Pulling Force 23.4 kN @ 5.0 bar ( 5260 lbf @ 72.5 psi)
Compressed air pressure required 0.5 - 0.6MPa (5 - 6 bar)
(72.5 - 87 psi)
Hydraulic Oil See Table 3-2 Specified Hydraulic Oils
Setting capacity See table 2-2
Tool Noise Level 72.7 dB(A)
Tool Vibration Level 0.92 m/s2/ 2.5 m/s2> 24hrs (EAV)
Figure 3-1

Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 7
Tool Parts
Packaged Accessories
Part No. Item Qty
PNT800A-T PNT800A POP NUT Tool 1
PNT600-132 Hook 1
PNT600-133 Hex wrench 1.5 mm 1
DPN907-006 Cap screw M4 X 20 1
DPN277-179 POP NUT Mandrel Release 1
FG2245 Operating Instructions 1
FG2244 Maintenance Manual 1
FG2222 Warranty Card 1
Air Chamber
Lock nut
Stroke Control
knob
Swivel fitting
(NPT 1/4)
Front case
Rear case
Mandrel
Nosepiece / Anvil
Nose Housing
Trigger
Handle
Fill screw
Coupler
（Plug）
Not included
Hose
Coupler
（Socket）
Exhaust holes
Exhaust holes

Page 8 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
Tool Set Up
1. Check that the correct Nosepiece and Mandrel are fitted for the POP Nut.
Adjust the protruding length of the Mandrel. (Refer to “Maintenance and Testing”
section B).
2. The thread type of the compressed air supply coupling is NPT 1/4.
Connect a joint or coupler of thread type NPT 1/4 to supply compressed air.
(The Coupler and Joint are not provided.)
3. An air filter, regulator and lubricator should be fitted in the air line between the
compressor and the tool, within 3m (6 ft) of the tool. Adjust the supply pressure and
the drip volume of the lubricator oil.
•Compressed air pressure: 0.5-0.6 MPa. (72.5-87 psi)
•Oil drip volume from the lubricator: 1-2 drops/ 20 nuts fastened
WARNING!
Use an air hose with a rating of 1.0 MPa (145 psi / 10 bar) or greater maximum ordinary
operating pressure. Also make sure the hose material is suitable for the operating
environment (i.e. oil proof, wear and abrasion resistance etc.).
*For details, refer to a hose manufacturer's catalog.
Coupler (Plug)
Thread size NPT 1/4
Regulator
I.D. 6.5mm
(
1/4”
)
Min.
Not attached
Hose
Compressor
Air filter
Lubricator
Figure 4-1
Cou
p
le
r
(
Socket
)
3m
(
6ft
)
Max.

Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 9
Figure 4-3
Figure 5-1
Work piece thickness
Maximum stroke (ＳMax )
Lock screw
(Never Loosen)
Lock screw
(Use 1.5mm hex)
Edge of control nut
Scale Control knob
Control nut
Figure 5-2
Stroke Adjustment
•Adjust the stroke length according to POP Nut size and the thickness of work piece.
•Make sure the tool has a consistent and adequate air supply.
•Note: The stoke may increase or decrease due to changes in air pressure [~0.1 mm (0.004
in) per 0.1 MPa (15 psi)]
PROCEDURE
1. Determine required stroke
Find Maximum Stroke (S max), Minimum Stroke (S min)
and Stroke (E), based on the POP Nut and work piece
thickness from Table 5-5 "POP Nut Stroke Formulas”
and Table 5-6 “S max vs. t Graph.”
Example:
POP Nut: SPH625
Work piece thickness: 1.5mm
S max = 3.4 from formula or graph
S min = 3.0 (S max −0.4.) from formula
E = 3.6 (S max + 0.2) from formula
Proper stroke: 3.0 ~ 3.4 (S min ~ S max)
2. Stroke Adjustment
a) Loosen the M3 lock screw on the control
nut using a 1.5mm hexagonal wrench. Adjust
stroke by turning control knob clockwise to
decrease and anti-clockwise to increase stroke.
Stroke, E is indicated by the right edge of
control nut. Tighten the lock screw (Figure 5-2).
Note: Never loosen the lock screw on the
control knob, as this will disturb the stroke.
b) Set a POP Nut and measure the stroke
with calipers etc. to check the stroke setting
‘E’.
Re-adjust the stroke according to (a) so that
the stroke is E ± 0.1mm. (Figure 5-3).
Note: Using the control knob, adjustments equal to
0.2mm per quarter turn can be made.
c) Set a POP Nut using work piece or the test piece,
and check that the stroke is between S min and S max.
Re-adjust the stroke as necessary. (Figure 5-4)
Stroke S min ~ S max.
Stroke ‘E’
Figure 5-4
Figure 5-3

Page 10 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
3. Confirm the Stroke
Confirm stroke ( S max, S min, E) corresponding to the POP Nut and the work piece thickness
used.
Table 5-5 POP NUT™ Stroke Formulas - Thick Wall Only
*Thread size Maximum stroke
S max
Minimum stroke
S min
Stroke without
work piece
E
M3×0.5 1.2 + (N −t) mm S max −0.2 S max +0.1
M4×0.7 1.6 + (N −t) mm S max −0.3 S max + 0.1
M5×0.8 2.0 + (N −t) mm S max −0.3 S max +0.1
M6×1.0 2.4 + (N −t) mm S max −0.4 S max + 0.2
M8×1.25RLT *2.4 + (N −t) mm S max −0.4 S max +0.2
M8×1.25 2.8 + (N −t) mm S max −0.4 S max +0.2
M10×1.5 3.0 + (N −t) mm S max −0.4 S max +0.2
(*) M8×1.25RLT shows M8 steel knurled types.
M4, M5 and M6 steel knurled types have the same stroke as standard types.
Table 5-6 Ｓmax vs. t (Maximum stroke - Work piece thickness) graph
Thick wall POP Nuts
Where:
t：workpiece thickness
Ｎ: 1/10 of the last
two digit of the part
number
(Example)
625：25/10=2.5
Use the formula of stroke for
POP Nuts that are not
indicated in S max −t graph.
Example:
POP NUT No.
６２５
Maximum
thickness: 2.5mm
Thread size: M6×1.0
Work piece thickness
Maximum stroke
(
S max
)

Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 11
Thin wall POP Nuts
For thin wall POP NUT rivet nuts use below charts to determine the required stroke.
Select the chart depending on the POP NUT type (TK/TL, TH or ST), and measurement system
(inch or metric). At the bottom axis of the chart locate the thickness of the work piece, find the line
based on the thread size and max. grip of the POP NUT to be used; on the left axis read the
required stroke and set it up on the tool.
i.e.
•POP NUT part number: STS1-420-140
•Work piece thickness = 0.100”
•Line: 420-140
•=> Stroke: 3.4 mm
ST Series Open End (Inch)
1.0
1.2
1.4
1.6
1.8
2.0
2.2
2.4
2.6
2.8
3.0
3.2
3.4
3.6
3.8
4.0
4.2
4.4
4.6
4.8
5.0
5.2
5.4
5.6
5.8
6.0
6.2
6.4
6.6
6.8
7.0
0.00 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 0.09 0.10 0.11 0.12 0.13 0.14 0.15 0.16 0.17 0.18 0.19 0.20 0.21 0.22 0.23 0.24 0.25 0.26 0.27
Workpiece Thickness (in)
Stroke (mm
)
420-080
518-125
518-200
420-140
813-150
420-200
616-200
813-250
616-115

Page 12 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
TK /TL Series Open End (Inch)
1.0
1.2
1.4
1.6
1.8
2.0
2.2
2.4
2.6
2.8
3.0
3.2
3.4
3.6
3.8
4.0
4.2
4.4
4.6
4.8
5.0
5.2
5.4
5.6
5.8
6.0
6.2
6.4
6.6
6.8
7.0
7.2
7.4
7.6
7.8
8.0
0.00 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 0.09 0.10 0.11 0.12 0.13 0.14 0.15 0.16 0.17 0.18 0.19 0.20 0.21 0.22 0.23 0.24 0.25 0.26 0.27 0.28 0.29 0.30 0.31 0.32 0.33 0.34 0.35 0.36
Workpiece Thickness(in)
Stroke (mm)
632-080/832-080
518-312/616-312
632-130/832-130
1024-130/1032-130
420-165
1024-225/1032-225
813-200
420-260
518-150/616-150
813-350
TK /TL Series Open End (Metric)
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
2.2
2.4
2.6
2.8
3.0
3.2
3.4
3.6
3.8
4.0
4.2
4.4
4.6
4.8
5.0
5.2
5.4
5.6
5.8
6.0
6.2
6.4
6.6
6.8
7.0
7.2
7.4
7.6
7.8
8.0
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0 3.2 3.4 3.6 3.8 4.0 4.2 4.4 4.6 4.8 5.0 5.2 5.4 5.6 5.8 6.0 6.2 6.4 6.6 6.8 7.0 7.2 7.4 7.6 7.8 8.0 8.2 8.4 8.6 8.8 9.0 9.2 9.4
Workpiece Thickness (mm)
Stroke (mm)
470-20
580-33
470-33
610-420
8125-38/1015-38
580-57
TLS1-12175-51
8125-79/1015-79
TLS1-12175-89
610-66

Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 13
TH Series Open End (Inch)
1.0
1.2
1.4
1.6
1.8
2.0
2.2
2.4
2.6
2.8
3.0
3.2
3.4
3.6
3.8
4.0
4.2
4.4
4.6
4.8
5.0
5.2
5.4
5.6
5.8
6.0
6.2
6.4
0.00 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 0.09 0.10 0.11 0.12 0.13 0.14 0.15 0.16 0.17 0.18 0.19 0.20 0.21 0.22 0.23 0.24 0.25 0.26 0.27 0.28 0.29 0.30 0.310.320.33
Workpiece Thickness (in)
Stroke (mm)
632-080/832-080
1024-130/1032-130
632-130 /832-130
420-165
518-150/616-150
1024-225/1032-225
420-260
518-312/616-312
TH Series Open End (Metric)
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
2.2
2.4
2.6
2.8
3.0
3.2
3.4
3.6
3.8
4.0
4.2
4.4
4.6
4.8
5.0
5.2
5.4
5.6
5.8
6.0
6.2
6.4
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0 3.2 3.4 3.6 3.8 4.0 4.2 4.4 4.6 4.8 5.0 5.2 5.4 5.6 5.8 6.0 6.2 6.4 6.6 6.8 7.0 7.2 7.4 7.6 7.8 8.0 8.2 8.4
Workpiece Thickness (mm)
Stroke (mm
)
470-20
580-33470-33
610-42
8125-38/1015-38
580-57
8125-79/1015-79
610-66

Page 14 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]

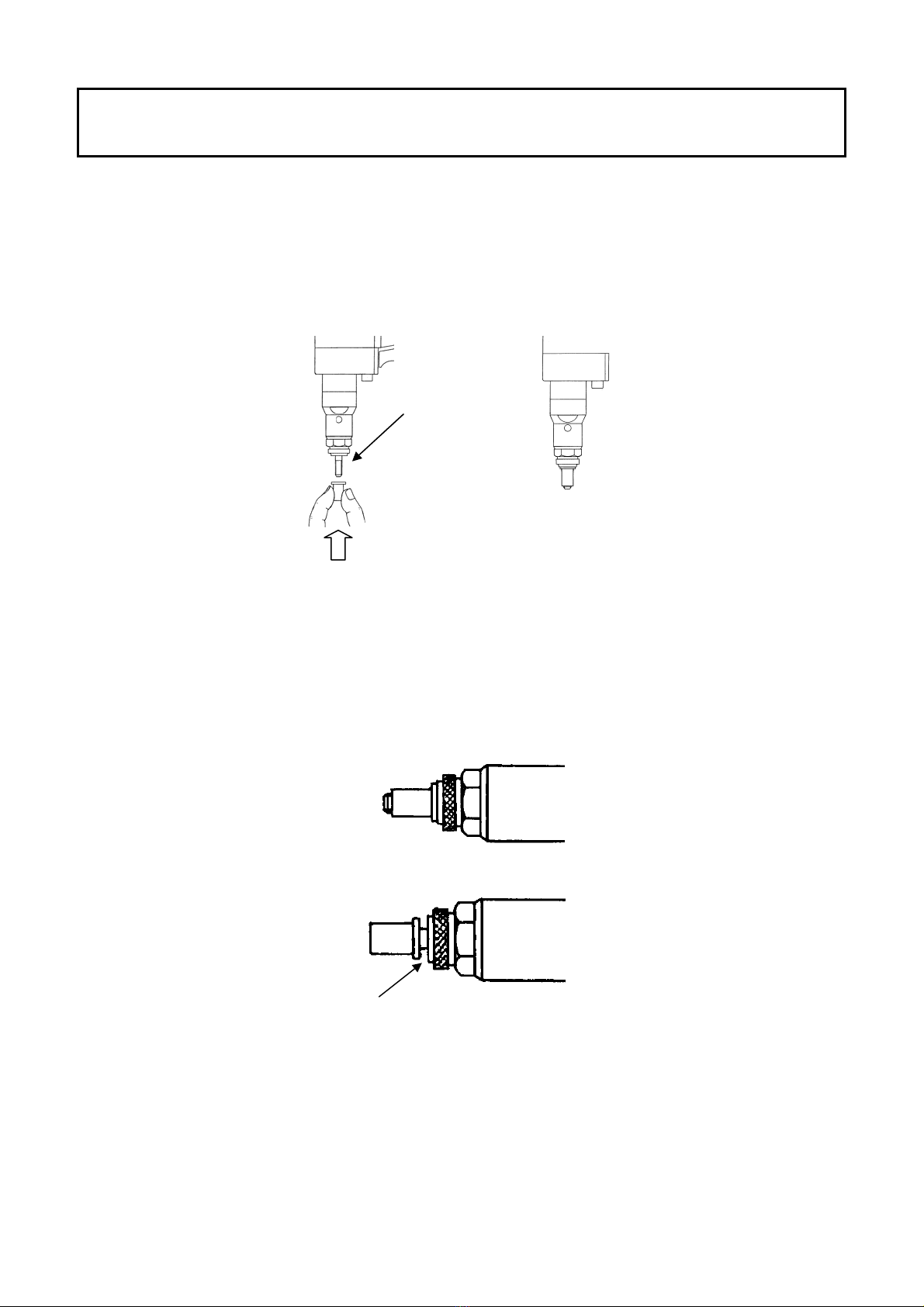

Basic Tool Operation
Before setting POP Nuts with this tool, refer to the “Tool Set Up” section.
1. Loading the POP Nut on the tool
Hold the POP Nut and thread it 1/4 turn onto the Mandrel. Press the POP Nut against the
Mandrel and the Mandrel will spin, automatically threading on the POP Nut. The Mandrel will
stop spinning once the POP Nut fully threaded and the flange contacts the nosepiece.
Note: Keep pushing the POP Nut onto the Mandrel until the clockwise rotation of the Mandrel
automatically stops.
If the POP Nut is not fully threaded, the setting stroke will be shortened by the gap between the
head of the POP Nut and the nosepiece.
Mandrel
Figure 6-1
OK
NOT OK
Figure 6-2
Gap

Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 15
2. Setting the POP Nut and removing the Tool
Push the POP Nut perpendicularly into the hole of the base material and pull the trigger (Figure
6-3). Keeping the trigger depressed until the Mandrel reverses direction and unthreads from
the installed POP Nut
Once the POP Nut is installed the tool Mandrel will automatically reverse rotation to unthread
from the POP Nut (Figure 6-4).
CAUTION!
DO NOT “double stoke” the trigger. Double stoking or trying to set a POP Nut after it has been
partially set can result in damage to the application, the POP Nut and or the tool. When setting
a POP Nut, you must hold the trigger until the Mandrel completely unthreads from the nut.
Note:
(1) Fit the flange of the POP Nut flat against the base material.
(2) Do not tilt the tool. The tool must be perpendicular to the workpiece.
Base
material Pull
Trigger
Figure 6-3
Trigger
Keep
pulling
Pull lightly
Figure 6-4
OK NG Figure 6-5
Gap
OK NG Figure 6-6

Page 16 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
Cap screw
Lock pin holder
Nose housing
3. Stopping the Mandrel's counter-clockwise rotation
Once the tool has unthreaded from the POP Nut, release the trigger to stop the Mandrel from
spinning (Figure 6-7).
4. What to do when the Tool Mandrel in not unthreaded completely
If you let go of the trigger during the installation sequence the tool will recycle and stop
unthreading. DO NOT PULL THE TRIGGER AGAIN. This will cause the tool to stroke again
and strip the POP Nut or break the Mandrel. To unthread the POP Nut, depress the control
knob and then press and hold the trigger, this reverses the spin direction of the Mandrel and
unthreads the nut. When fully unthreaded release the trigger (Figure 6-8).
If the POP Nut jams and the strength of the air motor is insufficient to unthread the Mandrel:
a. Disconnect the air supply.
b. Thread the M4 x20 Cap screw provided with the tool into the hole in the side of the
nosehousing (Figure 6-9).
c. Thread the M4 Cap screw in until if fits snugly against the inner Spin Pull head, loocking
the rotatioin of the Mandrel to the tool.
d. Turn the body of the tool counterclockwise to detach it from the POP Nut (Figure 6-10).
Figure 6-8
Trigger
Pull
Control knob
While
pressing
Figure 6-9 Figure 6-10
Rotate
Release
Trigger
Figure 6-7

Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 17
Figure 6-12
5. Regular Mandrel cleaning and lubrication
Clean the Mandrel after every 50～60 sets. (See Figures 6-11 and 6-12). Over time, metal
fragments can stick to the Mandrel and it can run short of lubrication, making it difficult to mount
POPNuts smoothly. If you continue to use the tool in this condition, it will become increasingly
difficult to mount POP Nuts and the Mandrel and internal parts will wear out prematurly.
Fi
g
ure 6-11

Page 18 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
PNT800A Diagram

Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone] Page 19

Page 20 Emhart Teknologies - 50 Shelton Technology Center, Shelton CT 06484 - Tel. [phone] - Fax [phone]
Parts List
Item Part No. Description Qty
1 PNT600-01-6 Mandrel M6 1
2 PNT600-02-6 Nose Piece M6 1
3 PNT600-03 Lock Nut 1
4 PNT600-04A Nose Housing 1
5 DPN277-001 Spin Pull Head Case 1
6 DPN277-002 Spin Pull Head 1
7 PNT600-07B Mast Housing 1
8 DPN277-003 Joint 1
9 DPN901-004 Return Spring 1
10 PNT600-10 Housing Lock 1
11 DPN277-004 Hydraulic Piston 1
12 DPN277-005 Rod Seal Case 1
13 DPN908-009 Scraper 1
14 DPN900-031 O-Ring 1
15 DPN908-010 Back Up Ring 1
16 DPN908-011 Penta Seal 1
17 DPN908-012 Piston Seal 1
18 DPN900-032 O-Ring 1
19 PNT600-19A Bit 1
20 PNT600-20 Start Bar 1
21 DPN239-047 Fill Screw 1
22 DPN900-033 O-Ring 2
23 DPN277-006 Lock Pin Holder 1
24 DPN277-007 Lock Pin 1
25 DPN900-034 O-Ring 1
26 PNT600-26 Lock Pin Pusher 1
27 DPN901-009 Spring 1
28 DPN907-005 Socket Head Cap Screw 2
29 PNT600-29A Truss Head Screw 1
30 PNT600-30A Rear Case Tube 2
32 DPN900-015 O-Ring 13
33 PNT600-33A Joint Adapter 3
34 PNT600-34 Truss Head Screw 3
35 DPN900-035 O-Ring 1
36 DPN277-008 Sleeve Upper 1
37 DPN900-036 O-Ring 1
38 DPN277-009 Handle 1
Item Part No. Description Qty
39 PNT600-39 Truss Head Screw 4
40 PNT800-02 Chamber 1
41 PNT600-41A R Joint Adapter 1
42 DPN900-021 O-Ring 2
43 PNT600-43 R Joint Spacer 1
44 PNT600-44B R Joint 1
45 PNT600-45A Rear Case 1
46 PNT600-46 Truss Head Screw 2
47 DPN277-010 Handle Upper 1
48 PNT600-48A Front Case 1
49 PNT600-49 T Valve End Screw 1
50 DPN900-037 O-Ring 5
51 PNT600-51 Hexagon Thin Nut 2
52 DPN905-004 Socket Set Screw 2
53 PNT600-53 Control Knob 1
54 PNT600-54C Control Nut 1
55 PNT600-55A T Valve Push Rod 1
56 DPN277-011 Trigger 1
57 DPN277-071 Flat Head Screw M3X8 1
58 PNT600-58 Joint Tube 1
59 PNT600-59A Assist Plate 1
60 DPN900-006 O-Ring 2
61 PNT800-14 Retainer Plate 1
62 DPN908-003 Penta Seal 1
63 DPN908-013 Back Up Ring 1
64 DPN277-012 Handle Lower 1
65 DPN277-013 Sleeve 1
66 PNT800-05 Tube 1
67 PNT800-06 Ram 1
68 PNT800-13 Air Piston 1
69 DPN900-038 O-Ring 1
70 DPN900-039 O-Ring 1
71 PNT600-71 Washer 1
72 PNT600-72 Tube Seal Case 1
73 DPN900-011 O-Ring 2
74 DPN909-001 SS-Washer 1
75 DPN900-040 O-Ring 1
