GREENLINE E6CCXLX User manual

OPERATION MANUAL
52080026 REV 2 © 2017 Greenlee Textron Inc. 3/17
Serial Number
Read and understand all of the instructions and
safety information in this manual before operating
or servicing this tool.
Register this product at www.greenlee.com
E6CCXLX
GATOR®
Battery-powered Tool

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
2
E6CCXLX Battery-powered Tool
Description
E6CCXLX Battery-powered, High-speed Tool is a hand-
held, self-contained tools intended to crimp cable,
cut cable and threaded rod, and punch holes with the
proper adapters.
The tools has a retraction stop feature which allows
the operator to stop the retraction motion of the ram to
shorten cycle time.
The tool has a Bluetooth®connectivity and an LCD
screen.
The tool is a protected by U.S. Patent No. 6,206,663,
6,276,186, 6,401,515, and 6,532,790.
Model X-E6CCXLX—FCC ID: 2AGL2X; IC ID: 20646X
This device complies with Part 15 of the FCC Rules and
with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation
Note: Change or modifications made to this equipment
not expressly approved by Greenlee may void the FCC
authorization to operate this equipment.
Safety
Safety is essential in the use and maintenance of
Greenlee tools and equipment. This manual and any
markings on the tool provide information for avoiding
hazards and unsafe practices related to the use of this
tool. Observe all of the safety information provided.
Note: For body worn operation, this device has been
tested and meets the FCC RF exposure guidelines for
an uncontrolled environment. The maximum reported
SAR value is 0.08 mW/g
Purpose of this Manual
This manual is intended to familiarize all personnel with
the safe operation and maintenance procedures for the
following Greenlee tool:
• E6CCXLX Battery-powered, High-speed Tool
Keep this manual available to all personnel.
Replacement manuals are available upon request at
no charge at www.greenlee.com.
Do not discard this product or throw away!
For recycling information, go to www.greenlee.com.
All specications are nominal and may change as design
improvements occur. Greenlee Textron Inc. shall not be liable for
damages resulting from misapplication or misuse of its products.
GATOR and Kwik Stepper are registered trademarks of
TextronInnovations Inc.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Blackburn is a registered trademark of Thomas & Betts.
KEEP THIS MANUAL
Table of Contents
Description .................................................................... 2
Safety ............................................................................ 2
Purpose of this Manual ................................................. 2
Important Safety Information .....................................3–4
Identication.................................................................. 5
Specications................................................................ 5
Operation..................................................................6–14
Crimping .................................................................7–8
Cutting ....................................................................... 9
Punching.............................................................10–14
Available Adapters....................................................... 15
Die Selection ............................................................... 16
Connector Selection.................................................... 16
LCD Screen ................................................................. 17
Maintenance................................................................ 18
Troubleshooting........................................................... 19

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
3
E6CCXLX Battery-powered Tool
IMPORTANT SAFETY INFORMATION
SAFETY
ALERT
SYMBOL
This symbol is used to call your attention to hazards
or unsafe practices which could result in an injury or
property damage. The signal word, dened below,
indicates the severity of the hazard. The message
after the signal word provides information for pre-
venting or avoiding the hazard.
Immediate hazards which, if not avoided, WILL result
in severe injury or death.
Hazards which, if not avoided, COULD result in
severe injury or death.
Hazards or unsafe practices which, if not avoided,
MAY result in injury or property damage.
Read and understand all of the
instructions and safety information
in this manual before operating or
servicing this tool.
Failure to observe this warning could
result in severe injury or death.
Electric shock hazard:
This tool is not insulated. When using
this unit on or near energized electri-
cal lines, use proper personal protec-
tive equipment.
Failure to observe this warning could
result in severe injury or death.
Wear eye protection when operating
or servicing this tool.
Failure to wear eye protection could
result in serious eye injury from ying
debris or hydraulic oil.
Skin injection hazard:
Do not use hands to check for oil
leaks. Oil under pressure easily punc-
tures skin. If injured, seek medical
attention immediately to remove oil.
Failure to observe this warning could
result in serious injury, gangrene, or
death.
Do not use solvents or ammable
liquids to clean the tool body.
Solvents or ammable liquids could
ignite and cause serious injury or
property damage.
An incomplete crimp can cause a re.
• Use proper die, connector, and cable combinations.
Improper combinations can result in an incomplete
crimp.
• The relief valve sounds and the ram automatically
retracts to indicate a completed crimp. If you do not
hear the sound of the relieve valve or the ram does
not automatically retract, the crimp is not complete.
Failure to observe these warnings could result in
severe injury or death.
Pinch points:
• Remove battery before changing
dies, adapters, or jaws.
• Keep hands away from the crimp-
ing tool head when crimping.
Failure to observe these warnings
could result in severe injury or death.

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
4
E6CCXLX Battery-powered Tool
IMPORTANT SAFETY INFORMATION
Do not dispose of batteries in a re. They will vent
fumes and may explode.
Failure to observe this warning could result in severe
injury from harmful fumes or burns from ying debris.
Remove the battery before transporting the T version
of this tool by air.
Failure to observe this warning could result in severe
injury or death.
• Inspect tool and dies before use. Replace any
worn or damaged parts. A damaged or improp-
erly assembled tool can break and strike nearby
personnel.
• Carrying strap is for carrying only, not to be used to
hang or suspend tool.
Failure to observe these warnings could result in
severe injury or death.
• Do not use this tool for continuous use. After 30 to
40 cycles, allow the tool to cool for 15 minutes.
• Do not secure this tool in a vise. This tool is
designed for hand-held operation.
• This tool may be used in damp or wet environ-
ments; however, air-drying is recommended before
use if the tool becomes soaked. Damage may result
when the tool is operated prior to thorough drying
when electrical components are soaked.
• Use this tool for the manufacturer’s intended
purpose only.
Failure to observe these precautions may result in
injury or property damage.
Do not allow anything to contact the battery
terminals.
• Do not immerse the batteries in liquid. Liquid may
create a short circuit and damage the battery. If bat-
teries are immersed, contact your service center for
proper handling.
• Do not place the battery into a pocket, tool pouch,
or tool box with conductive objects. Conductive
objects may create a short circuit and damage the
battery.
• Do not place a battery on moist ground or grass.
Moisture may create a short circuit and damage the
battery.
Failure to observe these precautions may result in
injury or property damage.
• Do not store the battery at more than 122 °F (50°C)
or less than –4 °F (–20 °C). Damage to the battery
can result.
• Do not use another manufacturer’s charger. Other
manufacturers’ chargers may overcharge and
damage the battery.
• Do not attempt to open the battery. It contains no
user-serviceable parts.
Failure to observe these precautions may result in
injury or property damage.
Do not perform any service or maintenance other than
as described in this manual. Injury or damage to the
tool may result.
Failure to observe this precaution may result in injury
and property damage.
Note: Keep all decals clean and legible, and replace
when necessary.

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
5
E6CCXLX Battery-powered Tool
Identification
1. LED Work Light (white)
2. Adapter Release Buttons
3. Head
4. Latch (for opening head)
5. Lanyard Ring
6. Housing
7. Retract Button
8. LED Indicator (red)
9. LCD Screen
10. Battery
11. Trigger
3
4
1
11
10
5
87
6
9
2
Specifications
Tool
Length ...............................................................................................15.3" (388 mm)
Width...................................................................................................3.00" (76 mm)
Height (with battery) ..........................................................................12.9" (328 mm)
Weight ................................................................................................10.2 lb (4.6 kg)
Crimping Force................................................................................. 6.7 tons (60 kN)
Hydraulic Oil...............................................52057878 biodegradable hydraulic uid
Recommended Operating Temperature Range..............5 °F to 122 °F (–15 °C to 50 °C)
Crimping Tool
Maximum Crimping Cable Size................... 600 kcmil copper; 350 kcmil aluminum
Cutting Tool
Maximum Cutting................................... 1-1/2" (40 mm) kcmil aluminum or copper
Battery Charger .............................................................Read the instructions supplied
with the battery charger

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
6
E6CCXLX Battery-powered Tool
Operation
• Inspect tool and dies before use. Replace any
worn or damaged parts. A damaged or improp-
erly assembled tool can break and strike nearby
personnel.
• Carrying strap is for carrying only, not to be used to
hang or suspend tool.
Failure to observe these warnings could result in
severe injury or death.
Electric shock hazard:
This tool is not insulated. When using
this unit on or near energized electri-
cal lines, use proper personal protec-
tive equipment.
Failure to observe this warning could
result in severe injury or death.
Wear eye protection when operating
or servicing this tool.
Failure to wear eye protection could
result in serious eye injury from ying
debris or hydraulic oil.
Pinch points:
• Remove battery before changing
dies, adapters, or jaws.
• Keep hands away from the crimp-
ing tool head when crimping.
Failure to observe these warnings
could result in severe injury or death.
• Do not use this tool for continuous use. After 30 to
40 cycles, allow the tool to cool for 15 minutes.
• Do not secure this tool in a vise. This tool is
designed for hand-held operation.
• This tool may be used in damp or wet environ-
ments; however, air-drying is recommended before
use if the tool becomes soaked. Damage may result
when the tool is operated prior to thorough drying
when electrical components are soaked.
• Use this tool for the manufacturer’s intended
purpose only.
Failure to observe these precautions may result in
injury or property damage.
Charging the Battery
Read the instructions supplied with the battery charger.
LED Work Light (white)
This LED automatically turns on when the trigger is
pulled. It remains on for 10 seconds after the trigger is
released.
LED Indicator (red)
This tool is equipped with a special circuit board incor-
porating several important features to inform the user
about the current status of the unit. The LED signals in
the following cases:
What happens Signal What it means
Constant light for 20seconds
at end of cycle
Battery charge is below
17V at beginning of cycle*
Tool will not start, and
constant light for 20seconds
when trigger is released
Battery charge is below
16V at beginning of cycle*
Tool will stop, and constant
light for 20seconds after
trigger is released
Battery voltage drops
below 13V during cycle*
Tool will stop, and flashing
light for 20seconds when
trigger is released
Motor current exceeds
20A during cycle
Circuit has become too hot
Flashing light for 20 seconds
at end of cycle Send tool in for service
* Running the battery below 16 V can damage the battery.

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
7
E6CCXLX Battery-powered Tool
Operation—Crimping
Setup
1. Open the tool head.
2. Remove any accessories from the tool head.
3. Select the appropriate set of dies. Use the
table provided below to select the corresponding
adapter set.
4. Install the adapters and dies—one set in each
groove. If either the adapters or dies have W-type
tabs, lock them in place with the W-type detents.
Important: W-type dies must be locked into place
or the die detents will be damaged.
5. Visually check the dies to ensure that they are
aligned correctly so that they will complete the
crimping operation.
6. Close the tool head.
Accessory Table
Dies Adapter Set
Greenlee K22, KA22, KC22-type UA22
Greenlee W-type UAW
Kearney “OD” UAK
Thomas & Betts “6TON” UAK
D3 Prole UAW
Blackburn® “O” UAK
Huskie “HT” UAK
FCI Burndy “W” UAW
Huskie “HT-58” UAW
ILSCO “ND-60” UAW
Izumi “N58” UAW
Panduit “CD-2001” UAW
W-type
W-type Detents: Press
and slide the adapter
and/or die into place.
Release to lock.
K22-type
Kearney
Important: W-type dies
must be locked into
place or the die detents
will be damaged.
Preparing the Cable
Follow the lug manufacturer’s instructions for appropri-
ate cable strip length.
Crimping Direction
(evenly spaced)
First Compression
Crimping Direction
SIDE A
(evenly spaced)
Crimping Direction
SIDE B
(evenly spaced)
First Compression
SIDE A
First Compression
SIDE B

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
8
E6CCXLX Battery-powered Tool
Operation—Crimping (cont’d)
Crimping Procedure
Wear eye protection when operating
or servicing this tool.
Failure to wear eye protection could
result in serious eye injury from ying
debris or hydraulic oil.
An incomplete crimp can cause a re.
• Use proper die, connector, and cable combinations.
Improper combinations can result in an incomplete
crimp.
• The relief valve sounds and the ram automatically
retracts to indicate a completed crimp. If you do not
hear the sound of the relieve valve or the ram does
not automatically retract, the crimp is not complete.
Failure to observe these warnings could result in
severe injury or death.
1. Press the latch and open the tool head.
2. Insert the properly assembled connector into the
tool head.
3. Close the tool head.
4. Depress the trigger to advance the ram. Hold the
trigger down until the ram automatically begins to
retract.
Note: If the crimping tool does not automatically
retract, the crimp is incomplete.
It is normal for the battery load display to light at
both the beginning and near the end of the crimping
cycle.
5. Release the trigger until the ram retracts
completely.
6. To stop the ram from returning fully, activate the
trigger for a brief moment. This activation will close
the retraction valve and stop the retraction motion.
7. Lift the latch to open the crimping head and remove
the connector.
Note: If it is necessary to retract the ram before a
crimp cycle is complete, push the retract button.
Pushing the retract button will result in complete
retraction of the ram.
After completing the last crimp on an aluminum
connector, wipe off the excess oxide inhibitor.
Retraction Stop
1. To stop the ram from returning fully, activate the
trigger for a brief moment. This activation will close
the retraction valve, stop the retraction motion, and
set the semi-automatic retraction stop position.
2. Depress the trigger to advance the ram. Hold the
trigger down until the ram automatically retracts.
The ram will partially retract to the set position and
allow the tool to be repositioned.
3. If full retraction is desired, release the trigger at the
end of the crimp.

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
9
E6CCXLX Battery-powered Tool

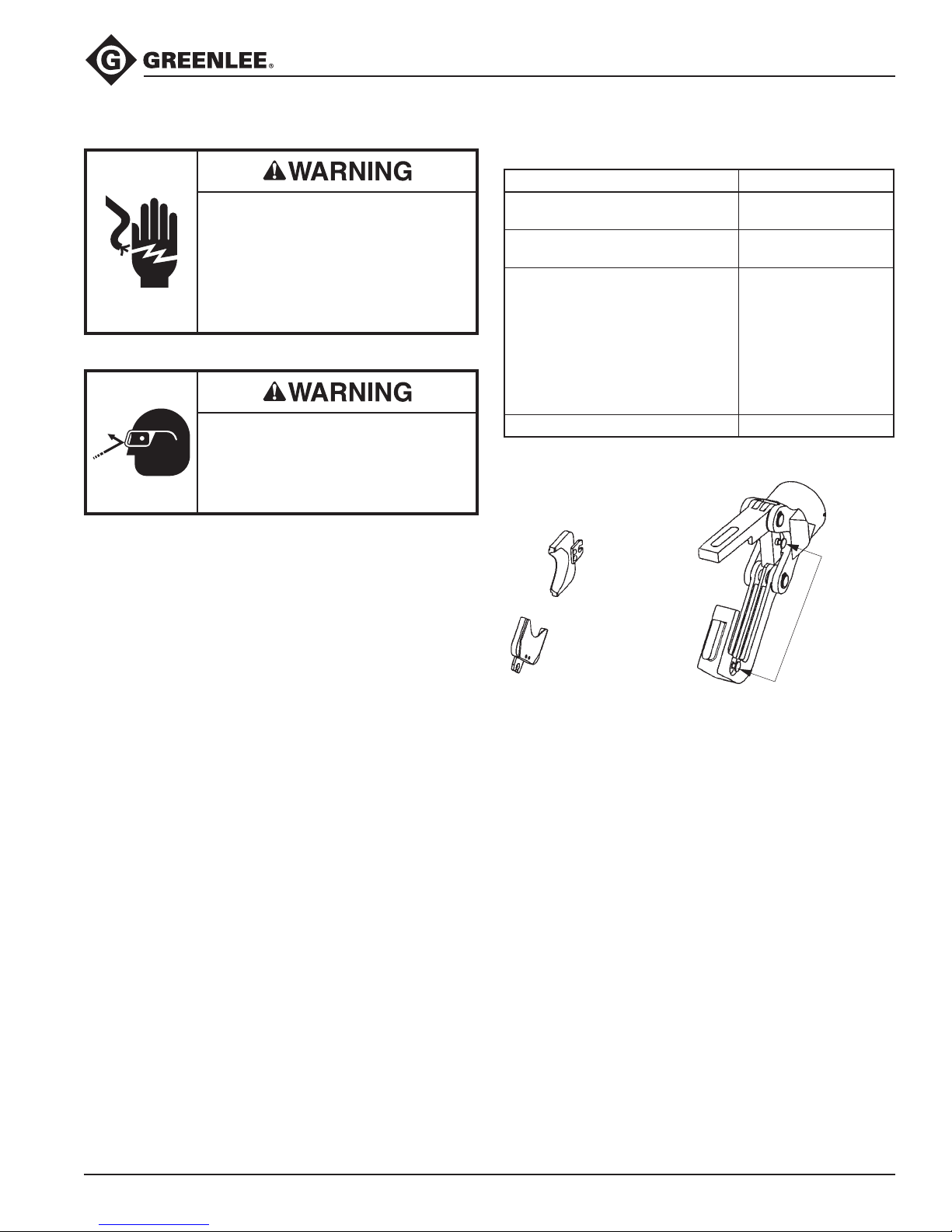

Operation—Cutting
Electric shock hazard:
This tool is not insulated. When using
this unit on or near energized electri-
cal lines, use proper personal protec-
tive equipment.
Failure to observe this warning could
result in severe injury or death.
Wear eye protection when operating
or servicing this tool.
Failure to wear eye protection could
result in serious eye injury from ying
debris or hydraulic oil.
Setup
1. Open the tool head.
2. Remove any accessories from the tool head.
3. Select the appropriate set of blades, using the
table provided on this page.
4. Install one blade in each groove. If the blades have
W-type tabs, lock them in place with the W-type
detents.
Important: W-type dies must be locked into place
or the die detents will be damaged.
5. Visually check the blades to ensure that they are
aligned correctly so that they will complete the
butting operation.
6. Close the tool head.
Accessory Table
Task Blade
Copper and aluminum
26 mm (1.00") max. UC26
Copper and aluminum
40 mm (1.56") max. UC40
ACSR
Copperweld
ACAR
Guy strand
EHS guy strand
Ground rod
Anchor rod
Soft bolts
Rebar
UCACSR
Threaded rod Threaded rod
W-type Detents:
Press and slide the
adapter and/or die
into place.
Release to lock.
Important: W-type dies must be locked into
place or the die detents will be damaged.
Cutting Procedure
1. Press the latch and open the tool head.
2. Position the item to be cut in the tool head.
3. Close the tool head.
4. Pull the trigger to cut the item.
5. Release the trigger when the cut is complete.
6. The ram returns automatically.

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
10
E6CCXLX Battery-powered Tool
Operation—Punching
Electric shock hazard:
Do not use this tool as a punch driver
on or near live circuits. This includes,
but is not limited to, the following
circumstances:
• Energized electrical lines
• Energized circuit breaker panels
and fuse boxes
• Junction boxes with energized
circuits
Failure to observe this warning could
result in severe injury or death.
Wear eye protection when operating
or servicing this tool.
Failure to wear eye protection could
result in serious eye injury from ying
debris or hydraulic oil.
Do not attempt to punch a hole
through two or more thicknesses of
material. This will bend or break the
draw stud, and could throw parts with
great force.
Failure to observe this warning could
result in severe injury or death.
A component failure could throw
broken parts.
• Do not allow anyone to stand in
front of the punch.
• Close access doors or covers on
any equipment that is in line with
the punch.
Failure to observe this warning could
result in severe injury or death.
Set up the tool properly. An improper setup could
cause a component to fail and strike nearby
personnel with great force.
• Thread the punch completely onto the draw stud.
All of the punch threads must be engaged by the
draw stud threads. Incomplete assembly could
cause a component failure.
• Use only Greenlee punches, dies, and draw studs.
Other manufacturers’ components might not with-
stand the forces generated by this punch driver.
Failure to observe these warnings could result in
severe injury or death.

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
11
E6CCXLX Battery-powered Tool
Operation—Punching (cont’d)
Setup and Punching Procedure
1. Open the tool head.
2. Remove any accessories from the tool head.
3. Install the punch driver so that the drive piston is
toward the yoke, as shown.
4. Close the tool head.
5. Select the punch, die, and draw stud to make the
appropriate size hole. Refer to the illustrations on
the following pages.
6. Determine and mark the exact location for the hole.
Use a Greenlee Kwik Stepper®drill bit to drill a hole
that is slightly larger than the draw stud. This is the
pilot hole.
7. Push the retract button and hold the button until the
ram is completely retracted.
8. Thread the 3/4" draw stud or 3/4" adapter com-
pletely into the punch driver. Refer to the illustra-
tions on the following pages.
Note: For a punch and die with a 3/8" center hole,
thread the 3/8" draw stud into the end of the 3/4"
adapter.
9. Install a spacer, if necessary. Refer to the illustra-
tions on the following pages.
10. Slide the die over the draw stud with the open end
of the die facing away from the punch driver.
11. Insert the draw stud through the pilot hole.
12. Thread the punch onto the draw stud with the
cutting surfaces of the punch facing the material.
Tighten the punch by hand until the spacer, die,
material, and punch contact each other.
Note: All of the punch threads must be engaged by
the draw stud threads. If any of the punch threads
are not engaged, disassemble the setup, remove the
spacer, and reassemble the setup.
13. Pull the trigger.
Note: A “popping” sound indicates that the tool has
reached relief pressure. This may indicate that the
attempted operation is beyond the capacity of the
tool.
14. Release the trigger when the punch completes the
hole. The ram returns automatically.
15. Unscrew the punch. Remove slugs from the die.
Remove the spacer and unscrew the draw stud.

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
12
E6CCXLX Battery-powered Tool
Operation—Punching (cont’d)

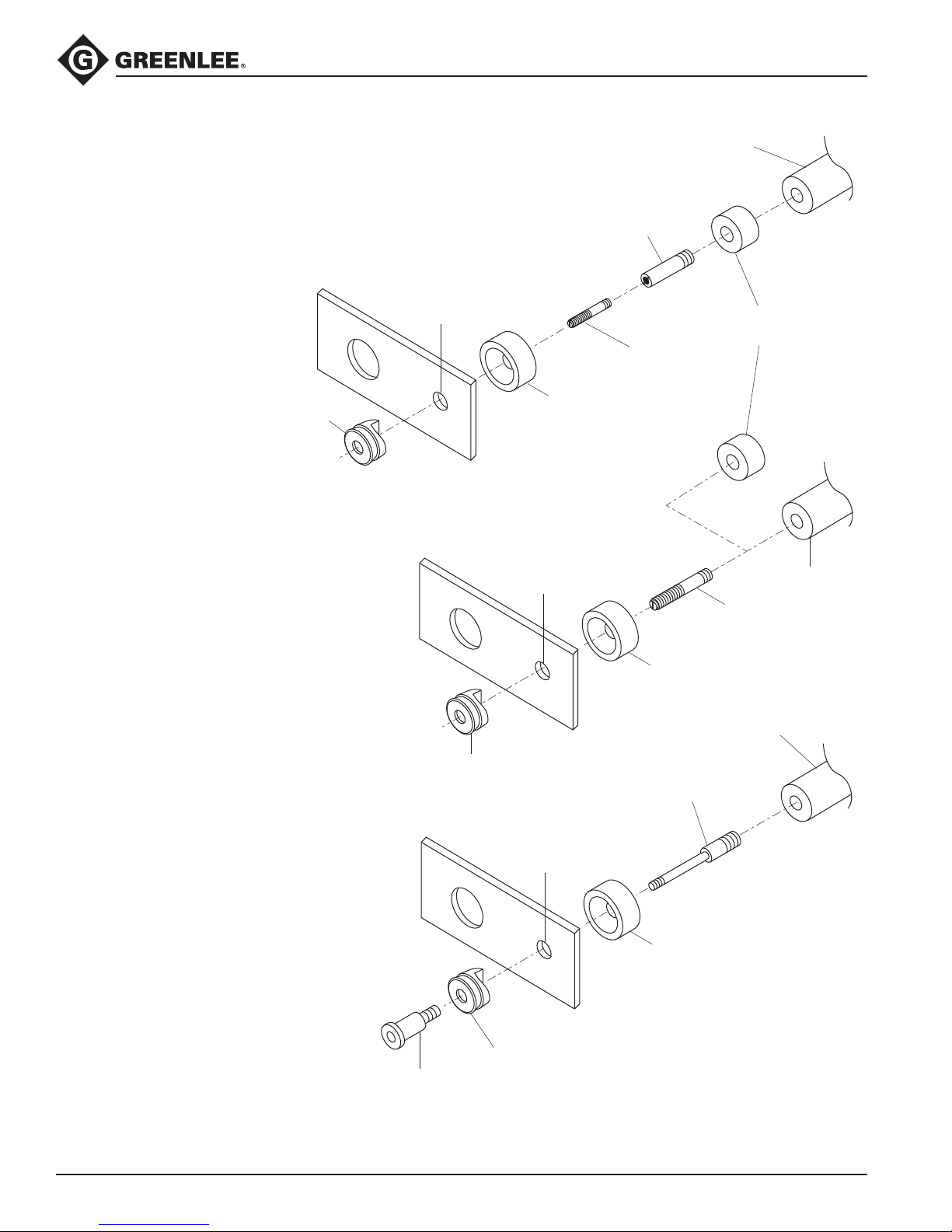

Round Punches
Metric: 22.5 mm (max.)
Conduit Size: 1/2" (max.)
Actual Size: 0.885" (max.)
Round Punches
Metric: 28.3 mm to 61.5 mm
Conduit Size: 3/4" to 2"
Actual Size: 1.115" to 2.416"
3/4"
Draw Stud
Die
7/8" (22.2 mm)
Pilot Hole
Punch
Punch
03248
Spacer
30043
3/8" Draw Stud
Die
1/2" (12.7 mm)
Pilot Hole
33967
3/4" Adapter
UA12P
Punch Driver
29451
7/16" Draw Stud
(optional)
Die
1/2" (12.7 mm)
Pilot Hole
Punch—1-1/4"
(ø 1.701" [43.2 mm])
Conduit
Maximum Size
31874
7/16" to 3/4"
Adapter
(optional)
UA12P
Punch Driver
UA12P
Punch Driver

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
13
E6CCXLX Battery-powered Tool

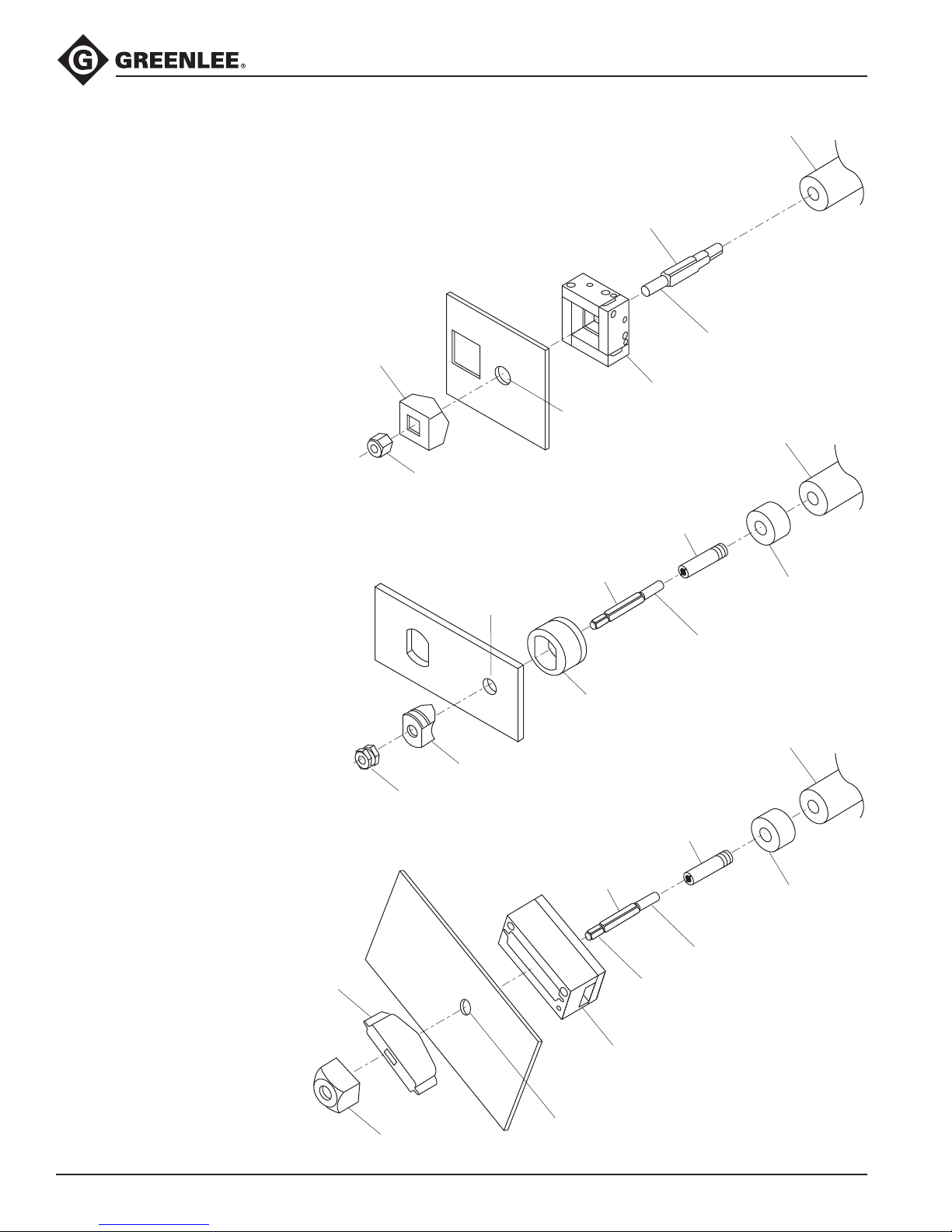

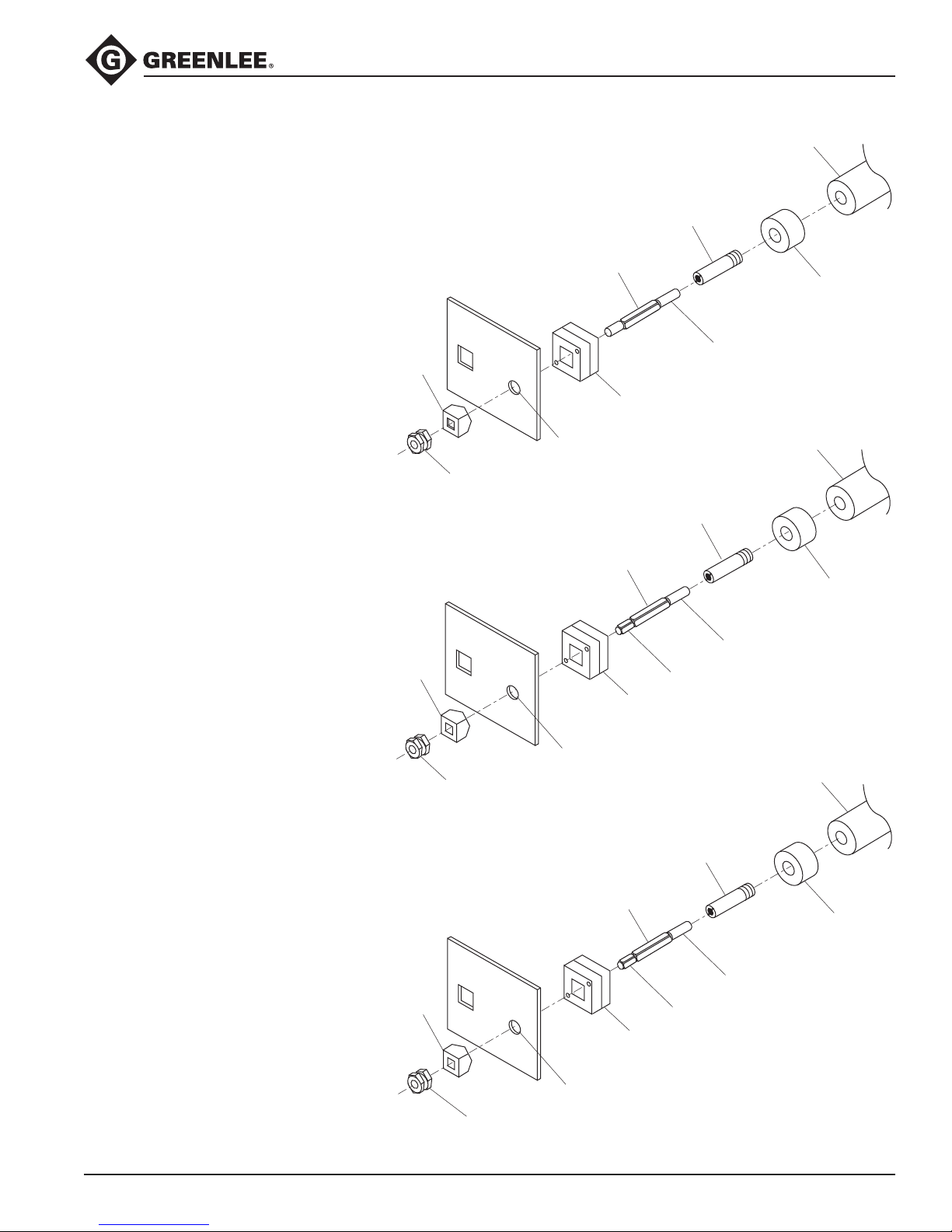

Operation—Punching (cont’d)
Square and Rectangular Punches
Metric: 12.7 mm square
Inches: 1/2" square
Metric: 11.1 mm x 22.2 mm rectangular
Inches: 7/16" x 7/8" rectangular
Square and Rectangular Punches
Metric: 15.9 mm to 24.0 mm square
Inches: 5/8" to 0.945" square
Metric: 17.0 mm x 19.0 mm rectangular
Inches: 0.670" x 0.749" rectangular
Square and Rectangular Punches
Metric: 25.4 mm square
Inches: 1" square
Metric: 19.1 mm x 29.0 mm to
31.8 mm x 35.1 mm rectangular
Inches: 0.750" x 1.140" to
1.250" x 1.380" rectangular
03248
Spacer
UA12P
Punch Driver
Die
Pilot Hole
Punch
05244
1/4" Counter Nut
60114
1/4" Adapter
60115
1/4" Draw Stud
03248
Spacer
Pilot Hole
04638
3/8" Counter Nut
33967
3/8" Adapter
60116
3/8" Draw Stud
03248
Spacer
End with Long Threads
Threads with Flats
Pilot Hole
60258
1/2" Counter Nut
60167
1/2" Adapter
60117
3/8" Draw Stud
UA12P
Punch Driver
UA12P
Punch Driver
End with Long Threads
Threads with Flats
End with Long Threads
Punch
Punch
Die
Die

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
14
E6CCXLX Battery-powered Tool
Operation—Punching (cont’d)
Square and Rectangular Punches
Metric: 46.0 mm to 68.0 square
Inches: 1.811" to 2.677" square
Metric: 33.3 mm x 66.7 mm to
35.0 mm x 65.0 mm rectangular
Inches: 1.312" x 2.625" to
1.378" x 2.559" rectangular
“D”, Double “D”, and
Key Punches
Electronic Connector
Panel Punches
Die
Pilot Hole
Punch
60235
3/4" Counter Nut
End with Long Threads
60118
3/4" Draw Stud
UA12P
Punch Driver
03248
Spacer
Die
Pilot Hole
Punch
Adapter
Draw Stud
03248
Spacer
Die
7/16" (11.1mm)
Pilot Hole
Punch
04638
3/8" Counter Nut
33967
3/8" Adapter
34421
3/8" Draw Stud
End with Long Threads
Threads with Flats
End with Long Threads
UA12P
Punch Driver
UA12P
Punch Driver
Counter Nut

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
15
E6CCXLX Battery-powered Tool
Available Adapters
Adapter Greenlee
Part No. Description
UA22 50070622 Adapter for Greenlee 22-Series dies
UAK 50070339 Adapter for Kearney and T&B dies
UAW 50070355 Adapter for W-type dies, D3
UC26 50067141 Cutter blades for copper and aluminum 26 mm (1") max.
UC40 50070363 Cutter blades for copper and aluminum 40 mm (1-1/2") max.
UCACSR 50070371 Cutter blades for ACSR, ACAR, standard guy wire, EHS guy wire, copperweld,
ground rod, anchor rod, soft bolts, rebar
UCUNC14 50070380 Cutter blades for 1/4" threaded rod
UCUNC38 50070398 Cutter blades for 3/8" threaded rod
UCUNC12 50072749 Cutter blades for 1/2" threaded rod
UA12P 50118900 Punch driver adapter

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
16
E6CCXLX Battery-powered Tool
Die Selection
Crimps made on copper cable with Greenlee KC22-type dies and the copper connectors listed here are
cUL and UL classied.
Crimps made on copper or aluminum cable with Greenlee KA22-type dies and the dual-rated aluminum connectors
listed here are cUL and UL classied.
Refer to “Connector Selection” for brand names and model numbers of appropriate lugs as well as crimping
instructions.
W-type or X-type dies can be used to crimp 8 AWG to 500 kcmil copper and 8 AWG to 4/0 AWG aluminum.
Connector Selection
Tool Range: Copper — 8 AWG to 600 kcmil; Dual-rated Aluminum — 8 AWG to 350 kcmil
When used with KC22-type dies, this tool is cUL and UL classied for use with the following connector brands:
Connector
Type
Barrel
Type Anderson Blackburn®Burndy ILSCO Panduit T&B Penn- Union
No. of
Crimps*
Copper Splice Short VHSS CSP YS-L CT SCSS/SCS 54504–54520 BCU A
Long VHS CU YS CTL SCL/SCH 54804–54820 BBCU B
Copper Lugs
Short VHCS CTL-2/CTL YA-2LN/YA-L/YA-2L
YA/YA-L-TC/YA-L-2TC
CSW
CRA/CRB
LCAS/LCA
LCD
54104–54120
54204–54218 BLU A
Long VHCL CTL-L/LCN YA-2N
CLN/CLW
CRA-L/CRB-L
CRA-2L/CRB-2L
LCB/LCC 54930BE–54920BE
54850BE–54878BE BBLU B
When used with KA22-type dies, this tool is cUL and UL classied for use with the following connector brands:
Connector
Type
Barrel
Type Anderson Blackburn®Burndy ILSCO Panduit T&B Penn- Union
No. of
Crimps*
Dual-rated
Aluminum
Splice
— VACS ASP YS-A AS
ASN
SA
** 60501–60565 PIK C
Dual-rated
Aluminum
Lugs
— VACL ATL YA-A
YA-ATN
ACL/ACN
2ACL/2ACN
ALNS/ALNN/ALND
LAA/LAB
**
60101–60166
60230–60267 BLUA C
* Use the number of crimps listed in the last column instead of the number provided with the connector:
C — 8 to 2 AWG: 2 crimps
1 to 3/0 AWG: 3 crimps
4/0 AWG to 350 kcmil: 4 crimps
B — 8 to 1/0 AWG: 2 crimps
2/0 to 3/0 AWG: 3 crimps
4/0 AWG to 600 kcmil: 4 crimps
A — 8 to 1/0 AWG: 1 crimp
2/0 AWG to 600 kcmil: 2 crimps
** 6 AWG to 350 kcmil
Dies for Copper Connectors
Catalog No. UPC No. Cable Size Color Code
KC22-8 03079 8 AWG Red
KC22-6 03080 6 AWG Blue
KC22-4 03081 4 AWG Gray
KC22-2 03082 2 AWG Brown
KC22-1 03083 1 AWG Green
KC22-1/0 03084 1/0 AWG Pink
KC22-2/0 03085 2/0 AWG Black
KC22-3/0 03086 3/0 AWG Orange
KC22-4/0 03087 4/0 AWG Purple
KC22-250 03088 250 kcmil Yellow
KC22-300 03089 300 kcmil White
KC22-350 03090 350 kcmil Red
KC22-400 03091 400 kcmil Blue
KC22-500 03092 500 kcmil Brown
KC22-600 03093 600 kcmil Green
Dies for Dual-rated Aluminum Connectors
Catalog No. UPC No. Cable Size
KA22-8 06744 8 AWG
KA22-6 06745 6 AWG
KA22-4 06746 4 AWG
KA22-2 06747 2 AWG
KA22-1 06749 1 AWG
KA22-1/0 06750 1/0 AWG
KA22-2/0 06751 2/0 AWG
KA22-3/0 06752 3/0 AWG
KA22-4/0 06753 4/0 AWG
KA22-250 06754 250 kcmil
KA22-300 06755 300 kcmil
KA22-350 06756 350 kcmil
95R7

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
17
E6CCXLX Battery-powered Tool
LCD Screen
This tool has an LCD screen, which displays informa-
tion about the tool. Turn on the screen by inserting the
battery and jogging the tool. If there are any problems
with the tool, an error code appears.
Error Code Meaning
1 Overcurrent fuse
2 Overcurrent comparator
3 Overheated circuit board
4 Overheated battery
5 Battery empty; operation stops
6 Faulty crimp; complete cycle
7 Faulty crimp; incomplete cycle
8 Low battery
9 Battery empty; tool won’t run
10 Real-time clock battery low
11 Tool deactivated
12 Service necessary
13 Real-time clock not found
14 Bluetooth®unit not found
15
16 Pressure sensor not found
17 Burst pressure exceeded
18 Battery temperature too low
If there is no error code, cycle through the various
displays using the left and right buttons on either side of
the screen. There are seven displays in total.
Display Information Shown
1Bluetooth®status, battery charge, current
pressure, max. pressure
2Firmware, available rmware update,
serialnumber
3
Current user. Press and hold both buttons to
change user, select with right button, and conrm
by jogging the tool.
4
5
6 Cycles until next service
7Since manufacturing: operating hours, capacity,
number of cycles

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
18
E6CCXLX Battery-powered Tool
Maintenance
Wear eye protection when operating
or servicing this tool.
Failure to wear eye protection could
result in serious eye injury from ying
debris or hydraulic oil.
Skin injection hazard:
Do not use hands to check for oil
leaks. Oil under pressure easily punc-
tures skin. If injured, seek medical
attention immediately to remove oil.
Failure to observe this warning could
result in serious injury, gangrene, or
death.
Do not use solvents or ammable
liquids to clean the tool body.
Solvents or ammable liquids could
ignite and cause serious injury or
property damage.
Pinch points:
• Remove battery before changing
dies, adapters, or jaws.
• Keep hands away from the crimp-
ing tool head when crimping.
Failure to observe these warnings
could result in severe injury or death.
Relief valve adjustments must be done by an
authorized service center.
Daily
Before use:
1. Inspect the tool for wear or damage, such as cracks,
gouges, or chips.
2. Inspect the tool for damage or leaks.
3. Inspect the rotation of the head assembly. Fully
retract the ram. The head should rotate no more
than 360°. If damage is detected, contact Greenlee
customer service at 800-435-0786 for warranty
service or repair.
After use:
1. Use a damp cloth and mild detergent to clean the
housing. Allow the housing to dry.
2. Fully retract the ram. Place the tool in the carrying
case and store in a cool, dry place.
3. If necessary, recharge the batteries. Refer to the
instructions supplied with the battery charger.
Monthly
Thoroughly clean all surfaces.
Annually or After 10,000 Crimps
Contact Greenlee customer service at 800-435-0786 for
warranty service or repair, and hydraulic oil replacement.
Periodic Pressure Relief Valve Check
The crimping tool’s relief valve may require occasional
adjustment. To determine whether this adjustment is
necessary, contact Greenlee customer service at
800-435-0786 for warranty service or repair.

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
19
E6CCXLX Battery-powered Tool
Troubleshooting
Before You Begin
1. Make sure that the battery is charged. Recheck
the battery after several minutes to make sure the
battery is holding its charge.
2. Use a nonflammable contact cleaner or pencil
eraser to clean the electrical contacts on the battery
and tool.
3. Reinstall the battery and check the tool again.
Problem Possible Cause Probable Remedy
Tool is inoperative. Battery charge low. Charge or replace battery.
Dirt, contaminants, etc., in
ram area oftool.
Clean tool.
Tool components worn or
damaged.
Contact Greenlee customer service at
800-435-0786 for warranty service or repair.
Motor is inoperative. Low or uncharged battery. Try known charged battery. Inoperative battery may
be discharged or may have reached life expectancy.
Broken switch components. Contact Greenlee customer service at
800-435-0786 for warranty service or repair.
Motor runs but tool will not
complete a cycle.
Oil level low. Contact Greenlee customer service at
800-435-0786 for warranty service or repair.
Air in hydraulic system. Pull trigger and hold retract button simultane-
ously. Run for approximately 10 seconds, and then
attempt to crimp. If unsuccessful, contact Greenlee
customer service at 800-435-0786 for warranty
service or repair.
Cold oil. Pull trigger and hold retract button simultaneously
to warm oil. Store tool in warm area.
Tool loses oil. Damaged seal. Contact Greenlee customer service at
800-435-0786 for warranty service or repair.

4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070
An ISO 9001 Company • Greenlee Textron Inc. is a subsidiary of Textron Inc.
USA Tel: [phone]
Fax: [phone]
Canada Tel: [phone]
Fax: [phone]
International Tel: [phone]
Fax: [phone]
www.greenlee.com
