EMPERO EMP.YRG.50 User manual

1
GAS STOCK POT STOVE
Kasap Tip Dik Buzdolapları
CONTENTS
A GENERAL INFORMATION Page 2
A1 PRODUCT DESCRIPTION Page 3
A2 TECHNICAL INFORMATION Page 3
A3 TRANSPORTATION Page 3
A4 UNPACKING Page 4
B INSTALLATION Page 4
C SAFETY INSTRUCTIONS Page 5
D OPERATION Page 6
E CLEANING & MAINTENANCE Page 7
F TROUBLESHOOTING Page 8
G INJECTOR CHANGE AND GAS SETTING Page 9
H GAS CONNECTION IMAGES Page 10
I SPARE PART LIST- EXPLODING DRAWING Page 13

2
GAS STOCK POT STOVE
Kasap Tip Dik Buzdolapları
A GENERAL INFORMATION
Before installing the appliance, read operation and maintenance instructions
carefully.Wrong installation and part changing may damage the product or may cause
injury on people.These are not in our company’s responsibility to damage the
appliance intentionally,negligence,detriments because of disobeying instructions and
regulations,wrong connections.Unauthorized intervention to appliance invalidates the
warranty.
1. This instruction manual should be kept in a safe place for future reference.
2. Installation should be made in accordance with ordinances and security rules of
that country by a qualified service personnel.
3. This appliance has to be used by trained person.
4. Please turn off the appliance immediately in the event of malfunction or failure.The
appliance should be repaired only by authorized service personnel.Please demand
original spare part.

3
GAS STOCK POT STOVE
Kasap Tip Dik Buzdolapları
A1 PRODUCT DESCRIPTION
*The Professional Gas Stock Pot Stove,that provides high efficiency has been designed to be
used in industrial kitchens.
Product Code
Dimensions (mm)
Weight (kg)
Packaging
Dimensions (mm)
EMP.YRG.50
600x800x500
60
660X860X670
EMP.YRG.60
600x800x500
60
660x860x670
EMP.YRG.70
700x800x500
80
720X950X585
EMP.YRG.80
700x800x500
80
720X950X585
A2 TECHNICAL INFORMATION
Product Code
Model
Power
(KW)
Gas
Consumption
(NG)
Gas
Consumption
(LPG)
EMP.YRG.50
Gas Stock Pot Stove-With
Valve
9,3
---
0,7 kg/h
EMP.YRG.60
Gas Stock Pot Stove-Without
Valve
12
3,2 m³/h
---
EMP.YRG.70
4 Ring Stock Pot Stove-
Without
32
---
2,4 kg/h
EMP.YRG.80
4 Ring Stock Pot Stove-With
Valve
32
3,3 m³/h
---
A3 TRANSPORTATION
*This appliance can not be moved by hand from area to area.It must be moved on pallet with
forklift truck.

4
GAS STOCK POT STOVE
Kasap Tip Dik Buzdolapları
A4 UNPACKING
*Please unpack the package according to the security codes and ordinances of current
country and get rid from the pack.Parts which contacts with food are produced by stainless
steel.All plastic parts are marked by material’s symbol.
*Please check that all the parts of appliance had come completely and if they are damaged or
not during the shipping.
B INSTALLATION
*Please place the product to straight and sturdy ground,please take necessary steps against
possibility of overturn.
*Technician who will serve for installation and service for the appliance must be professional
on this subject and must have installation and service licenses by the company.
*Connection to Gas Fitment must be done by authorized person.
*The area where the appliance is must have enough ventilation and vent-hole.
*The appliance must be connected correctly according to local and national gas standards of
your country.
*The appliance gas entrances are indicated with ‘’G’’ label on the body.
*Connection to gas fitment must be done with suitable diameter metal flex pipe and spheric
valve.The spheric valve must be immobilized to a place that is far away from heat and
accessible during the danger.After gas entrance connection done,gas leakages must be
checked.
*According to the datas on appliance information plate,gas and pressure must be adjusted.If
the gas type that is adjusted is not the suitable with gas type that is at installation place,apply
the instructions that is about adjustment of different gas type. (Event :G)
*If the location where gas stock pot stove placed is covered with nonflammable heat
insulation material,the distance between them must be 5 cm.Otherwise it should be at least 20
cm.The appliance shouldn’t be operated under chimney hood.

5
GAS STOCK POT STOVE
Kasap Tip Dik Buzdolapları
C SAFETY INSTRUCTIONS
*Do not use the appliance in insufficient lighted place.
*Do not touch the moving attachments while the appliance operates.
*Do not install the appliance in the presence of flammable or explosive materials.
*Do not operate the appliance when the machine is empty.
*Do not load so less or more than appliance’s capacity.
*Do not attempt to use the appliance without suitable protective equipments.
*Because of any reason if there is a fire or flame flare where the appliance is
used,turn off all gas valves and electric contactor switch quickly and use fire
extinguisher .Never use water to extinguish the fire.
*If there is gas leakage where the appliance is, .do not fire absolutely and do not use
electric .
*Definitely do not allow to check the sealing with flame.
*Do not use the gas stock pot stove that doesn’t have safety valve in closed area.
!
!
!
!
!

!
!
!
!

6
GAS STOCK POT STOVE
Kasap Tip Dik Buzdolapları
D OPERATION

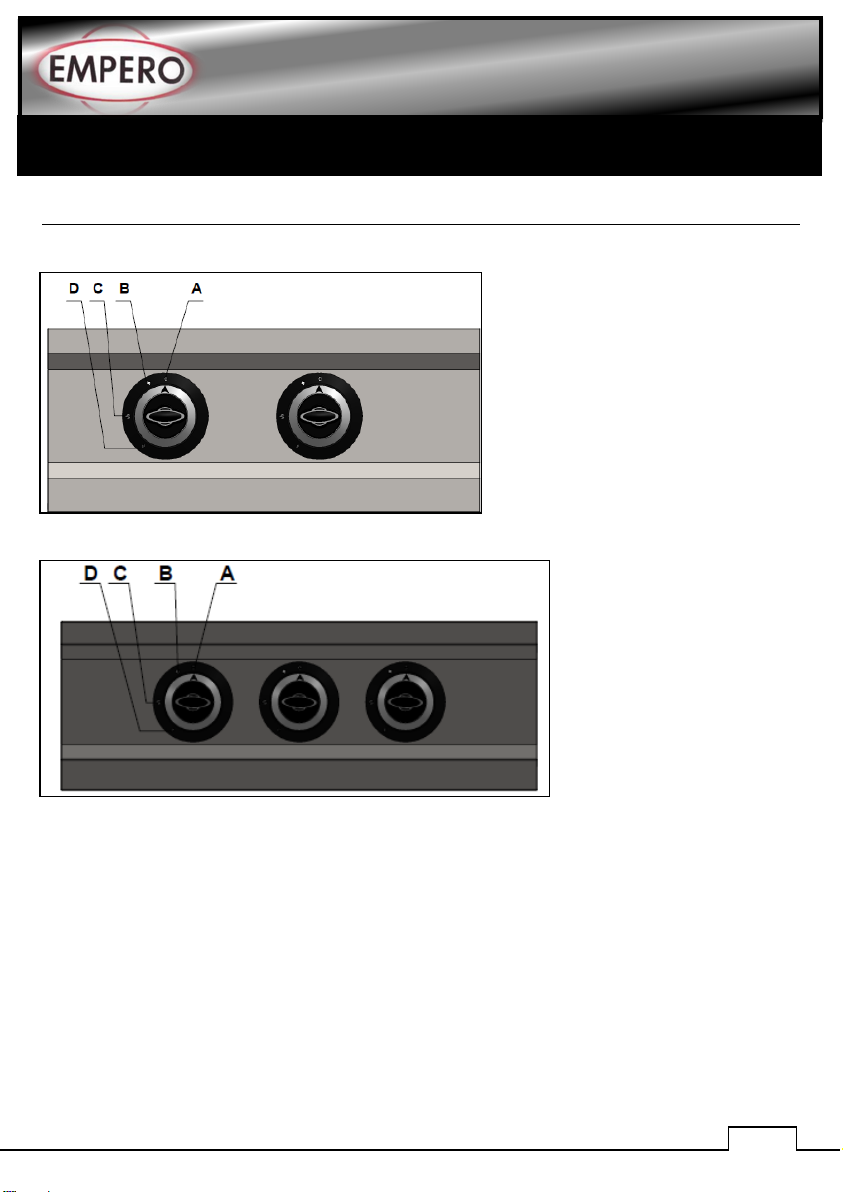

*Control Panel;
A : ON/OFF
B : IGNİTİON
C : FULL FLAME POSİTİON
D : HOLF FLAME POSİTİON
EMP.YRG.50 - EMP.YRG.60
EMP.YRG.70 - EMP.YRG.80
*Operating;
•Press gas button in order to operole the appliace and ignile during pushing
•After ignition keep pressing on button for a few seconds in order to heat enasgh the
thermocosple
•Select the position aflerwords (full flame-holf flame)
•To begin the cooking process later.

7
GAS STOCK POT STOVE
Kasap Tip Dik Buzdolapları
E CLEANING & MAINTENANCE
➢CLEANING AND MAINTENANCE AFTER EVERY USE
•Turn off the gas connection before cleaning.
•Clean the outer surface of the appliance with a wet cloth and chrome shiner.
•Do not use abrasive cleaning chemicals as these can leave harmful residues.
•Do not wash the appliance with pressure water.
•Do not clean the appliance with a materials that may hurt chrome material.
•Wash the grills with hot water and then dry after every use.
➢PERIODIC CLEANING AND MAINTENANCE
•Maintenance should be done by qualified person.
•These parts ; Gas storage,thermocouples,taps,burner,lighter and spark plug cable
are not maintained so they need to be changed when they have error.
•Check the gas connection hoses in periodic time.If there is slit,hole..etc,change the
hoses.
•Ventilate the area where the device is in periodic times.

8
GAS STOCK POT STOVE
Kasap Tip Dik Buzdolapları
F TROUBLESHOOTING
THE APPLIANCE DOESN’T OPERATE
1. Check if the gas connection is done or
not.
2. If there is no gas entrance to pilot,the
appliance is not operated.
3. If the hoses that have gas entrance lose
gas due to slit,hole.etc.,the appliance is
not operated.
THE APPLIANCE DOESN’T COOK WELL
1. Check if it is operated at suitable gas
setting or not.
THE APPLIANCE STOPPED
1. At EMP.YRG.60,YRG.80 the gas flow is
stopped automatically when the flame is
off due to having gas tap that has safety
valve.In this situation the appliance is
not operated.
2. When there is gas leakage,if there is
solenoid gas stopper alarm,gas flow is
stopped and the appliance is not
operated.Ventilate the area through the
agency of vent-hole.
•If cooking at gas stock pot stove is not done at suitable quality
•If any function of security doesn’t work
➢Do not use the appliance.
*If these problems are still going on,contact with our authorized services.

9
GAS STOCK POT STOVE
Kasap Tip Dik Buzdolapları
G INJECTOR CHANGE AND GAS SETTING
GAS STOCK POT STOVE-BURNER INJECTOR CHANGE CHART
Gas Group
Gas
Small
Middle
Pılot
Injector mm
Injector mm
Injector mm
2
G20
2,50
3,00
0,41
G25
-
-
0,41
3
G30
30 mbar
1,20
1,80
0,22
50 mbar
-
-
0,20
G31
37 mbar
-
-
0,22
50 mbar
-
-
0,20
EMP.YRG.50 –EMP.YRG.60

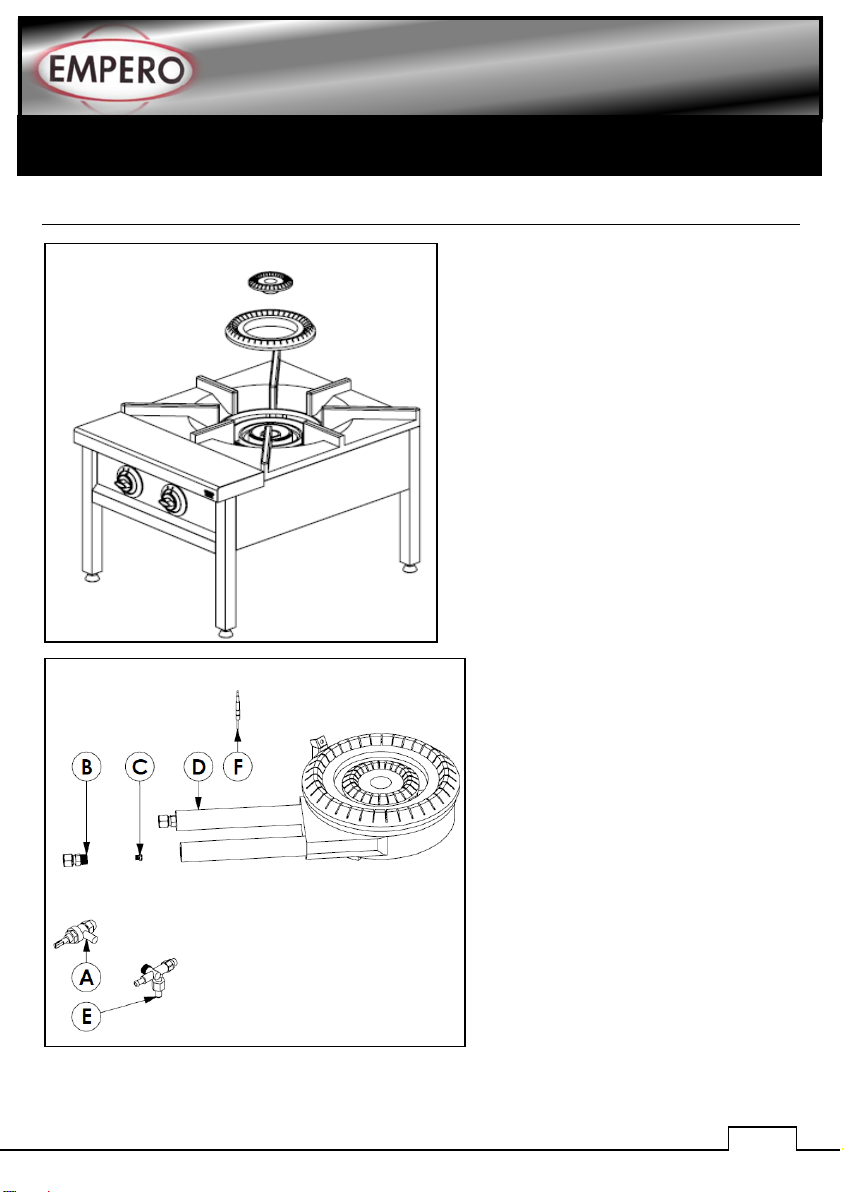

Burner Injectors Change ;
1. Remove cost grill and burner top cover..( Image 1)
2. Chage “c” injector with consideration of valve on table above .for this purpose first temove
“b” inion from “d” gas inlet pipe. (Image 2)
EMP.YRG.60- EMP.YRG.80
Safety valve ;
In case of involuntary flame out ; “ı” safety valve will cut gas leakoge if “h” thermo doesn’t
realice the flame. (Image 2)

10
GAS STOCK POT STOVE
Kasap Tip Dik Buzdolapları
H GAS CONNECTION IMAGES
Image 1
Image 2
EMP.YRG.50 - EMP.YRG.60

11
GAS STOCK POT STOVE
Kasap Tip Dik Buzdolapları
G INJECTOR CHANGE AND GAS SETTING
GAS STOCK POT STOVE-BURNER INJECTOR CHANGE CHART
Gas Group
Gas
Small
Middle
Pılot
Injector mm
Injector mm
Injector mm
2
G20
2,40
3,00
0,41
G25
-
-
0,41
3
G30
30 mbar
1,20
1,70
0,22
50 mbar
-
-
0,20
G31
37 mbar
-
-
0,22
50 mbar
-
-
0,20
EMP.YRG.70 –EMP.YRG.80

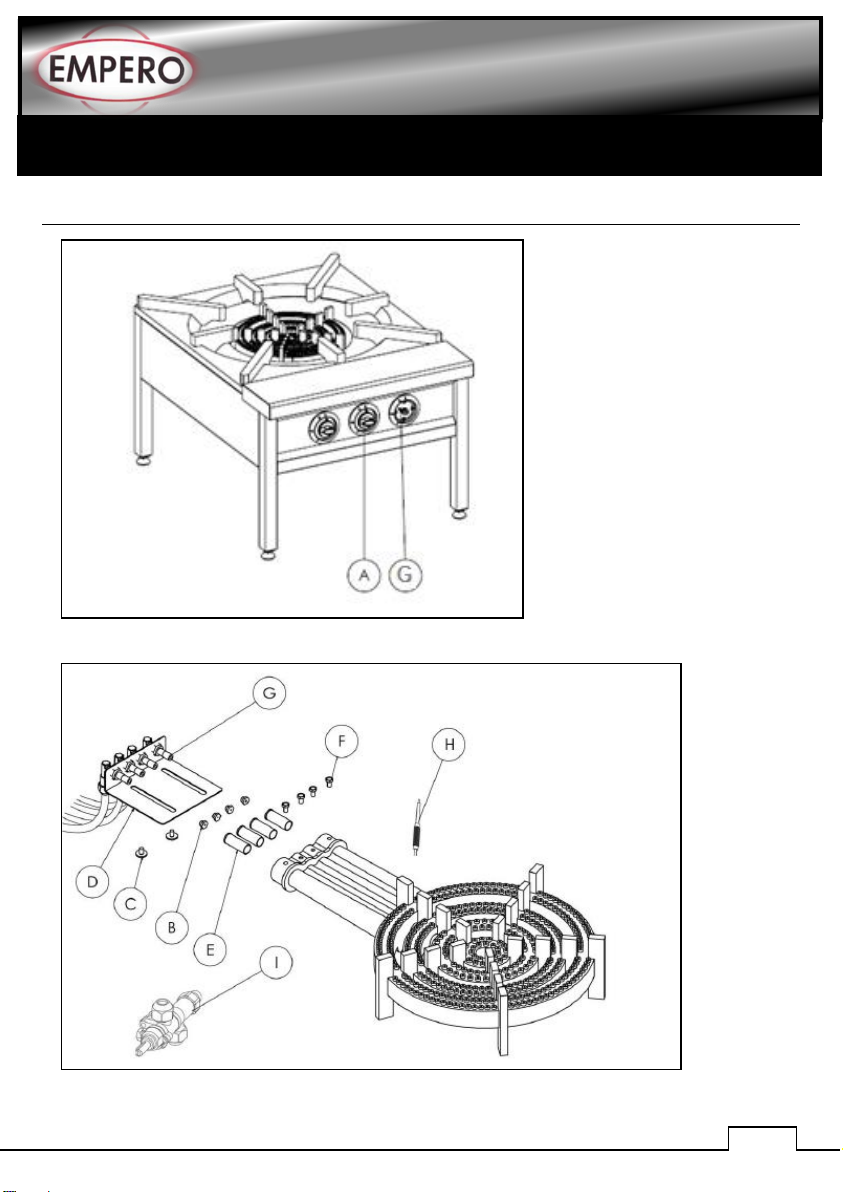

BURNER INJEKTOR CHANGE ;
1. Remove cost gril land burner top cover you can odjust gas by turning “g” ıf you turn ıt on
left hand side it will increose and you can reduce by turning on right hand side .(Image 1)
2. CHANGE “B” ınjector by considering the valve on table above fort his purpose loosen “F”
screws complety ond then “c” nuts. Pull back injector steel “d”. Remove volves “e” and
injector.( Image 2)
EMP.YRG.60- EMP.YRG.80
Safety valve ;
In case of involuntary flame out ; “ı” safety valve will cut gas leakoge if “h” thermo doesn’t
realice the flame. (Image 2)

12
GAS STOCK POT STOVE
Kasap Tip Dik Buzdolapları
H GAS CONNECTION IMAGES
Image 1
Image 2

13
GAS STOCK POT STOVE
Kasap Tip Dik Buzdolapları

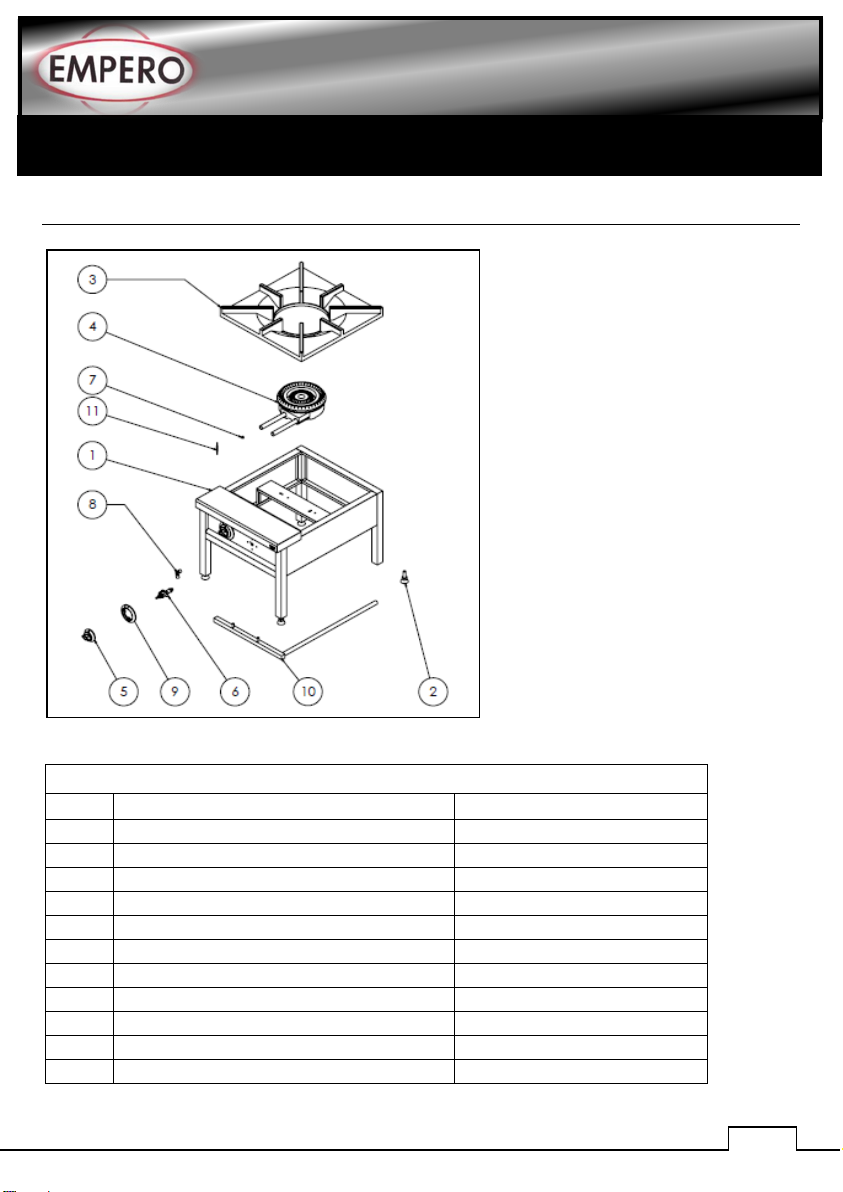

I SPARE PART LIST-EXPLODING DRAWING
EMP.YRG.50
PRODUCT CODE: EMP.YRG.50
NO
PRODUCT NAME
P.CODE
1
BASE FRAME
Y.EMP.YRG.50.1001
2
FEET
Y.EMP.YRG.50.1002
3
CASTING GRILL
Y.EMP.YRG.50.1003
4
BURNER
Y.EMP.YRG.50.1004
5
BUTTON
Y.EMP.YRG.50.1005
6
GAS TAP
Y.EMP.YRG.50.1006
7
INJECTOR GROUP
Y.EMP.YRG.50.1007
8
BURNER BARCKET
Y.EMP.YRG.50.1008
9
BUTTON BUFFER
Y.EMP.YRG.50.1009
10
GAS TANK
Y.EMP.YRG.50.1010

14
GAS STOCK POT STOVE
Kasap Tip Dik Buzdolapları
I SPARE PART LIST-EXPLODING DRAWING
EMP.YRG.60
PRODUCT CODE: EMP.YRG.60
NO
PRODUCT NAME
P.CODE
1
BASE FRAME
Y.EMP.YRG.60.1001
2
FEET
Y.EMP.YRG.60.1002
3
CASTING GRILL
Y.EMP.YRG.60.1003
4
BURNER
Y.EMP.YRG.60.1004
5
BUTTON
Y.EMP.YRG.60.1005
6
GAS TAP
Y.EMP.YRG.60.1006
7
INJECTOR GROUP
Y.EMP.YRG.60.1007
8
BURNER BRACKET
Y.EMP.YRG.60.1008
9
BUTTON BUFFER
Y.EMP.YRG.60.1009
10
GAS TANK
Y.EMP.YRG.60.1010
11
THERMO PART
Y.EMP.YRG.60.1011

15
GAS STOCK POT STOVE
Kasap Tip Dik Buzdolapları

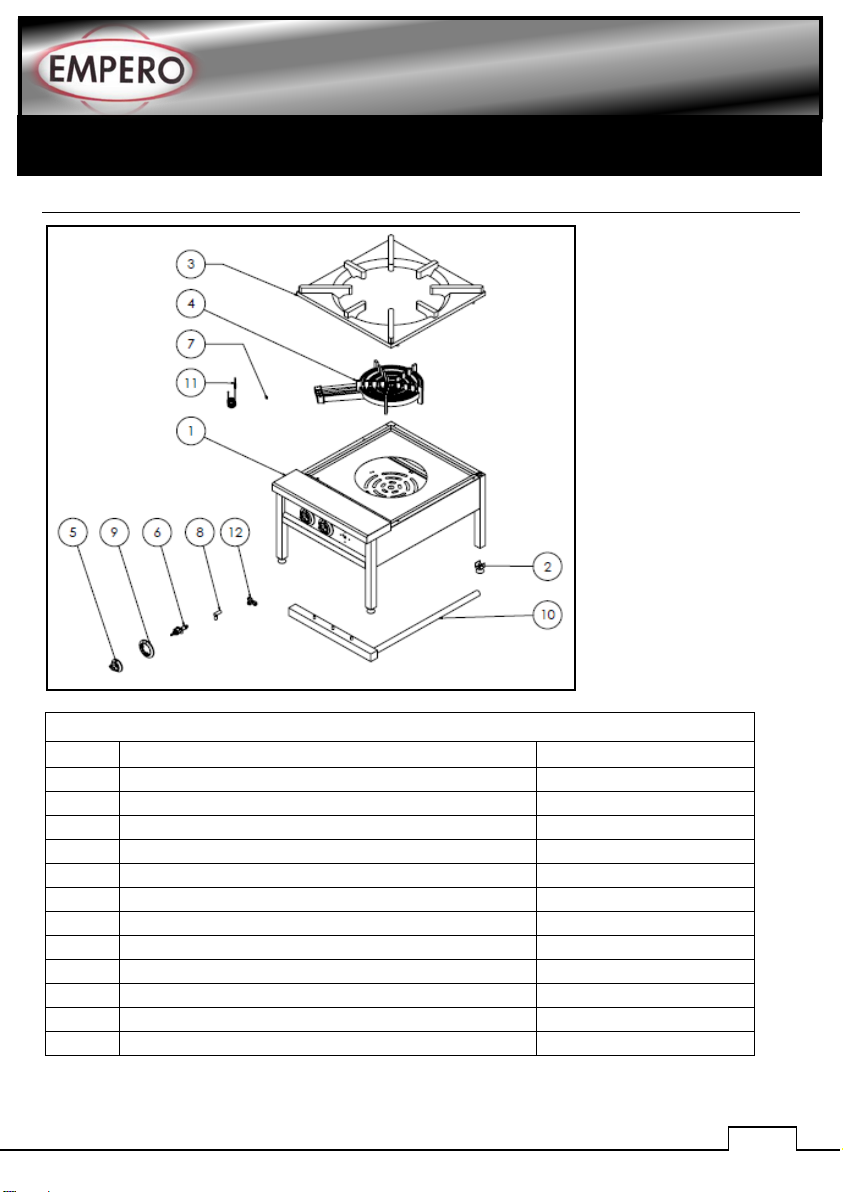

I SPARE PART LIST-EXPLODING DRAWING
EMP.YRG.70
PRODUCT CODE: EMP.YRG.70
NO
PRODUCT NAME
P.CODE
1
BASE FRAME
Y.EMP.YRG.70.1001
2
FEET
Y.EMP.YRG.70.1002
3
CASTING GRILL
Y.EMP.YRG.70.1003
4
BURNER
Y.EMP.YRG.70.1004
5
BUTTON
Y.EMP.YRG.70.1005
6
GAS TAP
Y.EMP.YRG.70.1006
7
INJECTOR GROUP
Y.EMP.YRG.70.1007
8
BURNER BRACKET
Y.EMP.YRG.70.1008
9
BUTTON BUFFER
Y.EMP.YRG.70.1009
10
GAS TANK
Y.EMP.YRG.70.1010
11
T BRACKET
Y.EMP.YRG.70.1011

16
GAS STOCK POT STOVE
Kasap Tip Dik Buzdolapları
I SPARE PART LIST-EXPLODING DRAWING
EMP.YRG.80
PRODUCT CODE: EMP.YRG.80
NO
PRODUCT NAME
P.CODE
1
BASE FRAME
Y.EMP.YRG.80.1001
2
FEET
Y.EMP.YRG.80.1002
3
CASTING GRILL
Y.EMP.YRG.80.1003
4
BURNER
Y.EMP.YRG.80.1004
5
BUTTON
Y.EMP.YRG.80.1005
6
GAS TAP
Y.EMP.YRG.80.1006
7
INJECTOR GROUP
Y.EMP.YRG.80.1007
8
BURNER BRACKET
Y.EMP.YRG.80.1008
9
BUTTON BUFFER
Y.EMP.YRG.80.1009
10
GAS TANK
Y.EMP.YRG.80.1010
11
THERMO PART
Y.EMP.YRG.80.1011
12
T BRACKET
Y.EMP.YRG.80.1012
