Endress+Hauser ISEmax compressed aircleaning unit User manual

Products Solutions Services
Operating Instructions
ISEmax compressed air
cleaning unit (230 V AC)
Order no.: 71072583
BA00438C/07/EN/17.17
71396473

ISEmax compressed air cleaning unit (230 V AC) Table of contents
Endress+Hauser 3
Table of contents
1 Document information ......... 4
1.1 Warnings ........................... 4
1.2 Symbols used ........................ 4
2 Basic safety instructions ....... 5
2.1 Requirements for personnel ........... 5
2.2 Designated use ...................... 5
2.3 Occupational safety .................. 5
2.4 Operational safety ................... 5
2.5 Product safety ....................... 6
2.6 IT security .......................... 6
3 Product description ............. 7
3.1 Product design ....................... 7
4 Incoming acceptance and
product identification .......... 8
4.1 Incoming acceptance ................. 8
4.2 Product identification ................. 8
4.3 Scope of delivery ..................... 9
4.4 Certificates and approvals ............. 9
5 Installation .................... 10
5.1 Installation conditions ............... 10
5.2 Mounting the cleaning unit ........... 11
5.3 Post-installation check ............... 12
6 Electrical connection .......... 12
6.1 Connecting the cleaning unit ......... 12
6.2 Post-connection check ............... 13
7 Commissioning ................ 13
7.1 Function check ..................... 13
7.2 Switching on the cleaning unit ........ 14
8 Maintenance .................. 14
8.1 Maintenance schedule ............... 14
8.2 Maintenance tasks .................. 15
9 Repairs ......................... 17
9.1 Spare parts ........................ 17
9.2 Return ............................ 17
9.3 Disposal ........................... 18
10 Technical data ................. 18
10.1 Electrical connection ................ 18
10.2 Performance characteristics .......... 18
10.3 Environment ....................... 18
Index ................................. 20

Document information ISEmax compressed air cleaning unit (230 V AC)
4 Endress+Hauser
1 Document information
1.1 Warnings
Structure of information Meaning
LDANGER
Causes (/consequences)
If necessary, Consequences of non-
compliance (if applicable)
‣Corrective action
This symbol alerts you to a dangerous situation.
Failure to avoid the dangerous situation will result in a fatal or serious injury.
LWARNING
Causes (/consequences)
If necessary, Consequences of non-
compliance (if applicable)
‣Corrective action
This symbol alerts you to a dangerous situation.
Failure to avoid the dangerous situation can result in a fatal or serious injury.
LCAUTION
Causes (/consequences)
If necessary, Consequences of non-
compliance (if applicable)
‣Corrective action
This symbol alerts you to a dangerous situation.
Failure to avoid this situation can result in minor or more serious injuries.
NOTICE
Cause/situation
If necessary, Consequences of non-
compliance (if applicable)
‣Action/note
This symbol alerts you to situations which may result in damage to property.
1.2 Symbols used
Symbol Meaning
Additional information, tips
Permitted or recommended
Not permitted or not recommended
Reference to device documentation
Reference to page
Reference to graphic
 Result of a step

ISEmax compressed air cleaning unit (230 V AC) Basic safety instructions
Endress+Hauser 5
2 Basic safety instructions
2.1 Requirements for personnel
• Installation, commissioning, operation and maintenance of the measuring system may be
carried out only by specially trained technical personnel.
• The technical personnel must be authorized by the plant operator to carry out the specified
activities.
• The electrical connection may be performed only by an electrical technician.
• The technical personnel must have read and understood these Operating Instructions and
must follow the instructions contained therein.
• Faults at the measuring point may only be rectified by authorized and specially trained
personnel.
Repairs not described in the Operating Instructions provided must be carried out only
directly at the manufacturer's site or by the service organization.
2.2 Designated use
The product is designed for the cyclic cleaning of ion-selective sensors with compressed air in
municipal wastewater treatment plants. The cleaning intervals are controlled by the
connected transmitter.
Use of the device for any purpose other than that described, poses a threat to the safety of
people and of the entire measuring system and is therefore not permitted.
The manufacturer is not liable for damage caused by improper or non-designated use.
2.3 Occupational safety
As the user, you are responsible for complying with the following safety conditions:
• Installation guidelines
• Local standards and regulations
2.4 Operational safety
Before commissioning the entire measuring point:
1. Verify that all connections are correct.
2. Ensure that electrical cables and hose connections are undamaged.
3. Do not operate damaged products, and protect them against unintentional operation.
4. Label damaged products as defective.
During operation:
‣If faults cannot be rectified:
products must be taken out of service and protected against unintentional operation.

Basic safety instructions ISEmax compressed air cleaning unit (230 V AC)
6 Endress+Hauser
2.5 Product safety
2.5.1 State of the art
The product is designed to meet state-of-the-art safety requirements, has been tested, and
left the factory in a condition in which it is safe to operate. The relevant regulations and
European standards have been observed.
2.6 IT security
We only provide a warranty if the device is installed and used as described in the Operating
Instructions. The device is equipped with security mechanisms to protect it against any
inadvertent changes to the device settings.
IT security measures in line with operators' security standards and designed to provide
additional protection for the device and device data transfer must be implemented by the
operators themselves.

ISEmax compressed air cleaning unit (230 V AC) Product description
Endress+Hauser 7
3 Product description
3.1 Product design
12
4
3
5
6
7
A0016120

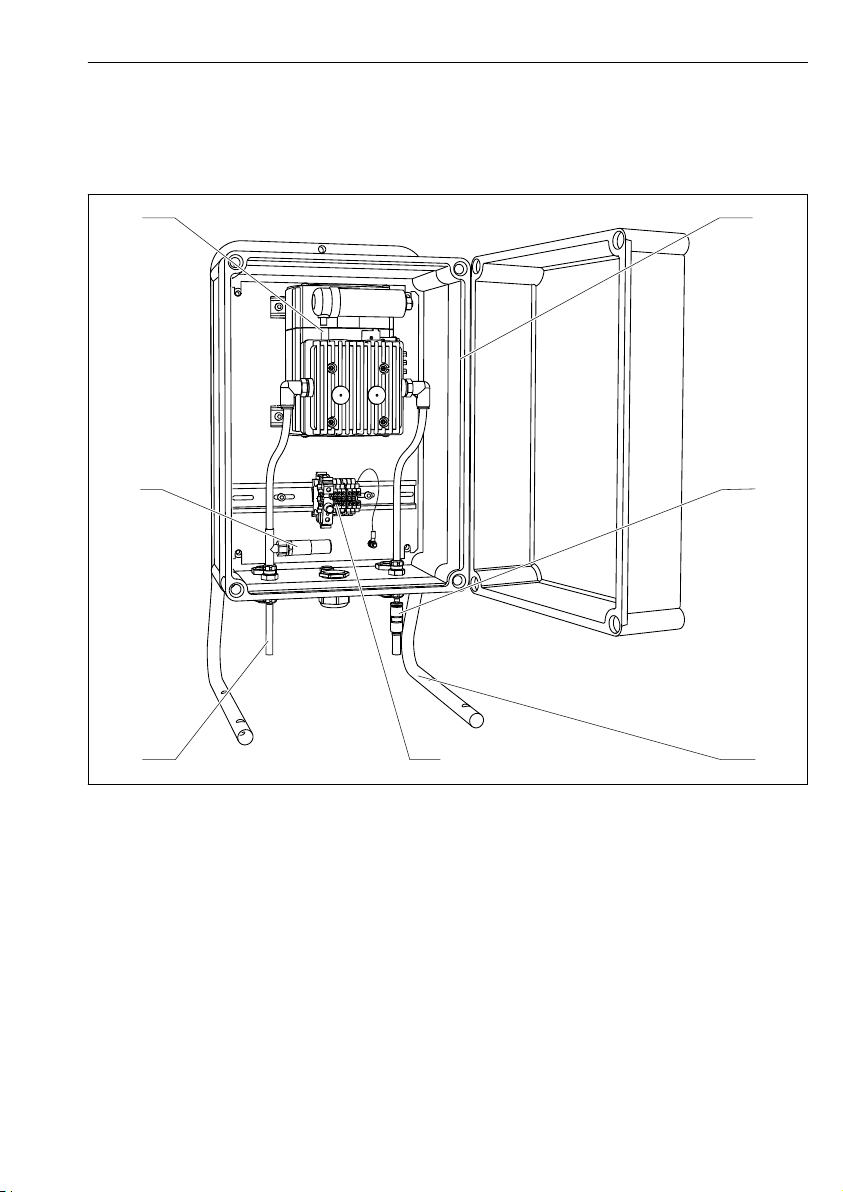

 1 Cleaning unit
1 Pump
2 Housing
3 Suction side with air filter
4 Tube frame (in scope of delivery)
5 Terminal strip with fuse
6 Compressed air supply (to sensor)
7 Safety valve to limit pressure

Incoming acceptance and product identification ISEmax compressed air cleaning unit (230 V AC)
8 Endress+Hauser
4 Incoming acceptance and product identification
4.1 Incoming acceptance
1. Verify that the packaging is undamaged.
 Notify the supplier of any damage to the packaging.
Keep the damaged packaging until the issue has been resolved.
2. Verify that the contents are undamaged.
 Notify the supplier of any damage to the delivery contents.
Keep the damaged goods until the issue has been resolved.
3. Check that the delivery is complete and nothing is missing.
 Compare the shipping documents with your order.
4. Pack the product for storage and transportation in such a way that it is protected
against impact and moisture.
 The original packaging offers the best protection.
Make sure to comply with the permitted ambient conditions.
If you have any questions, please contact your supplier or your local Sales Center.
4.2 Product identification
4.2.1 Nameplate
The nameplate provides you with the following information on your device:
• Manufacturer identification
• Order code
• Extended order code
• Serial number
• Ambient and process conditions
• Input and output values
• Safety information and warnings
‣Compare the information on the nameplate with the order.
4.2.2 Product identification
Cleaning unit in the housing
Order no.: 71072583
Manufacturer's address
Endress+Hauser Conducta GmbH+Co. KG
Dieselstraße 24
D-70839 Gerlingen

ISEmax compressed air cleaning unit (230 V AC) Incoming acceptance and product identification
Endress+Hauser 9
4.3 Scope of delivery
The delivery comprises:
• Cleaning unit, complete
• 1 set of Operating Instructions in German
• 1 set of Operating Instructions in English
‣If you have any queries:
Please contact your supplier or local sales center.
4.4 Certificates and approvals
4.4.1  mark
The product meets the requirements of the harmonized European standards. As such, it
complies with the legal specifications of the EU directives. The manufacturer confirms
successful testing of the product by affixing to it the  mark.

Installation ISEmax compressed air cleaning unit (230 V AC)
10 Endress+Hauser
5 Installation
5.1 Installation conditions
230 (9.06)
378 (14.9)
278 (10.9)
106 (4.17)
Pg21
Pg13.5
A0011377

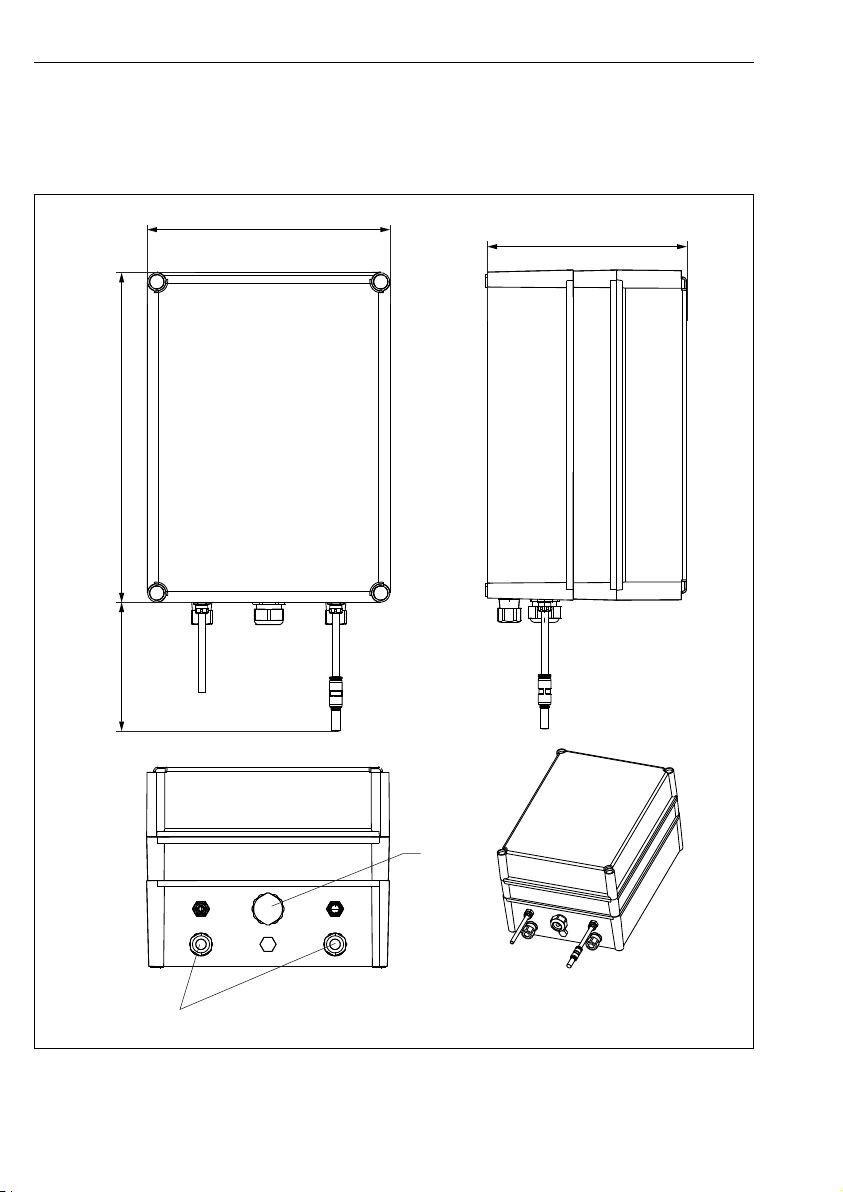

 2 Dimensions in mm (inch)

ISEmax compressed air cleaning unit (230 V AC) Installation
Endress+Hauser 11
5.2 Mounting the cleaning unit
12
3
A0011385
 3 Cleaning unit on tube frame supplied
1 Cleaning unit
2 Tube frame (mounted on delivery)
3 Screws to secure on ground (to be provided by customer)
The following options are available for installation:
1. Secure the unit mounted on the tubular frame to the ground.
 Fastening fixtures must be provided by the customer.
2. Position the unit mounted on the tubular frame on the railing or an upright post.
 Secure the tubular frame to the railing or post using a hose clip (provided by
customer).
3. Preferably mount the cleaning unit close to the measuring point.

Electrical connection ISEmax compressed air cleaning unit (230 V AC)
12 Endress+Hauser
5.3 Post-installation check
‣Once mounted, check all the connections to ensure they are secure and leak-tight.
‣Check the cables and hoses for damage.
‣Verify that the cables are routed in such a way that they are free from electromagnetic
interference influences.
6 Electrical connection
LWARNING
Device is live!
Incorrect connection may result in injury or death!
‣The electrical connection may be performed only by an electrical technician.
‣The electrical technician must have read and understood these Operating Instructions and
must follow the instructions contained therein.
‣Prior to commencing connection work, ensure that no voltage is present on any cable.
6.1 Connecting the cleaning unit
NOTICE
Use of impermissible cable diameters!
IP65 degree of protection is voided
‣Use cables with a diameter of 6 to 12 mm (0.24 to 0.47") for the Pg 13.5 cable gland.
‣Use cables with a diameter of 13 to 18 mm (0.51 to 0.71") for the Pg 21 cable gland
(mains supply line).
NOTICE
Power consumption too high for the Liquiline alarm relay!
Can cause irreparable damage to the base module
‣Connect the cleaning unit only to terminals of an additional module (AOR, 2R or 4R), not
to the alarm relay of the base module.

ISEmax compressed air cleaning unit (230 V AC) Commissioning
Endress+Hauser 13

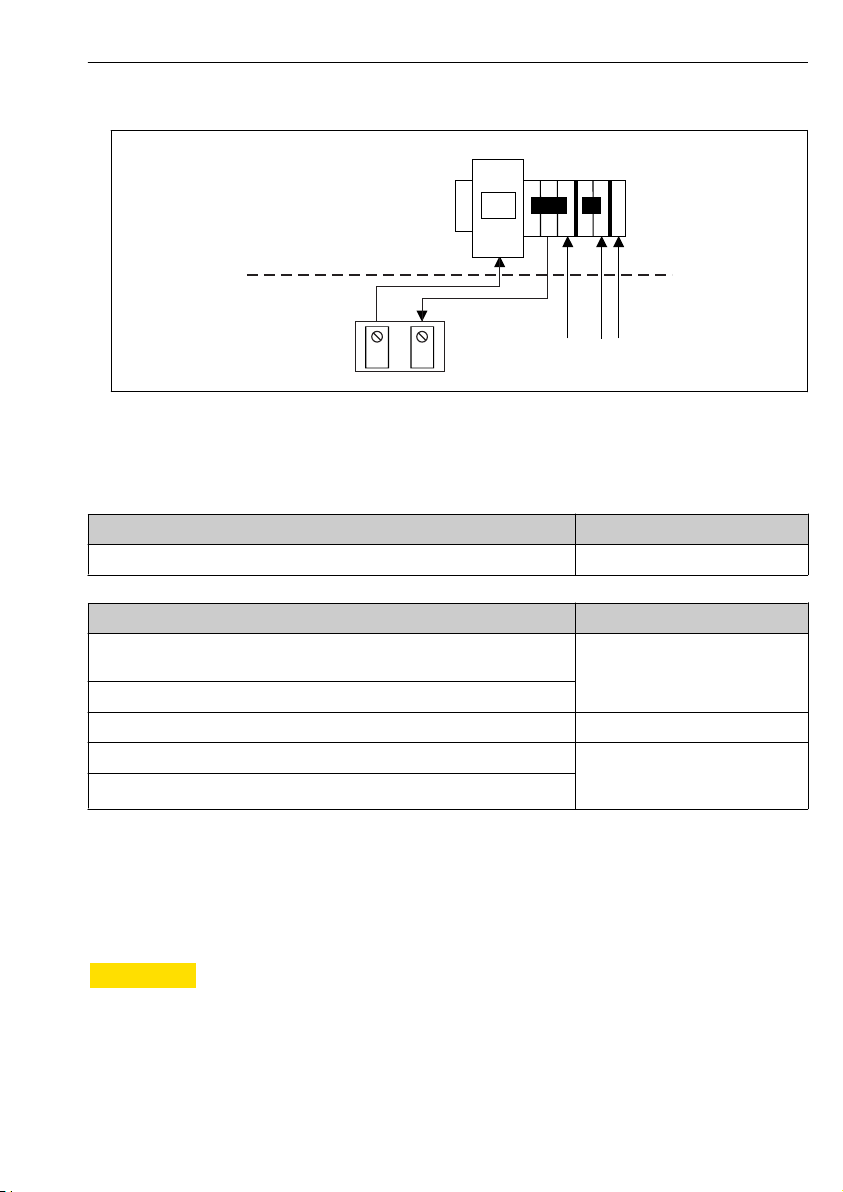

Connect the cleaning unit to the transmitter:
‣
PE L1 N PE
T2.0A
230V AC / 50Hz
C 44M x
AOR/2R/4R 42 41
1
A0016124
Connect voltage L1 to terminals 41 and 42 of an additional module (AOR, 2R or 4R).
6.2 Post-connection check
Device status and specifications Notes
Are the sensor and cable free from damage on the outside? Visual inspection
Electrical connection Notes
Does the supply voltage of the connected transmitter match the data on the
nameplate?
Visual inspection
Are the installed cables strain-relieved and not twisted?
Is the cable type route completely isolated on site? Power cables / signal lines
Are all cable entries installed, tightened and sealed? In the case of lateral cable entries:
Cable loops facing downwards to
allow water to drip off.
Are all cable entries facing downwards or mounted laterally?
7 Commissioning
7.1 Function check
LCAUTION
Avoid risk of injury due to incorrect power supply and incorrect or non-secure hose
connections!
‣Check that all connections have been established correctly.
‣In particular, check all hose connections to ensure they are secure and liquid cannot escape.
‣Ensure that the supply voltage matches the voltage indicated on the nameplate.

Maintenance ISEmax compressed air cleaning unit (230 V AC)
14 Endress+Hauser
7.2 Switching on the cleaning unit
LCAUTION
Hot surfaces in open housing!
Risk of burns if touched!
‣Always wear heat-protection gloves to touch components in the open housing after
prolonged operation of the device.
NOTICE
Damage to property from non-designated use!
‣The device is designed for interval operation, i.e. maximum 3 minutes cleaning, break of at
least six times the cleaning time.
‣Do not start up the device against a pressure load and do not subject it to pressure when at
a standstill.
‣Use the device only to convey air. Never use the cleaning unit to convey liquids and
aggressive and/or toxic media.
‣Protect the device against spray or splash water and excessive dust.
For more information on "Creating cleaning programs with the transmitter firmware", see
BA00444C.
8 Maintenance
LWARNING
Device is live!
Risk of serious or fatal injury from electric shock!
‣Disconnect the device from the mains voltage.
‣Secure the device to prevent it from being switched on again unintentionally.
Take all the necessary precautions in time to ensure the operational safety and reliability of
the entire measuring system.
NOTICE
Effects on process and process control!
‣When carrying out any work on the system, bear in mind any potential impact this could
have on the process control system and the process itself.
‣For your own safety, only use genuine accessories. With genuine parts, the function,
accuracy and reliability are also ensured after maintenance work.
8.1 Maintenance schedule
1. Check the compressed air supply to the sensor at regular intervals.
2. As the only wear part, the seal lip of the ribbed cover must be replaced after a long time
in service.
 You know that the seal lip needs to be replaced if the conveying capacity drops
noticeably.

ISEmax compressed air cleaning unit (230 V AC) Maintenance
Endress+Hauser 15
8.2 Maintenance tasks
8.2.1 Checking compressed air supply to sensor
If cleaning unit is switched on:
1. Check if air is escaping from the cleaning nozzle on the sensor.
2. If not, and if air is instead escaping only via the safety valve on the cleaning unit:
Check the complete supply line to the cleaning nozzle and check the nozzle itself for
contamination and blockage.
3. Remove the contamination.
 If this is not possible: Replace blocked hoses, connectors or nozzles.

Maintenance ISEmax compressed air cleaning unit (230 V AC)
16 Endress+Hauser
8.2.2 Replacing the seal lip
Removing
1
2
3
4
5
6
7
8
9
10
11
12
13
A0011378
 4 Pump head
1 Ribbed cover
2 Seal
3 Valve guard
4 Valve springs
5 Thrust ring
6 O-ring
7 Connecting rod
8 Allen screws
9 Intermediate plate
10 Cylinder screw
11 Connecting rod disk
12 Seal lip
13 Spacer
1. Release the 4 Allen screws (AF4, item 8) and remove the ribbed cover (item 1) along
with the seal (item 2) and the intermediate plate (item 9).
2. Remove the spacer (item 13) from the connecting rod disk (item 11).
3. Inspect the O-ring (item 6) in the spacer for visible wear.
 Where necessary, replace it with the new one in the spare parts kit.
4. Unscrew the fillister-head screw (item 10) using a flat-head screwdriver.
5. Remove thrust washer (item 5).
6. Replace the seal lip (item 12) with the new one in the spare parts kit.
 Make sure the seal lip is positioned correctly.

ISEmax compressed air cleaning unit (230 V AC) Repairs
Endress+Hauser 17
Assembly
1. Place the thrust washer back on the connecting rod disk and seal lip.
2. Screw on the fillister-head screw securely.
 The seal lip should not become warped and the pretension should cause it to fit
properly in the cylinder.
3. Place the spacer on the connecting rod disk.
 Make sure it is positioned correctly in the corresponding recesses.
4. Check the seal (item 2) of the ribbed cover.
 and replace if necessary.
5. Insert the intermediate plate into the ribbed cover.
 Make sure it is seated correctly (outline of thrust ring and outline of ribbed cover
for bottom and top position respectively; position in the ribbed cover is clear).
6. Place the ribbed cover together with the intermediate plate and seal on the pump head
so that the logo on the ribbed cover is over the fan grill.
7. Screw the 4 Allen screws tight.
The spare parts kit also contains 2 additional valve springs (item 4), including the
associated screws and a valve guard (item 3). Replace these parts only if necessary.
9 Repairs
9.1 Spare parts
Compressor spare parts kit:
• 1 seal lip
• 1 seal for ribbed cover
• 1 O-ring Ø 70 x 2.0
• 1 valve guard
• 2 valve springs
• 2 fillister-head screws DIN84, M3x4
• Order No. 71092783
9.2 Return
The product must be returned if repairs or a factory calibration are required, or if the wrong
product was ordered or delivered. As an ISO-certified company and also due to legal
regulations, Endress+Hauser is obliged to follow certain procedures when handling any
returned products that have been in contact with medium.
To ensure the swift, safe and professional return of the device:
‣Refer to the website www.endress.com/support/return-material for information on the
procedure and conditions for returning devices.

Technical data ISEmax compressed air cleaning unit (230 V AC)
18 Endress+Hauser
9.3 Disposal
The device contains electronic components. and must therefore be disposed of in accordance
with regulations on the disposal of electronic waste.
‣Observe the local regulations.
10 Technical data
10.1 Electrical connection
10.1.1 Supply voltage
230 V AC, 50 Hz
NOTICE
The device does not have a power switch!
‣A fuse with a maximum rating of 10 A must be provided by the customer.
‣Please observe the local installation guidelines.
10.1.2 Power consumption
300 VA; cos(phi) = 0.8
10.1.3 Cable specification
Permitted cable diameter:
• 6 to 12 mm (0.24 to 0.47") if using Pg 13.5
• 13 to 18 mm (0.51 to 0.71") if using Pg 21 (provided for mains supply line)
10.1.4 Electrical fuse of pump
Slow-blow 2.0 A
10.2 Performance characteristics
10.2.1 Conveying capacity
50 l/min (13.2 gal/min), at atmospheric pressure
10.2.2 Operating interval
Max. 3 minutes cleaning, break for at least six times the cleaning time
10.3 Environment
10.3.1 Ambient temperature
-10 to +55 °C (+10 to +130 °F)

ISEmax compressed air cleaning unit (230 V AC) Technical data
Endress+Hauser 19
10.3.2 Degree of protection
IP65
10.3.3 Overheating protection
Automatic switch off at T > 130 °C (266 °F) in the motor (winding sensor)

Index ISEmax compressed air cleaning unit (230 V AC)
20 Endress+Hauser
Index
A
Ambient temperature ............... 18
C
Cable specification ................. 18
Certificates and approvals ............. 9
Check
Compressed air supply to sensor ......15
Connection .................. 13
Installation .................. 12
Installation and function .......... 13
Check compressed air supply ........... 15
Cleaning unit
Connecting .................. 12
Mounting ................... 11
Switching on ................. 14
Commissioning ...................13
Connection ................... 12, 18
Conveying capacity .................18
D
Degree of protection ................19
Designated use ....................5
Disposal ....................... 18
E
Electrical connection ............. 12, 18
F
Function check ................... 13
Fuse ......................... 18
I
Incoming acceptance ................ 8
Installation conditions ...............10
M
Maintenance .................... 14
Maintenance schedule ...............14
Manufacturer's address ............... 8
N
Nameplate ...................... 8
O
Occupational safety ................. 5
Operating interval ................. 18
Operational safety ..................5
Overheating protection .............. 19
P
Performance characteristics ........... 18
Post-connection check ...............13
Post-installation check .............. 12
Power consumption ................ 18
Product description ................. 7
Product identification ................ 8
Product safety .................... 6
R
Repairs ........................17
Replacing the seal lip ............... 16
Requirements for personnel ............ 5
Return ........................ 17
S
Safety
Occupational safety .............. 5
Operation ....................5
Product ..................... 6
Safety Instructions ..................5
Scope of delivery ...................9
Spare parts ..................... 17
Supply voltage ................... 18
Switching on .................... 14
Symbols ........................ 4
T
Technical personnel ................. 5
U
Use
Designated ................... 5
W
Warnings ....................... 4
