ENERA ENERA-S User manual

INSTALLATION MANUAL
www.enera-solar.com
www.enera-solar.com
Partida el Planet 208 | 03590 Altea
ENERA-S
Non-Pressure Thermosiphon with Serpantine
SYSTEM SPECIFICATIONS STRUCTURE
1. Exhaust air hose pipe
2. Tank
3. Outlet
4. Support tank
5. Cross bar
6. Across rod
7. Frame
8. Support leg
9. Bottom rod
10. Vacuum tube
11. Anti-wind leg
12. Bottom support
TROUBLESHOOTING
REASON
SOLUTION
MORE INFO & HELP
Email ENERA:
Call ENERA:
F.A.Q:
Manuals:
Warranty:
[email protected]
[phone]
www.enera-solar.com/faq/
www.enera-solar.com/download/
www.enera-solar.com/warranty-terms/
WARRANTY
- The warranty of all installed equipment is 2 years
- This period is valid if the magnesium corrosion anode is replaced every 12 month
- In the long-term non-use of the solar heater, it is recommended to close the cold water
supply to the system for more than 72 hours
- The system must only be started when there is no sun
- That is, during the morning or the night
- Filling the tank during the day leads to its failure, the guarantee would NOT be valid
WARRANTY CARD
System:
Installation Date:
- STAMP - (Client) Sign to Approve

INTRODUCTION
1. Before the install, please clean the inside of the water tank.
2. The system should be installed with full sunlight and fixed by steel rod, self-expanding screen or
cement, with the frame standing on a hard surface.
3. The air hose must be open and installed with three pass. The down pass is dedicated for over drop
water and must not be connected to any other pipe. Otherwise, the water tank will be damaged without
the dedicated exhaust air hose for the pressure.
4. Both frames should be connected by strengthening rod and put the water tank on the frame. Pay
attention so that the evacuated tube hole is in symmetry with the frame tail holes. Place the ABS plastic
cover into the tail hole and tank bolts on to the frame seat of the tank, fixing it at a later stage.
5. Place anti-dirt seal on the evacuated solar collector tubes, following by a soapy water for lubrication.
Plug the collector tubes into the water tank.
6. Adjust tank position and fix the bolts under the tank. Place the remaining collector tubes into the ABS
tail support of tail holes.
7. Connect the down and up loading water pipes, ensure to select special composed pipe to reduce the
heat loss and the pipe should be back up the warm material, if with electric heater back up system, you
can put the cable into the warm keeping material of the pipe.
8. Fix down and up loading water pipes onto the building and the frame. At a north area, it can install a
exhaust valve for the down and up loading pipes to empty the pipe and receive hot water immediately.
9. Evacuated solar collector tube can heat up to 270°C, and tubes may crack immediately. Pay close
attention and if such problem arrises, follow the following steps.

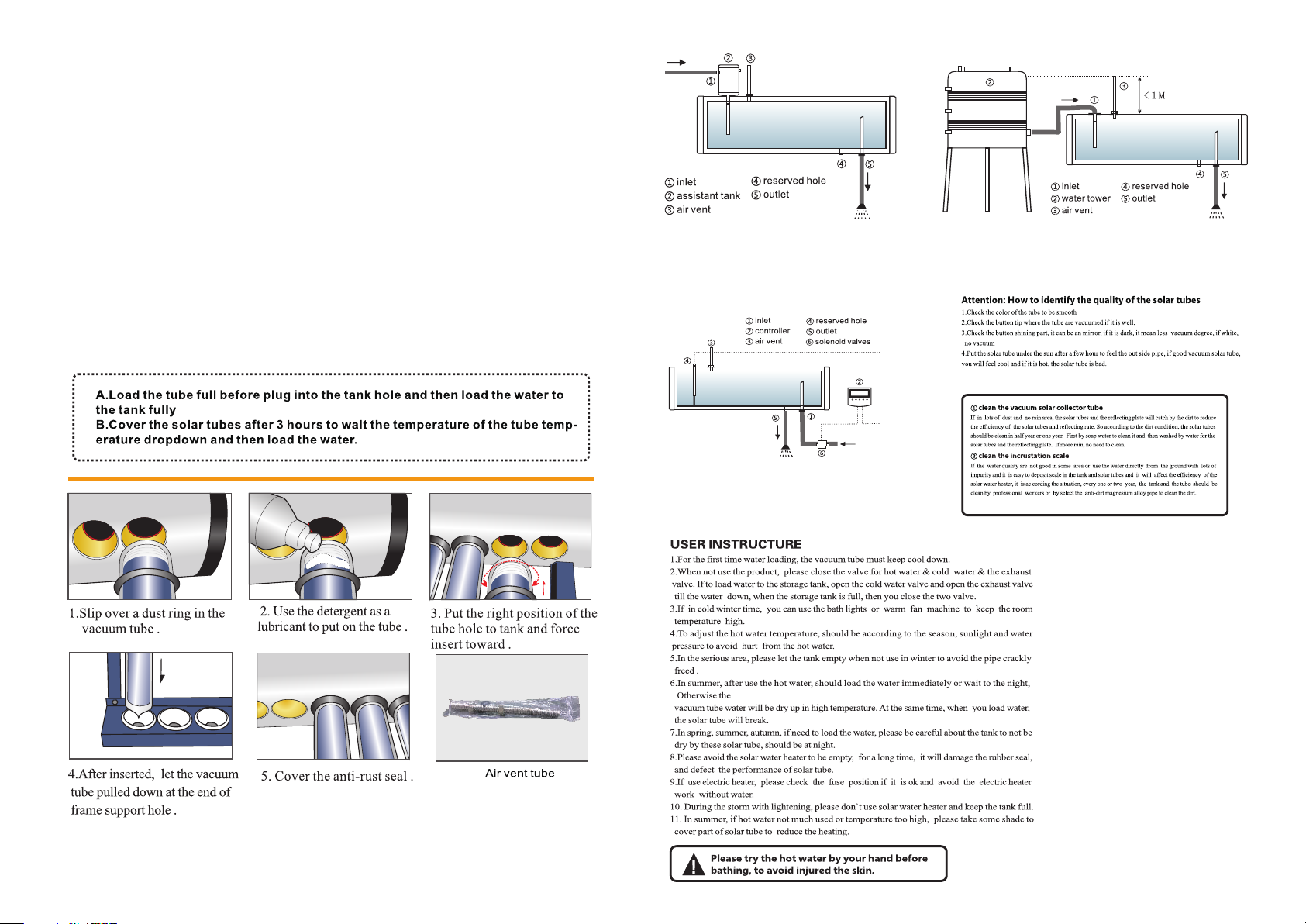

INSTALLATION WITH ASSISTANT TANK MODEL INSTALLATION WITH WATER TANK TOWER
INSTALLATION WITH ELECTRIC CONTROLLER MODEL
ENSURE EXHAUST PIPE IS UNOBSTRUCTED.
PRESSURE RELIEF VALVE IS NEEDED ON THE
INLET PIPE WHEN THE PRESSURE IS TOO HIGH.
ENSURE EXHAUST PIPE IS UNOBSTRUCTED. TEMPERATURE
SENSOR = 4, INSTALLED WITHOUT SEALING. CONTROLLER
PLATE AND SOLENOID VALVE MUST BE INSTALLED IN ROOM.
HEIGHT FROM THE SOLAR SYSTEM AIR VENT TO WATER LEVEL IN TOWER MUST
BE AT LEAST 1 M. IF MORE, USE AN ASSISTANT TANK, A CONTROLLER OR A
SPECIAL VALVE TO CONTROL FILLING THE WATER TO TANK. OTHERWISE, THE
TANK WILL BE DAMAGED. ENSURE EXHAUST PIPE IS UNOBSTRUCTED.
MAINTENANCE
6.
