Energizer eZLD18B User manual
LITHIUM DRILLLITHIUM DRILLLITHIUM DRILLLITHIUM DRILL
USER MANUAL
Let's get started.
You're excited to power up,
so we'll keep this brief!
This manual will show you the great features of Energizer®
eZLD18B
Thank you for purchasing your Energizer®
Lithium Drill
CONTENTS
INDEX
1. DRILL WARNINGS 5
2. BATTERY WARNINGS 7

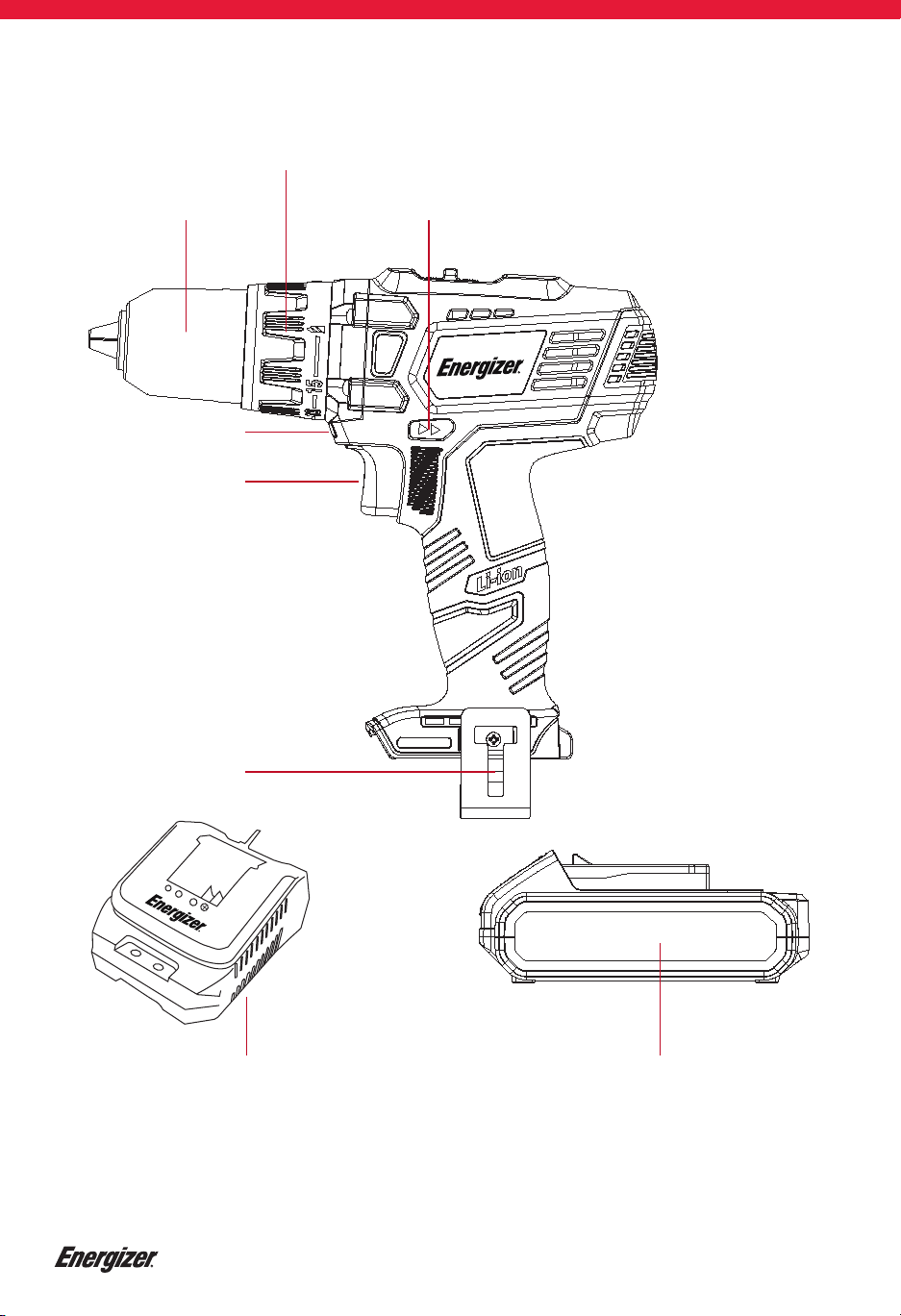

3. PARTS OF YOUR DRILL 9
4. CHARGING A BATTERY 10
5. USING YOUR DRILL 10
6. BATTERY TECHNICAL SPECIFICATIONS 11
7. TECHNICAL SPECIFICATIONS 11
8.
WARRANTY
12
4. CHARGING A BATTERY
WARNING: Place the baery pack and charger on a flat non-flammable surface and away from
flammable material when re-charging the baery pack.
1. Insert the plug on the charging unit into a power socket
and turn the power on if required.
2. Plug the tool inside the baery output.
The above are 2 dierent charging methods shown based
on the baery model being used.
3. Process of charging baery pack:
When the red light is on, the baery has very low power.
When the red and yellow lights are on, then the baery
has more than half the energy. When the three lights are
on, the baery is fully charged.
4. USB function (additional feature of certain baery models):
Insert the USB plug of the device to the USB port
of the baery.
5. USING A DRILL
IMPORTANT: Before starting inspect your drill bit to ensure there is no excessive wear and that it is
sharp. Never use a drill bit if it is damaged or blunt.
Check that the drill bit is correctly fied in the chuck and is the correct type for the material you wish to
drill a hole in.
DRILLING WOOD
Ensure the piece of work you want to drill into is firmly anchored in place. Hold the drill in a straight line
with the end of the drill bit.
Apply enough pressure to keep the drill bit cuing through the wood.
When drilling through wood with a twist bit it may over heat if you do not clean any chips and wood
dust out of the flutes (grooves in the drill bit).
To do this:
1. Stop the drill by taking your finger o the power trigger.
2. Switch the direction buon into reverse then press the trigger until the drill bit is clear of the wood.
3. Use a brush to remove any scraps or dust from the drill bit. DO NOT use your fingers.
4. Switch the direction buon into forward to continue drilling into piece of work.
NOTE: If you are drilling into a piece of wood that is likely to splinter you may want to use a ‘back-up’
block of wood place behind the piece you are drilling.
You will drill a cleaner hole if you ease up on the pressure just before the bit breaks through the back of
the wood. Turn the wood over and complete the hole.
DRILLING METAL
There are two main things to remember when drilling through metal.
1. The harder the material, the greater the pressure you need to apply to the drill.
2. The harder the material, the slower the speed of the drill needs to be.
Below are a few tips to help when drilling through metal.
1. Lubricate the tip of the drill bit occasionally with cuing oil except when drilling so metals such as
aluminium, copper or cast iron.
2. If the hole you wish to drill is quite large, drill a smaller hole first then enlarge to the final size. This is
generally a faster method in the long run.
3. Maintain enough pressure to assure that the drill bit does not just spin in the hole. This will make the
drill bit blunt and shorten its life.
6. BATTERY TECHNICAL SPECIFICATION
Baery pack 18 V DC 2000 mAh Li-ion baery pack
Charger adapter input 220-240 V AC 50-60 Hz
7. TECHNICAL SPECIFICATION
Power: 18 V
No-load speed: 0-400/0-1500 rpm
Max torque: 58 N.m
Clutch: 15+1 seing
Chuck: 2-13 mm
1. DRILL WARNINGS
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result
in electric shock and/or injury. Save all warnings and instructions for future reference.
WORK AREA SAFETY
• Keep your work area clean and well lit. Cluered benches and dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids,
gases, or dust. Power tools create sparks which may ignite dust or fumes.
• Keep bystanders and children away while operating a power tool. Distractions can cause you to lose
control.
ELECTRICAL SAFETY
• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
• Avoid bodily contact with grounded surfaces such as pipes, radiators, ranges and refrigerators.
• There is an increased risk of electric shock if your body is grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk
of electric shock.
• Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an outlet.
• Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged cords immediately.
• Damaged cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use.
• Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a Ground Fault Circuit Interrupter
(GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use common sense when operating a power tool.
• Do not use the tool while tired or under the influence of drugs, alcohol, or medication. A moment of
inaention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Safety equipment such as a dust
mask, non-slip safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
• Prevent unintentional starting.
• Ensure the switch is in the o-position before connecting to the power source and/or baery pack,
picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power
tools that have the switch on invites accidents.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing, and gloves away from
moving parts. Loose clothes, jewellery, or long hair can be caught in moving parts.
• Remove adjusting keys or spanners before turning the tool on. A spanner or a key that is le aached
to a rotating part of the tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables beer control of the
power tool in unexpected situations.
• Only use safety equipment that has been approved by an appropriate standards agency.
• Unapproved safety equipment may not provide adequate protection.
POWER TOOL USE AND CARE
• Do not force tools. Use the correct tool for your application. The correct tool will do the job beer and
safer at the rate for which it is designed.
• Do not use a power tool if the switch does not turn it on or o. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the baery pack from the power tool before
making any adjustments, changing accessories, or storing the tool. Such preventive safety measures
reduce risk of starting the tool accidentally.
• Store idle power tools out of the reach of children and other untrained persons. Power tools are
dangerous in the hands of untrained users.
• Maintain tools with care. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may aect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cuing tools sharp and clean. Properly maintained tools with sharp cuing edges are less likely
to bind and are easier to control.
• Use only accessories that are recommended by the manufacturer for your model. Accessories that
may be suitable for one tool may become hazardous when used on another tool.
BATTERY TOOL USE AND CARE
• Ensure the switch is in the o position before inserting the baery pack.
• Inserting the baery pack into power tools that have the switch on invites accidents.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type
of baery pack may create a risk of fire when used with another baery pack.
• Use power tools only with specifically designated baery packs. Use of any other baery packs may
create a risk of injury and fire.
• When baery pack is not in use, keep it away from other metal objects like paper clips, coins, keys,
nails, screws, or other small metal objects that can make a connection from one terminal to another.
• Shorting the baery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the baery, avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
• Liquid ejected from the baery may cause irritation or burns.
SERVICE
• Have your power tool service by qualified repair person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
ADDITIONAL WARNINGS APPLICABLE FOR DRILLS
• Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
• Hold power tools by insulated gripping surfaces when performing an operation where the cuing tool
may contact hidden wiring or its own cord. Contact with a “live” wire will make exposed metal parts of
the tool “live” and shock the operator.
• Use clamps or other practical ways to secure and support the workpiece to a stable platform. Holding
the work by hand or against your body is unstable and may lead to loss of control.
• Do not drill, fasten or break into existing walls or other blind areas where electrical wiring may exist. If
this situation is unavoidable, disconnect all fuses or circuit breakers feeding this work site.
• Always wear safety goggles or eye protection when using this tool. Use a dust mask or respirator for
applications which generate dust.
• Use thick cushioned gloves and limit the exposure time by taking frequent rest periods.
• Vibration caused by hammer-drill action may be harmful to your hands and arms.
• Secure the material being drilled. Never hold it in your hand or across legs. Unstable support can
cause the drill bit to bind causing loss of control and injury.
• Disconnect baery pack from tool before making any assembly, adjustments or changing accessories.
• Such preventive safety measures reduce the risk of starting the tool accidentally.
• Position the cord clear of rotating bit. Do not wrap the cord around your arm or wrist. If you lose
control and have the cord wrapped around your arm or wrist it may entrap you and cause injury.
• Position yourself to avoid being caught between the tool or side handle and walls or posts.
• Should the bit become bound or jammed in the work, the reaction torque of the tool could crush your
hand or leg.
• If the bit becomes bound in the work piece, release the trigger immediately, reverse the direction of
rotation and slowly squeeze the trigger to back out the bit. Be ready for a strong reaction torque. The
drill body will tend to twist in the opposite direction as the drill bit is rotating.
• Do not grasp the tool or place your hands too close to the spinning chuck or drill bit. Your hand may
be lacerated.
• When installing a drill bit, insert the shank of the bit well within the jaws of the chuck. If the bit is not
inserted deep enough, the grip of the jaws over the bit is reduced and the loss of control is increased.
• Do not use dull or damaged bits and accessories. Dull or damaged bits have a greater tendency to
bind in the work piece.
• When removing the bit from the tool avoid contact with skin and use proper protective gloves when
grasping the bit or accessory. Accessories may be hot aer prolonged use.
• Do not run the drill while carrying it at your side. A spinning drill bit could become entangled with
clothing and injury may result.
WE RECOMMEND THAT THE OPERATOR WEARS HEARING PROTECTION.
• The declared vibration total value has been measured in accordance with standard test method and
may be used for comparing one tool with another.
• The declared vibration total value may also be used in a preliminary assessment of exposure.
WARNING! The vibration emissions during actual use of the power tool can dier from the declared
total value depending on the ways in which the tool is used, and of the need to identify safety measu-
res to protect the operator that are based on an estimate of exposure in the actual conditions of use
(taking account of all parts of the operating cycle such as times when the tool is switched o and when
it is running idle in addition to trigger time).
LpA (acoustic pressure): 77.8dB(A) (KWA=3 dB)
Vibration: 0.670m/s (K=1.5m/s)
LwA (acoustic pressure): 88.8dB(A) (KWA=3 dB)
2. BATTERY WARNINGS
• Before using baery charger, read all instructions and caution marks on baery charger, baery pack,
and product using baery.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly
qualified person in order to avoid a hazard.
• Use only the charger which accompanied your product or direct replacement as listed in the catalogue
or this manual. Do not substitute any other charger. Use only same supplier approved chargers with
your product.
SEE TECHNICAL SPECIFICATIONS
• Do not disassemble charger or operate the charger if it has received a sharp blow, been dropped or
otherwise damaged in any way. Incorrect reassembly may result in a risk of electric shock, electrocution
or fire.
• Do not recharge baery in damp or wet environment. Do not expose charger to rain or snow. If
baery case is cracked or otherwise damaged, do not insert into charger. Baery short or fire may
result.
• Use only Energizer replacement baeries. See Technical Specifications. Other types of baeries may
burst causing personal injury and damage.
• Charge baery pack in temperatures above 0ºC and below 45ºC. Store tool and baery pack in
locations where temperatures will not exceed 45ºC. This is important to prevent serious damage to the
baery cells.
• Pull the plug rather than cord when disconnecting charger or when disconnecting cords using the
daisy chain feature. This will reduce risk of damage to electric plug and cord.
• Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to
damage or stress.
• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could
result in risk of fire or electric shock.
• Disconnect the charger from the outlet before aempting any cleaning. This will reduce the risk of
electric shock. Removing the baery pack will not reduce this risk.
• The charger is designed to operate on standard household electrical power (220-240 volts, 50-60 Hz
AC only). Do not aempt to use it on any other voltage.
• This power unit is intended to be correctly orientated in a vertical or floor mount position.
• Do not incinerate the baery pack even if it is severely damaged or is completely worn out. The
baery pack can explode in a fire. Toxic fumes and materials are created when lithium ion baery packs
are burned.
• Do not charge or use baery in explosive atmospheres, such as in the presence of flammable liquids,
gases or dust. Inserting or removing the baery from the charger may ignite the dust or fumes.
• If baery contents come into contact with the skin, immediately wash area with mild soap and water.
• If baery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation
ceases.
• If medical aention is needed, the baery electrolyte is composed of a mixture of liquid organic
carbonates and lithium salts.
• Contents of opened baery cells may cause respiratory irritation. Provide fresh air. If symptoms
persist, seek medical aention.
WARNING! Burn hazard. Baery liquid may be flammable if exposed to spark or flame.
• Charge the baery packs only in the charger which accompanied your product.
• DO NOT splash or immerse in water or other liquids. This may cause premature cell failure.
• Do not store or use the tool and baery pack in locations where the temperature may reach or exceed
45°C (such as outside sheds or metal buildings in summer).
• When baeries are not in tool or charger, keep them away from metal objects. For example, to
protect terminals from shorting DO NOT place baeries in a tool box or pocket with nails, screws, keys,
etc. Fire or injury may result.
• DO NOT put baeries into fire or expose to high heat. They may explode.
3. PARTS OF YOUR DRILL
5
4. CHARGING A BATTERY
WARNING: Place the baery pack and charger on a flat non-flammable surface and away from
flammable material when re-charging the baery pack.
1. Insert the plug on the charging unit into a power socket
and turn the power on if required.
2. Plug the tool inside the baery output.
The above are 2 dierent charging methods shown based
on the baery model being used.
3. Process of charging baery pack:
When the red light is on, the baery has very low power.
When the red and yellow lights are on, then the baery
has more than half the energy. When the three lights are
on, the baery is fully charged.
4. USB function (additional feature of certain baery models):
Insert the USB plug of the device to the USB port
of the baery.
5. USING A DRILL
IMPORTANT: Before starting inspect your drill bit to ensure there is no excessive wear and that it is
sharp. Never use a drill bit if it is damaged or blunt.
Check that the drill bit is correctly fied in the chuck and is the correct type for the material you wish to
drill a hole in.
DRILLING WOOD
Ensure the piece of work you want to drill into is firmly anchored in place. Hold the drill in a straight line
with the end of the drill bit.
Apply enough pressure to keep the drill bit cuing through the wood.
When drilling through wood with a twist bit it may over heat if you do not clean any chips and wood
dust out of the flutes (grooves in the drill bit).
To do this:
1. Stop the drill by taking your finger o the power trigger.
2. Switch the direction buon into reverse then press the trigger until the drill bit is clear of the wood.
3. Use a brush to remove any scraps or dust from the drill bit. DO NOT use your fingers.
4. Switch the direction buon into forward to continue drilling into piece of work.
NOTE: If you are drilling into a piece of wood that is likely to splinter you may want to use a ‘back-up’
block of wood place behind the piece you are drilling.
You will drill a cleaner hole if you ease up on the pressure just before the bit breaks through the back of
the wood. Turn the wood over and complete the hole.
DRILLING METAL
There are two main things to remember when drilling through metal.
1. The harder the material, the greater the pressure you need to apply to the drill.
2. The harder the material, the slower the speed of the drill needs to be.
Below are a few tips to help when drilling through metal.
1. Lubricate the tip of the drill bit occasionally with cuing oil except when drilling so metals such as
aluminium, copper or cast iron.
2. If the hole you wish to drill is quite large, drill a smaller hole first then enlarge to the final size. This is
generally a faster method in the long run.
3. Maintain enough pressure to assure that the drill bit does not just spin in the hole. This will make the
drill bit blunt and shorten its life.
6. BATTERY TECHNICAL SPECIFICATION
Baery pack 18 V DC 2000 mAh Li-ion baery pack
Charger adapter input 220-240 V AC 50-60 Hz
7. TECHNICAL SPECIFICATION
Power: 18 V
No-load speed: 0-400/0-1500 rpm
Max torque: 58 N.m
Clutch: 15+1 seing
Chuck: 2-13 mm
1. DRILL WARNINGS
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result
in electric shock and/or injury. Save all warnings and instructions for future reference.
WORK AREA SAFETY
• Keep your work area clean and well lit. Cluered benches and dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids,
gases, or dust. Power tools create sparks which may ignite dust or fumes.
• Keep bystanders and children away while operating a power tool. Distractions can cause you to lose
control.
ELECTRICAL SAFETY
• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
• Avoid bodily contact with grounded surfaces such as pipes, radiators, ranges and refrigerators.
• There is an increased risk of electric shock if your body is grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk
of electric shock.
• Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an outlet.
• Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged cords immediately.
• Damaged cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use.
• Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a Ground Fault Circuit Interrupter
(GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use common sense when operating a power tool.
• Do not use the tool while tired or under the influence of drugs, alcohol, or medication. A moment of
inaention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Safety equipment such as a dust
mask, non-slip safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
• Prevent unintentional starting.
• Ensure the switch is in the o-position before connecting to the power source and/or baery pack,
picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power
tools that have the switch on invites accidents.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing, and gloves away from
moving parts. Loose clothes, jewellery, or long hair can be caught in moving parts.
• Remove adjusting keys or spanners before turning the tool on. A spanner or a key that is le aached
to a rotating part of the tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables beer control of the
power tool in unexpected situations.
• Only use safety equipment that has been approved by an appropriate standards agency.
• Unapproved safety equipment may not provide adequate protection.
POWER TOOL USE AND CARE
• Do not force tools. Use the correct tool for your application. The correct tool will do the job beer and
safer at the rate for which it is designed.
• Do not use a power tool if the switch does not turn it on or o. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the baery pack from the power tool before
making any adjustments, changing accessories, or storing the tool. Such preventive safety measures
reduce risk of starting the tool accidentally.
• Store idle power tools out of the reach of children and other untrained persons. Power tools are
dangerous in the hands of untrained users.
• Maintain tools with care. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may aect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cuing tools sharp and clean. Properly maintained tools with sharp cuing edges are less likely
to bind and are easier to control.
• Use only accessories that are recommended by the manufacturer for your model. Accessories that
may be suitable for one tool may become hazardous when used on another tool.
BATTERY TOOL USE AND CARE
• Ensure the switch is in the o position before inserting the baery pack.
• Inserting the baery pack into power tools that have the switch on invites accidents.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type
of baery pack may create a risk of fire when used with another baery pack.
• Use power tools only with specifically designated baery packs. Use of any other baery packs may
create a risk of injury and fire.
• When baery pack is not in use, keep it away from other metal objects like paper clips, coins, keys,
nails, screws, or other small metal objects that can make a connection from one terminal to another.
• Shorting the baery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the baery, avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
• Liquid ejected from the baery may cause irritation or burns.
SERVICE
• Have your power tool service by qualified repair person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
ADDITIONAL WARNINGS APPLICABLE FOR DRILLS
• Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
• Hold power tools by insulated gripping surfaces when performing an operation where the cuing tool
may contact hidden wiring or its own cord. Contact with a “live” wire will make exposed metal parts of
the tool “live” and shock the operator.
• Use clamps or other practical ways to secure and support the workpiece to a stable platform. Holding
the work by hand or against your body is unstable and may lead to loss of control.
• Do not drill, fasten or break into existing walls or other blind areas where electrical wiring may exist. If
this situation is unavoidable, disconnect all fuses or circuit breakers feeding this work site.
• Always wear safety goggles or eye protection when using this tool. Use a dust mask or respirator for
applications which generate dust.
• Use thick cushioned gloves and limit the exposure time by taking frequent rest periods.
• Vibration caused by hammer-drill action may be harmful to your hands and arms.
• Secure the material being drilled. Never hold it in your hand or across legs. Unstable support can
cause the drill bit to bind causing loss of control and injury.
• Disconnect baery pack from tool before making any assembly, adjustments or changing accessories.
• Such preventive safety measures reduce the risk of starting the tool accidentally.
• Position the cord clear of rotating bit. Do not wrap the cord around your arm or wrist. If you lose
control and have the cord wrapped around your arm or wrist it may entrap you and cause injury.
• Position yourself to avoid being caught between the tool or side handle and walls or posts.
• Should the bit become bound or jammed in the work, the reaction torque of the tool could crush your
hand or leg.
• If the bit becomes bound in the work piece, release the trigger immediately, reverse the direction of
rotation and slowly squeeze the trigger to back out the bit. Be ready for a strong reaction torque. The
drill body will tend to twist in the opposite direction as the drill bit is rotating.
• Do not grasp the tool or place your hands too close to the spinning chuck or drill bit. Your hand may
be lacerated.
• When installing a drill bit, insert the shank of the bit well within the jaws of the chuck. If the bit is not
inserted deep enough, the grip of the jaws over the bit is reduced and the loss of control is increased.
• Do not use dull or damaged bits and accessories. Dull or damaged bits have a greater tendency to
bind in the work piece.
• When removing the bit from the tool avoid contact with skin and use proper protective gloves when
grasping the bit or accessory. Accessories may be hot aer prolonged use.
• Do not run the drill while carrying it at your side. A spinning drill bit could become entangled with
clothing and injury may result.
WE RECOMMEND THAT THE OPERATOR WEARS HEARING PROTECTION.
• The declared vibration total value has been measured in accordance with standard test method and
may be used for comparing one tool with another.
• The declared vibration total value may also be used in a preliminary assessment of exposure.
WARNING! The vibration emissions during actual use of the power tool can dier from the declared
total value depending on the ways in which the tool is used, and of the need to identify safety measu-
res to protect the operator that are based on an estimate of exposure in the actual conditions of use
(taking account of all parts of the operating cycle such as times when the tool is switched o and when
it is running idle in addition to trigger time).
LpA (acoustic pressure): 77.8dB(A) (KWA=3 dB)
Vibration: 0.670m/s (K=1.5m/s)
LwA (acoustic pressure): 88.8dB(A) (KWA=3 dB)
2. BATTERY WARNINGS
• Before using baery charger, read all instructions and caution marks on baery charger, baery pack,
and product using baery.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly
qualified person in order to avoid a hazard.
• Use only the charger which accompanied your product or direct replacement as listed in the catalogue
or this manual. Do not substitute any other charger. Use only same supplier approved chargers with
your product.
SEE TECHNICAL SPECIFICATIONS
• Do not disassemble charger or operate the charger if it has received a sharp blow, been dropped or
otherwise damaged in any way. Incorrect reassembly may result in a risk of electric shock, electrocution
or fire.
• Do not recharge baery in damp or wet environment. Do not expose charger to rain or snow. If
baery case is cracked or otherwise damaged, do not insert into charger. Baery short or fire may
result.
• Use only Energizer replacement baeries. See Technical Specifications. Other types of baeries may
burst causing personal injury and damage.
• Charge baery pack in temperatures above 0ºC and below 45ºC. Store tool and baery pack in
locations where temperatures will not exceed 45ºC. This is important to prevent serious damage to the
baery cells.
• Pull the plug rather than cord when disconnecting charger or when disconnecting cords using the
daisy chain feature. This will reduce risk of damage to electric plug and cord.
• Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to
damage or stress.
• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could
result in risk of fire or electric shock.
• Disconnect the charger from the outlet before aempting any cleaning. This will reduce the risk of
electric shock. Removing the baery pack will not reduce this risk.
• The charger is designed to operate on standard household electrical power (220-240 volts, 50-60 Hz
AC only). Do not aempt to use it on any other voltage.
• This power unit is intended to be correctly orientated in a vertical or floor mount position.
• Do not incinerate the baery pack even if it is severely damaged or is completely worn out. The
baery pack can explode in a fire. Toxic fumes and materials are created when lithium ion baery packs
are burned.
• Do not charge or use baery in explosive atmospheres, such as in the presence of flammable liquids,
gases or dust. Inserting or removing the baery from the charger may ignite the dust or fumes.
• If baery contents come into contact with the skin, immediately wash area with mild soap and water.
• If baery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation
ceases.
• If medical aention is needed, the baery electrolyte is composed of a mixture of liquid organic
carbonates and lithium salts.
• Contents of opened baery cells may cause respiratory irritation. Provide fresh air. If symptoms
persist, seek medical aention.
WARNING! Burn hazard. Baery liquid may be flammable if exposed to spark or flame.
• Charge the baery packs only in the charger which accompanied your product.
• DO NOT splash or immerse in water or other liquids. This may cause premature cell failure.
• Do not store or use the tool and baery pack in locations where the temperature may reach or exceed
45°C (such as outside sheds or metal buildings in summer).
• When baeries are not in tool or charger, keep them away from metal objects. For example, to
protect terminals from shorting DO NOT place baeries in a tool box or pocket with nails, screws, keys,
etc. Fire or injury may result.
• DO NOT put baeries into fire or expose to high heat. They may explode.
3. PARTS OF YOUR DRILL
6
4. CHARGING A BATTERY
WARNING: Place the baery pack and charger on a flat non-flammable surface and away from
flammable material when re-charging the baery pack.
1. Insert the plug on the charging unit into a power socket
and turn the power on if required.
2. Plug the tool inside the baery output.
The above are 2 dierent charging methods shown based
on the baery model being used.
3. Process of charging baery pack:
When the red light is on, the baery has very low power.
When the red and yellow lights are on, then the baery
has more than half the energy. When the three lights are
on, the baery is fully charged.
4. USB function (additional feature of certain baery models):
Insert the USB plug of the device to the USB port
of the baery.
5. USING A DRILL
IMPORTANT: Before starting inspect your drill bit to ensure there is no excessive wear and that it is
sharp. Never use a drill bit if it is damaged or blunt.
Check that the drill bit is correctly fied in the chuck and is the correct type for the material you wish to
drill a hole in.
DRILLING WOOD
Ensure the piece of work you want to drill into is firmly anchored in place. Hold the drill in a straight line
with the end of the drill bit.
Apply enough pressure to keep the drill bit cuing through the wood.
When drilling through wood with a twist bit it may over heat if you do not clean any chips and wood
dust out of the flutes (grooves in the drill bit).
To do this:
1. Stop the drill by taking your finger o the power trigger.
2. Switch the direction buon into reverse then press the trigger until the drill bit is clear of the wood.
3. Use a brush to remove any scraps or dust from the drill bit. DO NOT use your fingers.
4. Switch the direction buon into forward to continue drilling into piece of work.
NOTE: If you are drilling into a piece of wood that is likely to splinter you may want to use a ‘back-up’
block of wood place behind the piece you are drilling.
You will drill a cleaner hole if you ease up on the pressure just before the bit breaks through the back of
the wood. Turn the wood over and complete the hole.
DRILLING METAL
There are two main things to remember when drilling through metal.
1. The harder the material, the greater the pressure you need to apply to the drill.
2. The harder the material, the slower the speed of the drill needs to be.
Below are a few tips to help when drilling through metal.
1. Lubricate the tip of the drill bit occasionally with cuing oil except when drilling so metals such as
aluminium, copper or cast iron.
2. If the hole you wish to drill is quite large, drill a smaller hole first then enlarge to the final size. This is
generally a faster method in the long run.
3. Maintain enough pressure to assure that the drill bit does not just spin in the hole. This will make the
drill bit blunt and shorten its life.
6. BATTERY TECHNICAL SPECIFICATION
Baery pack 18 V DC 2000 mAh Li-ion baery pack
Charger adapter input 220-240 V AC 50-60 Hz
7. TECHNICAL SPECIFICATION
Power: 18 V
No-load speed: 0-400/0-1500 rpm
Max torque: 58 N.m
Clutch: 15+1 seing
Chuck: 2-13 mm
1. DRILL WARNINGS
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result
in electric shock and/or injury. Save all warnings and instructions for future reference.
WORK AREA SAFETY
• Keep your work area clean and well lit. Cluered benches and dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids,
gases, or dust. Power tools create sparks which may ignite dust or fumes.
• Keep bystanders and children away while operating a power tool. Distractions can cause you to lose
control.
ELECTRICAL SAFETY
• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
• Avoid bodily contact with grounded surfaces such as pipes, radiators, ranges and refrigerators.
• There is an increased risk of electric shock if your body is grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk
of electric shock.
• Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an outlet.
• Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged cords immediately.
• Damaged cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use.
• Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a Ground Fault Circuit Interrupter
(GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use common sense when operating a power tool.
• Do not use the tool while tired or under the influence of drugs, alcohol, or medication. A moment of
inaention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Safety equipment such as a dust
mask, non-slip safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
• Prevent unintentional starting.
• Ensure the switch is in the o-position before connecting to the power source and/or baery pack,
picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power
tools that have the switch on invites accidents.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing, and gloves away from
moving parts. Loose clothes, jewellery, or long hair can be caught in moving parts.
• Remove adjusting keys or spanners before turning the tool on. A spanner or a key that is le aached
to a rotating part of the tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables beer control of the
power tool in unexpected situations.
• Only use safety equipment that has been approved by an appropriate standards agency.
• Unapproved safety equipment may not provide adequate protection.
POWER TOOL USE AND CARE
• Do not force tools. Use the correct tool for your application. The correct tool will do the job beer and
safer at the rate for which it is designed.
• Do not use a power tool if the switch does not turn it on or o. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the baery pack from the power tool before
making any adjustments, changing accessories, or storing the tool. Such preventive safety measures
reduce risk of starting the tool accidentally.
• Store idle power tools out of the reach of children and other untrained persons. Power tools are
dangerous in the hands of untrained users.
• Maintain tools with care. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may aect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cuing tools sharp and clean. Properly maintained tools with sharp cuing edges are less likely
to bind and are easier to control.
• Use only accessories that are recommended by the manufacturer for your model. Accessories that
may be suitable for one tool may become hazardous when used on another tool.
BATTERY TOOL USE AND CARE
• Ensure the switch is in the o position before inserting the baery pack.
• Inserting the baery pack into power tools that have the switch on invites accidents.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type
of baery pack may create a risk of fire when used with another baery pack.
• Use power tools only with specifically designated baery packs. Use of any other baery packs may
create a risk of injury and fire.
• When baery pack is not in use, keep it away from other metal objects like paper clips, coins, keys,
nails, screws, or other small metal objects that can make a connection from one terminal to another.
• Shorting the baery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the baery, avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
• Liquid ejected from the baery may cause irritation or burns.
SERVICE
• Have your power tool service by qualified repair person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
ADDITIONAL WARNINGS APPLICABLE FOR DRILLS
• Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
• Hold power tools by insulated gripping surfaces when performing an operation where the cuing tool
may contact hidden wiring or its own cord. Contact with a “live” wire will make exposed metal parts of
the tool “live” and shock the operator.
• Use clamps or other practical ways to secure and support the workpiece to a stable platform. Holding
the work by hand or against your body is unstable and may lead to loss of control.
• Do not drill, fasten or break into existing walls or other blind areas where electrical wiring may exist. If
this situation is unavoidable, disconnect all fuses or circuit breakers feeding this work site.
• Always wear safety goggles or eye protection when using this tool. Use a dust mask or respirator for
applications which generate dust.
• Use thick cushioned gloves and limit the exposure time by taking frequent rest periods.
• Vibration caused by hammer-drill action may be harmful to your hands and arms.
• Secure the material being drilled. Never hold it in your hand or across legs. Unstable support can
cause the drill bit to bind causing loss of control and injury.
• Disconnect baery pack from tool before making any assembly, adjustments or changing accessories.
• Such preventive safety measures reduce the risk of starting the tool accidentally.
• Position the cord clear of rotating bit. Do not wrap the cord around your arm or wrist. If you lose
control and have the cord wrapped around your arm or wrist it may entrap you and cause injury.
• Position yourself to avoid being caught between the tool or side handle and walls or posts.
• Should the bit become bound or jammed in the work, the reaction torque of the tool could crush your
hand or leg.
• If the bit becomes bound in the work piece, release the trigger immediately, reverse the direction of
rotation and slowly squeeze the trigger to back out the bit. Be ready for a strong reaction torque. The
drill body will tend to twist in the opposite direction as the drill bit is rotating.
• Do not grasp the tool or place your hands too close to the spinning chuck or drill bit. Your hand may
be lacerated.
• When installing a drill bit, insert the shank of the bit well within the jaws of the chuck. If the bit is not
inserted deep enough, the grip of the jaws over the bit is reduced and the loss of control is increased.
• Do not use dull or damaged bits and accessories. Dull or damaged bits have a greater tendency to
bind in the work piece.
• When removing the bit from the tool avoid contact with skin and use proper protective gloves when
grasping the bit or accessory. Accessories may be hot aer prolonged use.
• Do not run the drill while carrying it at your side. A spinning drill bit could become entangled with
clothing and injury may result.
WE RECOMMEND THAT THE OPERATOR WEARS HEARING PROTECTION.
• The declared vibration total value has been measured in accordance with standard test method and
may be used for comparing one tool with another.
• The declared vibration total value may also be used in a preliminary assessment of exposure.
WARNING! The vibration emissions during actual use of the power tool can dier from the declared
total value depending on the ways in which the tool is used, and of the need to identify safety measu-
res to protect the operator that are based on an estimate of exposure in the actual conditions of use
(taking account of all parts of the operating cycle such as times when the tool is switched o and when
it is running idle in addition to trigger time).
LpA (acoustic pressure): 77.8dB(A) (KWA=3 dB)
Vibration: 0.670m/s (K=1.5m/s)
LwA (acoustic pressure): 88.8dB(A) (KWA=3 dB)
2. BATTERY WARNINGS
• Before using baery charger, read all instructions and caution marks on baery charger, baery pack,
and product using baery.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly
qualified person in order to avoid a hazard.
• Use only the charger which accompanied your product or direct replacement as listed in the catalogue
or this manual. Do not substitute any other charger. Use only same supplier approved chargers with
your product.
SEE TECHNICAL SPECIFICATIONS
• Do not disassemble charger or operate the charger if it has received a sharp blow, been dropped or
otherwise damaged in any way. Incorrect reassembly may result in a risk of electric shock, electrocution
or fire.
• Do not recharge baery in damp or wet environment. Do not expose charger to rain or snow. If
baery case is cracked or otherwise damaged, do not insert into charger. Baery short or fire may
result.
• Use only Energizer replacement baeries. See Technical Specifications. Other types of baeries may
burst causing personal injury and damage.
• Charge baery pack in temperatures above 0ºC and below 45ºC. Store tool and baery pack in
locations where temperatures will not exceed 45ºC. This is important to prevent serious damage to the
baery cells.
• Pull the plug rather than cord when disconnecting charger or when disconnecting cords using the
daisy chain feature. This will reduce risk of damage to electric plug and cord.
• Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to
damage or stress.
• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could
result in risk of fire or electric shock.
• Disconnect the charger from the outlet before aempting any cleaning. This will reduce the risk of
electric shock. Removing the baery pack will not reduce this risk.
• The charger is designed to operate on standard household electrical power (220-240 volts, 50-60 Hz
AC only). Do not aempt to use it on any other voltage.
• This power unit is intended to be correctly orientated in a vertical or floor mount position.
• Do not incinerate the baery pack even if it is severely damaged or is completely worn out. The
baery pack can explode in a fire. Toxic fumes and materials are created when lithium ion baery packs
are burned.
• Do not charge or use baery in explosive atmospheres, such as in the presence of flammable liquids,
gases or dust. Inserting or removing the baery from the charger may ignite the dust or fumes.
• If baery contents come into contact with the skin, immediately wash area with mild soap and water.
• If baery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation
ceases.
• If medical aention is needed, the baery electrolyte is composed of a mixture of liquid organic
carbonates and lithium salts.
• Contents of opened baery cells may cause respiratory irritation. Provide fresh air. If symptoms
persist, seek medical aention.
WARNING! Burn hazard. Baery liquid may be flammable if exposed to spark or flame.
• Charge the baery packs only in the charger which accompanied your product.
• DO NOT splash or immerse in water or other liquids. This may cause premature cell failure.
• Do not store or use the tool and baery pack in locations where the temperature may reach or exceed
45°C (such as outside sheds or metal buildings in summer).
• When baeries are not in tool or charger, keep them away from metal objects. For example, to
protect terminals from shorting DO NOT place baeries in a tool box or pocket with nails, screws, keys,
etc. Fire or injury may result.
• DO NOT put baeries into fire or expose to high heat. They may explode.
3. PARTS OF YOUR DRILL
7
4. CHARGING A BATTERY
WARNING: Place the baery pack and charger on a flat non-flammable surface and away from
flammable material when re-charging the baery pack.
1. Insert the plug on the charging unit into a power socket
and turn the power on if required.
2. Plug the tool inside the baery output.
The above are 2 dierent charging methods shown based
on the baery model being used.
3. Process of charging baery pack:
When the red light is on, the baery has very low power.
When the red and yellow lights are on, then the baery
has more than half the energy. When the three lights are
on, the baery is fully charged.
4. USB function (additional feature of certain baery models):
Insert the USB plug of the device to the USB port
of the baery.
5. USING A DRILL
IMPORTANT: Before starting inspect your drill bit to ensure there is no excessive wear and that it is
sharp. Never use a drill bit if it is damaged or blunt.
Check that the drill bit is correctly fied in the chuck and is the correct type for the material you wish to
drill a hole in.
DRILLING WOOD
Ensure the piece of work you want to drill into is firmly anchored in place. Hold the drill in a straight line
with the end of the drill bit.
Apply enough pressure to keep the drill bit cuing through the wood.
When drilling through wood with a twist bit it may over heat if you do not clean any chips and wood
dust out of the flutes (grooves in the drill bit).
To do this:
1. Stop the drill by taking your finger o the power trigger.
2. Switch the direction buon into reverse then press the trigger until the drill bit is clear of the wood.
3. Use a brush to remove any scraps or dust from the drill bit. DO NOT use your fingers.
4. Switch the direction buon into forward to continue drilling into piece of work.
NOTE: If you are drilling into a piece of wood that is likely to splinter you may want to use a ‘back-up’
block of wood place behind the piece you are drilling.
You will drill a cleaner hole if you ease up on the pressure just before the bit breaks through the back of
the wood. Turn the wood over and complete the hole.
DRILLING METAL
There are two main things to remember when drilling through metal.
1. The harder the material, the greater the pressure you need to apply to the drill.
2. The harder the material, the slower the speed of the drill needs to be.
Below are a few tips to help when drilling through metal.
1. Lubricate the tip of the drill bit occasionally with cuing oil except when drilling so metals such as
aluminium, copper or cast iron.
2. If the hole you wish to drill is quite large, drill a smaller hole first then enlarge to the final size. This is
generally a faster method in the long run.
3. Maintain enough pressure to assure that the drill bit does not just spin in the hole. This will make the
drill bit blunt and shorten its life.
6. BATTERY TECHNICAL SPECIFICATION
Baery pack 18 V DC 2000 mAh Li-ion baery pack
Charger adapter input 220-240 V AC 50-60 Hz
7. TECHNICAL SPECIFICATION
Power: 18 V
No-load speed: 0-400/0-1500 rpm
Max torque: 58 N.m
Clutch: 15+1 seing
Chuck: 2-13 mm
1. DRILL WARNINGS
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result
in electric shock and/or injury. Save all warnings and instructions for future reference.
WORK AREA SAFETY
• Keep your work area clean and well lit. Cluered benches and dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids,
gases, or dust. Power tools create sparks which may ignite dust or fumes.
• Keep bystanders and children away while operating a power tool. Distractions can cause you to lose
control.
ELECTRICAL SAFETY
• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
• Avoid bodily contact with grounded surfaces such as pipes, radiators, ranges and refrigerators.
• There is an increased risk of electric shock if your body is grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk
of electric shock.
• Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an outlet.
• Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged cords immediately.
• Damaged cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use.
• Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a Ground Fault Circuit Interrupter
(GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use common sense when operating a power tool.
• Do not use the tool while tired or under the influence of drugs, alcohol, or medication. A moment of
inaention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Safety equipment such as a dust
mask, non-slip safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
• Prevent unintentional starting.
• Ensure the switch is in the o-position before connecting to the power source and/or baery pack,
picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power
tools that have the switch on invites accidents.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing, and gloves away from
moving parts. Loose clothes, jewellery, or long hair can be caught in moving parts.
• Remove adjusting keys or spanners before turning the tool on. A spanner or a key that is le aached
to a rotating part of the tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables beer control of the
power tool in unexpected situations.
• Only use safety equipment that has been approved by an appropriate standards agency.
• Unapproved safety equipment may not provide adequate protection.
POWER TOOL USE AND CARE
• Do not force tools. Use the correct tool for your application. The correct tool will do the job beer and
safer at the rate for which it is designed.
• Do not use a power tool if the switch does not turn it on or o. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the baery pack from the power tool before
making any adjustments, changing accessories, or storing the tool. Such preventive safety measures
reduce risk of starting the tool accidentally.
• Store idle power tools out of the reach of children and other untrained persons. Power tools are
dangerous in the hands of untrained users.
• Maintain tools with care. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may aect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cuing tools sharp and clean. Properly maintained tools with sharp cuing edges are less likely
to bind and are easier to control.
• Use only accessories that are recommended by the manufacturer for your model. Accessories that
may be suitable for one tool may become hazardous when used on another tool.
BATTERY TOOL USE AND CARE
• Ensure the switch is in the o position before inserting the baery pack.
• Inserting the baery pack into power tools that have the switch on invites accidents.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type
of baery pack may create a risk of fire when used with another baery pack.
• Use power tools only with specifically designated baery packs. Use of any other baery packs may
create a risk of injury and fire.
• When baery pack is not in use, keep it away from other metal objects like paper clips, coins, keys,
nails, screws, or other small metal objects that can make a connection from one terminal to another.
• Shorting the baery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the baery, avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
• Liquid ejected from the baery may cause irritation or burns.
SERVICE
• Have your power tool service by qualified repair person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
ADDITIONAL WARNINGS APPLICABLE FOR DRILLS
• Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
• Hold power tools by insulated gripping surfaces when performing an operation where the cuing tool
may contact hidden wiring or its own cord. Contact with a “live” wire will make exposed metal parts of
the tool “live” and shock the operator.
• Use clamps or other practical ways to secure and support the workpiece to a stable platform. Holding
the work by hand or against your body is unstable and may lead to loss of control.
• Do not drill, fasten or break into existing walls or other blind areas where electrical wiring may exist. If
this situation is unavoidable, disconnect all fuses or circuit breakers feeding this work site.
• Always wear safety goggles or eye protection when using this tool. Use a dust mask or respirator for
applications which generate dust.
• Use thick cushioned gloves and limit the exposure time by taking frequent rest periods.
• Vibration caused by hammer-drill action may be harmful to your hands and arms.
• Secure the material being drilled. Never hold it in your hand or across legs. Unstable support can
cause the drill bit to bind causing loss of control and injury.
• Disconnect baery pack from tool before making any assembly, adjustments or changing accessories.
• Such preventive safety measures reduce the risk of starting the tool accidentally.
• Position the cord clear of rotating bit. Do not wrap the cord around your arm or wrist. If you lose
control and have the cord wrapped around your arm or wrist it may entrap you and cause injury.
• Position yourself to avoid being caught between the tool or side handle and walls or posts.
• Should the bit become bound or jammed in the work, the reaction torque of the tool could crush your
hand or leg.
• If the bit becomes bound in the work piece, release the trigger immediately, reverse the direction of
rotation and slowly squeeze the trigger to back out the bit. Be ready for a strong reaction torque. The
drill body will tend to twist in the opposite direction as the drill bit is rotating.
• Do not grasp the tool or place your hands too close to the spinning chuck or drill bit. Your hand may
be lacerated.
• When installing a drill bit, insert the shank of the bit well within the jaws of the chuck. If the bit is not
inserted deep enough, the grip of the jaws over the bit is reduced and the loss of control is increased.
• Do not use dull or damaged bits and accessories. Dull or damaged bits have a greater tendency to
bind in the work piece.
• When removing the bit from the tool avoid contact with skin and use proper protective gloves when
grasping the bit or accessory. Accessories may be hot aer prolonged use.
• Do not run the drill while carrying it at your side. A spinning drill bit could become entangled with
clothing and injury may result.
WE RECOMMEND THAT THE OPERATOR WEARS HEARING PROTECTION.
• The declared vibration total value has been measured in accordance with standard test method and
may be used for comparing one tool with another.
• The declared vibration total value may also be used in a preliminary assessment of exposure.
WARNING! The vibration emissions during actual use of the power tool can dier from the declared
total value depending on the ways in which the tool is used, and of the need to identify safety measu-
res to protect the operator that are based on an estimate of exposure in the actual conditions of use
(taking account of all parts of the operating cycle such as times when the tool is switched o and when
it is running idle in addition to trigger time).
LpA (acoustic pressure): 77.8dB(A) (KWA=3 dB)
Vibration: 0.670m/s (K=1.5m/s)
LwA (acoustic pressure): 88.8dB(A) (KWA=3 dB)
2. BATTERY WARNINGS
• Before using baery charger, read all instructions and caution marks on baery charger, baery pack,
and product using baery.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly
qualified person in order to avoid a hazard.
• Use only the charger which accompanied your product or direct replacement as listed in the catalogue
or this manual. Do not substitute any other charger. Use only same supplier approved chargers with
your product.
SEE TECHNICAL SPECIFICATIONS
• Do not disassemble charger or operate the charger if it has received a sharp blow, been dropped or
otherwise damaged in any way. Incorrect reassembly may result in a risk of electric shock, electrocution
or fire.
• Do not recharge baery in damp or wet environment. Do not expose charger to rain or snow. If
baery case is cracked or otherwise damaged, do not insert into charger. Baery short or fire may
result.
• Use only Energizer replacement baeries. See Technical Specifications. Other types of baeries may
burst causing personal injury and damage.
• Charge baery pack in temperatures above 0ºC and below 45ºC. Store tool and baery pack in
locations where temperatures will not exceed 45ºC. This is important to prevent serious damage to the
baery cells.
• Pull the plug rather than cord when disconnecting charger or when disconnecting cords using the
daisy chain feature. This will reduce risk of damage to electric plug and cord.
• Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to
damage or stress.
• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could
result in risk of fire or electric shock.
• Disconnect the charger from the outlet before aempting any cleaning. This will reduce the risk of
electric shock. Removing the baery pack will not reduce this risk.
• The charger is designed to operate on standard household electrical power (220-240 volts, 50-60 Hz
AC only). Do not aempt to use it on any other voltage.
• This power unit is intended to be correctly orientated in a vertical or floor mount position.
• Do not incinerate the baery pack even if it is severely damaged or is completely worn out. The
baery pack can explode in a fire. Toxic fumes and materials are created when lithium ion baery packs
are burned.
• Do not charge or use baery in explosive atmospheres, such as in the presence of flammable liquids,
gases or dust. Inserting or removing the baery from the charger may ignite the dust or fumes.
• If baery contents come into contact with the skin, immediately wash area with mild soap and water.
• If baery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation
ceases.
• If medical aention is needed, the baery electrolyte is composed of a mixture of liquid organic
carbonates and lithium salts.
• Contents of opened baery cells may cause respiratory irritation. Provide fresh air. If symptoms
persist, seek medical aention.
WARNING! Burn hazard. Baery liquid may be flammable if exposed to spark or flame.
• Charge the baery packs only in the charger which accompanied your product.
• DO NOT splash or immerse in water or other liquids. This may cause premature cell failure.
• Do not store or use the tool and baery pack in locations where the temperature may reach or exceed
45°C (such as outside sheds or metal buildings in summer).
• When baeries are not in tool or charger, keep them away from metal objects. For example, to
protect terminals from shorting DO NOT place baeries in a tool box or pocket with nails, screws, keys,
etc. Fire or injury may result.
• DO NOT put baeries into fire or expose to high heat. They may explode.
3. PARTS OF YOUR DRILL
8
4. CHARGING A BATTERY
WARNING: Place the baery pack and charger on a flat non-flammable surface and away from
flammable material when re-charging the baery pack.
1. Insert the plug on the charging unit into a power socket
and turn the power on if required.
2. Plug the tool inside the baery output.
The above are 2 dierent charging methods shown based
on the baery model being used.
3. Process of charging baery pack:
When the red light is on, the baery has very low power.
When the red and yellow lights are on, then the baery
has more than half the energy. When the three lights are
on, the baery is fully charged.
4. USB function (additional feature of certain baery models):
Insert the USB plug of the device to the USB port
of the baery.
5. USING A DRILL
IMPORTANT: Before starting inspect your drill bit to ensure there is no excessive wear and that it is
sharp. Never use a drill bit if it is damaged or blunt.
Check that the drill bit is correctly fied in the chuck and is the correct type for the material you wish to
drill a hole in.
DRILLING WOOD
Ensure the piece of work you want to drill into is firmly anchored in place. Hold the drill in a straight line
with the end of the drill bit.
Apply enough pressure to keep the drill bit cuing through the wood.
When drilling through wood with a twist bit it may over heat if you do not clean any chips and wood
dust out of the flutes (grooves in the drill bit).
To do this:
1. Stop the drill by taking your finger o the power trigger.
2. Switch the direction buon into reverse then press the trigger until the drill bit is clear of the wood.
3. Use a brush to remove any scraps or dust from the drill bit. DO NOT use your fingers.
4. Switch the direction buon into forward to continue drilling into piece of work.
NOTE: If you are drilling into a piece of wood that is likely to splinter you may want to use a ‘back-up’
block of wood place behind the piece you are drilling.
You will drill a cleaner hole if you ease up on the pressure just before the bit breaks through the back of
the wood. Turn the wood over and complete the hole.
DRILLING METAL
There are two main things to remember when drilling through metal.
1. The harder the material, the greater the pressure you need to apply to the drill.
2. The harder the material, the slower the speed of the drill needs to be.
Below are a few tips to help when drilling through metal.
1. Lubricate the tip of the drill bit occasionally with cuing oil except when drilling so metals such as
aluminium, copper or cast iron.
2. If the hole you wish to drill is quite large, drill a smaller hole first then enlarge to the final size. This is
generally a faster method in the long run.
3. Maintain enough pressure to assure that the drill bit does not just spin in the hole. This will make the
drill bit blunt and shorten its life.
6. BATTERY TECHNICAL SPECIFICATION
Baery pack 18 V DC 2000 mAh Li-ion baery pack
Charger adapter input 220-240 V AC 50-60 Hz
7. TECHNICAL SPECIFICATION
Power: 18 V
No-load speed: 0-400/0-1500 rpm
Max torque: 58 N.m
Clutch: 15+1 seing
Chuck: 2-13 mm
1. DRILL WARNINGS
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result
in electric shock and/or injury. Save all warnings and instructions for future reference.
WORK AREA SAFETY
• Keep your work area clean and well lit. Cluered benches and dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids,
gases, or dust. Power tools create sparks which may ignite dust or fumes.
• Keep bystanders and children away while operating a power tool. Distractions can cause you to lose
control.
ELECTRICAL SAFETY
• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
• Avoid bodily contact with grounded surfaces such as pipes, radiators, ranges and refrigerators.
• There is an increased risk of electric shock if your body is grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk
of electric shock.
• Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an outlet.
• Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged cords immediately.
• Damaged cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use.
• Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a Ground Fault Circuit Interrupter
(GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use common sense when operating a power tool.
• Do not use the tool while tired or under the influence of drugs, alcohol, or medication. A moment of
inaention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Safety equipment such as a dust
mask, non-slip safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
• Prevent unintentional starting.
• Ensure the switch is in the o-position before connecting to the power source and/or baery pack,
picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power
tools that have the switch on invites accidents.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing, and gloves away from
moving parts. Loose clothes, jewellery, or long hair can be caught in moving parts.
• Remove adjusting keys or spanners before turning the tool on. A spanner or a key that is le aached
to a rotating part of the tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables beer control of the
power tool in unexpected situations.
• Only use safety equipment that has been approved by an appropriate standards agency.
• Unapproved safety equipment may not provide adequate protection.
POWER TOOL USE AND CARE
• Do not force tools. Use the correct tool for your application. The correct tool will do the job beer and
safer at the rate for which it is designed.
• Do not use a power tool if the switch does not turn it on or o. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the baery pack from the power tool before
making any adjustments, changing accessories, or storing the tool. Such preventive safety measures
reduce risk of starting the tool accidentally.
• Store idle power tools out of the reach of children and other untrained persons. Power tools are
dangerous in the hands of untrained users.
• Maintain tools with care. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may aect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cuing tools sharp and clean. Properly maintained tools with sharp cuing edges are less likely
to bind and are easier to control.
• Use only accessories that are recommended by the manufacturer for your model. Accessories that
may be suitable for one tool may become hazardous when used on another tool.
BATTERY TOOL USE AND CARE
• Ensure the switch is in the o position before inserting the baery pack.
• Inserting the baery pack into power tools that have the switch on invites accidents.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type
of baery pack may create a risk of fire when used with another baery pack.
• Use power tools only with specifically designated baery packs. Use of any other baery packs may
create a risk of injury and fire.
• When baery pack is not in use, keep it away from other metal objects like paper clips, coins, keys,
nails, screws, or other small metal objects that can make a connection from one terminal to another.
• Shorting the baery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the baery, avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
• Liquid ejected from the baery may cause irritation or burns.
SERVICE
• Have your power tool service by qualified repair person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
ADDITIONAL WARNINGS APPLICABLE FOR DRILLS
• Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
• Hold power tools by insulated gripping surfaces when performing an operation where the cuing tool
may contact hidden wiring or its own cord. Contact with a “live” wire will make exposed metal parts of
the tool “live” and shock the operator.
• Use clamps or other practical ways to secure and support the workpiece to a stable platform. Holding
the work by hand or against your body is unstable and may lead to loss of control.
• Do not drill, fasten or break into existing walls or other blind areas where electrical wiring may exist. If
this situation is unavoidable, disconnect all fuses or circuit breakers feeding this work site.
• Always wear safety goggles or eye protection when using this tool. Use a dust mask or respirator for
applications which generate dust.
• Use thick cushioned gloves and limit the exposure time by taking frequent rest periods.
• Vibration caused by hammer-drill action may be harmful to your hands and arms.
• Secure the material being drilled. Never hold it in your hand or across legs. Unstable support can
cause the drill bit to bind causing loss of control and injury.
• Disconnect baery pack from tool before making any assembly, adjustments or changing accessories.
• Such preventive safety measures reduce the risk of starting the tool accidentally.
• Position the cord clear of rotating bit. Do not wrap the cord around your arm or wrist. If you lose
control and have the cord wrapped around your arm or wrist it may entrap you and cause injury.
• Position yourself to avoid being caught between the tool or side handle and walls or posts.
• Should the bit become bound or jammed in the work, the reaction torque of the tool could crush your
hand or leg.
• If the bit becomes bound in the work piece, release the trigger immediately, reverse the direction of
rotation and slowly squeeze the trigger to back out the bit. Be ready for a strong reaction torque. The
drill body will tend to twist in the opposite direction as the drill bit is rotating.
• Do not grasp the tool or place your hands too close to the spinning chuck or drill bit. Your hand may
be lacerated.
• When installing a drill bit, insert the shank of the bit well within the jaws of the chuck. If the bit is not
inserted deep enough, the grip of the jaws over the bit is reduced and the loss of control is increased.
• Do not use dull or damaged bits and accessories. Dull or damaged bits have a greater tendency to
bind in the work piece.
• When removing the bit from the tool avoid contact with skin and use proper protective gloves when
grasping the bit or accessory. Accessories may be hot aer prolonged use.
• Do not run the drill while carrying it at your side. A spinning drill bit could become entangled with
clothing and injury may result.
WE RECOMMEND THAT THE OPERATOR WEARS HEARING PROTECTION.
• The declared vibration total value has been measured in accordance with standard test method and
may be used for comparing one tool with another.
• The declared vibration total value may also be used in a preliminary assessment of exposure.
WARNING! The vibration emissions during actual use of the power tool can dier from the declared
total value depending on the ways in which the tool is used, and of the need to identify safety measu-
res to protect the operator that are based on an estimate of exposure in the actual conditions of use
(taking account of all parts of the operating cycle such as times when the tool is switched o and when
it is running idle in addition to trigger time).
LpA (acoustic pressure): 77.8dB(A) (KWA=3 dB)
Vibration: 0.670m/s (K=1.5m/s)
LwA (acoustic pressure): 88.8dB(A) (KWA=3 dB)
2. BATTERY WARNINGS
• Before using baery charger, read all instructions and caution marks on baery charger, baery pack,
and product using baery.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly
qualified person in order to avoid a hazard.
• Use only the charger which accompanied your product or direct replacement as listed in the catalogue
or this manual. Do not substitute any other charger. Use only same supplier approved chargers with
your product.
SEE TECHNICAL SPECIFICATIONS
• Do not disassemble charger or operate the charger if it has received a sharp blow, been dropped or
otherwise damaged in any way. Incorrect reassembly may result in a risk of electric shock, electrocution
or fire.
• Do not recharge baery in damp or wet environment. Do not expose charger to rain or snow. If
baery case is cracked or otherwise damaged, do not insert into charger. Baery short or fire may
result.
• Use only Energizer replacement baeries. See Technical Specifications. Other types of baeries may
burst causing personal injury and damage.
• Charge baery pack in temperatures above 0ºC and below 45ºC. Store tool and baery pack in
locations where temperatures will not exceed 45ºC. This is important to prevent serious damage to the
baery cells.
• Pull the plug rather than cord when disconnecting charger or when disconnecting cords using the
daisy chain feature. This will reduce risk of damage to electric plug and cord.
• Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to
damage or stress.
• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could
result in risk of fire or electric shock.
• Disconnect the charger from the outlet before aempting any cleaning. This will reduce the risk of
electric shock. Removing the baery pack will not reduce this risk.
• The charger is designed to operate on standard household electrical power (220-240 volts, 50-60 Hz
AC only). Do not aempt to use it on any other voltage.
• This power unit is intended to be correctly orientated in a vertical or floor mount position.
• Do not incinerate the baery pack even if it is severely damaged or is completely worn out. The
baery pack can explode in a fire. Toxic fumes and materials are created when lithium ion baery packs
are burned.
• Do not charge or use baery in explosive atmospheres, such as in the presence of flammable liquids,
gases or dust. Inserting or removing the baery from the charger may ignite the dust or fumes.
• If baery contents come into contact with the skin, immediately wash area with mild soap and water.
• If baery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation
ceases.
• If medical aention is needed, the baery electrolyte is composed of a mixture of liquid organic
carbonates and lithium salts.
• Contents of opened baery cells may cause respiratory irritation. Provide fresh air. If symptoms
persist, seek medical aention.
WARNING! Burn hazard. Baery liquid may be flammable if exposed to spark or flame.
• Charge the baery packs only in the charger which accompanied your product.
• DO NOT splash or immerse in water or other liquids. This may cause premature cell failure.
• Do not store or use the tool and baery pack in locations where the temperature may reach or exceed
45°C (such as outside sheds or metal buildings in summer).
• When baeries are not in tool or charger, keep them away from metal objects. For example, to
protect terminals from shorting DO NOT place baeries in a tool box or pocket with nails, screws, keys,
etc. Fire or injury may result.
• DO NOT put baeries into fire or expose to high heat. They may explode.
3. PARTS OF YOUR DRILL
9
KEYLESS CHUCK
BATTERY CHARGER BATTERY
WORK LIGHT
DIRECTION BUTTON
ADJUSTABLE TORQUE CLUTCH
POWER TRIGGER
BELT HOOK
4. CHARGING A BATTERY
WARNING: Place the baery pack and charger on a flat non-flammable surface and away from
flammable material when re-charging the baery pack.
1. Insert the plug on the charging unit into a power socket
and turn the power on if required.
2. Plug the tool inside the baery output.
The above are 2 dierent charging methods shown based
on the baery model being used.
3. Process of charging baery pack:
When the red light is on, the baery has very low power.
When the red and yellow lights are on, then the baery
has more than half the energy. When the three lights are
on, the baery is fully charged.
4. USB function (additional feature of certain baery models):
Insert the USB plug of the device to the USB port
of the baery.
5. USING A DRILL
IMPORTANT: Before starting inspect your drill bit to ensure there is no excessive wear and that it is
sharp. Never use a drill bit if it is damaged or blunt.
Check that the drill bit is correctly fied in the chuck and is the correct type for the material you wish to
drill a hole in.
DRILLING WOOD
Ensure the piece of work you want to drill into is firmly anchored in place. Hold the drill in a straight line
with the end of the drill bit.
Apply enough pressure to keep the drill bit cuing through the wood.
When drilling through wood with a twist bit it may over heat if you do not clean any chips and wood
dust out of the flutes (grooves in the drill bit).
To do this:
1. Stop the drill by taking your finger o the power trigger.
2. Switch the direction buon into reverse then press the trigger until the drill bit is clear of the wood.
3. Use a brush to remove any scraps or dust from the drill bit. DO NOT use your fingers.
4. Switch the direction buon into forward to continue drilling into piece of work.
NOTE: If you are drilling into a piece of wood that is likely to splinter you may want to use a ‘back-up’
block of wood place behind the piece you are drilling.
You will drill a cleaner hole if you ease up on the pressure just before the bit breaks through the back of
the wood. Turn the wood over and complete the hole.
DRILLING METAL
There are two main things to remember when drilling through metal.
1. The harder the material, the greater the pressure you need to apply to the drill.
2. The harder the material, the slower the speed of the drill needs to be.
Below are a few tips to help when drilling through metal.
1. Lubricate the tip of the drill bit occasionally with cuing oil except when drilling so metals such as
aluminium, copper or cast iron.
2. If the hole you wish to drill is quite large, drill a smaller hole first then enlarge to the final size. This is
generally a faster method in the long run.
3. Maintain enough pressure to assure that the drill bit does not just spin in the hole. This will make the
drill bit blunt and shorten its life.
6. BATTERY TECHNICAL SPECIFICATION
Baery pack 18 V DC 2000 mAh Li-ion baery pack
Charger adapter input 220-240 V AC 50-60 Hz
7. TECHNICAL SPECIFICATION
Power: 18 V
No-load speed: 0-400/0-1500 rpm
Max torque: 58 N.m
Clutch: 15+1 seing
Chuck: 2-13 mm
1. DRILL WARNINGS
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result
in electric shock and/or injury. Save all warnings and instructions for future reference.
WORK AREA SAFETY
• Keep your work area clean and well lit. Cluered benches and dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids,
gases, or dust. Power tools create sparks which may ignite dust or fumes.
• Keep bystanders and children away while operating a power tool. Distractions can cause you to lose
control.
ELECTRICAL SAFETY
• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
• Avoid bodily contact with grounded surfaces such as pipes, radiators, ranges and refrigerators.
• There is an increased risk of electric shock if your body is grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk
of electric shock.
• Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an outlet.
• Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged cords immediately.
• Damaged cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use.
• Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a Ground Fault Circuit Interrupter
(GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use common sense when operating a power tool.
• Do not use the tool while tired or under the influence of drugs, alcohol, or medication. A moment of
inaention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Safety equipment such as a dust
mask, non-slip safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
• Prevent unintentional starting.
• Ensure the switch is in the o-position before connecting to the power source and/or baery pack,
picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power
tools that have the switch on invites accidents.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing, and gloves away from
moving parts. Loose clothes, jewellery, or long hair can be caught in moving parts.
• Remove adjusting keys or spanners before turning the tool on. A spanner or a key that is le aached
to a rotating part of the tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables beer control of the
power tool in unexpected situations.
• Only use safety equipment that has been approved by an appropriate standards agency.
• Unapproved safety equipment may not provide adequate protection.
POWER TOOL USE AND CARE
• Do not force tools. Use the correct tool for your application. The correct tool will do the job beer and
safer at the rate for which it is designed.
• Do not use a power tool if the switch does not turn it on or o. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the baery pack from the power tool before
making any adjustments, changing accessories, or storing the tool. Such preventive safety measures
reduce risk of starting the tool accidentally.
• Store idle power tools out of the reach of children and other untrained persons. Power tools are
dangerous in the hands of untrained users.
• Maintain tools with care. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may aect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cuing tools sharp and clean. Properly maintained tools with sharp cuing edges are less likely
to bind and are easier to control.
• Use only accessories that are recommended by the manufacturer for your model. Accessories that
may be suitable for one tool may become hazardous when used on another tool.
BATTERY TOOL USE AND CARE
• Ensure the switch is in the o position before inserting the baery pack.
• Inserting the baery pack into power tools that have the switch on invites accidents.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type
of baery pack may create a risk of fire when used with another baery pack.
• Use power tools only with specifically designated baery packs. Use of any other baery packs may
create a risk of injury and fire.
• When baery pack is not in use, keep it away from other metal objects like paper clips, coins, keys,
nails, screws, or other small metal objects that can make a connection from one terminal to another.
• Shorting the baery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the baery, avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
• Liquid ejected from the baery may cause irritation or burns.
SERVICE
• Have your power tool service by qualified repair person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
ADDITIONAL WARNINGS APPLICABLE FOR DRILLS
• Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
• Hold power tools by insulated gripping surfaces when performing an operation where the cuing tool
may contact hidden wiring or its own cord. Contact with a “live” wire will make exposed metal parts of
the tool “live” and shock the operator.
• Use clamps or other practical ways to secure and support the workpiece to a stable platform. Holding
the work by hand or against your body is unstable and may lead to loss of control.
• Do not drill, fasten or break into existing walls or other blind areas where electrical wiring may exist. If
this situation is unavoidable, disconnect all fuses or circuit breakers feeding this work site.
• Always wear safety goggles or eye protection when using this tool. Use a dust mask or respirator for
applications which generate dust.
• Use thick cushioned gloves and limit the exposure time by taking frequent rest periods.
• Vibration caused by hammer-drill action may be harmful to your hands and arms.
• Secure the material being drilled. Never hold it in your hand or across legs. Unstable support can
cause the drill bit to bind causing loss of control and injury.
• Disconnect baery pack from tool before making any assembly, adjustments or changing accessories.
• Such preventive safety measures reduce the risk of starting the tool accidentally.
• Position the cord clear of rotating bit. Do not wrap the cord around your arm or wrist. If you lose
control and have the cord wrapped around your arm or wrist it may entrap you and cause injury.
• Position yourself to avoid being caught between the tool or side handle and walls or posts.
• Should the bit become bound or jammed in the work, the reaction torque of the tool could crush your
hand or leg.
• If the bit becomes bound in the work piece, release the trigger immediately, reverse the direction of
rotation and slowly squeeze the trigger to back out the bit. Be ready for a strong reaction torque. The
drill body will tend to twist in the opposite direction as the drill bit is rotating.
• Do not grasp the tool or place your hands too close to the spinning chuck or drill bit. Your hand may
be lacerated.
• When installing a drill bit, insert the shank of the bit well within the jaws of the chuck. If the bit is not
inserted deep enough, the grip of the jaws over the bit is reduced and the loss of control is increased.
• Do not use dull or damaged bits and accessories. Dull or damaged bits have a greater tendency to
bind in the work piece.
• When removing the bit from the tool avoid contact with skin and use proper protective gloves when
grasping the bit or accessory. Accessories may be hot aer prolonged use.
• Do not run the drill while carrying it at your side. A spinning drill bit could become entangled with
clothing and injury may result.
WE RECOMMEND THAT THE OPERATOR WEARS HEARING PROTECTION.
• The declared vibration total value has been measured in accordance with standard test method and
may be used for comparing one tool with another.
• The declared vibration total value may also be used in a preliminary assessment of exposure.
WARNING! The vibration emissions during actual use of the power tool can dier from the declared
total value depending on the ways in which the tool is used, and of the need to identify safety measu-
res to protect the operator that are based on an estimate of exposure in the actual conditions of use
(taking account of all parts of the operating cycle such as times when the tool is switched o and when
it is running idle in addition to trigger time).
LpA (acoustic pressure): 77.8dB(A) (KWA=3 dB)
Vibration: 0.670m/s (K=1.5m/s)
LwA (acoustic pressure): 88.8dB(A) (KWA=3 dB)
2. BATTERY WARNINGS
• Before using baery charger, read all instructions and caution marks on baery charger, baery pack,
and product using baery.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly
qualified person in order to avoid a hazard.
• Use only the charger which accompanied your product or direct replacement as listed in the catalogue
or this manual. Do not substitute any other charger. Use only same supplier approved chargers with
your product.
SEE TECHNICAL SPECIFICATIONS
• Do not disassemble charger or operate the charger if it has received a sharp blow, been dropped or
otherwise damaged in any way. Incorrect reassembly may result in a risk of electric shock, electrocution
or fire.
• Do not recharge baery in damp or wet environment. Do not expose charger to rain or snow. If
baery case is cracked or otherwise damaged, do not insert into charger. Baery short or fire may
result.
• Use only Energizer replacement baeries. See Technical Specifications. Other types of baeries may
burst causing personal injury and damage.
• Charge baery pack in temperatures above 0ºC and below 45ºC. Store tool and baery pack in
locations where temperatures will not exceed 45ºC. This is important to prevent serious damage to the
baery cells.
• Pull the plug rather than cord when disconnecting charger or when disconnecting cords using the
daisy chain feature. This will reduce risk of damage to electric plug and cord.
• Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to
damage or stress.
• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could
result in risk of fire or electric shock.
• Disconnect the charger from the outlet before aempting any cleaning. This will reduce the risk of
electric shock. Removing the baery pack will not reduce this risk.
• The charger is designed to operate on standard household electrical power (220-240 volts, 50-60 Hz
AC only). Do not aempt to use it on any other voltage.
• This power unit is intended to be correctly orientated in a vertical or floor mount position.
• Do not incinerate the baery pack even if it is severely damaged or is completely worn out. The
baery pack can explode in a fire. Toxic fumes and materials are created when lithium ion baery packs
are burned.
• Do not charge or use baery in explosive atmospheres, such as in the presence of flammable liquids,
gases or dust. Inserting or removing the baery from the charger may ignite the dust or fumes.
• If baery contents come into contact with the skin, immediately wash area with mild soap and water.
• If baery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation
ceases.
• If medical aention is needed, the baery electrolyte is composed of a mixture of liquid organic
carbonates and lithium salts.
• Contents of opened baery cells may cause respiratory irritation. Provide fresh air. If symptoms
persist, seek medical aention.
WARNING! Burn hazard. Baery liquid may be flammable if exposed to spark or flame.
• Charge the baery packs only in the charger which accompanied your product.
• DO NOT splash or immerse in water or other liquids. This may cause premature cell failure.
• Do not store or use the tool and baery pack in locations where the temperature may reach or exceed
45°C (such as outside sheds or metal buildings in summer).
• When baeries are not in tool or charger, keep them away from metal objects. For example, to
protect terminals from shorting DO NOT place baeries in a tool box or pocket with nails, screws, keys,
etc. Fire or injury may result.
• DO NOT put baeries into fire or expose to high heat. They may explode.
3. PARTS OF YOUR DRILL
10
4. CHARGING A BATTERY
WARNING: Place the baery pack and charger on a flat non-flammable surface and away from
flammable material when re-charging the baery pack.
1. Insert the plug on the charging unit into a power socket
and turn the power on if required.
2. Plug the tool inside the baery output.
The above are 2 dierent charging methods shown based
on the baery model being used.
3. Process of charging baery pack:
When the red light is on, the baery has very low power.
When the red and yellow lights are on, then the baery
has more than half the energy. When the three lights are
on, the baery is fully charged.
4. USB function (additional feature of certain baery models):
Insert the USB plug of the device to the USB port
of the baery.
5. USING A DRILL
IMPORTANT: Before starting inspect your drill bit to ensure there is no excessive wear and that it is
sharp. Never use a drill bit if it is damaged or blunt.
Check that the drill bit is correctly fied in the chuck and is the correct type for the material you wish to
drill a hole in.
DRILLING WOOD
Ensure the piece of work you want to drill into is firmly anchored in place. Hold the drill in a straight line
with the end of the drill bit.
Apply enough pressure to keep the drill bit cuing through the wood.
When drilling through wood with a twist bit it may over heat if you do not clean any chips and wood
dust out of the flutes (grooves in the drill bit).
To do this:
1. Stop the drill by taking your finger o the power trigger.
2. Switch the direction buon into reverse then press the trigger until the drill bit is clear of the wood.
3. Use a brush to remove any scraps or dust from the drill bit. DO NOT use your fingers.
4. Switch the direction buon into forward to continue drilling into piece of work.
NOTE: If you are drilling into a piece of wood that is likely to splinter you may want to use a ‘back-up’
block of wood place behind the piece you are drilling.
You will drill a cleaner hole if you ease up on the pressure just before the bit breaks through the back of
the wood. Turn the wood over and complete the hole.
DRILLING METAL
There are two main things to remember when drilling through metal.
1. The harder the material, the greater the pressure you need to apply to the drill.
2. The harder the material, the slower the speed of the drill needs to be.
Below are a few tips to help when drilling through metal.
1. Lubricate the tip of the drill bit occasionally with cuing oil except when drilling so metals such as
aluminium, copper or cast iron.
2. If the hole you wish to drill is quite large, drill a smaller hole first then enlarge to the final size. This is
generally a faster method in the long run.
3. Maintain enough pressure to assure that the drill bit does not just spin in the hole. This will make the
drill bit blunt and shorten its life.
6. BATTERY TECHNICAL SPECIFICATION
Baery pack 18 V DC 2000 mAh Li-ion baery pack
Charger adapter input 220-240 V AC 50-60 Hz
7. TECHNICAL SPECIFICATION
Power: 18 V
No-load speed: 0-400/0-1500 rpm
Max torque: 58 N.m
Clutch: 15+1 seing
Chuck: 2-13 mm
1. DRILL WARNINGS
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result
in electric shock and/or injury. Save all warnings and instructions for future reference.
WORK AREA SAFETY
• Keep your work area clean and well lit. Cluered benches and dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids,
gases, or dust. Power tools create sparks which may ignite dust or fumes.
• Keep bystanders and children away while operating a power tool. Distractions can cause you to lose
control.
ELECTRICAL SAFETY
• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
• Avoid bodily contact with grounded surfaces such as pipes, radiators, ranges and refrigerators.
• There is an increased risk of electric shock if your body is grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk
of electric shock.
• Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an outlet.
• Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged cords immediately.
• Damaged cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use.
• Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a Ground Fault Circuit Interrupter
(GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use common sense when operating a power tool.
• Do not use the tool while tired or under the influence of drugs, alcohol, or medication. A moment of
inaention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Safety equipment such as a dust
mask, non-slip safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
• Prevent unintentional starting.
• Ensure the switch is in the o-position before connecting to the power source and/or baery pack,
picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power
tools that have the switch on invites accidents.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing, and gloves away from
moving parts. Loose clothes, jewellery, or long hair can be caught in moving parts.
• Remove adjusting keys or spanners before turning the tool on. A spanner or a key that is le aached
to a rotating part of the tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables beer control of the
power tool in unexpected situations.
• Only use safety equipment that has been approved by an appropriate standards agency.
• Unapproved safety equipment may not provide adequate protection.
POWER TOOL USE AND CARE
• Do not force tools. Use the correct tool for your application. The correct tool will do the job beer and
safer at the rate for which it is designed.
• Do not use a power tool if the switch does not turn it on or o. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the baery pack from the power tool before
making any adjustments, changing accessories, or storing the tool. Such preventive safety measures
reduce risk of starting the tool accidentally.
• Store idle power tools out of the reach of children and other untrained persons. Power tools are
dangerous in the hands of untrained users.
• Maintain tools with care. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may aect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cuing tools sharp and clean. Properly maintained tools with sharp cuing edges are less likely
to bind and are easier to control.
• Use only accessories that are recommended by the manufacturer for your model. Accessories that
may be suitable for one tool may become hazardous when used on another tool.
BATTERY TOOL USE AND CARE
• Ensure the switch is in the o position before inserting the baery pack.
• Inserting the baery pack into power tools that have the switch on invites accidents.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type
of baery pack may create a risk of fire when used with another baery pack.
• Use power tools only with specifically designated baery packs. Use of any other baery packs may
create a risk of injury and fire.
• When baery pack is not in use, keep it away from other metal objects like paper clips, coins, keys,
nails, screws, or other small metal objects that can make a connection from one terminal to another.
• Shorting the baery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the baery, avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
• Liquid ejected from the baery may cause irritation or burns.
SERVICE
• Have your power tool service by qualified repair person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
ADDITIONAL WARNINGS APPLICABLE FOR DRILLS
• Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
• Hold power tools by insulated gripping surfaces when performing an operation where the cuing tool
may contact hidden wiring or its own cord. Contact with a “live” wire will make exposed metal parts of
the tool “live” and shock the operator.
• Use clamps or other practical ways to secure and support the workpiece to a stable platform. Holding
the work by hand or against your body is unstable and may lead to loss of control.
• Do not drill, fasten or break into existing walls or other blind areas where electrical wiring may exist. If
this situation is unavoidable, disconnect all fuses or circuit breakers feeding this work site.
• Always wear safety goggles or eye protection when using this tool. Use a dust mask or respirator for
applications which generate dust.
• Use thick cushioned gloves and limit the exposure time by taking frequent rest periods.
• Vibration caused by hammer-drill action may be harmful to your hands and arms.
• Secure the material being drilled. Never hold it in your hand or across legs. Unstable support can
cause the drill bit to bind causing loss of control and injury.
• Disconnect baery pack from tool before making any assembly, adjustments or changing accessories.
• Such preventive safety measures reduce the risk of starting the tool accidentally.
• Position the cord clear of rotating bit. Do not wrap the cord around your arm or wrist. If you lose
control and have the cord wrapped around your arm or wrist it may entrap you and cause injury.
• Position yourself to avoid being caught between the tool or side handle and walls or posts.
• Should the bit become bound or jammed in the work, the reaction torque of the tool could crush your
hand or leg.
• If the bit becomes bound in the work piece, release the trigger immediately, reverse the direction of
rotation and slowly squeeze the trigger to back out the bit. Be ready for a strong reaction torque. The
drill body will tend to twist in the opposite direction as the drill bit is rotating.
• Do not grasp the tool or place your hands too close to the spinning chuck or drill bit. Your hand may
be lacerated.
• When installing a drill bit, insert the shank of the bit well within the jaws of the chuck. If the bit is not
inserted deep enough, the grip of the jaws over the bit is reduced and the loss of control is increased.
• Do not use dull or damaged bits and accessories. Dull or damaged bits have a greater tendency to
bind in the work piece.
• When removing the bit from the tool avoid contact with skin and use proper protective gloves when
grasping the bit or accessory. Accessories may be hot aer prolonged use.
• Do not run the drill while carrying it at your side. A spinning drill bit could become entangled with
clothing and injury may result.
WE RECOMMEND THAT THE OPERATOR WEARS HEARING PROTECTION.
• The declared vibration total value has been measured in accordance with standard test method and
may be used for comparing one tool with another.
• The declared vibration total value may also be used in a preliminary assessment of exposure.
WARNING! The vibration emissions during actual use of the power tool can dier from the declared
total value depending on the ways in which the tool is used, and of the need to identify safety measu-
res to protect the operator that are based on an estimate of exposure in the actual conditions of use
(taking account of all parts of the operating cycle such as times when the tool is switched o and when
it is running idle in addition to trigger time).
LpA (acoustic pressure): 77.8dB(A) (KWA=3 dB)
Vibration: 0.670m/s (K=1.5m/s)
LwA (acoustic pressure): 88.8dB(A) (KWA=3 dB)
2. BATTERY WARNINGS
• Before using baery charger, read all instructions and caution marks on baery charger, baery pack,
and product using baery.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly
qualified person in order to avoid a hazard.
• Use only the charger which accompanied your product or direct replacement as listed in the catalogue
or this manual. Do not substitute any other charger. Use only same supplier approved chargers with
your product.
SEE TECHNICAL SPECIFICATIONS
• Do not disassemble charger or operate the charger if it has received a sharp blow, been dropped or
otherwise damaged in any way. Incorrect reassembly may result in a risk of electric shock, electrocution
or fire.
• Do not recharge baery in damp or wet environment. Do not expose charger to rain or snow. If
baery case is cracked or otherwise damaged, do not insert into charger. Baery short or fire may
result.
• Use only Energizer replacement baeries. See Technical Specifications. Other types of baeries may
burst causing personal injury and damage.
• Charge baery pack in temperatures above 0ºC and below 45ºC. Store tool and baery pack in
locations where temperatures will not exceed 45ºC. This is important to prevent serious damage to the
baery cells.
• Pull the plug rather than cord when disconnecting charger or when disconnecting cords using the
daisy chain feature. This will reduce risk of damage to electric plug and cord.
• Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to
damage or stress.
• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could
result in risk of fire or electric shock.
• Disconnect the charger from the outlet before aempting any cleaning. This will reduce the risk of
electric shock. Removing the baery pack will not reduce this risk.
• The charger is designed to operate on standard household electrical power (220-240 volts, 50-60 Hz
AC only). Do not aempt to use it on any other voltage.
• This power unit is intended to be correctly orientated in a vertical or floor mount position.
• Do not incinerate the baery pack even if it is severely damaged or is completely worn out. The
baery pack can explode in a fire. Toxic fumes and materials are created when lithium ion baery packs
are burned.
• Do not charge or use baery in explosive atmospheres, such as in the presence of flammable liquids,
gases or dust. Inserting or removing the baery from the charger may ignite the dust or fumes.
• If baery contents come into contact with the skin, immediately wash area with mild soap and water.
• If baery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation
ceases.
• If medical aention is needed, the baery electrolyte is composed of a mixture of liquid organic
carbonates and lithium salts.
• Contents of opened baery cells may cause respiratory irritation. Provide fresh air. If symptoms
persist, seek medical aention.
WARNING! Burn hazard. Baery liquid may be flammable if exposed to spark or flame.
• Charge the baery packs only in the charger which accompanied your product.
• DO NOT splash or immerse in water or other liquids. This may cause premature cell failure.
• Do not store or use the tool and baery pack in locations where the temperature may reach or exceed
45°C (such as outside sheds or metal buildings in summer).
• When baeries are not in tool or charger, keep them away from metal objects. For example, to
protect terminals from shorting DO NOT place baeries in a tool box or pocket with nails, screws, keys,
etc. Fire or injury may result.
• DO NOT put baeries into fire or expose to high heat. They may explode.
3. PARTS OF YOUR DRILL
11
4. CHARGING A BATTERY
WARNING: Place the baery pack and charger on a flat non-flammable surface and away from
flammable material when re-charging the baery pack.
1. Insert the plug on the charging unit into a power socket
and turn the power on if required.
2. Plug the tool inside the baery output.
The above are 2 dierent charging methods shown based
on the baery model being used.
3. Process of charging baery pack:
When the red light is on, the baery has very low power.
When the red and yellow lights are on, then the baery
has more than half the energy. When the three lights are
on, the baery is fully charged.
4. USB function (additional feature of certain baery models):
Insert the USB plug of the device to the USB port
of the baery.
5. USING A DRILL
IMPORTANT: Before starting inspect your drill bit to ensure there is no excessive wear and that it is
sharp. Never use a drill bit if it is damaged or blunt.
Check that the drill bit is correctly fied in the chuck and is the correct type for the material you wish to
drill a hole in.
DRILLING WOOD
Ensure the piece of work you want to drill into is firmly anchored in place. Hold the drill in a straight line
with the end of the drill bit.
Apply enough pressure to keep the drill bit cuing through the wood.
When drilling through wood with a twist bit it may over heat if you do not clean any chips and wood
dust out of the flutes (grooves in the drill bit).
To do this:
1. Stop the drill by taking your finger o the power trigger.
2. Switch the direction buon into reverse then press the trigger until the drill bit is clear of the wood.
3. Use a brush to remove any scraps or dust from the drill bit. DO NOT use your fingers.
4. Switch the direction buon into forward to continue drilling into piece of work.
NOTE: If you are drilling into a piece of wood that is likely to splinter you may want to use a ‘back-up’
block of wood place behind the piece you are drilling.
You will drill a cleaner hole if you ease up on the pressure just before the bit breaks through the back of
the wood. Turn the wood over and complete the hole.
DRILLING METAL
There are two main things to remember when drilling through metal.
1. The harder the material, the greater the pressure you need to apply to the drill.
2. The harder the material, the slower the speed of the drill needs to be.
Below are a few tips to help when drilling through metal.
1. Lubricate the tip of the drill bit occasionally with cuing oil except when drilling so metals such as
aluminium, copper or cast iron.
2. If the hole you wish to drill is quite large, drill a smaller hole first then enlarge to the final size. This is
generally a faster method in the long run.
3. Maintain enough pressure to assure that the drill bit does not just spin in the hole. This will make the
drill bit blunt and shorten its life.
6. BATTERY TECHNICAL SPECIFICATION
Baery pack 18 V DC 2000 mAh Li-ion baery pack
Charger adapter input 220-240 V AC 50-60 Hz
7. TECHNICAL SPECIFICATION
Power: 18 V
No-load speed: 0-400/0-1500 rpm
Max torque: 58 N.m
Clutch: 15+1 seing
Chuck: 2-13 mm
1. DRILL WARNINGS
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result
in electric shock and/or injury. Save all warnings and instructions for future reference.
WORK AREA SAFETY
• Keep your work area clean and well lit. Cluered benches and dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids,
gases, or dust. Power tools create sparks which may ignite dust or fumes.
• Keep bystanders and children away while operating a power tool. Distractions can cause you to lose
control.
ELECTRICAL SAFETY
• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
• Avoid bodily contact with grounded surfaces such as pipes, radiators, ranges and refrigerators.
• There is an increased risk of electric shock if your body is grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk
of electric shock.
• Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an outlet.
• Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged cords immediately.
• Damaged cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use.
• Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a Ground Fault Circuit Interrupter
(GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use common sense when operating a power tool.
• Do not use the tool while tired or under the influence of drugs, alcohol, or medication. A moment of
inaention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Safety equipment such as a dust
mask, non-slip safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
• Prevent unintentional starting.
• Ensure the switch is in the o-position before connecting to the power source and/or baery pack,
picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power
tools that have the switch on invites accidents.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing, and gloves away from
moving parts. Loose clothes, jewellery, or long hair can be caught in moving parts.
• Remove adjusting keys or spanners before turning the tool on. A spanner or a key that is le aached
to a rotating part of the tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables beer control of the
power tool in unexpected situations.
• Only use safety equipment that has been approved by an appropriate standards agency.
• Unapproved safety equipment may not provide adequate protection.
POWER TOOL USE AND CARE
• Do not force tools. Use the correct tool for your application. The correct tool will do the job beer and
safer at the rate for which it is designed.
• Do not use a power tool if the switch does not turn it on or o. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the baery pack from the power tool before
making any adjustments, changing accessories, or storing the tool. Such preventive safety measures
reduce risk of starting the tool accidentally.
• Store idle power tools out of the reach of children and other untrained persons. Power tools are
dangerous in the hands of untrained users.
• Maintain tools with care. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may aect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cuing tools sharp and clean. Properly maintained tools with sharp cuing edges are less likely
to bind and are easier to control.
• Use only accessories that are recommended by the manufacturer for your model. Accessories that
may be suitable for one tool may become hazardous when used on another tool.
BATTERY TOOL USE AND CARE
• Ensure the switch is in the o position before inserting the baery pack.
• Inserting the baery pack into power tools that have the switch on invites accidents.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type
of baery pack may create a risk of fire when used with another baery pack.
• Use power tools only with specifically designated baery packs. Use of any other baery packs may
create a risk of injury and fire.
• When baery pack is not in use, keep it away from other metal objects like paper clips, coins, keys,
nails, screws, or other small metal objects that can make a connection from one terminal to another.
• Shorting the baery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the baery, avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
• Liquid ejected from the baery may cause irritation or burns.
SERVICE
• Have your power tool service by qualified repair person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
ADDITIONAL WARNINGS APPLICABLE FOR DRILLS
• Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
• Hold power tools by insulated gripping surfaces when performing an operation where the cuing tool
may contact hidden wiring or its own cord. Contact with a “live” wire will make exposed metal parts of
the tool “live” and shock the operator.
• Use clamps or other practical ways to secure and support the workpiece to a stable platform. Holding
the work by hand or against your body is unstable and may lead to loss of control.
• Do not drill, fasten or break into existing walls or other blind areas where electrical wiring may exist. If
this situation is unavoidable, disconnect all fuses or circuit breakers feeding this work site.
• Always wear safety goggles or eye protection when using this tool. Use a dust mask or respirator for
applications which generate dust.
• Use thick cushioned gloves and limit the exposure time by taking frequent rest periods.
• Vibration caused by hammer-drill action may be harmful to your hands and arms.
• Secure the material being drilled. Never hold it in your hand or across legs. Unstable support can
cause the drill bit to bind causing loss of control and injury.
• Disconnect baery pack from tool before making any assembly, adjustments or changing accessories.
• Such preventive safety measures reduce the risk of starting the tool accidentally.
• Position the cord clear of rotating bit. Do not wrap the cord around your arm or wrist. If you lose
control and have the cord wrapped around your arm or wrist it may entrap you and cause injury.
• Position yourself to avoid being caught between the tool or side handle and walls or posts.
• Should the bit become bound or jammed in the work, the reaction torque of the tool could crush your
hand or leg.
• If the bit becomes bound in the work piece, release the trigger immediately, reverse the direction of
rotation and slowly squeeze the trigger to back out the bit. Be ready for a strong reaction torque. The
drill body will tend to twist in the opposite direction as the drill bit is rotating.
• Do not grasp the tool or place your hands too close to the spinning chuck or drill bit. Your hand may
be lacerated.
• When installing a drill bit, insert the shank of the bit well within the jaws of the chuck. If the bit is not
inserted deep enough, the grip of the jaws over the bit is reduced and the loss of control is increased.
• Do not use dull or damaged bits and accessories. Dull or damaged bits have a greater tendency to
bind in the work piece.
• When removing the bit from the tool avoid contact with skin and use proper protective gloves when
grasping the bit or accessory. Accessories may be hot aer prolonged use.
• Do not run the drill while carrying it at your side. A spinning drill bit could become entangled with
clothing and injury may result.
WE RECOMMEND THAT THE OPERATOR WEARS HEARING PROTECTION.
• The declared vibration total value has been measured in accordance with standard test method and
may be used for comparing one tool with another.
• The declared vibration total value may also be used in a preliminary assessment of exposure.
WARNING! The vibration emissions during actual use of the power tool can dier from the declared
total value depending on the ways in which the tool is used, and of the need to identify safety measu-
res to protect the operator that are based on an estimate of exposure in the actual conditions of use
(taking account of all parts of the operating cycle such as times when the tool is switched o and when
it is running idle in addition to trigger time).
LpA (acoustic pressure): 77.8dB(A) (KWA=3 dB)
Vibration: 0.670m/s (K=1.5m/s)
LwA (acoustic pressure): 88.8dB(A) (KWA=3 dB)
2. BATTERY WARNINGS
• Before using baery charger, read all instructions and caution marks on baery charger, baery pack,
and product using baery.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly
qualified person in order to avoid a hazard.
• Use only the charger which accompanied your product or direct replacement as listed in the catalogue
or this manual. Do not substitute any other charger. Use only same supplier approved chargers with
your product.
SEE TECHNICAL SPECIFICATIONS
• Do not disassemble charger or operate the charger if it has received a sharp blow, been dropped or
otherwise damaged in any way. Incorrect reassembly may result in a risk of electric shock, electrocution
or fire.
• Do not recharge baery in damp or wet environment. Do not expose charger to rain or snow. If
baery case is cracked or otherwise damaged, do not insert into charger. Baery short or fire may
result.
• Use only Energizer replacement baeries. See Technical Specifications. Other types of baeries may
burst causing personal injury and damage.
• Charge baery pack in temperatures above 0ºC and below 45ºC. Store tool and baery pack in
locations where temperatures will not exceed 45ºC. This is important to prevent serious damage to the
baery cells.
• Pull the plug rather than cord when disconnecting charger or when disconnecting cords using the
daisy chain feature. This will reduce risk of damage to electric plug and cord.
• Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to
damage or stress.
• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could
result in risk of fire or electric shock.
• Disconnect the charger from the outlet before aempting any cleaning. This will reduce the risk of
electric shock. Removing the baery pack will not reduce this risk.
• The charger is designed to operate on standard household electrical power (220-240 volts, 50-60 Hz
AC only). Do not aempt to use it on any other voltage.
• This power unit is intended to be correctly orientated in a vertical or floor mount position.
• Do not incinerate the baery pack even if it is severely damaged or is completely worn out. The
baery pack can explode in a fire. Toxic fumes and materials are created when lithium ion baery packs
are burned.
• Do not charge or use baery in explosive atmospheres, such as in the presence of flammable liquids,
gases or dust. Inserting or removing the baery from the charger may ignite the dust or fumes.
• If baery contents come into contact with the skin, immediately wash area with mild soap and water.
• If baery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation
ceases.
• If medical aention is needed, the baery electrolyte is composed of a mixture of liquid organic
carbonates and lithium salts.
• Contents of opened baery cells may cause respiratory irritation. Provide fresh air. If symptoms
persist, seek medical aention.
WARNING! Burn hazard. Baery liquid may be flammable if exposed to spark or flame.
• Charge the baery packs only in the charger which accompanied your product.
• DO NOT splash or immerse in water or other liquids. This may cause premature cell failure.
• Do not store or use the tool and baery pack in locations where the temperature may reach or exceed
45°C (such as outside sheds or metal buildings in summer).
• When baeries are not in tool or charger, keep them away from metal objects. For example, to
protect terminals from shorting DO NOT place baeries in a tool box or pocket with nails, screws, keys,
etc. Fire or injury may result.
• DO NOT put baeries into fire or expose to high heat. They may explode.
3. PARTS OF YOUR DRILL
WARRANTY
The manufacturer warrants the product against faulty materials and workmanship for a period of 1 year
from the date of first purchase to the original purchaser. The warranty is applicable when the product is
used in a “home owner” application. Warranty does not extend to failure due to fair wear and tear.
The manufacturer undertakes the replacement of any spare parts that are classified as defective by an
appointed dealer. The manufacturer will not accept liability for the replacement of the machine, either
partially or wholly, and/or consequential damages.
Warranty does not cover failure due to:
• Insucient maintenance.
• Abnormal assembly, adjustment or operation of the product.
• Spare parts that are subject to wear.
Neither does warranty extend to:
• Freight and packing cost.
• Use for any other purpose from that which it was designed for.
• Use and maintenance of the machine in a manner not described in the owner’s manual.
As part of our policy of continuous product improvement, we reserve the right to alter or amend this
specification without notice. As a result, the product may dier from the information contained here,
however any alteration will only be implemented without notice if it is classified as an improvement to
the above specification.
Product model
Serial number
Username
Date of sale
Company
Client's signature
Please read and agree to the terms of the warranty.
READ THE MANUAL CAREFULLY BEFORE OPERATING THE MACHINE.
Please hold onto the receipt of purchase as no warranty can be oered without the receipt.
e-mail contact: info@energizerpowerproducts.com | Contact phone N°: (+54 11) 2108-8644
Product
Model
Company
Date
of sale
Product
Model
Company
Date
of sale
Product
Model
Company
Date
of sale
©2020 Energizer. Energizer, Energizer Character and certain graphic designs are trademarks of Energizer Brands, LLC and
related subsidiaries and are used under license by GBR Corporation Ltd.
Table of contents
Other Energizer Drill manuals
