Energizer ENX1000 User manual

DÉMARREUR
+
CHARGEUR SANS FIL
JUMP STARTER WIRELESS CHARGER
12V CAR JUMP
STARTER &
PORTABLE POWER
BANK WITH
WIRELESS CHARGING
model no. ENX1000
4010229
INSTRUCTI
ON
MANUAL
IMPORTANT:
Please read this manual carefully before operating this jum

2
model no. ENX1000 | contact us 1-866-295-6775
WARNING
Always wear safety glasses when jump starting a battery, and gloves when handling
a battery.
When jump starting a vehicle please ensure that the clamp connection is securely
fitted into the jump starter socket.
Ensure the battery clamps are connected correctly, and the connectors are free
from rust and dirt. Do not allow this product to become wet.
Do not immerse the product in water.
Do not operate the product in explosive atmospheres, such as in the presence of
flammable liquid, gas or dust.
Do not modify or disassemble this product.
Do not store in locations where the temperature may exceed
140°F (60°C). Charge only using the charger provided.
Under extreme heat conditions, battery leakage may occur. Avoid contact with
your skin. In case of skin or eye contact, rinse immediately with clean water and
seek medical attention.
BATTERY DISPOSAL
The battery is self-contained and not consumer replaceable. The battery must
be disposed of properly when it no longer holds a charge. Proper charging
practices will increase the life of the product. For Information on battery
recycling, call toll-free 800-822-8837.
For information regarding air travel safety with batteries please reference this
website by the U.S. Department of Transportation:
http://phmsa.dot.gov/safetravel/batteries
NOTE: This Car jump starter and portable power bank contains the equivalent
of 2.4g of lithium and gives 26.7 watt hours of power.
PROP 65 WARNING
This product contains lead, a chemical known to the state of California to cause
cancer, birth defects or other reproductive harm.
SAFETY INFORMATION

3
TO CHARGE YOUR JUMP STARTER
At home:
1. Plug the AC Power Adaptor into any 120V outlet.
2. Attach the DC plug into the USB-C port on the Power Bank with the
equipped USB-A to USB-C cable
In the Car:
1. Plug the car adaptor into the socket of cigarette lighter.
2. Attach the DC plug into the USB-C port on the Power Bank with the
equipped USB-A to USB-C cable.
TO POWER YOUR MOBILE DEVICES
Use the original manufacturer's USB cable that came with your device and plug it into
the USB output ports. The USB charging port can charge at 5V/2A, 9V/2A or 12V/2A
compatible Quick Charge technology devices or charges non–Quick Charge devices
at up to 2.4A. Once you charge your device, the power level gauge will show the
battery level. Tocheck the power capacity again, simply press the power button once.
TO CHARGE USING WIRELESS CHARGING SURFACE
Make sure your device is Qi-compatible. If the case is metal, remove prior to charging.
If you are having issues charging, remove your case and try again. Place the Qi-
compatible device directly onto the indicated wireless charging icon. Your device will
display the charging progress. Charging time will depend on the type ofdevice.
Do not place magnetic cards or similar items near this product. Place the unit on a
sturdy and flat surface during charging. Keep the unit out of reach of children
CHARGING

4
model no. ENX1000 | contact us 1-866-295-6775
PACKAGE CONTENTS
Portable charger/wireless
charger USB-A to USB-C
cable
Car DC charger
Jumper cable
PRODUCT SPECIFICATION
Product Dimensions: 5.35 x 2.99 x 0.98 inch (136 x 76
x 25 mm) Product Weight: 0.68 lbs (310g)
Multi-function Jump Starter
Démarreur Batterie Multi-
fonction Cap.: 7,200mAh
Input (TypeC): 5V/2.4A, 9V/2A
Output: QC3.0
Temp: -13°F to 104°F / -25°C to
40°C
Start Current:
16V/500A Peak
Current: 16V/1000A
USB: QC3.0, 5V/2A, 9V/2A, 12V/2A
2
4
3
JUMP STARTER WIRE LESS
CHARGER
DÉMARRE
UR
+
CHARGEUR
SANS FI L
1
1
2
3
4
PACKAGE CONTENTS

5
FUNCTIONALITIES
A Power & LED light
button
B USB output port
C Jumpstarter connection
port
D Input (TypeC): 5V/2.4A,
9V/2A
E Battery level indicator
F Wireless charging surface
G Battery clamps with cross polarity protection
F
A
B
G
E
C D
POWER LEVEL GAUGE LIGHTS
Press the power button to check the capacity of the Power Bank
Indicator Lights
1 Flashing
1 Solid
2 Solid
3 Solid
4 Solid
Battery Capacity
Below 5%
5-25%
26-50%
51-75%
76%-full
When charging, the indicator gauge will light up one by one. The number of stable
lights show the battery capacity.When all the indicator lights are firm, then the
Power Bank is fully topped up.
PRODUCT SPECIFICATIONS

6
model no. ENX1000 | contact us 1-866-295-6775
IN ORDER TO JUMP START THE
AUTOMOBILE BATTERY,
FOLLOW THESE INSTRUCTIONS
Jumper cables have designated colors,
RED for POSITIVE (+) and BLACK for
NEGATIVE (-). DO NOT
allow the metal ends to touch together,
this may harm the battery, charging
system and/or electronics in the vehicle.
1. Press on the power button on jump
starter once. Ensure that the power
level gauge is 3 lights or more.
2. Take the BLACK end of the jumper
cord and plug it into the power bank
jump start socket which is found
underneath the greycover.
3. Fasten the RED jumper cord to the
POSITIVE (+) post on the car battery.
The POSITIVE battery post will be
slightly bigger than the NEGATIVE
post, and will be marked with a PLUS
(+) sign. There may also be a RED
plastic protective cover over the
positive batterypost.
4. Fasten the BLACK jumper cable to the
NEGATIVE (-) post on the car
battery.The NEGATIVE will be marked
with a MINUS (-) sign. There may also
be a BLACK plastic protective cover
over the negative batterypost.
NOTE: Do not attach the red clamp (+) and
the black clamp (-) at the same time.
CAUTION: DO NOT lean directly over the
battery while making jumper connections.
5. Check the LED status on the indicator
box found on the BLACK jumper
cable. Unless the light is flashing RED,
proceed to the next step. Please refer
to the LED status chart found on the
next page ifnecessary.
6. You now have 30 seconds to start your
vehicle. If it does not crank or cranks
very slowly, secure the jumper
connections to make sure there is a
good contact on battery posts of the
vehicle. Then try again. The engine
should start if there are no other
issues (such as a bad starter or
ignition circuit issues). Do not attempt
to jump start the vehicle more than 3
times from the jump starter. If the
vehicle fails to start then it is likely that
there is another issue.
7. Please detach the jumper cables
from the vehicle within 30 seconds.
JUMP STARTING

7
Remove the RED/POSTIVE end first
and then the BLACK/NEGATIVE
clamp.
Do not allow the metal ends of the
jumper cables to touch each other or
the RED cables to touch anything
metal on thecar.
Now unplug the BLUE end of the
jumper cable from the power bank.This
will reset the jumper cable. In 10
seconds the power bank will power off
automatically.
TO USE A FLASHLIGHT
Press the power button for 3 seconds to
start the LED illumination.
You can then select from 2 modes
(On/SOS) by pressing the power
button lightly in sequence.
8. Keep the engine running 20 to 30
minutes, or drive the car to recharge
the battery.
NOTE: If the engine dies shortly after it has
been jump started, or as soon as the
jumper cables are disconnected, it probably
means the vehicle charging system is not
working (bad alternator, voltage regulator,
wiring problem or loose/dirty battery
cables). Please mechanic or vehicle’s
manufacture for assistance.
POLARITY PROTECTION CIRCUIT STATUS
Status (Light & Sound
Indicator)
Mod
e
Red
Light
Green
Light
Soun
d
None
The car battery is ready for jump start.
None
The Power Bank needs to be charged.
On Flashing Off
JUMP STARTING

8
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the device.
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This device contains licence-exempt transmitter(s)/receiver(s) that
comply with Innovation, Science and Economic Development
Canada’s licence-exempt RSS(s). Operation is subject to the
following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme
aux CNR d’Innovation, Sciences et Développement économique Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes :
1) L’appareil ne doit pas produire de brouillage;
2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonctionnement.
model no. ENX1000 | contact us 1-866-295-6775
WIRELESS CHARGER

9
WARRANTY AND RETURNS
IF ANY PARTS ARE MISSING OR DAMAGED, OR IF
YOU HAVE ANY QUESTIONS, PLEASE CALL OUR
TOLL-FREE HELPLINE AT 1-866-295-6775
Read and understand this instruction manual thoroughly before using
the product. It contains important information for your safety as well as
operating and maintenance advice.
Keep this instruction manual for future use. Should this product be
passed on to a third party, this instruction manual must be included.
The English version of this manual is available online at:
www.energizerpower.com
Bright Manufacturing LLC and/or its affiliates are not responsible for a user's
intended or actual use of the car jump starter. In no event shall Bright
Manufacturing LLC and/or its affiliates have any liability for any losses
(whether direct or indirect, in contract, tort or otherwise) incurred in
connection with the car jump starter, including but not limited to damaged
property, personal injury and/or loss of life. Neither shall Bright Manufacturing
LLC and/or its affiliates have any liability for any decision, action taken based
on relying on the stability or performance of the car jump starter.
Bright Manufacturing LLC and/or its affiliates, the manufacturer, distributor
and seller shall not be liable for any injury, loss or damage, incidental or
consequential, arising out of the use or intended use of the product.
4010229
This Energizer jump starter product carries a one (1) year
warranty against defects in workmanship and materials. At its
discretion, Bright Manufacturing agrees to have any defective
part(s) repaired or replaced free of charge, within the stated
warranty period, when returned by the original purchaser with
proof of purchase. This product is not guaranteed against wear or
breakage due to misuse and/or abuse.
Bright Manufacturing LLC and/or its affiliates, the manufacturer, distributor
and seller shall not be liable for any injury, loss or damage, incidental or
consequential, arising out of the use or intended use of the product.
MADE IN CHINA
IMPORTED BY
BRIGHT MANUFACTURING
LLC, FORT LAUDERDALE, FL
model no. ENX1000 | contact us 1-866-295-6775
WARRANTY AND RETURNS

10

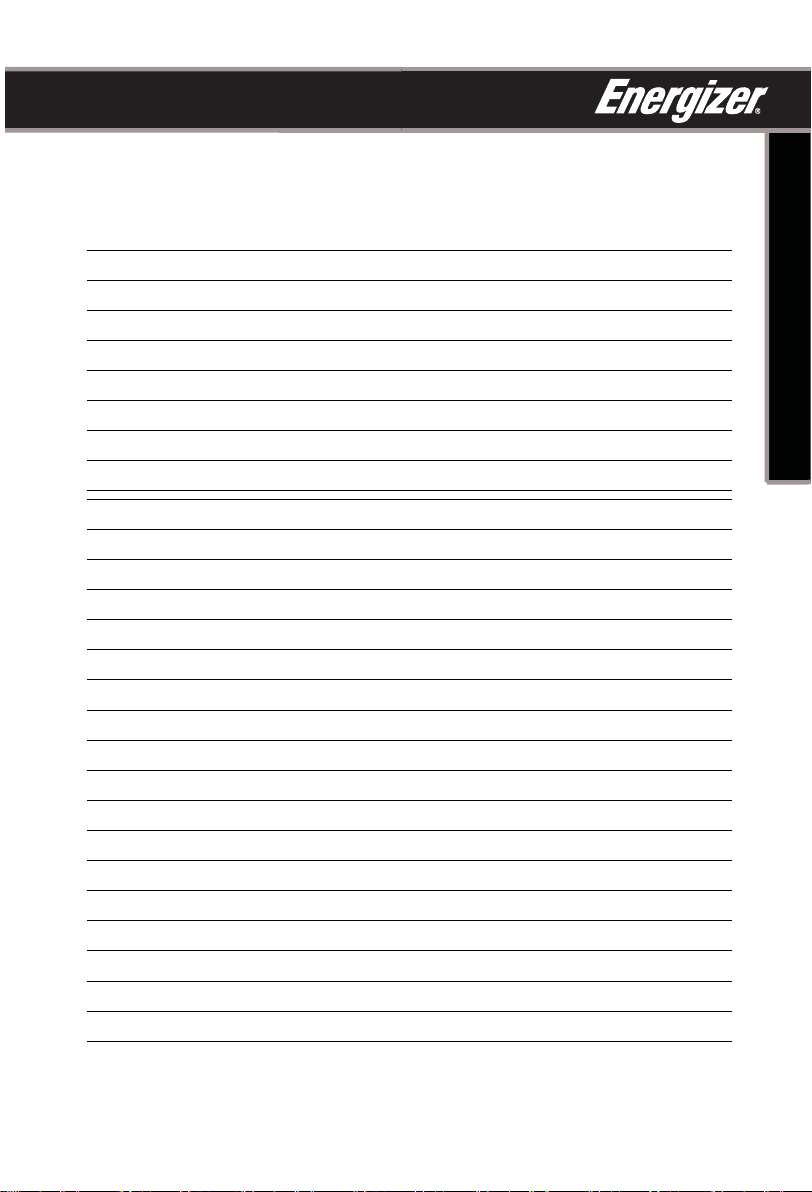

NOTES
