Energy EFM32 G890 User manual

...the world's most energy friendly microcontrollers
2009-11-19 Rev: t0003_1.00 1 www.energymicro.com
EFM32 G890 MCU Board
Preliminary

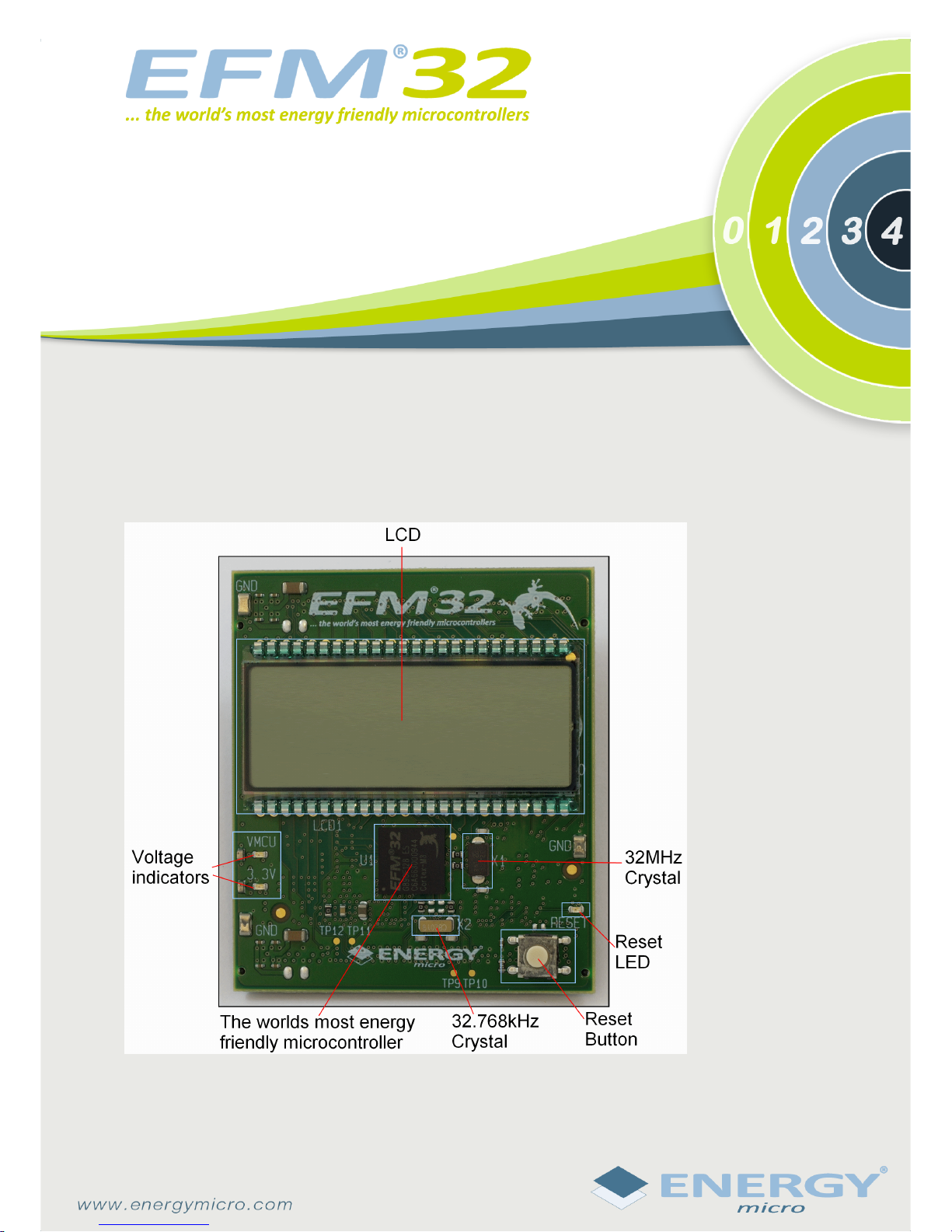

The EFM32 G890 MCU Board is a small plugin module for usage with the EFM32 Gecko Development Kit.
Features:
• The worlds most energy friendly microcontroller
• Compatible with the Advanced Energy Monitoring (AEM) system of the EFM32 Gecko Development Kit
• Leds indicating power and reset
• 32 MHz crystal
• 32.768 kHz crystal
• Reset button and ground-hooks for easy debugging
• Energy Micro LCD

...the world's most energy friendly microcontrollers
2009-11-19 Rev: t0003_1.00 2 www.energymicro.com
1 Usage
1.1 Placement
This board is intended for use with the EFM32 Gecko Development Kit.
1.2 Reset Button / Reset LED
When pressed, the reset button resets the EFM32 device. When reset is asserted, a red led next to the
button is lit. A filter is connected to the reset line in order to reduce bouncing.
1.3 LEDs Indicating Power
The two green LEDs indicate poweron the VMCU and 3.3V nets, respectively.
1.4 Crystal Oscillators
The board features one 32.768kHz and one 32MHz crystal. These are connected through 0-ohm resis-
tors to the respective inputs of the low-frequency and high-frequency crystal oscillators of the EFM32.
Using these instead of the internal RC-oscillators will ensure higher frequency accuracy. However, if the
reduced accuracy is acceptable, theese lines can be used as normal IO-lines instead by removing the
0-ohm resistors. In order to export these IO lines to the Kit mainboard, insert resistors for connection to
the EFM32_A bus. See schematic for details.
1.5 Kit Connection
It is possible to access the board controller on the Kit mainboard for example to turn LEDs on or off, read
push button status or connecting the EMF32 to specific hardware on the mainboard. The access may
either through SPI or the parallel interface (EBI), and the access mode is signaled to the board controller
by asserting one of two dedicated signal lines. It is recomended to use the Board Support Package
(BSP) for access to the mainboard. Please see the Kit user guide for furhter description of the BSP.
1.6 LCD

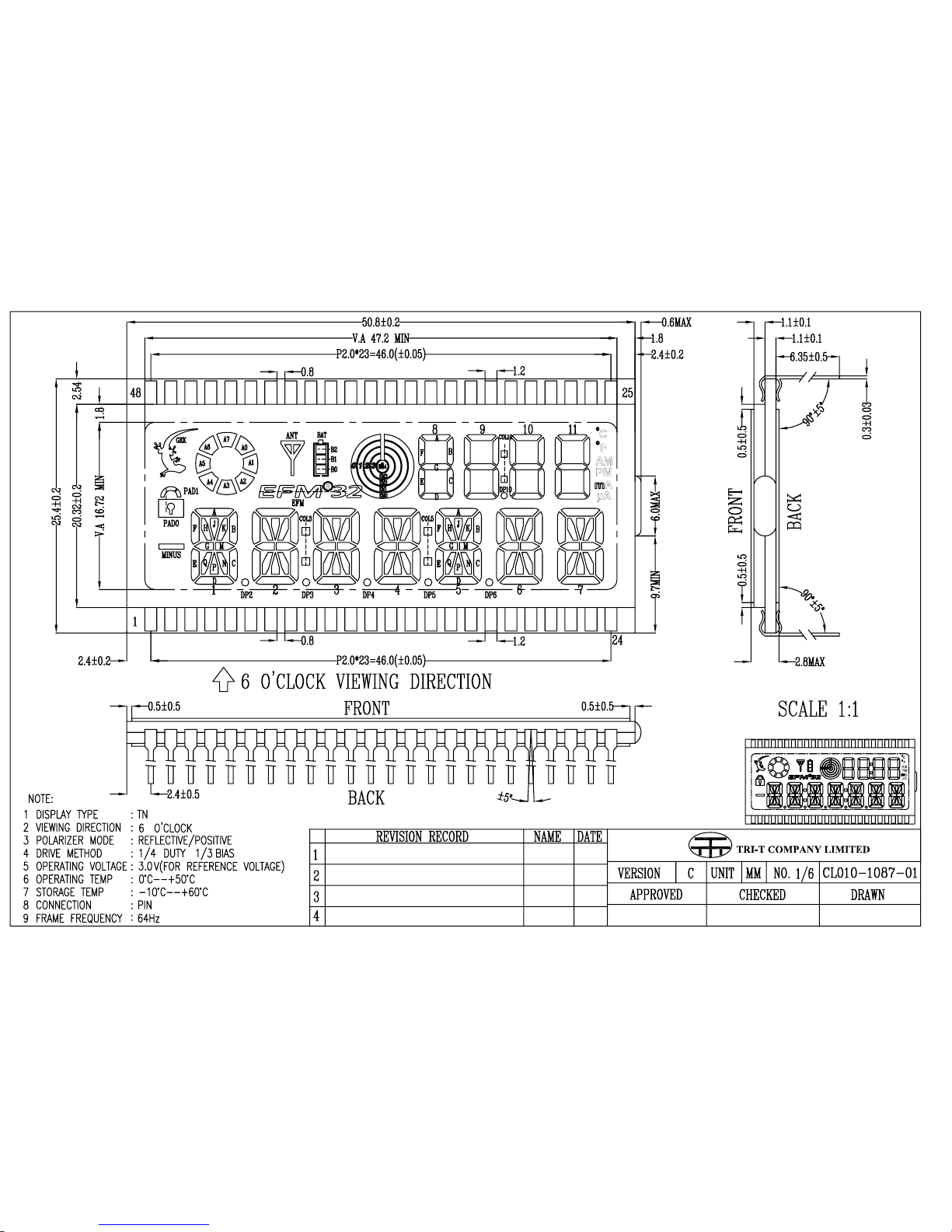

The LCD is a 164 segment display designed for 1/4 Duty, 1/3 bias. The operating voltage is 3.0V and the
frame frequency is 64 Hz. Since the EFM32 only supports 160 segments, the Celsius and Fahrenheit
along with uA and mA segments are not connected. However, they may be made available by moving
a 0-ohm resistor. See schematic for details. Please see the LCD software example project for details
on how to use the LCD. For details on segment connections see the attached mapping table and LDC
illustration.
1.7 EBI / LCD Configuration
Since many of the IO lines used by the EBI are also used by the LCD, the board is either configured to
route the IO lines to the LCD connector or to the Kit mainboard. The configuration is determined by a
set of 0-ohm resistor arrays. This configuration may be altered my moving the arrays. See schematic
for details.

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
EFM32 Microcontroller Board
EFM32 Microcontroller BoardEFM32 Microcontroller Board
EFM32 Microcontroller Board
Board Function
Board FunctionBoard Function
Board Function Page
PagePage
Page
Front Page 1
2
3
4
5
Revision History
Revision HistoryRevision History
Revision History
Comment
CommentComment
CommentRevision
RevisionRevision
Revision
EFM32 Microcontroller
EFM32 Power
CD Panel
EFM32 Connectors
Signal Assignments #1
Signal Assignments #2
6
7
PA7 BOM changes
PA6 Moved the location of the VMCU R0
resistors
PA5 Updated after feedback from Contec
PA8 BOM changes
A Some BOM changes. Final version
A1 Removed pullup on reset. Added
transistors to control the reset
ED
A2 BOM change - removed pullup on
reset button and removed some caps
Size
Designed:
Revision
Sheet
of
Approved:
Sheet Created Date Sheet Modified Date
Document number
Schematic Title
Design Created Date:
BOM Doc No:
Page Title
A2
Wednesday, November 18, 2009 1 7
A3
EFM32 G890 MCU Board
<Cage Code>
Tuesday, February 17, 2009
Wednesday, December 03, 2008
TOP
/
Front Page
Size
Designed:
Revision
Sheet
of
Approved:
Sheet Created Date Sheet Modified Date
Document number
Schematic Title
Design Created Date:
BOM Doc No:
Page Title
A2
Wednesday, November 18, 2009 1 7
A3
EFM32 G890 MCU Board
<Cage Code>
Tuesday, February 17, 2009
Wednesday, December 03, 2008
TOP
/
Front Page
Size
Designed:
Revision
Sheet
of
Approved:
Sheet Created Date Sheet Modified Date
Document number
Schematic Title
Design Created Date:
BOM Doc No:
Page Title
A2
Wednesday, November 18, 2009 1 7
A3
EFM32 G890 MCU Board
<Cage Code>
Tuesday, February 17, 2009
Wednesday, December 03, 2008
TOP
/
Front Page

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

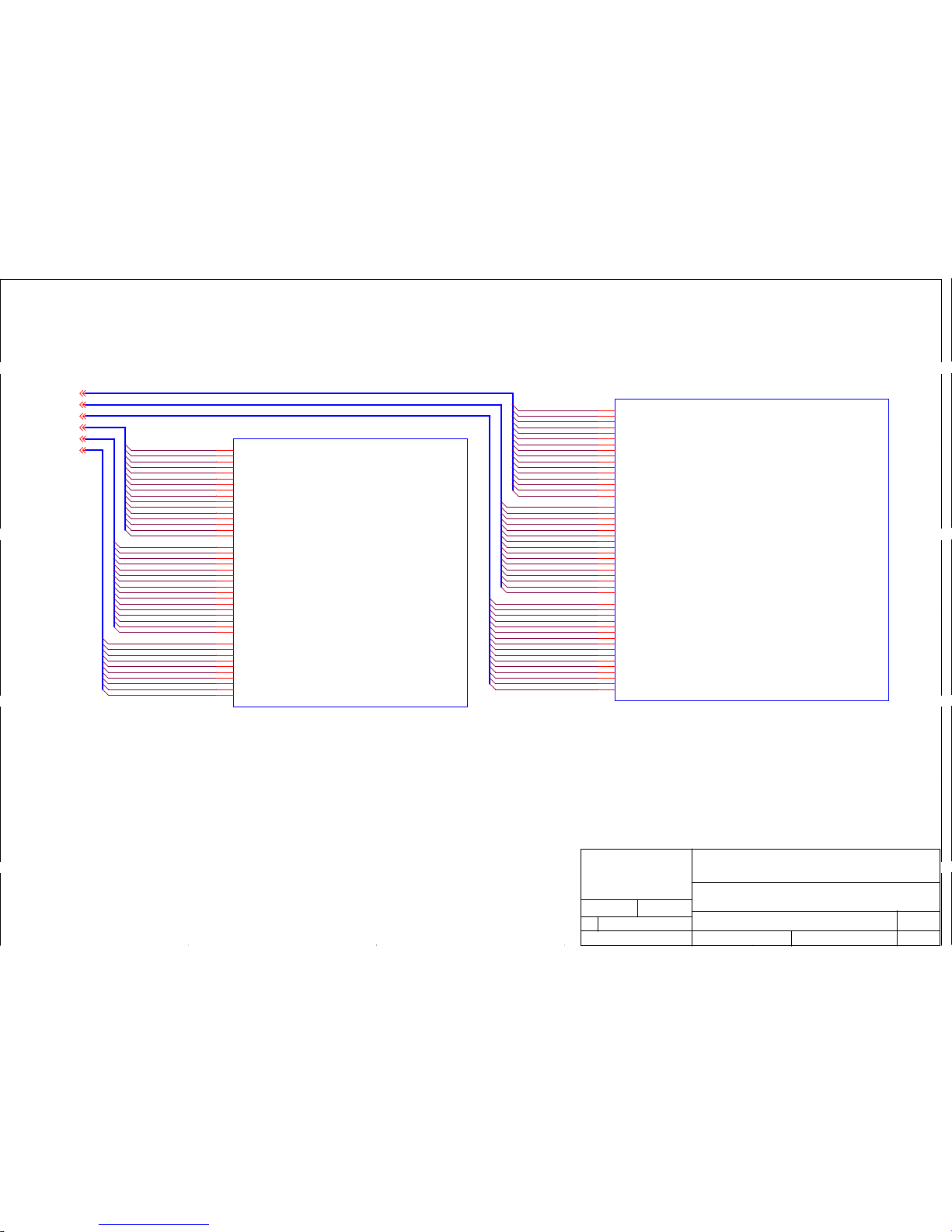

MCU_PE15
MCU_PE14
MCU_PE13
MCU_PE12
MCU_PE11
MCU_PE10
MCU_PE9
MCU_PE8
MCU_PE7
MCU_PE6
MCU_PE5
MCU_PE4
MCU_PE3
MCU_PE2
MCU_PE1
MCU_PE0
MCU_PD15
MCU_PD14
MCU_PD13
MCU_PD12
MCU_PD11
MCU_PD10
MCU_PD9
MCU_PD8
MCU_PD7
MCU_PD6
MCU_PD5
MCU_PD4
MCU_PD3
MCU_PD2
MCU_PD1
MCU_PD0
MCU_PA15
MCU_PA14
MCU_PA13
MCU_PA12
MCU_PA11
MCU_PA10
MCU_PA9
MCU_PA8
MCU_PA7
MCU_PA6
MCU_PA5
MCU_PA4
MCU_PA3
MCU_PA2
MCU_PA1
MCU_PA0
MCU_PB15
MCU_PB14
MCU_PB13
MCU_PB12
MCU_PB11
MCU_PB10
MCU_PB9
MCU_PB8
MCU_PB7
MCU_PB6
MCU_PB5
MCU_PB4
MCU_PB3
MCU_PB2
MCU_PB1
MCU_PB0
MCU_PC15
MCU_PC14
MCU_PC13
MCU_PC12
MCU_PC11
MCU_PC10
MCU_PC9
MCU_PC8
MCU_PC7
MCU_PC6
MCU_PC5
MCU_PC4
MCU_PC3
MCU_PC2
MCU_PC1
MCU_PC0
MCU_PF0
MCU_PF1
MCU_PF2
MCU_PF3
MCU_PF4
MCU_PF5
MCU_PF6
MCU_PF7
MCU_PF8
MCU_PF9
MCU_PA[15..0](p 6)
MCU_PB[15..0](p 5,6)
MCU_PC[15..0](p 5,6)
MCU_PD[15..0](p 5,7)
MCU_PE[15..0](p 5,7)
MCU_PF[9..0](p 5,7)
Size
Designed:
Revision
Sheet
of
Approved:
Sheet Created Date Sheet Modified Date
Document number
Schematic Title
Design Created Date:
BOM Doc No:
Page Title
A2
Wednesday, November 18, 2009 2 7
A3
EFM32 G890 MCU Board
<Cage Code>
Tuesday, April 07, 2009
Wednesday, December 03, 2008
TOP
/
MCU
Size
Designed:
Revision
Sheet
of
Approved:
Sheet Created Date Sheet Modified Date
Document number
Schematic Title
Design Created Date:
BOM Doc No:
Page Title
A2
Wednesday, November 18, 2009 2 7
A3
EFM32 G890 MCU Board
<Cage Code>
Tuesday, April 07, 2009
Wednesday, December 03, 2008
TOP
/
MCU
Size
Designed:
Revision
Sheet
of
Approved:
Sheet Created Date Sheet Modified Date
Document number
Schematic Title
Design Created Date:
BOM Doc No:
Page Title
A2
Wednesday, November 18, 2009 2 7
A3
EFM32 G890 MCU Board
<Cage Code>
Tuesday, April 07, 2009
Wednesday, December 03, 2008
TOP
/
MCU
PORT A
PORT B
PORT C
U1A
EFM32G890F128
PORT A
PORT B
PORT C
U1A
EFM32G890F128
A0 / TIMER0_CC0 #0,1 / EBI_AD9 / I2C0_SDA #0 / LCD_SEG13
C2
A1 / TIMER0_CC1 #0,1 / CMU_CLKOUT1 / EBI_AD10 / I2C0_SCL #0 / LCD_SEG14
C1
A2 / TIMER0_CC2 #0,1 / CMU_CLKOUT0 / EBI_AD11 / LCD_SEG15
D2
A3 / TIMER0_CCC0 #0 / EBI_AD12 / UART0_TX #2 / LCD_SEG16
D1
A4 / TIMER0_CCC1 #0 / EBI_AD13 / UART0_RX #2 / LCD_SEG17
E3
A5 / TIMER0_CCC2 #0 / EBI_AD14 / LEUART1_TX #1 / LCD_SEG18
E2
A6 / EBI_AD15 / LEUART1_RX #1 / LCD_SEG19
E1
A7 / LCD_SEG35
H4
A8 / TIMER2_CC0 #0 / LCD_SEG36
H5
A9 / TIMER2_CC1 #0 / LCD_SEG37
J5
A10 / TIMER2_CC2 #0 / LCD_SEG38
J6
A11 / LCD_SEG39
K5
A12 / TIMER2_CC0 #1 / LCD_BCAP_P
J4
A13 / TIMER2_CC1 #1 / LCD_BCAP_N
K3
A14 / TIMER2_CC2 #1 / LCD_BEXT
L3
A15 / EBI_AD8 / LCD_SEG12
B1
B0 / TIMER1_CC0 #2 / LCD_SEG32
E4
B1 / TIMER1_CC1 #2 / LCD_SEG33
F1
B2 / TIMER1_CC2 #2 / LCD_SEG34
F2
B3 / USART2_TX #1 / PCNT1_S0IN #1 / LCD_SEG20
F3
B4 / USART2_RX #1 / PCNT1_S1IN #1 / LCD_SEG21
F4
B5 / USART2_CLK #1 / LCD_SEG22
G1
B6 / USART2_CS #1 / LCD_SEG23
G2
B7 / USART1_CLK#0/ LFXTAL_P
K1
B8 / USART1_CS #0 / LFXTAL _N
L1
B9
J7
B10
J8
B11 / LETIMER0_OUT0 #1 / DAC0_OUT0
L5
B12 / LETIMER0_OUT1 #1 / DAC0_OUT1
L6
B13 / LEUART0_TX #1 / HFXTAL_P
L8
B14 / LEUART0_RX #1 / HFXTAL_N
L9
B15
D3
C0 / USART1_TX #0 / PCNT0_S0IN #2 / ACMP0_CH0
H1
C1 / USART1_RX #0 / PCNT0_S1IN #2 / ACMP0_CH1
J1
C2 / USART2_TX #0 / ACMP0_CH2
H2
C3 / USART2_RX #0 / ACMP0_CH3
J2
C4 / USART2_CLK #0 / LETIMER_OUT0 #3 / PCNT1_S0IN #0 / ACMP0_CH4
K2
C5 / USART2_CS #0 / LETIMER_OUT1 #3 / PCNT1_S1IN #0 / ACMP0_CH5
L2
C6 / LEUART1_TX #0 / I2C0_SDA #2 / ACMP0_CH6
G10
C7 / LEUART1_RX #0 / I2C0_SCL #2 / ACMP0_CH7
G11
C8 / TIMER2_CC0 #2 / USART0_CS #2 / ACMP1_CH0
D10
C9 / TIMER2_CC1 #2 / USART0_CLK #2 / ACMP1_CH1
D11
C10 / TIMER2_CC2 #2 / USART0_RX #2 / ACMP1_CH2
C10
C11 / USART0_TX #2 / ACMP1_CH3
C11
C12 / CMU_CLKOUT0 #1 / ACMP1_CH4
B10
C13 / TIMER0_CCC0 #1,3 / TIMER1_CC0 #0 / PCNT0_S0IN #0 / ACMP1_CH5
B11
C14 / TIMER0_CCC1 #1,3 / TIMER1_CC1 #0 / UART0_TX #3 / PCNT0_S1IN #0 / ACMP1_CH6
A10
C15 / TIMER0_CCC2 #1,3 / TIMER1_CC2 #0 / UART0_RX #3 / DBG_SWV #1 / ACMP1_CH7
A11
PORT D
PORT E
PORT F
U1B
EFM32G890F128
PORT D
PORT E
PORT F
U1B
EFM32G890F128
D0 / USART1_TX #1 / PCNT2_S0IN #0 / ADC0_CH0
L11
D1 / TIMER0_CC0 #3 / USART1_RX #1 / PCNT2_S1IN #0 / ADC0_CH1
K11
D2 / TIMER0_CC1 #3 / USART1_CLK #1 / ADC0_CH2
J9
D3 / TIMER0_CC2 #3 / USART1_CS #1 / ADC0_CH3
J10
D4 / LEUART0_TX#0 / ADC0_CH4
J11
D5 / LEUART0_RX#0 / ADC0_CH5
H9
D6 / LETIMER0_OUT0 #0 / I2C0_SDA #1 / ADC0_CH6
H10
D7 / LETIMER0_OUT1 #0 / I2C0_SCL #1 / ADC0_CH7
H11
D8 / CMU_CLKOUT1 #1 / ADC0_VCM
H8
D9 / EBI_CS0 / LCD_SEG28
D6
D10 / EBI_CS1 / LCD_SEG29
A5
D11 / EBI_CS2 / LCD_SEG30
B5
D12 / EBI_CS3 / LCD_SEG31
C5
D13
C4
D14 / I2C0_SDA #3
H3
D15 / I2C0_SCL #3
J3
E0 / UART0_TX #1/ PCNT0_S0IN #1
E9
E1 / UART0_RX #1/ PCNT0_S1IN #1
E10
E2 / ACMP0 _OUT #1
F10
E3 / ACMP1_OUT #1
E11
E4 / USART0_CS #1 / LCD_COM0
A9
E5 / USART0_CLK#1 / LCD_COM1
B9
E6 / USART0_RX #1 / LCD_COM2
C9
E7 / USART0_TX #1 / LCD_COM3
D9
E8 / EBI_AD0 / PCNT2_S0IN #1 / LCD_SEG4
B4
E9 / EBI_AD1 / PCNT2_S1IN #1 / LCD_SEG5
A4
E10 / EBI_AD2 / TIMER1_CC0 #1 / USART0_TX #0 / LCD_SEG6
C3
E11 / EBI_AD3 / TIMER1_CC1 #1 / USART0_RX #0 / LCD_SEG7
B3
E12 / EBI_AD4 / TIMER1_CC2 #1 / USART0_CLK #0 / LCD_SEG8
A3
E13 / EBI_AD5 / USART0_CS #0 / ACMP0_OUT #0 / LCD_SEG9
B2
E14 / EBI_AD6 / LEUART0_TX #2 / LCD_SEG10
A2
E15 / EBI_AD7 / LEUART0_RX #2 / LCD_SEG11
A1
F0 / LETIMER0_OUT0 #2 / DBG_SWCLKTCK
E8
F1 / LETIMER0_OUT1 #2 / DBG_SWDITMS
D8
F2 / EBI_ARDY / ACMP1_OUT #0 / DBG_SWV #0 / LCD_SEG0
C8
F3 / TIMER0_CCC0#2 / EBI_ALE / LCD_SEG1
B8
F4 / TIMER0_CCC1 #2 / EBI_WEn / LCD_SEG2
A8
F5 / TIMER0_CCC2 #2 / EBI_REn / LCD_SEG3
A7
F6 / TIMER0_CC0 #2 / UART0_TX #0 / LCD_SEG24
B7
F7 / TIMER0_CC1 #2 / UART0_RX #0 / LCD_SEG25
A6
F8 / TIMER0_CC2 #2 / LCD_SEG26
B6
F9 / LCD_SEG27
C6

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
High Frequency Clock
Decoupling
Reset Circuit
Low Frequency Clock
VDDU1
AVDDU1
GND
GND
GND
GND
GND
GND GND
GND
GND
GND
GND GND
GND
GND
GND
GND
GND
VMCU
VMCU
VMCU
3V3
3V3
3V3
3V3
3V3
GND GND
3V3
GND
3V3
LFXTAL_N (p 6)HFXTAL_N (p 6)
FPGA_MCU_#RESET(p 5)
MCUDBG_#RESET(p 5)
LFXTAL_P (p 6)HFXTAL_P (p 6)
Size
Designed:
Revision
Sheet
of
Approved:
Sheet Created Date Sheet Modified Date
Document number
Schematic Title
Design Created Date:
BOM Doc No:
Page Title
A2
Wednesday, November 18, 2009 3 7
A3 <Cage Code>
Wednesday, July 15, 2009
Wednesday, December 03, 2008
TOP
/
EFM32 Power
EFM32 G890 MCU Board
Size
Designed:
Revision
Sheet
of
Approved:
Sheet Created Date Sheet Modified Date
Document number
Schematic Title
Design Created Date:
BOM Doc No:
Page Title
A2
Wednesday, November 18, 2009 3 7
A3 <Cage Code>
Wednesday, July 15, 2009
Wednesday, December 03, 2008
TOP
/
EFM32 Power
EFM32 G890 MCU Board
Size
Designed:
Revision
Sheet
of
Approved:
Sheet Created Date Sheet Modified Date
Document number
Schematic Title
Design Created Date:
BOM Doc No:
Page Title
A2
Wednesday, November 18, 2009 3 7
A3 <Cage Code>
Wednesday, July 15, 2009
Wednesday, December 03, 2008
TOP
/
EFM32 Power
EFM32 G890 MCU Board
R7
10k
R7
10k
C14
100N
NM
C14
100N
NM
C11
10U
C11
10U
Q4
FDV302P
Q4
FDV302P
1
23
U1C
EFM32G890F128
U1C
EFM32G890F128
RESETn
K6
VDD_DREG F8
AVSS
L7
AVDD
K9
VDD G4
VDD L4
VDD H7
VDD D7
VDD G8
VSS K4
VSS H6
VSS G9
VSS D4
VSS C7
AVDD
L10
AVSS
K7
AVDD
K8
AVSS
K10
VDD D5
VSS G3
VSS F9
DECOUPLING F11
U2A
74LVC2G125DC
U2A
74LVC2G125DC
2 6
1
R6
0R
R6
0R
P1
U.FL NM
P1
U.FL NM
3
21
C4
100N
C4
100N
C6
100N
C6
100N
X2
32.768KHz
X2
32.768KHz
21
R16
10R
NM
R16
10R
NM
R13
49R9
NM
R13
49R9
NM
C18
22P
C18
22P
C37
47U
NM
C37
47U
NM
C15
10N
C15
10N
C12
10N
C12
10N
TP1TP1
U2C
74LVC2G125DC
U2C
74LVC2G125DC
VCC 8
GND
4
R11
100K
NM
R11
100K
NM
SW1SW1
1
2
3
4
R3
100R
R3
100R
U3B
32.00MHz
NM
U3B
32.00MHz
NM
VCC 4
GND
2
C16
12P
C16
12P C17 12P
C17
12P
LED1
RED
LED1
RED
21
L1
BLM21B102S
L1
BLM21B102S
1 2
C2
100N
C2
100N
R2
10k
R2
10k
D1
BZX84C3V6W
NM
D1
BZX84C3V6W
NM
1 3
R17
100K
NM
R17
100K
NM
R18
100R
NM
R18
100R
NM R19
100R
NM
R19
100R
NM
C7
100N
C7
100N
R12
0R
NM
R12
0R
NM
C19
22P
C19
22P
C5
100N
C5
100N
C20
100N
NM
C20
100N
NM
C9
10U
C9
10U
X1
32.0MHz
X1
32.0MHz
21
U3A
32.00MHz
NM
U3A
32.00MHz
NM
OUTPUT 3
OE
1
R1
470R
R1
470R
C10
100N
C10
100N
R8 1RR8 1R
U2B
74LVC2G125DC
U2B
74LVC2G125DC
5
7
3
C36
1U
C36
1U
C13
10N
C13
10N
R10
100R
R10
100R
C3
100N
C3
100N
R14
100K
NM
R14
100K
NM
R9
47K
NM
R9
47K
NM
R5
100R
R5
100R

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Resistors for
choosing between
segment groups on the
LCD
LCD signal connections
Segment names
LCD_SEG1LCD_PF3 LCD_SEG2LCD_PF4 LCD_SEG3LCD_PF5
LCD_SEG0LCD_PF2
LCD_SEG5LCD_PE9 LCD_SEG6LCD_PE10 LCD_SEG7LCD_PE11
LCD_SEG4LCD_PE8
LCD_SEG9LCD_PE13 LCD_SEG10LCD_PE14 LCD_SEG11LCD_PE15
LCD_SEG8LCD_PE12
LCD_SEG13LCD_PA0 LCD_SEG14LCD_PA1 LCD_SEG15LCD_PA2
LCD_SEG12LCD_PA15
LCD_SEG17LCD_PA4 LCD_SEG18LCD_PA5 LCD_SEG19LCD_PA6
LCD_SEG16LCD_PA3
LCD_SEG21LCD_PB4 LCD_SEG22LCD_PB5 LCD_SEG23LCD_PB6
LCD_SEG20LCD_PB3
LCD_PB1LCD_SEG33 LCD_PB0LCD_SEG32
LCD_PD11LCD_SEG30 LCD_PD10LCD_SEG29 LCD_PD9LCD_SEG28
LCD_PD12LCD_SEG31
LCD_PF8LCD_SEG26 LCD_PF7LCD_SEG25
LCD_SEG24 LCD_PF6
LCD_PF9LCD_SEG27
LCD_PE6LCD_COM2
LCD_PE4LCD_COM0
LCD_PE7LCD_COM3
LCD_PA10LCD_SEG38
LCD_SEG39 LCD_PA11
LCD_PA9LCD_SEG37
LCD_SEG36 LCD_PA8
LCD_SEG35 LCD_PA7
LCD_SEG34LCD_SEG34 LCD_PB2LCD_SEG34
LCD_COM1LCD_COM1 LCD_PE5
GND
LCD_PE[15..4](p 7)
LCD_PF[9..2] (p 7)
LCD_PF[9..2](p 7)
LCD_PE[15..4] (p 7)
LCD_PA[15..0](p 6)
LCD_PA[15..0] (p 6)
LCD_PB[6..0] (p 6)
LCD_PD[12..9] (p 7)
LCD_PB[6..0](p 6)
Size
Designed:
Revision
Sheet
of
Approved:
Sheet Created Date Sheet Modified Date
Document number
Schematic Title
Design Created Date:
BOM Doc No:
Page Title
A2
Wednesday, November 18, 2009 4 7
A3
EFM32 G890 MCU Board
<Cage Code>
Tuesday, July 14, 2009
Wednesday, December 03, 2008
TOP
/
LCD panel
Size
Designed:
Revision
Sheet
of
Approved:
Sheet Created Date Sheet Modified Date
Document number
Schematic Title
Design Created Date:
BOM Doc No:
Page Title
A2
Wednesday, November 18, 2009 4 7
A3
EFM32 G890 MCU Board
<Cage Code>
Tuesday, July 14, 2009
Wednesday, December 03, 2008
TOP
/
LCD panel
Size
Designed:
Revision
Sheet
of
Approved:
Sheet Created Date Sheet Modified Date
Document number
Schematic Title
Design Created Date:
BOM Doc No:
Page Title
A2
Wednesday, November 18, 2009 4 7
A3
EFM32 G890 MCU Board
<Cage Code>
Tuesday, July 14, 2009
Wednesday, December 03, 2008
TOP
/
LCD panel
R25
0R
NM
R25
0R
NM
R26
0R
NM
R26
0R
NM
R27
0R
R27
0R
LCD1
EM LCD
LCD1
EM LCD
A0_EM2_EM3_EM4
1
A1_EM0_EM1_ANT
2
A2_7C_7M_7B
3
A3_7E_7G_7F
4
A4_6C_6M_6B
5
A5_6E_6G_6F
6
A6_5C_5M_5B
7
A7_5E_5G_5F
8
EFM_PAD0_PAD1_GEK
9
MINUS_1E_1G_1F
10
1D_1Q_1H_1A
11
1N_1P_1J_1K
12
BAT_1C_1M_1B
13
B2_2E_2G_2F
14
2D_2Q_2H_2A
15
2N_2P_2J_2K
16
COL3_2C_2M_2B
17
B0_3E_3G_3F
18
3D_3Q_3H_3A
19
3N_3P_3J_3K
20
B1_3C_3M_3B
21
DP6_4E_4G_4F
22
4D_4Q_4H_4A
23
4N_4P_4J_4K
24 COL5_4C_4M_4B 25
5D_5Q_5H_5A 26
5N_5P_5J_5K 27
6D_6Q_6H_6A 28
6N_6P_6J_6K 29
7D_7Q_7H_7A 30
7N_7P_7J_7K 31
11D_11C_11B_11A 32
AM_11E_11G_11F 33
10D_10C_10B_10A 34
C_F_UA_MA 35
PM_10E_10G_10F 36
DP2_DP3_DP4_DP5 37
NC 38
NC 39
9D_9C_9B_9A 40
DP10_9E_9G_9F 41
NC 42
8D_8C_8B_8A 43
COL10_8E_8G_8F 44
COM0 45
COM1 46
COM2 47
COM3 48
R22
0R
R22
0R
R21
0R
R21
0R
R20
0R NM
R20
0R NM
R23
0R NM
R23
0R NM
R24
0R
R24
0R

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
EFM32_A58
EFM32_A59
EFM32_A62
EFM32_A63
EFM32_A60
EFM32_A61
EFM32_A66
EFM32_A67
EFM32_A64
EFM32_A65
EFM32_A70
EFM32_A71
EFM32_A68
EFM32_A69
EFM32_A56
EFM32_A57
EFM32_A34
EFM32_A35
EFM32_A32
EFM32_A33
EFM32_A38
EFM32_A39
EFM32_A36
EFM32_A37
EFM32_A74
EFM32_A75
EFM32_A72
EFM32_A73
EFM32_A78
EFM32_A79
EFM32_A76
EFM32_A77
EFM32_A81
EFM32_A2
EFM32_A3
EFM32_A6
EFM32_A7
EFM32_A4
EFM32_A5
EFM32_A10
EFM32_A11
EFM32_A8
EFM32_A9
EFM32_A14
EFM32_A15
EFM32_A12
EFM32_A13
EFM32_A0
EFM32_A1
EFM32_A82
EFM32_A18
EFM32_A19
EFM32_A22
EFM32_A23
EFM32_A20
EFM32_A21
EFM32_A26
EFM32_A27
EFM32_A24
EFM32_A25
EFM32_A30
EFM32_A31
EFM32_A28
EFM32_A29
EFM32_A16
EFM32_A17
EFM32_A42
EFM32_A43
EFM32_A46
EFM32_A47
EFM32_A44
EFM32_A45
EFM32_A50
EFM32_A51
EFM32_A48
EFM32_A49
EFM32_A54
EFM32_A55
EFM32_A52
EFM32_A53
EFM32_A40
EFM32_A41 EFM32_B2
EFM32_B3
EFM32_B0
EFM32_B1
EFM32_B54
EFM32_B55
EFM32_B52
EFM32_B53
EFM32_B62
EFM32_B63
EFM32_B60
EFM32_B61
EFM32_B6
EFM32_B7
EFM32_B4
EFM32_B5
EFM32_B22
EFM32_B23
EFM32_B20
EFM32_B21
EFM32_B58
EFM32_B59
EFM32_B56
EFM32_B57
EFM32_B81
EFM32_B80
EFM32_B8
EFM32_B9
EFM32_B26
EFM32_B27
EFM32_B24
EFM32_B25
EFM32_B30
EFM32_B31
EFM32_B28
EFM32_B29
EFM32_B18
EFM32_B19
EFM32_B16
EFM32_B17
EFM32_B34
EFM32_B35
EFM32_B32
EFM32_B33
EFM32_B38
EFM32_B39
EFM32_B36
EFM32_B37 EFM32_B78
EFM32_B79
EFM32_B42
EFM32_B40
EFM32_B41
EFM32_B72
EFM32_B73
EFM32_B46
EFM32_B47
EFM32_B44
EFM32_B45
EFM32_B71
EFM32_B68
EFM32_B69
EFM32_B50
EFM32_B51
EFM32_B48
EFM32_B49
EFM32_B66
EFM32_B67
EFM32_B64
EFM32_B65
I2C_SDA
I2C_SCL
EFM32_A83 EFM32_A82 I2C_SDA EFM32_A83 I2C_SCLEFM32_A81EEPROM_WP
EEPROM_WP
EFM32_B77
EFM32_B75
EFM32_B70
EFM32_B43
GND GND
VMCU_IN1
5V
VMCU_IN1
GNDGND
VMCU_IN2
5V
VMCU_IN2
GNDGND
GND GND
GND GND GND
GND
GND
GND
GND
3V3VMCU_IN2
3V33V3 3V33V3
3V3VMCU_IN1
3V35V VMCU
3V3 3V3
3V3
VMCU
EFM32_A[83..0](p 2,6,7) EFM32_B[83..0](p 2,3,6,7)
Size
Designed:
Revision
Sheet
of
Approved:
Sheet Created Date Sheet Modified Date
Document number
Schematic Title
Design Created Date:
BOM Doc No:
Page Title
A2
Wednesday, November 18, 2009 5 7
A3 <Cage Code>
Monday, March 16, 2009
Wednesday, December 03, 2008
TOP
/
EFM32 Connectors
EFM32 G890 MCU Board
Size
Designed:
Revision
Sheet
of
Approved:
Sheet Created Date Sheet Modified Date
Document number
Schematic Title
Design Created Date:
BOM Doc No:
Page Title
A2
Wednesday, November 18, 2009 5 7
A3 <Cage Code>
Monday, March 16, 2009
Wednesday, December 03, 2008
TOP
/
EFM32 Connectors
EFM32 G890 MCU Board
Size
Designed:
Revision
Sheet
of
Approved:
Sheet Created Date Sheet Modified Date
Document number
Schematic Title
Design Created Date:
BOM Doc No:
Page Title
A2
Wednesday, November 18, 2009 5 7
A3 <Cage Code>
Monday, March 16, 2009
Wednesday, December 03, 2008
TOP
/
EFM32 Connectors
EFM32 G890 MCU Board
C31
10U
NM
C31
10U
NM
TP2
KOA_0603
TP2
KOA_0603
C32
100N
C32
100N
LED2
GREEN
LED2
GREEN
21
R32
0R
R32
0R
C30
100N
C30
100N
TP6
KOA_1206
TP6
KOA_1206
TP3
KOA_0603
TP3
KOA_0603
C29
100N
C29
100N
C23
100N
C23
100N
C33
100N
C33
100N
R30
10K
R30
10K
U4B
24AA024
U4B
24AA024
VCC 8
VSS
4
Q1
BSS138W
Q1
BSS138W
1
32
C26
100N
C26
100N
P2
BSE_060_01_L_D_A
P2
BSE_060_01_L_D_A
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
51
53
55
57
59
61
63
65
67
69
71
73
75
77
79
81
83
85
87
89
91
93
95
97
99
101
103
105
107
109
111
113
115
117
119
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72
74
76
78
80
82
84
86
88
90
92
94
96
98
100
102
104
106
108
110
112
114
116
118
120
TP4
KOA_1206
TP4
KOA_1206
U4A
24AA024
U4A
24AA024
SDA
5
SCL
6
WP 7
A0
1
A1
2
A2
3
C27
10U
C27
10U
R31
0R
R31
0R
R50
0R
R50
0R
C22
100N
C22
100N
R29
470R
R29
470R
R51
0R
R51
0R
C28
10N
C28
10N
R34
10K
R34
10K
C24
10U
NM
C24
10U
NM
C34
10U
C34
10U
R28
1K1
R28
1K1
P3
BSE_060_01_L_D_A
P3
BSE_060_01_L_D_A
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
51
53
55
57
59
61
63
65
67
69
71
73
75
77
79
81
83
85
87
89
91
93
95
97
99
101
103
105
107
109
111
113
115
117
119
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72
74
76
78
80
82
84
86
88
90
92
94
96
98
100
102
104
106
108
110
112
114
116
118
120
TP5
KOA_1206
TP5
KOA_1206
LED3
GREEN
LED3
GREEN
21
C25
100N
C25
100N

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
PA Connections PB Connections
PC Connections
Capacitors for LCD voltage booster
The 0R is to be able to
insert a serial resistor
LCD_PA1
LCD_PA2
LCD_PA3
EFM32_A3EBI_AD12 EFM32_A2EBI_AD11 EFM32_A1EBI_AD10 EFM32_A0EBI_AD9
LCD_PA6
EBI_AD13 EFM32_A4
LCD_PA7
EFM32_A7
EBI_AD15 EFM32_A6
LCD_PA5
EBI_AD14 EFM32_A5
LCD_PA10
EFM32_A8
LCD_PA11
EFM32_A11
EFM32_A10
LCD_PA9
EFM32_A9
EFM32_A12
EFM32_A0 BC_BUS9 EFM32_B25
EFM32_A1 BC_BUS10 EFM32_B26
EFM32_A2 BC_BUS11 EFM32_B27
EFM32_A3 BC_BUS12 EFM32_B28
EFM32_A4 BC_BUS13 EFM32_B29
EFM32_A5 BC_BUS14 EFM32_B30
EFM32_A6 BC_BUS15 EFM32_B31
LCD_PB2
EFM32_A16
LCD_PB3
LCD_PB6
EFM32_A22
LCD_PB4
EFM32_A21
LCD_PB5
EFM32_A20
EFM32_A19
LCD_PB0
EFM32_A18
LCD_PB1
EFM32_A17
MCU_PB7 EFM32_A23
EFM32_A24MCU_PB8
MCU_PB9 EFM32_A25
MCU_PB10 EFM32_A26
EFM32_A27
EFM32_A28 EFM32_A27 AUDIO_OUT_RIGHT EFM32_B48 EFM32_A28 AUDIO_OUT_LEFT EFM32_B49
MCU_PB14
EFM32_A29
EFM32_A30
MCU_PB15 EFM32_A31
MCU_PB13
MCU_PC1 EFM32_A33USART1_RX#0
MCU_PC2 EFM32_A34USART2_TX#0
MCU_PC3 EFM32_A35USART2_RX#0
MCU_PC0 EFM32_A32USART1_TX#0
MCU_PC5 EFM32_A37USART2_CS#0
MCU_PC6 EFM32_A38LEUART1_TX#0
MCU_PC7 EFM32_A39LEUART1_RX#0
MCU_PC4 EFM32_A36USART2_CLK#0
MCU_PC9 EFM32_A41USART0_CLK#2
MCU_PC10 EFM32_A42USART0_RX#2
MCU_PC11 EFM32_A43USART0_TX#2
MCU_PC8 EFM32_A40USART0_CS#2
MCU_PC13 EFM32_A45
MCU_PC14 EFM32_A46
MCU_PC15 EFM32_A47
MCU_PC12 EFM32_A44
EFM32_A32 RS232_A_TX EFM32_B55
EFM32_A33 RS232_A_RX EFM32_B52
EFM32_A34 BC_BUS26 EFM32_B42
EFM32_A35 BC_BUS27 EFM32_B43
EFM32_A36 BC_BUS24 EFM32_B40
EFM32_A37 BC_BUS25 EFM32_B41
EFM32_A38 RS232_B_TX EFM32_B62
EFM32_A39 RS232_B_RX EFM32_B63
EFM32_A40 SPI_BUS_#CS EFM32_B65
EFM32_A41 SPI_BUS_SCLK EFM32_B64
EFM32_A42 SPI_BUS_MISO EFM32_B67
EFM32_A43 SPI_BUS_MOSI EFM32_B66
EFM32_A44
EFM32_A45
EFM32_A47 DBG_TDO_SWO EFM32_B79
EFM32_A25 RS232_A_#CTS EFM32_B53
EFM32_A26 EFM32_B54RS232_A_#RTS
EFM32_A46 FPGA_#INT EFM32_B81
EFM32_B72BC_BUS_CONNECT_EBI
EFM32_B73BC_BUS_CONNECT_SPI
MCU_PB11 DAC0_OUT0
MCU_PB12 DAC0_OUT1
LCD_PA4
LCD_PA0
LCD_PA8
EFM32_A15 EFM32_B24BC_BUS8
LCD_PA12
LCD_PA13
LCD_PA14
LCD_PA15
EBI_AD8 EFM32_A15
EFM32_A14
EFM32_A13
LCD_PA13 BCAP_N
LCD_PA14 LCD_BEXT
LCD_PA12 BCAP_P
MCU_PA3
MCU_PA2
MCU_PA1
MCU_PA0
MCU_PA7
MCU_PA6
MCU_PA5
MCU_PA4
MCU_PA11
MCU_PA10
MCU_PA9
MCU_PA8
MCU_PA15
MCU_PA14
MCU_PA13
MCU_PA12
MCU_PB3
MCU_PB2
MCU_PB1
MCU_PB0
MCU_PB6
MCU_PB5
MCU_PB4
GND
3V3
GND
LCD_PA[15..0] (p 4)
LCD_PA[15..0] (p 4)
LCD_PA[15..0] (p 4)
LCD_PA[15..0] (p 4)
EFM32_A[83..0] (p 2,5,7)
EFM32_B[83..0] (p 2,3,5,7)
LCD_PB[6..0] (p 4)
LCD_PB[6..0] (p 4)
LFXTAL_P (p 3)
HFXTAL_P (p 3)
EFM32_A[83..0] (p 2,5,7)
EFM32_B[83..0] (p 2,3,5,7)
EFM32_A[83..0] (p 2,5,7) EFM32_B[83..0](p 2,3,5,7)
MCU_PA[15..0]
(p 2)
LFXTAL_N (p 3)
HFXTAL_N (p 3)
MCU_PC[15..0]
(p 2,5)
MCU_PB[15..0](p 2,5)
LCD_PA[15..0](p 4)
Size
Designed:
Revision
Sheet
of
Approved:
Sheet Created Date Sheet Modified Date
Document number
Schematic Title
Design Created Date:
BOM Doc No:
Page Title
A2
Wednesday, November 18, 2009 6 7
A3
EFM32 G890 MCU Board
<Cage Code>
Monday, August 03, 2009
Wednesday, December 03, 2008
TOP
/
Signal Assignments #1
Size
Designed:
Revision
Sheet
of
Approved:
Sheet Created Date Sheet Modified Date
Document number
Schematic Title
Design Created Date:
BOM Doc No:
Page Title
A2
Wednesday, November 18, 2009 6 7
A3
EFM32 G890 MCU Board
<Cage Code>
Monday, August 03, 2009
Wednesday, December 03, 2008
TOP
/
Signal Assignments #1
Size
Designed:
Revision
Sheet
of
Approved:
Sheet Created Date Sheet Modified Date
Document number
Schematic Title
Design Created Date:
BOM Doc No:
Page Title
A2
Wednesday, November 18, 2009 6 7
A3
EFM32 G890 MCU Board
<Cage Code>
Monday, August 03, 2009
Wednesday, December 03, 2008
TOP
/
Signal Assignments #1
RP11
0R
RP11
0R
1
2
3
4 5
6
7
8
R48
10M
R48
10M
R41
0R NM
R41
0R NM
R47
10M
R47
10M
RP1
0R
RP1
0R
1
2
3
4 5
6
7
8
Q2
BSS138W
Q2
BSS138W
1
32
R40
0R
R40
0R
RP4
0R NM
RP4
0R NM
1
2
3
4 5
6
7
8
R35
0R NM
R35
0R NM
RP9
0R
RP9
0R
1
2
3
4 5
6
7
8
RP2
0R
RP2
0R
1
2
3
4 5
6
7
8
R46
10K
R46
10K
RP12
0R NM
RP12
0R NM
1
2
3
4 5
6
7
8
R39
0R NM
R39
0R NM
TP10TP10
RP6
0R
RP6
0R
1
2
3
4 5
6
7
8
TP9TP9
R43
4K7
R43
4K7
R49
0R
R49
0R
C35
1U
C35
1U
R44
4K7
R44
4K7
R38
0R
R38
0R
RP7
0R NM
RP7
0R NM
1
2
3
4 5
6
7
8
RP3
0R NM
RP3
0R NM
1
2
3
4 5
6
7
8
RP10
0R NM
RP10
0R NM
1
2
3
4 5
6
7
8
Q3
BSS138W
Q3
BSS138W
1
32
RP5
0R
RP5
0R
1
2
3
4 5
6
7
8
R36
0R
R36
0R
R45
10K
R45
10K
RP8
0R NM
RP8
0R NM
1
2
3
4 5
6
7
8
R37
0R NM
R37
0R NM
C21
22N
C21
22N
R42
0R
R42
0R

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
PD Connections PE Connections
PF Connections Reset connections
EFM32_A62 I2C_BUS_SDA EFM32_B68
EFM32_A53
EFM32_A76 BC_BUS4 EFM32_B20
POTMETER EFM32_B70
MCU_PE0 EFM32_A64
EFM32_A58 BC_BUS21 EFM32_B37
MCU_PE2 EFM32_A66
LCD_PE7
EFM32_A68
LCD_PE6
LCD_PE4
USART0_TX#1 EFM32_A71
EFM32_A69
LCD_PE5
USART0_RX#1 EFM32_A70
EFM32_A63 I2C_BUS_SCL EFM32_B69
EFM32_A49 AUDIO_IN_LEFT EFM32_B51
MCU_PD5 EFM32_A53ADC0_CH5
MCU_PD6 EFM32_A54ADC0_CH6
MCU_PD7 EFM32_A55ADC0_CH7
MCU_PD4 EFM32_A52ADC0_CH4
MCU_PD8 EFM32_A56ADC0_VCM
EFM32_A54 ANALOG_DIFF_N EFM32_B46
MCU_PD2 EFM32_A50ADC0_CH2 EFM32_A51
EFM32_A77 BC_BUS5 EFM32_B21
EFM32_A59 BC_BUS22 EFM32_B38
MCU_PE3 EFM32_A67
ACCEL_XOUT EFM32_B56
EFM32_A73 BC_BUS1 EFM32_B17
ANALOG_SE_A EFM32_B44
EFM32_A50
EFM32_A70 IRDA_RXD EFM32_B61
ANALOG_SE_B EFM32_B45
EFM32_A51
EFM32_A55 ANALOG_DIFF_P EFM32_B47
LCD_PE15
EBI_AD4 EFM32_A76
LCD_PE14
LCD_PE12
EBI_AD7 EFM32_A79
EBI_AD5 EFM32_A77
LCD_PE13
EBI_AD6 EFM32_A78
MCU_PD13 EFM32_A61
MCU_PD14 EFM32_A62I2C0_SDA#3
MCU_PD15 EFM32_A63I2C0_SCL#3
LCD_PD11
EFM32_A57EBI_CS0
LCD_PD12
EFM32_A60EBI_CS3
LCD_PD9
EFM32_A59EBI_CS2
LCD_PD10
EFM32_A58EBI_CS1 EFM32_A60 BC_BUS23 EFM32_B39
LCD_PE11
EFM32_A72EBI_AD0
LCD_PE10
EFM32_A78 BC_BUS6 EFM32_B22
LCD_PE8
EFM32_A75EBI_AD3
EFM32_A73EBI_AD1
LCD_PE9
EFM32_A74EBI_AD2
EFM32_A48 AUDIO_IN_RIGHT EFM32_B50
EFM32_A74 BC_BUS2 EFM32_B18
EFM32_B71SENSOR_LIGHT
EFM32_B57ACCEL_YOUT
EFM32_A56 ANALOG_DIFF_VCM EFM32_B59
EFM32_A79 BC_BUS7 EFM32_B23
EFM32_A72 BC_BUS0 EFM32_B16
EFM32_A71 IRDA_TXD EFM32_B60
EFM32_A52 EFM32_B58ACCEL_ZOUT
EFM32_A75 BC_BUS3 EFM32_B19
MCU_PE1 EFM32_A65
EFM32_A57 BC_BUS20 EFM32_B36
EFM32_B3 BC_BUS17 EFM32_B33
LCD_PF9
EFM32_B6
LCD_PF8
LCD_PF6
EFM32_B9
EFM32_B7
LCD_PF7
EFM32_B8
LCD_PF5
EFM32_B2EBI_ARDY
LCD_PF4
LCD_PF2
EFM32_B5EBI_REN
EFM32_B3EBI_ALE
LCD_PF3
EFM32_B4EBI_WEN EFM32_B4 BC_BUS18 EFM32_B34
EFM32_B2 BC_BUS16 EFM32_B32
EFM32_B5 BC_BUS19 EFM32_B35
EFM32_B1 DBG_TMS_SWDIO EFM32_B78MCU_PF1 EFM32_B1DBG_SWDITMS EFM32_B0 DBG_TCK_SWCLK EFM32_B77MCU_PF0 EFM32_B0DBG_SWCLKTCK
EFM32_B80
EFM32_B75
MCU_PD1 ADC0_CH1 EFM32_A49
EFM32_A48MCU_PD0 ADC0_CH0
MCU_PD3 ADC0_CH3
MCU_PD12
MCU_PD11
MCU_PD10
MCU_PD9
MCU_PE7
MCU_PE6
MCU_PE5
MCU_PE4
MCU_PE11
MCU_PE10
MCU_PE9
MCU_PE8
MCU_PE15
MCU_PE14
MCU_PE13
MCU_PE12
MCU_PF5
MCU_PF4
MCU_PF3
MCU_PF2
MCU_PF9
MCU_PF8
MCU_PF7
MCU_PF6
LCD_PE[15..4] (p 4)
LCD_PE[15..4] (p 4)
LCD_PD[12..9] (p 4)
LCD_PE[15..4] (p 4)
EFM32_A[83..0] (p 2,5,6) EFM32_B[83..0] (p 2,3,5,6)
EFM32_B[83..0](p 2,3,5,6)
EFM32_A[83..0] (p 2,5,6)
LCD_PF[9..2] (p 4)
LCD_PF[9..2] (p 4)
EFM32_B[83..0] (p 2,3,5,6)
FPGA_MCU_#RESET (p 3,5)
MCUDBG_#RESET (p 3,5)
MCU_PE[15..0](p 2,5)
MCU_PD[15..0]
(p 2,5)
MCU_PF[9..0](p 2,5)
EFM32_B[83..0](p 2,3,5,6)
Size
Designed:
Revision
Sheet
of
Approved:
Sheet Created Date Sheet Modified Date
Document number
Schematic Title
Design Created Date:
BOM Doc No:
Page Title
A2
Thursday, November 19, 2009 7 7
A3
EFM32 G890 MCU Board
<Cage Code>
Tuesday, August 04, 2009
Wednesday, December 03, 2008
TOP
<Schematic Path>
Signal Assignments #2
Size
Designed:
Revision
Sheet
of
Approved:
Sheet Created Date Sheet Modified Date
Document number
Schematic Title
Design Created Date:
BOM Doc No:
Page Title
A2
Thursday, November 19, 2009 7 7
A3
EFM32 G890 MCU Board
<Cage Code>
Tuesday, August 04, 2009
Wednesday, December 03, 2008
TOP
<Schematic Path>
Signal Assignments #2
Size
Designed:
Revision
Sheet
of
Approved:
Sheet Created Date Sheet Modified Date
Document number
Schematic Title
Design Created Date:
BOM Doc No:
Page Title
A2
Thursday, November 19, 2009 7 7
A3
EFM32 G890 MCU Board
<Cage Code>
Tuesday, August 04, 2009
Wednesday, December 03, 2008
TOP
<Schematic Path>
Signal Assignments #2
TP11TP11
RP24
0R NM
RP24
0R NM
1
2
3
4 5
6
7
8
RP20
0R NM
RP20
0R NM
1
2
3
4 5
6
7
8
RP23
0R
RP23
0R
1
2
3
4 5
6
7
8
RP19
0R
RP19
0R
1
2
3
4 5
6
7
8
TP12TP12
RP18
0R NM
RP18
0R NM
1
2
3
4 5
6
7
8
RP22
0R NM
RP22
0R NM
1
2
3
4 5
6
7
8
RP13
0R
RP13
0R
1
2
3
4 5
6
7
8
RP21
0R
RP21
0R
1
2
3
4 5
6
7
8
RP16
0R
RP16
0R
1
2
3
4 5
6
7
8
RP15
0R
RP15
0R
1
2
3
4 5
6
7
8
RP17
0R NM
RP17
0R NM
1
2
3
4 5
6
7
8
RP14
0R NM
RP14
0R NM
1
2
3
4 5
6
7
8

C10
C16
C17
C18C19
C21
C22
C23
C24
C25
C26
C27
C29
C30 C31
C32
C33
C34
C35
LCD1
LED1
LED2
LED3
R9
R10
R35 R36 R37 R38
R40
R42
R49
SW1
TP1
TP2TP3
TP4
TP5 TP6
TP9 TP10
TP11TP12
U1 X1
X2

C2
C3
C4
C5
C6
C7
C9
C11
C12
C13
C14
C15
C20
C28
C36
C37
D1
L1
P1
P2
P3
Q1
Q2Q3
Q4
RP1
RP2
RP3
RP4
RP5
RP6
RP7
RP8 RP9
RP10 RP11 RP12 RP13
RP14
RP15
RP16
RP17
RP18
RP19 RP20
RP21
RP22
RP23
RP24
R1
R2
R3 R5
R6
R7
R8
R11
R12
R13
R14
R16
R17
R18 R19
R20R21R22R23
R24R25R26R27
R28
R29
R30
R31 R32
R34
R39
R41
R43R44
R45 R46 R47 R48
R50
R51
U2
U3
U4
