ENERVEX GSV 200 Installation instructions

3001391 12.16 Installation & Operating Manual
ENERVEX
GSV 200-450 GREASE FAN
ENERVEX Inc.
1685 Bluegrass Lakes
Parkway
Alpharetta, GA 30004
USA
P: 770.587.3238
F: 770.587.4731
T: 800.255.2923
[email protected]
www.enervex.com
READ AND SAVE THESE INSTRUCTIONS!

2
3001391 12.16
Symbol Legend
The following terms are used throughout this manual to bring
attention to the presence of potential hazards, or to important
information concerning the product.
DANGER: Indicates an imminent
hazardous situation which, if not
avoided, will result in death, serious
injury or substantial property damage.
WARNING: Indicates an imminent
hazardous situation which, if not
avoided, may result in personal injury
or property damage.
How to use this manual
This installation manual does not contain any system design
documentation. System design documentation is available
from any authorized ENERVEX representative. Accessories,
fans, and variable frequency drives are not covered by this
manual. Please refer to these component’s individual manuals.
TO REDUCE THE RISK OF FIRE,
ELECTRICAL SHOCK OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit in the manner intended by the manufacturer.
If you have questions, contact the manufacturer at the
address or telephone number listed on the front of the
manual.
2. Before servicing or cleaning the unit, switch off at service
panel and lock service panel to prevent power from being
switched on accidentally.
3. Installation work and electrical wiring must be done by a
qualified person(s) in accordance with applicable codes
and standards.
4. Follow the appliance manufacturer’s guidelines and safety
standards such as those published by the National Fire
Protection Association (NFPA), and the American Society
for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
5. This unit must be grounded.
TO REDUCE THE RISK OF INJURY TO
PERSONS IN THE EVENT OF A CHIMNEY
FIRE, OBSERVE THE FOLLOWING:
1. Immediately close all dampers and/or air entrance
openings to the cooking appliance. This includes doors.
2. Alert your patrons to the possible danger.
3. Inspect your cooking appliance and chimney surroundings
for possible fire. If in doubt, alert your fire department.
4. Do not continue to use your appliance until it and your
chimney have been throroughly inspected. Overheating
can cause metal parts to expand, buckle and crack. If
you are not certain, have a certified chimney sweep disas-
semble all parts so they can be inspected and cleaned.
5. Do not use salt or water on the fire in the cooking appli-
ance. Salt is corrosive and water will cause a dangerous
steam explosion. You might be able to control the fire by
using ashes, sand or baking soda, since baking soda is an
ingredient used for dry chemical fire extinguishers.
6. After a chimney fire, when it is safe to do so, check inter-
nal locations such as an attic and under the roof and keep
watching for two or three hours. There may be delayed
smoldering and subsequent ignition, even if the fire inside
the chimney has been controlled.
TO REDUCE THE RISK OF A CHIMNEY FIRE:
1. Keep chimney and grease fan clean.
2. Always turn ON fan when using the cooking appliance.
3. Do not leave cooking appliance unattended when in use.
CAUTION
Please read specification label on product for further
information and requirements.
!
The GSV 200-450 Grease Fan is ETL Listed in the U.S. and Canada.

3
3001391 12.16
Content
1. PRODUCT INFORMATION
1.1 Function............................................................4
1.2 Components.....................................................4
1.3 Shipping ...........................................................5
1.4 Warranty ...........................................................5
2. SPECIFICATIONS AND DIMENSIONS
2.1 Dimensions and Capacities...............................6
3. MECHANICAL INSTALLATION
3.1 Positioning........................................................7
3.2 Installation on Steel Duct...................................7
3.3 Installation on Roof Curb...................................7
3.4 Installation on Venting System...........................8
3.5 Installation on Side Wall ....................................8
3.6 High Temperature Applications..........................8
4. ELECTRICAL INSTALLATION
4.1 Electrical Requirements.....................................9
4.2 Wiring Diagram for GSV 250-315......................9
4.3 Wiring Diagram for GSV 400-450......................10
4.4 Dual Voltage Wiring...........................................11
5. STARTUP AND CONFIGURATION
5.1 Start-up ............................................................12
5.2 Adjusting the Fan Speed...................................12
6. MAINTENANCE AND TROUBLESHOOTING
6.1 Maintenance Intervals .......................................13
6.2 Cleaning ...........................................................13
6.3 Spare Parts Ordering ........................................14

4
3001391 12.16
1. PRODUCT INFORMATION
1.1 FUNCTION
ENERVEX Model GSV Grease Fan is designed to provide
a large exhaust volume at a high discharge velocity. It is
intended for use as a part of a restaurant kitchen exhaust
system and grease applications according to NFPA 96.The
use of the ENERVEX Grease Fan is not restricted to any
type of chimney or grease duct. However, always follow
the exhaust-hood manufacturer’s instructions regarding the
venting.
The fan housing is made of heavy cast aluminum and
can be opened for easy cleaning. The impeller is of the
backward inclined type. It is made of cast aluminum and has
permanently attached balancing weights.
The motor is a direct-drive, variable speed, class H insulated,
high temperature motor. It has permanently lubricated and
sealed ball bearings and is maintenance free.
Installations must conform to the requirements of the
authority having jurisdiction. Where required by the authority
having jurisdiction, the installation must also conform to the
NFPA 96. All electrical wiring must be in accordance with the
requirements of authority having jurisdiction or, in absence of
such requirements, with the National Electrical Code, NFPA
70.
ENERVEX Model GSV is tested and listed to UL Standard
705 for Power Ventilators and UL Standard 762 for Power
Ventilators for Restaurant Exhaust Ventilators.
The model is also tested and listed to ULC-S645-93,
Standard for Power Roof Ventilators for Commercial and
Institutional Kitchen Exhaust Systems.
1.2 COMPONENTS

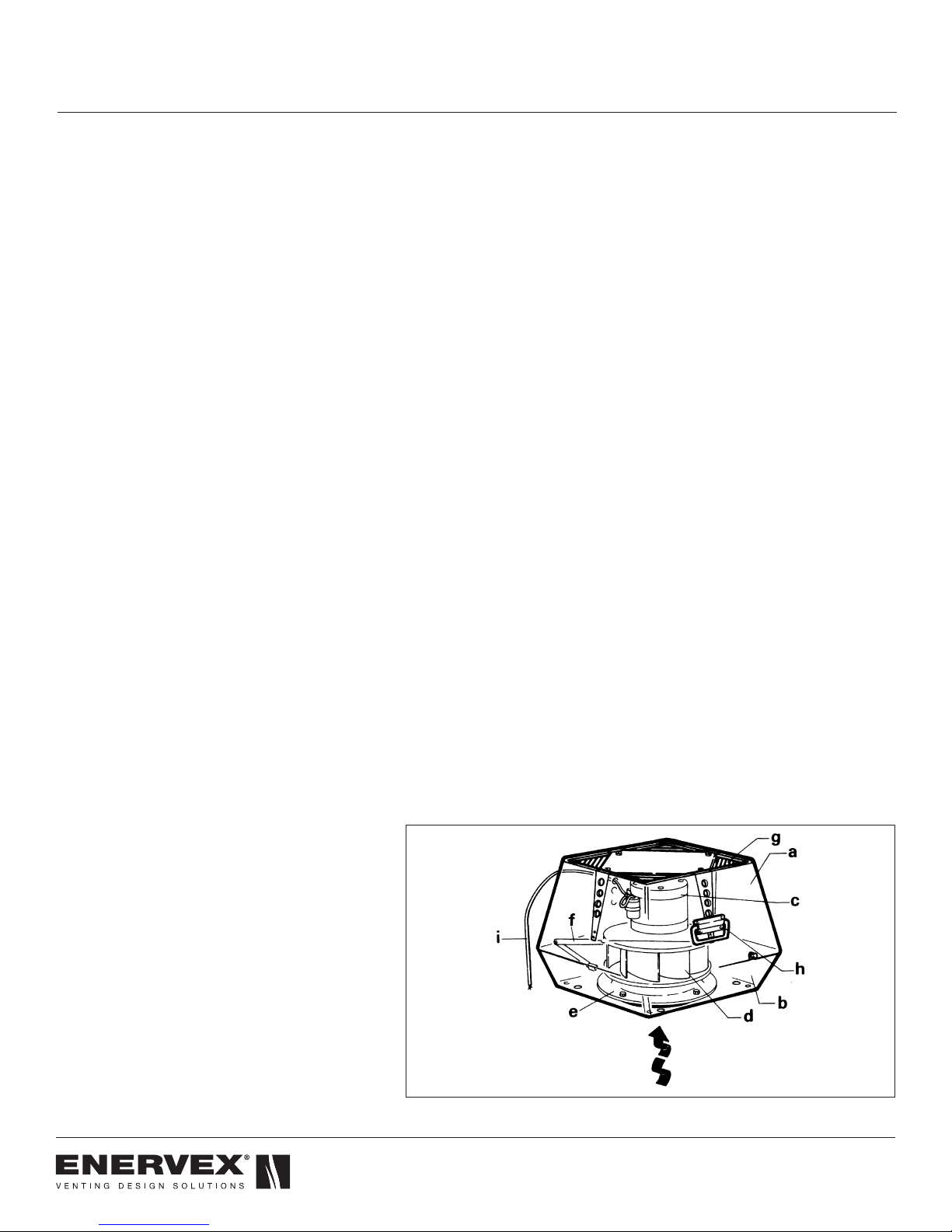

The GSV Grease Fan consists of the following components
a. Top section
b. Bottom section
c. Motor
d. Centrifugal Impeller
e. Inlet for impeller
f. Locking hinge
g. Bird screen
h. Carrying handle
h. Wiring conduit
Fig 1
Max. 575°F (300°C)

5
3001391 12.16
1.3 SHIPPING
The fan is shipped in a corrugated cardboard box. If a
transport securing device is attached (GSV 400 and GSV 450
only) to the bottom of the fan to hold the motor and impeller
in place, do not remove it when unpacking the fan.
1.4 WARRANTY
2-Year Factory Warranty. Complete warranty conditions are
available from ENERVEX, Inc.
Do not remove the transport securing device
until the fan is being installed on the duct or the
roof curb. The motor shaft could be damaged.
!
NOTE: All single phase fans are shipped with a capacitor and
junction box connected via conduit. The capacitor is located
INSIDE the junction box. Please do not discard.

6
3001391 12.16
2. SPECIFICATIONS AND DIMENSIONS
2.1 DIMENSIONS AND CAPACITIES
Specifications
Capacity Plume Height
Sound Diagram
Model Lw dB (measured in accordance with ISO 3744) Lp dB(A)
125Hz 250Hz 500Hz 1000Hz 2000Hz 4000Hz 8000Hz
GSV 200 58 60 62 61 56 44 37 36
GSV 250 64 68 66 65 61 49 45 41
GSV 315 71 75 70 73 68 57 52 48
GSV 400 76 80 75 79 74 62 57 53
GSV 450 79 83 75 78 77 65 60 56
Model GSV 200 GSV 250 GSV 315 GSV 400 GSV 450
Discharge Vertical
Fan Type Centrigual Impeller
Max. Discharge
Velocity FPM 1,729 2,222 2,771 2,752 4,134
Actual Discharge
Velocity FPM 2.9xCFM 1.9xCFM 1.2xCFM 1.03xCFM 1.03xCFM
Voltage V AC 1x120 3x208-240/3x380-420
RPM 1600 1720 1720
Amps A 1.4 2.9 5.8 3.5 / 1.8 6.5 / 3.8
Power Ratings kW / HP 0.10 / 0.15 0.16 / 0.2 0.35 / 0.5 0.75 / 1 1.5 / 2
Weight lbs / kg 47 / 18 60 / 26 92 / 42 127 / 58 155 / 70
Dimensions
A in / mm 11.03 / 280 13.20 / 335 16.94 / 430 16.94 / 430 23.23 / 590
B x B in / mm 15.37 / 390 19.11 / 485 25.61 / 650 25.61 / 650 25.61 / 650
C x C in / mm 12.22 / 310 15.17 / 385 18.32 / 465 20.69 / 525 20.69 / 525
D Ø in / mm 7.88 / 200 9.85 / 250 15.76 / 400 15.76 / 400 15.76 / 400
E in / mm 3.15 / 80 3.94 / 100 5.12 / 130 5.12 / 130 8.54 / 217
Soft Start Required No No No Yes 1) Yes 1)
Variable Speed Motor Yes Yes Yes Yes Yes
FA Sones 3.9 6.3 7.8 8.3
Temperature Rating Interm. 575°F/300°C
Cont. 482°F/250°C
aTop Section
bBottom Section
cMotor
dCentrifugal Impeller
eInlet for Impeller
fLocking Hinge
gBird Screen
hCarrying Handle
iWiring Conduit
GSV200
GSV200

7
3001391 12.16
3. MECHANICAL INSTALLATION
3.1 POSITIONING
In accordance with NFPA 96, roof mounted fans shall have
their discharge outlet at least 40 inches above the roof
surface.
3.2 INSTALLATION ON STEEL DUCT
• Insert the adapter (FR) into the grease duct, where the
long collar engagement ensures safe anchoring (See
Fig. 2). If necessary, the adapter can be secured by means
of long self-tapping stainless steel screws into the side
of the collar through the chimney wall. Do not obstruct the
grease flow.
• Place the neoprene gasket (sold separately) on top of the
adapter.
Remove the transport securing device (if present) holding
the motor shaft and impeller in place.
• Place the fan on the adapter with the fan inlet centered
over the chimney outlet.
• Open the fan and secure the fan onto the adapter, through
the pre-drilled holes in the bottom, with
lag bolts or self-tapping sheet metal screws, one at each
corner.
• Check the gasket to insure that it forms a complete seal.
Fig 2
Fig 3
FR
CAUTION
Never place hands or fingers on top of fan base
when closing.
!
CAUTION
Never place hands or fingers on top of fan base
when closing.
!
3.3 INSTALLATION ON ROOF CURB
• If the fan is supplied with a curb cap, secure the cap to the
roof curb with self-tapping sheet metal screws (see Fig. 3).
• Place the neoprene gasket on the top of the curb cap
with the hole centered over the curb cap opening (sold
separately).
• Remove the transport securing device (if present) holding
the motor shaft and impeller in place.
• Place the fan on the neoprene gasket centered over the
cutout.
• Open the fan and secure the fan onto the roof curb,
through the pre-drilled holes in the bottom, with lag bolts
or self-tapping sheet metal screws, one at each corner.
• Check the gasket to insure that it forms a complete seal.

8
3001391 12.16

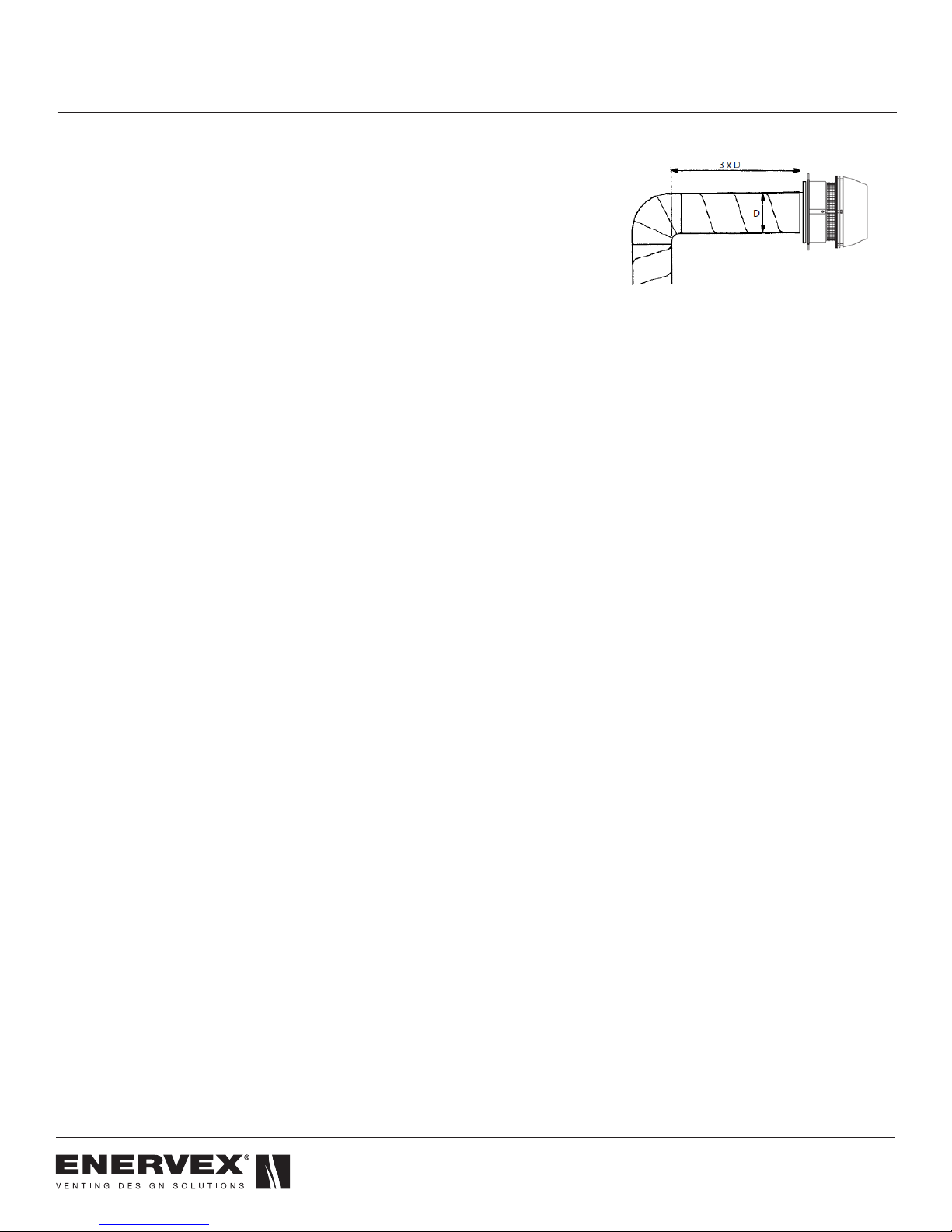

3.4 TERMINATION OF VENTING SYSTEM
In order to achieve optimal performance and energy
consumption for the RS Fan or GSV Fan, the duct must be
installed as shown below and the distances observed. From
the last elbow to the termination point the distance has to
be 3 times the diameter of the flue. For example if you using
12in flue (12 X 3 = 36in). So the distance from the last elbow
to the fan termination point should be 36 inches.
3.5 INSTALLATION ON SIDE WALL
• Make sure the vent terminates flush with the wall. Insert
the steel chimney adapter and secure it safely to the wall.
Seal around the edges of the adapter flange.
• Mark the locations of the wall anchors and predrill holes
for them.
• Turn the fan upside-down and lay a bead of hi-temp
silicone on the base close to the outer edge (not shown).
• Open the fan and secure the fan onto the adapter with
wall anchors, through the pre drilled holes in the bottom.
Make sure the conduit is located on one of the sides.
Never on the upside or downside.
• Seal around the fan base to make sure it is watertight and
no water can slip in between the fan and the adapter. Do
not block the 4 drain holes.
3.6 HIGH TEMPERATURE APPLICATIONS
• If the fan is used for applications that exceed its
temperature rating, dilution bolts must be used.
• Install the dilution bolts in the outer holes of the fan base.
• Adjust the height of the dilution gap by adjusting the
dilution bolts, so the temperature of the exhaust going
through the fan does not exceed the fan’s temperature
rating.
• Be aware the dilution bolts will have a negative impact on
the fan’s actual capacity and a stronger fan model may
be required. For more information, please refer to the
installation manual accompanying the dilution bolts.

9
3001391 12.16
Fig 5Fig 4
Fig 6
4. ELECTRICAL INSTALLATION
4.1 ELECTRICAL REQUIREMENTS
Power requirements depend on the fan size. They can be
found on page 6.
4.2 WIRING DIAGRAM FOR GSV 250-315
The connection diagram below shows how the fan is
connected to the fan speed control and the power source
(see Fig. 6).
Use 2-conductor wire of minimum 14 AWG with ground.
Wiring must be run outside the duct, but can be run between
the duct and the roof curb.
Fig. 5 shows the wiring of the capacitor in the junction box.
DANGER
Turn off electrical power before servicing.
Contact with live electric components
can cause shock or death.
NOTICE
If any of the original wire supplied with the
system must be replaced, use similar wire
of the same temperature rating. Otherwise,
insulation may melt or degrade, exposing
bare wire.
!
Variable Speed
Fan Motor
1 x 120 VAC, 60 Hz
Red
Black
White
LEGEND:
Factory Wired
Field Wiring (14AWG)
Connection (wire nut)
Neutral Hot
Capacitor
Fan Motor
2-pole double-
throw switch
Fan speed
control
Fan *)
Junction box *)
F
an speed control *)
Repair switch
*) supplied by EXHAUSTO
To fan
To power
Black
Black
White
White
Red
Green

10
3001391 12.16

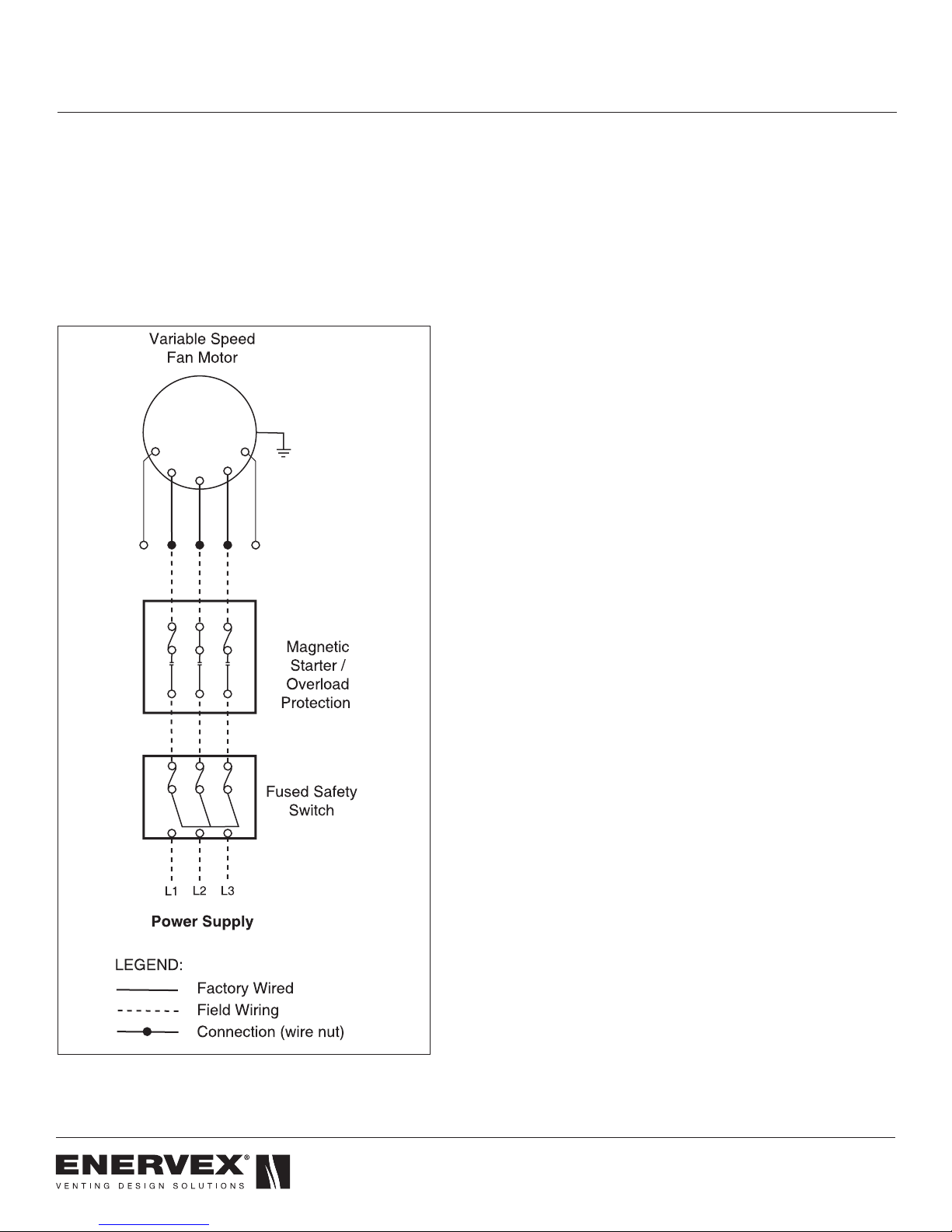

4.3 WIRING DIAGRAM FOR GSV 400-450
The connection diagram below shows how the fan is
connected to the power source (see Fig. 7).
Use a 3-conductor wire of min. 14 AWG with ground. Wiring
must be run outside the duct, but can run between the duct
and the roof curb.
If variable speed is required, a variable frequency drive (VFD)
can be used. This will eliminate the need for a magnetic
starter as shown. For installation and wiring, please refer to
the instructions shipped with the VFD.
Termination of 4 & 5
wires not required
4 1
2
3
5
Fig 7

11
3001391 12.16
4.4 DUAL VOLTAGE WIRING
GSV 400-450 can operate at either 3x208-230 VAC (default)
or 3x440-480 VAC.
The motor wiring terminals in Fig. 8 show default jumper
positions for 3x208-230 VAC operation.
Fig 8
Fig 9
If the application requires 3x440-480 VAC operation, the
jumper positions must be changed according to Fig. 9.
After wiring, make sure the motor is rotating in the proper
direction. This is marked on the motor end cover. If the
rotation is incorrect, swap the two wires going to the motor
terminals, U1 and W1.

12
3001391 12.16
5. STARTUP AND CONFIGURATION
5.1 START UP
• Check the voltage with the motor nameplate rating.
• Check that the transport securing device holding the
motor shaft and impeller in place has been removed.
• Determine if the impeller is free and has not been subject
to misalignment in shipping or installation.
Apply power and check that the impeller is rotating in the
direction of the arrow on the side of the top motor cover.
All ENERVEX fans run in a clockwise direction when viewed
from the top. Double check if three phase motor is tested on
temporary wiring. Switching any two leads will reverse the
rotation.
5.2 ADJUSTING THE FAN SPEED
Start all heating applicances connected to the chimney with
the fan installed. Set the fan speed control to the speed
where no spillage is experienced anywhere in the system.

13
3001391 12.16
6. MAINTENANCE AND TROUBLESHOOTING
6.1 MAINTENANCE INTERVALS
The ENERVEX Grease Fan is designed for prolonged use.
For dirty or grease-laden exhaust, inspect the impeller after
(3) months and set up a periodic inspection based on these
findings. Clean as required.
The fan motors are equipped with permanently lubricated
sealed ball bearings. They require no lubrication.
6.2 CLEANING
WARNING
Do not open the motor housing unless power
to the grease fan has been disconnected.
CAUTION
Never place hands or fingers on top of fan
base when closing.
!
!

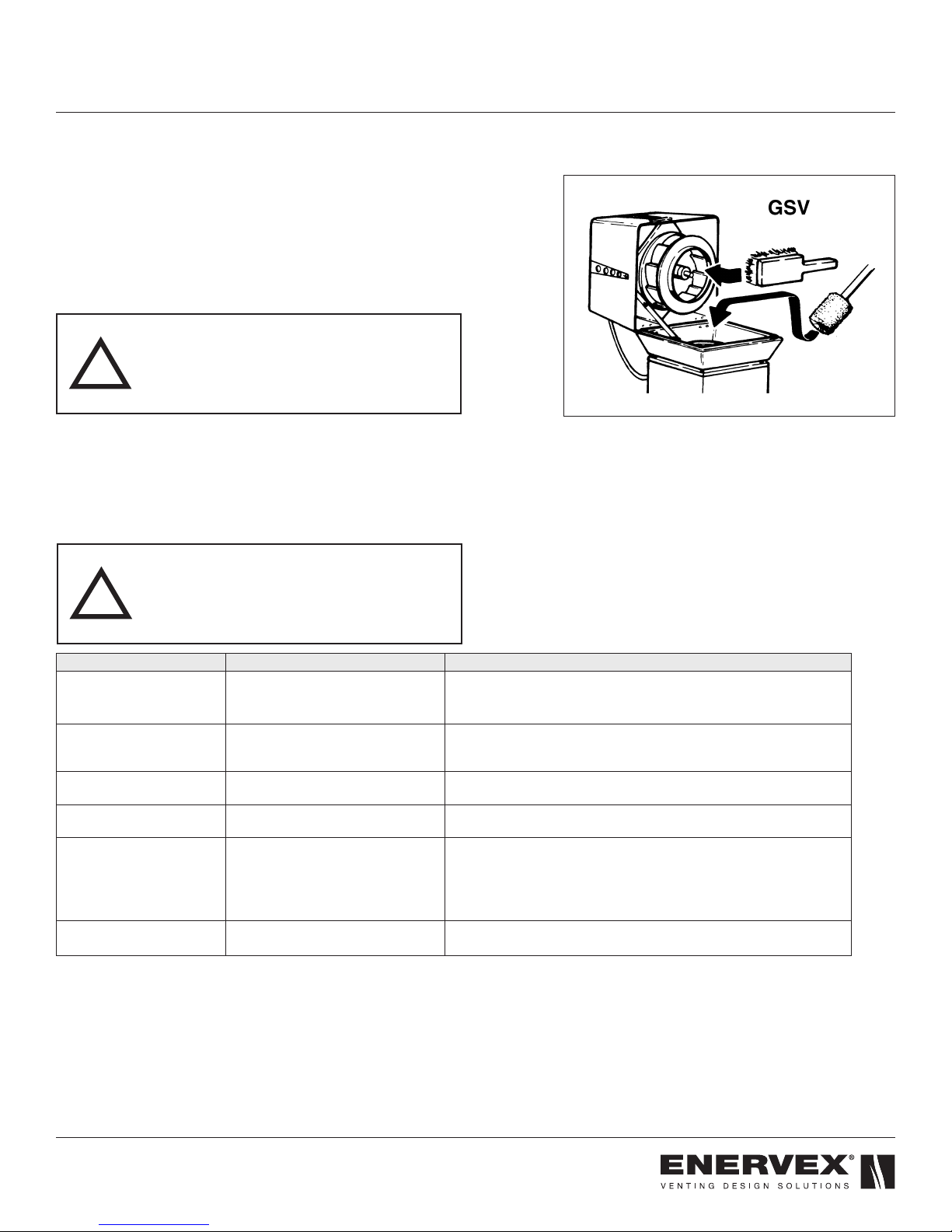

• Loosen the two Phillips screws in the front of the unit.
• Tilt the top of the fan by lifting on the handle. Make sure
the locking arm holds the top of the fan before letting go.
• If necessary, use grease remover and a high-pressure
cleaner to clean the impeller and the inside fan base.
• A scraper may also be used.
Problem Possible Cause What to do
The fan is not operating. No power to the fan.
Check the power supply wires in the junction box by the fan.
Check the circuit breaker.
Check that the fan is actually turned ON.
The fan is not running at full
speed and/or is humming.
The capacitor is improperly connected
or not connected at all (single-phase
fans only).
Check the connections inside the junction box. The capacitor must be
installed according to wiring diagram.
The fan is rotating backwards
(RSV 400/450 only.)
Phase sequence in the power to fan is
reversed. Swap two phases in the junction box.
The fan is vibrating vigorously. The motor shaft is damaged. Turn the power OFF immediately. Open the fan and check if the shaft is
straight. If not, contact ENERVEX.
The fan is noisy.
A transportation device has not been
removed.
Foreign matter is stuck in the fan.
A ball bearing is damaged.
Turn off power and remove the transportation device.
Turn off the power and remove the foreign article.
Turn off the power. Wait for the motor to stop revolving. Spin the wheel
and listen for any grinding noise from the motor. If necessary, replace
bearing.
The fan stops in the middle of
a firing cycle. The motor is overheating. Check the flue gas temperature below the fan. The temperature should
not exceed 400°F during continuous operation. Call ENERVEX.

14
3001391 12.16
6.3 SPARE PARTS ORDERING
When ordering spare parts, please have the model number and
part position number available.
White
Red
01 Motor
02 Motor mounting plate
03 Screw - SS (2)
04 Washer - SS (2)
05 Housing (top)
06 Housing (base)
07 Impeller seat
08 Bird screen
09 Top plate
10 Aluminum Impeller
12 Locking hinge
13 Cooling vane
14 Screw - SS (4)
17 Screw - SS (4)
21 Motor housing insulation
22 Screw - SS (2)
23 Washer - SS (2)
24 Screw - SS
29 Screw - SS (4)
31 Rivet (2)
41 Neoprene Gasket
42 Rivet (12)
60 3/8” Conduit
61 3/8” Connector
62 Junction box with blank cover
63 Wire nuts (4)
64 Capacitor (1x120V fans only)
65 Wiring diagram (mounted on inside cover)

15
3001391 12.16

ENERVEX Inc.
1685 Bluegrass Lakes
Parkway
Alpharetta, GA 30004
USA
P: 770.587.3238
F: 770.587.4731
T: 800.255.2923
[email protected]
www.enervex.com
3901391 06.16
