Enfora 600/650 User manual

Users’ Guide:
WLN1500UG001
Enfora® Wi-Fi® Adapter for
Treo 600/650 Smartphone
Users’ Guide
Revision 1.00

WLN1501/WLN1502 Wi-Fi Adapter Page 2
Copyright, 2005 Enfora Inc.
Copyright Statement
Copyright 2005 by Enfora Inc. All rights reserved. No portion of this document may be copied,
photocopied, reproduced, transmitted, transcribed, stored in a retrieval system or translated into
any language or computer language, in any form or by any means, electronic, mechanical,
magnetic, optical, chemical, manual or otherwise, without the prior written permission of Enfora
Inc.
© 2005 Enfora, Inc. All rights reserved.
Disclaimer
Enfora Inc. makes no representations or warranties, either expressed or implied, with respect to
the contents hereof and specifically disclaims any warranties, merchantability or fitness for any
particular purpose. Further, Enfora Inc. reserves the right to revise this publication, and to make
changes from time to time in the contents hereof without obligation of Enfora Inc. to notify any
person of such revision or changes.
ALL INFORMATION IS PROVIDED BY ENFORA INC. ON AN “AS IS” BASIS ONLY.
THIS COMPANY PROVIDES NO REPRESENTATIONS AND WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF FITNESS FOR A
PARTICULAR PURPOSE, MERCHANTABILITY AND NONINFRINGEMENT.
All product names mentioned within this document are the trademark of their respective owners.
Enfora, Inc. Proprietary Information
WLN1500MAN001
Adobe® Acrobat Reader, © 1987-1999 Adobe Systems Inc. All rights reserved.
Adobe and Acrobat are trademarks of Adobe Systems Inc.

WLN150x Wi-Fi Adapter
Copyright, 2005 Enfora Inc.
Table of Contents
SAFETY INFORMATION FOR WIRELESS HANDHELD DEVICES.................... 1
GENERAL SAFETY INSTRUCTIONS ........................................................................ 3
PACKAGE CONTENTS ................................................................................................. 4
APPEARANCE................................................................................................................. 5
HARDWARE AND SOFTWARE INFORMATION.................................................... 6
BATTERY OPERATION...................................................................................................... 6
SYSTEM REQUIREMENTS.................................................................................................. 6
SOFTWARE INSTALLATION............................................................................................... 6
INSTALLING THE TREO SMARTPHONE INTO THE ENFORA® WI-FI® ADAPTER ................ 7
REMOVING THE ENFORA® WI-FI® ADAPTER FROM THE TREO 600/650......................... 8
NETWORK AND BATTERY STATUS LED DESCRIPTION..................................................... 8

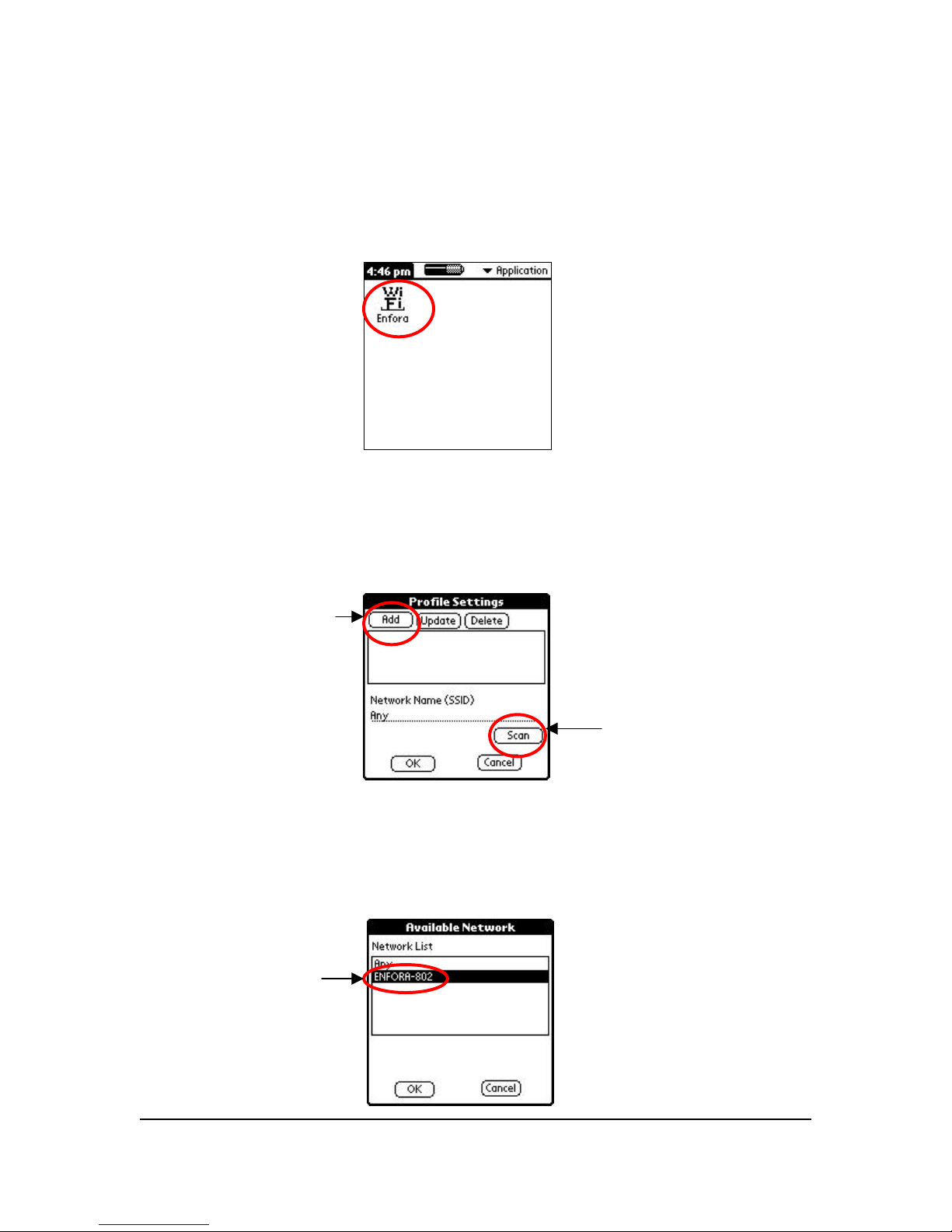

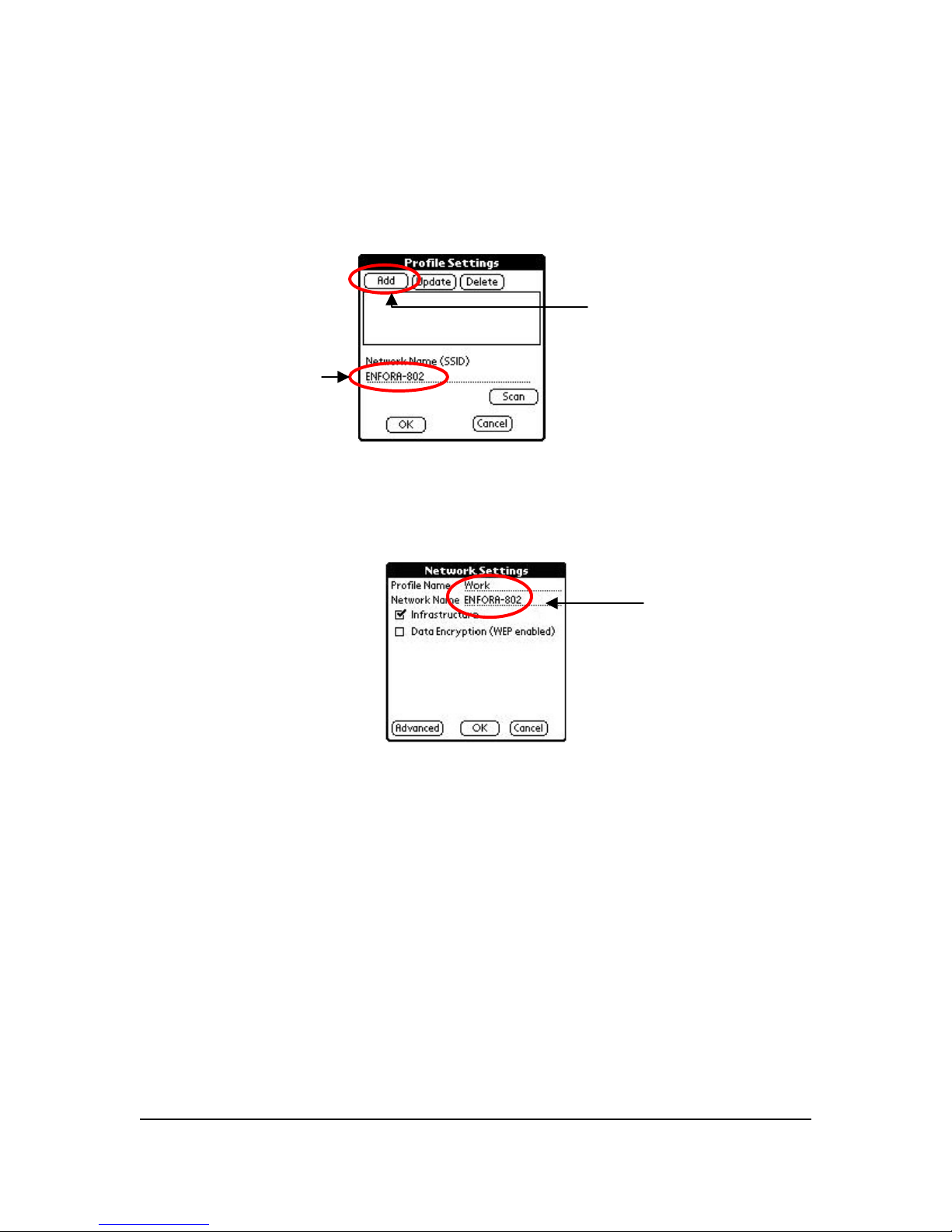

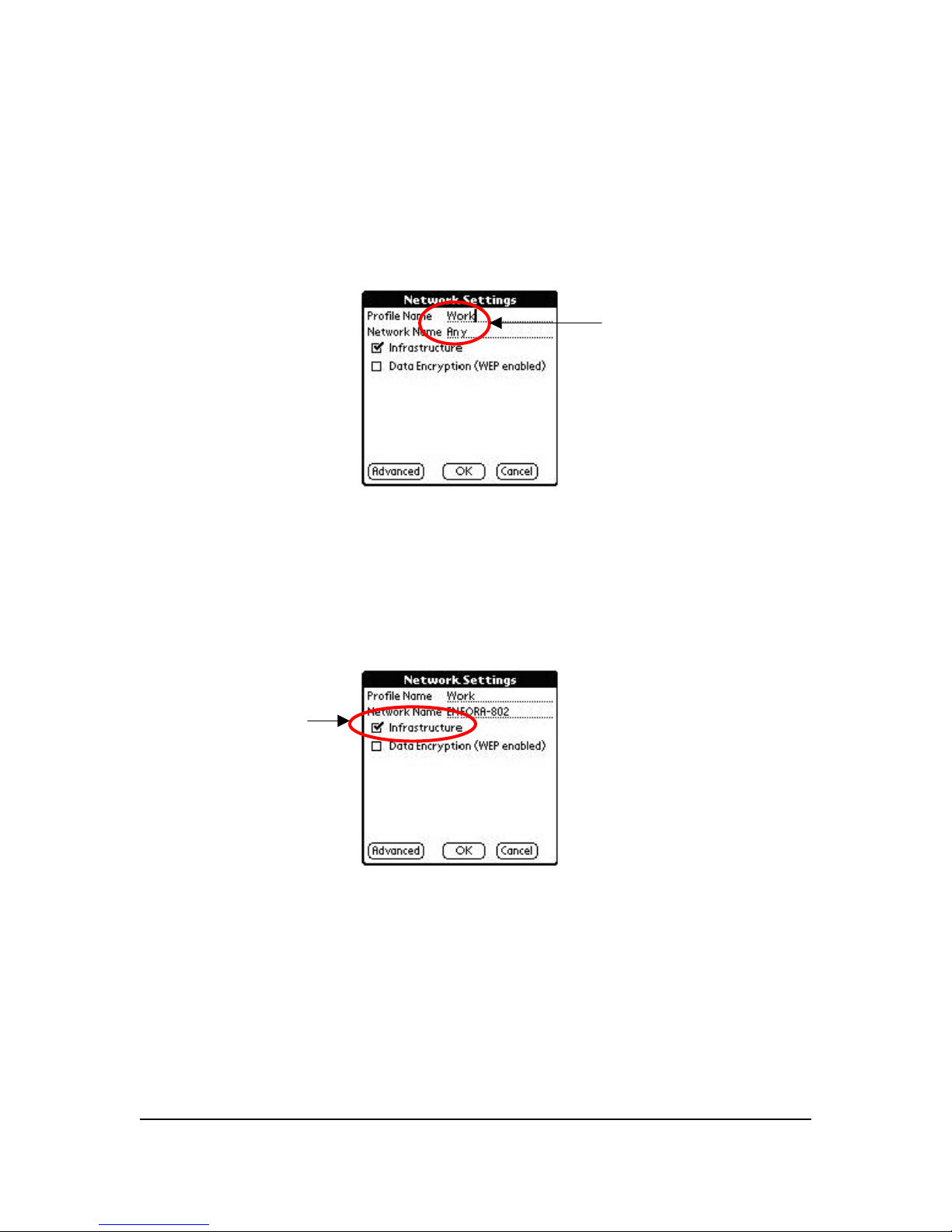

CONFIGURING YOUR ENFORA® WI-FI® ADAPTER .......................................... 9
ADDITIONAL INFORMATION.................................................................................. 13

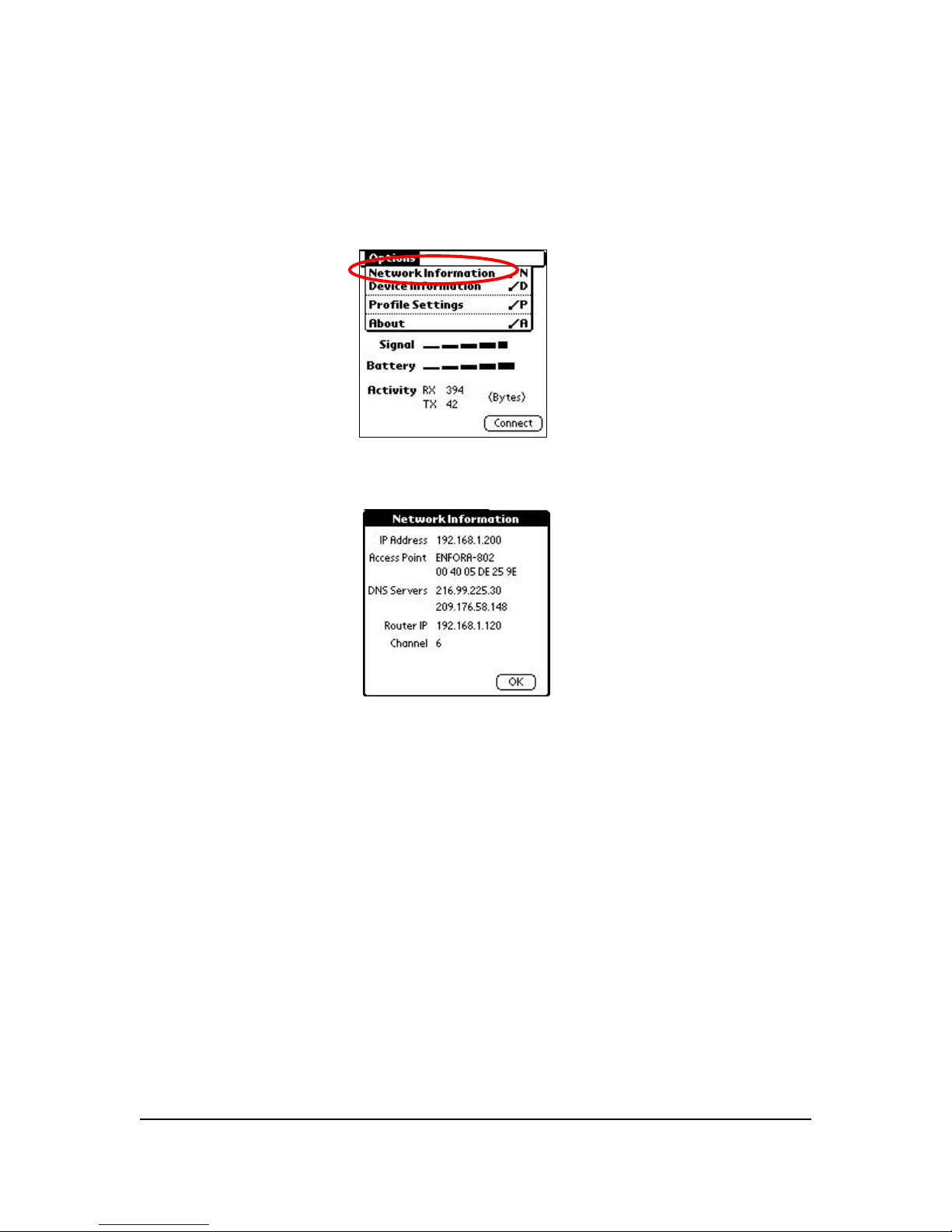

NETWORK INFORMATION............................................................................................... 13
ADVANCED CONFIGURATION................................................................................ 14

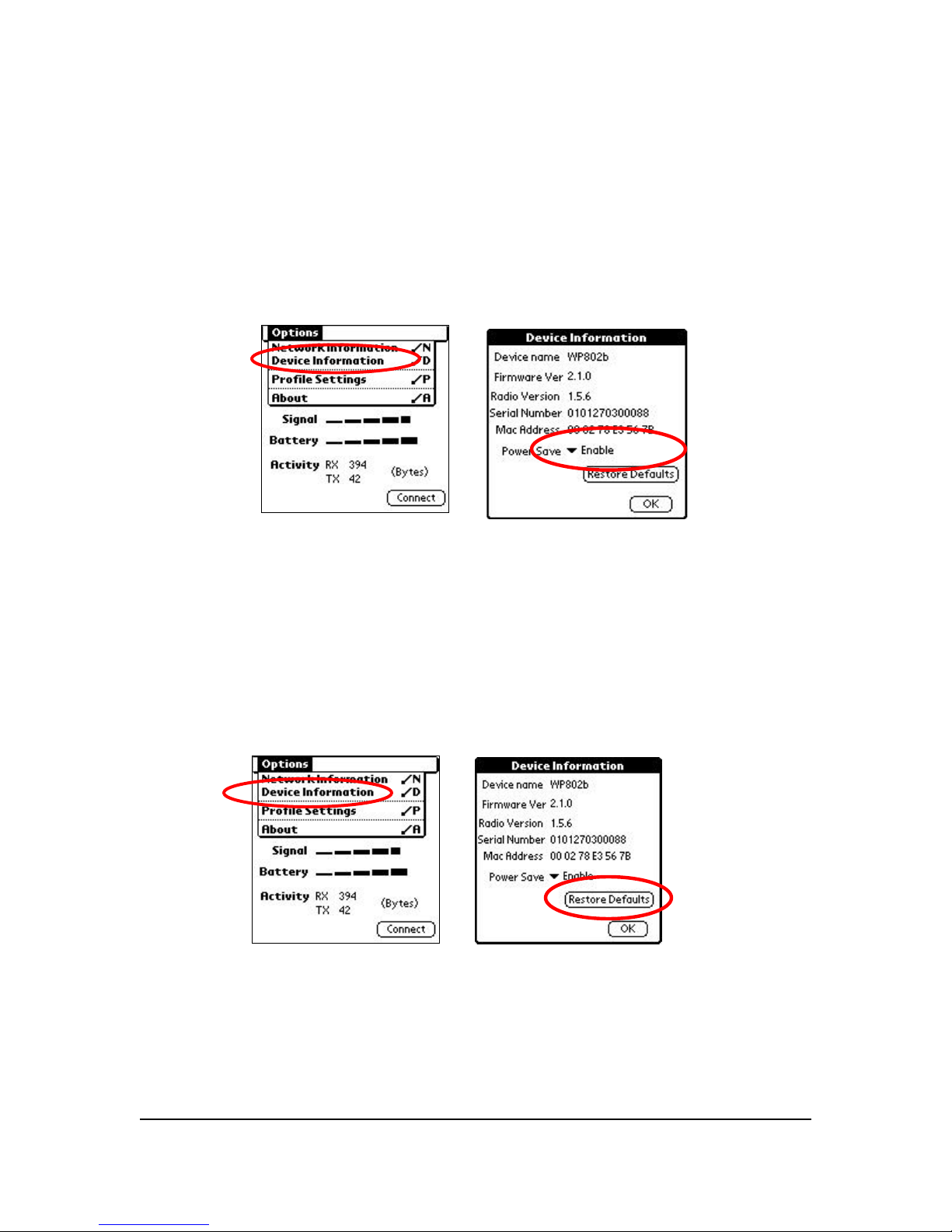

POWER SAVE ................................................................................................................. 14
RESTORE DEFAULT SETTINGS ........................................................................................ 14
SOFTWARE LICENSE AGREEMENT...................................................................... 15
LIMITED WARRANTY................................................................................................ 17
SCOPE ............................................................................................................................ 17
HARDWARE.................................................................................................................... 17
SOFTWARE..................................................................................................................... 17
OTHER CONSIDERATIONS............................................................................................... 18

WLN1501/WLN1502 Wi-Fi Adapter Page 1
Copyright, 2005 Enfora, Inc.
Safety Information for Wireless Handheld Devices
The equipment certifications appropriate to your device are marked on the device and product
specific information. The use of the equipment is subject to the following conditions:
FCC COMPLIANCE STATEMENT
This device complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
CAUTION
Changes or modifications without the express consent of Enfora, Inc. void the user’s authority to
use the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in an appropriate installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not used in accordance with instructions, can cause
harmful radiation to radio communication. However, there is no guarantee that interference will
not occur in a particular installation. If the equipment does cause harmful interference in radio
and television reception, which can be determined by turning the equipment on and off, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation distance between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Contact Enfora, Inc. Technical Support for assistance.
FCC Radiation Exposure Statement
1. CAUTION: This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment.
2. This Transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter. (This does not apply to the antenna that is part of the Treo 600/650.)
The Federal Communications Commission (FCC) with its action in ET Docket 96-8 has adopted
a safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by
FCC certified equipment. Enfora products meet the uncontrolled environmental limits found in
OET-65 and ANSI C95.1, 1991.Proper operation of this radio according to the instructions found
in this manual and the hardware and software guides on the CD will result in user exposure that is
substantially below the FCC recommended limits.
Customers in European countries
Battery is not replaceable, for service center only.

WLN1501/WLN1502 Wi-Fi Adapter Page 2
Copyright, 2005 Enfora, Inc.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY INCORRECT TYPE.
DISPOSE OF BATTERIES ACCORDING TO THE INSTRUCTIONS.
Use the following or equivalent certified Power Supply.
Make: PHIHONG, Model PSA11R-050
Rated Input: 100-240Vac, 0.5A, 50-60hz,
DC Output: 5V DC, 2.0A
Limited Power Source.

WLN1501/WLN1502 Wi-Fi Adapter Page 3
Copyright, 2005 Enfora, Inc.
General Safety Instructions
• Check if all peripherals are properly connected before turning on any equipment.
• Make sure to disconnect the power plug from the power source before installing or
removing the Enfora® Wi-Fi® Adapter.
• Always hold the product with dry hands. Droplets of water may cause it to short circuit
and damage to the product.
• Use the product only under a dry environment. Humid places are not appropriate for the
product.
• DO NOT use the product in a damp environment.
• DO NOT place the product on an unstable surface. Keep the product out of the reach of
children.
• DO NOT share the same extension power line for the product with high power-
consuming appliances to avoid power overload.
• NEVER attempt to disassemble the product! Doing so may cause permanent damage to
the product and will void the warranty.

WLN1501/WLN1502 Wi-Fi Adapter Page 4
Copyright, 2005 Enfora, Inc.
Package Contents
Check the contents of the package. The following items should be included. If there is any item
that is damaged or missing, please contact your dealer immediately.
The following contents are included in the WLN1501 – Wi-Fi® Adapter for Treo 600:
Description Quantity
Enfora® Wi-Fi® Adapter for Treo Smartphone 1
Install CD-ROM 1
AC/DC Power Supply 1
The following contents are included in the WLN1502 – Wi-Fi® Adapter for Treo 650:
Description Quantity
Enfora® Wi-Fi® Adapter for Treo Smartphone 1
Install CD-ROM 1
AC/DC Power Supply 1
Battery Cover Door for the Treo 650 1

Appearance
The following images show the Enfora® Wi-Fi® Adapter for the Treo 600/650 Smartphone.
Lock Release Button
Power On/Off
Button
Treo Smartphone Headphone Jack
Network/ Battery
Status LED
Enfora Wi-Fi
Adapter DC Power
Input Treo Smartphone Headphone Jack
Lock/Release Button
WLN1501/WLN1502 Wi-Fi Adapter Page 5
Copyright, 2005 Enfora, Inc.

WLN1501/WLN1502 Wi-Fi Adapter Page 6
Copyright, 2005 Enfora, Inc.
Hardware and Software Information
Battery Operation
Prior to using the Enfora® Wi-Fi® Adapter, charge the new battery for a minimum of 2 hours
to obtain a full charge. The Enfora® Wi-Fi® Adapter derives its power from a self-contained
battery pack to ensure there is no battery drain on the handheld device.
The Enfora® Wi-Fi® Adapter will also charge your Treo 600/650 Smartphone if the Treo
600/650 is placed in the Enfora® Wi-Fi® Adapter.
Note: The Enfora® Wi-Fi® Adapter WILL NOT act as a spare
battery for the Treo Smartphone.
To power down the Enfora® Wi-Fi® Adapter, hold down the power button for three
seconds, until the adapter turns off.
System Requirements
Check your hardware and software to see if they satisfy the requirements below. If you are not
sure, please consult your dealer or operator.
• Treo 600
OR
• Treo 650 (with the updated battery cover attached)
Software Installation
1. Insert the CD that came with your Enfora® Wi-Fi® Adapter into your computer’s
CD drive.
2. If the enclosed CD-ROM does not start automatically, run the Enfora program
EnforaWiFi.exe and follow the Install Wizard. The Enfora program is located on
the CD-ROM in the install directory.
3. After completing the installation you will be prompted to perform a Hot Sync®
synchronization. This will install all necessary drivers and software to your Treo
600/650. (Please refer to the Treo Users’ Manual for details on HotSync®.)
4. Dock your Treo 600/650 device in its cradle, or connect the sync cable, and
perform Hot Sync®.

Installing the Treo Smartphone into the Enfora® Wi-Fi® Adapter
Attach the updated Battery Cover to the Treo 650
These instructions apply only to the Treo 650 Smartphone. If you have the Treo
Smartphone 600, please skip these instructions, and proceed to Attach the Enfora® Wi-
Fi® Adapter to the Treo 600/650.
1. If you haven’t replaced the Battery Door with the enclosed Battery Door, grasp
your Treo 650, and look at the Battery Door on the back of the unit.
2. Press in the elliptical button, just above the Battery Door, to release the current
Battery Door. Slide the door down approximately .1” (one-tenth of an inch) to
remove it from the Treo 650.
3. Place the Updated Battery Door in the position of the existing one, and slide the
Door up until it “seats” in place.
Attach the Enfora® Wi-Fi® Adapter to the Treo 600/650
These instructions apply to the Treo 600 and Treo 650 (with the updated battery cover
attached to the Treo 650).
1. Ensure the Enfora® Wi-Fi® Adapter is turned off.
2. Hold the Enfora® Wi-Fi® Adapter upright in one hand.
3. Grasp the edges of the Treo and slide the Treo into the bottom portion of the
Enfora® Wi-Fi® Adapter.
4. With the Treo positioned at about a 5º to 10º from the inner surface of the
Enfora® Wi-Fi® Adapter; push the Treo, gently down, onto the mating connector
of the Enfora® Wi-Fi® Adapter. You will hear/feel a click as the Enfora® Wi-
Fi® Adapter connector is seated into the Treo.
5. While grasping the Enfora® Wi-Fi® Adapter with one hand (depress the Lock/
Release Button down with the index finger), press the Treo flat into the Enfora®
Wi-Fi® Adapter, with your other hand, seating the short rib/ribs, near the Lock/
Release Button, into the receptacles in the back of the Treo. Release your hold on
the Lock/Release Button.
6. The Enfora® Wi-Fi® Adapter is now attached to the Treo.
Lock/Release Button
