EnGenius EUB-9701 EXT2 User manual

1
EUB-9701 EXT2
Wireless-N USB 2.0 Adapter
(802.11n draft, 802.11g & 802.11b)
User Manual
Version: 1.3

2
TABLE OF CONTENTS
1 INTRODUCTION .................................................................................................................................4
2 FEATURES............................................................................................................................................4
3 PACKAGE CONTENTS .......................................................................................................................5
4 SYSTEM REQUIREMENTS................................................................................................................6
5 INSTALLATION ...................................................................................................................................6
6 VERIFY INSTALLATION....................................................................................................................9
7 SETUP NETWORK CONFIGURATION (MS WINXP)....................................................................10
8 SETUP WLAN (ENGENIUS CONFIG-UTILITY) ............................................................................12
9 SETUP NETWORK SECURITY (WEP, WPA…) ..............................................................................14
A. SETTING WEP.......................................................................................................................14
B. SETTING WPA.......................................................................................................................15
10 ADDING PROFILES ..........................................................................................................................18
11 WPS CONFIGURATION....................................................................................................................20
12 QOS .....................................................................................................................................................21
13 ADVANCED SETTINGS....................................................................................................................22
14 STATISTICS........................................................................................................................................24
15 LINK STATUS.....................................................................................................................................25
16 ABOUT................................................................................................................................................26
17 UNINSTALLING ENGENIUS UTILITY/DRIVER...........................................................................27
APPENDIX A – DRIVER INSTALLATION FOR WINDOWS VISTA ......................................................31
APPENDIX B – SPECIFICATIONS.............................................................................................................36
CERTIFICATION STATEMENTS…………………………………...……………………………………..37

3
Revision History
Version Date Notes
1.1 May 24, 2007 Created
1.2 June 4, 2007 Updated setup pages
1.3 June 9, 2007 Modified Config pages & Screenshots

4
1 Introduction
EnGenius Wireless-N USB Adapter (EUB-9701 EXT2) implements the latest 11n
(Draft 2.0) technology which extremely improves wireless signal for your computer
than existing wireless 802.11g technology. The incredible speed of Wireless-N USB
adaptor makes heavy traffic networking activities more flexible and takes the wireless
into practical road.
You could enjoy the racing speed of wireless connection, surf Internet without string
of wires. Adding EnGenius Wireless-N to your Notebook or Computer, provides an
excellent solution for media-centric activities such as streaming video, gaming, and
enhances the QoS (WMM) without any performance penalty.
It extends network coverage by 3 times and boosts transmission throughput 6 times
than existing 11g products. For more security-sensitive applications, EUB-9701 EXT2
supports Hardware-based IEEE 802.11i encryption/decryption engine, including 64-
bit/128-bit WEP, TKIP, and AES. Also, it supports Wi-Fi alliance WPA and WPA2
encryption. Cisco CCX V1.0, V2.0 and V3.0
2 Features
Features Advantages
High Speed Data Rate Up to 300Mbps* Capable of handling heavy data payloads
such as MPEG video streaming
IEEE 802.11b/g Compliant Fully Interoperable with IEEE 802.11b /
IEEE802.11g compliant devices with legacy
protection
WPA/WPA2 (IEEE 802.11i), WEP
64/128
Support
Powerful & Robust data security.
Support 2Tx * 2Rx Radios enables Intelligent Antenna
WMM (IEEE 802.11e) standard support Wireless Multimedia Enhancements Quality of
Service support (QoS) / enhanced power
saving for Dynamic Networking.
2 Detachable Antenna design Flexible with SMAconnector design

EUB-9701 Wireless N USB adapter
Version 1.3
5
* Theoretical wireless signal rate based on IEEE standard of 802.11a, b, g chipset used. Actual
throughput may vary. Network conditions and environmental factors lower actual throughput rate.
** All specifications are subject to change without notice.
3 Package Contents
Open the package carefully, and make sure that none of the items listed below are
missing. Do not discard the packing materials, in case of return; the unit must be
shipped back in its original package.
hOne Wireless-N USB Adaptor
hOne USB cable (1.0m)
hOne CD-ROM with User’s Manual & Drivers
hQuick Installation Guide
h2 Detachable antennas (Reverse SMA connector)

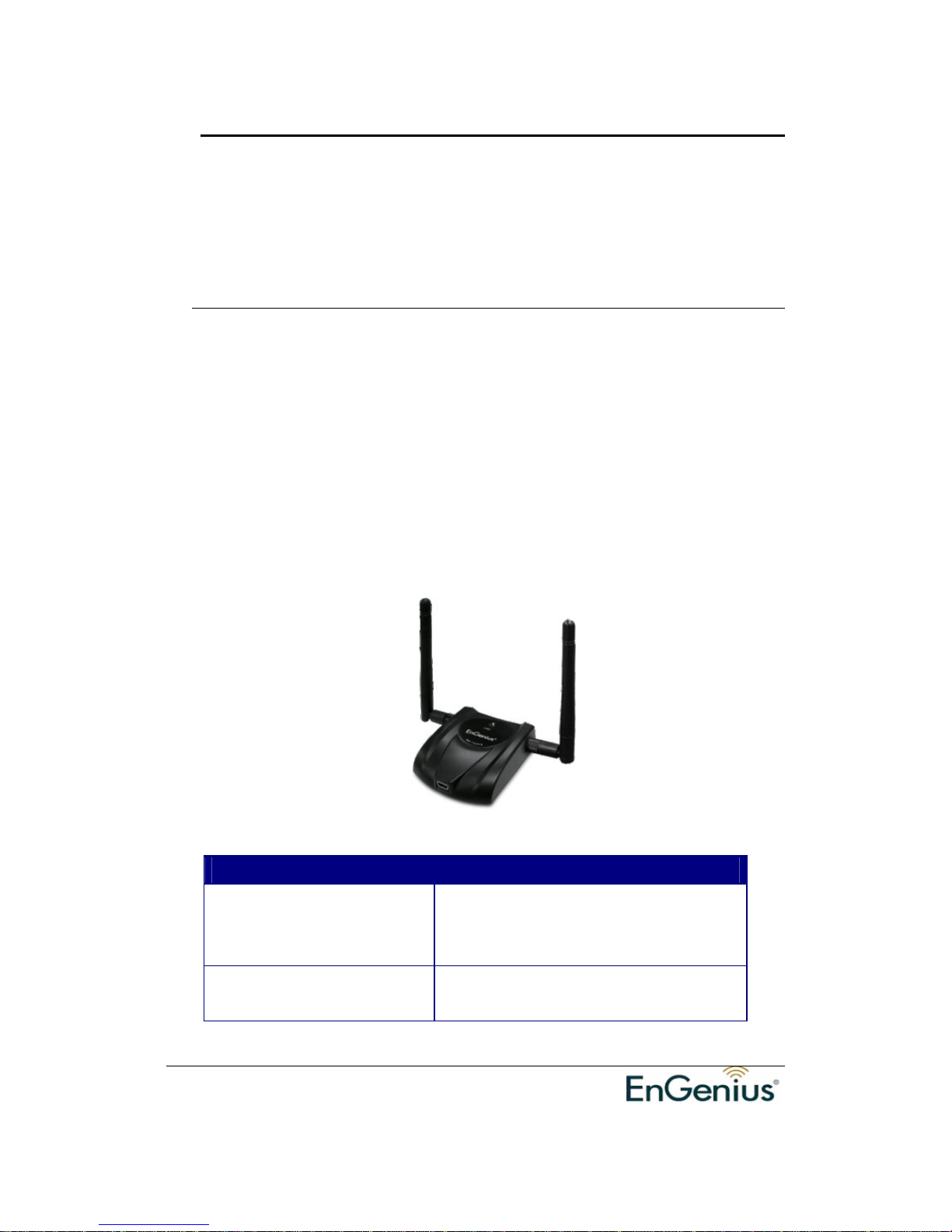

LED Description
LINK Blinks when active connection is available
else remains switched OFF
PWR
Blinks rapidly when data communication in
progress else remains switched OFF

EUB-9701 Wireless N USB adapter
Version 1.3
6
4 System Requirements
To begin using the WLAN USB Adapter, your PC/Notebook must meet the following
minimum requirements:
hOperating System – Microsoft Windows XP/2000
hUSB 2.0 socket x 1 (free to use socket)
h256MB system memory or larger
h750MHz CPU or higher configuration
5 Installation
Insert the support CD into your optical drive. In the CD drive folder, you will see the
following file.
Open the file and you can briefly see the following…
Choose EnGenius configuration utility & click next

EUB-9701 Wireless N USB adapter
Version 1.3
7
Await instructions as you see the setup progress as shown below...
Click finish to restart PC/notebook.

EUB-9701 Wireless N USB adapter
Version 1.3
8
Please insert EUB-9701 EXT2 Wireless Network Adapter with the USB cable in
your notebook/PC’s available USB 2.0 socket
After a few seconds a notification that setup is complete will show up as follows.
Click Finish to restart the PC/notebook.

EUB-9701 Wireless N USB adapter
Version 1.3
9
6 Verify installation
1. Open [Control Panel] =>Double-click [System].
2. Select [Hardware] tab=>Click [Device Manager].
Select and double-click [802.11N USB wireless LAN card]
Verify that the device status of [802.11N USB wireless LAN card]

EUB-9701 Wireless N USB adapter
Version 1.3
10
[This device is working properly]->Click [OK]
7 Setup Network Configuration (MS WinXP)
•Enter [Start Menu] =>select [Control panel] =>select [Network].
•Right-click [Wireless Network]
•Select [Local Area Connection]) icon=>select [properties]
•Select [Internet Protocol (TCP/IP)] =>Click [Properties].

EUB-9701 Wireless N USB adapter
Version 1.3
11
•Select the [General] tab.
a. If your Wireless Router supports [DHCP] function, please select both [Obtain
an IP address automatically] and [Obtain DNS server address automatically].
b. If the router does not support [DHCP] function, you have to configure the IP
and DNS settings.

EUB-9701 Wireless N USB adapter
Version 1.3
12
8 Setup WLAN (EnGenius Config-Utility)
Prerequisite:
1. Your home/office environment should have a wireless LAN Access Point
(AP) that is available for your use.
2. You should readily have the (security keys) to connect those Wireless LAN
Access Points (AP)
Configuration utility will first automatically link with the Wireless AP if there is no
security key required. If the connection is successful, a message will appear on
taskbar.
Following steps guides you to initially setup a wireless network connection.
Notice the EnGenius configuration utility on the taskbar
Hovering the mouse cursor briefly over “EG” icon will show status as follows…the
current status indicates that Config utility has automatically connected to an
Access Point named NKSP.
Right click on “EG” icon will open up a menu as shown below

EUB-9701 Wireless N USB adapter
Version 1.3
13

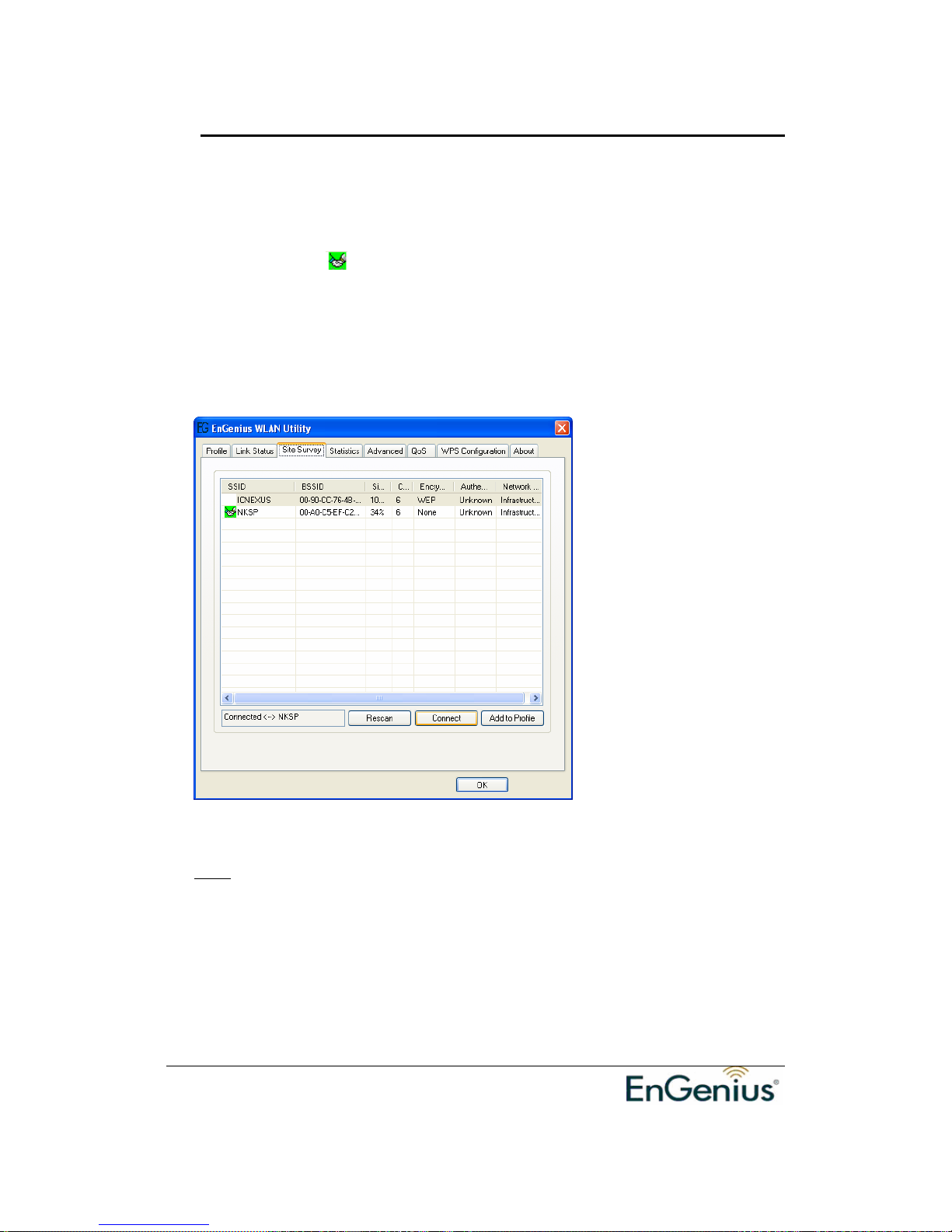

Click on Launch Config Utilities. Notice it has many tabs for configuration
To make connection, select one AP/SSID (eg: NKSP) and click [Connect]. When the
connection works, [Connected] will appear in the left button of this tab and the
icon appears in front of the linked AP.
When the connection failed, [Disconnected] will appear. If the AP has set up the
encryption, please setup the same before you click [OK].

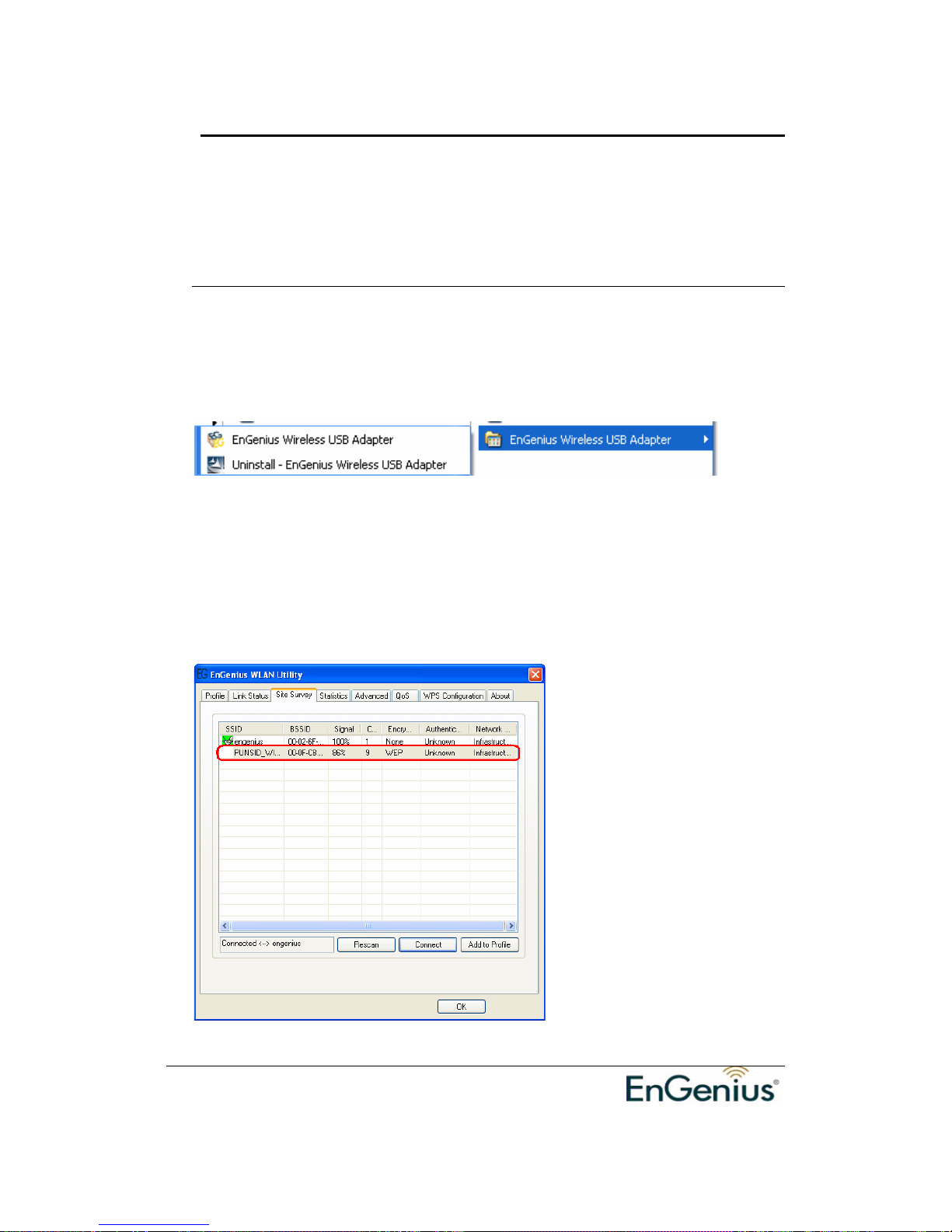

Click on Site Survey tab. Press Rescan. You will see several AP listed under
SSID
They denote individual access points. Click on the one you want to connect with.
Notice that if there is no security key needed, you can see that in the Encryption
status as “None”.

EUB-9701 Wireless N USB adapter
Version 1.3
14
If there is security key required, obtain it and click connect. If you need to input a
security key, refer to chapter 9 to understand setting up WEP key.
9 Setup Network security (WEP, WPA…)
If your AP/Router has network security key, your wireless adapter needs to have the
same security setting. The details of network security setting are described below.
Please open EnGenius Wireless Utility before you start to setup network security:
Please click [start] ->select [Programs] ->click [CG-WLUSB2GO] ->click [EnGenius
Wireless Utility], and the wireless icon “EG” will appear on taskbar.
a. Setting WEP
If AP you want to connect to has [WEP] authentication, press [Connect].
Press Connect. You will see a window pop up as shown below.

EUB-9701 Wireless N USB adapter
Version 1.3
15
Follow steps below:
a. [Authentication Type]: indicates the authentication type of the AP/Router.
Please confirm the setting of the AP/Router.
＊[Open]: WEP open system is based on request and grant. It is
essentially no authentication.
＊[Shared]: WEP shared key is based on request, challenge, challenge
response, grant/deny.
b. Select [WEP] in [Encryption].
c. Key in AP encryption keys (64/128bits) in the box Key1~Key4. Please
accept the auto selected setting of [Hex]/ [ASCII].
d. Select the current AP encryption keys from Key1~Key4.
e. Press [OK] to finish setting.
b. Setting WPA
WPA encryption type can be divided into WPA-PSK, WPA2-PSK, WPA (or called
WPA-EAP), and WPA2 (or called WPA2-EAP). All settings should correspond with
settings of the wireless AP you would want to connect with.
WPA-PSK and WPA2-PSK

EUB-9701 Wireless N USB adapter
Version 1.3
16
Setting the [Authentication and Security] Page:
a. Authentication Type: Select [WPA-PSK] or [WPA2-PSK] (AP must support the
function).
b. Encryption: Select [TKIP] or [AES].(Same as AP)
c. Enter the selected AP’s password in [WAP Preshared Key] box and
click [OK].
WPA and WPA2

EUB-9701 Wireless N USB adapter
Version 1.3
17
1. Select an AP with [WPA] or [WPA2] authentication and press [Connect]. Here we
use OFFICE for example; hence the following settings must correspond with your
corresponding Wireless Access Point.
Setting the [Authentication and Security] Page:
a. Authentication Type: select [WPA] or [WPA2-PSK] (AP must support the function).
b. Encryption: select [TKIP] or [AES] (Same as AP)

EUB-9701 Wireless N USB adapter
Version 1.3
18

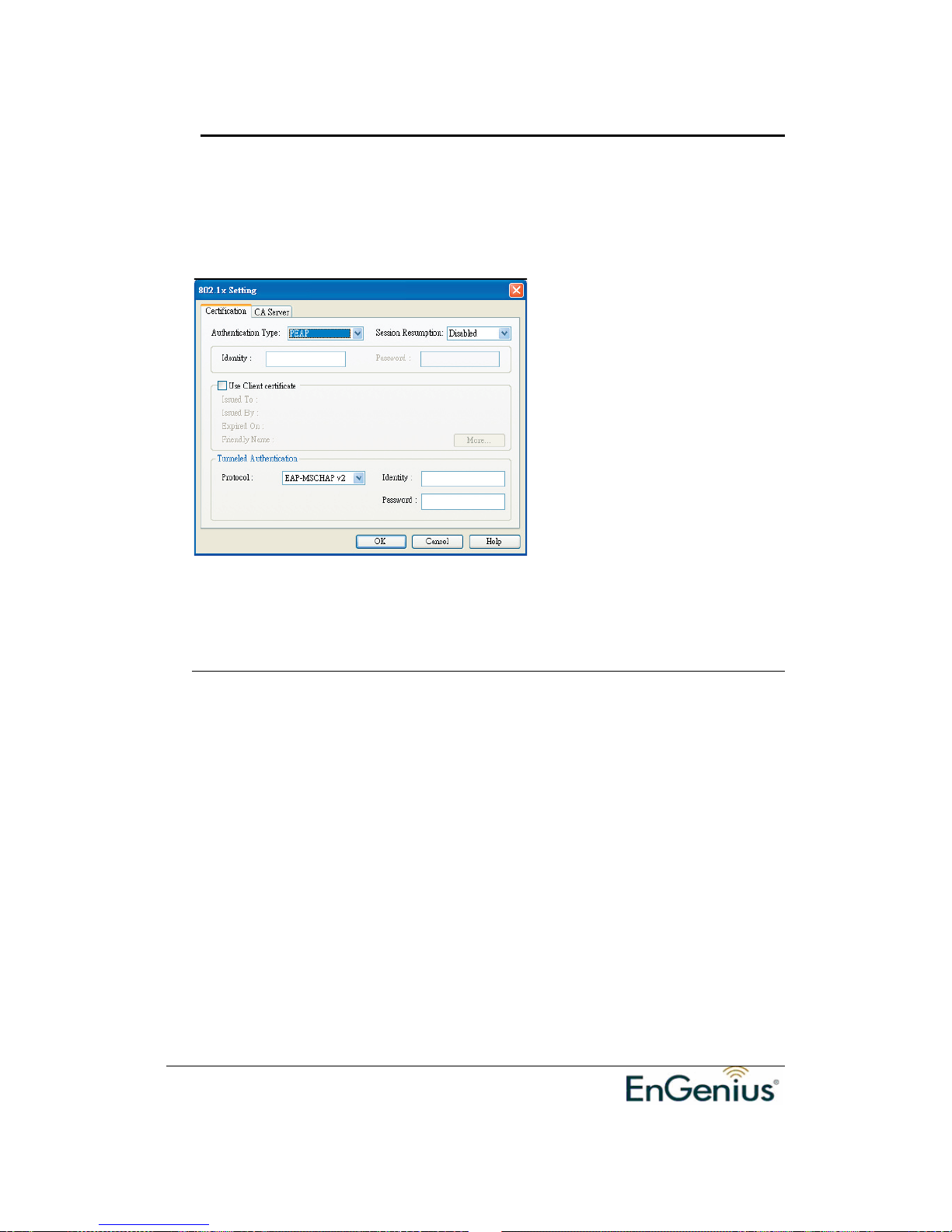

c. If the AP/router has [802.1x Setting] function, click it for advanced settings. Please
consult your network administrator for details or check the user manual of the
Wireless Access Point.
Click [OK] to finish setting.
10 Adding Profiles
1. Select one AP in the SSID column, eg: EnGenius=>Click [Add to Profile] and the
page shown below will appear.

EUB-9701 Wireless N USB adapter
Version 1.3
19
2. Setting items in the [configuration] tab:
• Profile Name: Enter the connected AP profile, eg: PROF1.
• SSID: Click the drop-down menu and select one AP. You can also enter the AP
manually.
• PSM: When CAM is selected, indicates that the product is not in power saving
status. When PSM is selected, the product is in power saving status. (Only select it
under Infrastructure network type).
• Network Type: [Infrastructure] or [Ad Hoc] type. We recommend you to select
[Infrastructure].
• Transmit power: the amount of power used by a radio transceiver to send the
signal out. User can choose power value by sliding the bar.
• [RTS Threshold] and [Fragment Threshold]: We recommend you to use the
default value 2312. User can adjust threshold numbers by sliding the bars or key in
the values directly.
3. Click [OK] and the set AP will appear in the [Profile] tab.

EUB-9701 Wireless N USB adapter
Version 1.3
20
• [Add]: Click [Add] to add a new profile.
• [Delete]: to delete a profile, select one profile name and click [Delete].
• [Edit]: to edit the setting of a profile, select the profile and click [Edit].
• [Activate]: to activate the selected profile, select the profile and click
[Activate].
11 WPS Configuration
Wi-Fi Protected Setup (WPS) configuration function - provides easy procedures to
set up wireless security. Wi-Fi Protected Setup gives SOHO users a variety of setup
options. It uses familiar methodologies such as typing in a Personal Identification
Number /numeric code (PIN method), and pushing a button (Push-Button
Configuration, or PBC) to enable users to automatically configure network names
and strong WPA2 (Wi-Fi Protected Access 2TM) data encryption and authentication.
