User Guide

Truss Rod
Wrench

ENYA AcousticPlus system allows players to add sound effects from the instrument itself, with no external devices needed.
providing a simple but effective way to process the natural sound. All the sound enhancing effects are controlled with very
simple and discreet knobs, giving players total control to adjust the reverb, chorus and other effects, with or without plugging
into an amp. We hope this technology could bring more fun and inspiration to your playing.
®
®
®
AcousticPlus
Pickup System
Firstly, it functions as a volume knob:
turn clockwise, to get louder.
Meanwhile, press and hold it to turn
on and off the AcousticPlus system,
plugged in or not, giving you the
reverb, chorus and delay, which offers
you more possibilities in your creative
process.
Volume
On/Off
The AcouticPlus is a dual-mode pickup
system with a piezo to pick up the tring
vibration, and a microphone picking
up the percussiveness of the top in the
fingerstyle playing. The Mic. knob
controls the level of the microphone.
Also, tap the knob to activate or shut
off the onboard tuner.
®
®
Mic.
Tuner
This knob selects the reverb type, as
well as controls the level of them.
The “Room” side gives a natural room
reverb to add a little bit of depth and
sparkle to the sound. The “Hall” side
gives you the wide-range, heavenly,
concert hall-style ambience.
Reverb
Room/Hall
This knob selects the modulation
type, as well as controls the level of
them. The “Chorus” side gives you a
lush chorus with a fixed rate, not too
mellow, not too intense. Turn the
knob clockwise to add depth. The
“Delay” side gives you a digital style
delay, with a fixed rate. Turn the knob
clockwise to add intensity.
Effects
Chorus/Delay
The AcousticPlus pickup on X4 Pro
supports USB Type-C charging.
The rim LED light of the port serves as
a battery indicator:
GREEN: System on;
RED: System on, with low battery
OFF: System off, with dead battery
®
Charging Port
Battery Indicator
1. Try not to set all controls to max. to avoid feedback issue;
2. Turn the system off after playing to better preserve the battery;
Caution:

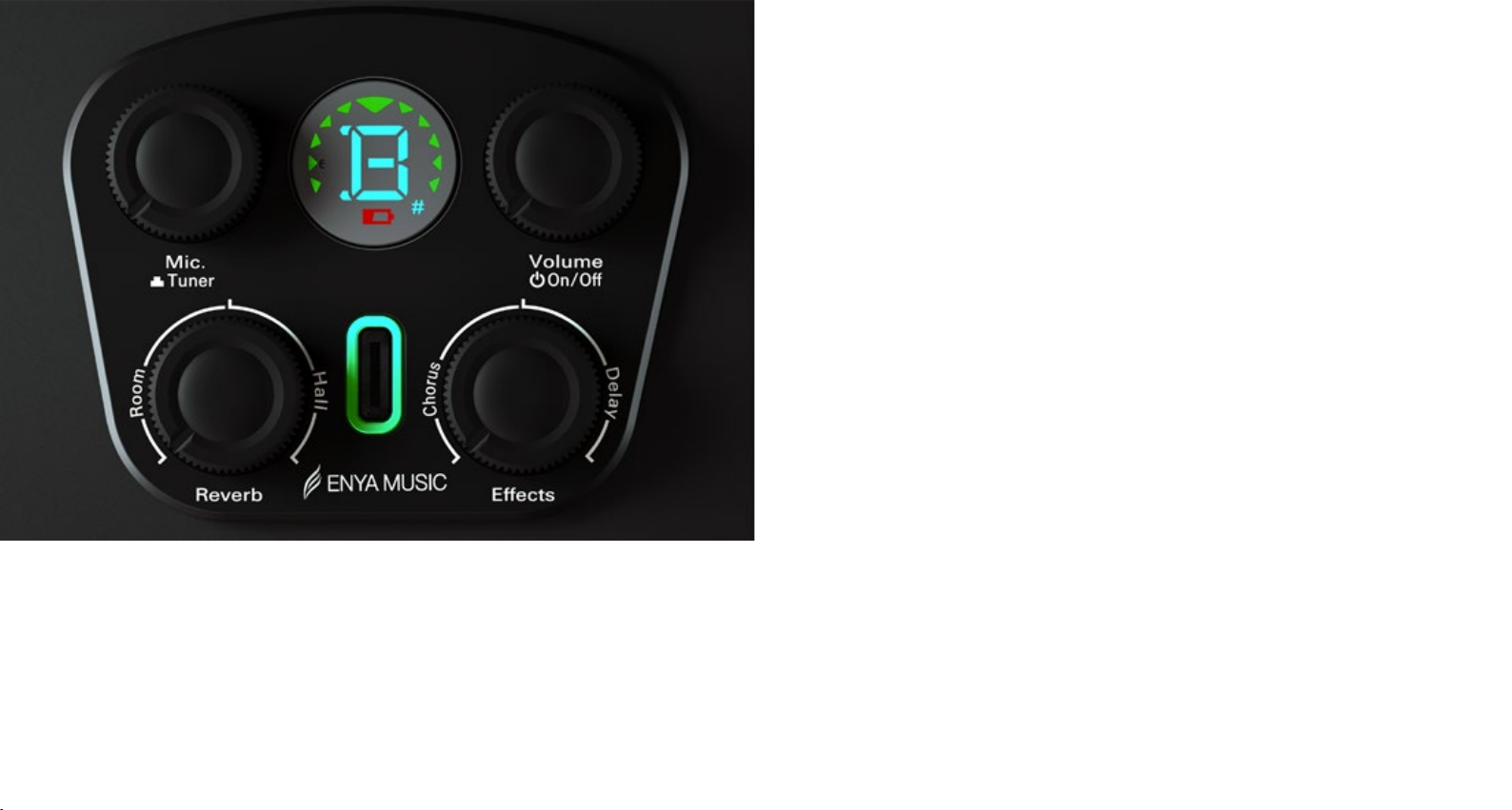

The
Controls
of AcousticPlus

Size.
41’ Plus AJ
36’ Mini
Nut Width.
1.69’‘
®
®
Nut.
TUSQ Nut
TUSQ Saddle
Scale Length.
41’ Pro; 25.6‘’
36’ Mini: 23.6’’
Top.
R.S.B.
Carbon Fiber Composite
Neck.
Aluminium-Reinforced
Carbon Fiber Neck
Neck
Construction.
Bolted Elevated Neck
Bracing.
Multi-Layer Hive-Shape
Carbon Fiber
Pickup.
AcousticPlus®
Strings.
Elixir 16052
®
Case.
Deluxe Hardshell
Back & Sides.
Integrated Casting
Carbon Fiber Composite
with Matte Finish
The
Specs
of X4 Pro
The X4 Pro AcousticsPlus guitar comes
with an installed 18650 rechargeable
battery. USB charging cable is included.
Connect the guitar to any USB power
source like a phone charger to charge the
AcousticPlus system.
The battery could last for 15 hours for
stage performing, 8hours for
AcousticPlus only, once fully charged.
And it would take 6hours to fully charge
the battery.
®
®
Charging
& Battery
Actuator
Tuner
Piezo
Pickup
Effects
Module
With battery
Output Jack
1/4 inch
Actuator
Tuner
Piezo
Pickup
Effects
Module
With battery
Output Jack
1/4 inch
