USER MANUAL AND SERVICE
English Version
This user manual is an integral part of the equipment and must be kept in an appropriate
manner to maintain its integrity and allow it to be consulted during the life of the equipment.
Please read carefully this manual before proceed to any intervention on the equipment
The manufacturer has the right to make changes to the production and to the manual, without this
implying the obligation to update the production and the previous manuals.

SUBWOOFER FAGOTTO
& TOP FLAUTO
Page 3 of 17
EN 1.0
ESOTERIC PRO AUDIO di Mirko Marogna Via Cà dell’Aglio 3 int. 3
37036 San Martino B.A. (VR) - ITALY
www.esotericproaudio.com e-mail: [e-mail]
Pag. 3 of 17
Index.
1. INTRO............................................................................................................................................................................
2. GENERAL INFO ...........................................................................................................................................................
2.1 Symbols - pictograms.............................................................................................................................................
3. MANUFACTURER IDENTIFICATION......................................................................................................................
3.1 Information on technical assistance and manteinance ...........................................................................................
4. DESCRIPTIONS AND TECHNICAL SPECIFICATIONS..........................................................................................
4.1 Technical specifications. ........................................................................................................................................
4.1.1 Sub Fagotto Cabinet. ......................................................................................................................................
4.2 Law references .......................................................................................................................................................
5. INSTALLATION AND STORAGE..............................................................................................................................
5.1 Checks upon arrival of the equipment
5.2 Storage....................................................................................................................................................................
6. SETUP INSTRUCTIONS..............................................................................................................................................
6.1 Electrical plug.........................................................................................................................................................
6.2 . Periodic maintenance ...........................................................................................................................................
7. FAULTS AND ANOMALIES.......................................................................................................................................
8. DISPOSAL.....................................................................................................................................................................
9. WARRANTY

SUBWOOFER FAGOTTO
& TOP FLAUTO
Page 4 of 17
EN 1.0
ESOTERIC PRO AUDIO di Mirko Marogna Via Cà dell’Aglio 3 int. 3
37036 San Martino B.A. (VR) - ITALY
www.esotericproaudio.com e-mail: [e-mail]
Pag. 4 of 17
1. INTRO
Dear Customer,
In thanking you for the preference granted us in the choice of our equipment that will surely prove important above all
in time, we invite you to scrupulously follow the instructions given in this manual, this will be a valid help for optimal
use and to keep the characteristics of your equipment.
ESOTERIC PRO AUDIO
2. GENERAL INFO
This user manual is an integral part of the equipment and is the essential support for the implementation and correct use.
Read it carefully and completely before proceeding with the installation and use of the equipment.
The manual must accompany the equipment in case of resale.
Partial reproduction of this document without the written permission of ESOTERIC PRO AUDIO is prohibited.
2.1 Symbols - pictograms
For a simpler and immediate reading of the manual we report below a series of symbols and pictograms used in the
drafting of this manual.
NOTE
It shows the indications or important information contained in the manual to be read, with
particular attention, for the best use of the equipment.
.
DANGER
Indicates a situation that can cause injuries, even lethal, or serious damage to health.
Symbol.
Description
Electrical maintenance engineer: qualified technician able to operate in the presence of voltage inside
cabinets, junction boxes and electrical systems. to operate the equipment under normal operating
conditions, proposed for all electrical adjustments, maintenance and repairs.
Manufacturer's technician: qualified technician provided by the manufacturer to carry out operations of
a complex nature in particular situations or, in any case, as agreed with the user. The skills are, depending
on the case, mechanical and / or electrical and / or electronic and / or software.

SUBWOOFER FAGOTTO
& TOP FLAUTO
Page 5 of 17
EN 1.0
ESOTERIC PRO AUDIO di Mirko Marogna Via Cà dell’Aglio 3 int. 3
37036 San Martino B.A. (VR) - ITALY
www.esotericproaudio.com e-mail: [e-mail]
Pag. 5 of 17
CAUTION
It indicates a situation that could cause, even indirectly, damage to people, things and the
environment with consequences also of an economic nature.
WARNING
Indicates that it is necessary to follow the indications with particular attention. Failure to follow the
warning may result in malfunction or danger or damage.
Warning signs
Dangerous Electrical Voltage

SUBWOOFER FAGOTTO
& TOP FLAUTO
Page 6 of 17
EN 1.0
ESOTERIC PRO AUDIO di Mirko Marogna Via Cà dell’Aglio 3 int. 3
37036 San Martino B.A. (VR) - ITALY
www.esotericproaudio.com e-mail: [e-mail]
Pag. 6 of 17
3. . Manufacturer identification
The plate attached to the back of the SUBWOOFER FAGOTTO contains all the identification data of the
SUBWOOFER itself.

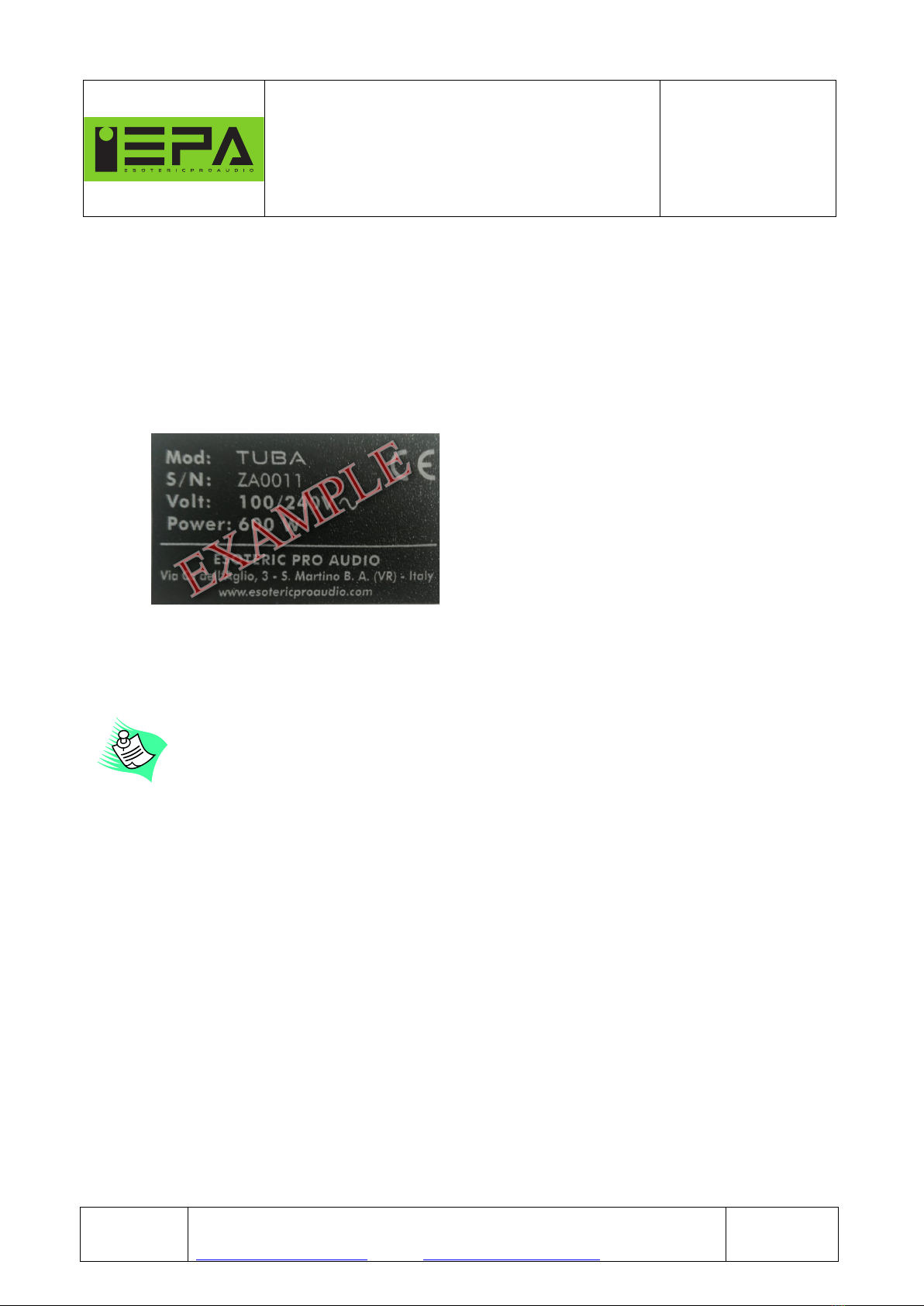

Fig.3.1 Example of a label (the data shown are purely indicative, the real values are shown on the label of the product).
Model .
Trade name of the equipment.
Serial Number (S/N)
Serial number, numerical code identifying the
type of equipment.
Voltage.
Voltage - supply frequency -
Nominal electrical power.
It is absolutely forbidden for anyone to remove or tamper with this plate. In the case in which
accidentally this plate is damaged contact the manufacturer.

SUBWOOFER FAGOTTO
& TOP FLAUTO
Page 7 of 17
EN 1.0
ESOTERIC PRO AUDIO di Mirko Marogna Via Cà dell’Aglio 3 int. 3
37036 San Martino B.A. (VR) - ITALY
www.esotericproaudio.com e-mail: [e-mail]
Pag. 7 of 17
3.1 Information on technical assistance and maintenance
To report faults contact the Service Center:
ESOTERIC PRO AUDIO di Mirko Marogna
Via Cà dell’Aglio 3 int. 3
37036 San Martino B.A. (VR) - ITALY
e-mail: [e-mail]
For communications or requests for information or spare parts, send the module "SPARE PARTS ORDER, FAULT
SIGNALS, INFORMATION" in Attached 1 to the service center.
For the maintenance of the duration of the warranty the customer must strictly follow the
instructions indicated in this manual. Otherwise it is not liable for any inconvenience or malfunction
of the appliance (in this regard, carefully read the warranty attached to the manual).
In order to adapt the equipment to technological progress and specific production needs, the
manufacturer may decide, without any prior notice, to make changes to it without this implying the
obligation to update production and previous manuals. Furthermore, if the illustrations shown in
this manual differ slightly from the equipment in your possession, the safety and operating
instructions are always guaranteed.

SUBWOOFER FAGOTTO
& TOP FLAUTO
Page 8 of 17
EN 1.0
ESOTERIC PRO AUDIO di Mirko Marogna Via Cà dell’Aglio 3 int. 3
37036 San Martino B.A. (VR) - ITALY
www.esotericproaudio.com e-mail: [e-mail]
Pag. 8 of 17
4. Description and tech specs
The EPA PLATE system offers an ideal solution for amplified reproduction of audio signals. The care taken in the
design of the system, in design, in operation are the result of many years of experience and therefore places our product
in the high end of audio reproduction systems in large rooms or outdoors.
The peculiarity of the system consists essentially in:
−- a controller based on the use of a microprocessor and active analog electronics comprising conditioning stages
input-output signals, analog-to-digital converters, signal processing (DSP, FIR and IIR filters, compressors, limiter)
and digital-analog converters for the piloting of power amplifiers;
−high efficiency switching power supplies with low harmonic content (PFC) and very high peak power (700 W),
n. 2 separate power amplifiers for the faithful reproduction of low and high frequency audio signals. The controller
components, power supplies and amplifiers are protected against overload conditions and by means of automatic reset
devices. The intervention of the protection is signaled with the lighting of a led placed on the interface panel. The figure

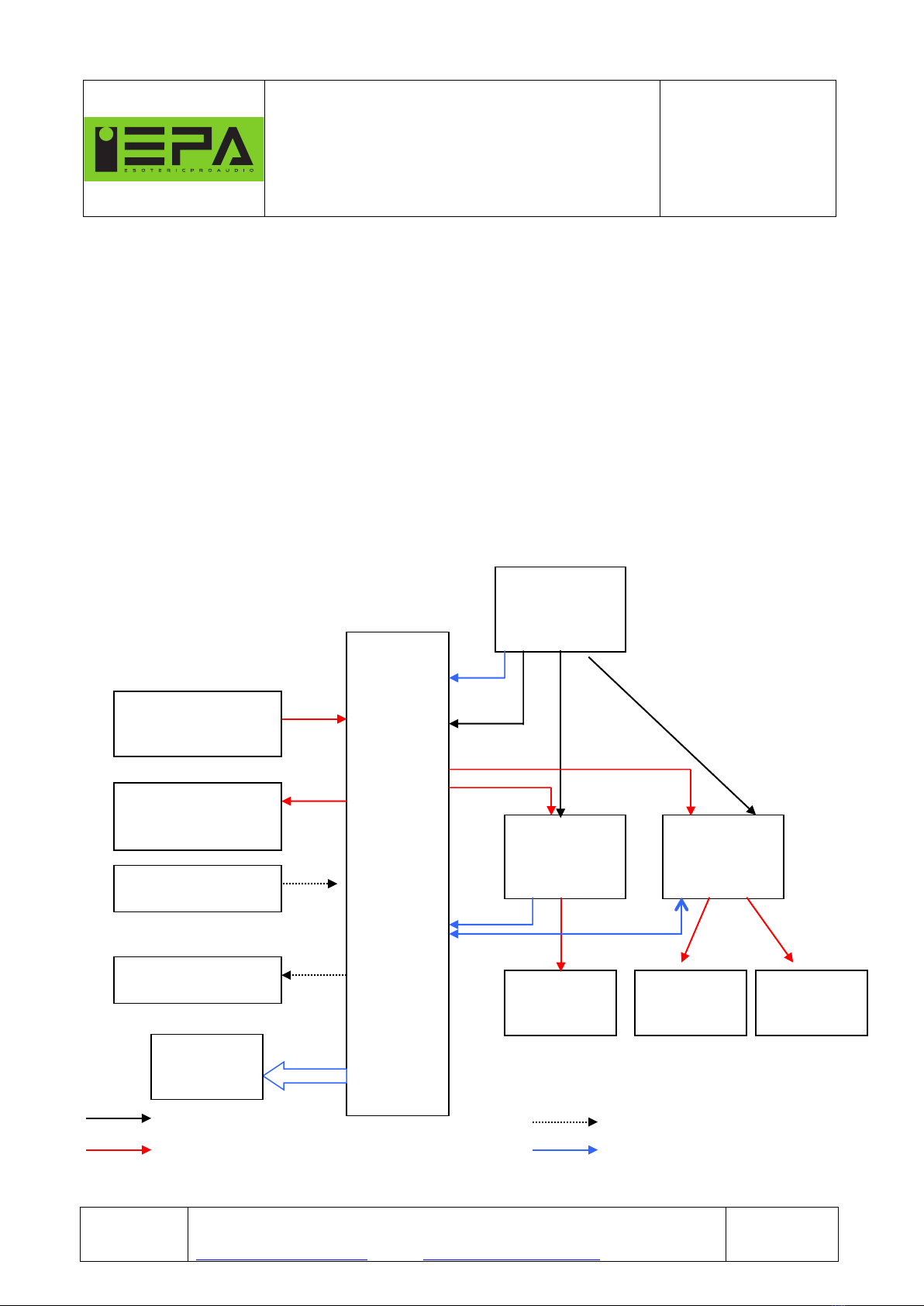

below shows a simplified block diagram of the EPA PLATE system.
Power Supply
Digital Signal
Analog Signal
Diagnostic Signals
2 link
Analog Input
2 Vrms
Controller
Digital
Signal
Processing
Buffer analog input
G=0 dB
IN - digital input
AES/EBU
OUT- digital buffer
AES/EBU
Power supply
110/230 V~
@ 300W
Amplifier
Amplifier
Speaker
(bridge)
8Ω
Speaker
4Ω
Speaker
4Ω
Notifications
Panel

SUBWOOFER FAGOTTO
& TOP FLAUTO
Page 9 of 17
EN 1.0
ESOTERIC PRO AUDIO di Mirko Marogna Via Cà dell’Aglio 3 int. 3
37036 San Martino B.A. (VR) - ITALY
www.esotericproaudio.com e-mail: [e-mail]
Pag. 9 of 17
4.1 Tech specs
The audio system consists essentially of 2 cabinets: sub tuba and top flauto. The following paragraphs show in detail the
contents of the cabinets and the technical description of the internal equipment.
Environmental operating conditions:
−Temperature:
−Humidity:
−Atmospheric pressure
10 °C – 50 °C
10 - 85% non condensante
0,7 ÷1,04 atm
Environmental storage conditions:
−Temperature:
−Humidity:
-20÷ 50 °C
≤95% non condensante.
4.1.1 Sub Corno Cabinet.
Wood casing with external finish with black polyurethane paint containing the subwoofer and the electronics of the
audio system.
Dimensions
485 x 710 x 790 mm (WxDxH)
19,09 x 27,95 x 31,01 inch (WxDxH)
Weight
Kg 48/ 105,85 lbs
4.1.1.1 Audio system electronics
Single-phase power supply (L-N-PE) equipped with internal protection
against overcurrent and overvoltage with automatic reset.
110-230 V~, 300W , 50/60Hz
Classification for the purposes of electrical risks
Class 1

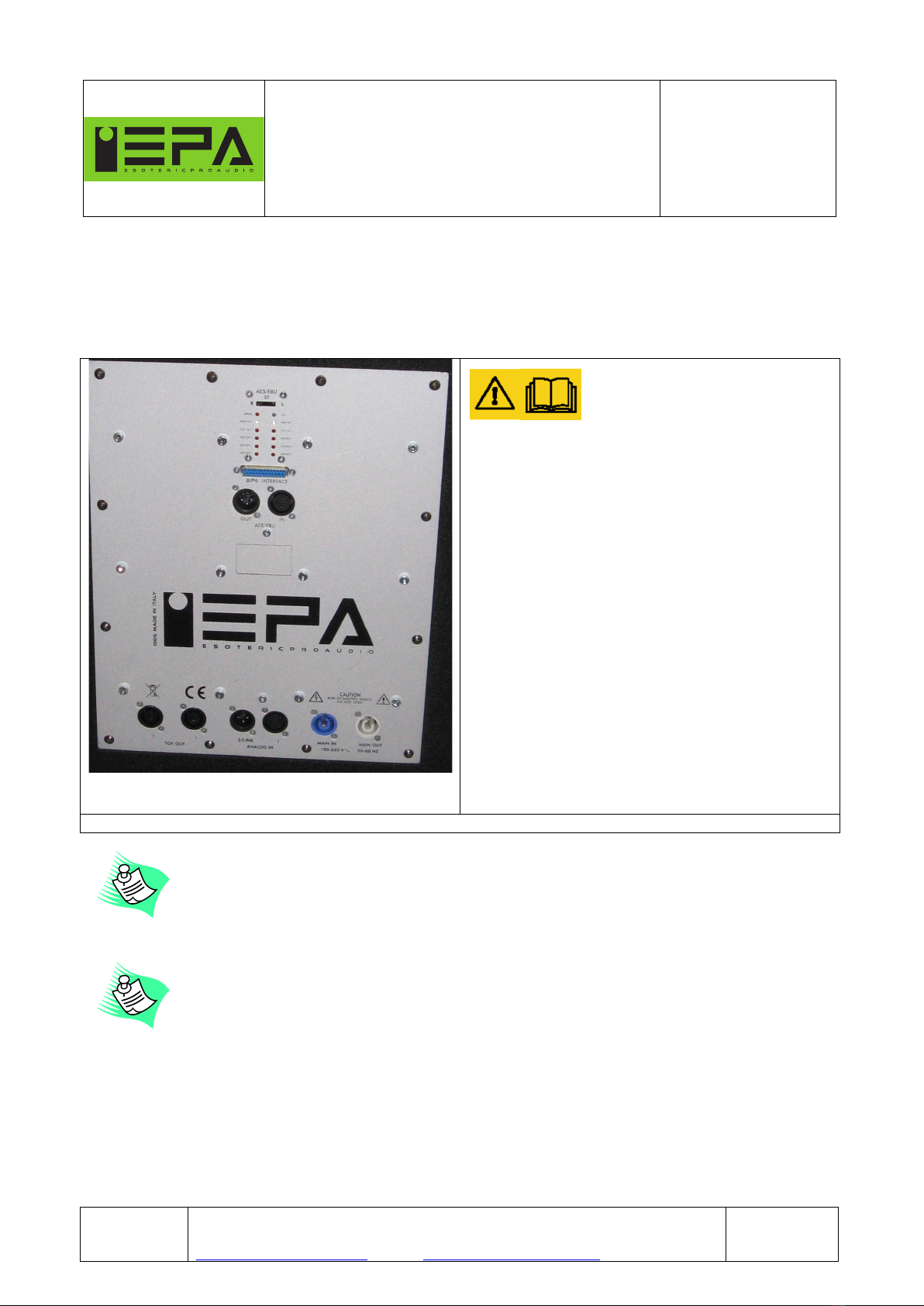

Co Interface interface inputs / outputs connections1
−Main in. POWERCON NAC3FCA Socket, blue color
−Main out. Plug POWERCON white color, maximum amp 12 A
−Analog input 1 F XLR 3 pin, impedance input 10 KΩ, Vmax = 2 Vrms..
Pin out:
1 = Signal GND
2 = + IN1
3 = - IN1
−Analog input 2 F XLR 3 pin, impedance input 10 KΩ, Vmax = 2 Vrms..
Pin out:
1 = Signal GND
2 = + IN1
3 = - IN1
1The type of connector (male-female) refers to the one on the interface panel.

SUBWOOFER FAGOTTO
& TOP FLAUTO
Page 10 of 17
EN 1.0
ESOTERIC PRO AUDIO di Mirko Marogna Via Cà dell’Aglio 3 int. 3
37036 San Martino B.A. (VR) - ITALY
www.esotericproaudio.com e-mail: [e-mail]
Pag. 10 of 17
−Digital input, standard AES/EBU2,. Balanced input 110 Ω. Socket F XLR- 3 pin.
−Digital output, standard AES/EBU,. Balanced input buffer 110 Ω, Plug M XLR- 3 pin.
−Top out 1-2. Socket SpeakCon 4 pole
1 + = output +
1 - = output -
2 + = NOT IN USE
2 - = NOT IN USE
Luminous signals
2AES/EBU (Audio Engineering Society/ European Broadcasting Union) is a standard format for digital audio, used to interface different devices
with each other. It reflects part 4 of the international standard IEC 60958.
Audio System
−Digital floating point processor for processing audio signals in real time.
−ADC: 32 bit, 768 KHz, dynamic range 123 dB;
−DAC: 32 bit, 768 KHz, dynamic range 120 dB;
−Class D power amplifier for piloting a woofer.
oRms power 1400 W, THD MAX 1%.
othermal protection with automatic reset against overload and output short circuit.
oOutput frequency range 45 - 140 Hz
−n. 1 subwoofer FAGOTTO:
odiameter 15”
oImpedance 8 Ohm
−Class D power amplifier piloting n. 2 speaker top Flauto.
oEach rms power 700W, THD MAX 1%.
othermal protection with automatic reset against overload and output short circuit
ofrequency range output 140Hz- 20KHz.
−Audio coverage width 180°
ERROR
ON
Fault reporting. The system
is in a protected state
System ready
SIGN IN2
SIGN IN1
Digital input signal
presence.
Presence of digital or
analogue input signal
CLIP IN2
CLIP IN1
Signal level greater than
70% of the maximum value
(-3dB)
Signal level greater than
70% of the maximum value
(-3dB)
CLIP OUT 1
CLIP OUT2
Subwoofer amplifier output
level greater than 70% of the
maximum value (-3dB)
Subwoofer amplifier output
level greater than 70% of the
maximum value (-3dB)
CLIP OUT4
CLIP OUT 3
Top flute amplifier output
level greater than 70% of the
maximum value (-3dB)
Top flute amplifier output
level greater than 70% of the
maximum value (-3dB)
CLIP OUT6
CLIP OUT5
Not in use
Not in use

SUBWOOFER FAGOTTO
& TOP FLAUTO
Page 11 of 17
EN 1.0
ESOTERIC PRO AUDIO di Mirko Marogna Via Cà dell’Aglio 3 int. 3
37036 San Martino B.A. (VR) - ITALY
www.esotericproaudio.com e-mail: [e-mail]
Pag. 11 of 17
Cabinet top Flauto
Wood casing with external finish with black polyurethane paint.
Tech specs:
N. 8 Full range speakers
3”
Impedance
4 Ohm
Nominal Power
350 W
Dimensions
145 x 120 x 675 mm (WxDxH)
5,70 x 4,72 x 26,57 inch
Weight
10,4 Kg / 22,92 lbs
Input type
Speakon 4 pole black.
1 + = output +
1 - = output -
2 + = NOT IN USE
2 - = NOT IN USE
Coverage angle
Horizontal: 95° , Vertical: 5°
for fixing the top flauto cabinet, we recommend using only the original accessories.
Mounting description
Code
Stand
ST1
Wall mount bracket
WM1
Truss mount bracket
TM1
Line array mount bracket
LA1
4.2 Law references
The legislative references applied are:
−2014/30/UE Directive EMC
−2014/35/UE Directive LVD
−2011/65/CE Directive RoHS2
The national technical standards applied for compliance with the legislative references referred to above are:
−EN 60065 (2016-05 / A11_2017)
−EN 55032 (2008_07)
−EN 55103-2 (2009_07), Elettromagnetic environment E2/E3
−EN 61000-3-3 (2013-08)
−EN61000-3-2 (2014-08)
−EN 50581 (2013-05)

SUBWOOFER FAGOTTO
& TOP FLAUTO
Page 12 of 17
EN 1.0
ESOTERIC PRO AUDIO di Mirko Marogna Via Cà dell’Aglio 3 int. 3
37036 San Martino B.A. (VR) - ITALY
www.esotericproaudio.com e-mail: [e-mail]
Pag. 12 of 17
5. INSTALLATION AND STORAGE
5.1 Checks upon arrival of the equipment
Carefully remove the packaging and check the integrity of the contained parts.
In the event of damage or missing items or if defects or damage
are noted, do not attempt to repair the equipment but contact the
service center, indicating the model, the code and the serial
number of the appliance (see Pic.2.2.1. of plate)
Pic.5.1.1.
5.2 Storage
If the appliance is not used for long periods, keep the equipment in a sheltered place, dry, clean and
dust-free.
6. SETUP INSTRUCIONS
6.1 Electrical connection.
The good functioning of the equipment and compliance with the safety requirements are only
guaranteed if connected to an efficient electrical system built according to the laws in force (in Italy
Legislative Decree 37/2008). The manufacturer assumes no responsibility for any damage to the
equipment or to third parties caused by the use of a system that does not comply with current
regulations.
Electric maintenance technician: qualified technician able to operate in presence of voltage inside
cabinets, junction boxes and electrical systems. To operate the equipment in normal operating conditions,
proposed for all electrical adjustments, maintenance and repairs.

SUBWOOFER FAGOTTO
& TOP FLAUTO
Page 13 of 17
EN 1.0
ESOTERIC PRO AUDIO di Mirko Marogna Via Cà dell’Aglio 3 int. 3
37036 San Martino B.A. (VR) - ITALY
www.esotericproaudio.com e-mail: [e-mail]
Pag. 13 of 17
It is recommended to use cables
of connection and quality connectors
certificates for the type of use.
−Main in. PowerCon connector 3-pin blue. Cable 3 x
1.5 mm2 flexible type, flame retardant.
−Main out. 3-pole PowerCon connector White.
Maximum current 12 A.
−Top Out 1-2. 4-pin Speakon connector black. Cable 2
x 2.5 mm2 (2 x1 0 AVG), pure copper (OFC), flame
retardant, Soft Touch flexible PVC insulation.
Connections: 1+ (positive), 1- (negative), 2+ (not
used), 2- (not used).
−Analog IN 1. 3-pin XLR connector socket. 2-pole
cable plus screen. Maximum length 100m.
−Analog IN 2. 3-pin XLR connector socket. 2-pole
cable plus screen. Maximum length 100m..
−Digital input, AES / EBU standard. Connector
connector connector XLR - 3-pin - male. 110 Ω
impedance balanced cable, maximum length 100 m.
−Digital buffer output, AES / EBU standard.
Connector XLR - 3 pin. 110 Ωimpedance balanced
cable, maximum length 100 m.
−EPA Interface, Serial port technical dignostic.
Interface Panel
The connection of the digital input signals deactivates the analogue input signals. The AES / EBU
slide selector selects the operation of the system as either the right (R position) or left (L position)
audio channel.
In case of operation with analogue audio input, to avoid anomalous loudspeaker excursions, it is
advisable to turn on the control panel first and then the audio system.

SUBWOOFER FAGOTTO
& TOP FLAUTO
Page 14 of 17
EN 1.0
ESOTERIC PRO AUDIO di Mirko Marogna Via Cà dell’Aglio 3 int. 3
37036 San Martino B.A. (VR) - ITALY
www.esotericproaudio.com e-mail: [e-mail]
Pag. 14 of 17
6.2 . Periodic maintenance
!
Periodically clean the casing of the appliance using a soft cloth moistened with neutral and non-
aggressive detergents and dry with a dry cloth.
7. FAULTS AND ANOMALIES.
For any malfunction or failure contact the authorized service center.
Never open the casing of the equipment unless expressly authorized in writing by our service center.
Failure to comply with this rule will result in immediate forfeiture of the warranty and the
consequent responsibilities for the aspects concerning the safety and operation of the equipment.

SUBWOOFER FAGOTTO
& TOP FLAUTO
Page 15 of 17
EN 1.0
ESOTERIC PRO AUDIO di Mirko Marogna Via Cà dell’Aglio 3 int. 3
37036 San Martino B.A. (VR) - ITALY
www.esotericproaudio.com e-mail: [e-mail]
Pag. 15 of 17
8. DISPOSAL
INFORMATION TO USERS
Pursuant to art. 13 of Legislative Decree 25 July 2005, n. 151 "Implementation of
Directives 2002/95 / EC, 2002/96 / EC and 2003/108 / EC, concerning the reduction
of the use of hazardous substances in electrical and electronic equipment, as well as
the disposal of waste" The crossed bin symbol on the appliance indicates that the
product at the end of its useful life must be collected separately from other waste.
Therefore, the user must provide the equipment with the essential components at the
end of its life to the appropriate collection centers for electronic and electrotechnical
waste, or return it to the retailer when new equipment of an equivalent type is
purchased, in order to one by one. The adequate separate collection for the
subsequent start of the equipment discharged to recycling, treatment and compatible
environmental disposal helps to avoid possible negative effects on the environment
and on health and favors the recycling of the materials that make up the equipment.
The illegal disposal of the product by the user involves the application of
administrative penalties provided for by current legislation.

SUBWOOFER FAGOTTO
& TOP FLAUTO
Page 16 of 17
EN 1.0
ESOTERIC PRO AUDIO di Mirko Marogna Via Cà dell’Aglio 3 int. 3
37036 San Martino B.A. (VR) - ITALY
www.esotericproaudio.com e-mail: [e-mail]
Pag. 16 of 17
9. WARRANTY
TERMS AND CONDITIONS:
The Esoteric Pro Audio company guarantees the equipment for a period of 12 months.
The warranty begins on the date of purchase indicated on the fiscal document at the time of delivery of the equipment.
The company undertakes to repair or replace for free those parts that have manufacturing defects within the warranty
period, the warranty does not include any form of compensation arising from direct or indirect damage to persons or
property.
During the warranty period, if the Customer wants the repair to be carried out at the place of installation by the
technicians of the company, it is necessary to send a written request.
In this case the relative travel, board and lodging costs will be fully charged. For repairs or interventions caused by
defects or faults not clearly attributable to the material or manufacturing, all expenses for travel, repair and / or
replacement of all parts will be charged to the customer.
The warranty extension is excluded following a repair operation on the equipment. In case of return of parts of the
equipment, the customer will be able to make the shipment only after receiving written authorization from the company.
The costs of packing and shipping are charged to the customer (unless otherwise agreed between the parties).
The warranty does not cover accidental damage due to transport, negligence, inadequate treatment, use that does not
comply with the warnings given in this manual or for all phenomena not related to normal operation or use of the
equipment.
The warranty is void if the equipment is repaired by unauthorized third parties or if equipment or accessories not
supplied, recommended or approved by the company are used or in the case of removal or alteration of the serial
number during the warranty period.
The guarantee immediately ceases its effects in case of delay or non-payment, even partial, of the Customer.
The company declines all responsibility for any damage to persons or property, caused by improper use or imperfect use
of the equipment.
For any controversy the Judicial Court of VERONA (ITALY) is competent.

SUBWOOFER FAGOTTO
& TOP FLAUTO
Page 17 of 17
EN 1.0
ESOTERIC PRO AUDIO di Mirko Marogna Via Cà dell’Aglio 3 int. 3
37036 San Martino B.A. (VR) - ITALY
www.esotericproaudio.com e-mail: [e-mail]
Pag. 17 of 17
