Epic Office Furniture Anvil 2 User manual
Anvil 2 - User 90° Workstation
Assembly Instructions
Anvil 2-User 90° Workstation Assembly Instructions
2

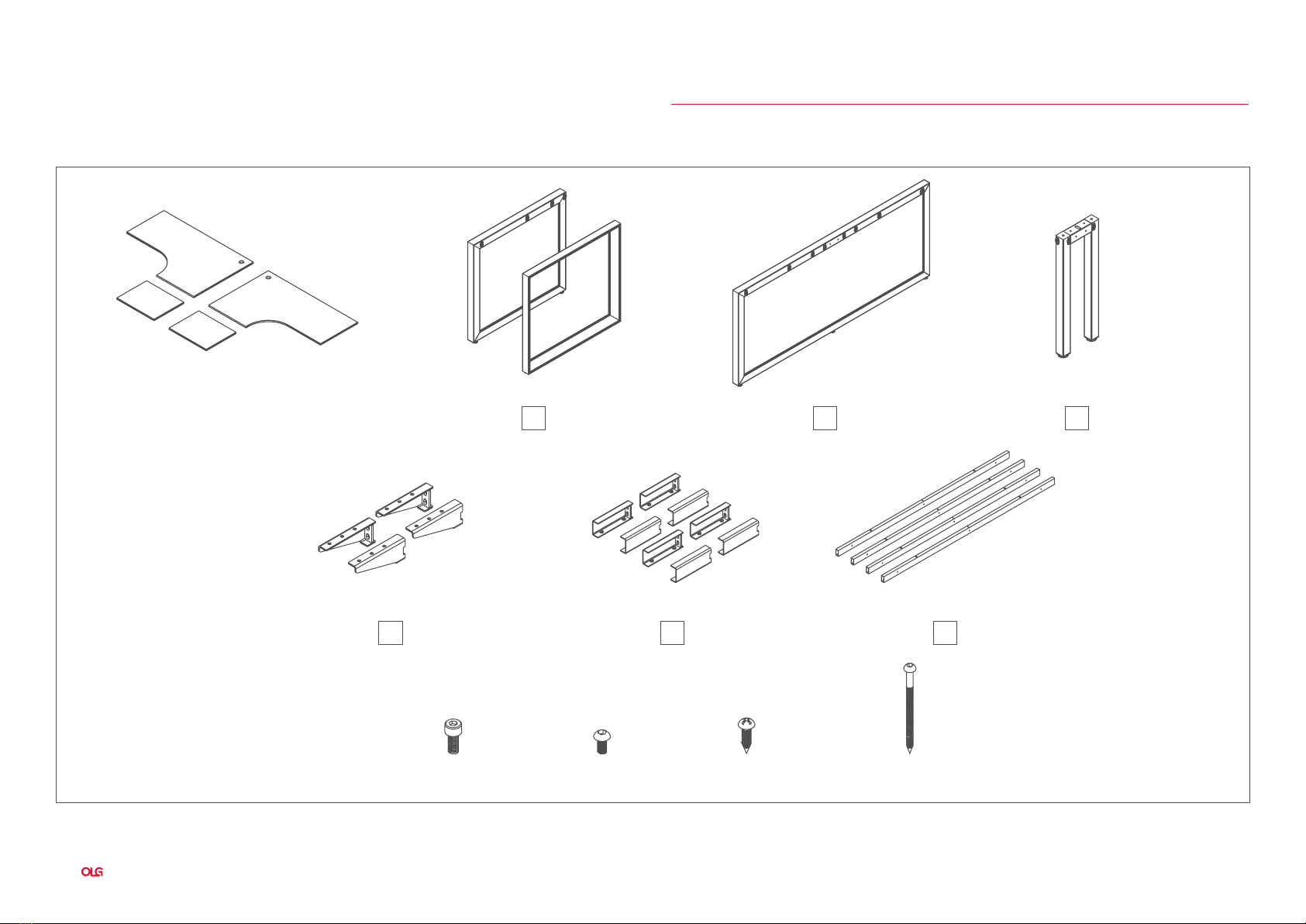

Components List
24 - M6 x 20 16 - M8 x 16 16 - ST5 x 7012 - ST6 x 23
Axis Worktop
4 x Pair AXKDSPIGE
1 x 2-Way 90° Leg
2 x Pair AXKDBRAC
1 x L & R Leg Pair
Anvil 2-User 90° Workstation
1 x End Leg
A1
EL BL SL
B C
4 x Rail
R
A2
A1
A2
Anvil 2-User 90° Workstation Assembly Instructions 3
Assembly Instructions
8 - M6 x 20
Anvil 2-User 90° Workstation
STEP 1:
EL
C
EL
B
C
B
Anvil 2-User 90° Workstation Assembly Instructions
4
STEP 2:
Anvil 2-User 90° Workstation
Assembly Instructions
B
BL
C
8 - M6 x 20
C
Anvil 2-User 90° Workstation Assembly Instructions 5
STEP 3:
Anvil 2-User 90° Workstation
Assembly Instructions
8 - M6 x 20
SL
C
C
C
C
Anvil 2-User 90° Workstation Assembly Instructions
6
STEP 4:
Anvil 2-User 90° Workstation
Assembly Instructions
16 - M6 x 16
R
R
R
R
Anvil 2-User 90° Workstation Assembly Instructions 7
Anvil 2-User 90° Workstation
Assembly Instructions
STEP 5:
A1
A2
A1
12 - ST6 x 23
8 - ST5 x 70
A2
Anvil 2-User 90° Workstation Assembly Instructions
8
Anvil 2-User 90° Workstation
Assembly Instructions
Complete:
