Rikomagic MK802 IIIS User manual

Andriod4.0 Mini PC

Andriod4.0 Mini PC—2
INDEX
DECLARATION......................................................................................................... 3
A. APPEARANCE INTRODUCTION.................................................................. 4
B. INITIAL OPERATION ...................................................................................... 4
1. HARDWARE CONNECTION INSTRUCTION. .........................................................4
2. OS INTERFACE..................................................................................................5
3. MANAGEMENT SOFTWARE ICON).....................................................................5
4. DELETE ICON....................................................................................................6
5. DRAG THE DESKTOP .........................................................................................6
6. RETURN,HOMEPAGE,PROGRAMME,PROPERTIES.............................................7
7. STATUS BAR .....................................................................................................7
8. PROGRAMME TOOL BUTTOM ............................................................................8
C. PROGRAMME, TOOLS ICON MANAGERMENT ...................................... 9
D. SETTING .......................................................................................................... 10
1. WIFI SETTING .................................................................................................11
2. USB TO RJ45 LAN ADAPTER SETTING............................................................11
E. INSTALL/DELETE PROGRAMME.............................................................. 12
1. SET UP ............................................................................................................12
2. INSTALL PROGRAMME ....................................................................................12
3. DELETE PROGRAMME.....................................................................................13
F. PICTURE, VIDEO, FILING MANAGEMENT, WEBPAGE....................... 13
1. SET UP MEDIA FILE SEARCHING FUNCTION. ....................................................13
2. HOW TO PLAY HIGH DEFINITION MEDIA PLAYER ............................................14
3. FILEING MANAGEMENT:COPY,CUT,DELETE,RENAME ................................14
4. MUSIC PLAYER...............................................................................................16
5. VISIT THE WEBSITE.........................................................................................16
G. LANGUAGE AND INPUT.............................................................................. 16
1. SELECT LANGUAGE AND USUAL INPUT METHOD.............................................16
2. KEYBOARD AND MOUSE ................................................................................17
3. SWITCH INPUT METHOD..................................................................................18
H. QUESTION & ANSWER................................................................................ 19
I. SPECIFICATIONS.......................................................................................... 20

Andriod4.0 Mini PC—3
Declaration
The user manual includes all the information of safe and correct
operation instruction. To avoid accident and product damaged, please
make sure go through all the content carefully before using the product.
Please keep the product away from high temperature, humid and dusty
environment.
Do not drop or crash the product.
Do not cut off the device when it is formatting or upgrading. Otherwise it
will cause operation system error.
Do not dismantle the device. Do not clean it by alcohol, thinner and
Benzene
We keep the right to upgrade and modify the product.
Disclaimer: We only take the responsibility to provide the product
warranty and after service. The users have to take care their data in the
device by themselves. We do not responsible for any data lost or related
lost.
The product is not water-proof.
All the pictures in the instruction are just for reference.

Andriod4.0 Mini PC—4
A. Appearance Introduction
AV out: HDMI
TF-CARD：Could be expended by T-Flash memory
MiniUSB OTG：for data transfer with computer. Reinstall the OS. It
could be converted to standard USB2.0 Port by converter.
USB Host ：For pen drive, mouse, keyboard, External HDD, could be
expended by USB Hub.
B. Initial operation
1. Hardware connection instruction.
Connect the TV set or LCD monitor by HDMI cable(in package).Set up
the TV data receive mode to HDMI port.(Refer to TV set user manual)
Suggest to use 2.4G wireless mouse and keyboard. Plug 2.4G receiver
on USB Host connector. Or Plug on USB OTG port by port converter. If
only mouse plugged, the device will provide soft keyboard in operation
system. If the device detected the physical keyboard, the soft keyboard

Andriod4.0 Mini PC—5
will be hide by OS automatically.
Mouse left button for “ok”, right button for “return”, rolling for page up and
down. Hold left button to pull icon or copy & paste file. Hold middle button
for Properties
2. OS interface
Connect power supply and devices, the booting information will show up
within 1min.
3. Management Software Icon
Hold any icon and pull it could move it to any position you like.

Andriod4.0 Mini PC—6
4. Delete Icon
Hold the icon and throw it into the red mark “X”, it will be removed.
5. Drag the desktop
Hold the arrow on any blanket space of the desktop, move it to left or right
could move to next desktop. Rolling the mouse is same operation.

Andriod4.0 Mini PC—7
6. Return, Homepage, program, properties
Return button: click to return to the upper level directory
Homepage button: Click it anytime to return to homepage.
Program button: Click to check all the running program.
Properties button: Click it will show up different menu in different
software. It similar function with Windows properties button.
7. Status bar
The right bottom corner is status bar. It shows the status of T-Flash Card,
USB connection, Time, Wifi and Download…and so on.

Andriod4.0 Mini PC—8
Click status bar, the hide menu will bound up.
Click this icon , it will shows up more options.
8. Program Tool button
It shows up right top corner of desktop.

Andriod4.0 Mini PC—9
C. Program, Tools icon management
Click to show up all the installed program and setup tools icon.
If the first desktop page file with icon, then pull or rolling mouse will
move it to second desktop page.
You could launch these program or set up directly, or hold this icon
and throw them to desktop to make shortcut.
Click it ,then hold any button to
make shortcut on desktop.

Andriod4.0 Mini PC—10

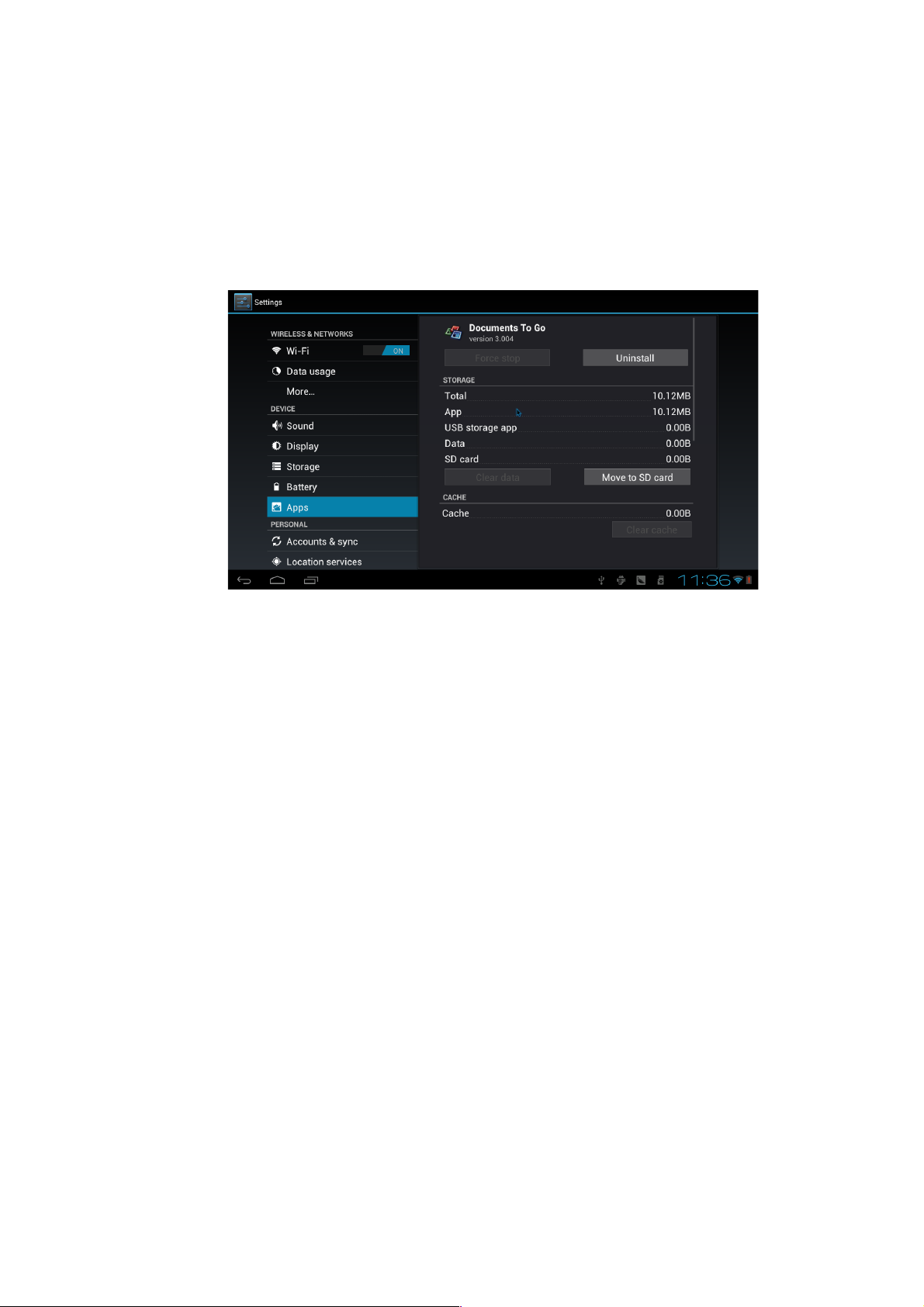

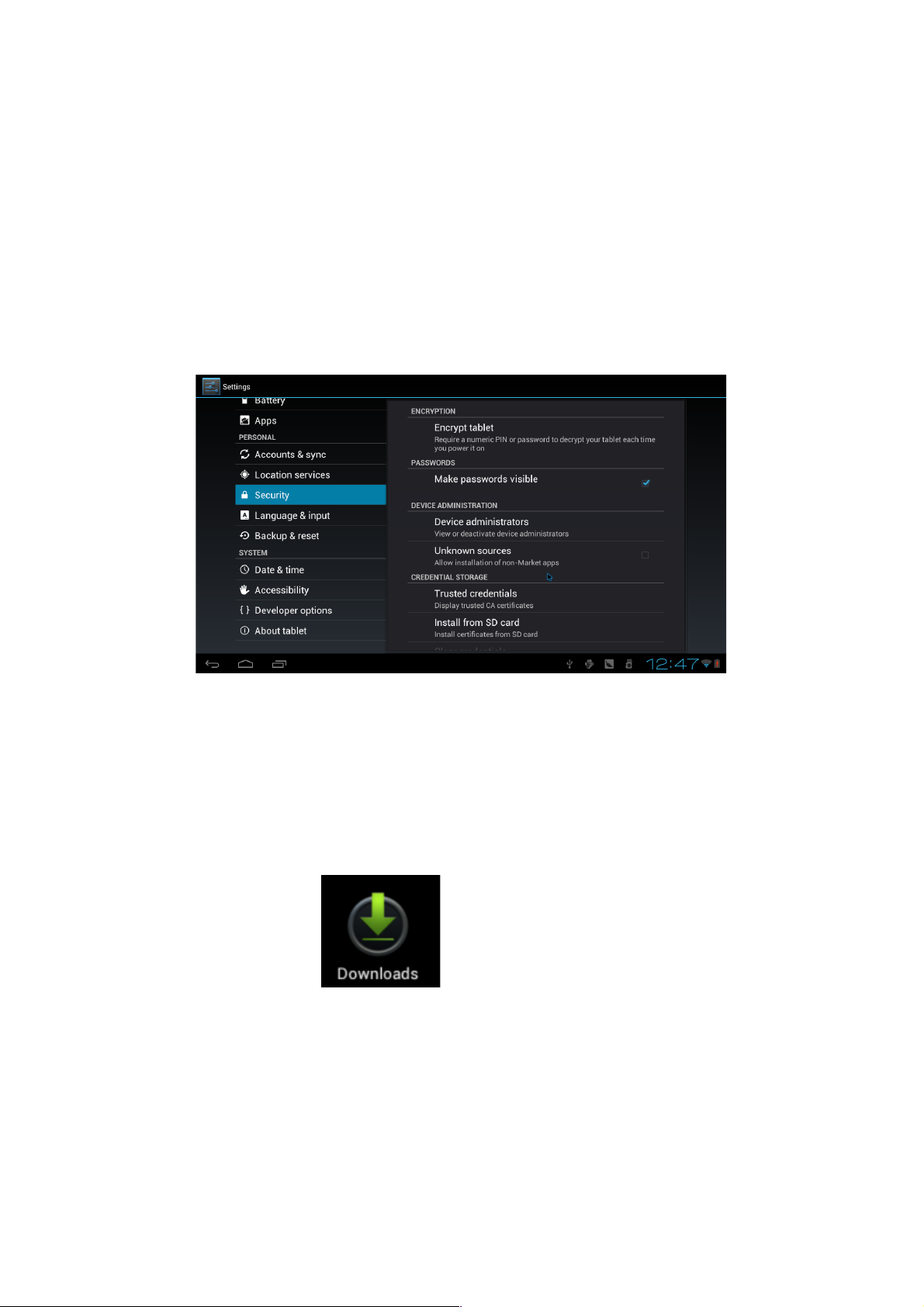

D. Setting
It is in Tool bar. Click to show it up.
