Epic NANO-PV-D5252 User manual

1
EPIC SBC with Intel® Atom™Processor D525/D425/N455, DDR3,VGA,
Dual LVDS, GbE LAN, USB 2.0, SATA II, Audio and RoHS
NANO-PV-D5252/D4252/N4552
Quick Installation Guide
Version 1.1
JUN 27, 2016.
Package List
NANO-PV-D4252/N4552/D5252 package includes the following items:
1 x NANO-PV-D4252/N4552/D5252 Single Board Computer
1 x SATA with 5V power cable
1 x KB/MS Y Cable
1 x USB Cable
1 x Audio Cable
2 x RS-232 cable
1 x Power Cable
1 x Mini Jumper Pack
1 x Driver CD
1 x One Key Recovery Utility CD
1 x QIG (Quick Installation Guide)
© 2015 Copyright by IEI Integration Corp.
All rights reserved.

2
Specifications
CPU:
Intel® Atom™ D525 dual-core processor 1.8GHz/1MB L2
cache
Intel® Atom™ D425 single-core processor 1.8GHz/512KB L2
cache
Intel® Atom™ N455 single-core processor 1.66GHz/512KB L2
cache
System Chipset: Intel ICH8M
BIOS: UEFI BIOS
System memory: One 204-pin 800MHz DDR3 SDRAM
SO-DIMM supported (System max. 2GB)
LAN: Realtek RTL8111E PCIe GbE controller with ASF2.0
support
I/O Interface:
2 x SATA II
8 x USB 2.0
1 x LPT
1 x CF Type II
4 x RS-232
1 x RS-232/422/485
2 x KB/MS
Expansions: 1 x PCI-104 slot
1 x PCIe Mini card slot (PCIe + USB + SATA signal) support
IEI mini DOM
Audio: Realtek ALC662-GR HD codec
Digital I/O: 8-bit digital I/O, 4-bit input/ 4-bit output
Super I/O: FINTEK F81865F

3
Display Interface:
Analog CRT up to 2048x1536, support for CRT hot plug
18-bit single-channel LVDS, resolution support up to 1366x768
24-bit dual-channel LVDS by Novatek NT68660BUFG,
resolution support up to 1920x1080.
Watchdog Timer:
Software programmable supports 1~255 sec. system reset by
Super I/O
Power Supply: Single +12V input
TPM (optional)
On board INFINEON SLB9635TT1.2
Power Consumption:
2.16A@12V (Intel® Atom™ D525 with 2 GB 1066 MHz DDR3)
2.08A@12V (Intel® Atom™ D425 with 2 GB 1066 MHz DDR3)
1.99A@12V (Intel® Atom™ N455 with 2 GB 1066 MHz DDR3)
Operating Humidity: 5% ~ 95%, non-condensing
Temperature: -10℃~ 60℃
-20C~60C with free air, -20C~70C with force air for D525
processor
-20C~65C with free air, -20C~70C with force air for D425
processor
-20C~70C with free air, -20C~75C with force air for N455
processor
Dimensions: 165 mm x 115 mm
Weight: GW: 850g; NW: 350g

4
Ordering Information
NANO-PV-D5252-R11:
EPIC SBC with Intel Atom D525 1.8GHz,DDR3,VGA/18+ 48bit
LVDS,GbE,USB2.0 and SATA II,Audio,RoHS
NANO-PV-D4252-R11:
EPIC SBC with Intel Atom D425 1.8GHz,DDR3,VGA/18+ 48bit
LVDS,GbE,USB2.0 and SATA II,Audio,RoHS
NANO-PV-N4552-R11:
EPIC SBC with Intel Atom N455 1.66GHz,DDR3,VGA/18+ 48bit
LVDS,GbE,USB2.0 and SATA II,Audio,RoHS
32200-015100-RS: LPT cable
32000-062800-RS:SATA cable
32200-026500-RS: RS-232/422/485 cable
19FTS00032100-000001-RS:CPU fan
34000-000510-RS:30mm higher heatsink

5
Jumpers setting and connectors
LABEL
FUNCTION
J_AUTOPWR1
AT/ATX mode selection
J_ATXCTL1
AT/ATX mode selection
J_CMOS1
Clear CMOS
J_VLVDS1
LVDS1 LCD Voltage Select
J_VLVDS2
LVDS2 LCD Voltage Select
JCF1
CF master/slave selection
J4
RS232/RS422 or RS485 Type Selection
J6
RS232/RS422 or RS485 Type Selection
J9
RS422 terminal selection
J10
RS485 terminal selection
J_VCF1
CF Voltage selection
JP1
PCI_104 voltage selection
JP3
LVDS2 load firmware type select
J_LCD_TYPE1
LVDS1 panel resolution selection
COM1,
COM 9pin Female Connector
COM2, 4, 5
Internal Serial Pin Header (RS-232)
COM3
Internal Serial Port Connectors
(RS-232/422/485)
USB0_1
USB2_3
USB4_5
Internal USB Connectors
USB6_7
External USB ports
CPU_FAN1
CPU Fan Connector
SYS_FAN1
System Fan Connector
CN1
SMBUS CONNECTOR
DIO1
Digital I/O Connector
F_PANEL1
External Switches and Indicators panel
CPU12V1
Power input connector
LVDS1
LVDS1 LCD Connector
INV1
LVDS1 Backlight Control
LVDS2
LVDS2 LCD Connector
INV2
LVDS2 Backlight Control

6
KEY1
OSD Control connector
KB/MS1
Keyboard/Mouse Connector
PT1
6 pin Din Jack KB/MS Connector
LPT
Parallel Port Connector
VGA1
VGA 15-pin Female Connector
LAN1
RJ45 LAN Connectors
SATA1~2
Serial ATA Connectors
BAT1
Battery Connector
PWR1,2
SATA power output
J_AUTOPWR1: AT/ATX1 mode setting
PIN NO.
DESCRIPTION
OPEN
ATX mode
SHORT(Default)
AT mode
J_ATXCTL1: AT/ATX1 mode setting
PIN NO.
DESCRIPTION
1-2
ATX
2-3
AT(default)
J_CMOS1: Clear CMOS
PIN NO.
DESCRIPTION
1-2 (default)
Keep CMOS Setup
(Normal operation)
2-3
Clear CMOS Setup

7
J_VLVDS1 & J_VLVDS2: LVDS1 LCD Voltage Select
PIN NO.
DESCRIPTION
1-2
3.3V(Default)
3-4
5V
5-6
12V
JCF1: CF Master/Slave selection
PIN NO.
DESCRIPTION
Short
Master
Open
Slave
J4: RS232/RS422 or RS485 Type Selection
PIN NO.
DESCRIPTION
1-2
RS232
3-4
RS422
5-6
RS485
J6: RS422 or RS485 Type Selection
PIN NO.
DESCRIPTION
1-3,2-4
RS422
3-5,4-6
RS485
J9: RS422 terminal selection
PIN NO.
DESCRIPTION
Open(Default)
NC
J10: RS485 terminal selection
PIN NO.
DESCRIPTION
Open(Default)
NC
J_VCF1: CF voltage select
PIN NO.
DESCRIPTION
Short 1-2
5V
Short 2-3
3V（default）

8
JP1: PCI-104 voltage selection
PIN NO.
DESCRIPTION
Short 1-2
5V
Short 2-3
3V（default）
JP3: LVDS2 load firmware type select
PIN 1、2
PIN 3、4
PIN 5、6
PIN 7、8
PANEL
TYPE
SHORT
OPEN
OPEN
OPEN
800 x 600
OPEN
SHORT
OPEN
OPEN
1024 x 768
(default)
SHORT
SHORT
OPEN
OPEN
1280 x 1024
OPEN
OPEN
SHORT
OPEN
1366 x 768
SHORT
OPEN
SHORT
OPEN
1920 x 1080
J_LCD_TYPE1: LVDS1 PANEL TYPE SELECT
PIN 1、2
PIN 3、4
PIN 5、6
PIN 7、8
PANEL
TYPE
OPEN
OPEN
OPEN
OPEN
640 x 480
SHORT
OPEN
OPEN
OPEN
800 x 480
OPEN
SHORT
OPEN
OPEN
800 x 600
SHORT
SHORT
OPEN
OPEN
1024 x 768
(default)
SHORT
SHORT
SHORT
OPEN
1280 x 600
OPEN
SHORT
SHORT
OPEN
1280 x 800
OPEN
OPEN
SHORT
OPEN
1280 x 1024
SHORT
OPEN
SHORT
OPEN
1366 x 768
COM1: COM 9pin Female Connector
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
DCD1
2
RX1
3
TX1
4
DTR1
5
GND
6
DSR1
7
RTS1
8
CTS1
9
RI1

9
COM2,4,5: Internal Serial Pin Header (RS-232)
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
DCD2
2
DSR2
3
RXD2
4
RTS2
5
TXD2
6
CTS2
7
DTR2
8
RI2
9
GND
10
NC
COM3: Internal Serial port connector (RS232/422/485)
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
DCD3
2
DSR3
3
RXD3
4
RTS3
5
TXD3
6
CTS3
7
DTR2
8
RI2
9
GND
10
N/A
11
RS42 TX2+/
RS485+
12
RS422 TX2-/
RS485-
13
RS422 RX2+
14
RS422 RX2-
USB0_1,2_3,4_5: Internal USB Connectors
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
VCC
2
GND
3
DATA0_N
4
DATA1_P
5
DATA0_P
6
DATA1_N
7
GND
8
VCC
USB6-7: External USB ports
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
VCC
2
DATA6_N
3
DATA6_P
4
GND
5
VCC
6
DATA7_N
7
DATA7_P
8
GND

10
CPU_FAN1: CPU FanConnector
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
FANIO1
2
FANPWM1
3
GND
SYS_FAN1: System Fan Connector.
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
FANIO2
2
VCC12
3
GND
CN1: SMBUS CONNECTOR
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
GND
2
SMB_DATA
3
SMB_CLK
4
VCC5S
DIO1: Digital I/O Connector.
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
GND
2
+5V
3
OUTPUT3
4
OUTPUT2
5
OUTPUT1
6
OUTPUT0
7
INPUT3
8
INPUT2
9
INPUT1
10
INPUT0
F_PANEL1: External Switches and Indicators panel
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
PWR_BTN+
2
PWR_LED+
3
PWR_BTN-
4
PWR_LED-
5
HDD_LED+
6
RESET+
7
HDD_LED-
8
RESET-
CPU12V1: Power input Connector
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
GND
2
GND
3
EXT_12VIN
4
EXT_12VIN

11
.LVDS1: LVDS LCD Connector.
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
GND
2
GND
3
LVDSA_DATA0
4
LVDSA_DATA0-
5
LVDSA_DATA1
6
LVDSA_DATA1-
7
LVDSA_DATA2
8
LVDSA_DATA2-
9
LVDSA_CLK
10
LVDSA_CLK-
11
NC
12
NC
13
GND
14
GND
15
L_DDC_DATA
16
L_DDC_CLK
17
LCD_VCC
18
LCD_VCC
19
LCD_VCC
20
LCD_VCC
INV1: LVDS1 Backlight Control
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
L_BKLTCTL
2
GND
3
12V
4
GND
5
ENABKL
LVDS2: LVDS LCD Connector.
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
GND
2
GND
3
1st LVDS data0 +
4
1st LVDS data0 -
5
1st LVDS data1 +
6
1st LVDS data1 -
7
1st LVDS data2 +
8
1st LVDS data2 -
9
1st LVDS clock +
10
1st LVDS clock -
11
1st LVDS data3 +
12
1st LVDS data3 -
13
GND
14
GND
15
2sd LVDS data0 +
16
2sd LVDS data0 -
17
2sd LVDS data1 +
18
2sd LVDS data1 -
19
2sd LVDS data2 +
20
2sd LVDS data2 -
21
2sd LVDS clock +
22
2sd LVDS clock -
23
2sd LVDS data3 +
24
2sd LVDS data3 -
25
GND
26
GND
27
LCD_VCC
28
LCD_VCC
29
LCD_VCC
30
LCD_VCC

12
INV2: LVDS2 Backlight Control
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
BL_Adjust
2
GND
3
12V
4
GND
5
BL_Enable
KEY1: OSD Control Connector
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
LCD-BKL
ON/OFF
2
N/A
3
LCD-Ambient
4
menu/enter
5
DOWN
6
UP
7
auto/exit
8
POWER
9
GND
KB_MS1: Keyboard/Mouse Connector
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
VCC (+5V)
2
Mouse Data
3
Mouse Clock
4
Keyboard Data
5
Keyboard Clock
6
GND
PT1: Keyboard/Mouse Connector
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
L_KDAT
2
L_MDAT
3
GND
4
GND
5
VCC
6
L_KCLK
7
GND
8
L_MCLK

13
LPT1: Parallel Port Connector
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
STB
2
AFD
3
PTD0
4
ERROR#
5
PTD1
6
INITIALIZE
7
PTD 2
8
SLIN
9
PTD3
110
GND
11
PTD 4
112
GND
13
PTD 5
14
GND
15
PTD 6
16
GND
17
PTD7
18
GND
19
ACK
20
GND
21
BUSY
22
GND
23
PE
24
GND
25
SLCT
VGA1: 15-pin Female Connector
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
RED
2
GREEN
3
BLUE
4
NC
5
GND
6
GND
7
GND
8
GND
9
VCC
10
Display_ GND
11
NC
12
DDCDAT
13
HSYNC
14
VSYNC
15
DDCCLK

14
LAN1: RJ-45 LAN Connector
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
MDI0+
8
MDI2+
2
MDI0-
9
MDI3-
3
MDI1+
10
MDI3+
4
MDI1-
11
LED 100M LED
5
GND
12
MDI2-
6
GND
13
LAN Acitve
7
MDI2-
14
VCC3
SATA1,SATA2: SATA Connector
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
GND
2
TXP
3
TXN
4
GND
5
RXN
6
RXP
7
GND
BAT1: Battery connector
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
VBAT
2
GND
PWR1,2: SATA power output
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
5V
2
GND
NOTE:
Due to limited space on the mainboard, the VGA and COM port on the I/O
panel cannot be used simultaneously. To utilize both the VGA and COM
port at the same time, please connect the RS-232 COM port cable to the
mainboard pin-header. For convenience, the mainboard provides support
for a maximum of four COM ports plus one VGA port or five COM ports
without VGA setup.

15

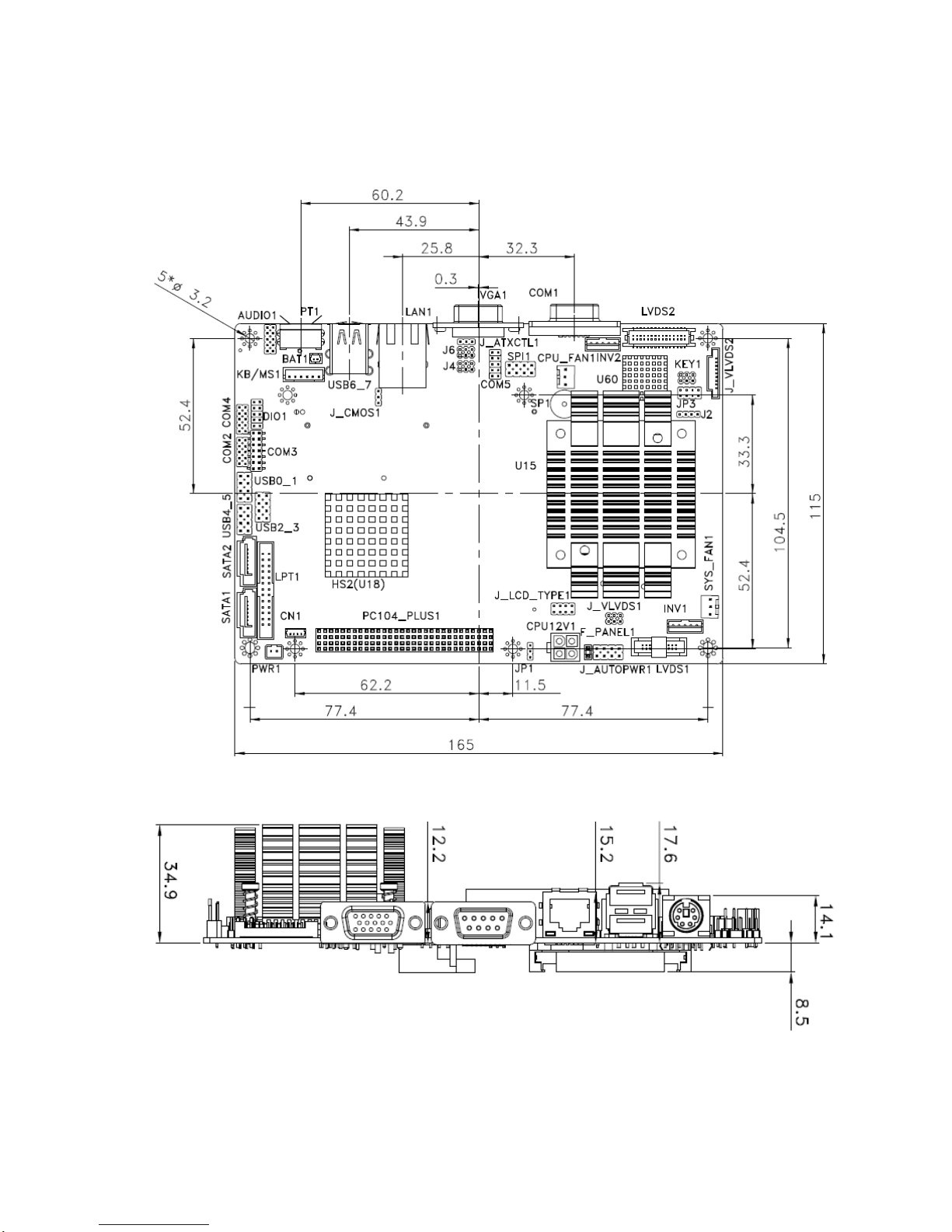

Board Layout: Jumper and Connector Locations
NANO-PV-D4252/N4552
(Unit: mm)

16
NANO-PV-D5252
(Unit: mm)
