Epomaker NiZ Plum 66/68 Extended Manual Version 1.0
Epomaker NIZ Plum 66/68
Extended Manual

Epomaker NiZ Plum 66/68 Extended Manual Version 1.0
Comments by Epomaker
If you think any part of this manual needs correction, adjustment or updating, sent the team a
message at [email protected]. You can also send a message there if you have any
issues with your keyboard.
Warranty Information
Epomaker’s Warranty covers any factory defects that might affect the proper functionality of
your purchase. It doesn’t cover any damage that may occur from normal wear and tear. If your
product is defective we will send you a replacement unit. Replacement units might require you
to send the defective unit back to Epomaker.
We provide a 1 year warranty for our products when bought from our website (Epomaker.com).
Your item will not be covered by your 1 year warranty if the inspection shows any sign of
modification or changes unsupported by the original product, these include: Changing internal
components, Assembling and reassembling the product, Replacing Batteries, etc.
We will ONLY cover the item if it is bought from our stores, you do not have a warranty with us if
you bought the item from another reseller or likewise. You are required to contact them to
resolve issues.
Where To Buy
Website
http://epomaker.com/
Amazon US
https://www.amazon.com/s?me=A31XCF3C216O31&marketplaceID=ATVPDKIKX0DER
Amazon UK
https://www.amazon.co.uk/s?k=EPOMAKER
Amazon DE
https://www.amazon.de/s?k=EPOMAKER
Aliexpress
https://www.aliexpress.com/store/5877346

Epomaker NiZ Plum 66/68 Extended Manual Version 1.0
Table of Content
Comments by Epomaker 2
Warranty Information 2
Where To Buy 2
Box Contents 4
What's included in the Box 4
Specification 4
Shortcut Keys 5
Backlight Shortcuts 5
Function Table 5
Keycap dimensions: 7
66 Key: 7
68 Key: 7
Setting Up Keyboard/Bluetooth 8
Bluetooth Functions 8
Bluetooth Light Indicators 8
RGB Light Brightness Change 8
Factory Reset 8
Issues for MacOS F1 - F12 9
Software Download 9
Firmware Flashing 9
Keyboard Configurations 10
Software Tutorial: 10
KBD84 Software 10
Lighting Configuration 10
Remapping Single Keys Configuration 11
Remapping Macros Keys Configuration 11
Remapping Mouse Key Presses 13
Simulate Key Presses 13
Extra Settings 14
USB,PS/2 Interface settings 14
Bluetooth Sleep and Power down settings 14
Clear Key Counter 14
Turn Off Battery Indicator 14

Epomaker NiZ Plum 66/68 Extended Manual Version 1.0
Box Contents
What's included in the Box
Note: This might change depending on availability
●
● NiZ Plum 66/68 Keyboard
● NiZ Dust Cover
● USB A to USB C Braided Cable (1.5m / 4.9ft)
● Keycap puller
● Extra weight springs
● USB Wireless Adapter (Bluetooth Version)
● NiZ Plum Manual
Specification
● NiZ
● PBT keycaps
● Wired, Bluetooth or Bluetooth RGB
● Electro-capacitive switches
● 35 g domes
● Pre-installed silencing rings
● Self-lubricating POM sliders
● USB-C connection (comes with USB-C cable)
● Reprogrammable layout and macro recording
● Programmable RGB backlighting (RGB version only)
● Dimensions: 11.6 x 4.3 x 1 in (29.5 x 11 x 2.5 cm)
● Weight: 25 oz (710 g)

Epomaker NiZ Plum 66/68 Extended Manual Version 1.0
Shortcut Keys
Backlight Shortcuts
Function Table
FN
+
H
=
Specific
lights
Programming software definitions, press to enter, Shutdown memory.
J
Back color
Loop between the different RGB options that will be the background of
your color effect, the layer will stack on top.
K
Led effect
color
The color that will be layered on top of the background color
L
Led effect
mode
The mode the lights will run at such as wave, static, reactive.
;:
Effect exit
Exit led effect mode
↑
luminance +
Increase brightness with 6 different levels
↓
luminance -
Decrease brightness with 6 different levels
←
Frequency +
Increase the speed of light effects with 5 levels
→
Frequency -
Decrease the speed of light effects with 5 levels
FN
+
“’
=
Trigger
Point
adjustment
Adjustable Trigger point (high/middle/low)
L-Ctrl
Caps/Ctrl
exchange
Press 3 seconds until the indicator flashes. Change between “left
Ctrl” and “Caps”.
Win
Win Lock
Press 3 seconds, the indicator should flash once to unlock once
and flash twice to lock.
L-Alt
Win/Mac
Press 3 seconds for indicator flash 2 times,Match Mac OS(
Achieve the exchange between “left Win” and “Left Alt”, “Right
Alt,FN,Right Ctrl be place of Right Win,FN,Right Alt”). Press 3
seconds for indicator flash once, match Win OS(key to return),
Q
Unit Time
4 gear to adjust the time required by the mouse cursor to move a
cell.respectively,USB:8/6/4/2ms,Bluetooth:12/9/7/5ms;correspondi
ng indicator flash 1-4 times
E
Unit Pixel
4 gear to adjust the number of pixel required by the mouse cursor
the move a cell.respectively,2/3/4/5points;corresponding indicator
flash 1-4 times

Epomaker NiZ Plum 66/68 Extended Manual Version 1.0
[{
Repeat
Rate
4 gear to adjust the speed of key hitting
respectively,×1,×2,×4,×8,corresponding indicator flash 1-4 times;In
USB/Bluetooth mode,×1 restore normal to send code,response
delay adjustment is invalid.
]}
Response
Delay
3 gear to adjust the keystroke response
delay,respectively,500,300,100ms,corresponding indicator flash
1-3 times;Default in the first gear
U
BD1
Long press 3s to pair, BD1 led flash quickly; short press into
reconnect status,BD1 led flash slowly
I
BD2
Long press 3s to pair, BD2 led flash quickly; short press into
reconnect status,BD2 led flash slowly
O
BD3
Long press 3s to pair, BD3 led flash quickly; short press into
reconnect status,BD3 led flash slowly
P
Bluetooth
start
1.Start or close bluetooth
2.keyboard link to computer:Bluetooth mode/Wire of USB swap
~`
“M” Key
Press to exchange Office mode and Program mode, ”M” Light
turned on and off after 1 second at Office mode, ”M” Light turned
on and off after 10 seconds at Program mode.
G
Game
In Game mode (indicator flashes once),keyboard speed is fast and
power consumption is high, consider this when using wireless.
B
ECO
In office energy saving mode (indicator flashes 1 time), keyboard
speed is lowered and power consumption is low.
Y
Query
power
Bluetooth mode without USB, long press for 3 seconds,four
indicator light of UIOP indicate 1-4 grid of power
\|
\ and
backspace
Press 3 seconds for indicator flash once. Exchange between “|\”
and “backspace”.

Epomaker NiZ Plum 66/68 Extended Manual Version 1.0
Keycap dimensions:
66 Key:
68 Key:

Epomaker NiZ Plum 66/68 Extended Manual Version 1.0
Setting Up Keyboard/Bluetooth
If you have the bluetooth version, you should use the adapter attached to plug it into a USB A
slot and then it should automatically pair with your keyboard, this will not be possible with the
wired version.
For charging, we suggest using a 2A charger so it charges as quick as possible.
Bluetooth Functions
Fn + BT 1 or BT 2 or BT 3 : hold for 3 seconds to pair BT light will fast blink. Note that
if you are trying to pair multiple devices, you must first turn off BT on the previously
paired devices before you can pair a new device.
Fn + BT 1 or BT 2 or BT 3: Just click it, it will change the profile, light will stay on for 5
seconds if it is successfully connected.
Fn + BT 🔋 : While the keyboard is connected by USB or charging, this key toggles
between connecting via the USB connection or connecting via Bluetooth while charging.
Bluetooth Light Indicators
ON, White: Charging
OFF: Charged
Blinking: Battery is low
RGB Light Brightness Change
Fn + ↑/↓ : 4 different levels
Factory Reset
Hold Four Keys (Esc, Ctrl(Left), →, Delete) for 5 seconds

Epomaker NiZ Plum 66/68 Extended Manual Version 1.0
Issues for MacOS F1 - F12
Sometimes with MacOS these keys will not work, you can fix this by performing the following:
(System Preferences > Keyboard > Use F1, F2, etc. keys are standard function keys …)
Software Download
This software only works for Windows 10. There is also an upgrade tool for MacOS.
Download Link:
1. Click the link for your appropriate keyboard, it will send you to a Google Doc
2. Find the newest version, click download
3. Go to your downloads folder, Click Run and go through the installer.
Firmware Flashing
In order to update the keyboard and get the newest features, you will need to run the firmware
flasher.
1. Head to the download section: https://www.nizkeyboard.com/pages/order
2. Head to the files with the “Update” section for your keyboard. You should see
“modelxxx_Vx.x.x_xxxxxxx.bin”. You want to select the newest date to get the newest
update
3. Download the software and click the “Get Version”, it will get the version of your device.
4. Click Open and choose the “modelxxx_Vx.x.x_xxxxxxx.bin” file you downloaded
5. Click Update, DO NOT disconnect your keyboard.

Epomaker NiZ Plum 66/68 Extended Manual Version 1.0
Keyboard Configurations
There are two modes - custom and office mode. In Office mode is the standard mode, here it is
non-programmable, however the custom mode is programmable and you can make different
configurations on the keyboard.
Software Tutorial:
KBD84 Software
Please make sure to set the keyboard to “Read-All” so it reads all the mappings you have on the
keyboard, otherwise you will have to start from the beginning with the blank mappings, and have
to remap every single key on the keyboard.
Lighting Configuration
1. Select “Read All” To read the configuration from your keyboard.
2. Select “LightSet” For the lighting configuration
3. Select Multikey if you want to have multiple keys lighting out in different lights, while you
can select “Set All” if you just want it to set all of the keycaps as one color/effect.If you
want to do multiple colors, select the keys that you want, and they will highlight green.

Epomaker NiZ Plum 66/68 Extended Manual Version 1.0

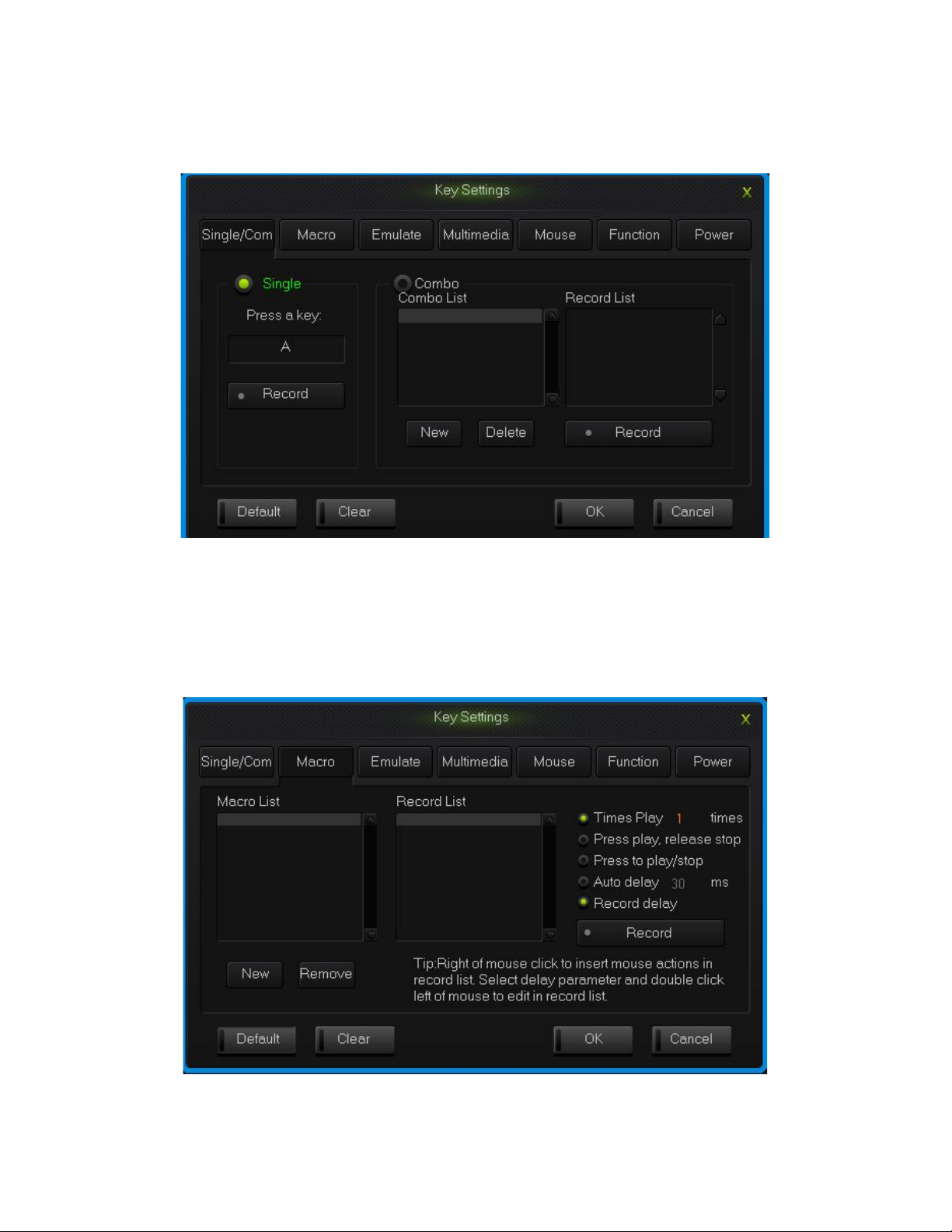

Remapping Single Keys Configuration
1. Go to the main section of the software. Select the key you would like to map.
2. For single key mapping, select the single key, press a key, and then click OK to save.
3. Click WriteKeys to save it to the memory.

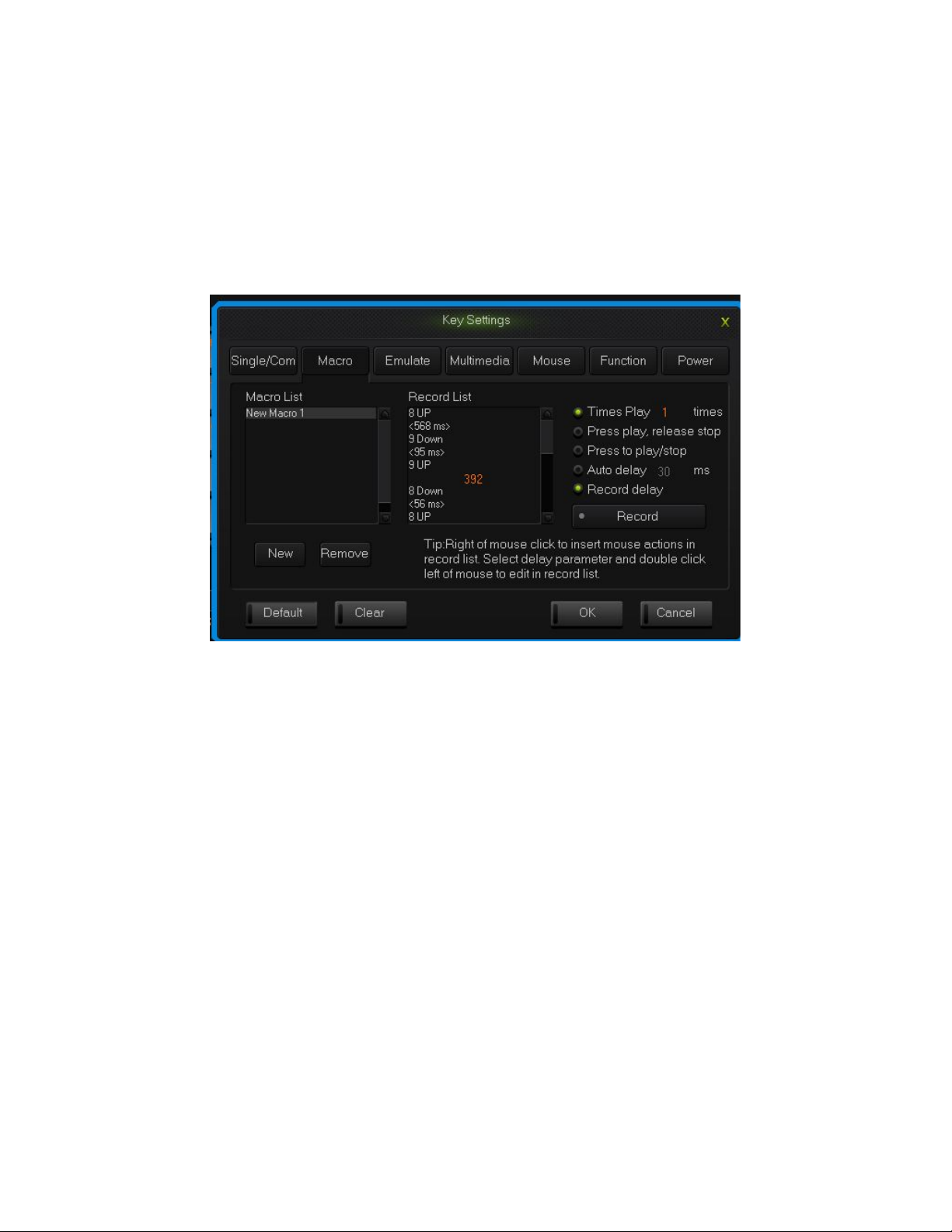

Remapping Macros Keys Configuration

Epomaker NiZ Plum 66/68 Extended Manual Version 1.0
When you code a macro, you can select for it to record delays, select how many times it runs,
etc, on the side.
1. Click the “New” Button. You can select the name of the macro to rename what it is
called.
2. Click “Record” and begin to type the macro. For example, if you want to record, for
example, if you want to record the macro to print “Hello”, you want to type “H” “e” “l” “l”
“o”.
3. Remember to press “Stop Recording” to finish your macro.
4. When you are done, you can individually edit the parts of the macro, such as the delay,
to give advanced customization. The higher this number is, the longer the delay will be
per character, in milliseconds.

Epomaker NiZ Plum 66/68 Extended Manual Version 1.0

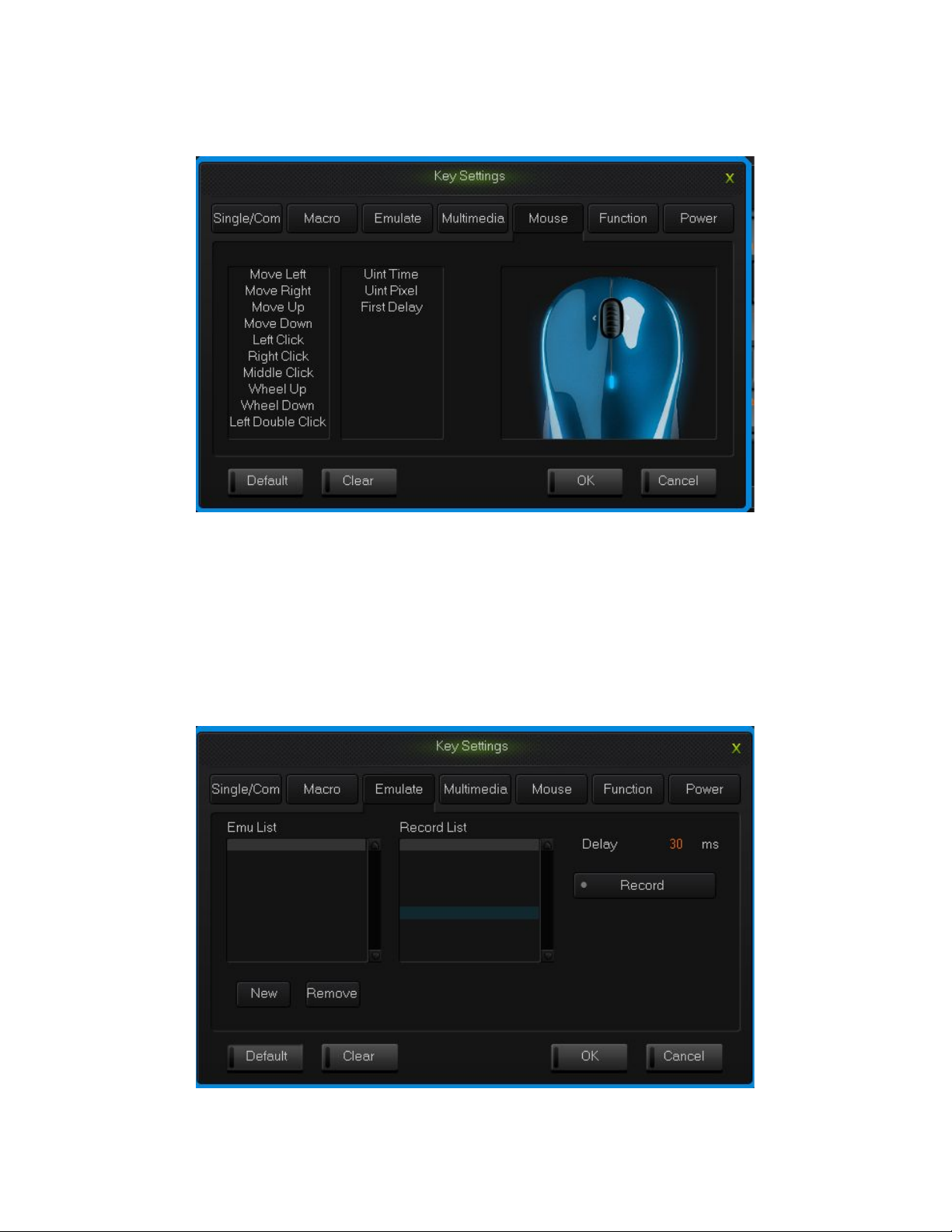

Remapping Mouse Key Presses
1. Select a key where you would like to use the mouse click or button. By default, the
mouse will be binded to FN + W/A/S/D and clicks are binded to FN + Z/Y/Z.
2. Select the keys and then take into consideration the options such as unit time, which is
the time it takes to move to the final location, unit pixel, how far it will travel, and the first
delay, how long it will wait before it starts moving when the button is pressed.
3. Press Ok, and then WriteKeys, to write it to your keyboard.
Simulate Key Presses

Epomaker NiZ Plum 66/68 Extended Manual Version 1.0
When you click the simulate key, it will simulate the key being pressed quickly, and will end
when the key bounces.
1. Click the key you need to configure, click Emulate.
2. Choose “New” in the left side of the appeared window.
3. Choose the New Emulation you made and click “Record”.
4. When you are done, click the “Stop Record”, Click OK, and then Click WriteKeys to save
to your device.
Extra Settings
USB,PS/2 Interface settings
Press “FN + Backspace” for 5 seconds, indicator will flash once for USB, and the indicator will
flash 2 times to auto identify for USB, or PS/2. The default settings are set to USB.
Bluetooth Sleep and Power down settings
Press “FN + T” for 5 seconds, indicator will flash 1-3 times and power down time set to 1-3
hours.The default power down time is set to 1 hours.
Clear Key Counter
You can do this by pressing “FN + Delete” for 5 seconds, the key counter will then be cleared.
Turn Off Battery Indicator
Turn this on/off by holding down FN + ~. You can turn it on and off anytime. This will turn the
light off below the “P” Key.
