Epson Livingstation LS47P2 User manual

Vision For over 60 years, Epson has
developed technologies that have profoundly
affected the world. Like the fact that Epson
is the number one manufacturer of LCDs
used in projection engines worldwide. Now,
we’re bringing our expertise in digital
imaging devices with our proven color
science background to the world of
home entertainment.
Welcome to the wide world of Epson

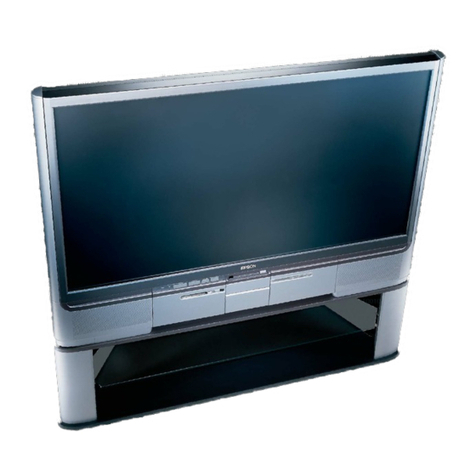

Though it boasts one of the slimmest profiles of any rear projection television, there’s nothing small about its picture quality.
Movies, sports and video games look amazing, thanks to Epson’s patented LCD technology. And with our Photo on
Demand™system, you can actually view, print and store digital images. This is television like you’ve never seen before
View Photos
Print Photos
Store Photos
• HDTV-ready (720p) with native 16:9
aspect ratio delivering six times the
resolution of NTSC
• High definition 3LCD Epson Digital
Technology for bright and highly
detailed picture clarity
• Epson’s AccuCinema Color Technology
meets cinematic mastering design for
accurate color with all of its subtle details
• Epson’s Livingstation engine with DNX
Technology,™includes digital up conversion
of all video signals, equals high quality
images all of the time
• Photo on Demand – No other
TV offers this complete photo
center to view, print, and store
your digital memories
• Extremely thin profile available in 47"
and 57" screens
• Backed by Epson’s known quality with
a 2 year on-site warranty

SPECIFICATIONS
TELEVISION
LCD panels 0.7" (poly silicon TFT LCD panel) x 3
1280 x 720 pixels x 3 panel
Display 57", 47" (16:9 aspect ratio)
Display format 720p
Colors 1.07 billion colors
Lamp 100W UHE (ultra high efficiency) lamp
Lamp life* Up to 10,000 hours
Power source AC 120V, 60 Hz
Power consumption Power ON 280W (screen, printer on)
Power OFF 1.1W (standby)
Tuning system 2 NTSC tuners
Channel coverage VHF: 2-13, UHF: 14-69, Cable: 2-125
INPUT TERMINALS
RGB Input RGB analog 0.7Vp-p (75Ω) (D-SUB15P)
Audio 0.5Vrms (M3 Stereo mini pin jack)
AV Input 1-4 Video 1.0Vp-p (75Ω) (RCA pin jack)
S-Video Y:1.0Vp-p (75Ω) (Mini DIN 4pin)
C:0.286Vp-p (75Ω)
Audio L-R 0.5Vrms (RCA pin jack x 2)
Component
Video input 1-2 Y 1.0Vp-p (with sync) (75Ω) (pin jack)
Pb/Pr ±0.35Vp-p (75Ω) (pin jack x 2)
Audio L-R 0.5Vrms (RCA pin jack x 2)
DVI-HDTV Video (DVI-D)/HDCP
Audio L-R 0.5Vrms (RCA Pin Jack x 2)
RF Input 1-2 (F-connector)
Calibration port(D-sub 9pin)
CD-R/RW drive port (USB-A)
OUTPUT TERMINALS
AV Out VIDEO 1.0Vp-p (75Ω) (RCA pin Jack)
AUDIO L-R 0.5Vrms (RCA pin jack x 2)
AUDIO L-R
(variable) 0.5Vrms (RCA pin jack x 2)
RF Output (F-connector)
IR Output (M3 stereo mini pin jack)
Headphone (M3 stereo mini pin jack)
DIMENSIONS
Dimensions (57”) 16.3" D x 54.4" W x 39.5" H
Dimensions (47”) 14.8" D x 45.7" W x 34.6" H
Weight (57”) 124lbs
Weight (47”) 106lbs
Shipping dimensions (57”) 22.9" D x 67.3" W x 48.3" H
Shipping dimensions (47”) 21.3" D x 58.5" W x 43.6" H
Shipping weight (57”) 195lbs
Shipping weight (47”) 170lbs
CABINET
Cabinet style Table top
OPERATING CONDITIONS
Temperature 41°F-95°F (5°C-35°C)
Humidity 20%-80% (non-condensing)
FEATURES
Menu languages English/Spanish/French
Tagged menu Yes
TV image freeze Yes
Picture in picture Yes (side-by-side split screen)
Channel zapping 7 channels preview
Favorite channel up to 12 channels
Channel label Yes (up to 6 characters)
Input label Yes (up to 10 characters)
Auto channel program Yes
Previous channel Yes
Closed caption Yes
Aspect control Normal/zoom/full/wide
V chip parental control Yes
Channel lock Yes
Game lock Yes
Digital comb filter 3D Y/C separation, 3D digital noise reduction,
3D digital gamma correction
3:2 pull down Yes (by PixelWorks™)
Sleep timer 30, 60, 90 min
Wide viewing angle Horizontal: 130,° Vertical: 48°
First surface mirror Yes
Screen Fine pitch high contrast screen with hard coating
HD fine pitch screen Yes (0.098mm)
Lens elements 10
Universal remote controller Yes
AUDIO
Speakers 20mm tweeter x 2
120mm full range x 2
Audio control Bass/treble/balance
Speaker enclosure type Bass ref
Amplifier 10W x 2
PHOTO ON DEMAND
Printer
Type Dye sublimation
Resolution 300dpi
Paper size 4" x 6"
Paper stacks 25 sheets
Print speed 110 seconds (approximate)
External CD-R/RW drive Plextor, PX-W5232TU (Premium-U)
Memory card slots SD™memory card/MultiMediaCard™
Memory Stick®card
Compact Flash™card
SmartMedia™card
Writing to memory cards No
Writing to CD-R/RW Yes
Slide show Yes
Jpeg file type DCF Ver 1.0, Exif 1.0-2.2
ATSC/NTSC TUNER INPUT TERMINALS
TV Antenna IN (ATSC/NTSC)
Component Video Resolution Select Switch
ATSC/NTSC TUNER OUTPUT TERMINALS
Digital Audio Output
Analog Audio Output
S-Video Output
Composite Video Output
Component Video Output
REQUIRED APPROVALS UL / cUL
ACCESSORIES IN THE BOX
Remote controller with 2AA Batteries
Photo printing packet Ink ribbon cassette and 4" x 6" photo paper
– 20 sheets
User’s guide With quick setup poster
External CD-R/RW
ATSC/NTSC STB LSDT1 Component video cable (3RCA)
Audio cable (2RCA)
PRODUCT/ACCESSORY PART NUMBERS
Epson Livingstation LS47P2 V11H165020
Epson Livingstation LS57P2 V11H166020
Replacement photo printing packet V13H151010
(ink ribbon cassette and 4" x 6" photo paper – 50 sheets)
Replacement lamp (ELSLP1) V13H010R02
OPTIONAL TV STAND
57" stand - ELSRA2 V12H003R02
47" stand - ELSRA1 V12H003R03
WARRANTY
2 year in-home parts and labor for the RPTV, 2 year exchange on printer,
ATSC/NTSC STB and CD-R/RW, 90-day lamp warranty, Epson PrivateLine dedicated
toll-free support for two years (U.S. and Canada only)
SUPPORT -THE EPSON CONNECTIONSM
Pre-Sales support U.S. and Canada 800-463-7766
Automated technical support 800-922-8911
Internet Web site www.epson.com/homeentertainment
*Lamp life results will vary depending upon mode selected, environmental conditions, and usage.
L S57P2 / L S 47P2
Epson America, Inc.
3840 Kilroy Airport Way, Long Beach, CA 90806
Epson Canada, Ltd.
3771 Victoria Park Avenue, Toronto, Ontario M1W 3Z5
Specifications and terms are subject to change without notice. Epson is a registered trademark of Seiko Epson Corporation. PowerLite is a registered trademark, Photo on Demand is a trademark, and Epson Connection and PrivateLine are service marks of Epson America, Inc. Memory Stick is a registered trademark
of Sony Electronics, Inc. All other product and brand names are trademarks and/or registered trademarks of their respective companies. Epson disclaims any and all rights in these marks. HDTV-ready requires HDTV receiver/decoder to process HDTV signal. ©2004 Epson America, Inc.
CPD-18658 3K 8/04 WP

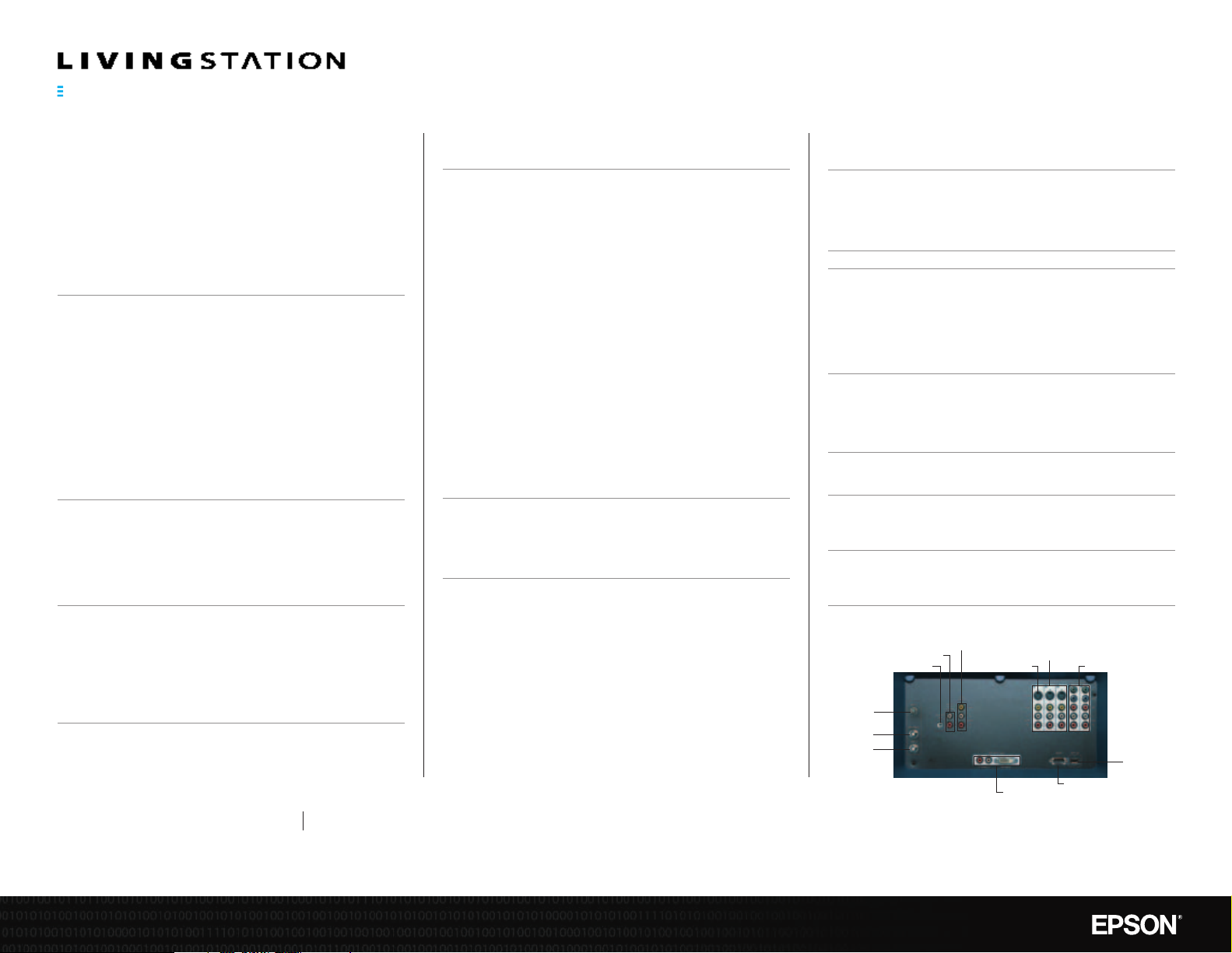

Rear Panel DVI-HDTV inputs
serial
S-video
antenna 1
audio/video output
composite video/audio inputs
component video/audio inputs
audio output variable
RF output
antenna 2
EXT. I/F
remote-out
